Range Selection

Range Selection

The transmission has 7 range positions: P, R, N, D, 3, 2 and 1.





Park

In the PARK position:

- there is no power flow through the transmission.

- the park pawl locks the output shaft to the case.

- the engine can be started.

- the ignition key can be removed.

Reverse

In the REVERSE position:

- the vehicle can be operated in a rearward direction, at a reduced gear ratio.

- backup lamps are illuminated.

Neutral

In the NEUTRAL position:

- there is no power flow through the transmission.

- the output shaft is not held and is free to turn.

- the engine can be started.

D Position

The D is the normal position for most forward driving.

The D position provides:

- automatic shifts 1-6 and 6-1.

- apply and release of the torque converter clutch.

- maximum fuel economy during normal operation.

- engine braking in all gears.

Position 3 - 3rd Gear

This position provides:

- manual 3rd gear.

- engine braking in 3rd gear.

Position 2 - 2nd Gear

This position provides:

- manual 2nd gear.

- engine braking in 2nd gear.

Position 1 - 1st Gear

This position provides:

- first gear operation only.

- engine braking for descending steep grades.

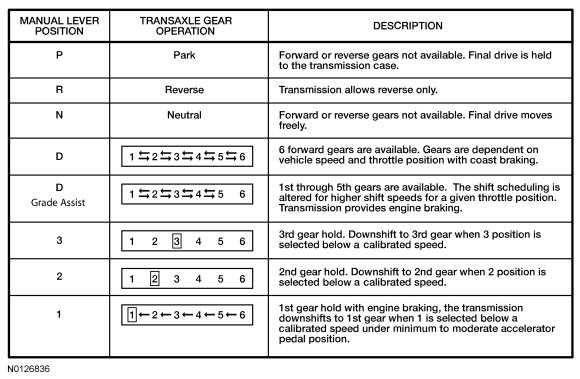

Gear Availability
