In-Vehicle Temperature Sensor

In-Vehicle Temperature Sensor

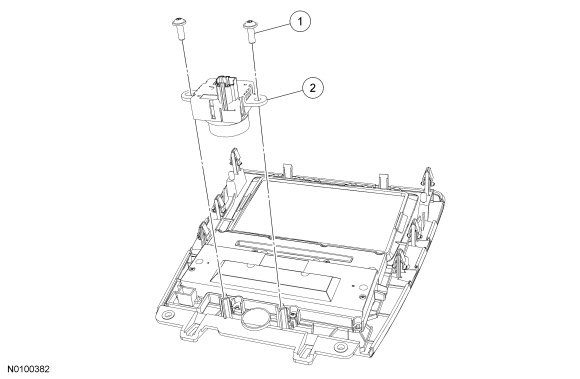

Removal and Installation

1. Remove the center instrument panel finish panel.

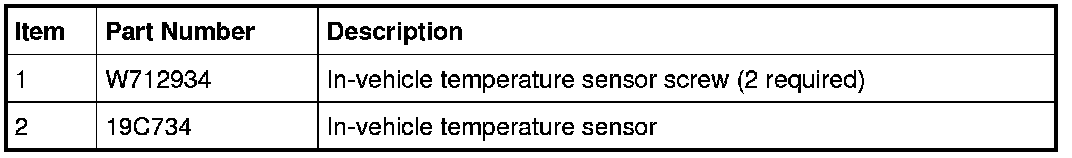

2. Remove the 2 in-vehicle temperature sensor screws.

3. Remove the in-vehicle temperature sensor.

4. To install, reverse the removal procedure.
