Fuel Pump Control Unit: Service and Repair

Fuel Pump Control Module









Removal and Installation

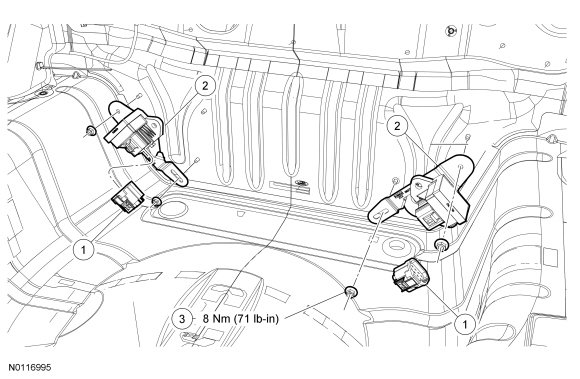

NOTE: Each fuel pump control module is located in the spare tire stowage compartment and is serviced separately.

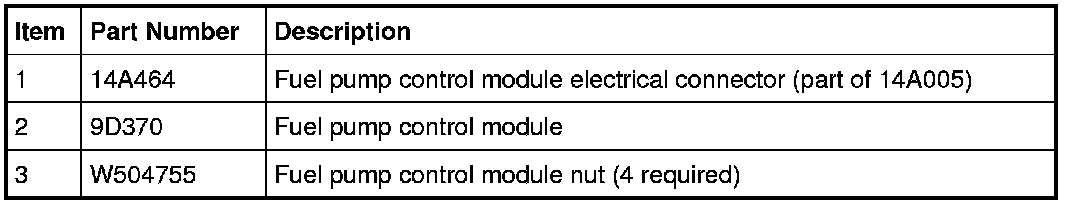

1. Disconnect the fuel pump control module electrical connector.

2. Remove the 2 nuts and the fuel pump control module.
- To install, tighten to 8 Nm (71 lb-in).


3. To install, reverse the removal procedure.
