Removal and Replacement

Fuel Tank





Removal and Installation

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the battery ground cable.

3. Drain the fuel tank.

4. If equipped, remove the rear support braces.

5. Remove the exhaust intermediate pipe(s).

6. Remove the driveshaft.

7. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling.

8. NOTE: Some residual fuel may remain in the fuel tank filler pipe after draining the fuel tank. Carefully drain any residual fuel into a suitable container.
Release the clamp and disconnect the fuel tank filler pipe from the fuel tank.

- To install, tighten clamp to 6 Nm (53 lb-in).

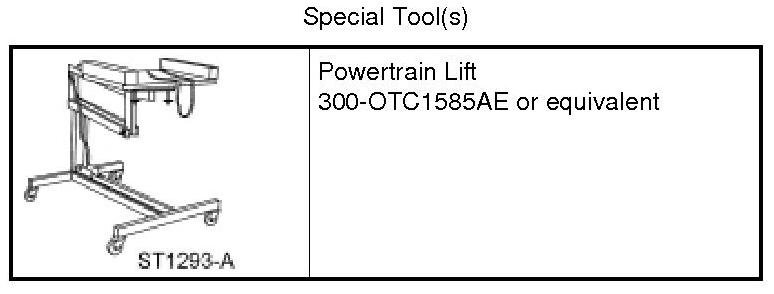

9. Position the Powertrain Lift under the fuel tank.

10. Position the emergency brake cables away from the fuel tank.

11. Remove the 2 bolts, pins and the fuel tank straps.
- To install, tighten to 52 Nm (38 lb-ft).


12. Completely lower and remove the fuel tank from the vehicle.

13. To install, reverse the removal procedure.
