Fuel Rail and Fuel Injector - Exploded View

Fuel Rail and Fuel Injector - Exploded View

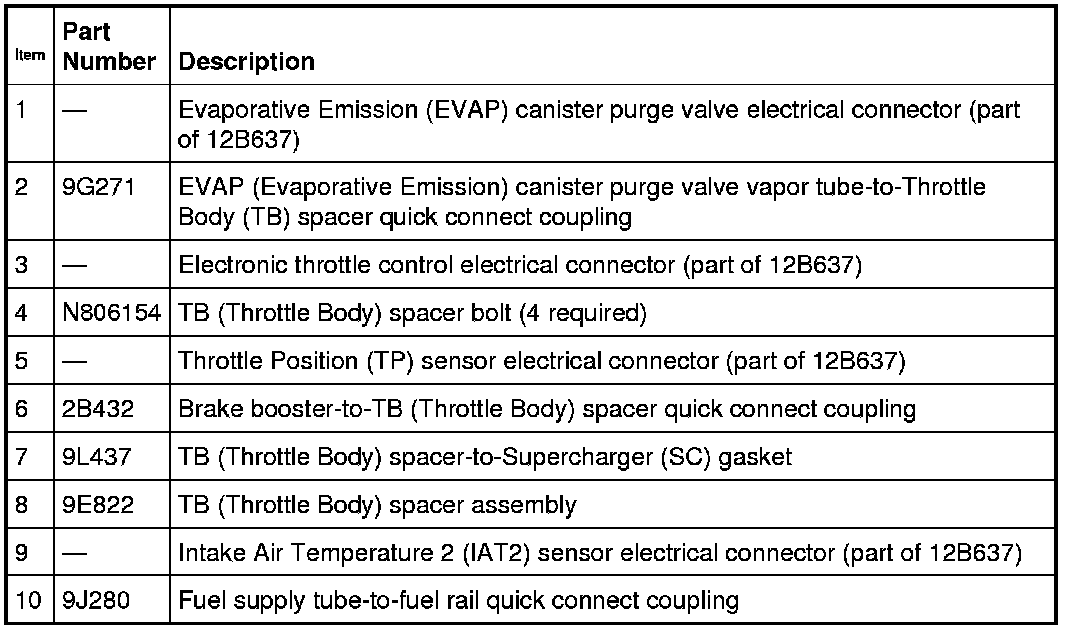

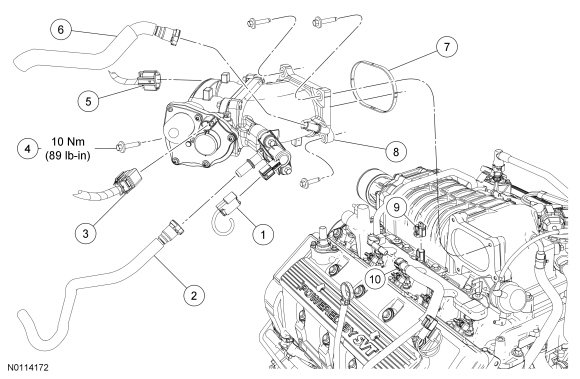

Throttle Body and Spacer

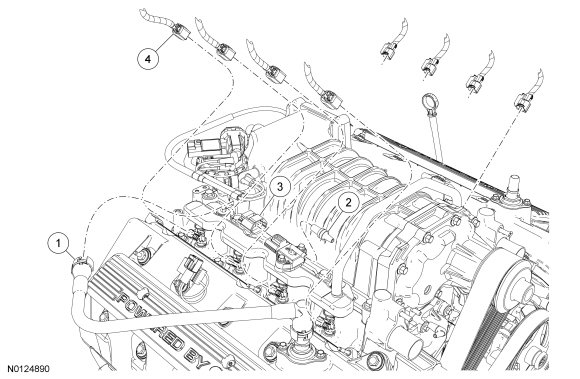

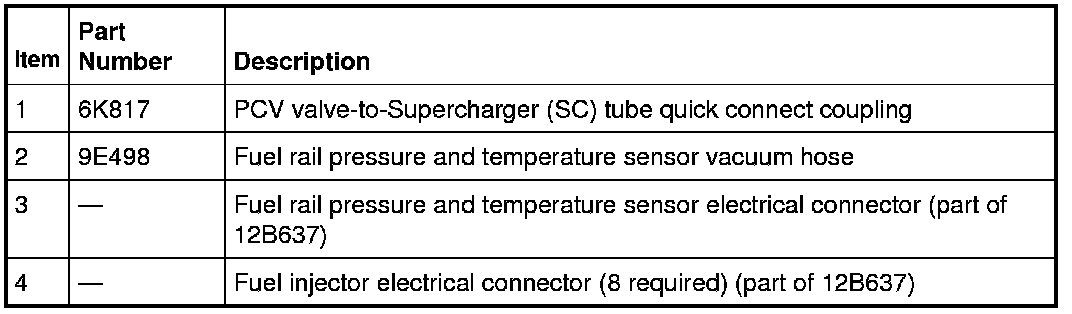

Electrical Connectors and Hoses

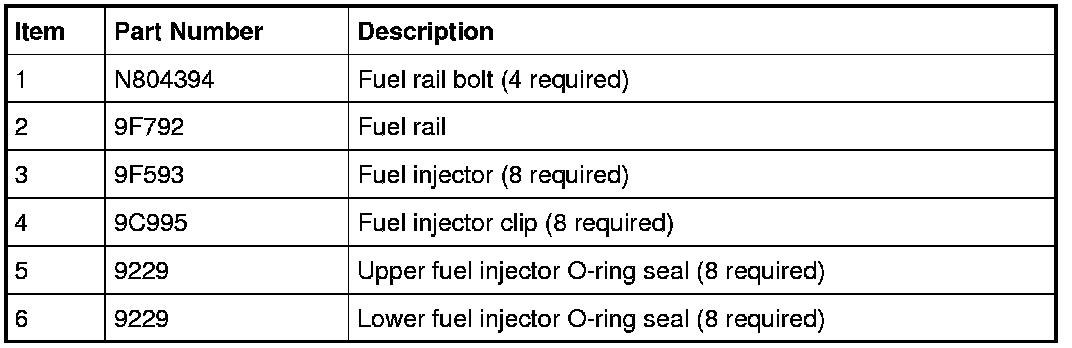

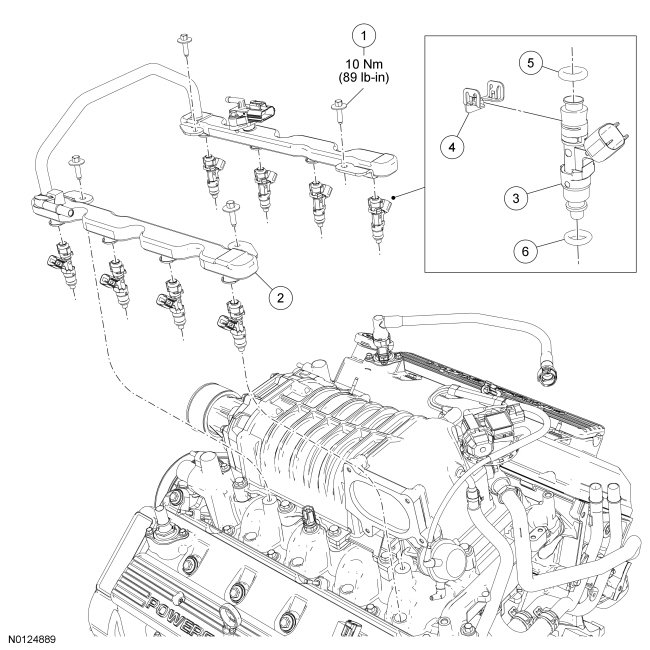

Fuel Rail and Injectors










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
