Accelerator Pedal: Service and Repair

Accelerator Pedal









Removal

1. NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connectors.

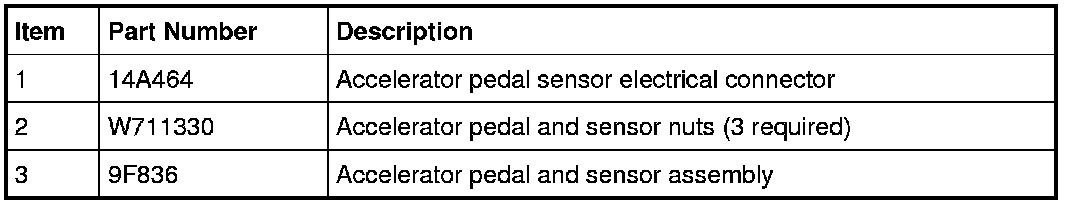

Disconnect the accelerator pedal sensor electrical connector.

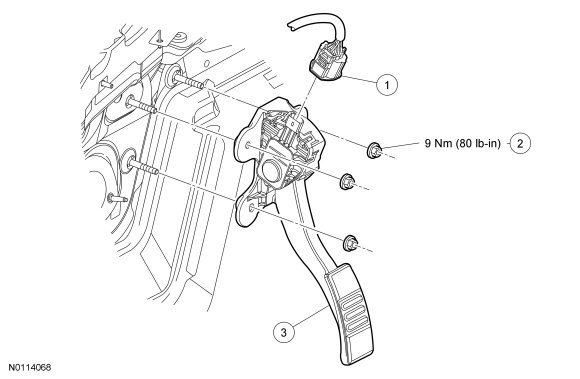

2. Remove the 3 nuts and the accelerator pedal and sensor assembly.

Installation

1. Install the 3 nuts and the accelerator pedal and sensor assembly.
- Tighten to 9 Nm (80 lb-in).


2. Connect the accelerator pedal sensor electrical connector.
- Make sure that the red lock tab on the electrical connector is fully engaged to make sure of a complete connection.
