Test A: No Start

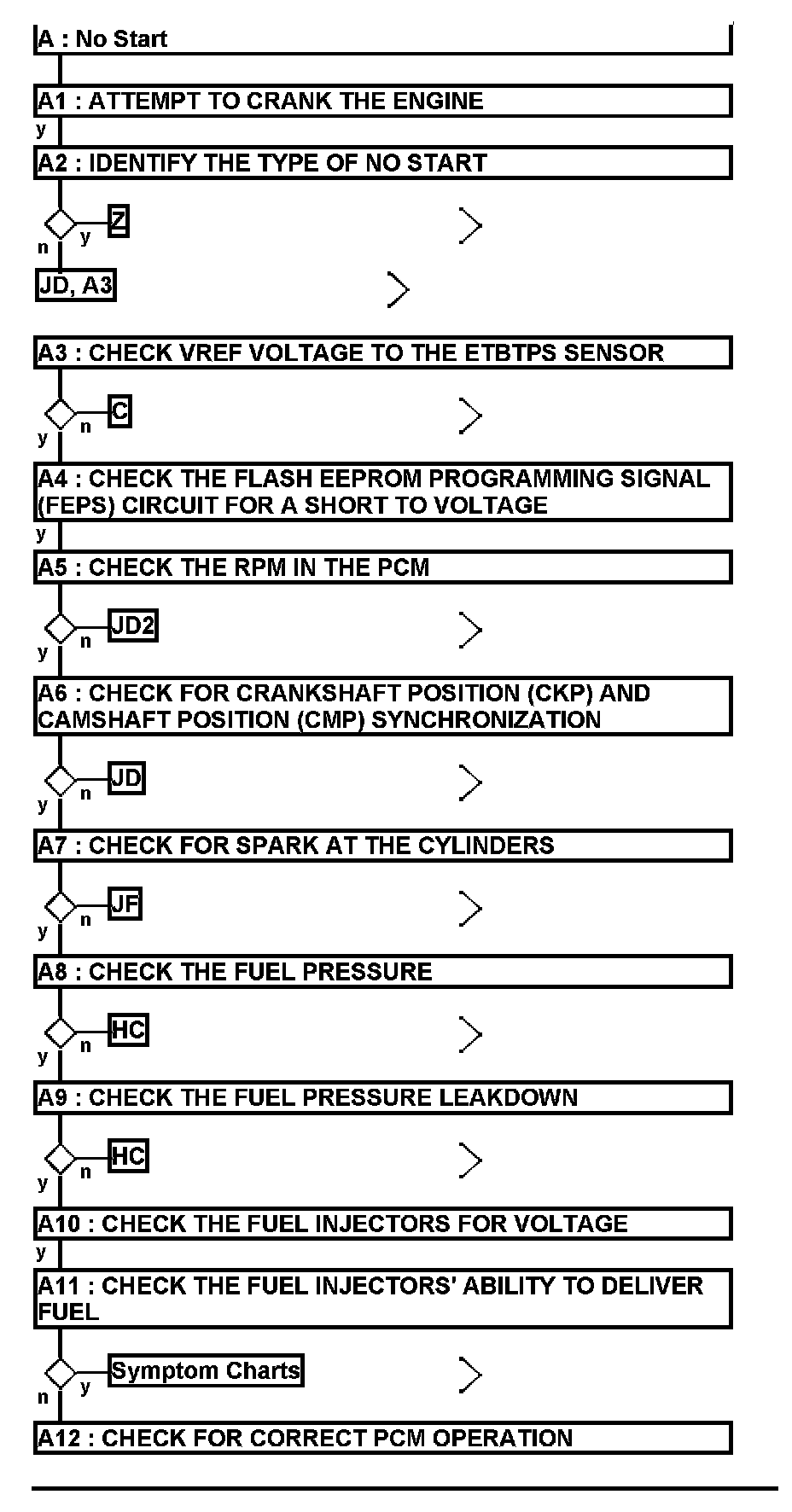

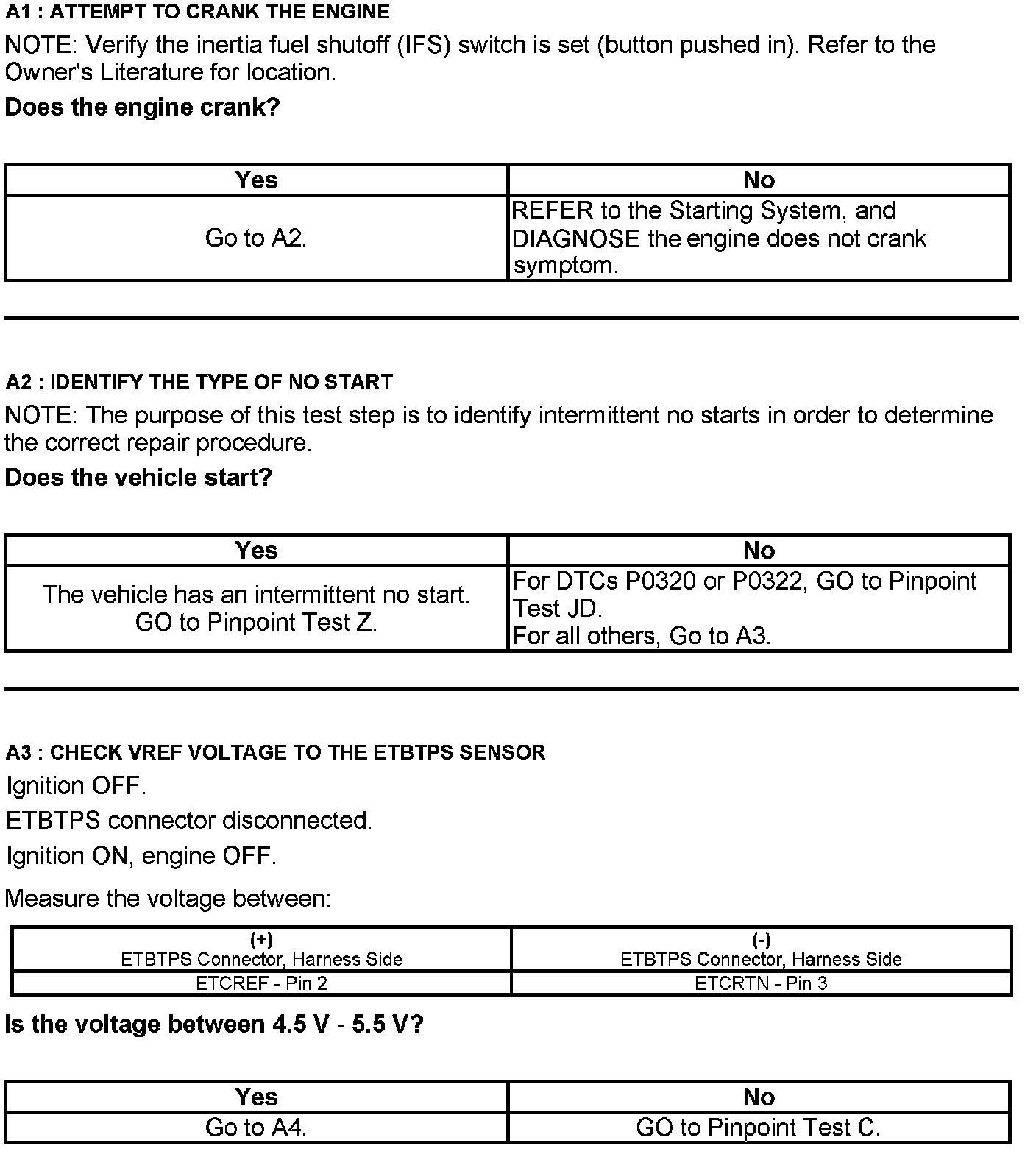

No Start

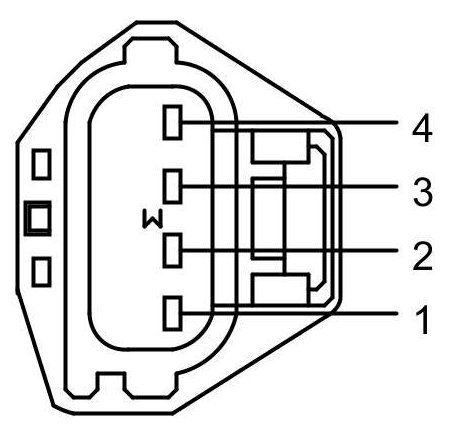

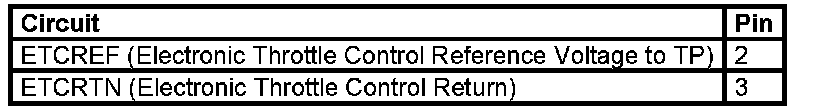

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector




Harness Side

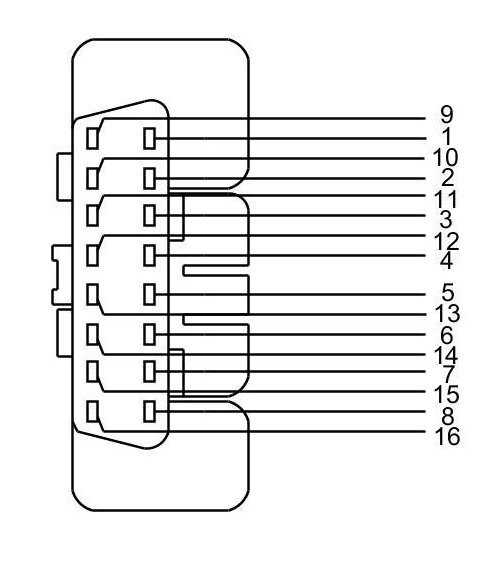

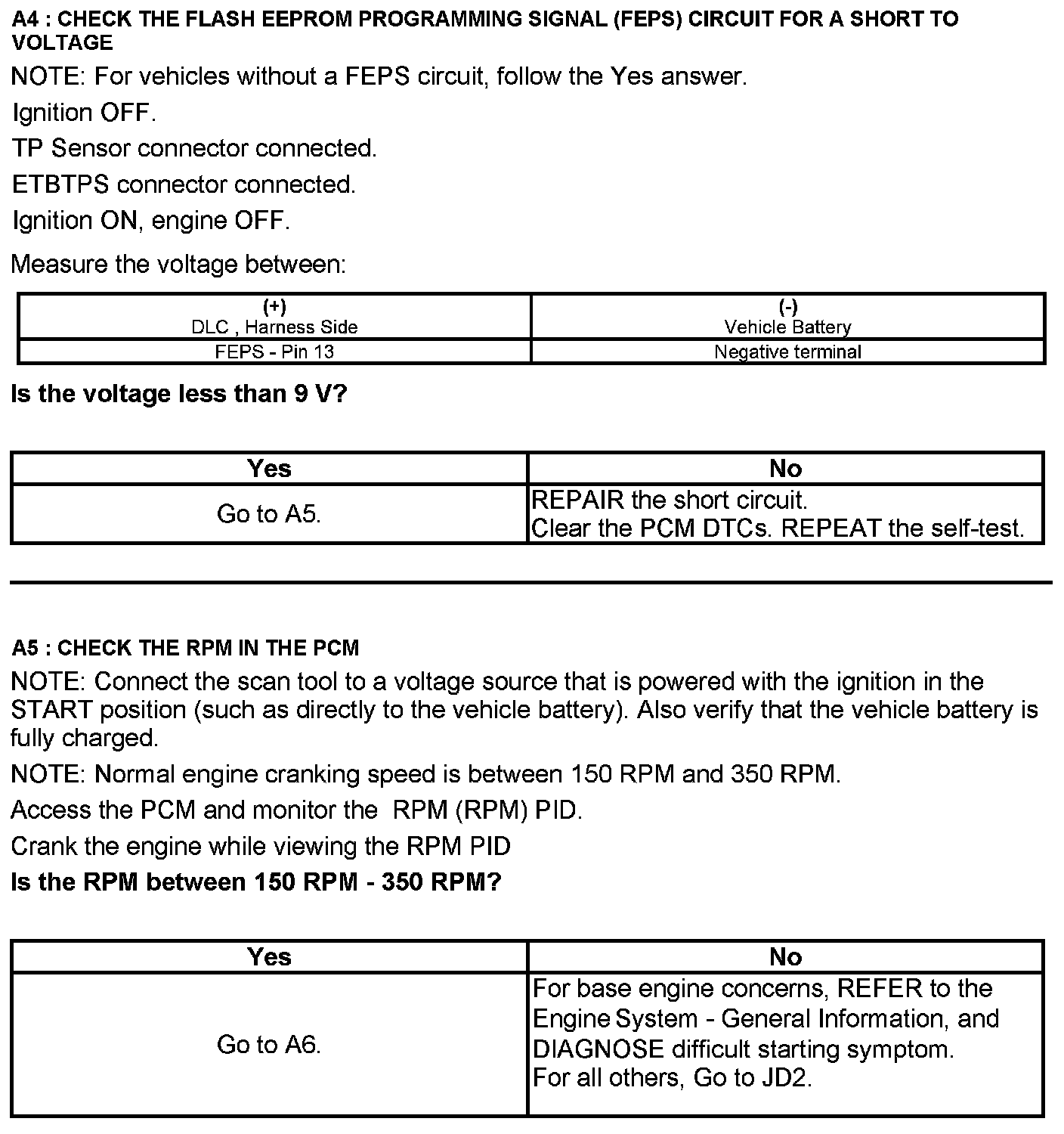

Data Link Connector (DLC)





Harness Side
