Electrical - Crank/No Start, Driveability Issues, DTC P0627
TSB 12-11-1211/16/12
INTERMITTENT NO START AND/OR ROUGH
RUNNING - BLOWN FUSE 13 - DTC P0627
FORD:
2011-2013 Mustang
ISSUE
Some 2011-2013 Mustangs vehicles may exhibit an intermittent drivability condition, crank/no start, a blown fuse 13 in the battery junction box and may have Diagnostic Trouble Code (DTC) P0627 stored in the Powerirain Control Module (PCM).
ACTION
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
1. Remove the rear seat cushion. Refer to Workshop Manual (WSM), Section 501-10.

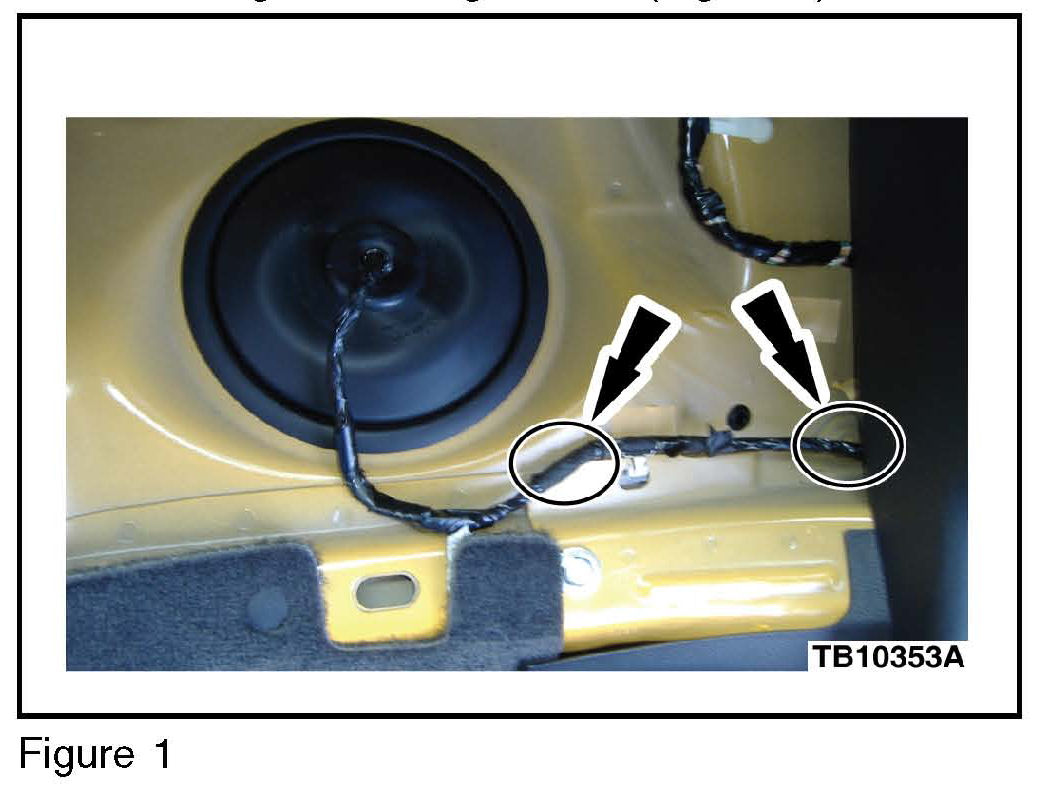

2. Inspect the fuel pump module wire harness for a chafing. Is chafing found? (Figure 1)
a. No - this article does not apply. Refer to Powertrain Control/Emissions Diagnosis (PC/ED) manual for normal diagnosis.
b. Yes - repair the wiring harness. Refer to the Wiring Diagram (WD), Section 5.

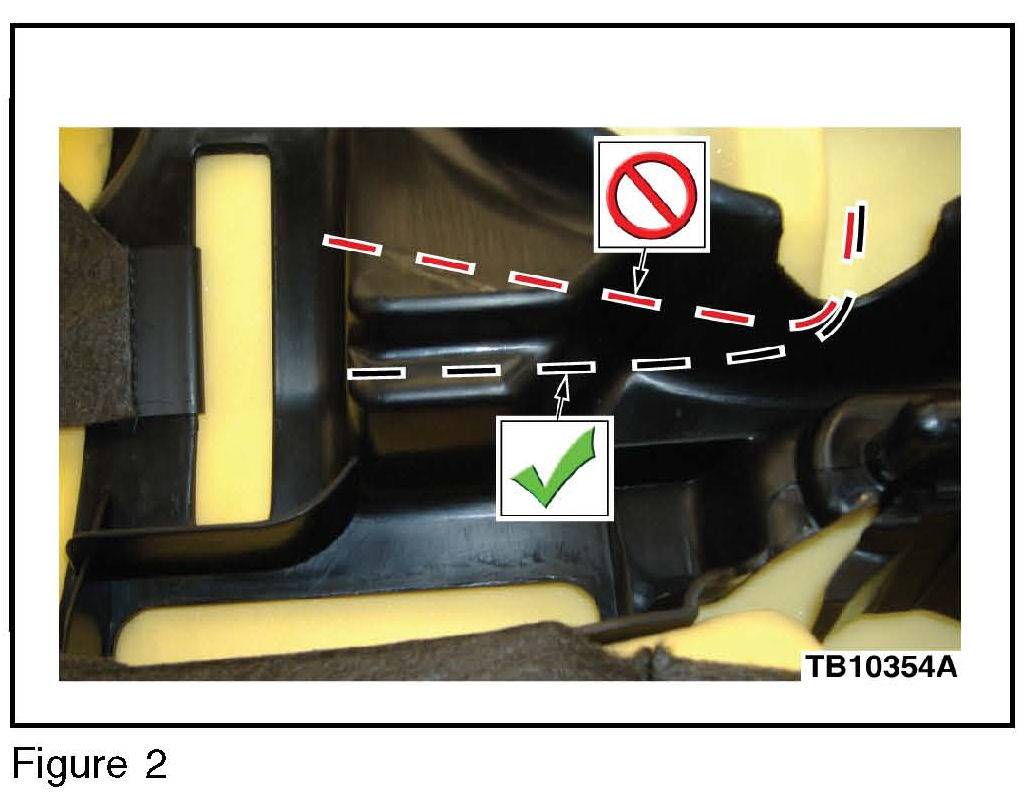

3. Route the harness so that it will lie in the recess area of the rear seat when the seat cushion is installed. (Figure 2)
4. Install the rear seat cushion. Refer to WSM, Section 201-10.

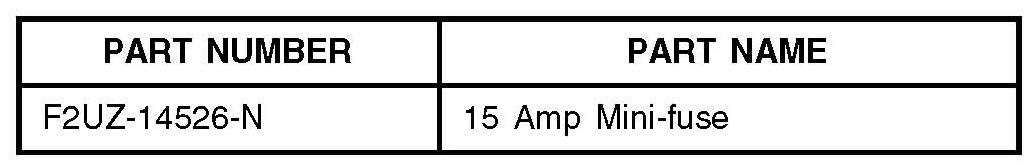

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
OPERATION DESCRIPTION TIME
121112A 2011-2013 Mustang: 0.8 Hr.
Check DTCs, Inspect And
Repair Wire Harness (Do
Not Use With Any Other
Labor Operations)
DEALER CODING
CONDITION
BASIC PART NO. CODE
14A005 30
