FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
Mustang V8-5.4L SC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>

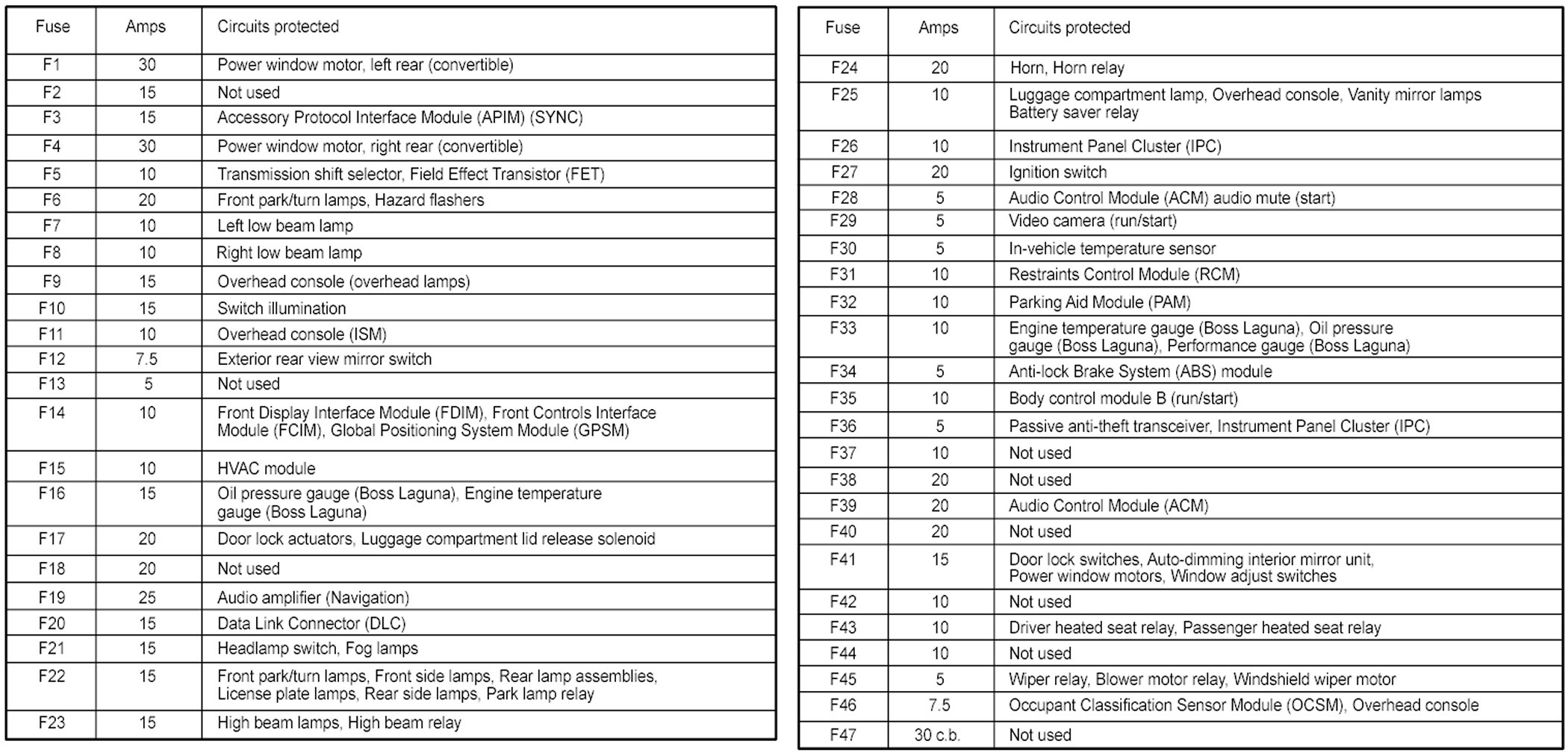

Fuse
>>
Locations
>>

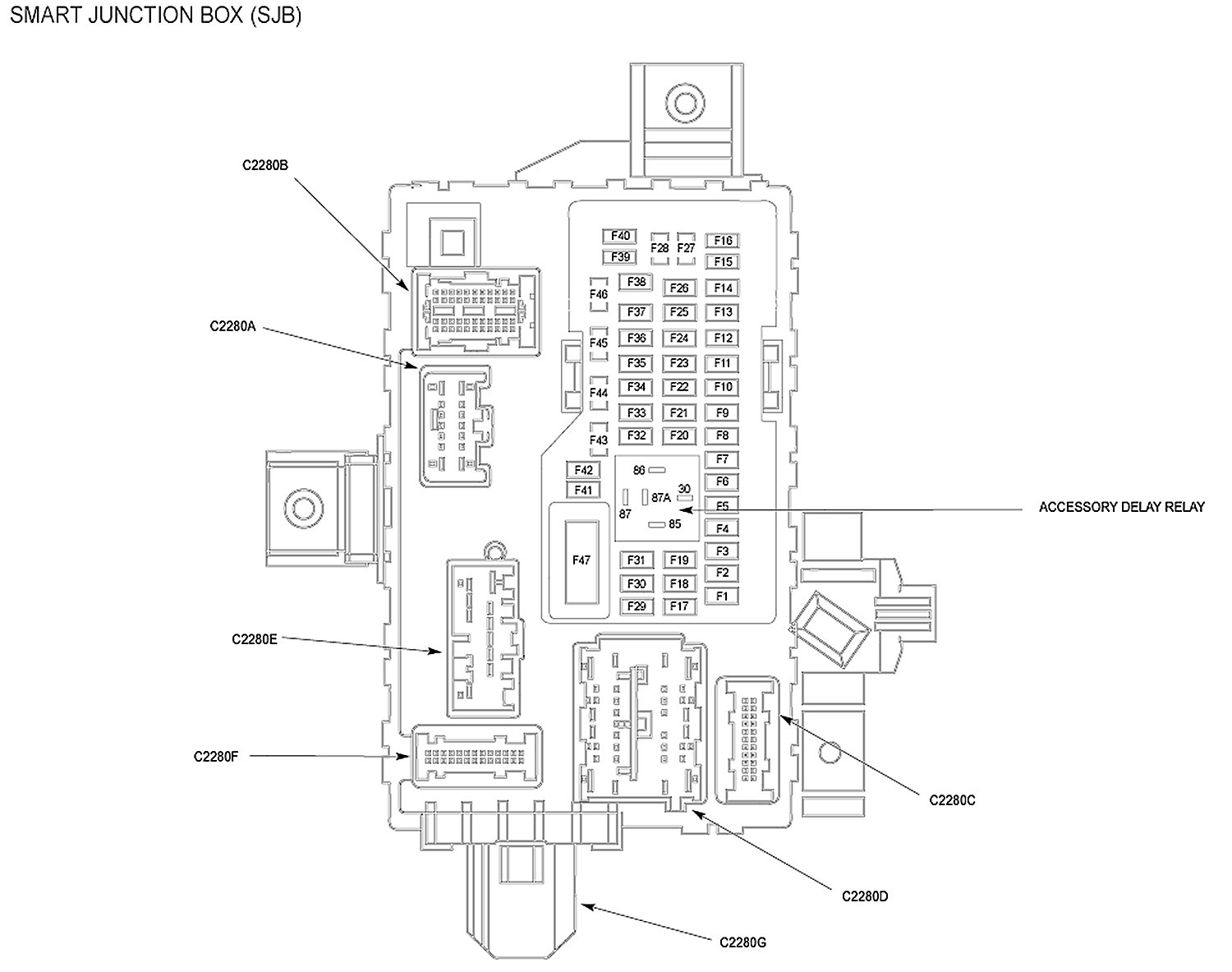

Smart Junction Box (SJB)
Smart Junction Box (SJB)
m12must_Shed-11-03:
