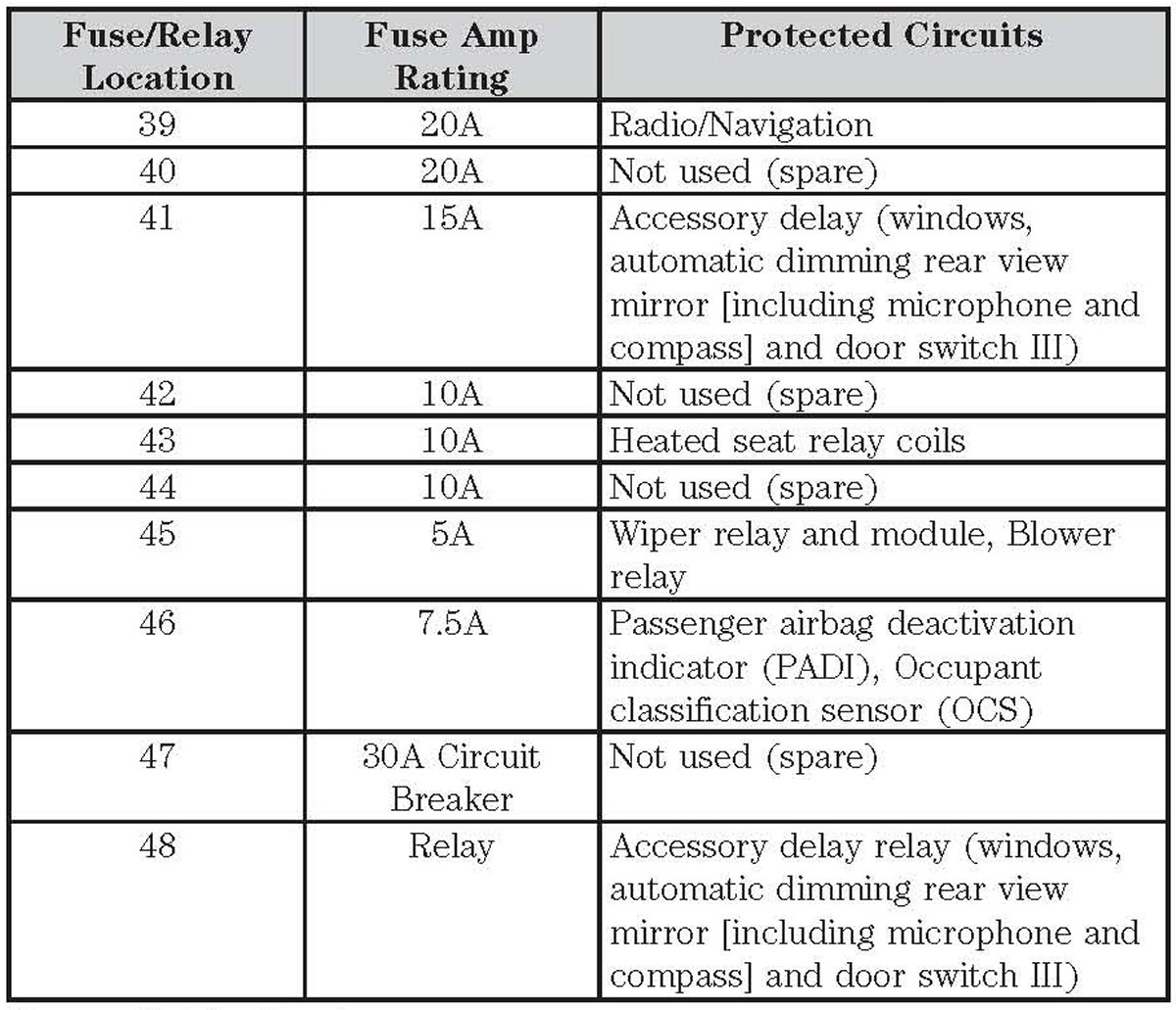

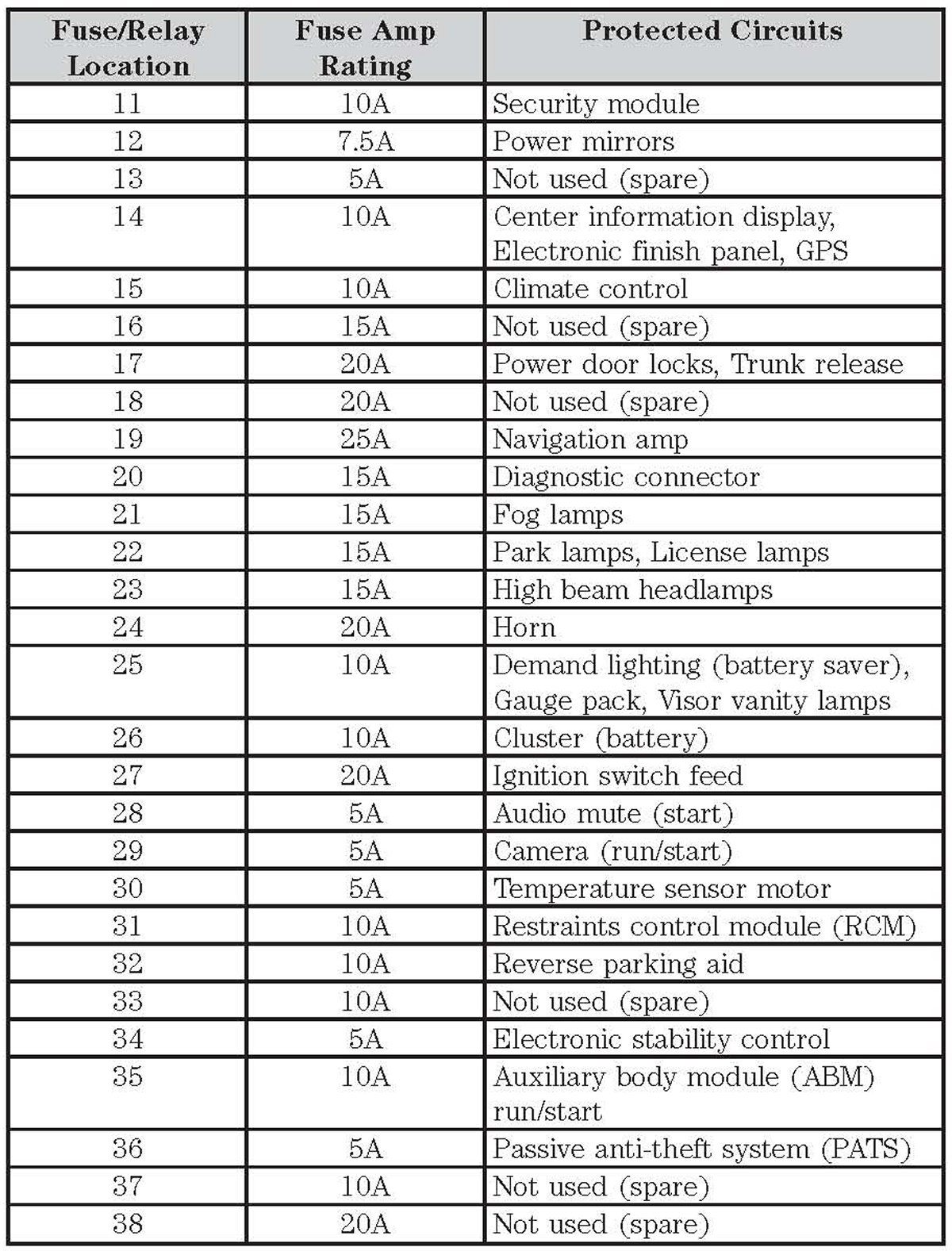

Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel
The
Passenger Compartment Fuse Panel
is located in the lower passenger side area behind the kick panel.
