Pinpoint Test P: The Sequential Feature Of A Rear Turn Lamp Is Inoperative
Turn Signal and Hazard Lamps
Pinpoint Test P: The Sequential Feature Of A Rear Turn Lamp Is Inoperative
Refer to Wiring Diagram Set 90, Turn Signal/Stop/Hazard Lamps for schematic and connector information [1][2]Diagrams By Number.
Normal Operation
When the Smart Junction Box (SJB) detects the multifunction switch in the LH or RH TURN position, the SJB (Smart Junction Box) sends a message to the Body Control Module B (BCM-B) indicating a LH or RH turn signal. The BCM-B (Body Control Module B) then flashes the rear lamp sequentially from the inboard lamp to the outboard lamp.
The BCM-B (Body Control Module B) sends a voltage signal to each inboard LED lamp through a feedback circuit. If the BCM-B (Body Control Module B) detects a fault from the feedback circuit, the turn lamps flash fast for the side affected (LH or RH) and the sequential feature is disabled.
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Rear lamp jumper harness
- BCM-B (Body Control Module B)
PINPOINT TEST P : THE SEQUENTIAL FEATURE OF A REAR TURN LAMP IS INOPERATIVE
NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
P1 CHECK THE STOPLAMP OPERATION
- Ignition OFF.
- Apply the brake pedal and observe the stoplamps.
Do the stoplamps operate correctly?
Yes
GO to P2.
No
REFER to Stoplamps Testing and Inspection.
P2 CHECK FOR REAR LAMP CIRCUIT DTC
- Review the results from the BCM-B (Body Control Module B) self-test.

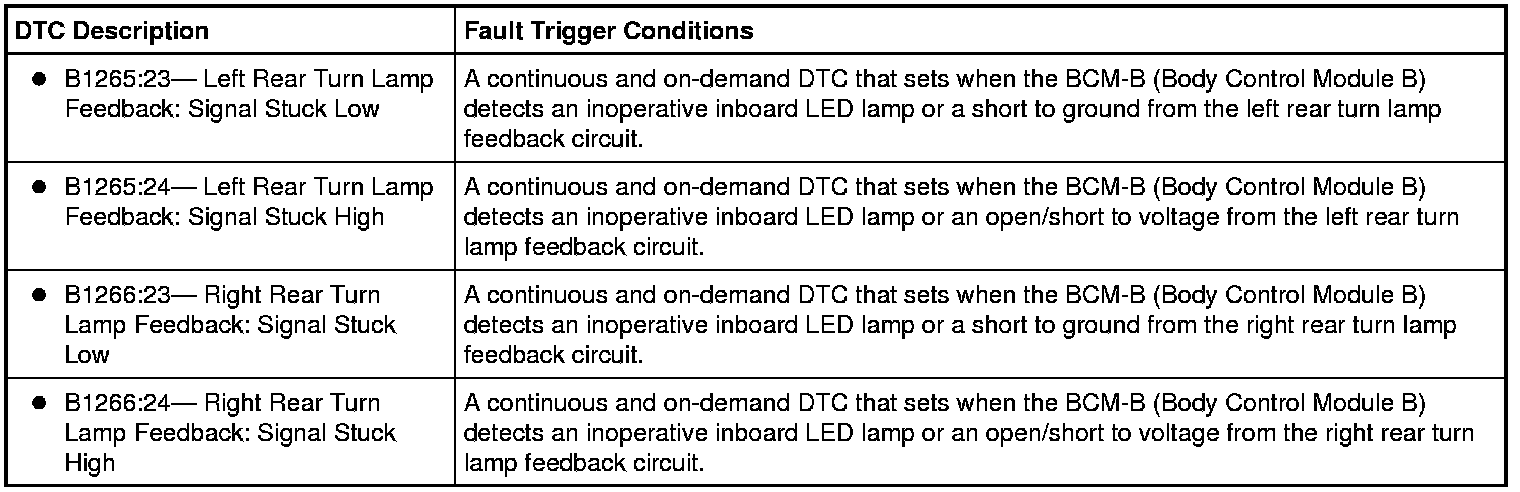

Is DTC B1265:23, B1265:24, B1266:23, or B1266:24 present?
Yes
GO to P5.
No
GO to P3.
P3 CHECK THE REAR JUMPER HARNESS FOR SHORTS
- Disconnect: Suspect Rear Lamp C498.
- Inspect the rear lamp jumper harness for shorts.
Is the rear lamp jumper harness OK?
Yes
GO to P4.
No
REPAIR or INSTALL a new rear lamp jumper harness. CLEAR the DTCs. REPEAT the self-test.
P4 CHECK THE REAR TURN LAMPS CIRCUITS FOR A SHORT TOGETHER
- Disconnect: Suspect Rear Lamp.
- Disconnect: BCM-B (Body Control Module B) C4368A.
- Measure the resistance between the suspect rear lamp connector, harness side as follows:
LH Rear Lamp
Connector-Pin Circuit Connector-Pin Circuit C498-5 CLS18 (GY/BN) C498-4 CLS50 (BN/VT) C498-5 CLS18 (GY/BN) C498-3 CLS51 (WH/GN) C498-4 CLS50 (BN/VT) C498-3 CLS51 (WH/GN)
RH Rear Lamp
Connector-Pin Circuit Connector-Pin Circuit C499-5 CLS19 (VT/OG) C499-4 CLS52 (BN) C499-5 CLS19 (VT/OG) C499-3 CLS53 (GY/VT) C499-4 CLS52 (BN) C499-3 CLS53 (GY/VT)
Are the resistances greater than 10,000 ohms?
Yes
GO to P9.
No
REPAIR the circuits in question for a short to each other. TEST the system for normal operation.
P5 CHECK REAR LAMP OUTAGE CIRCUIT
- Disconnect: LH Rear Lamp C498 or RH Rear Lamp C499.
- Ignition ON.
- Measure the voltage between the LH rear lamp C498-7, circuit CLS54 (BU/OG), harness side and ground: or between the RH rear Lamp C499-7, circuit CLS55 (GN/BU), harness side and ground.
Is the voltage approximately 5 volts?
Yes
GO to P6.
No
GO to P7.
P6 CHECK THE REAR JUMPER HARNESS
- Disconnect: Suspect Rear Lamp C498.
- Inspect the rear lamp jumper harness for opens.
Is the rear lamp jumper harness OK?
Yes
INSTALL a new LED lamp. CLEAR the DTCs. REPEAT the self-test. TEST the system for normal operation.
No
REPAIR or INSTALL a new rear lamp jumper harness. CLEAR the DTCs. REPEAT the self-test.
P7 CHECK REAR LAMP OUTAGE CIRCUIT FOR A SHORT TO VOLTAGE
- Ignition OFF.
- Disconnect: BCM-B (Body Control Module B) C4368A.
- Ignition ON.
- Measure the voltage between the LH rear lamp C498-7, circuit CLS54 (BU/OG), harness side and ground: or between the RH rear Lamp C499-7, circuit CLS55 (GN/BU), harness side and ground.
Is any voltage present?
Yes
REPAIR circuit CLS54 (BU/OG) (LH rear lamp) or circuit CLS55 (GN/BU) (RH rear lamp) for a short to voltage. CLEAR the DTCs. REPEAT the self-test. TEST the system for normal operation.
No
GO to P8.
P8 CHECK REAR LAMP OUTAGE CIRCUIT FOR A SHORT TO GROUND
- Ignition OFF.
- Measure the resistance between the LH rear lamp C498-7, circuit CLS54 (BU/OG), harness side and ground: or between the RH rear Lamp C499-7, circuit CLS55 (GN/BU), harness side and ground.
Is the resistance greater than 10,000 ohms?
Yes
GO to P9.
No
REPAIR circuit CLS54 (BU/OG) (LH rear lamp) or circuit CLS55 (GN/BU) (RH rear lamp) for a short to ground. CLEAR the DTCs. REPEAT the self-test. TEST the system for normal operation.
P9 CHECK FOR CORRECT BCM-B (Body Control Module B) OPERATION
- Disconnect all the BCM-B (Body Control Module B) connectors.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect all the BCM-B (Body Control Module B) connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
Is the concern still present?
Yes
INSTALL a new BCM-B (Body Control Module B). TEST the system for normal operation.
No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
