Parking Lamp: Service and Repair

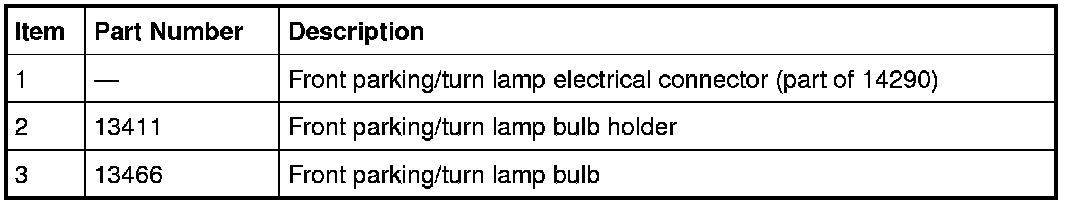

Parking Lamp - Front

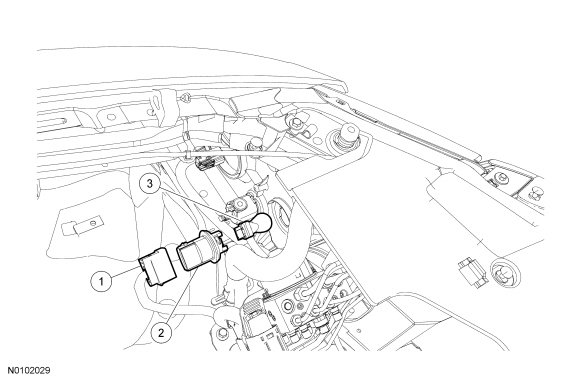

NOTE: Vehicles with halogen headlamps shown, High Intensity Discharge (HID) headlamps similar.

NOTE: Air cleaner shown removed for clarity.









Removal and Installation

1. For the LH front parking/turn lamp on vehicles equipped with High Intensity Discharge (HID) headlamps, remove the air cleaner. For additional information, refer to Fuel Delivery and Air Induction.

2. Rotate the bulb holder approximately one-eighth turn counterclockwise and remove the front parking/turn lamp bulb from the headlamp assembly.
- Disconnect the electrical connector.


3. To install, reverse the removal procedure.
