Fog/Driving Lamp Bulb: Service and Repair

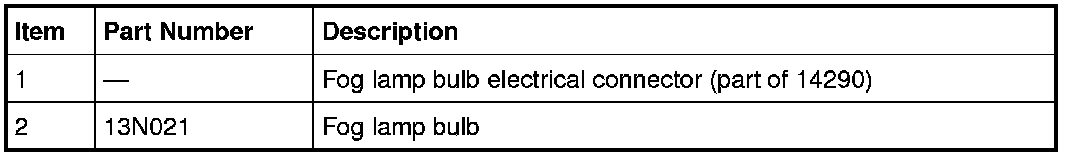

Fog Lamp Bulb

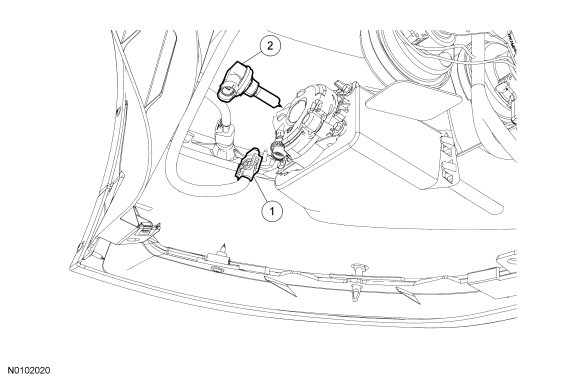

3.7L or California Special Vehicles

NOTE: 3.7L shown, California Special similar.










5.0L Vehicles (Except California Special)

NOTE: The front bumper cover shown removed for clarity.

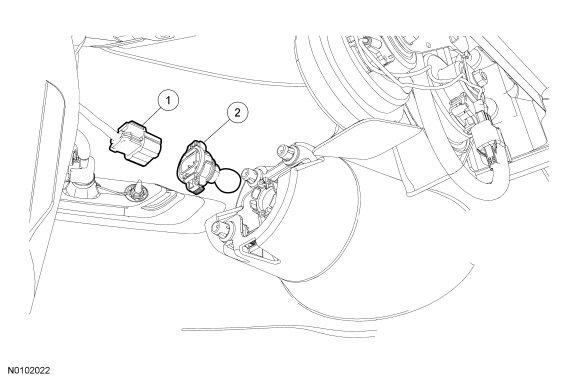

5.4L Vehicles









Removal and Installation

WARNING: The bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

NOTE: The fog lamp bulb should not be removed from the fog lamp until just before a new bulb is installed. Removing the bulb for an extended period of time can affect fog lamp bulb performance. Contaminants can enter the fog lamp where they can settle on the lens and reflector. Never turn on the fog lamps with the bulb removed.

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

3.7L or California Special vehicles

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the 9 screws and the lower air deflector.





3. Disconnect the fog lamp electrical connector.

4. Rotate the fog lamp bulb counterclockwise and remove it.

5.0L (except California Special) vehicles

NOTE: The fog lamp bulb can be accessed without removing the front bumper cover.

5. Remove 2 bolts, 4 push-pins and the radiator sight shield.

6. Disconnect the fog lamp electrical connector.

7. Rotate the fog lamp bulb counterclockwise and remove it.

5.4L vehicles

8. With the vehicle in NEUTRAL, position it on a hoist.

9. Remove the 9 screws and the lower air deflector.





10. Disconnect the fog lamp electrical connector.

11. Release (squeeze) the tabs and remove the fog lamp bulb.

All vehicles

12. To install, reverse the removal procedure.
