Installation

Oil Pan










Installation

1. NOTICE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

NOTE: Clean the sealing surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.
Clean and inspect the mating surfaces of the engine block and oil pan.

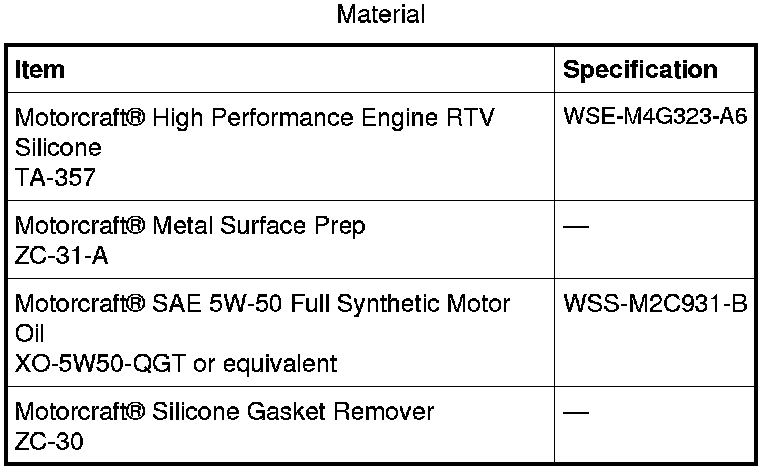

2. NOTICE: Failure to use Motorcraft(R) High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: If the oil pan is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage. If this timing cannot be met, tighten fasteners 7, 8, 9 and 10 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer and final torque all of the fasteners within 1 hour of applying the sealer.
Apply an 8 mm (0.31 in) bead of Motorcraft(R) High Performance Engine RTV Silicone to the crankshaft rear seal retainer plate-to-cylinder block sealing surfaces and the engine front cover-to-cylinder block sealing surfaces.






3. Position the oil pan baffle and gasket.

4. NOTE: The 2 oil pump screen and pickup tube-to-oil pump bolts must be tightened prior to tightening the oil pump screen and pickup tube-to-spacer bolt.
Using a new O-ring seal, install the oil pump screen and pickup tube and the 3 bolts. Tighten the 2 oil pump screen and pickup tube-to-oil pump bolts.

- Tighten to 10 Nm (89 lb-in).


5. Tighten the oil pump screen and pickup tube-to-spacer bolt to 25 Nm (18 lb-ft).

6. NOTICE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

NOTE: Clean the sealing surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.

NOTE: Fastener locations 11, 12 and 15 are stud bolts.

Install the oil pan, 13 bolts and 3 stud bolts.
- Tighten in the sequence shown to 25 Nm (18 lb-ft).






7. Install the lower bellhousing LH stud bolt.
- Tighten to 10 Nm (89 lb-in).






8. Install the 2 wire harness retainer brackets on the oil pan stud bolts and install the 2 nuts.
- Tighten to 10 Nm (89 lb-in).


9. Attach the 3 wiring harness retainers to the oil pan stud bolts.

10. Using the adjustable jackstand, raise the subframe.
- Install the steering intermediate shaft into the steering coupler.


11. NOTICE: Do not allow the steering wheel to rotate while the steering column intermediate shaft is disconnected or damage to the clockspring can result. If there is evidence that the wheel has rotated, the clockspring must be removed and recentered. For additional information, refer to Restraints and Safety Systems &/or Air Bag Systems.

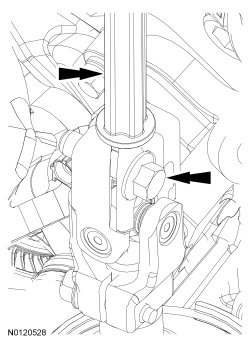

Position the intermediate steering shaft and install the upper bolt.
- Tighten to 47 Nm (35 lb-ft).






12. NOTE: Do not tighten the subframe nuts and bolts at this time.
Install the 4 subframe nuts and 4 subframe bolts.


13. Align the subframe nuts and bolts with the reference marks made during removal.
- Tighten the nuts to 115 Nm (85 lb-ft).

- Tighten the bolts to 115 Nm (85 lb-ft).






14. Install the subframe rear cross brace and the 4 nuts.
- Tighten to 48 Nm (35 lb-ft).


15. Install the 4 subframe front cross brace bolts.
- Tighten to 48 Nm (35 lb-ft).

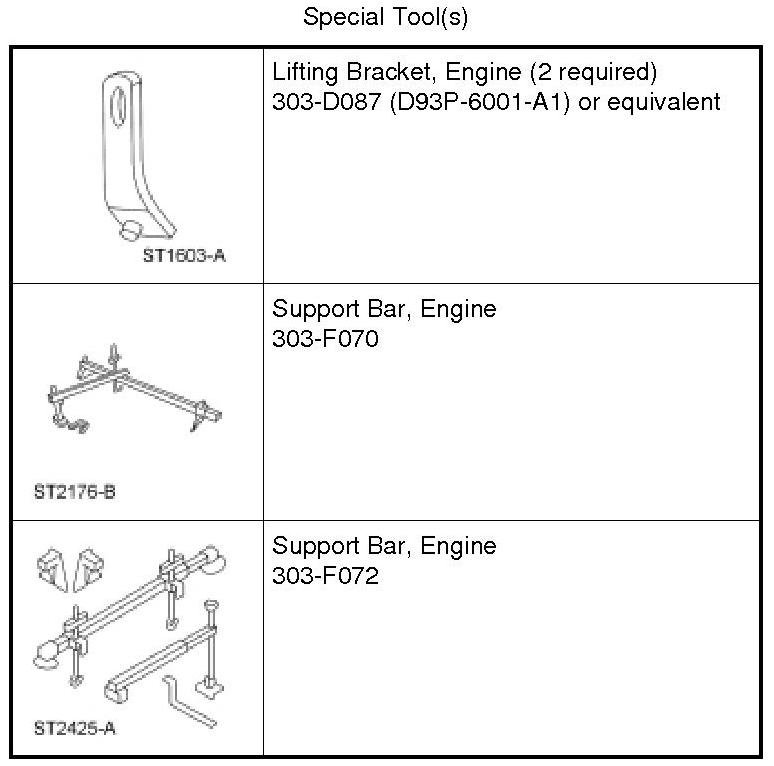

16. Using the Engine Support Bars, lower the engine onto the engine support insulators.





17. Install the LH and RH engine support insulator nuts.
- Tighten to 63 Nm (46 lb-ft).


18. Install the power brake booster.

19. Install the ACL (Air Cleaner) outlet pipe.

20. Install the battery and tray.

21. Fill the engine with clean engine oil.

22. Install the dash boot and the 2 nuts.
- Tighten to 9 Nm (80 lb-in).
