Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

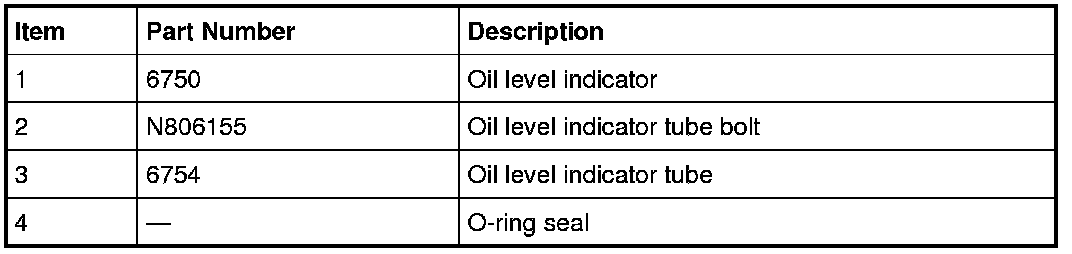

Oil Level Indicator and Tube













Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the LH exhaust manifold. For additional information, refer to Exhaust Manifold- LH Exhaust Manifold - LH.

3. Remove the oil level indicator.

4. Remove the oil level indicator tube bolt.
- To install, tighten to 10 Nm (89 lb-in).


5. Remove the oil level indicator tube.
- Discard the O-ring seal.


6. To install, reverse the removal procedure.
- Lubricate the new oil level indicator tube O-ring seal with clean engine oil prior to installation.
