Exhaust Gas Recirculation

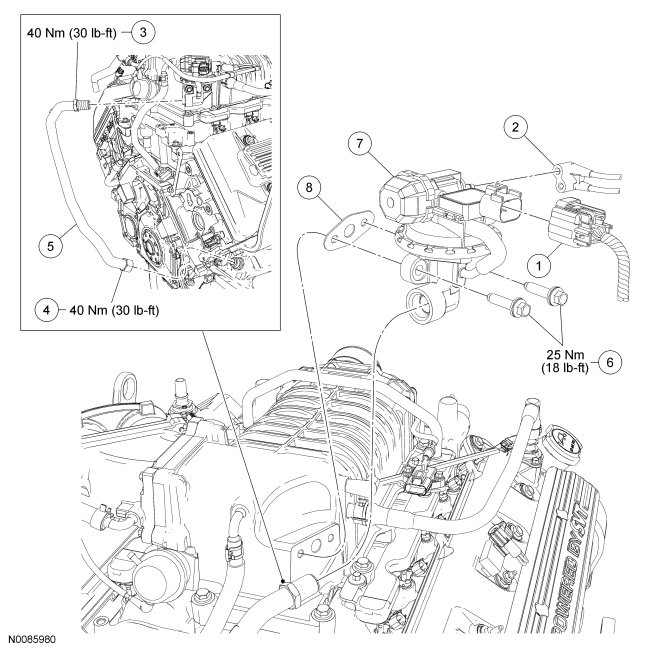

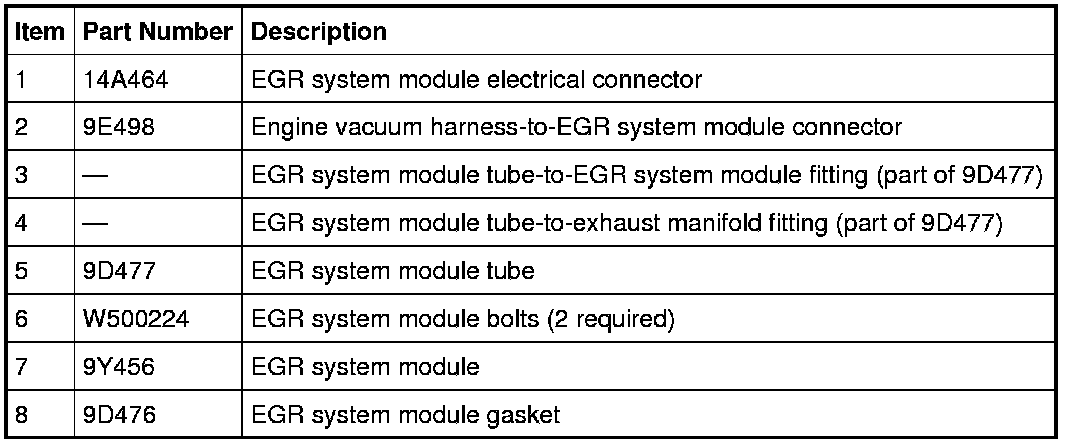

Exhaust Gas Recirculation (EGR) System Components - Exploded View

5.4L 4V Engine










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
