Evaporative Emissions System

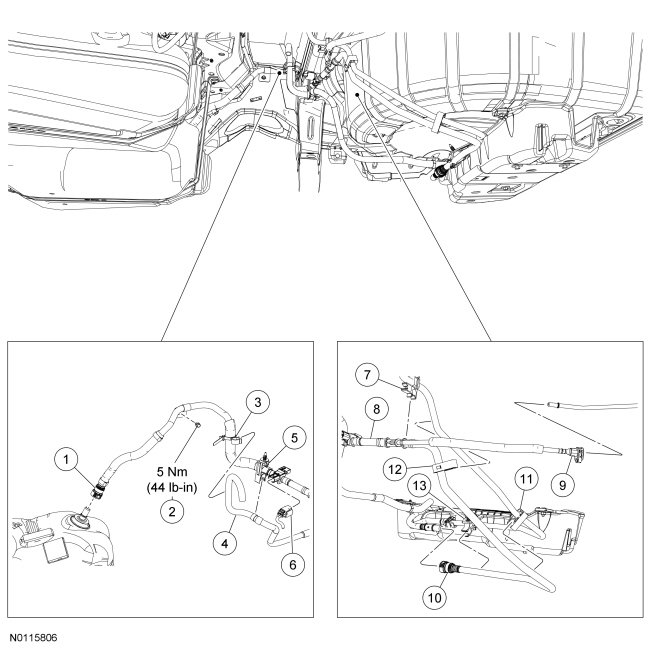

Evaporative Emission (EVAP) System Components - Exploded View

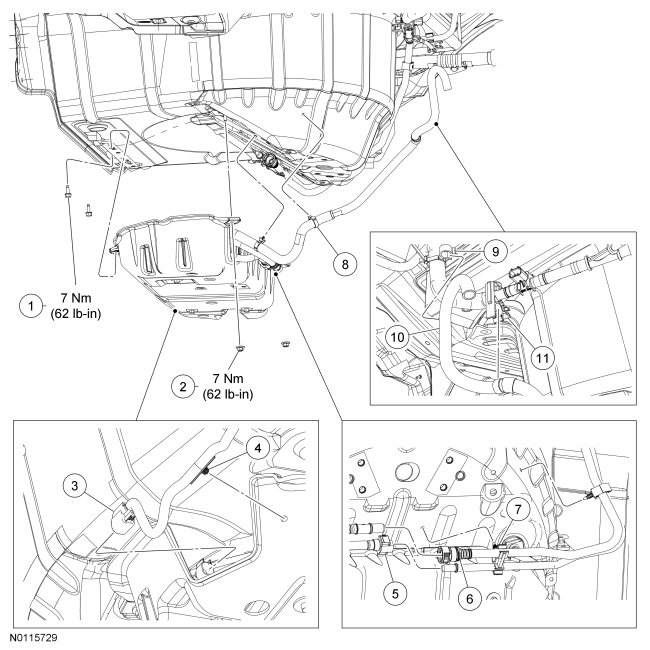

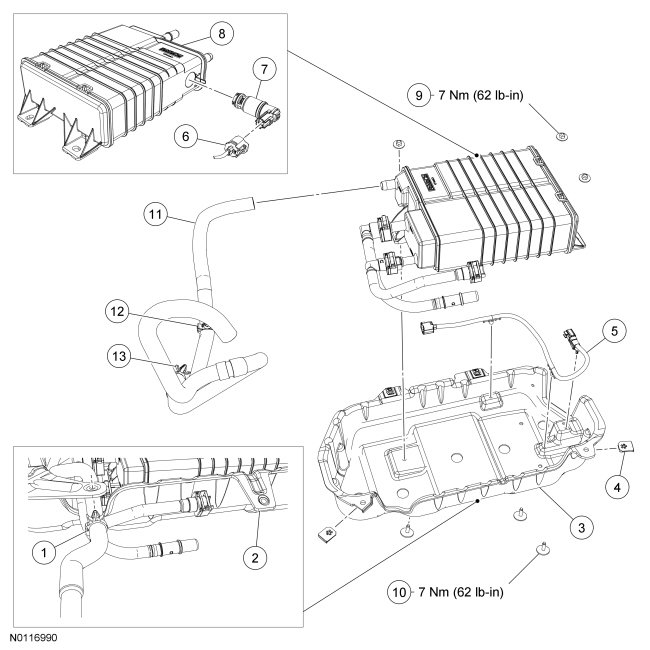

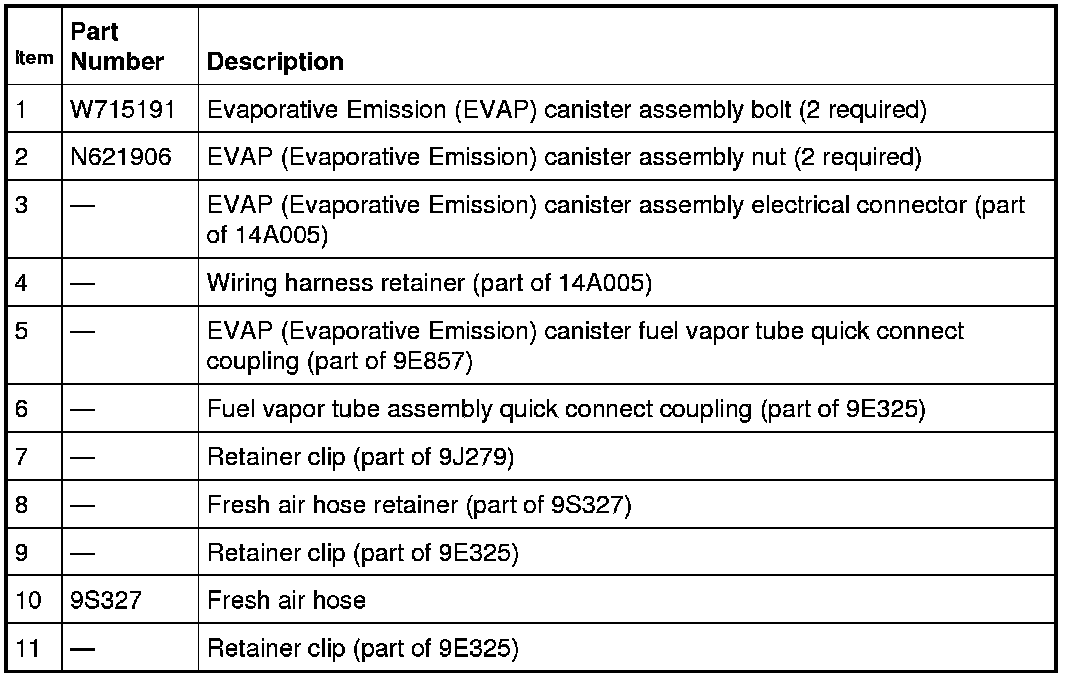

Evaporative Emission (EVAP) Canister - Coupe










Evaporative Emission (EVAP) Canister - Convertible

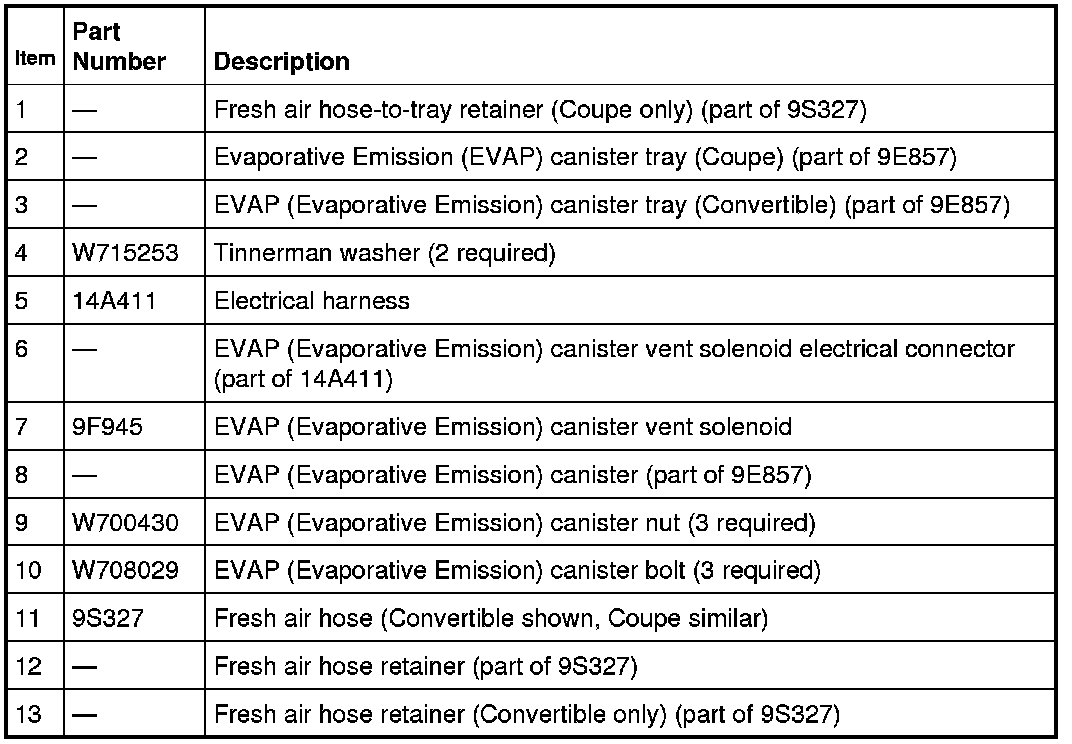

Evaporative Emission (EVAP) Canister Vent Solenoid

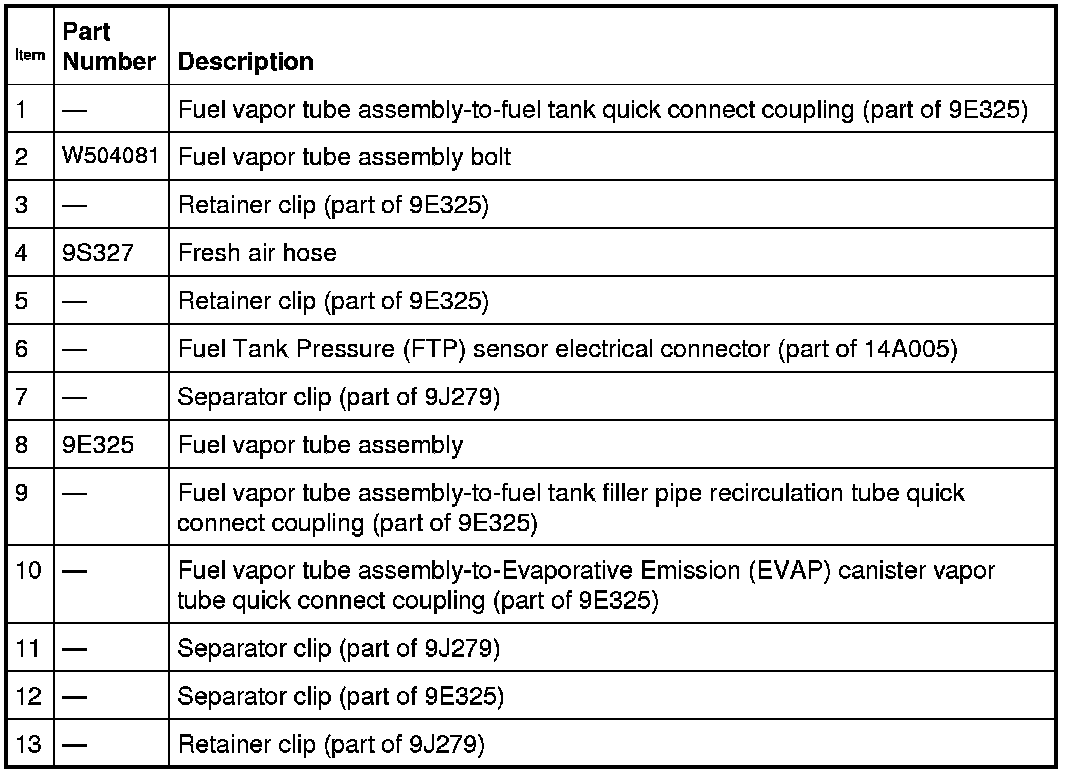

Fuel Vapor Tube Assembly

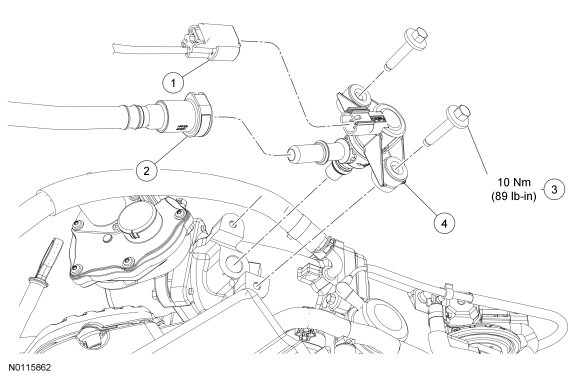

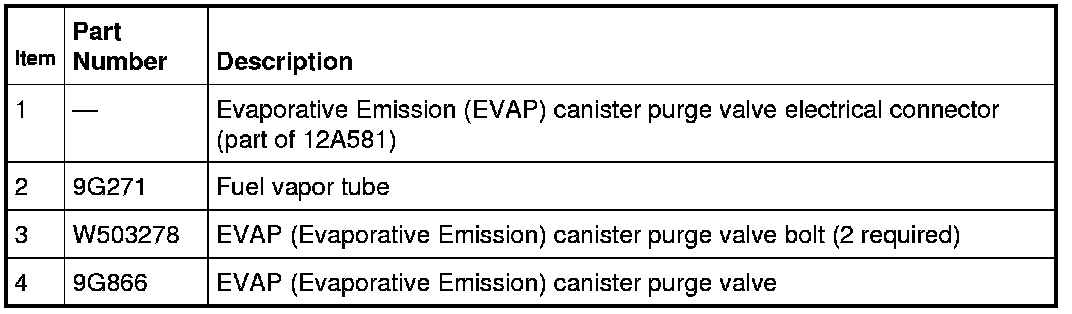

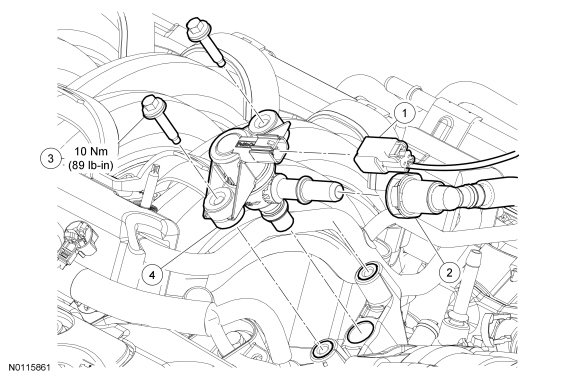

Evaporative Emission (EVAP) Canister Purge Valve - 3.7L

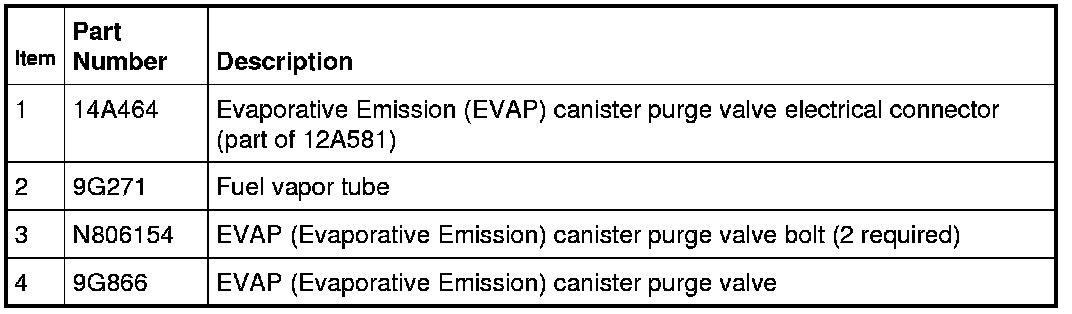

Evaporative Emission (EVAP) Canister Purge Valve - 5.0L, except Boss(R) 302

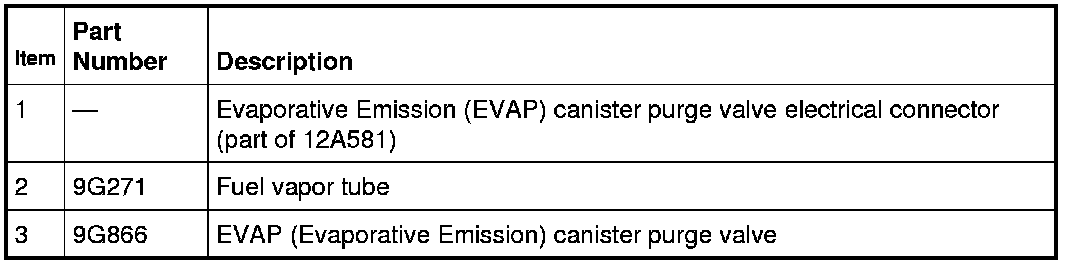

Evaporative Emission (EVAP) Canister Purge Valve - 5.0L Boss(R) 302

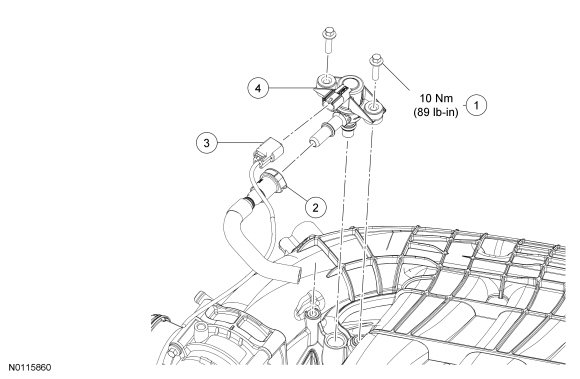

Evaporative Emission (EVAP) Canister Purge Valve - 5.4L










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
