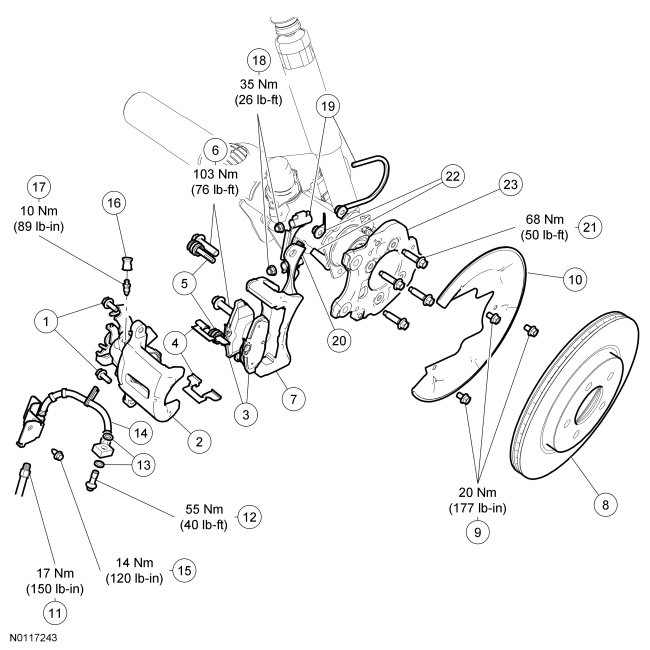

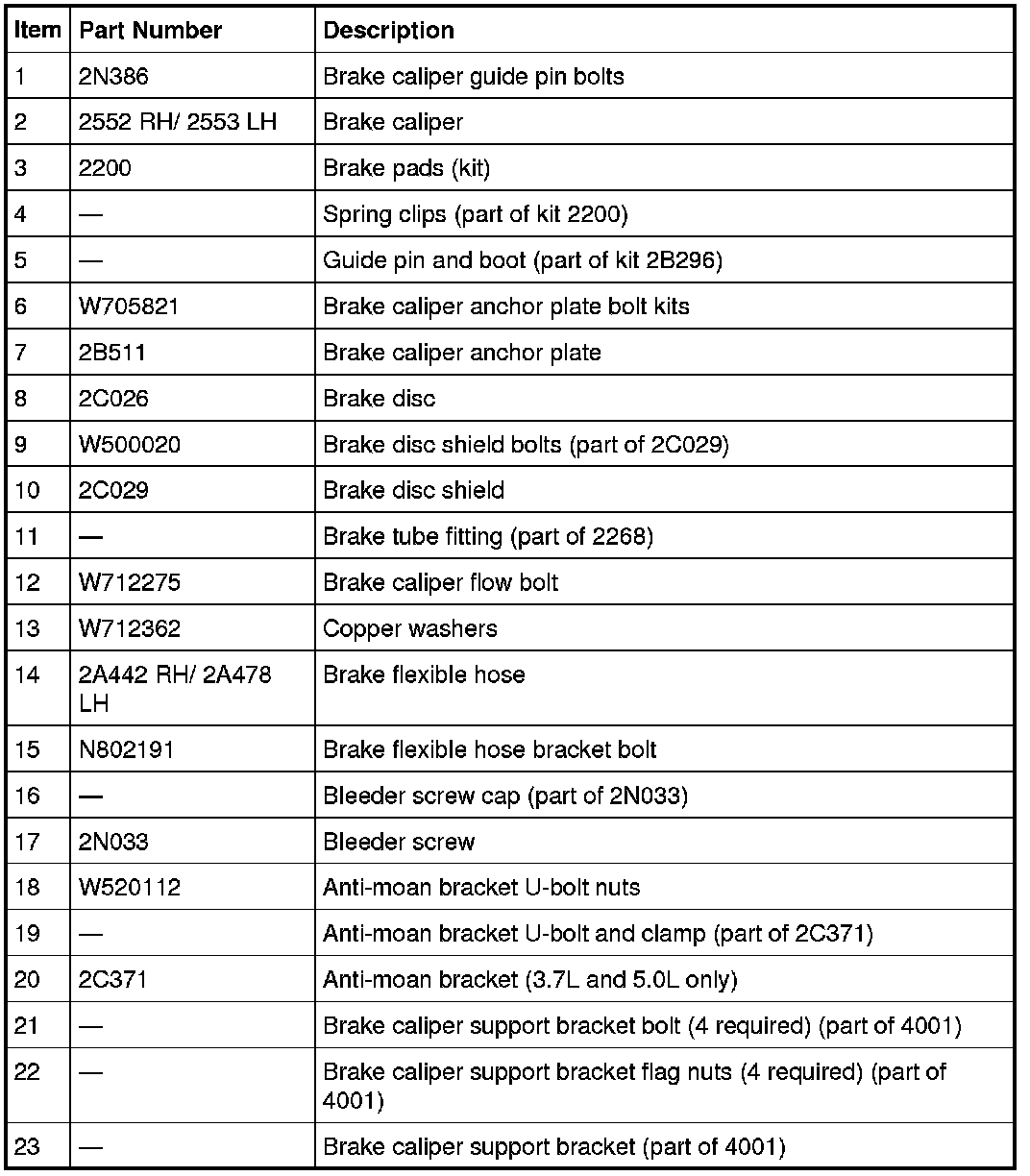

Rear Disc Brake System - Exploded View
Disc Brake System
- Exploded View
NOTE:
3.7L and 5.0L shown, 5.4L similar.
