Seat Cushion - Rear

Seat Cushion - Rear









Removal

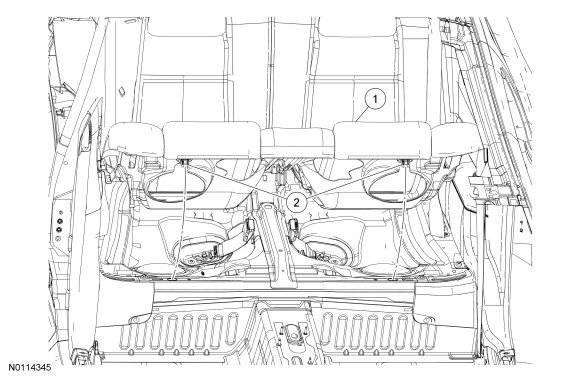

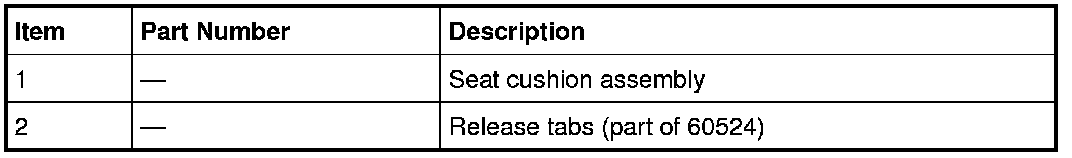

1. From under the front of the rear cushion assembly, push in on each of the 2 seat cushion release tabs, lift up at the front and remove the rear cushion assembly.

Installation

1. NOTE: Make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.
Align the cushion assembly and push down, engaging the retainers.
