Console: Service and Repair

Console - Overhead









Removal and Installation

NOTE: The ignition must be in OFF position if disconnecting the Passenger Air Bag Deactivation (PAD) indicator electrical connector. Otherwise, a DTC will be set in the Restraints Control Module (RCM) memory and must be cleared before releasing the vehicle.

1. Turn the ignition OFF and wait at least one minute.

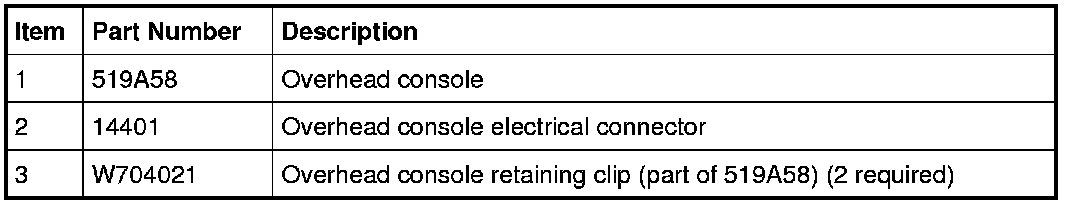

2. Remove the overhead console in the following sequence.
1. Pull the overhead console straight down, releasing the 2 side retaining clips.

2. Disconnect the electrical connector(s).


3. To install, reverse the removal procedure.
