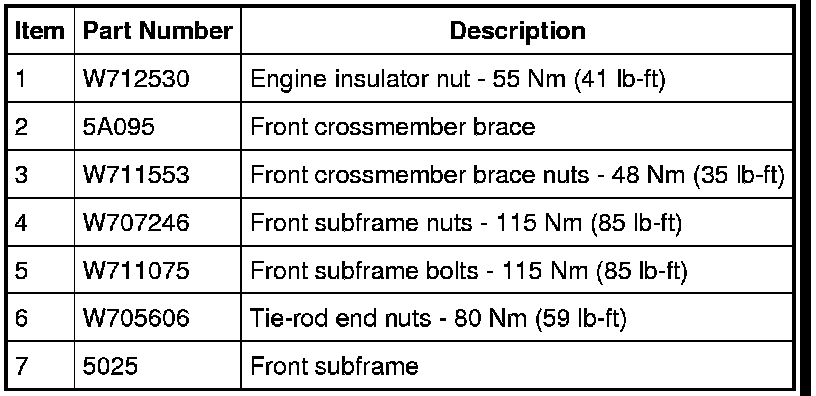

Subframe and Components - Exploded View, Front




Subframe and Components - Exploded View, Front









1. For additional information, refer to the procedures.
