Front Subframe: Locations

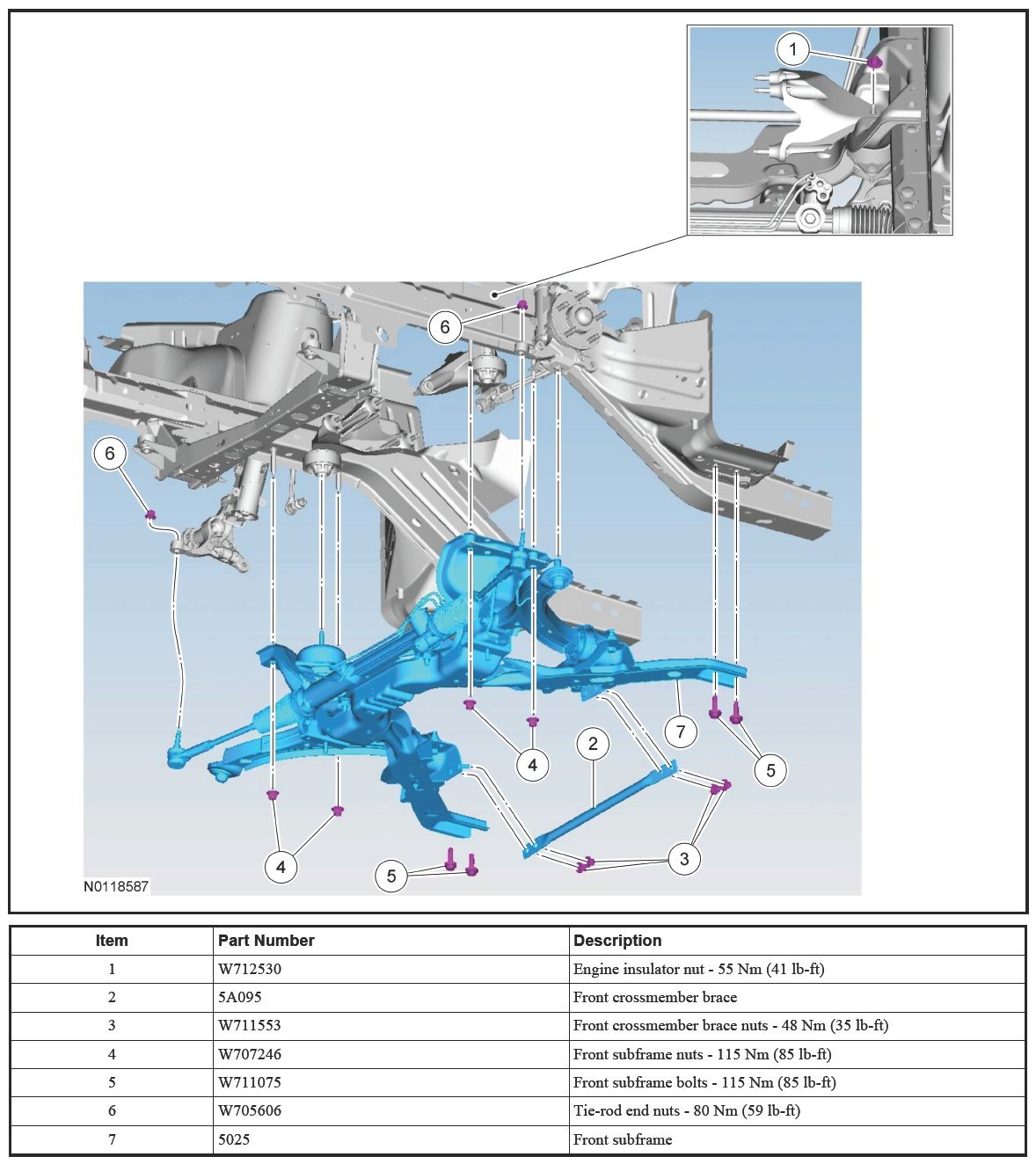

Subframe and Components - Exploded View, Front







1. For additional information, refer to the procedures.
