Hood Latch: Service and Repair

Hood Latch









Removal and Installation

1. Remove the 8 pin-type retainers and the upper radiator sight shield.

2. NOTE: Mark the location of the hood latch to aid installation.

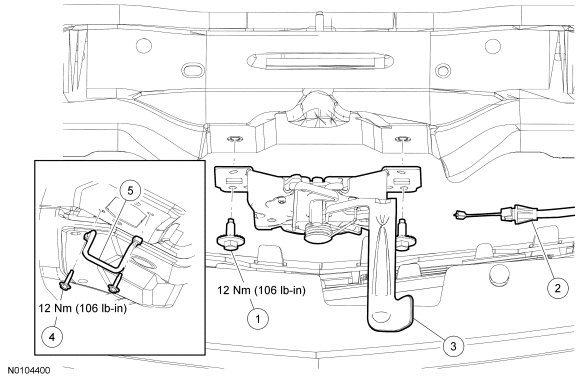

Remove the 2 hood latch bolts.

- To install, tighten to 12 Nm (106 lb-in).


3. Disconnect the hood latch release cable.

4. Remove the hood latch.

5. To install, reverse the removal procedure.
- Adjust the hood latch for correct engagement after installation.
