Communications Network

Communications Network

DTC Charts

NOTE: Network DTCs (U-codes) are often a result of intermittent concerns such as faulty wiring or low battery voltage occurrences. Additionally, vehicle service procedures such as module reprogramming will often set network DTCs. Replacing a module to resolve a network DTC is unlikely to resolve the concern. To prevent repeat network DTC concerns, inspect all network wiring, especially connectors. Test the vehicle battery, refer to Battery.

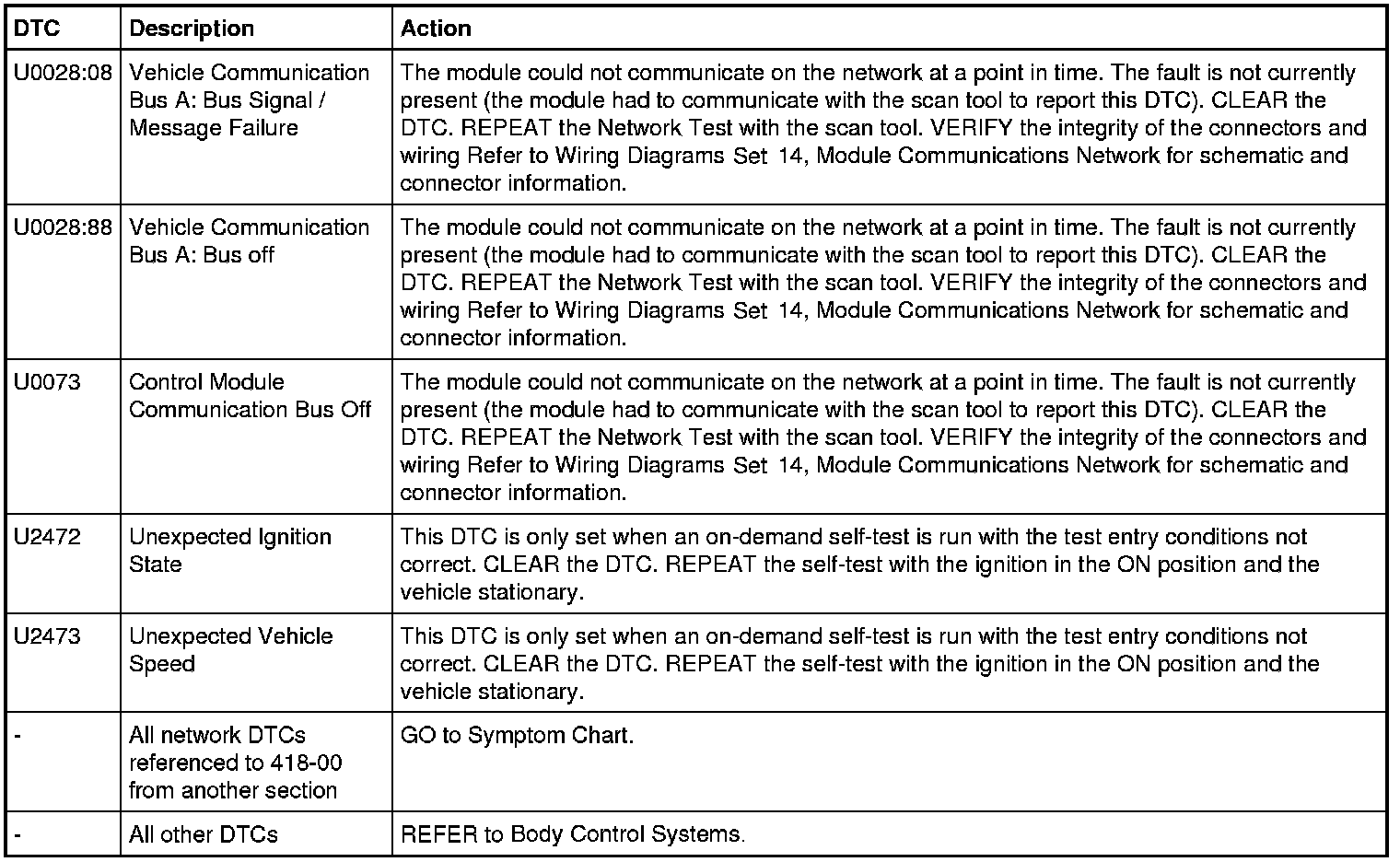

Communication Network DTC Chart

NOTE: DTC U1900 will set in a module that is reporting a communication fault from another module on the data bus. The module that reports the fault is not the problem module.
