All Others

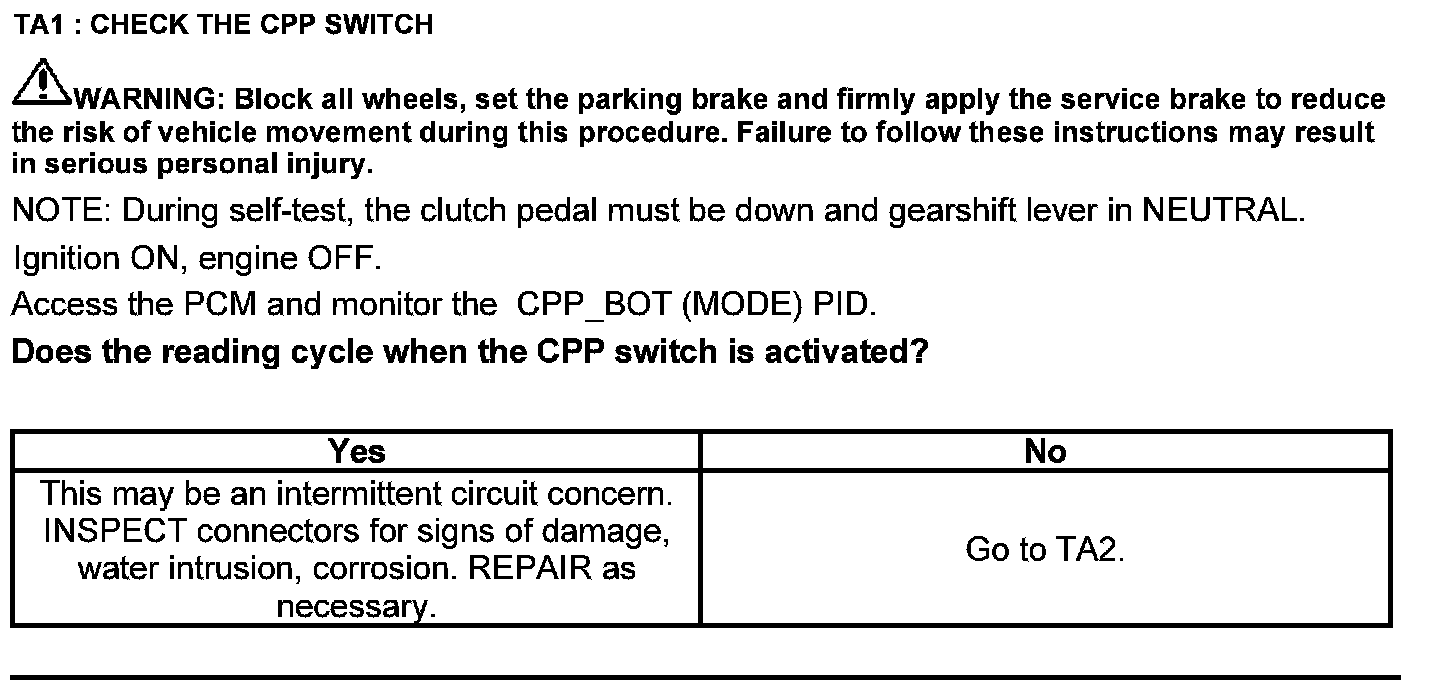

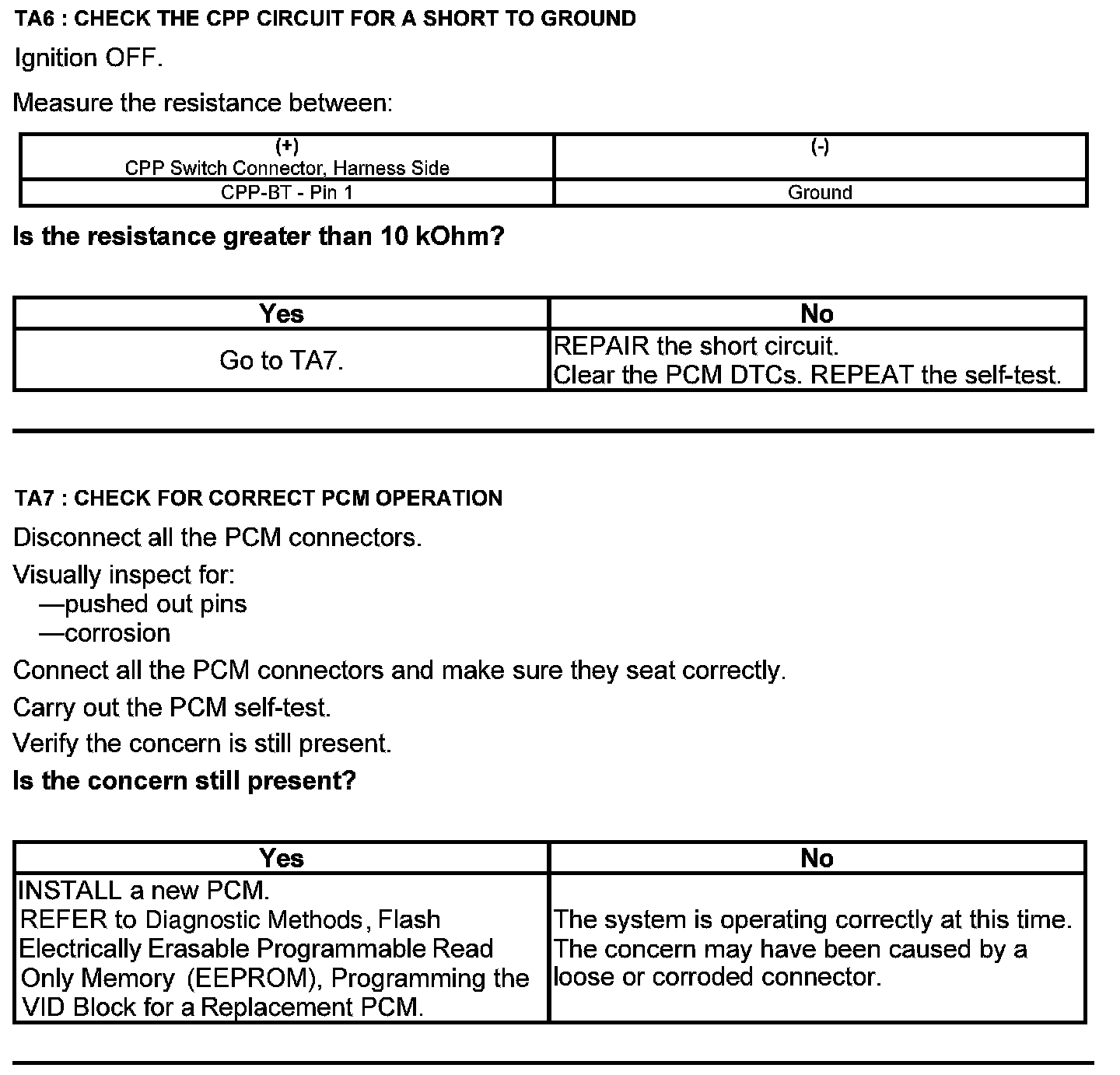

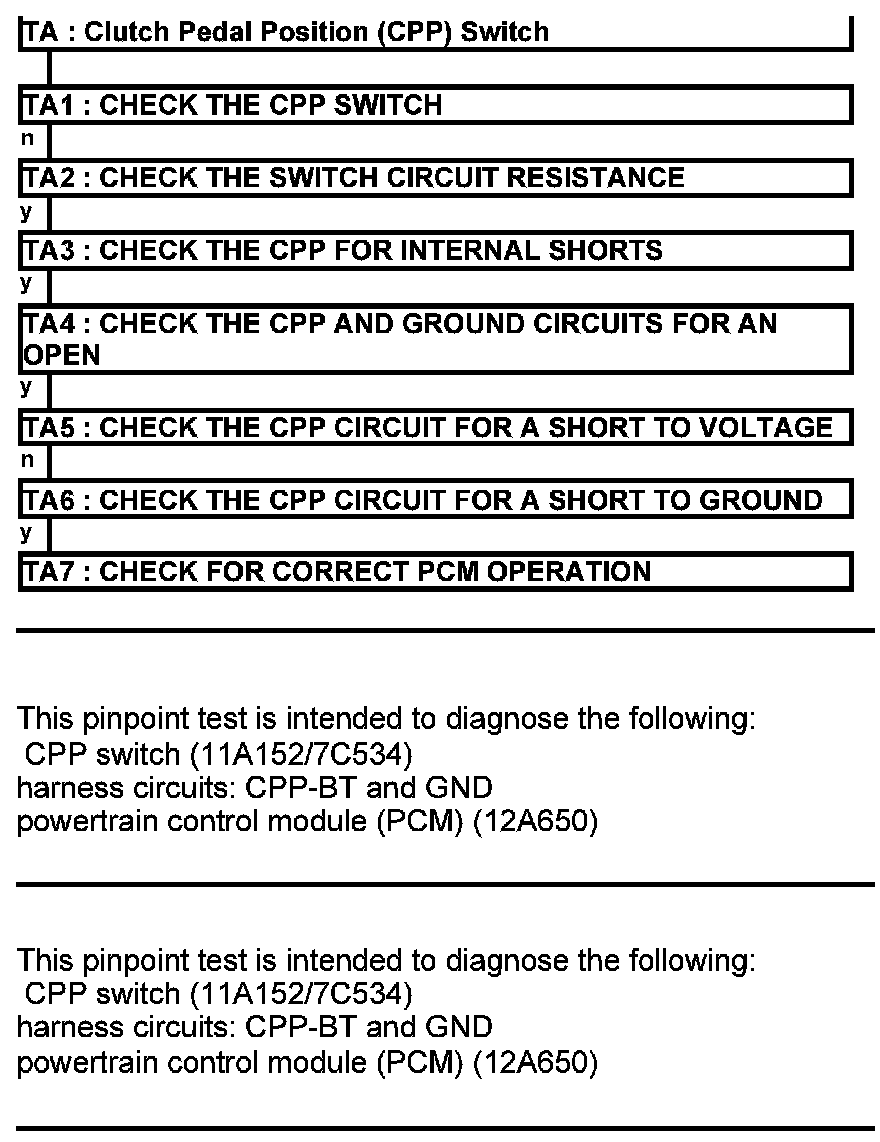

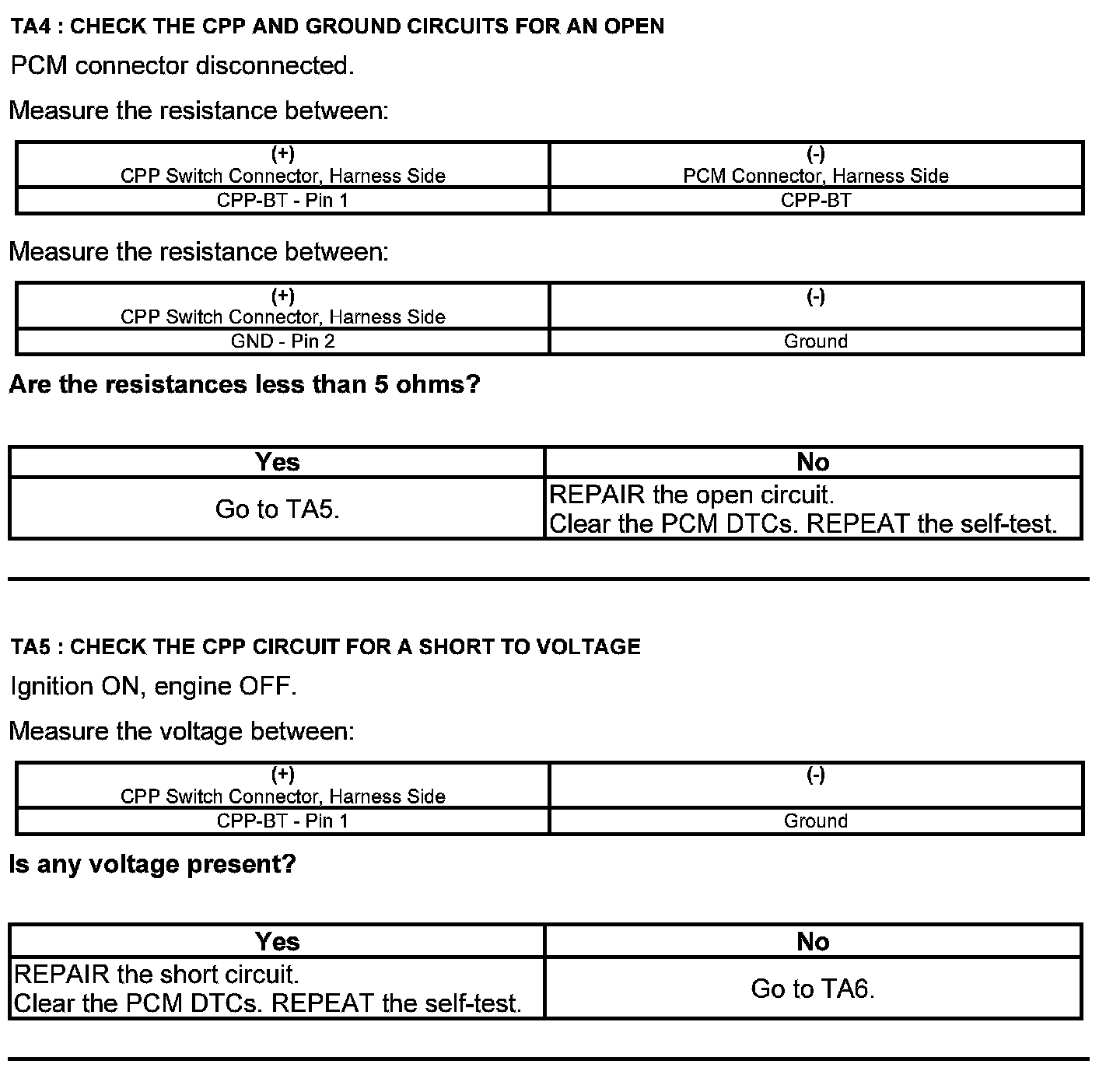

Clutch Pedal Position (CPP#2) Switch - All Others

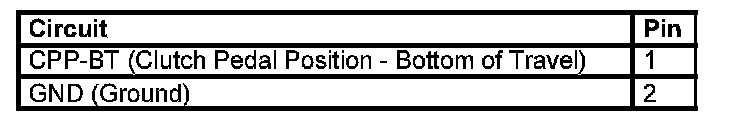

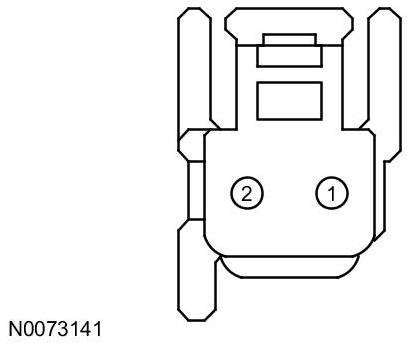

Clutch Pedal Position (CPP) Switch Connector





Harness Side
