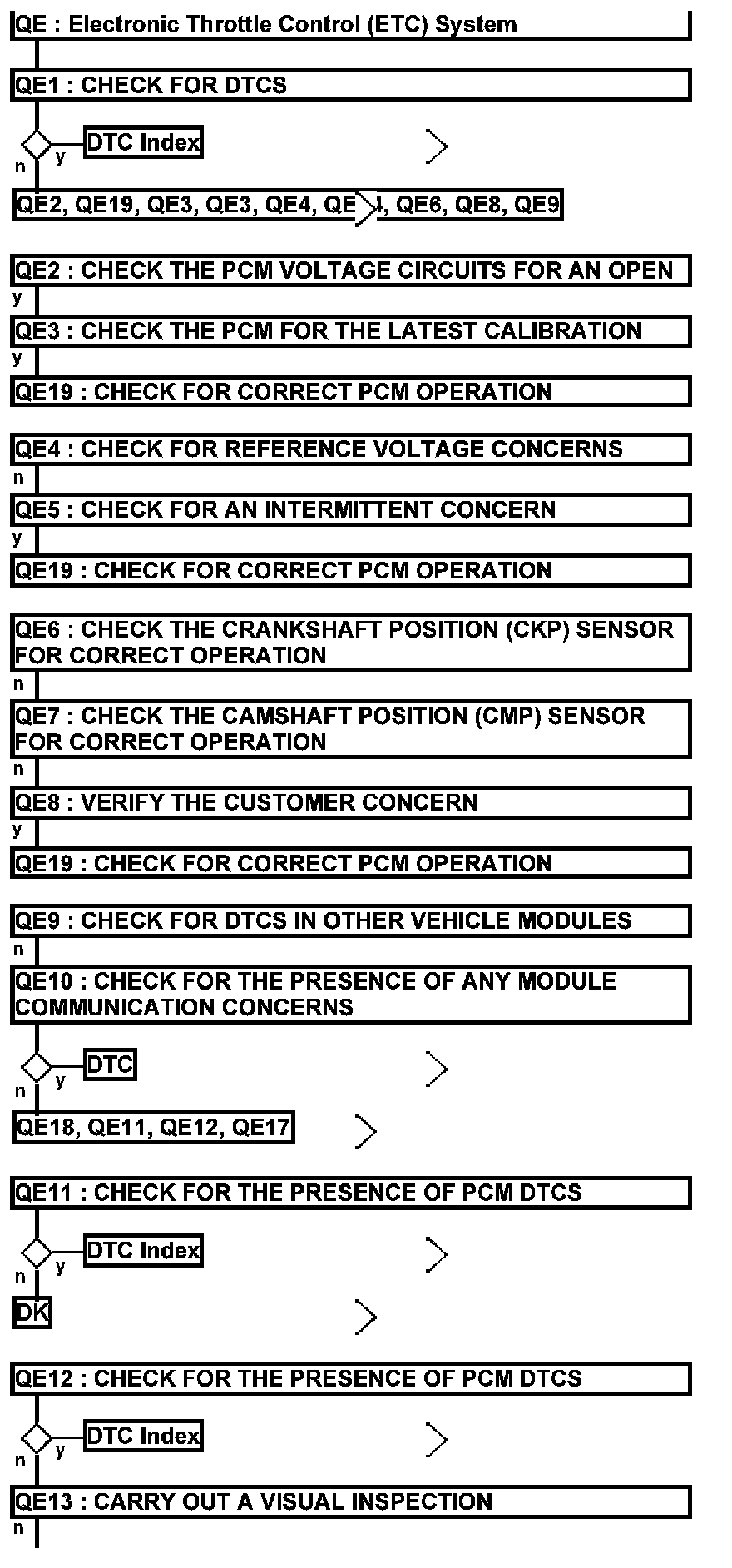

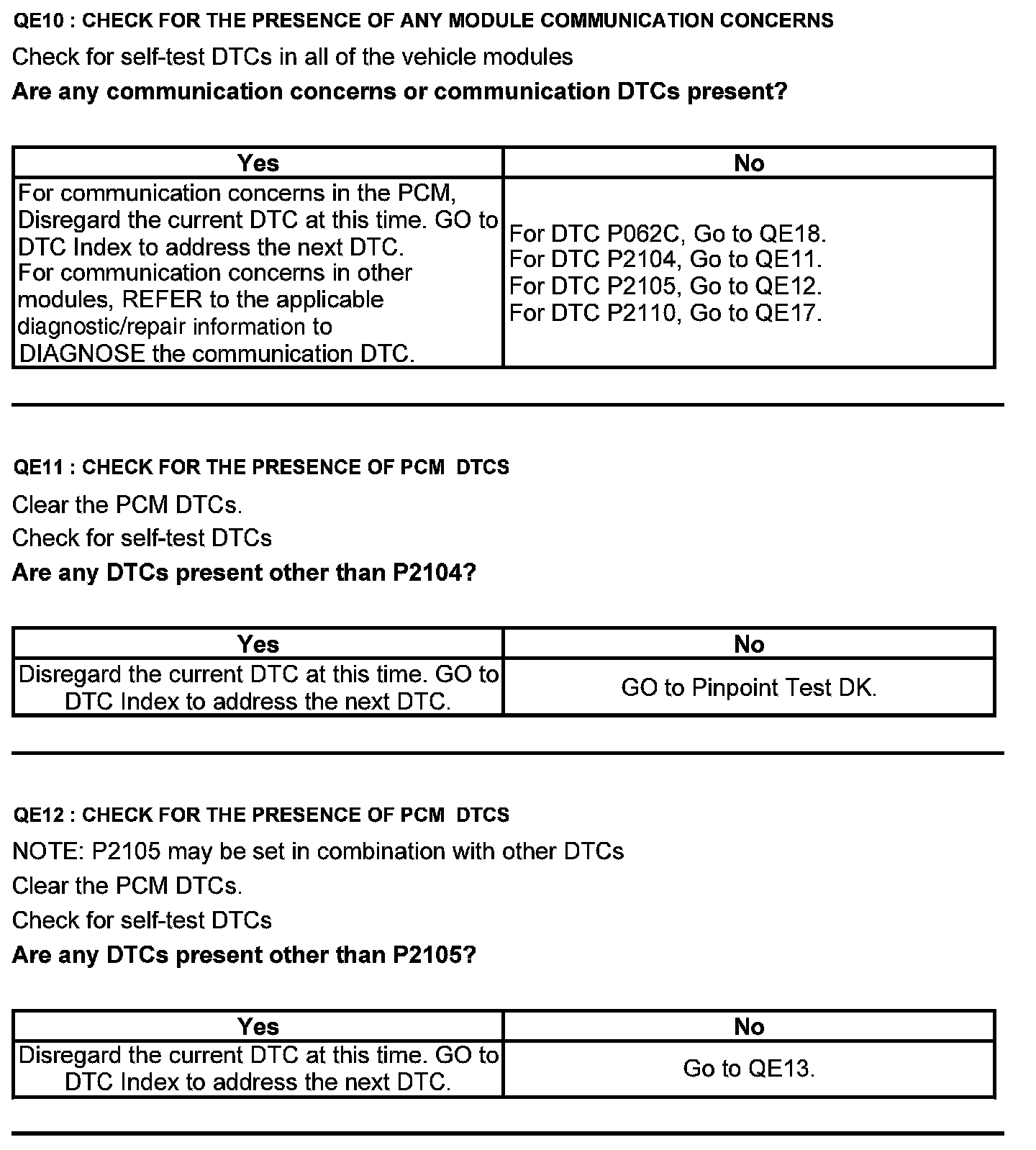

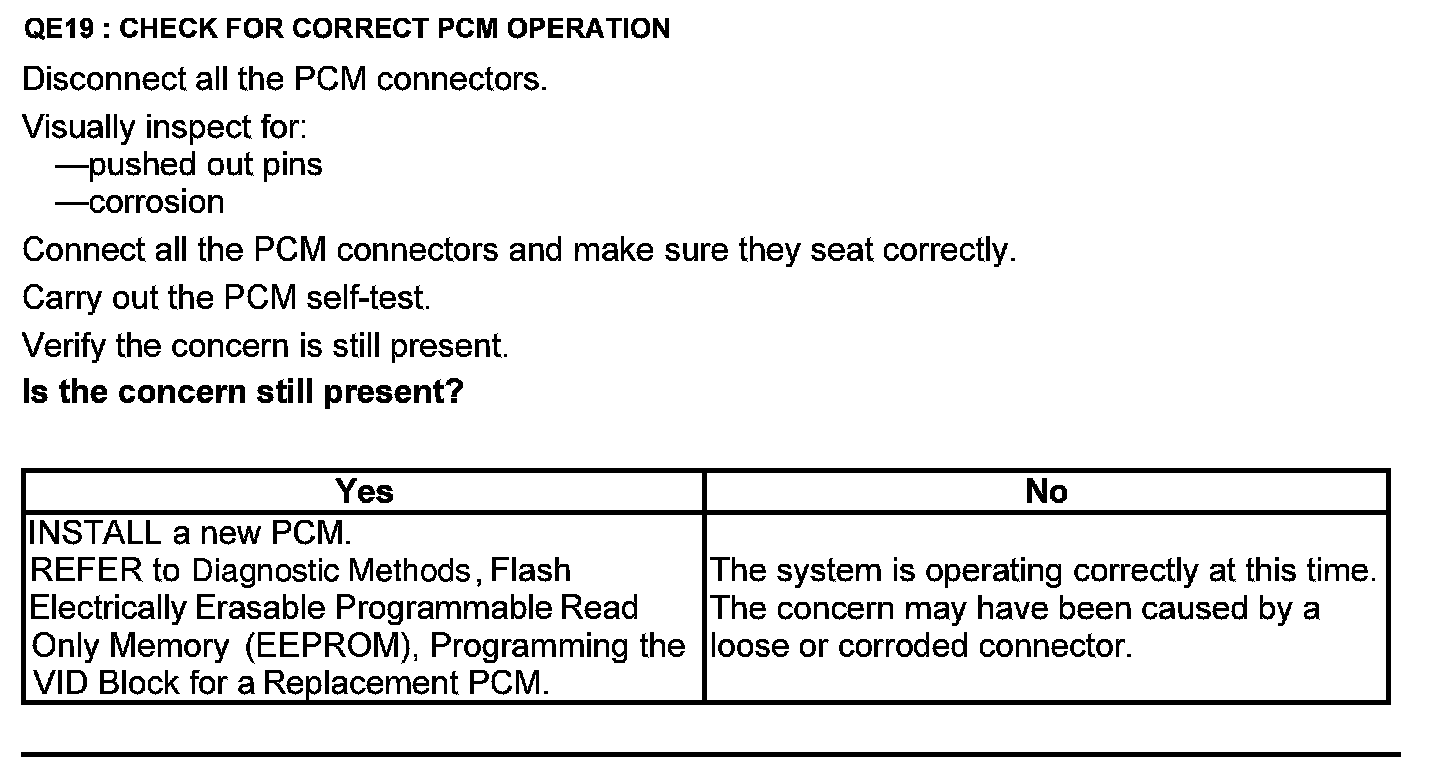

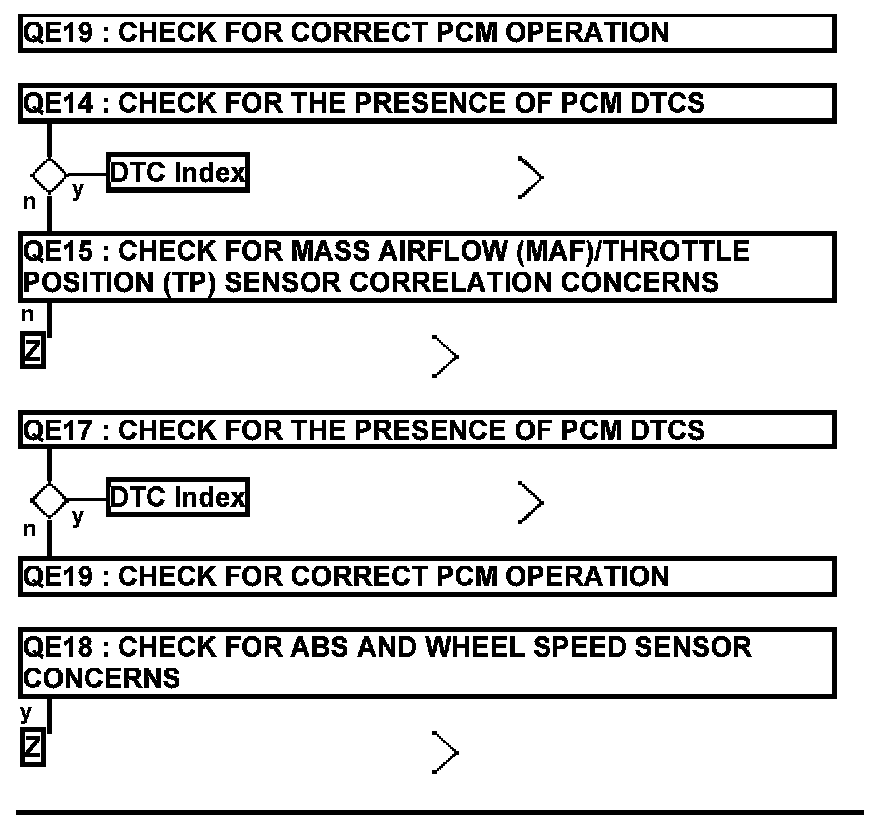

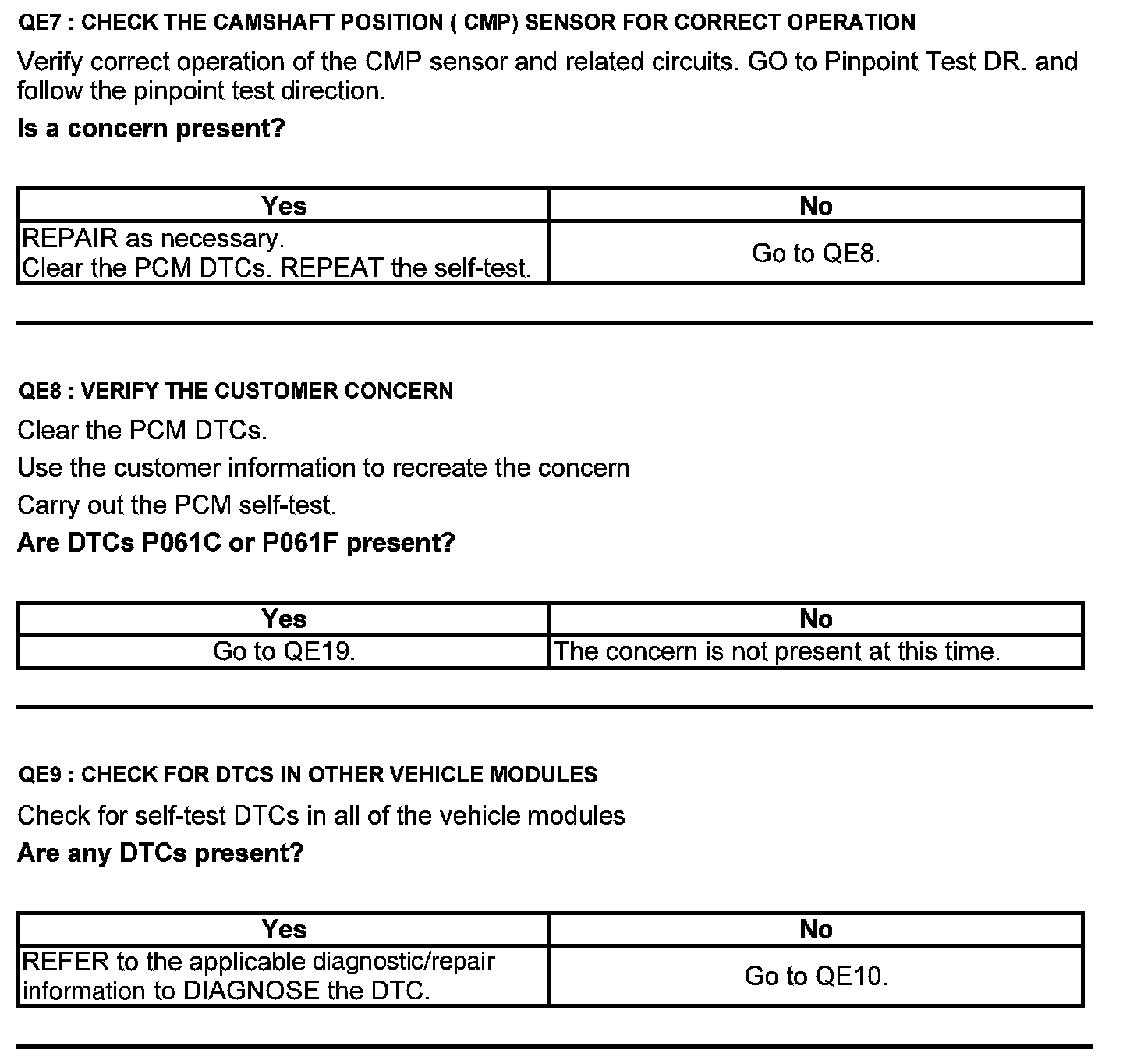

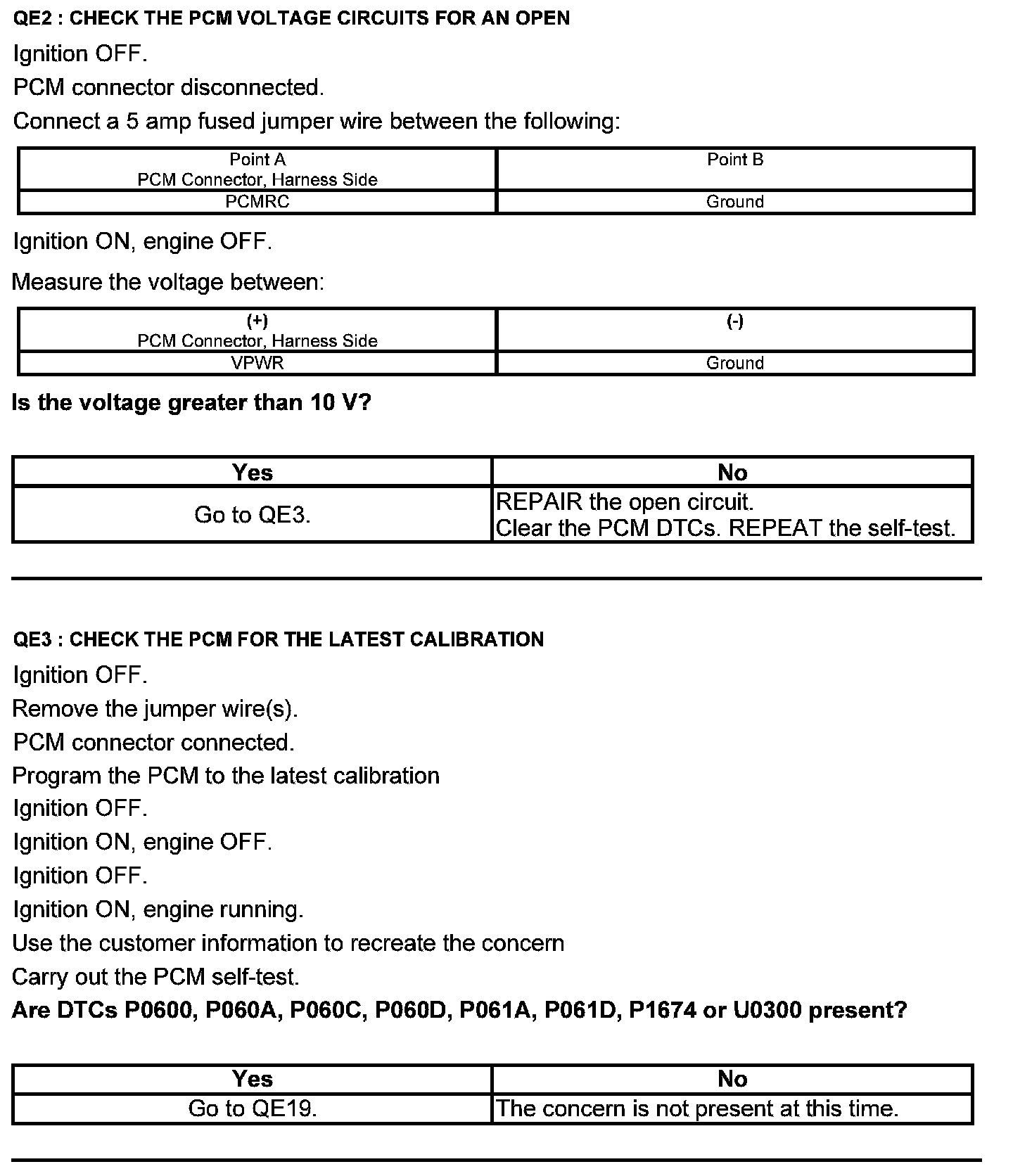

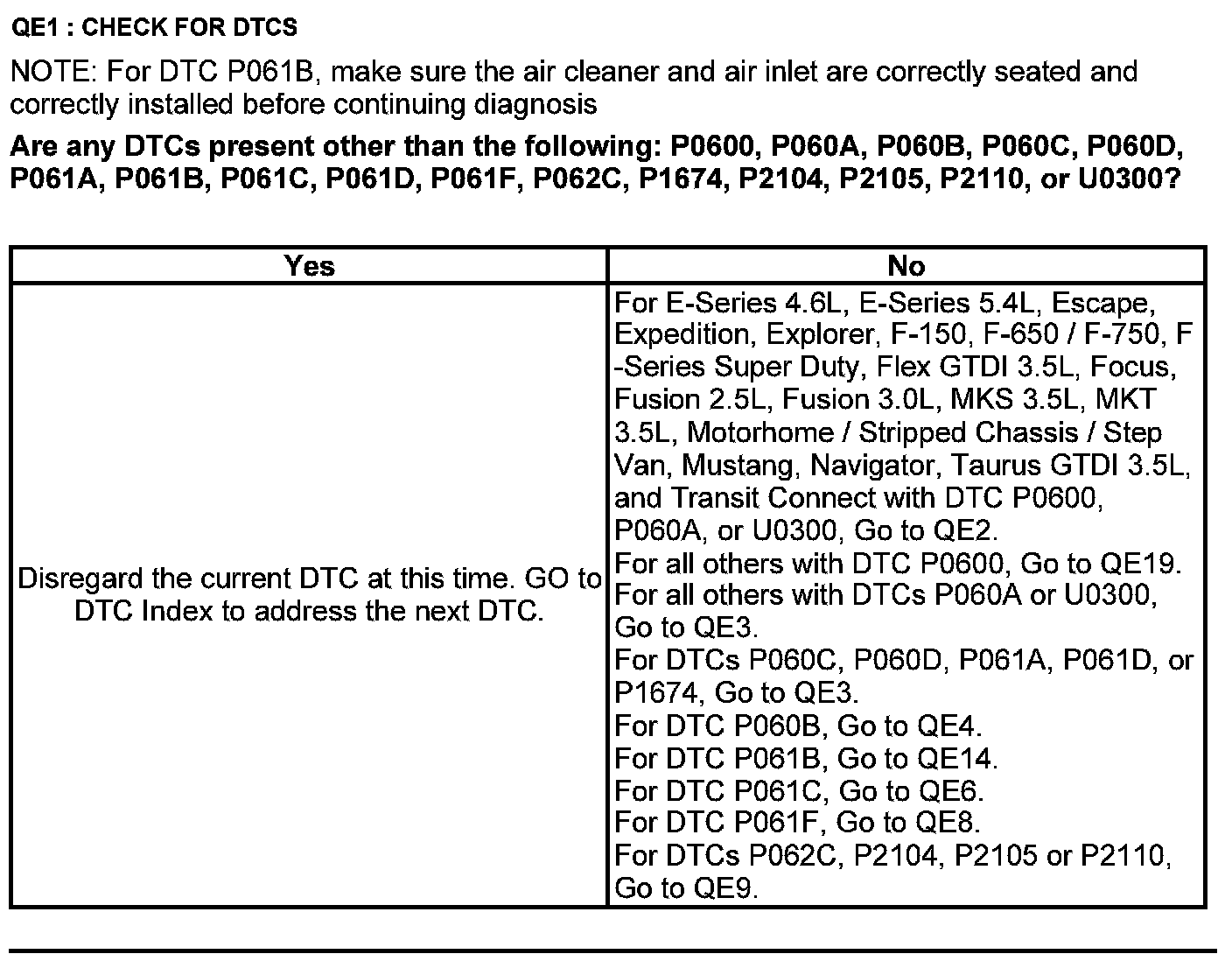

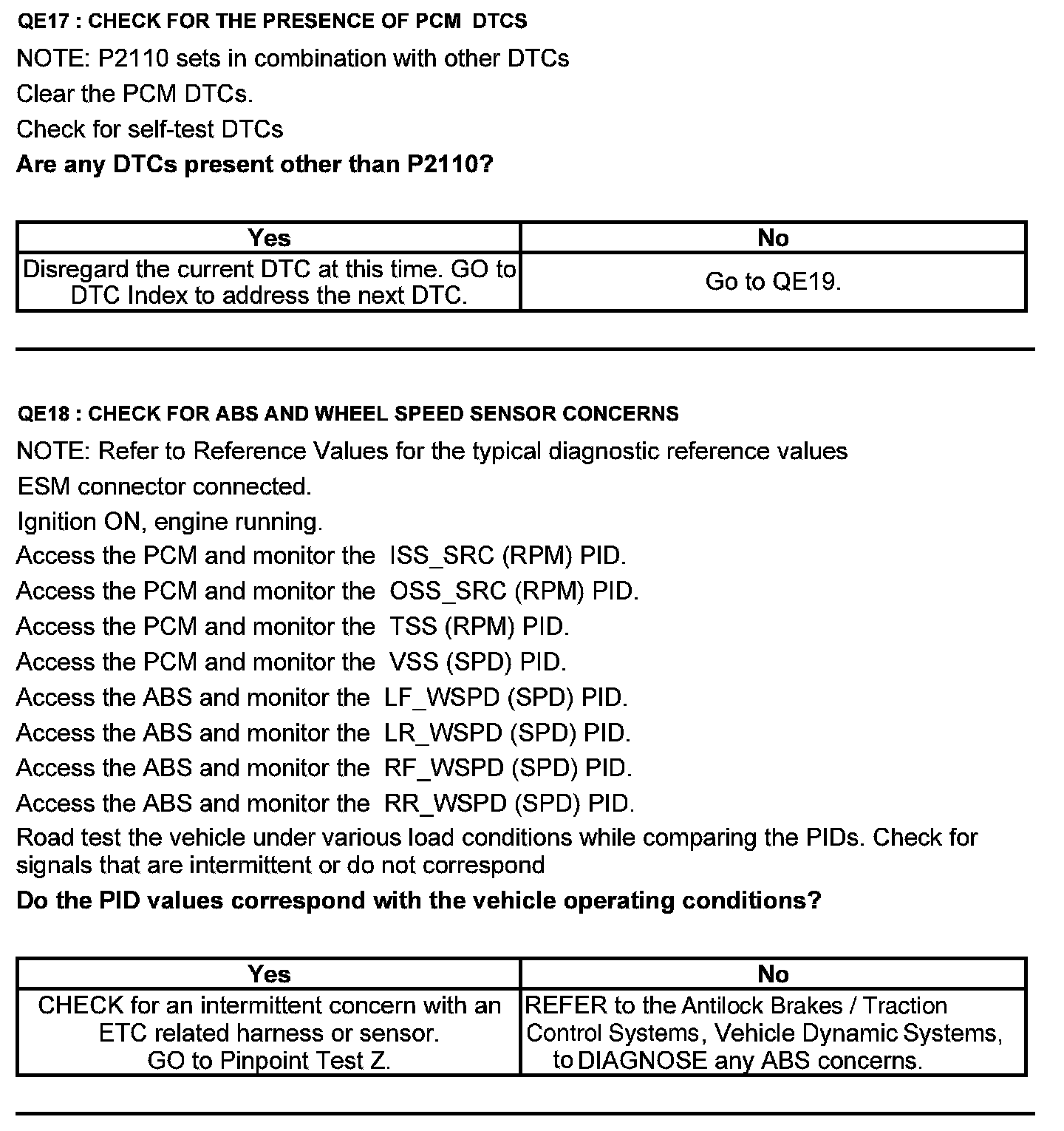

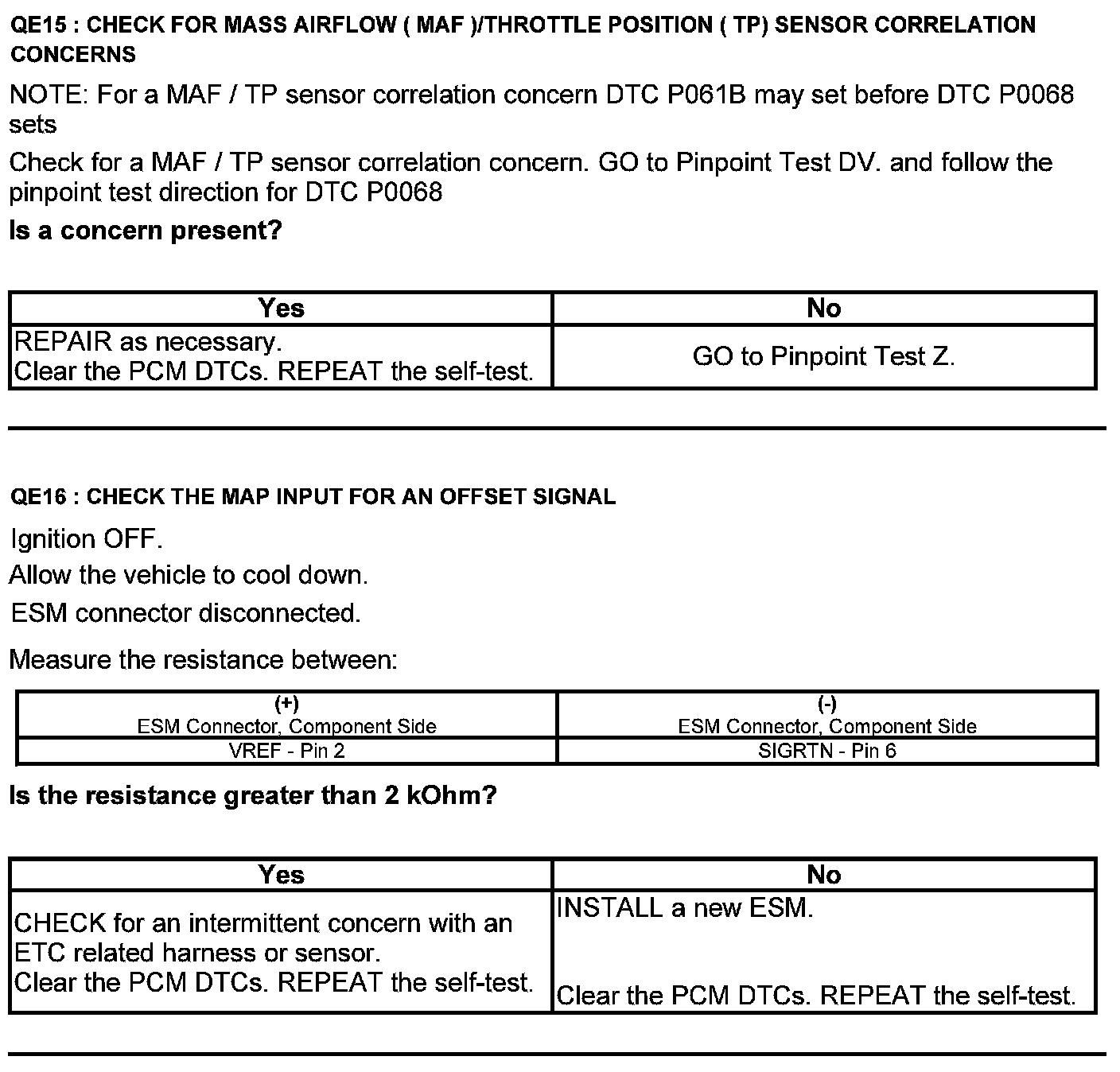

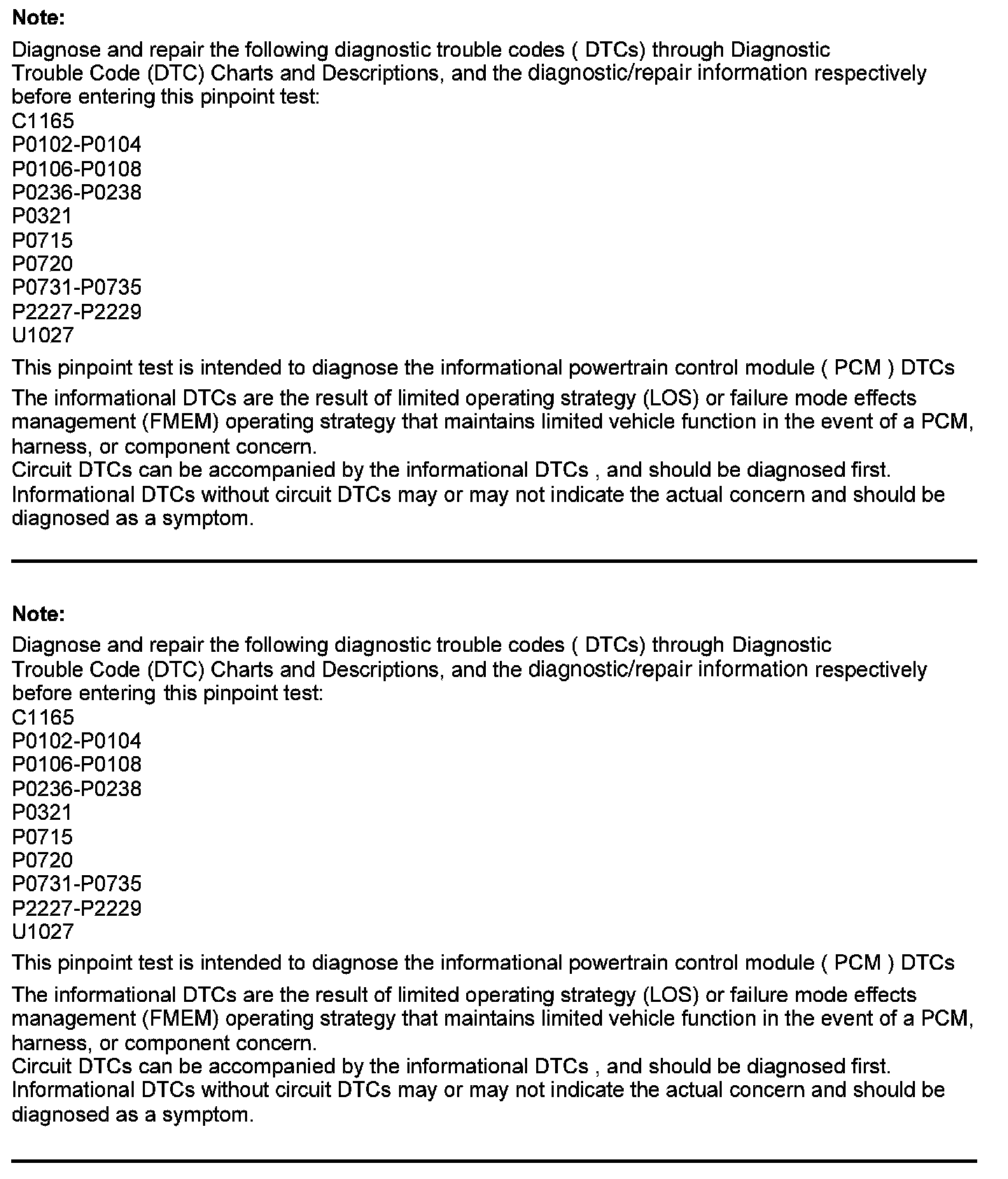

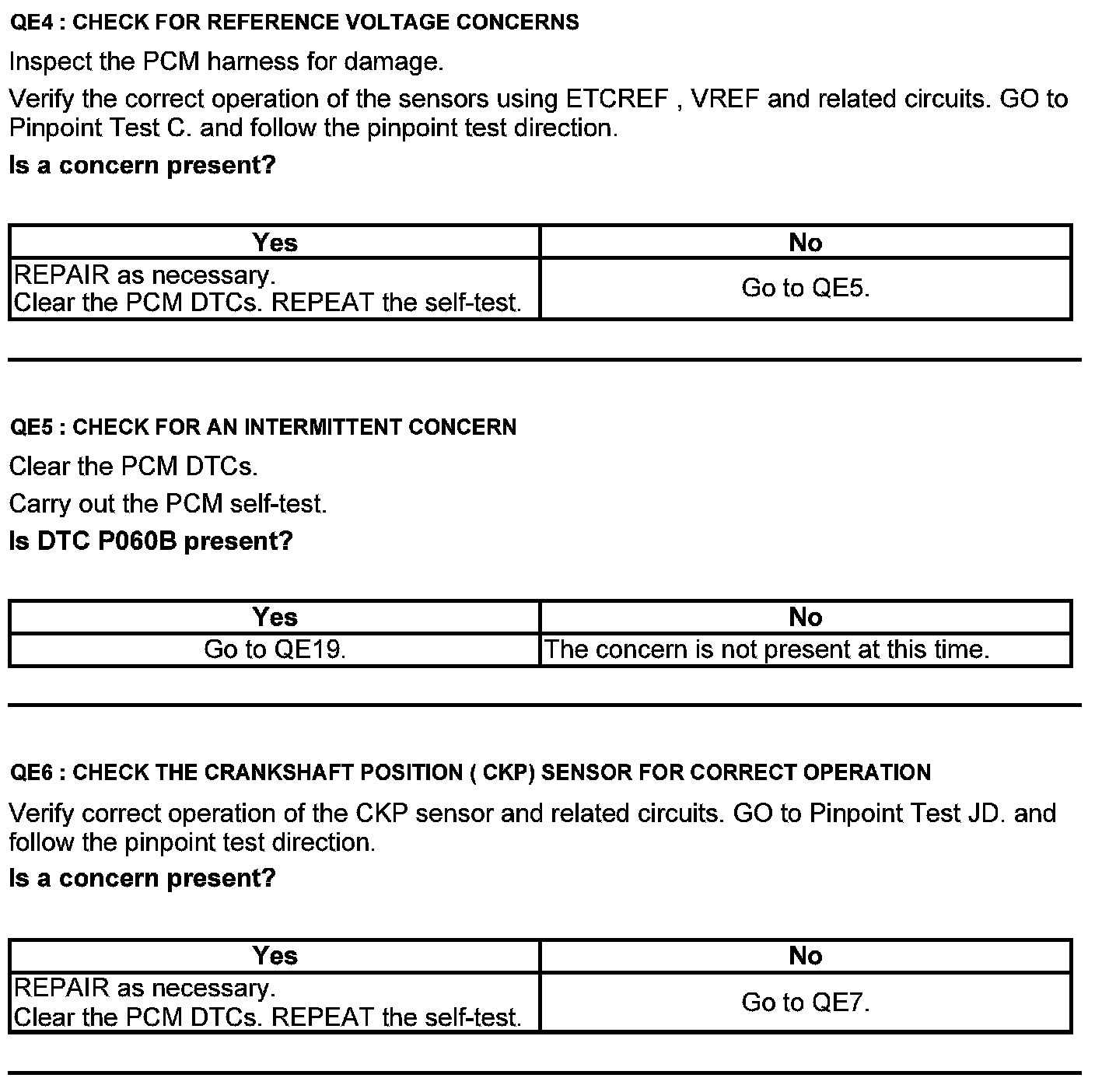

Electronic Throttle Control (ETC) System - All Others

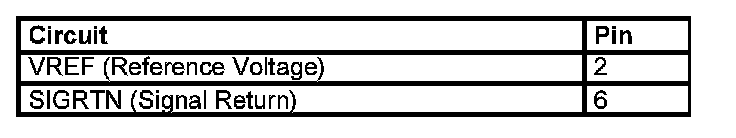

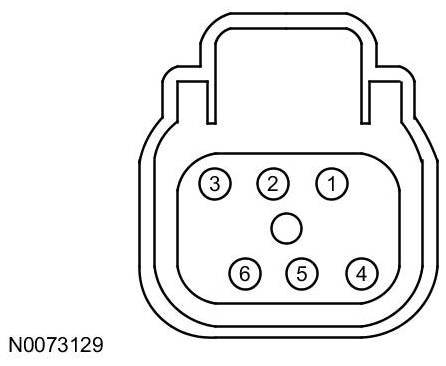

EGR System Module (ESM) Connector





Harness Side
