Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test QB: Keep Alive Power (KAPWR) >> Automatic Transmission

Automatic Transmission

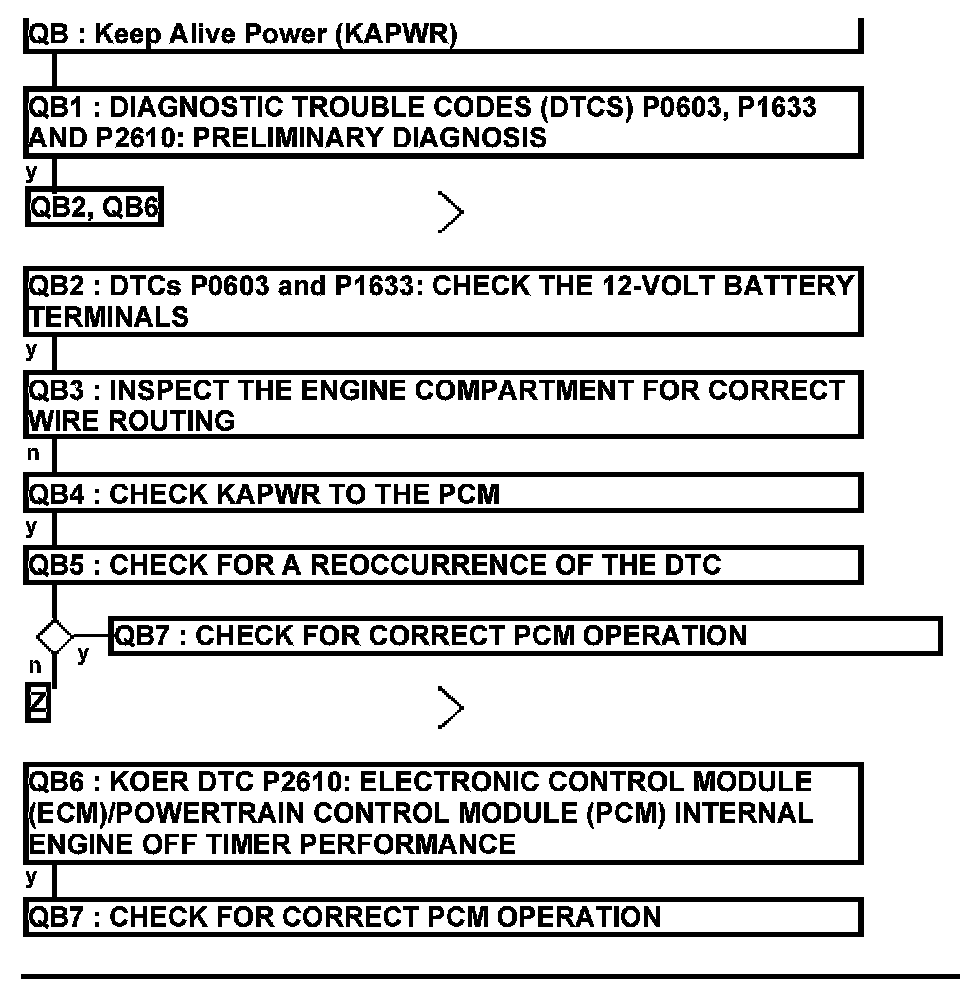

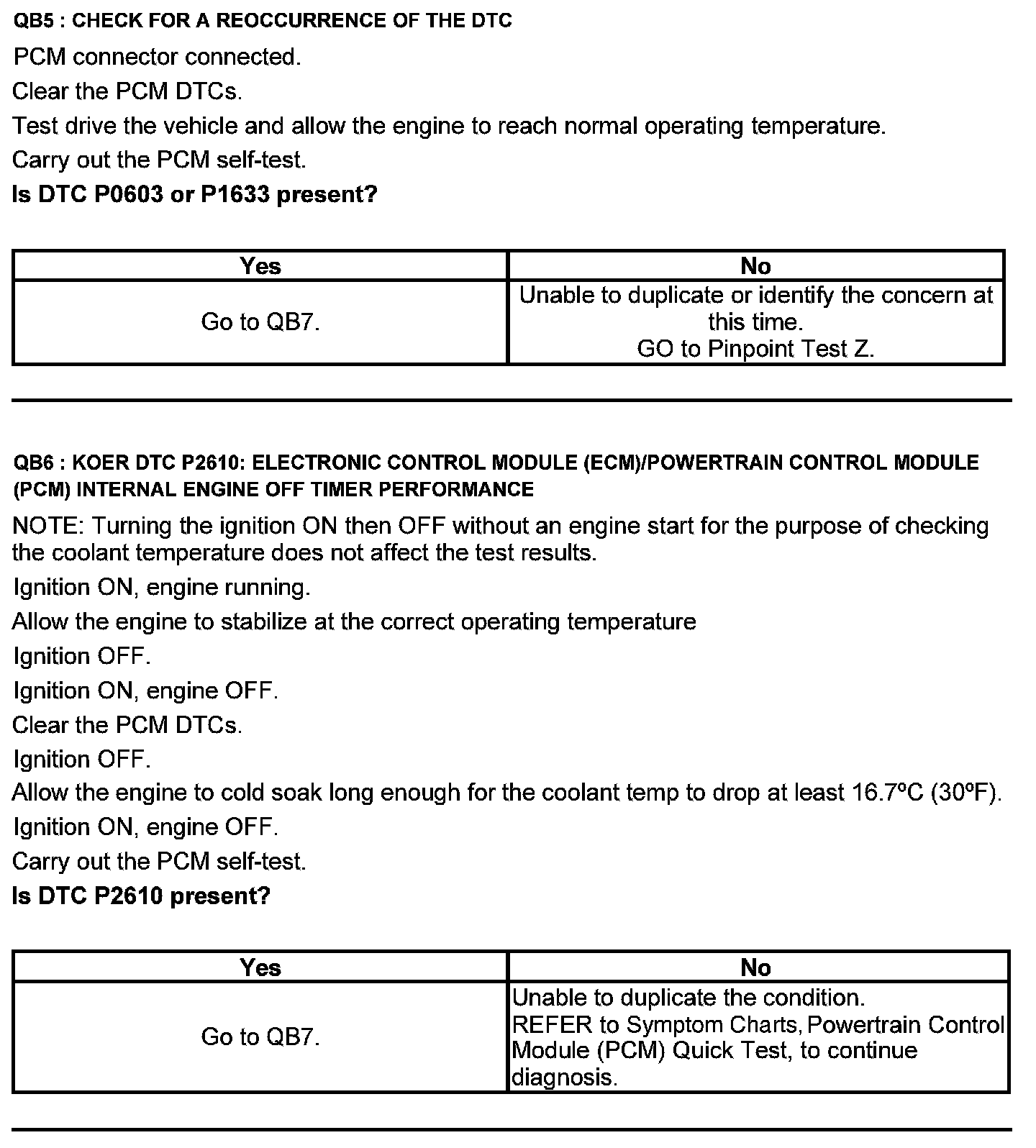

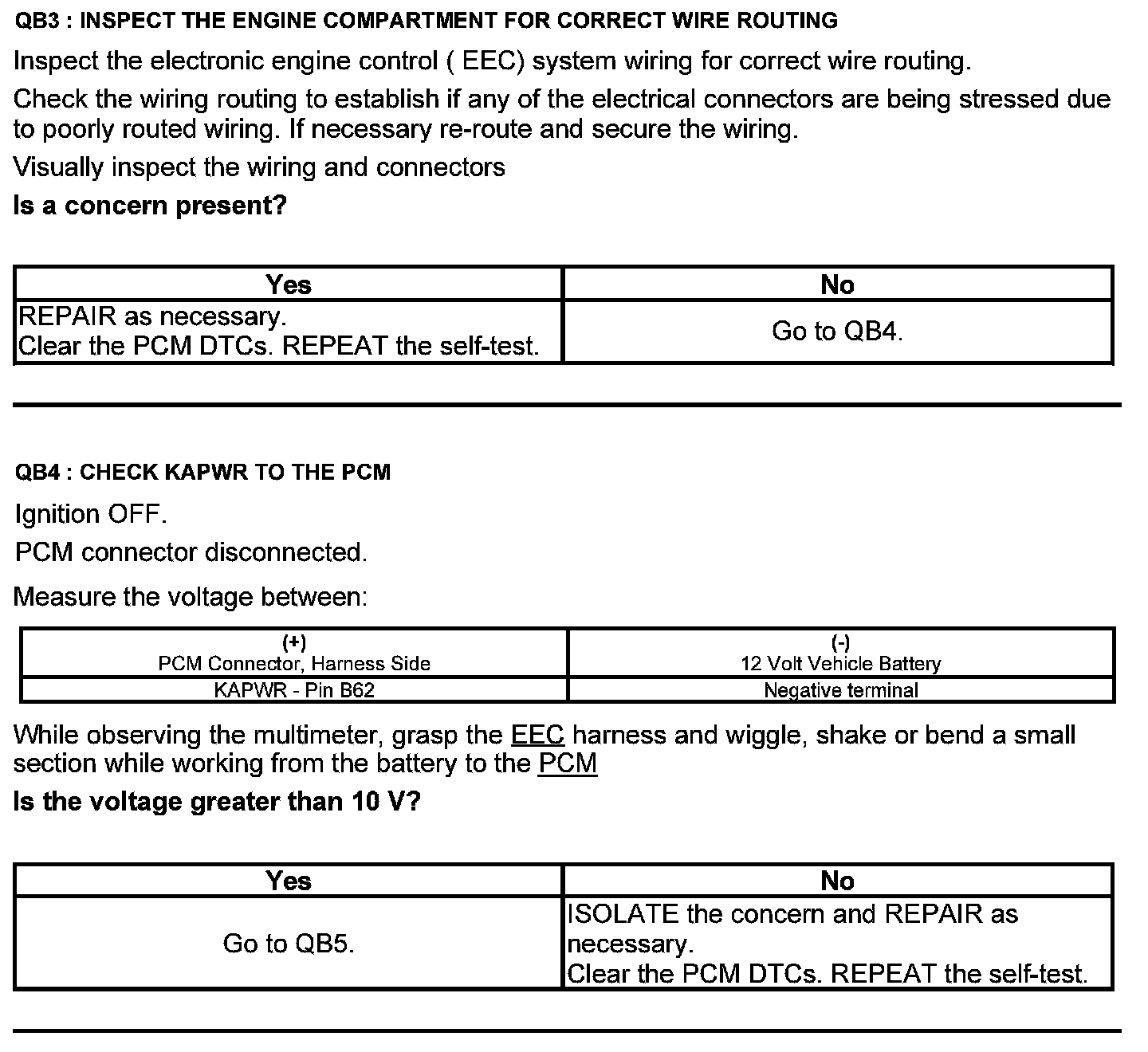

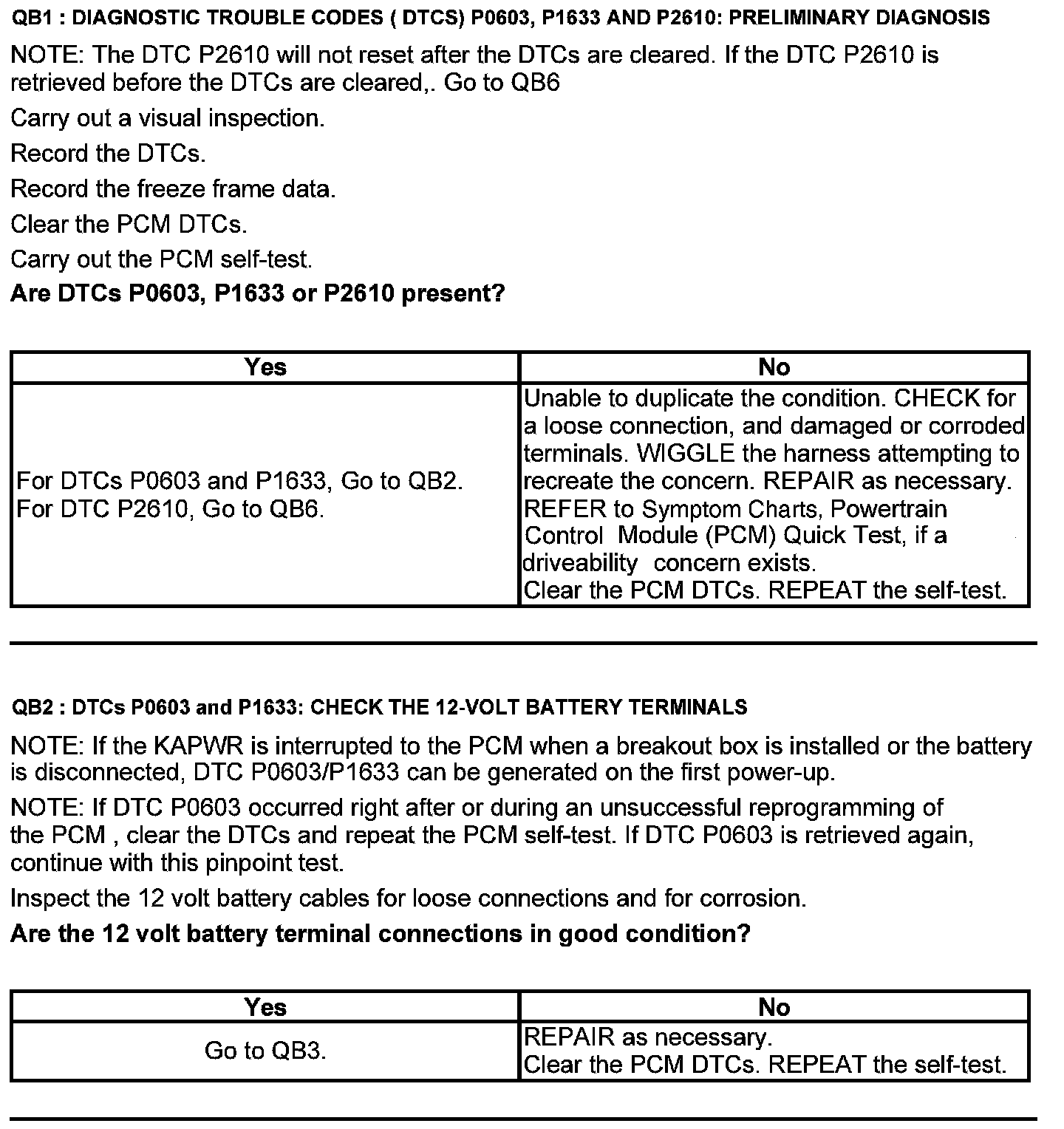

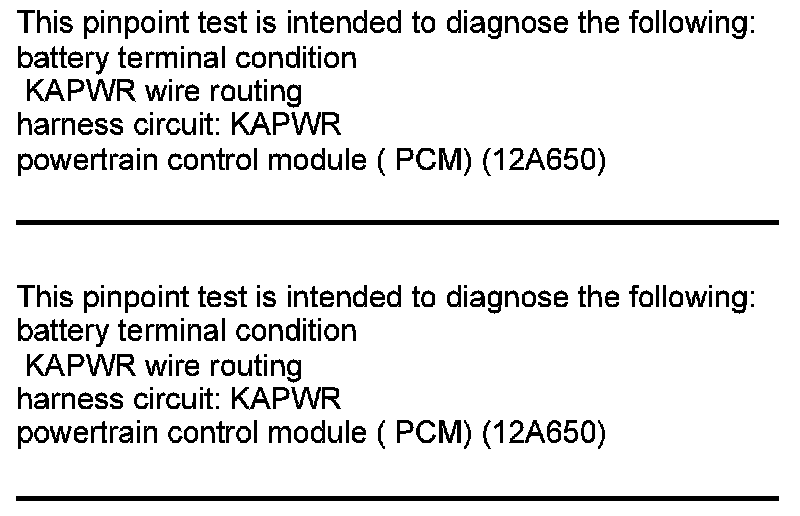

Keep Alive Power (KAPWR) - Automatic Transmission

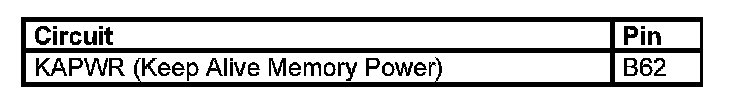

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.
