Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test KP: Charge Air Cooler (CAC) Pump >> All Others

All Others

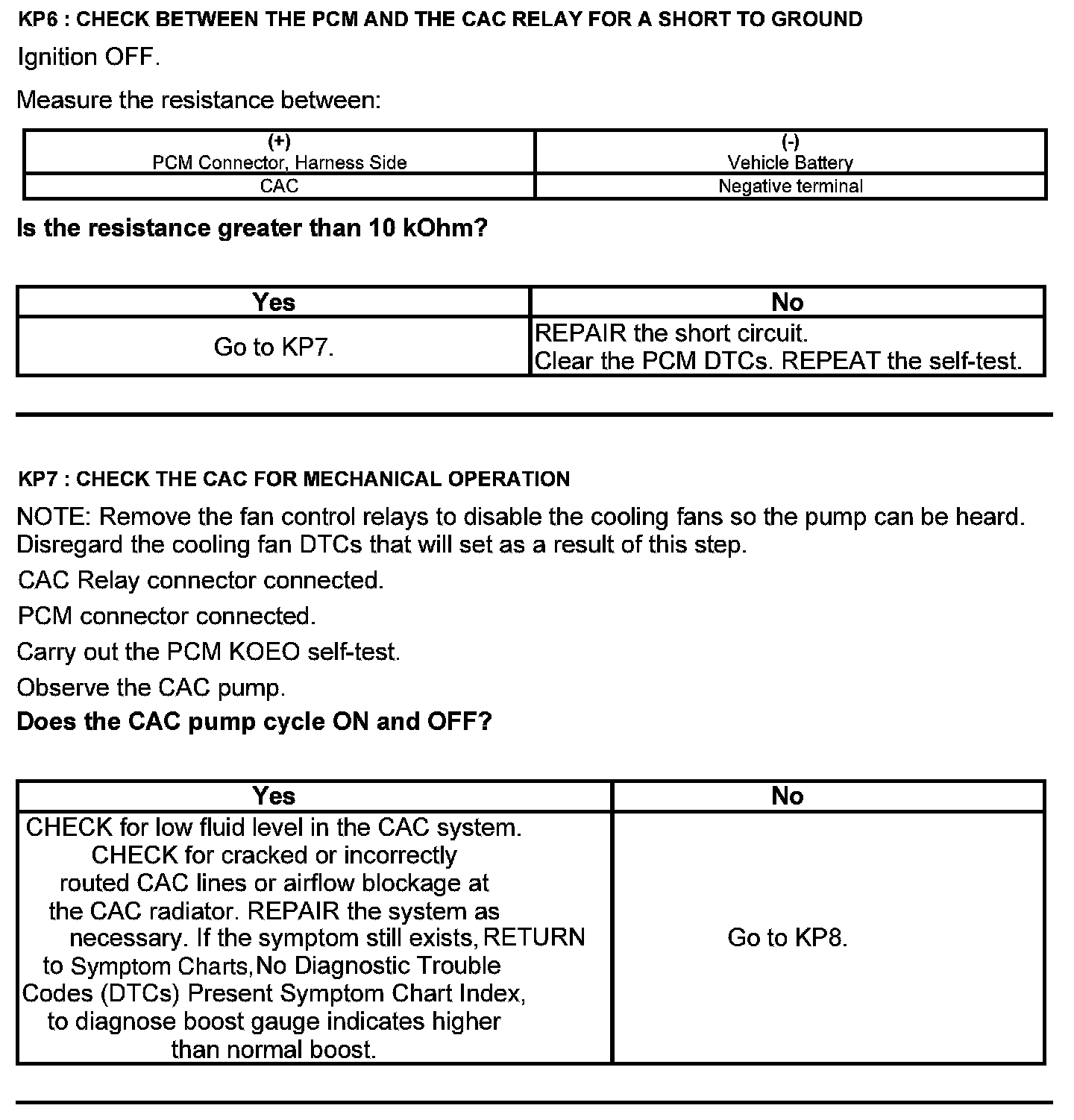

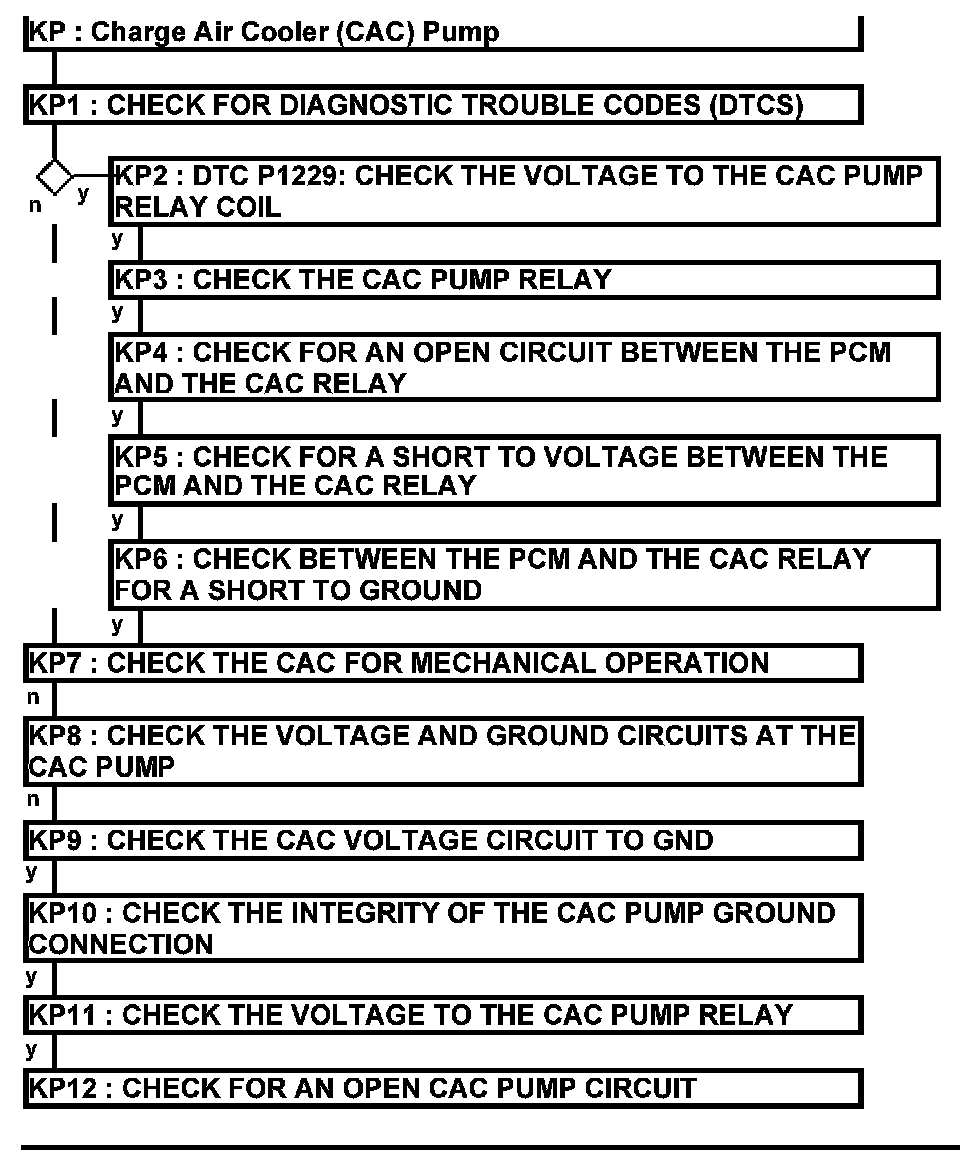

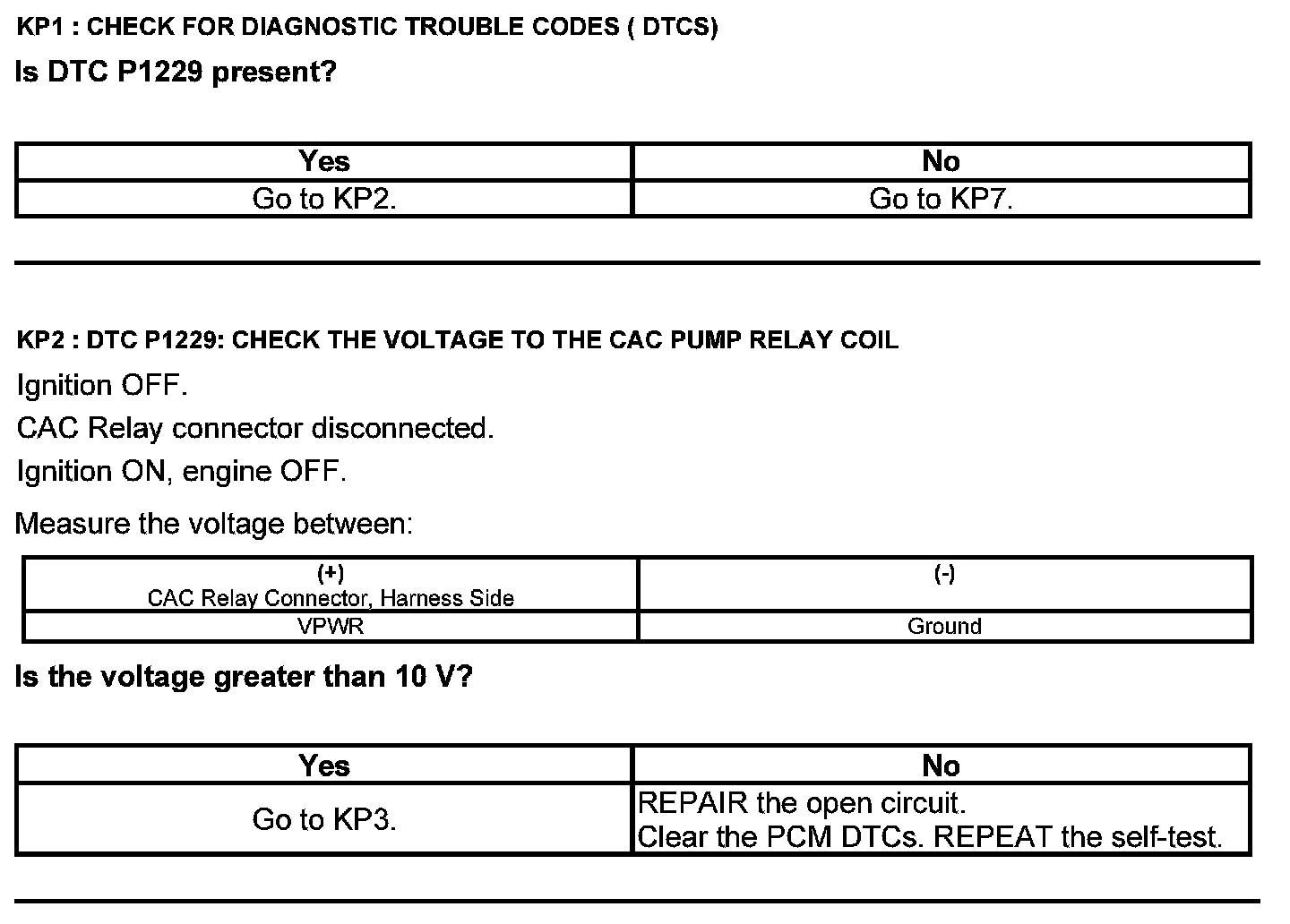

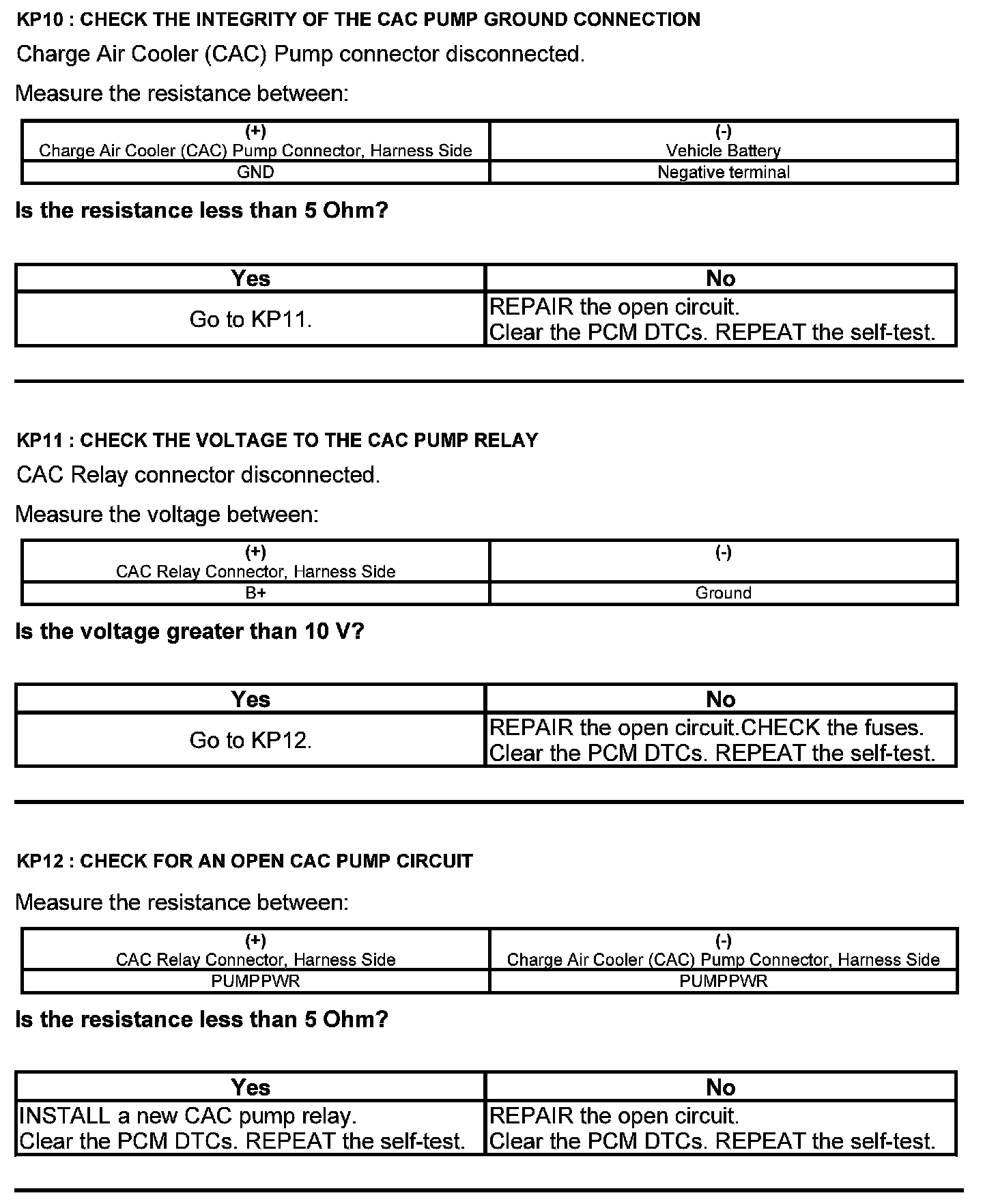

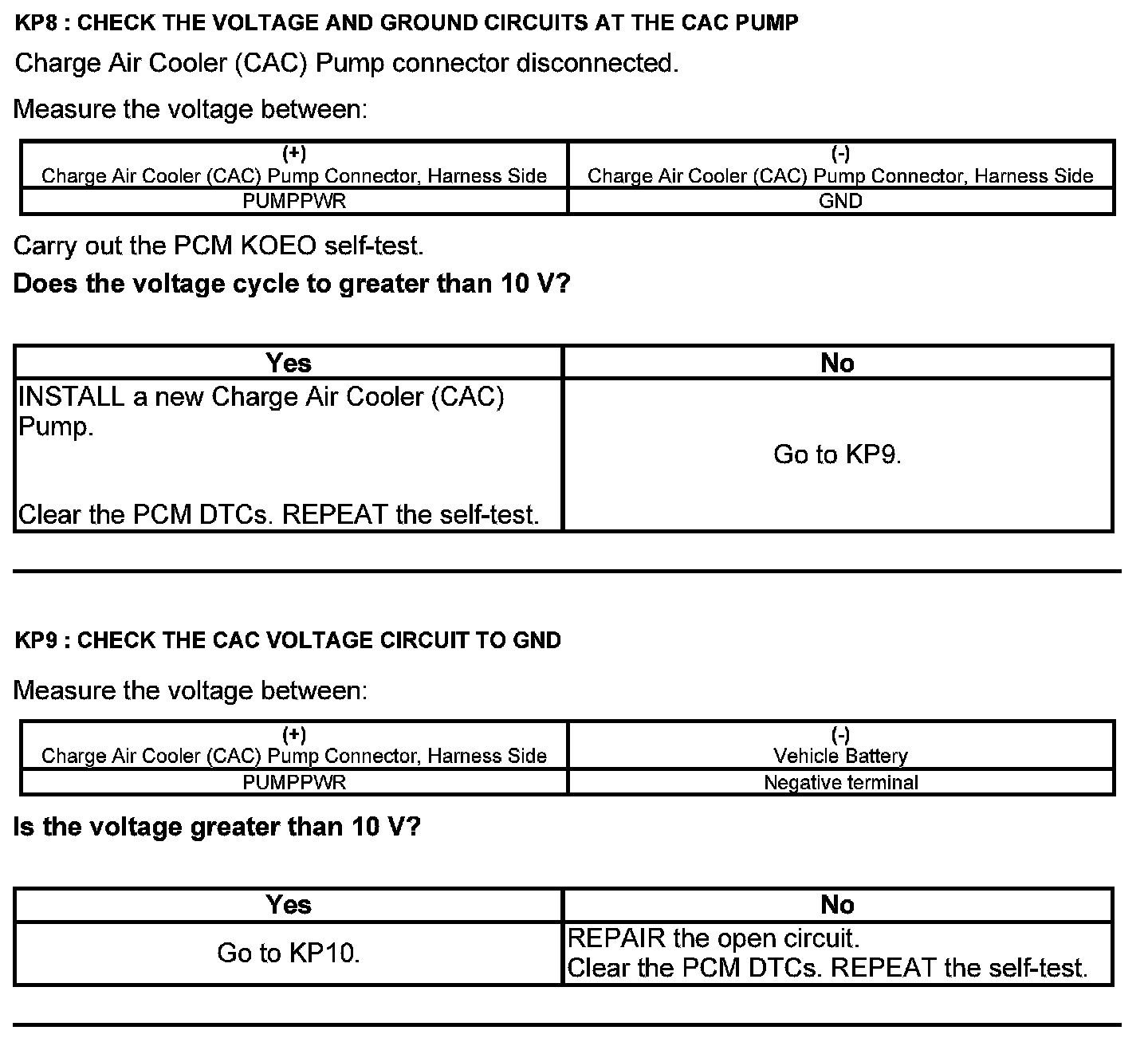

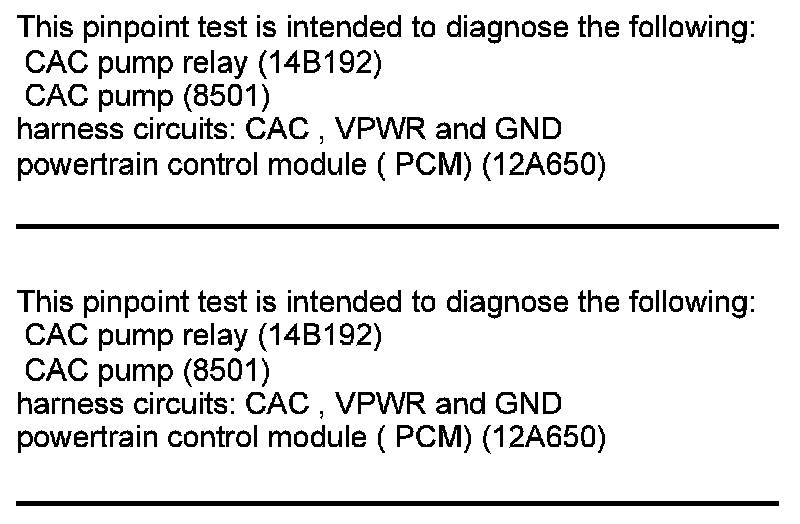

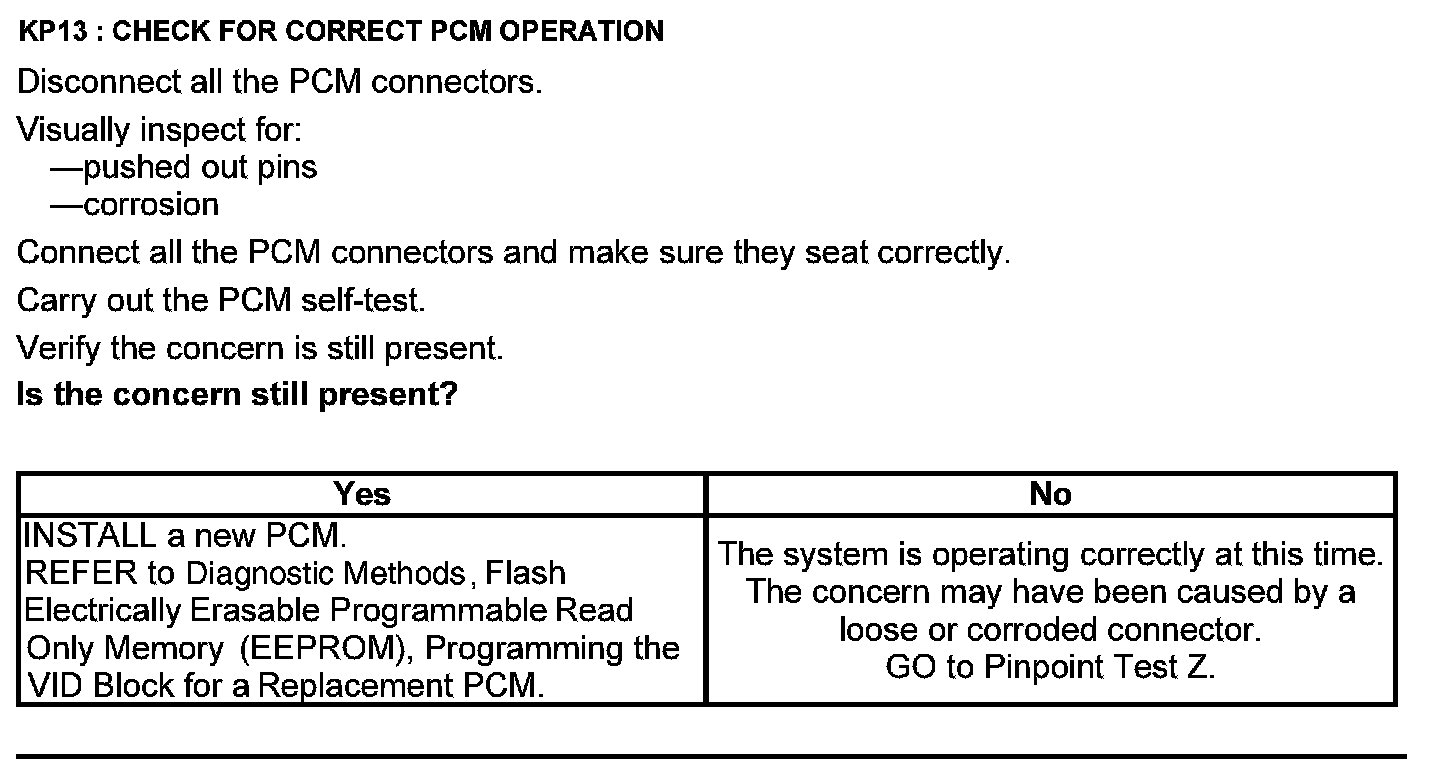

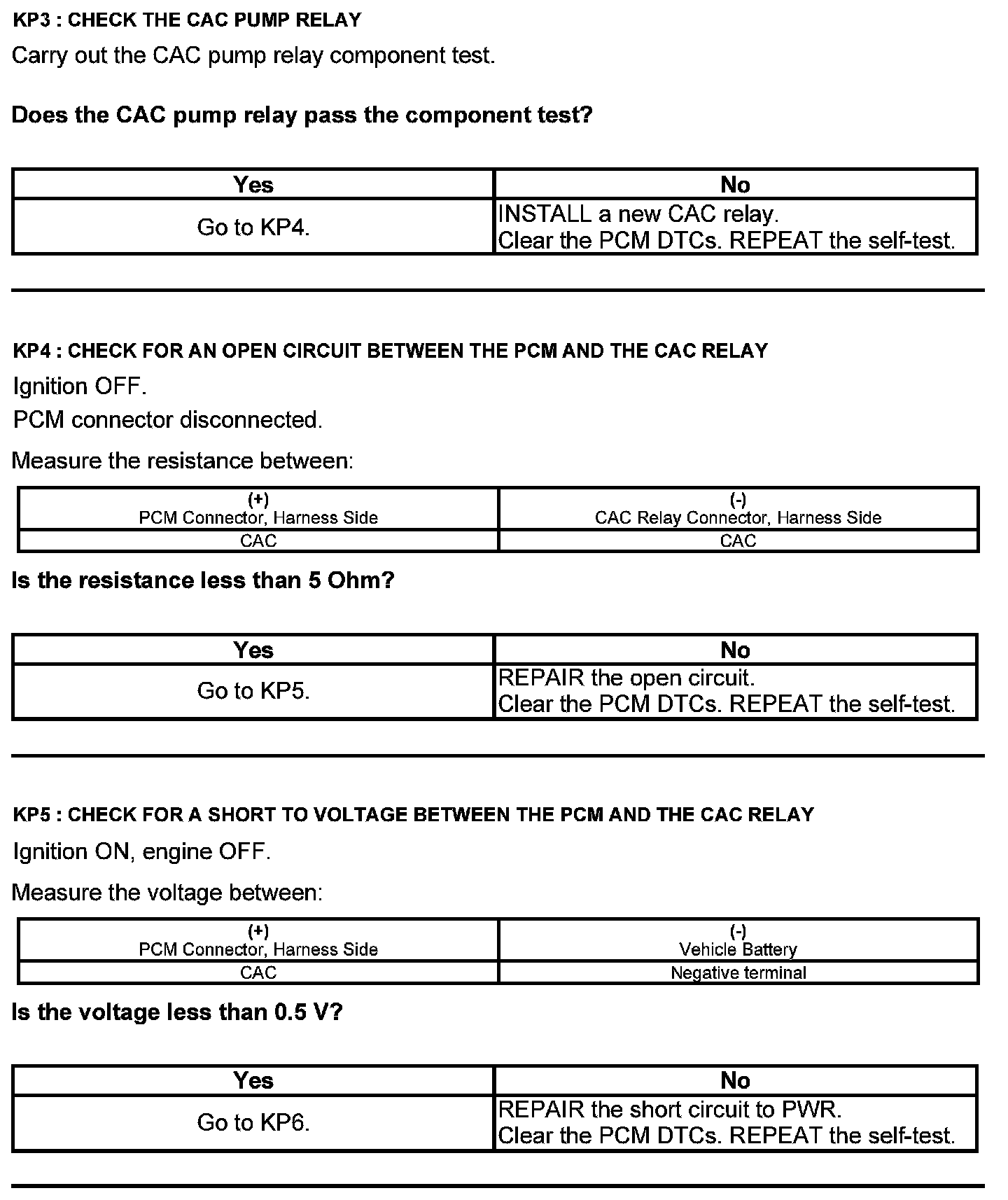

Charge Air Cooler (CAC) Pump - All Others
