Manual Transmission

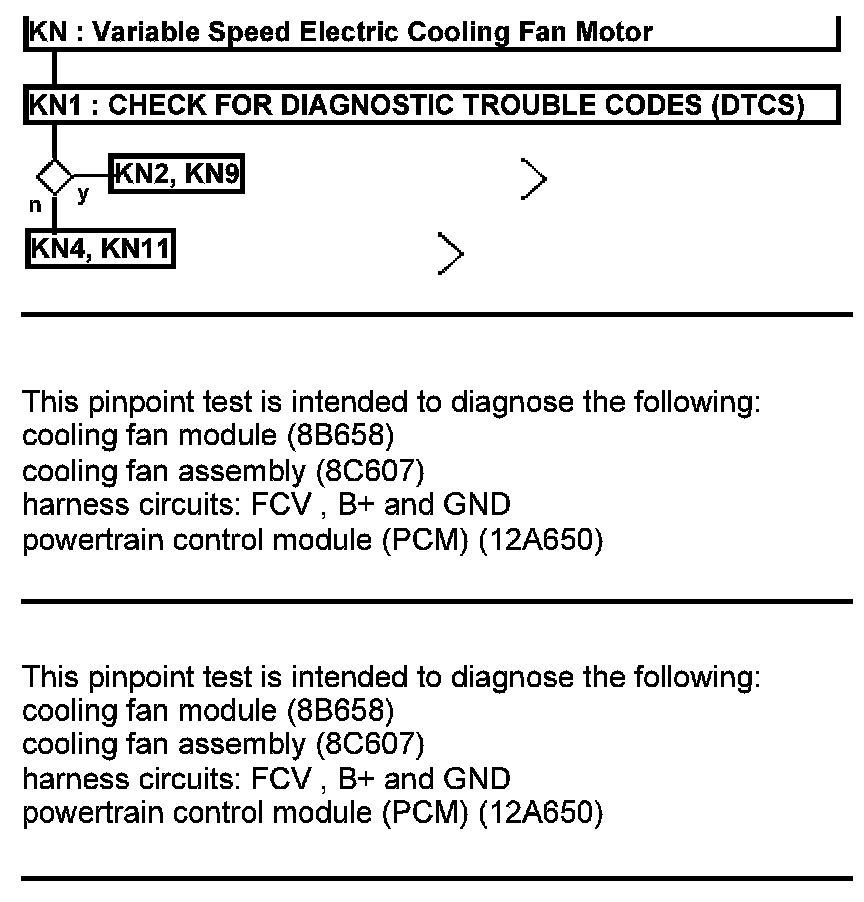

Variable Speed Electric Cooling Fan Motor - Manual Transmission

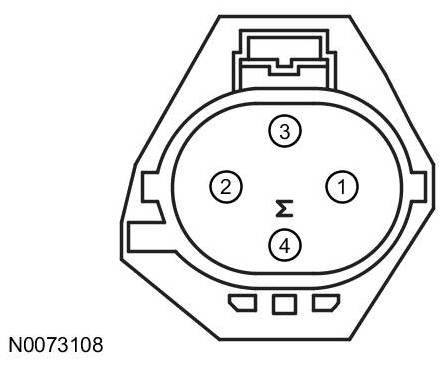

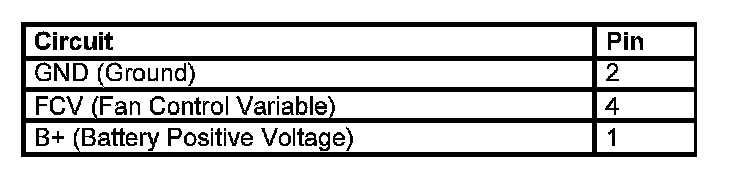

Cooling Fan (CF) Module Connector
Harness Side

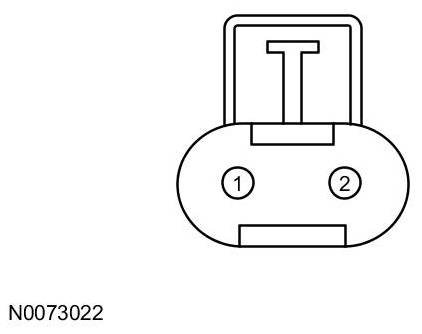

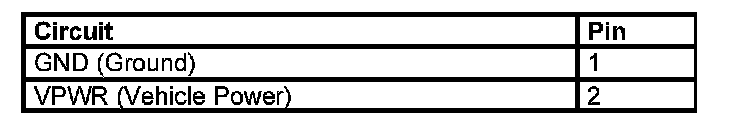

Cooling Fan (CF) Motor Connector
Harness Side

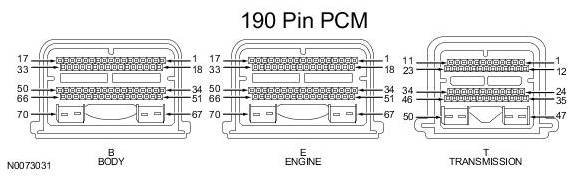

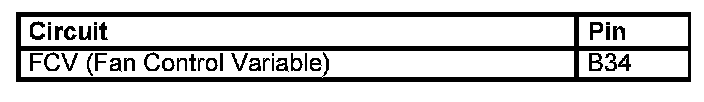

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
