Automatic Transmission

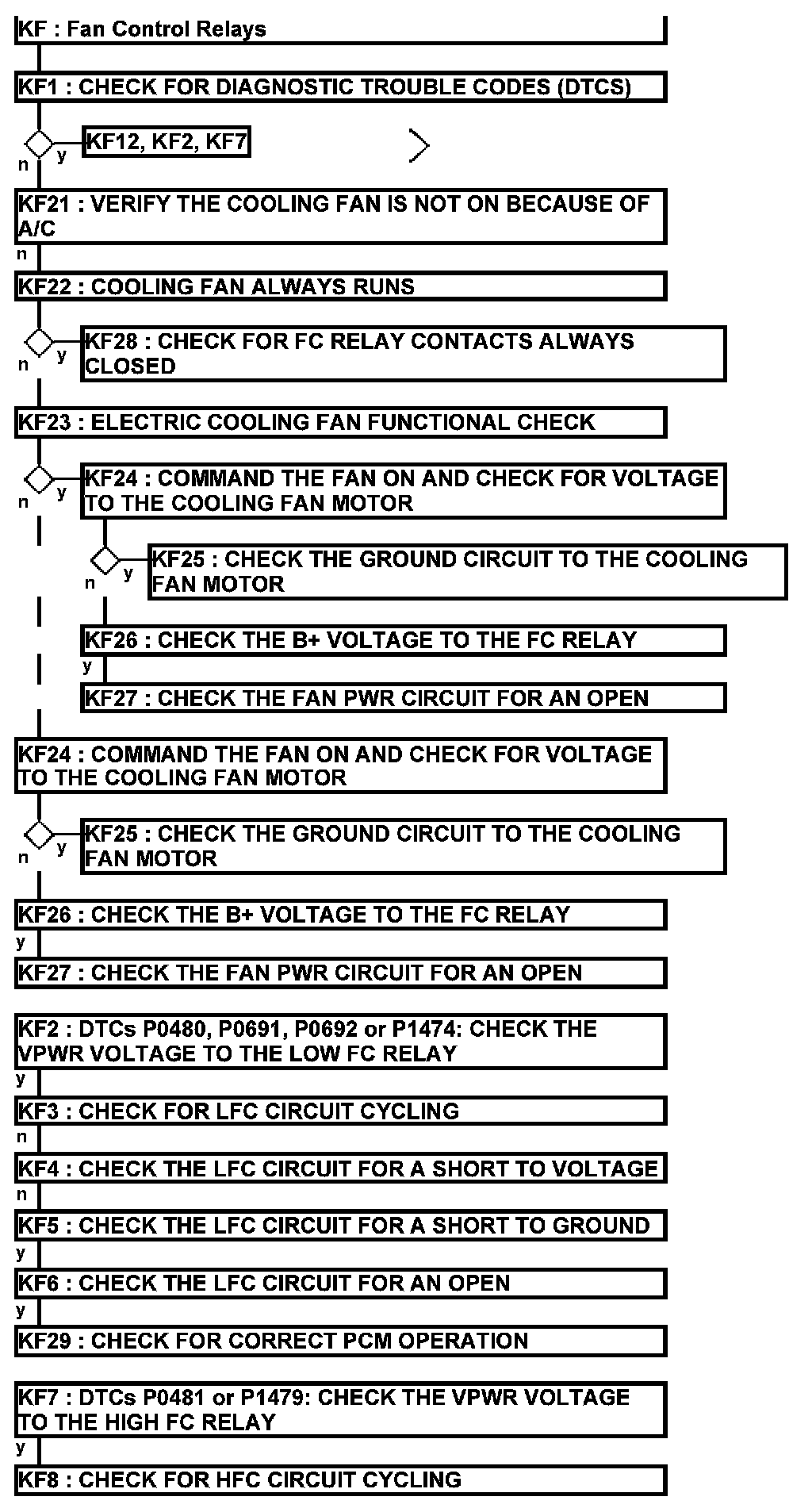

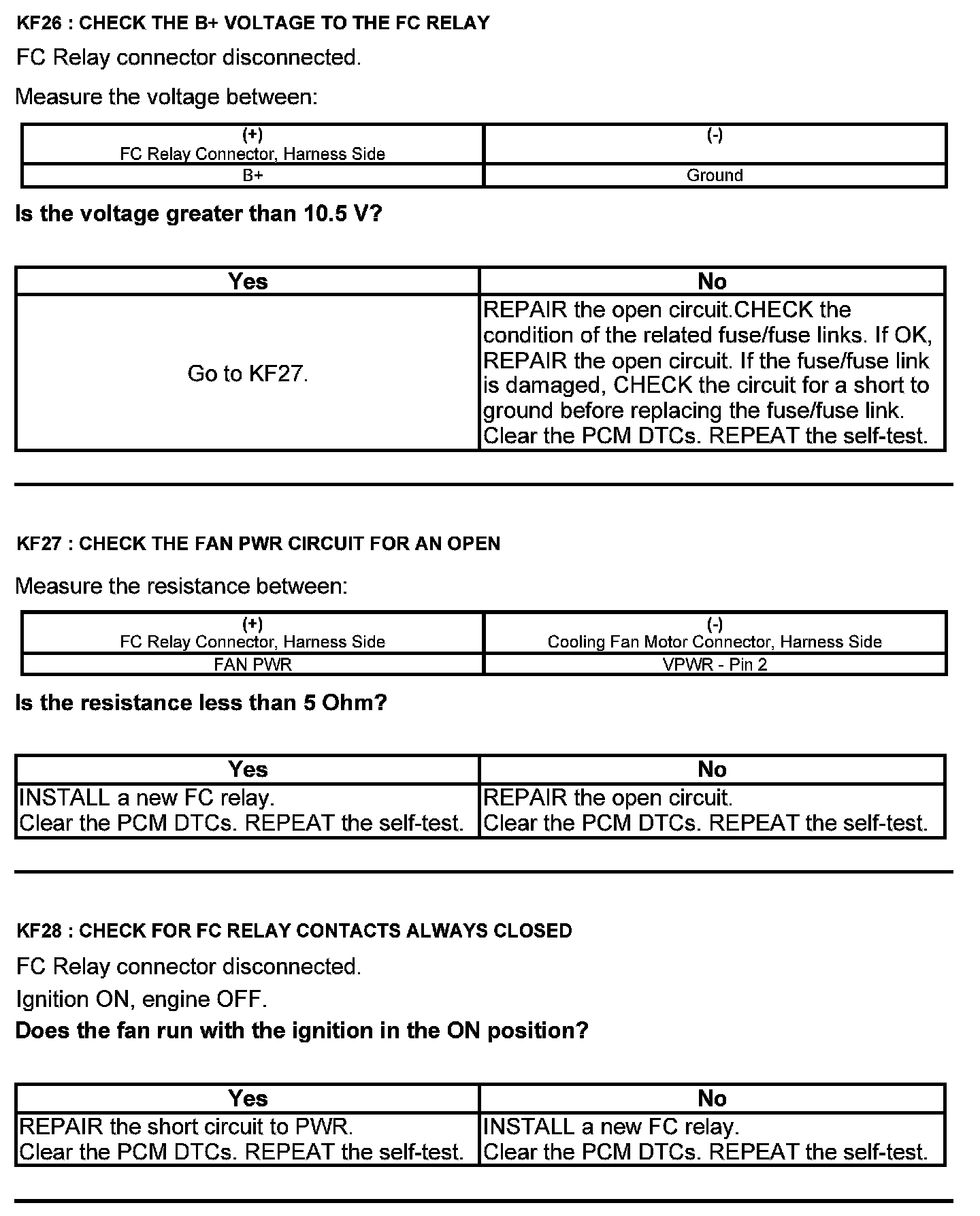

Fan Control Relays - Automatic Transmission

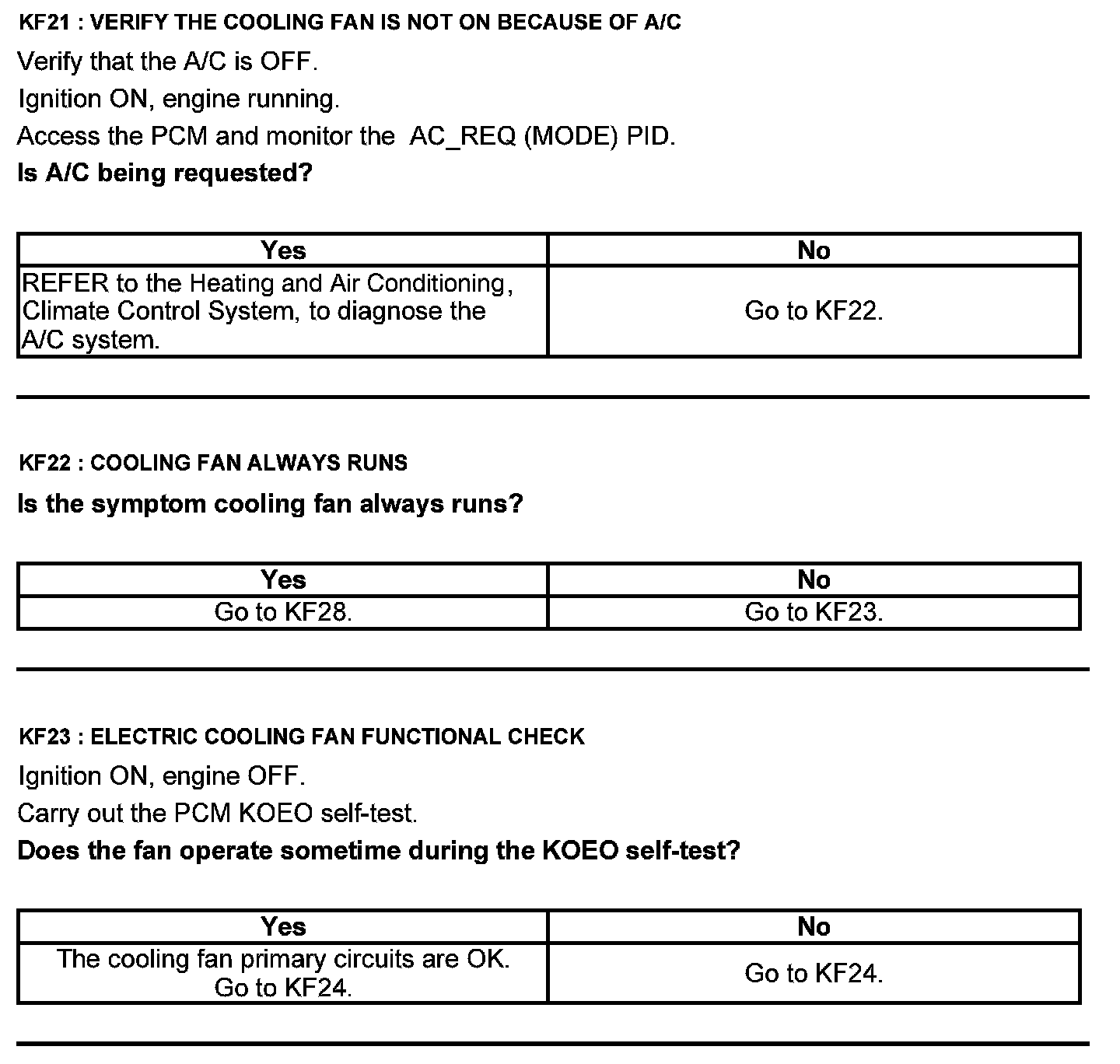

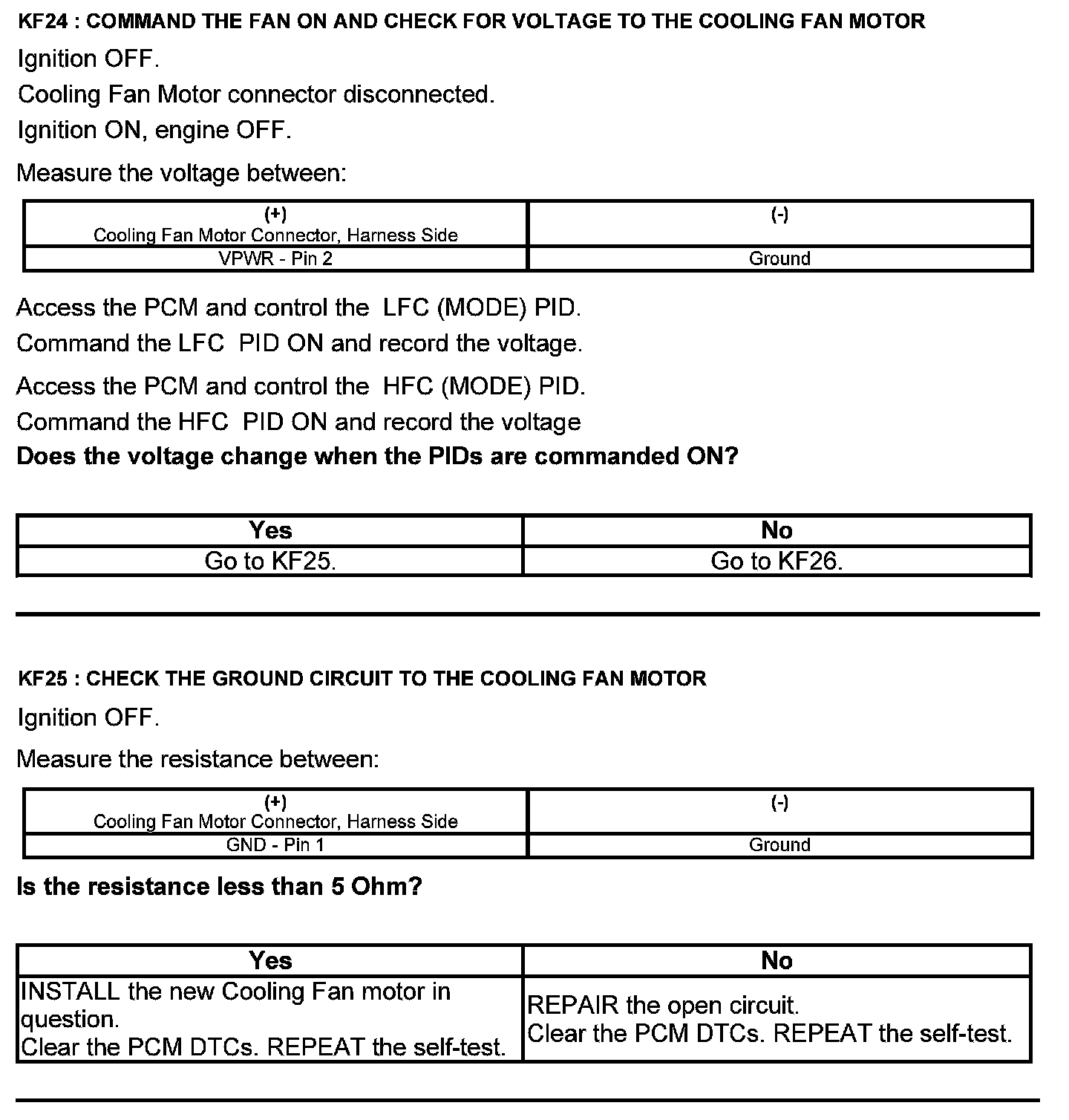

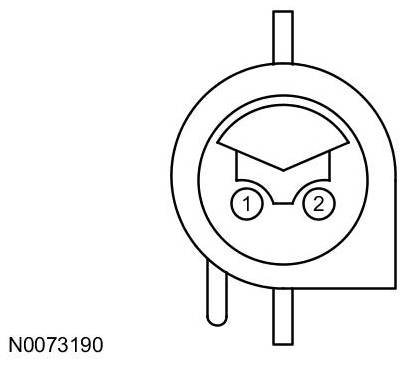

Cooling Fan Motor Connector
Harness Side

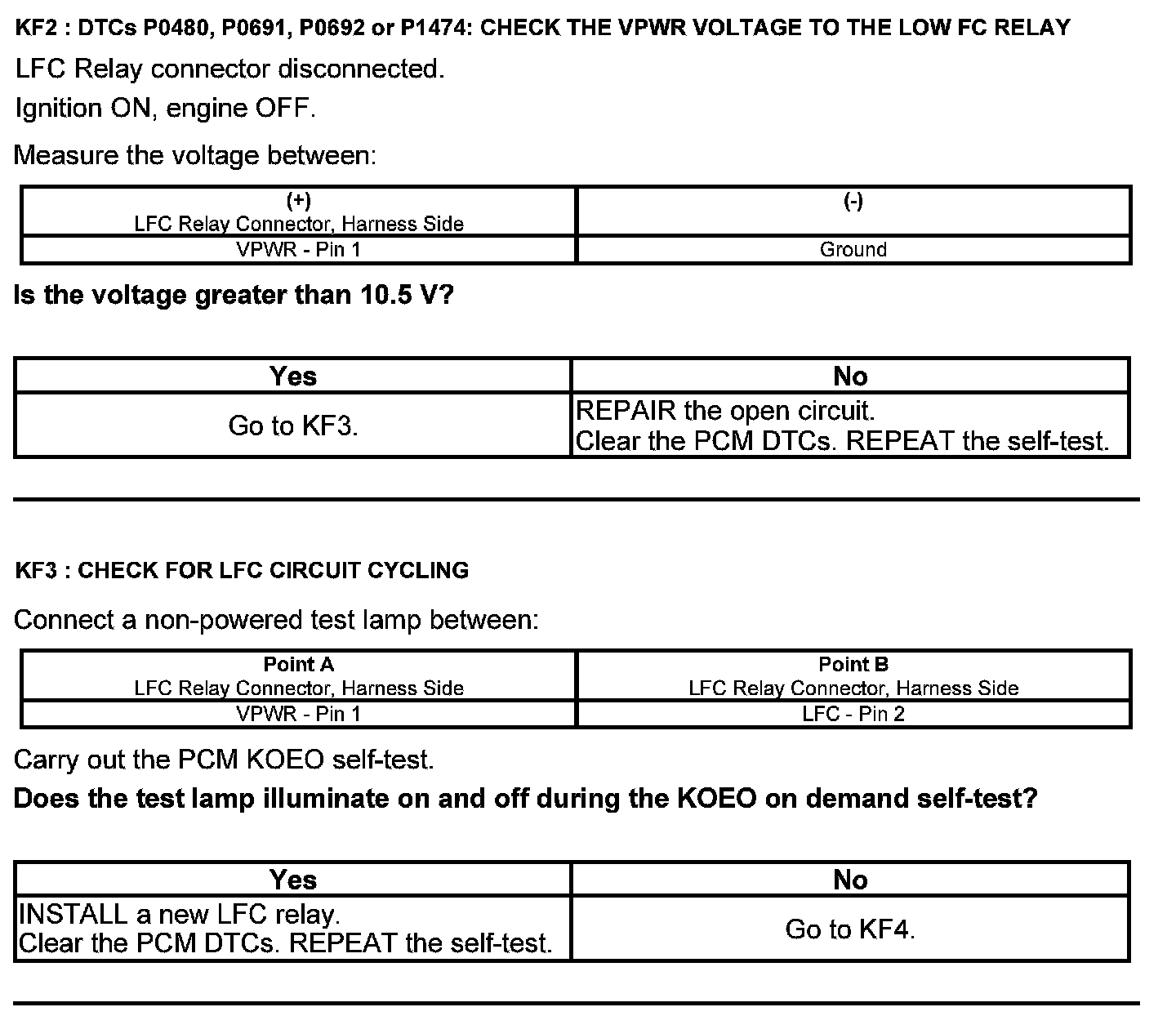

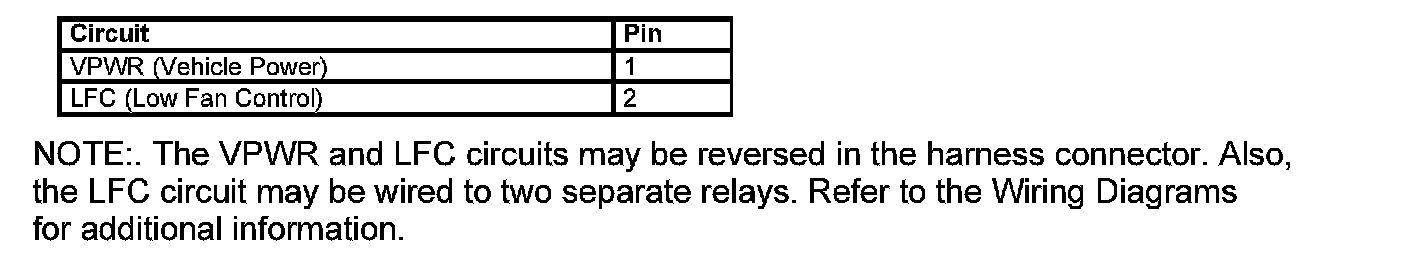

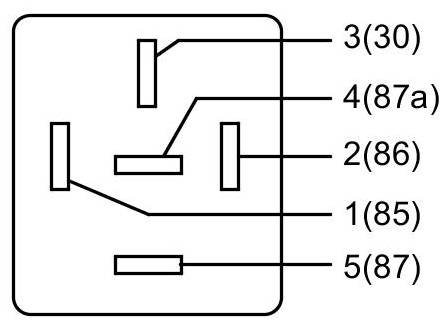

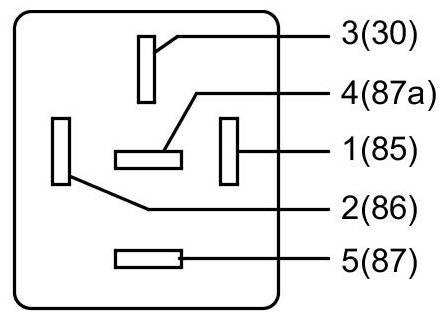

Low Fan Control (LFC) Relay Connector
Harness Side
Component side

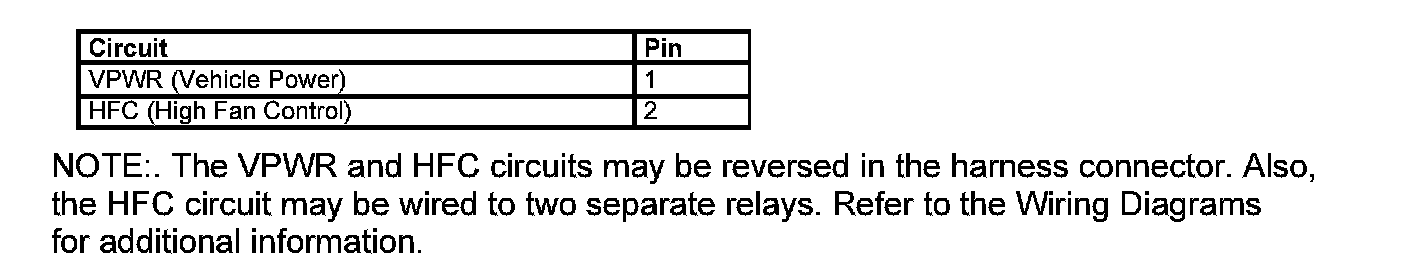

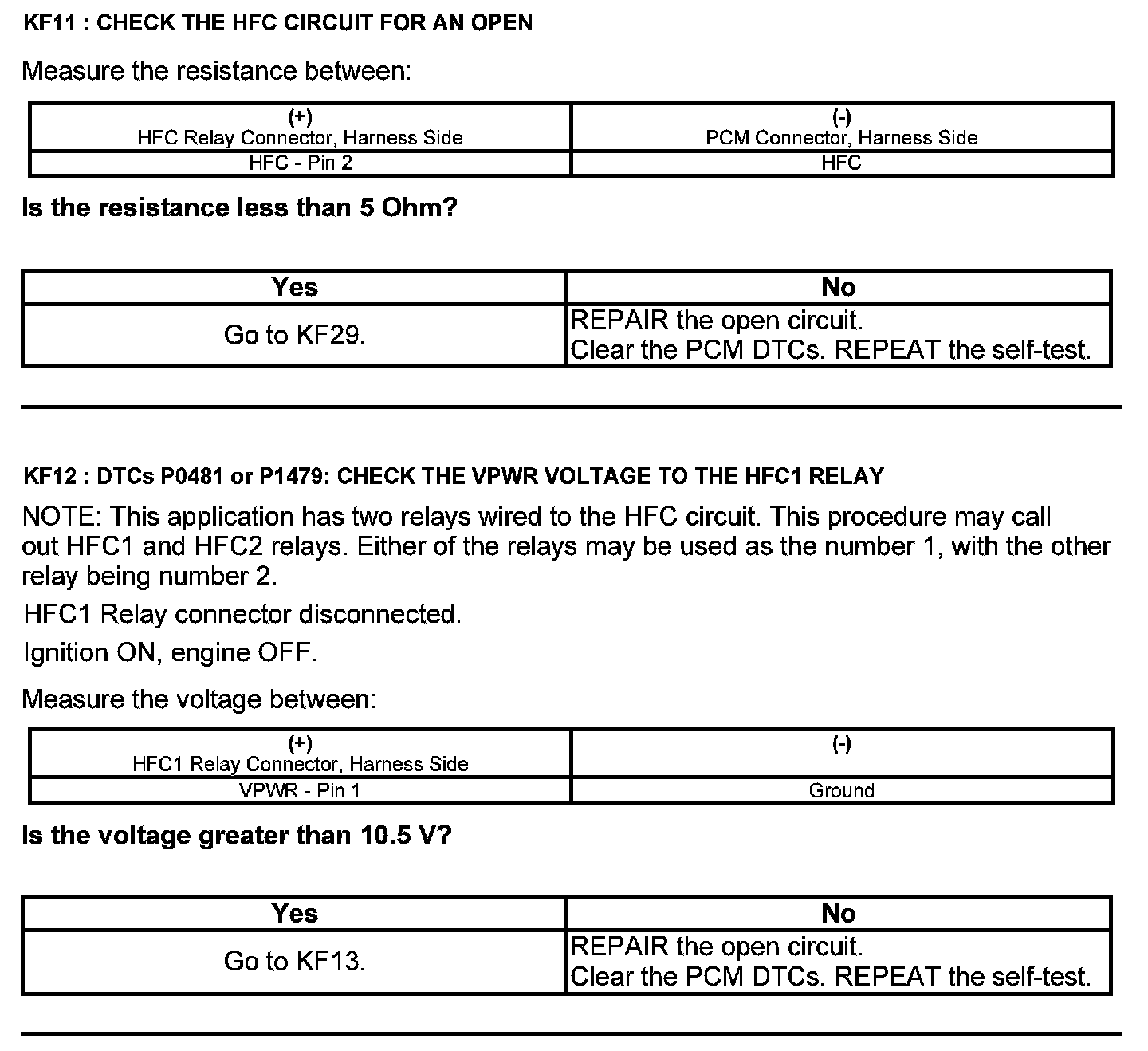

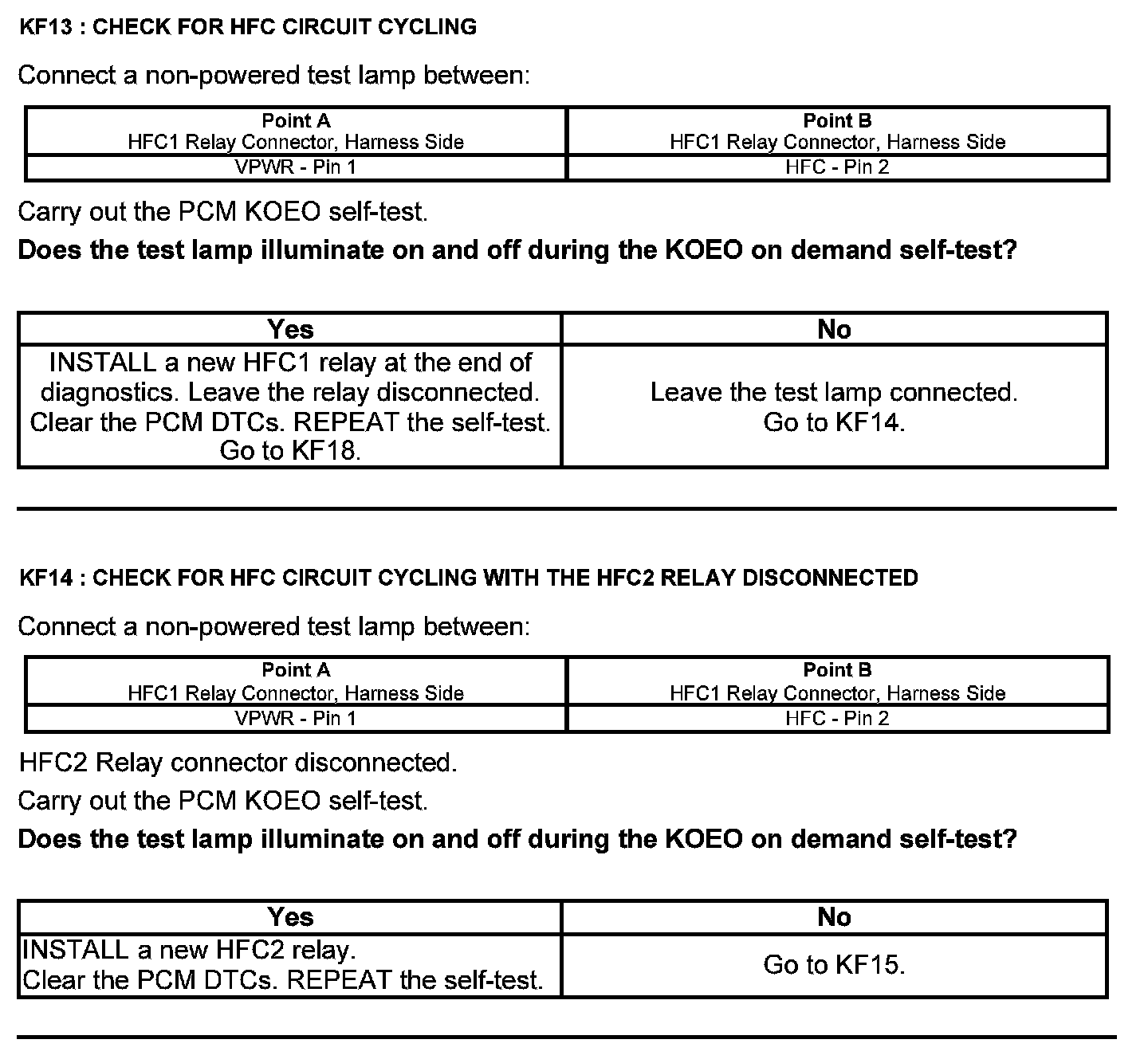

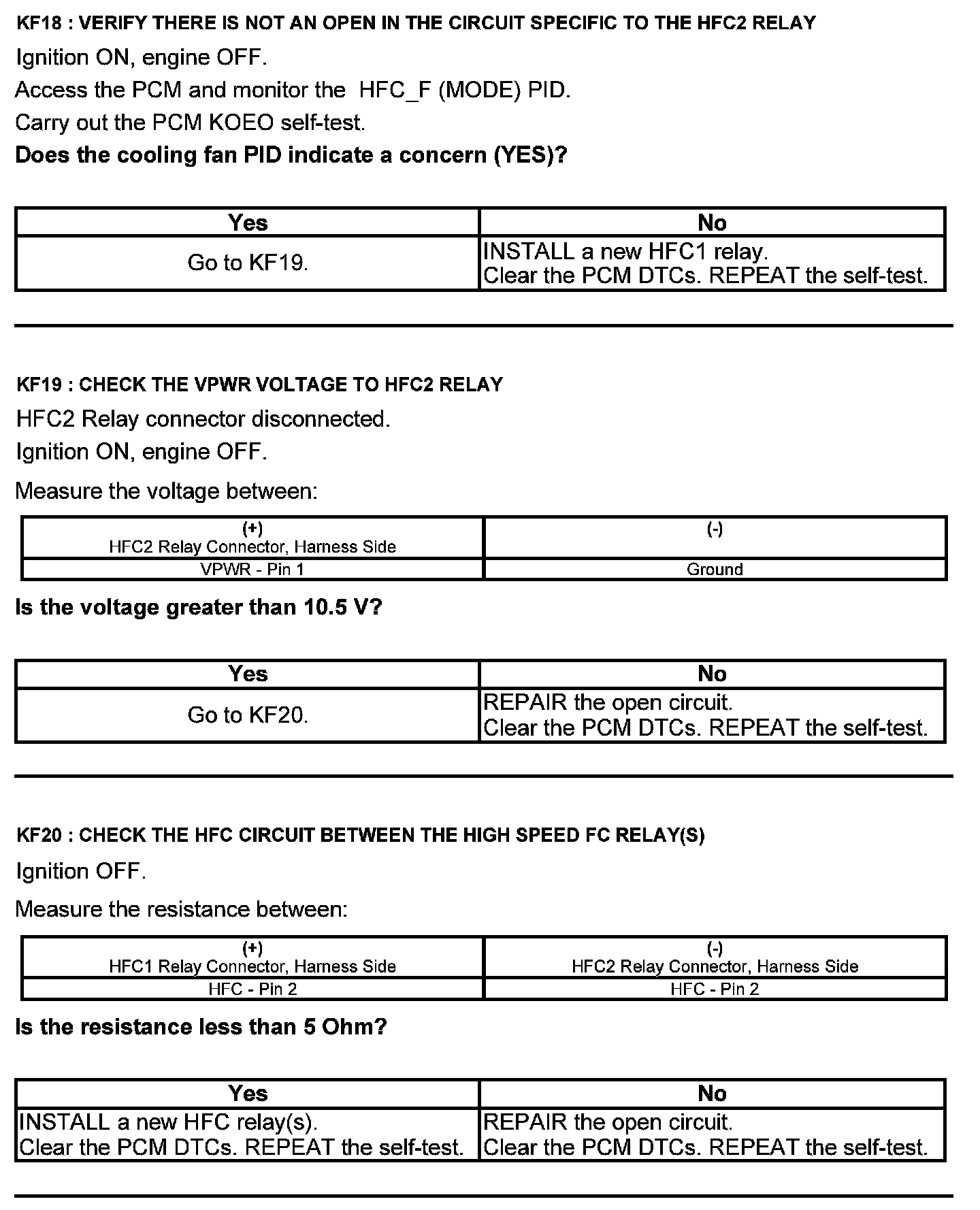

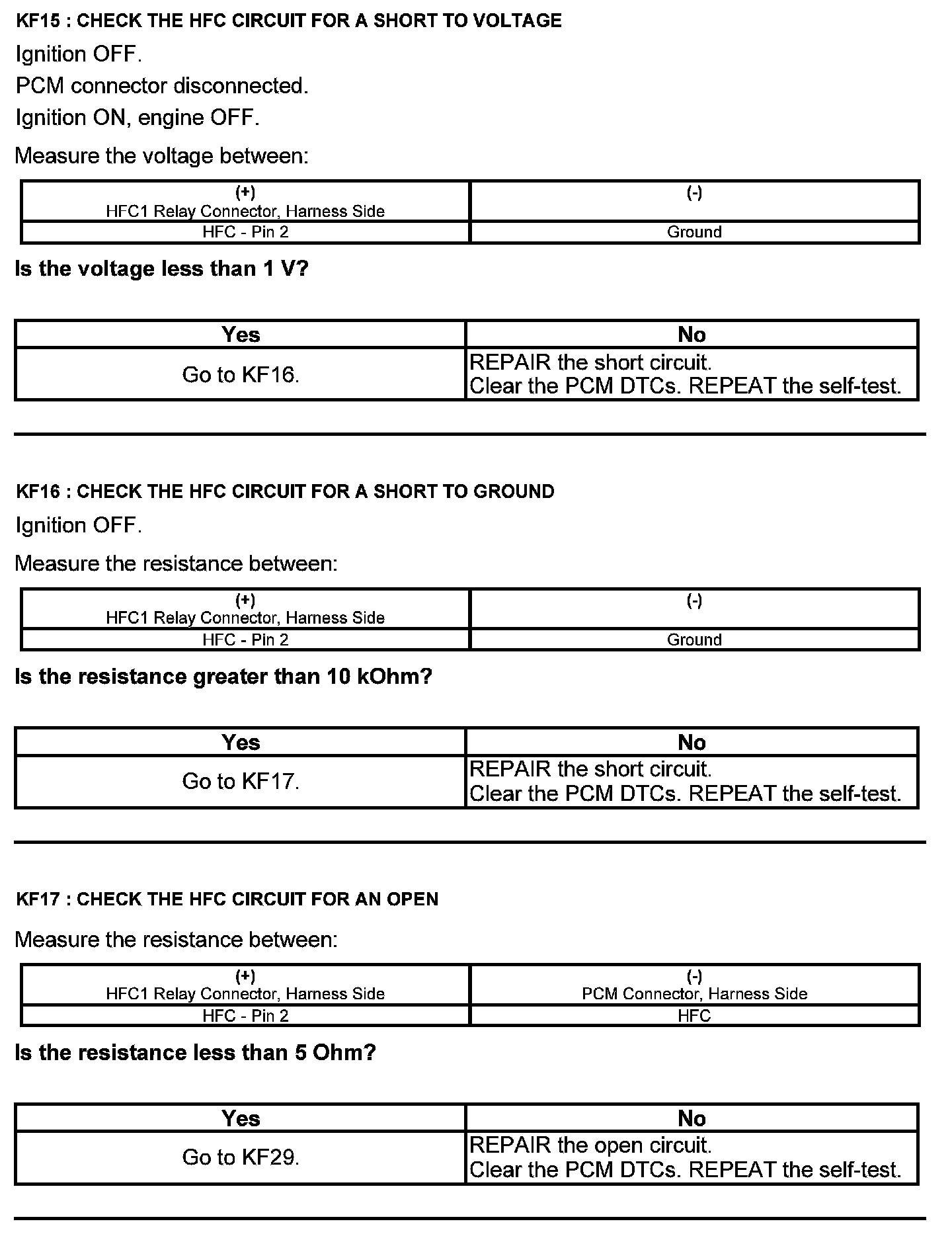

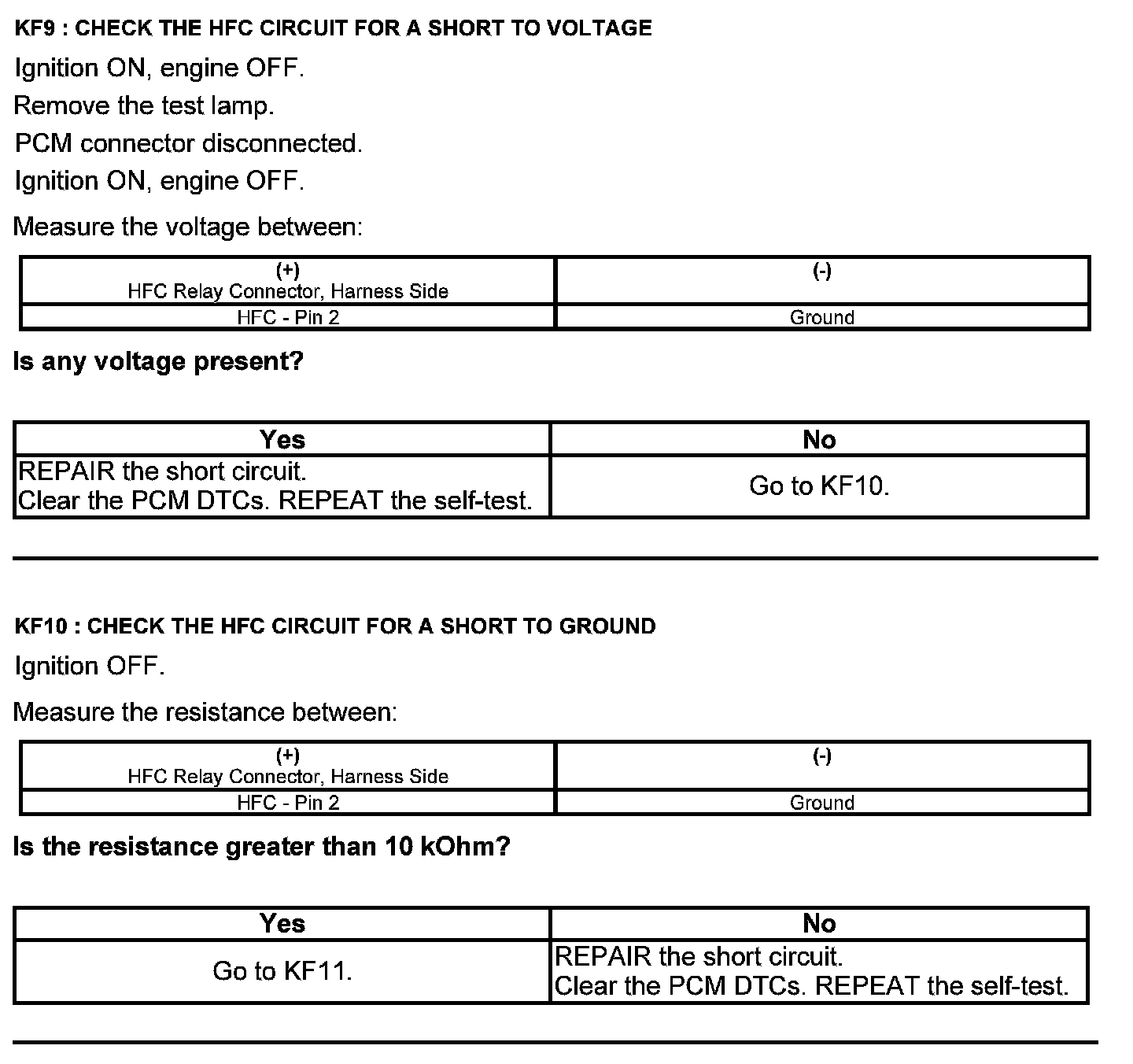

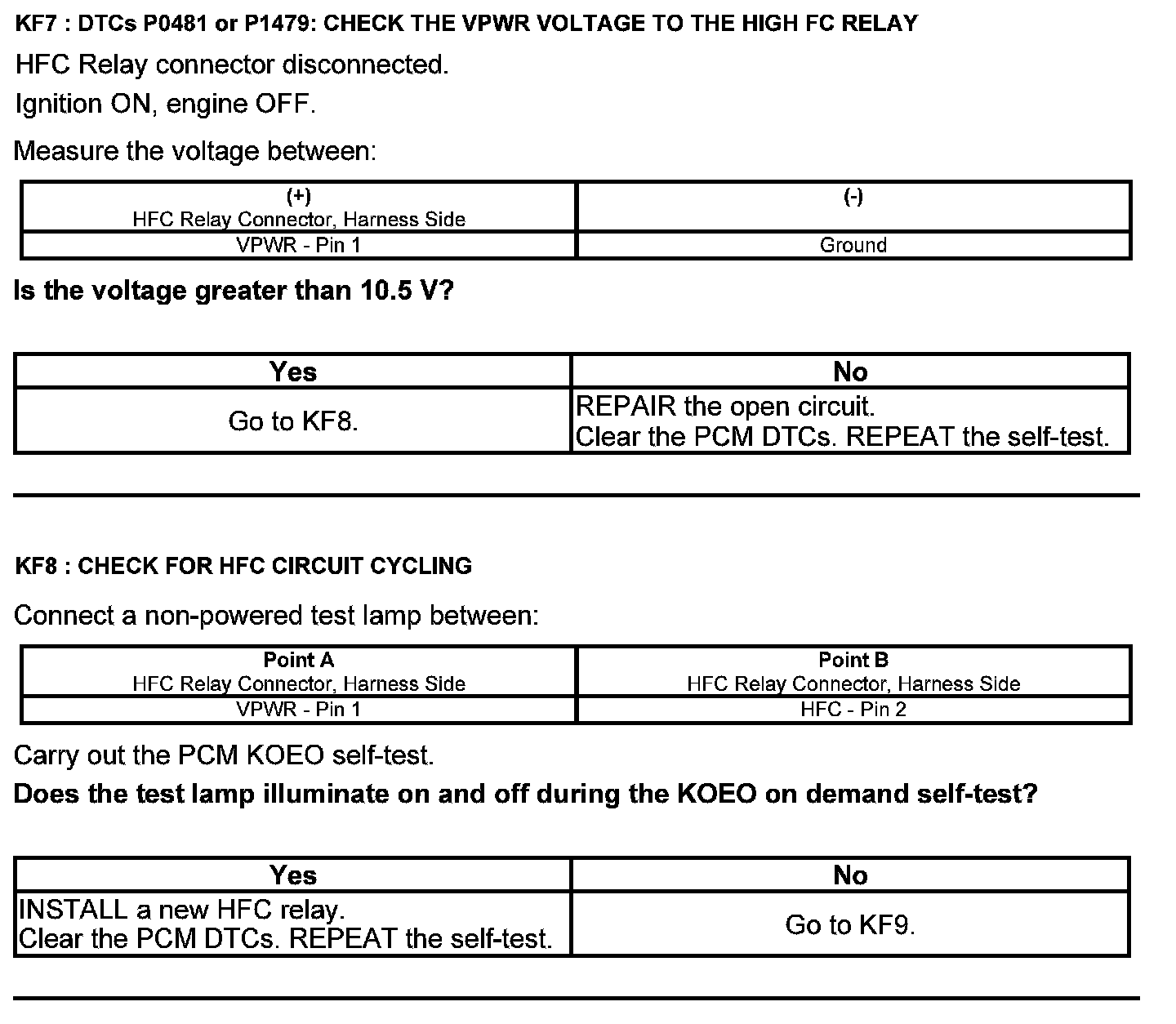

High Fan Control (HFC) Relay Connector
Harness Side
Component side

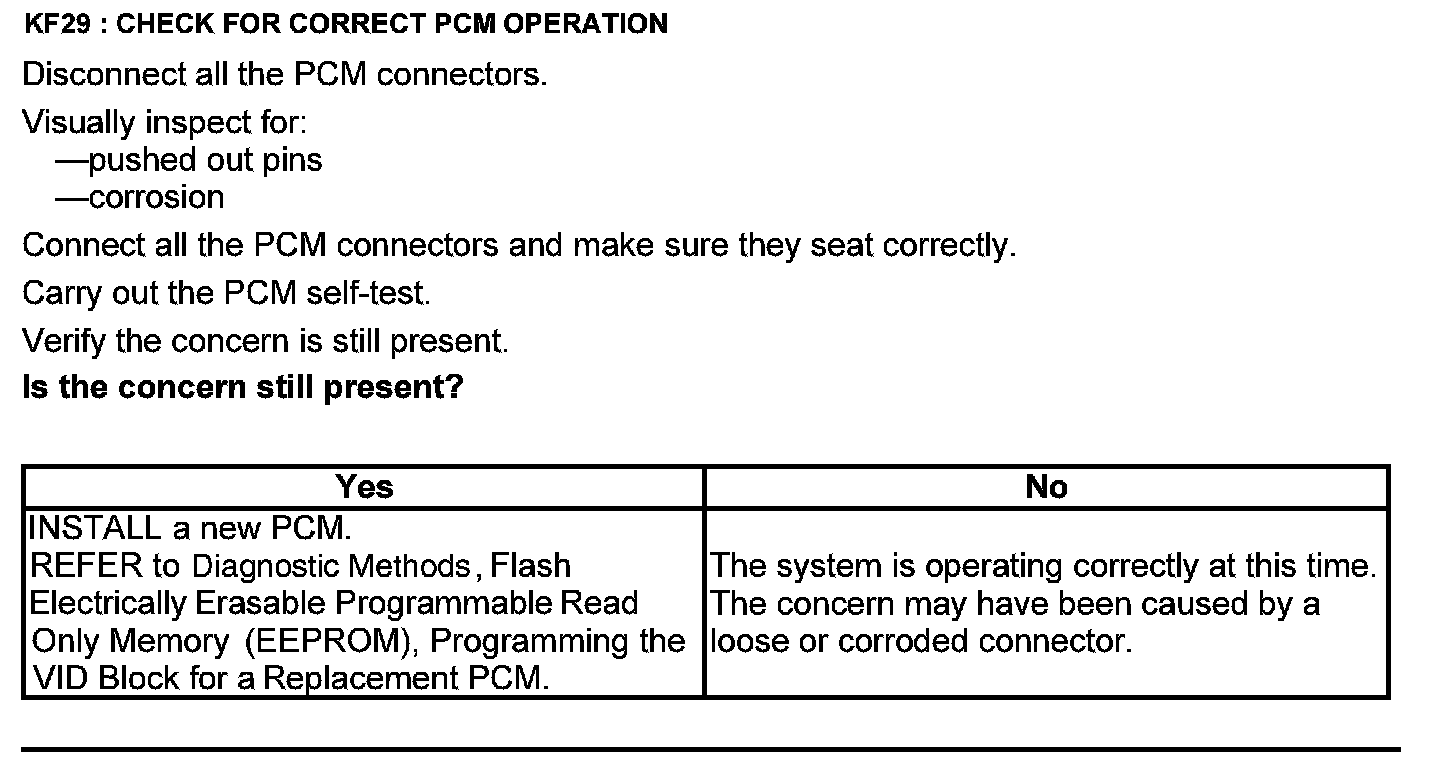

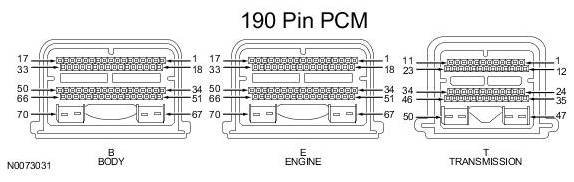

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
