All Others

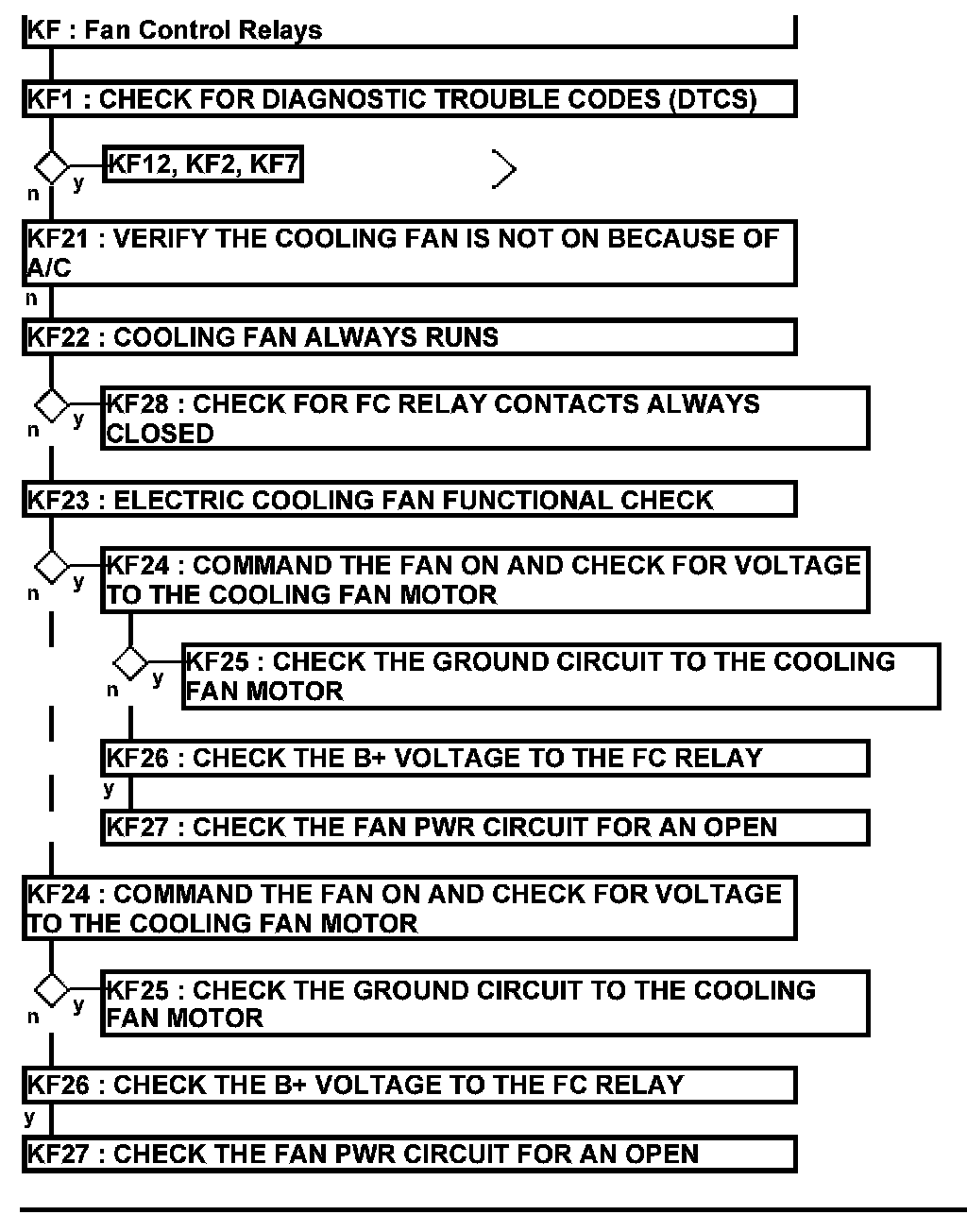

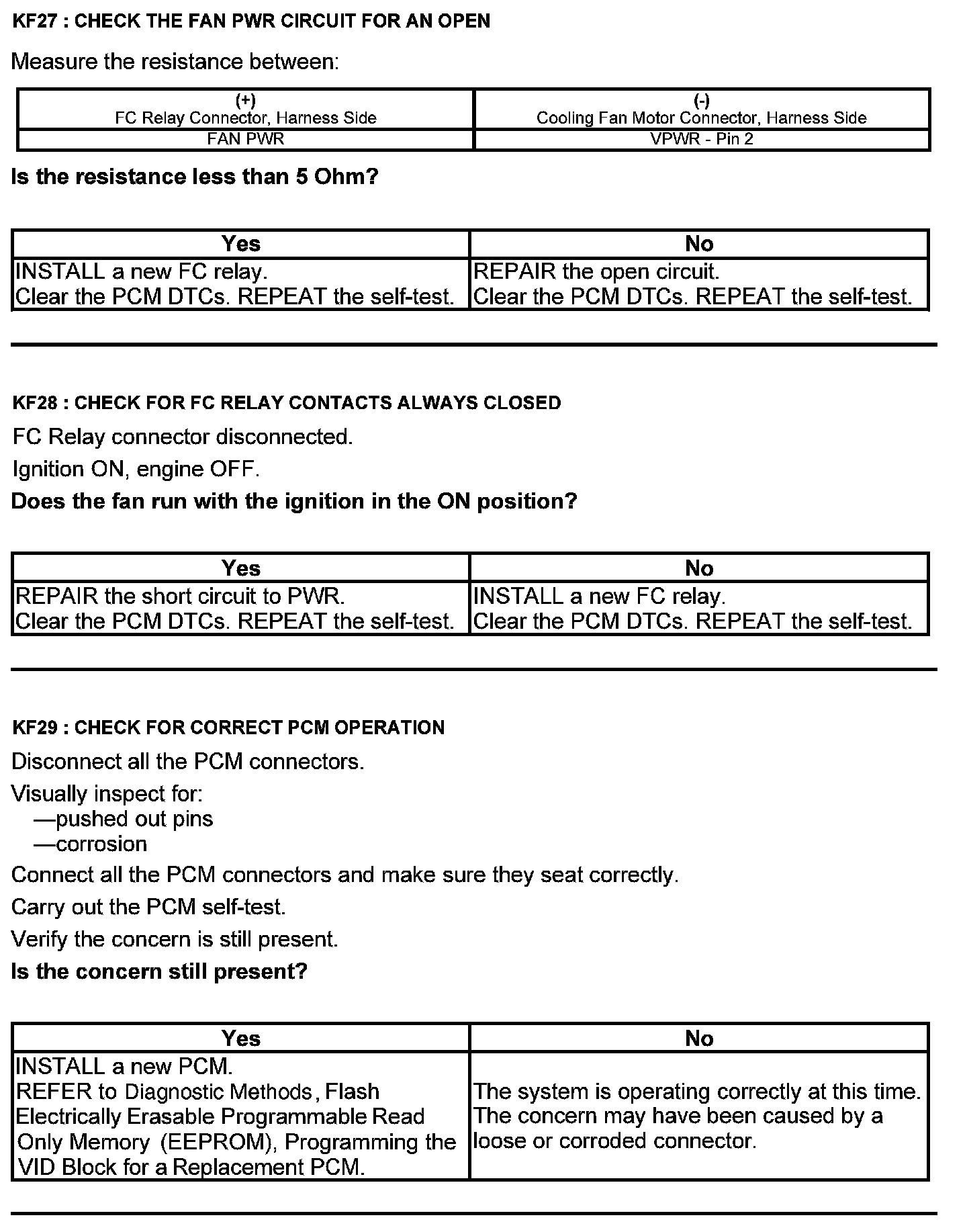

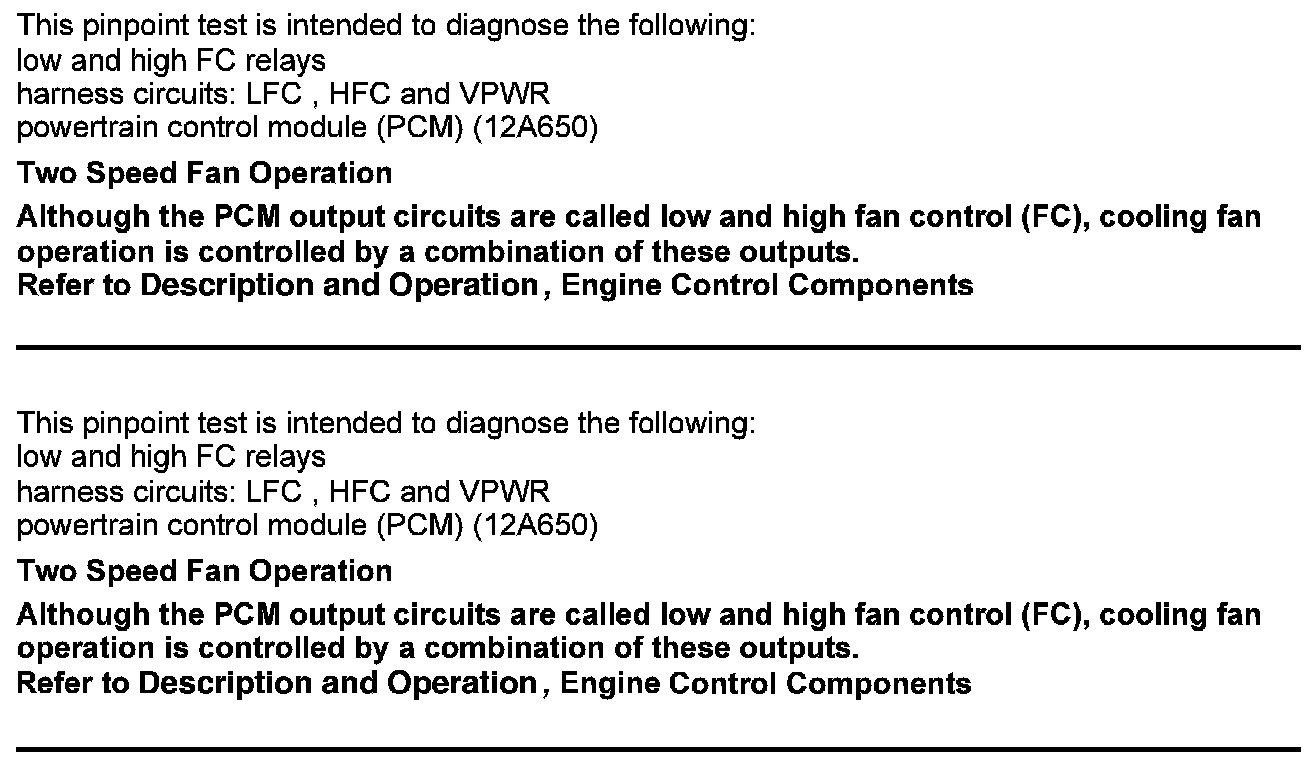

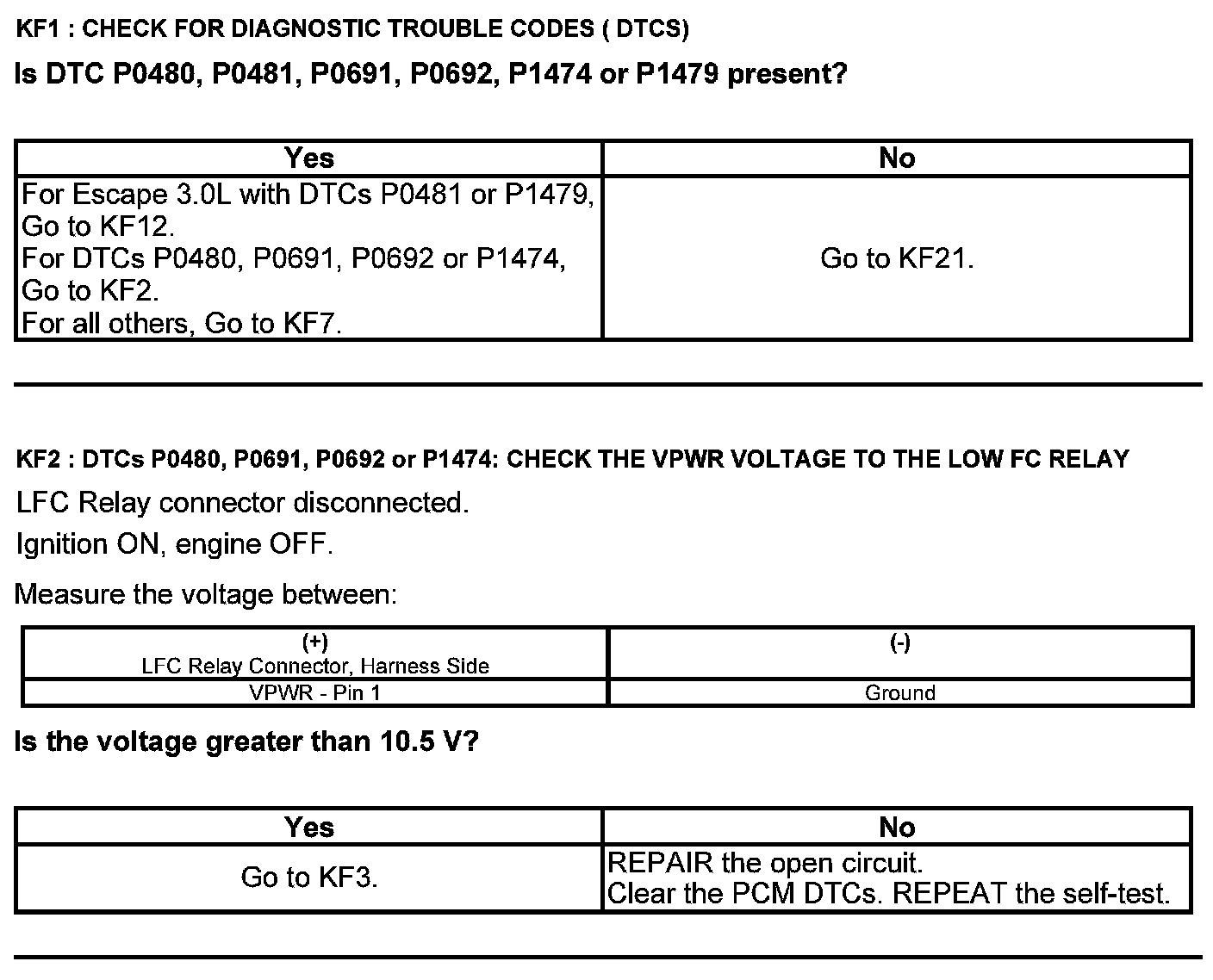

Fan Control Relays - All Others

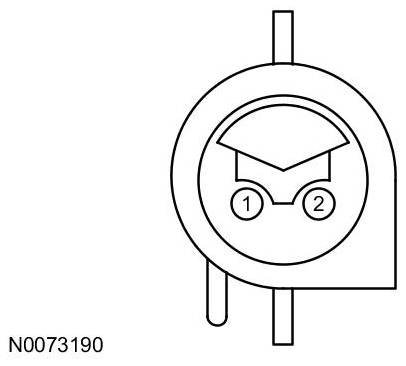

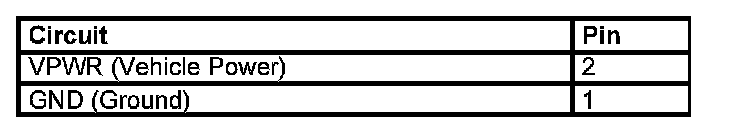

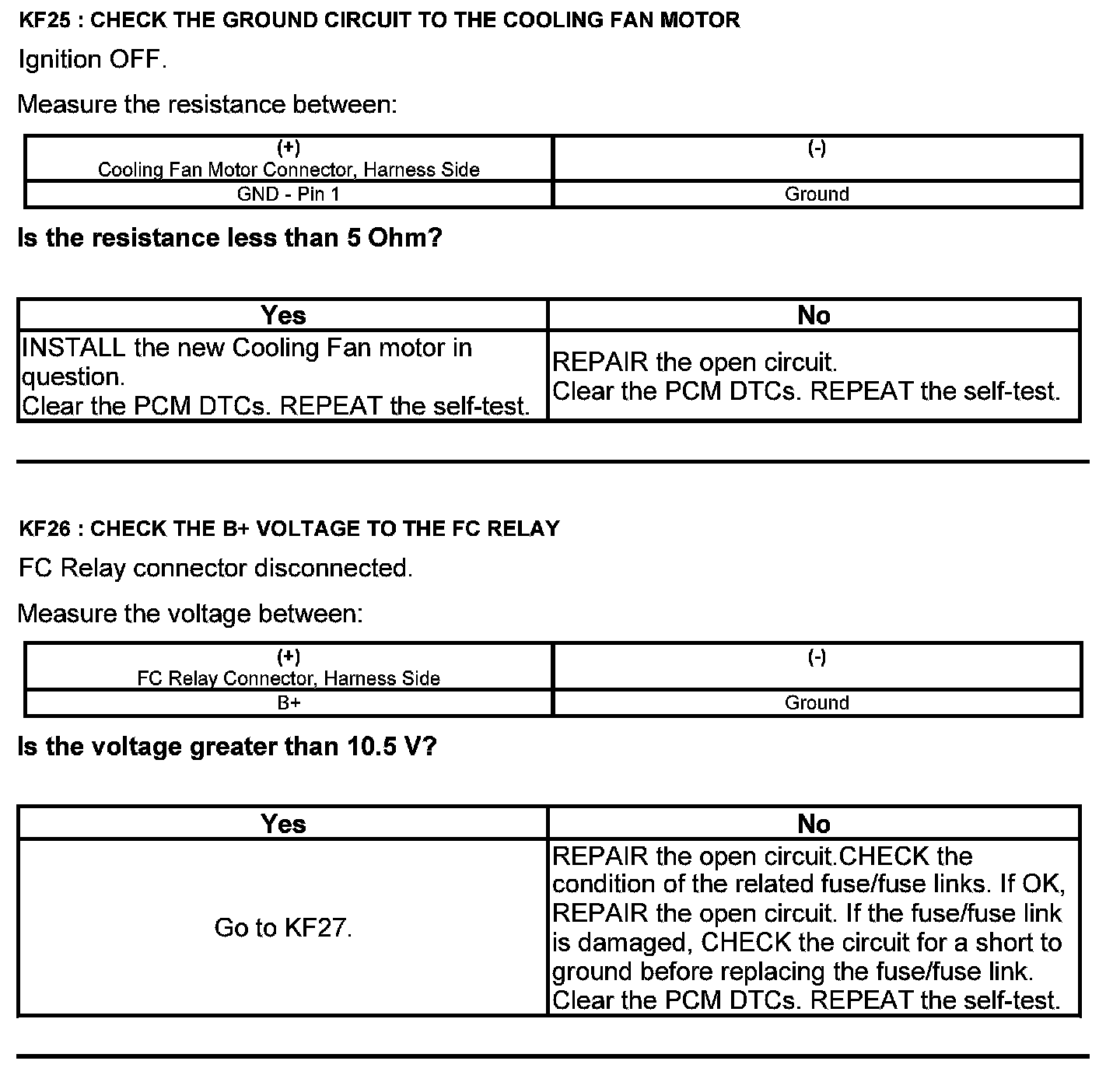

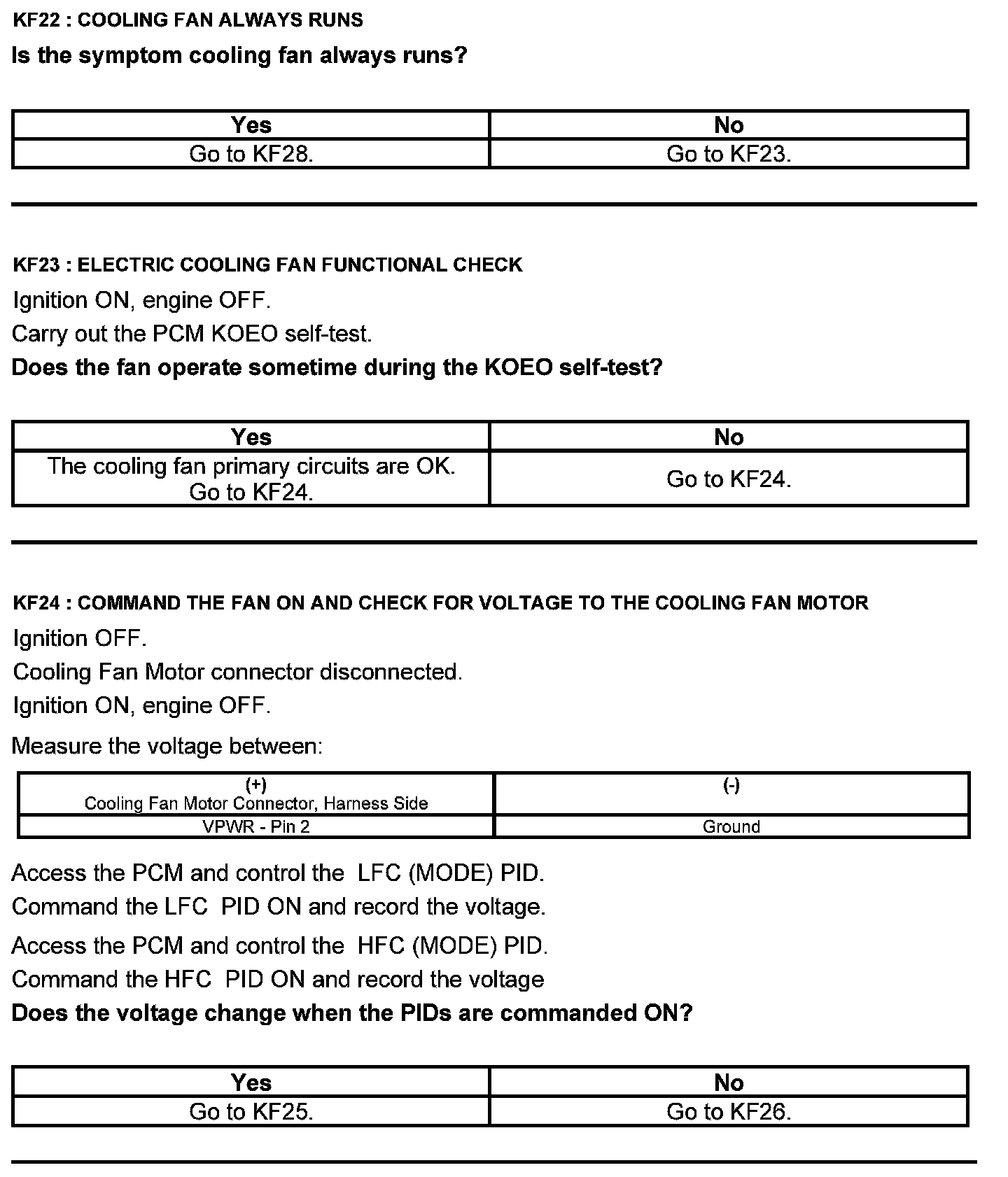

Cooling Fan Motor Connector





Harness Side

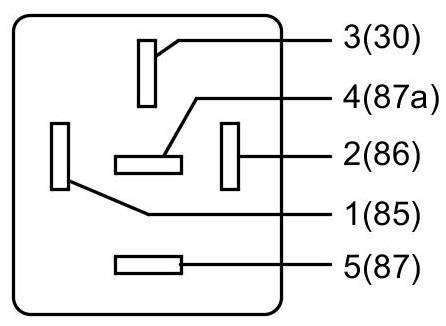

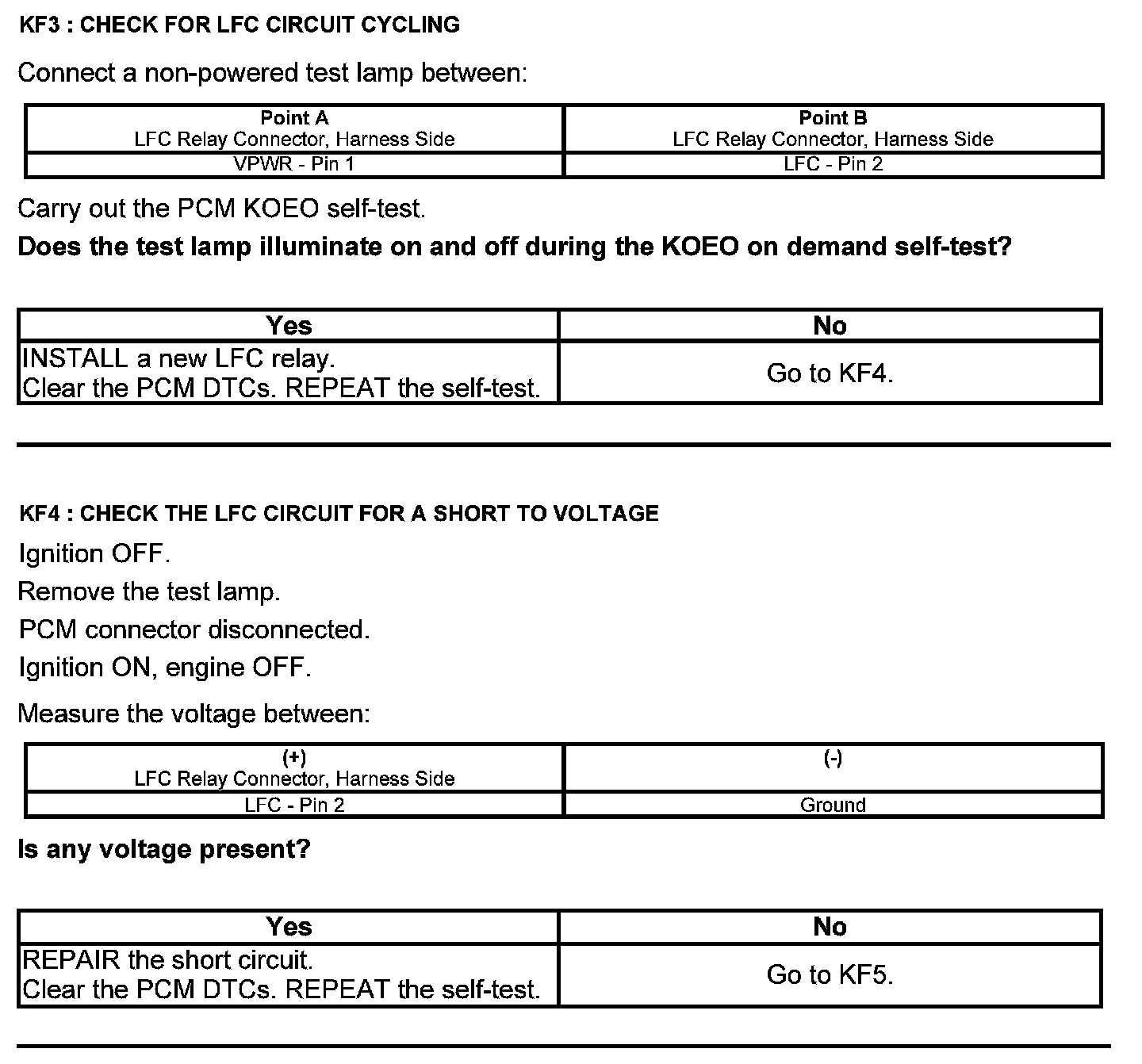

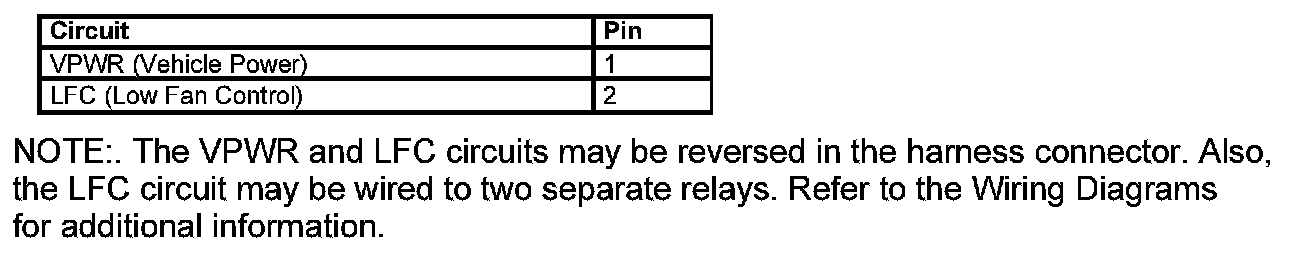

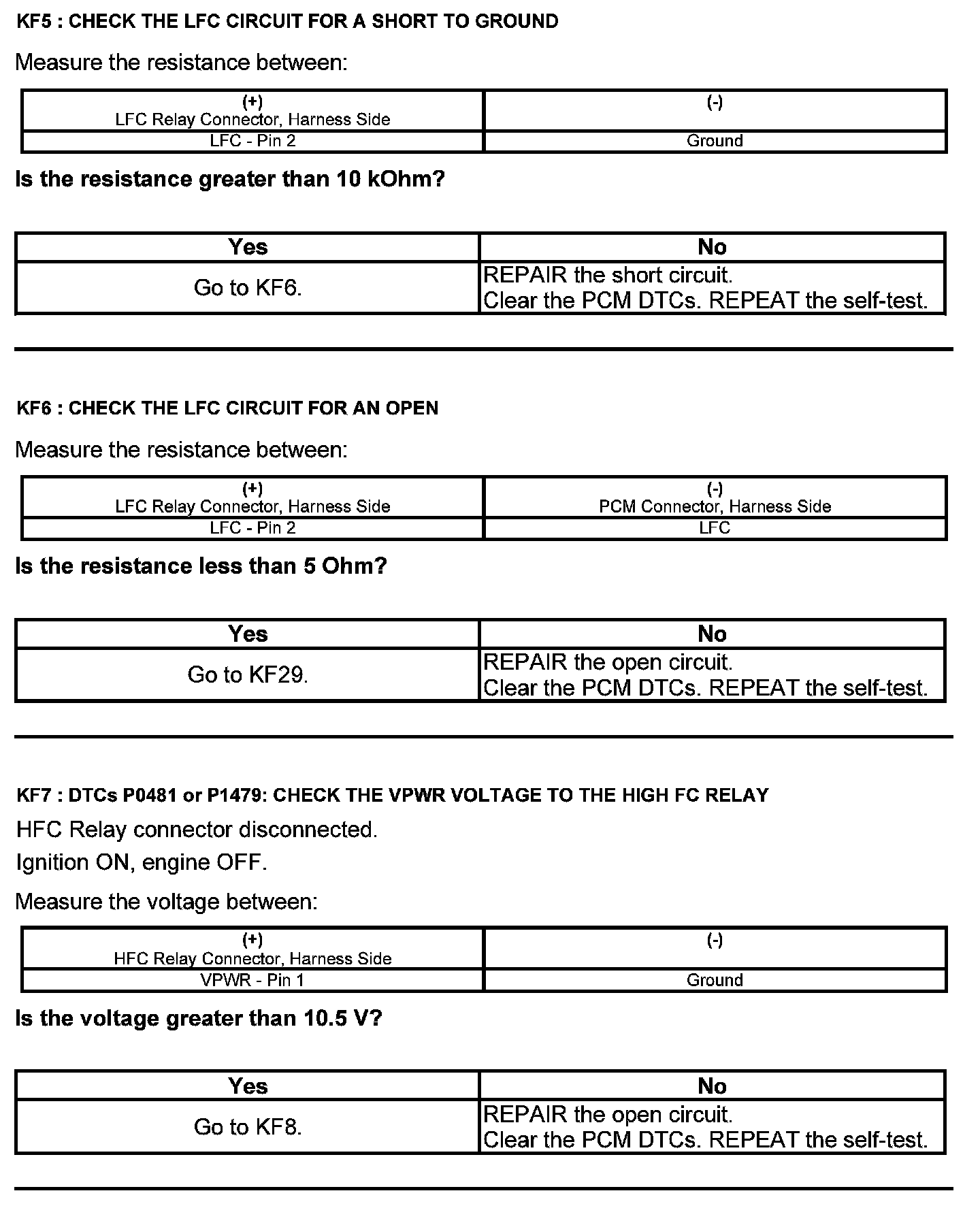

Low Fan Control (LFC) Relay Connector





Harness Side

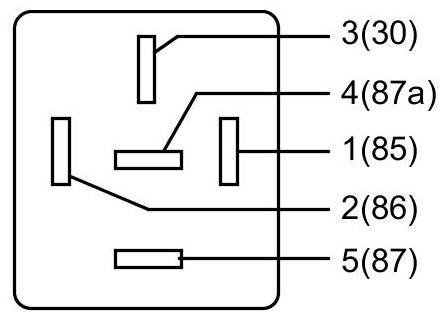

Component side

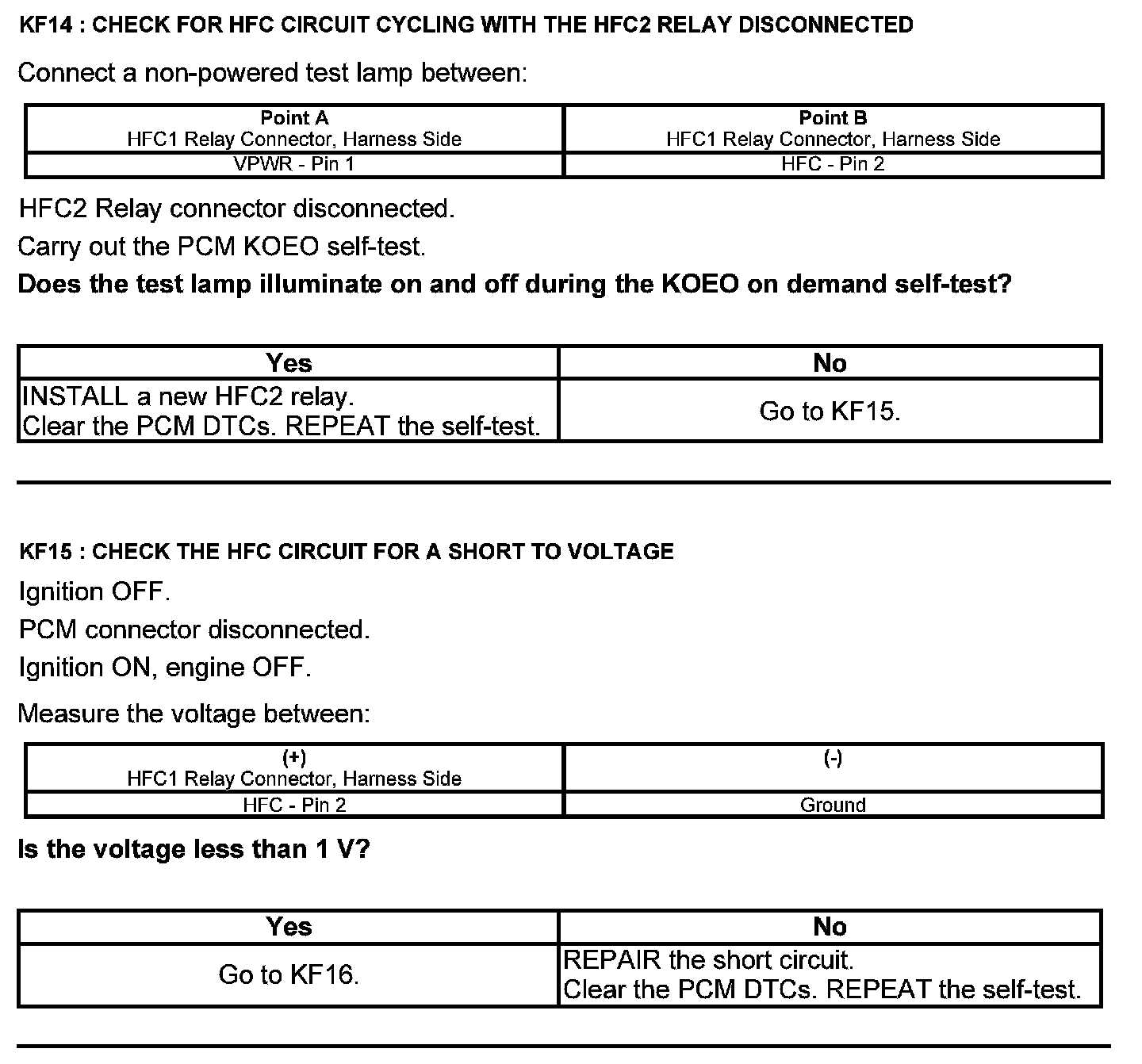

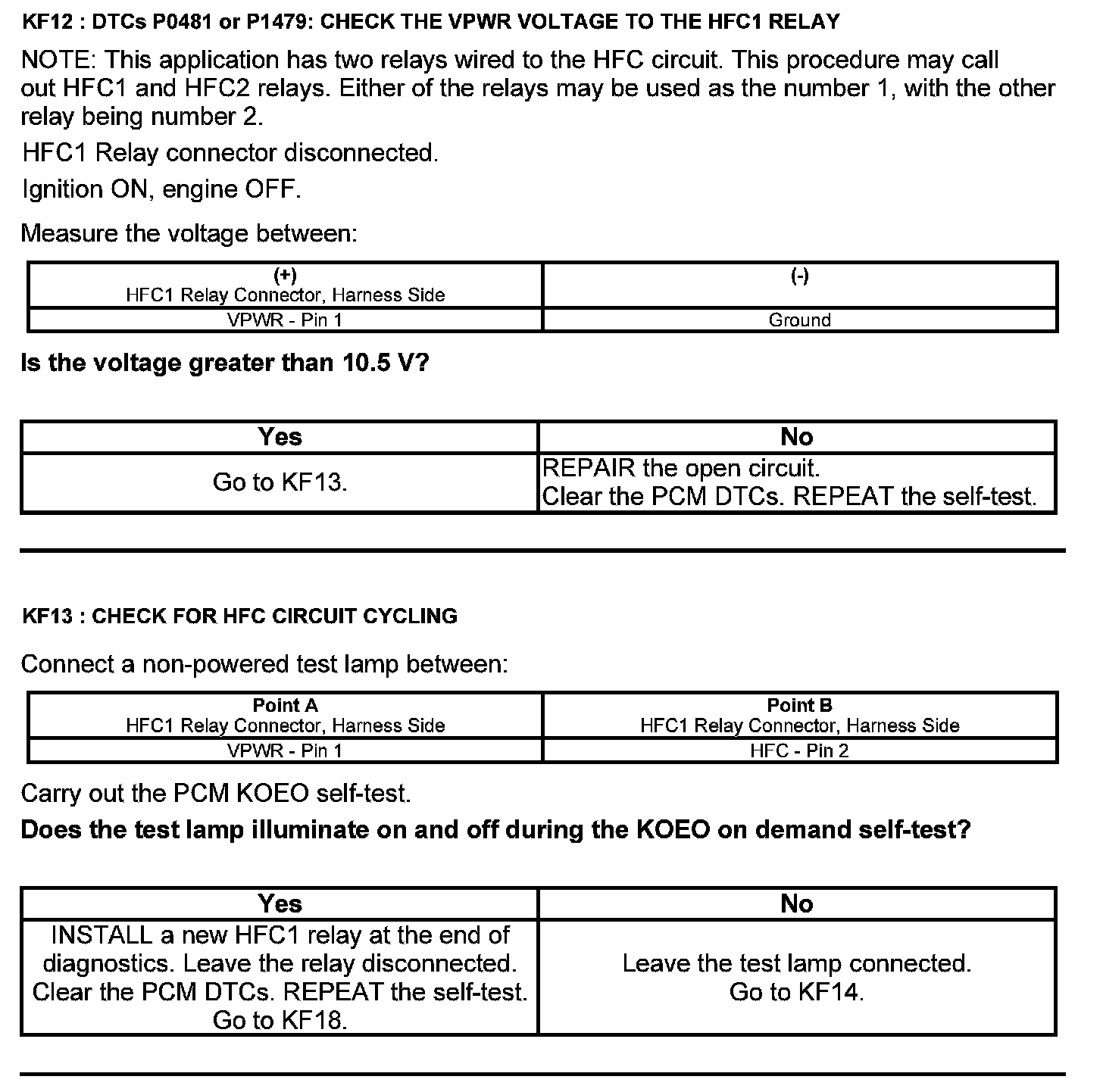

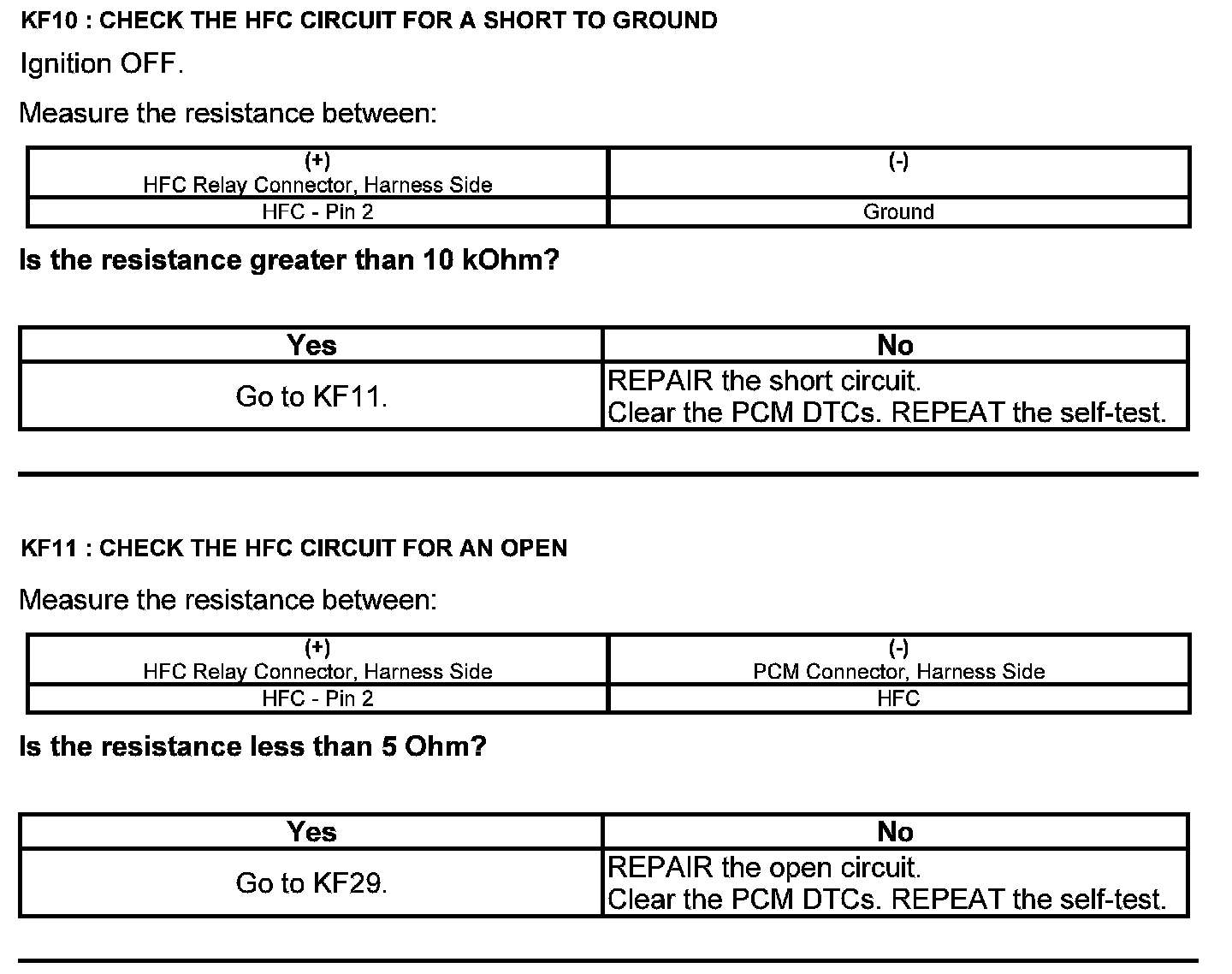

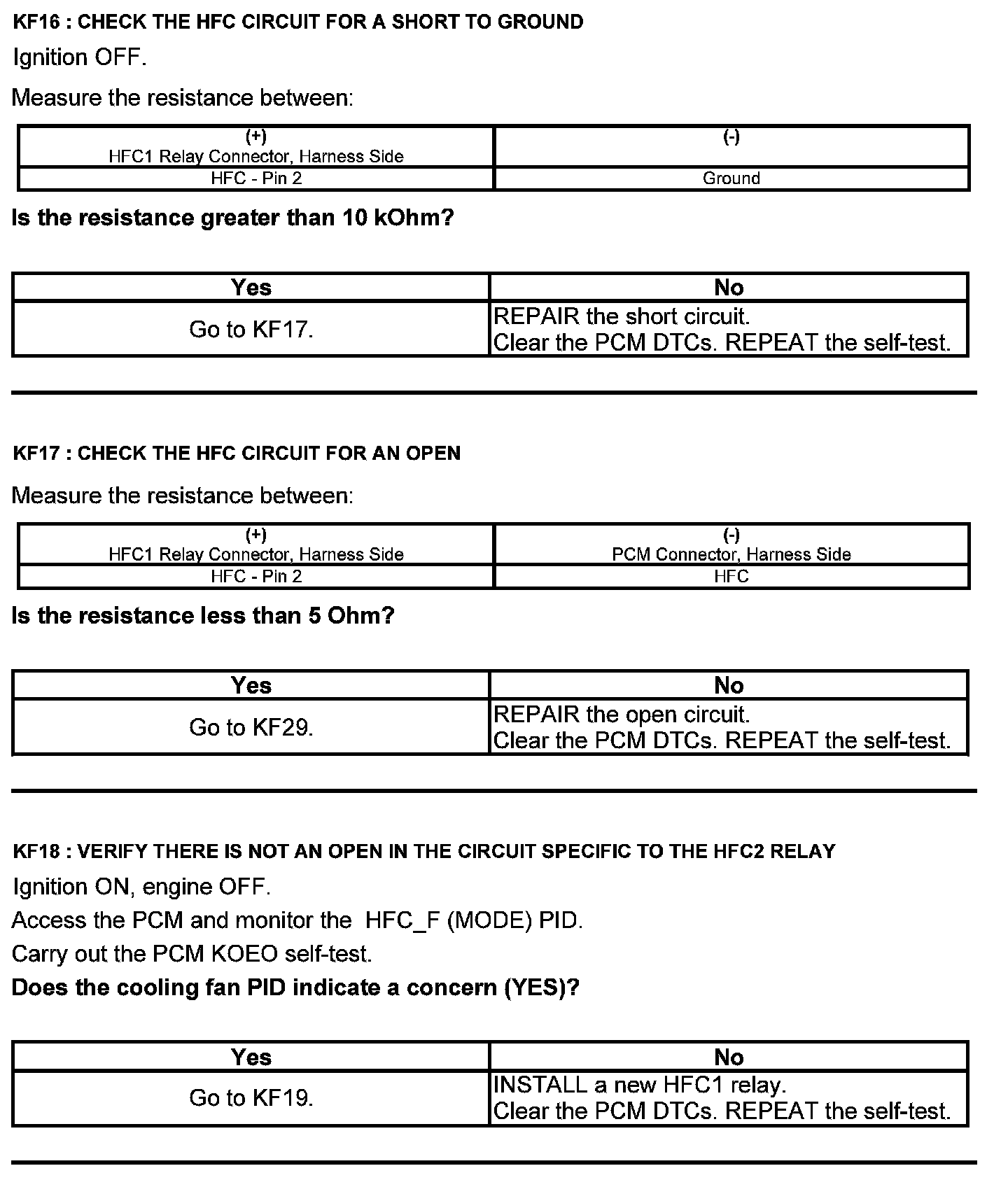

High Fan Control (HFC) Relay Connector





Harness Side





Component side
