All Others

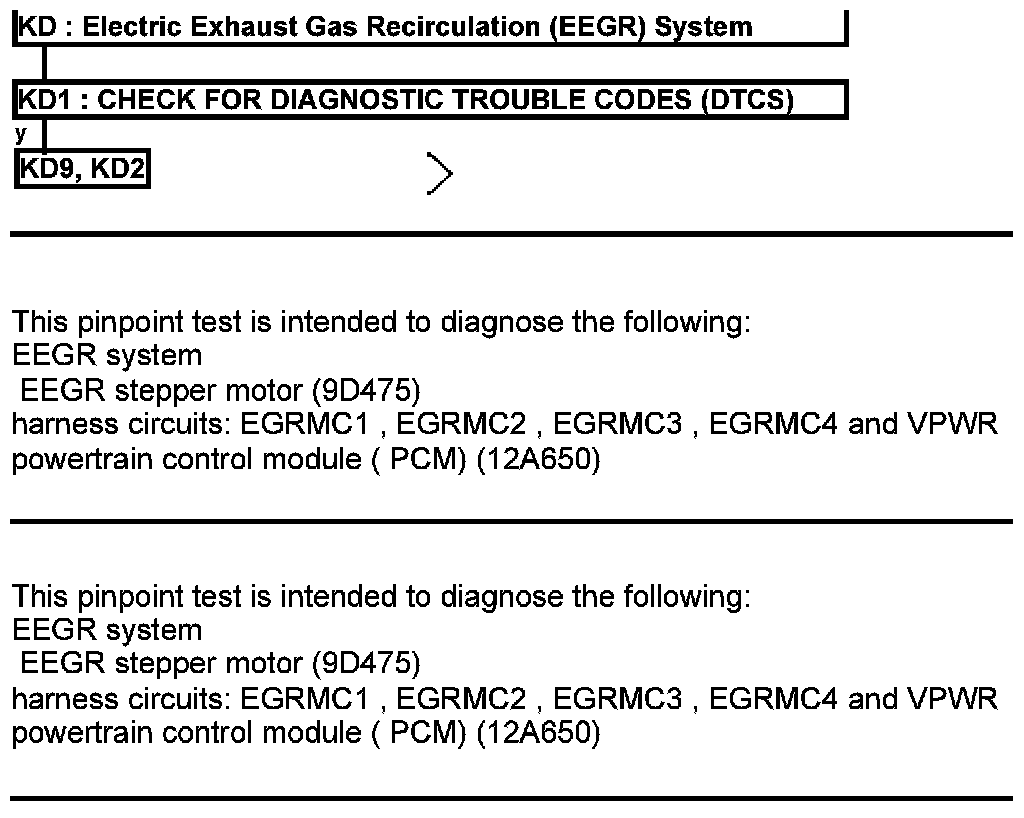

Electric Exhaust Gas Recirculation (EEGR) System - All Others

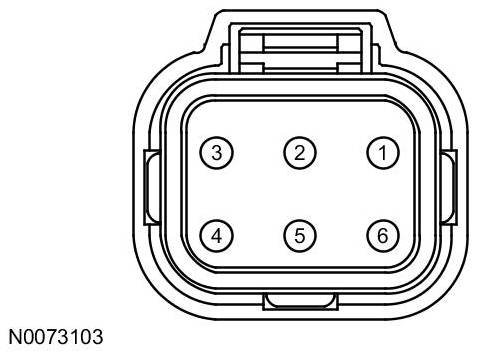

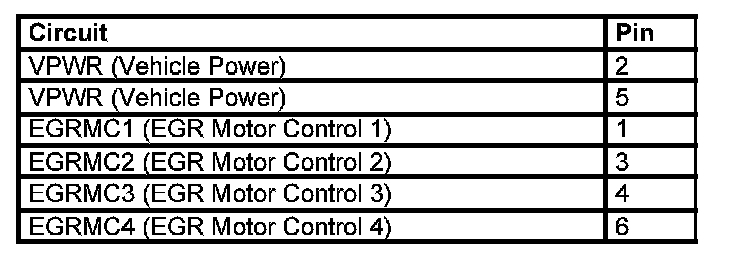

Electric Exhaust Gas Recirculation (EEGR) Assembly Connector





Harness Side
