Manual Transmission

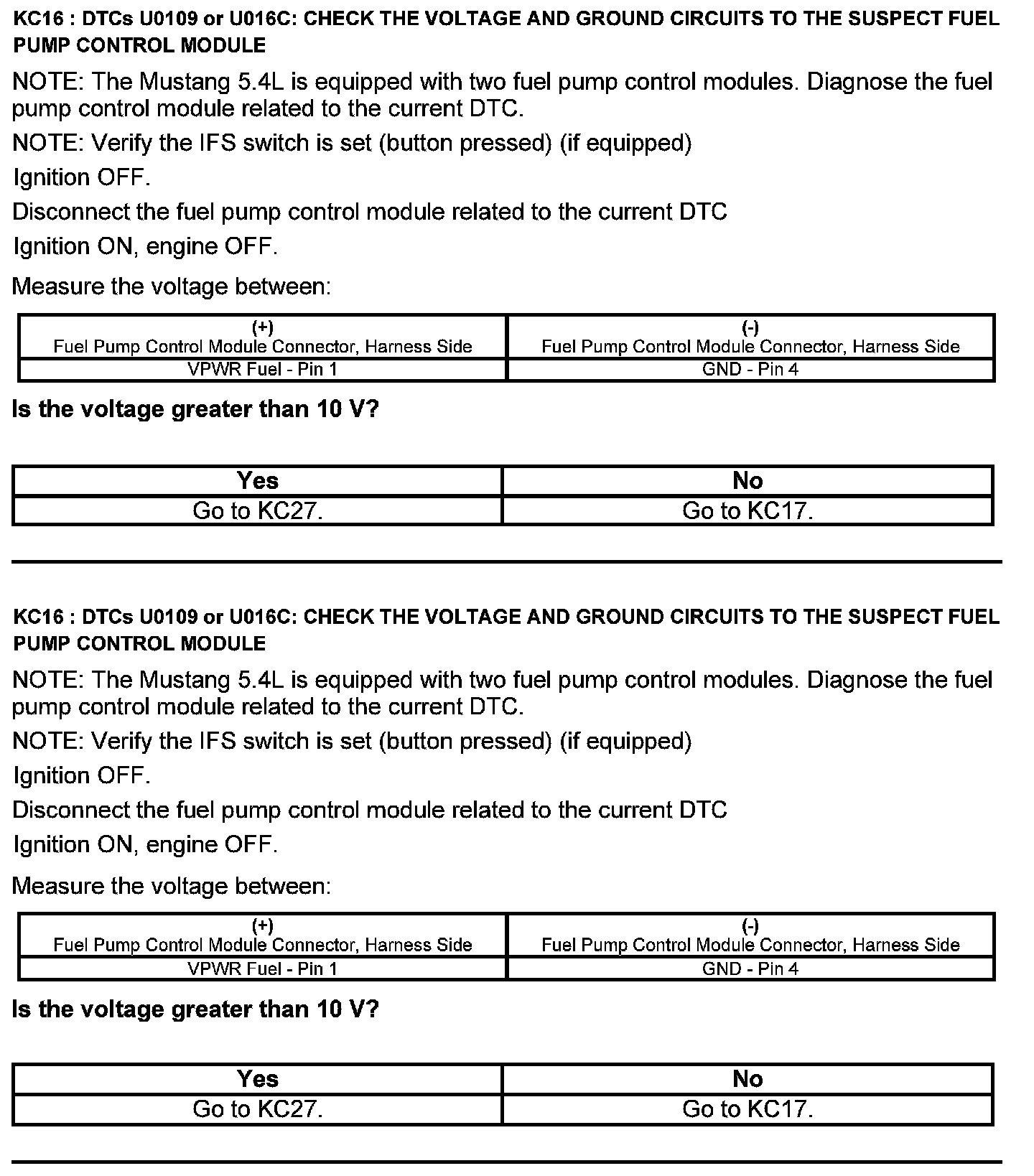

Fuel Pump Control Module - Manual Transmission

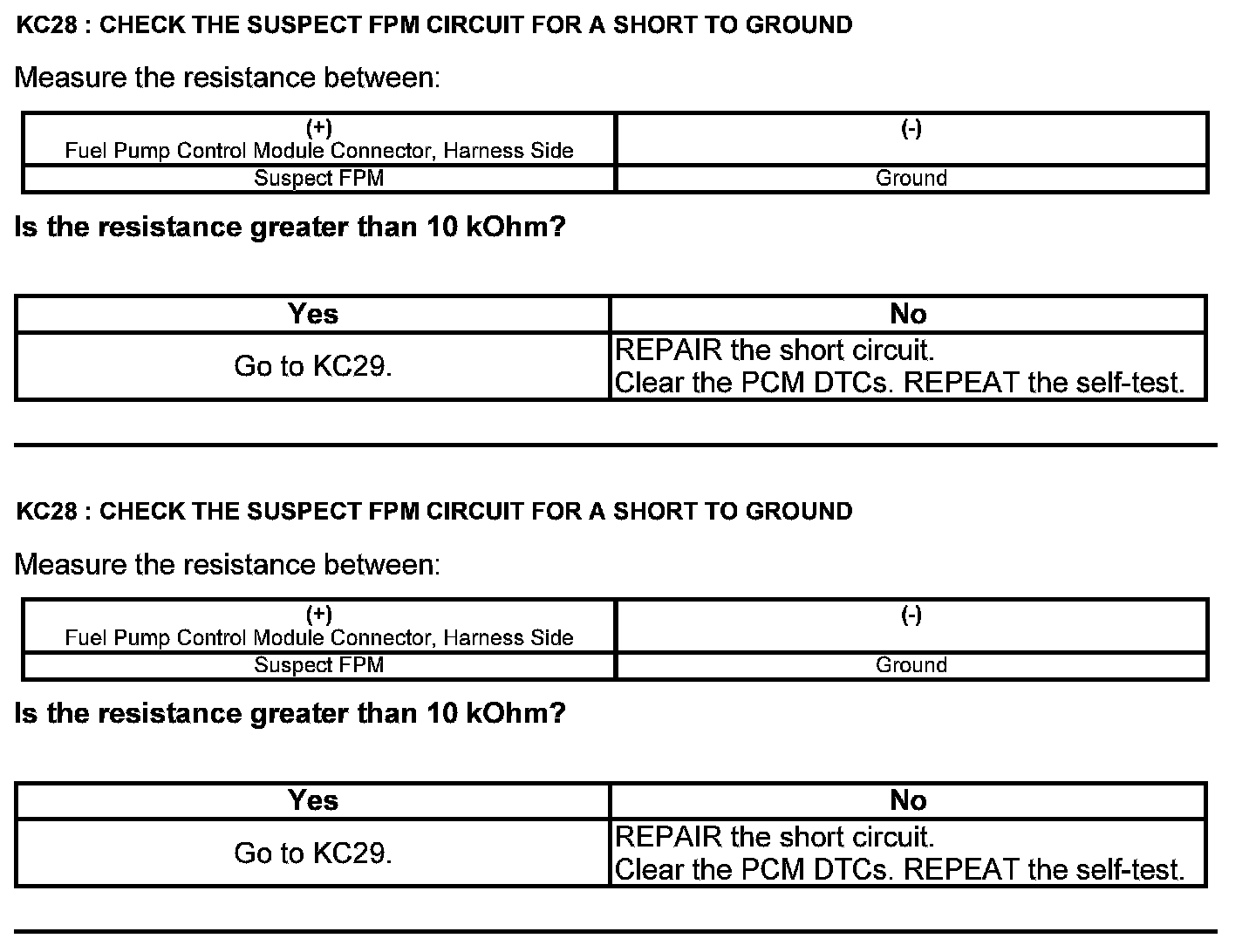

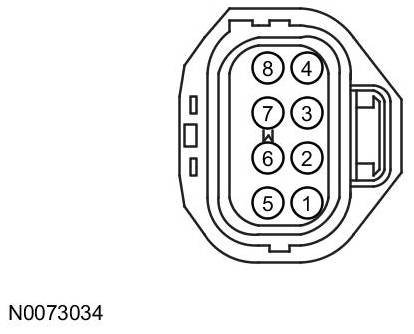

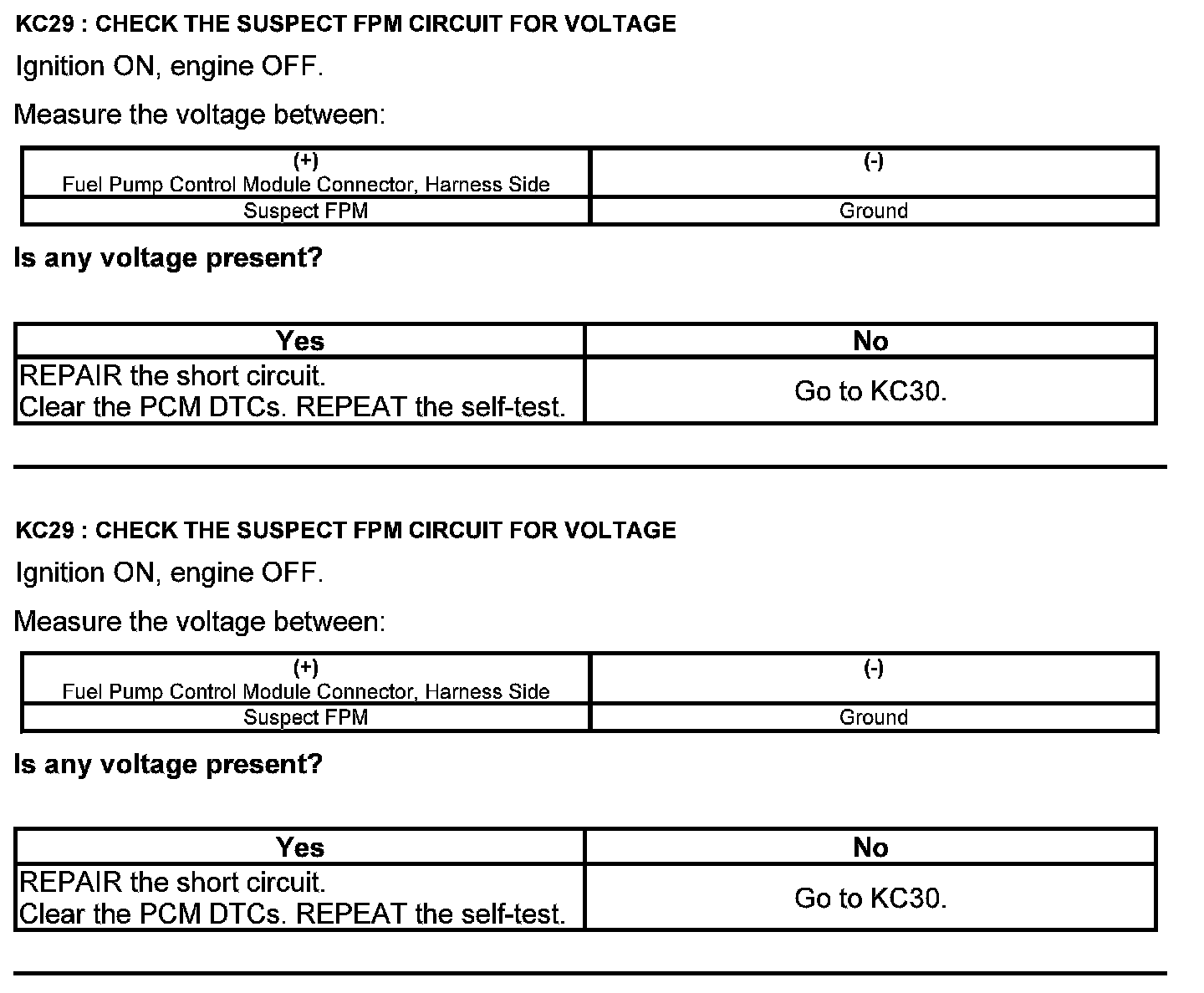

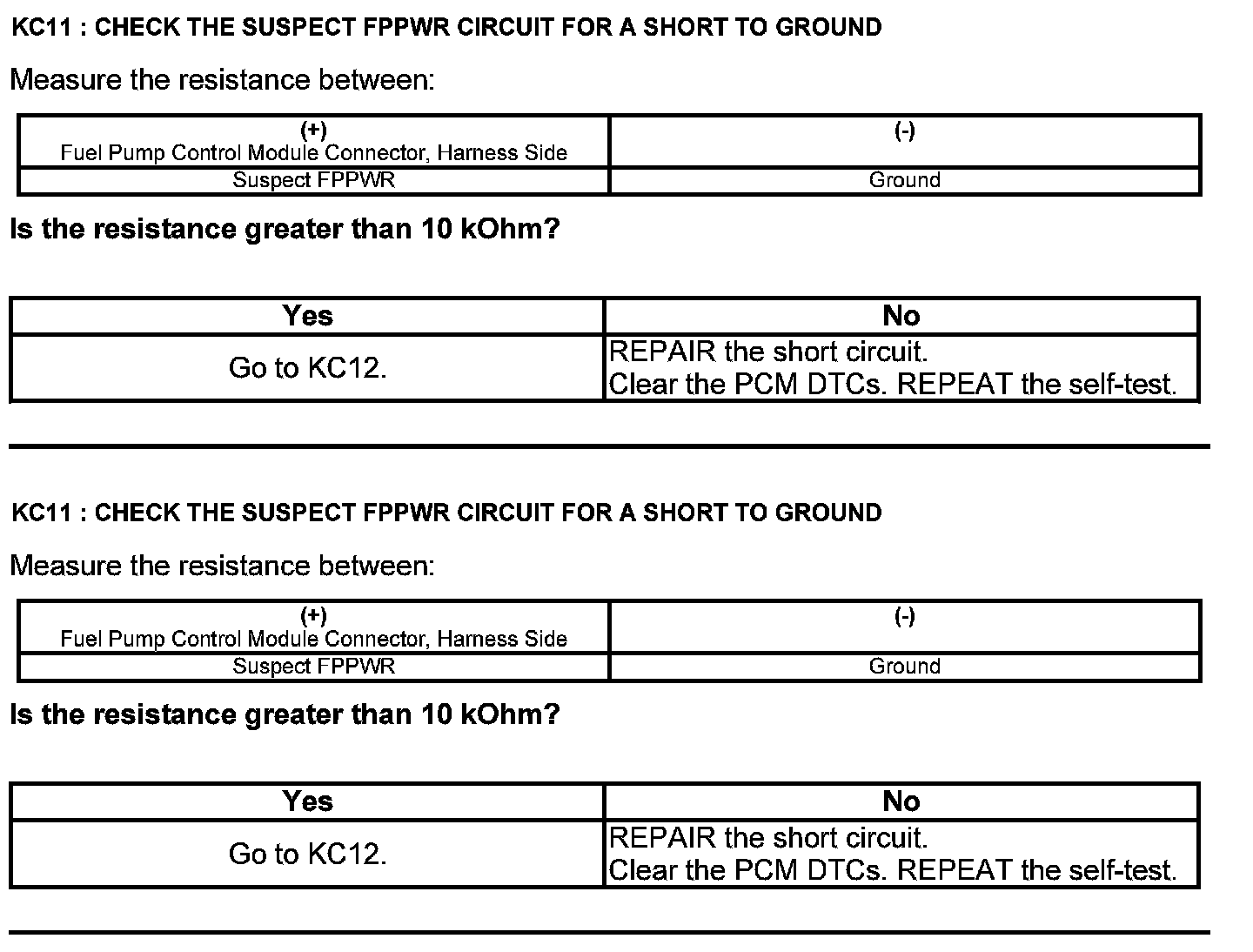

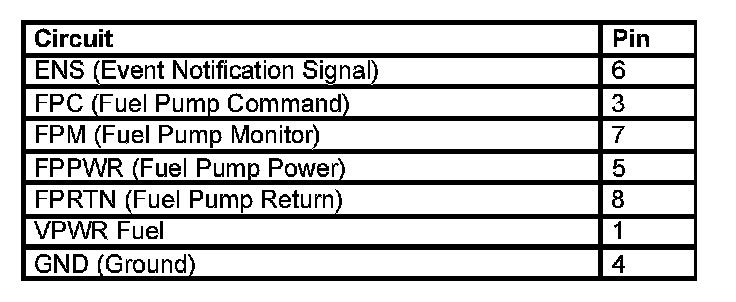

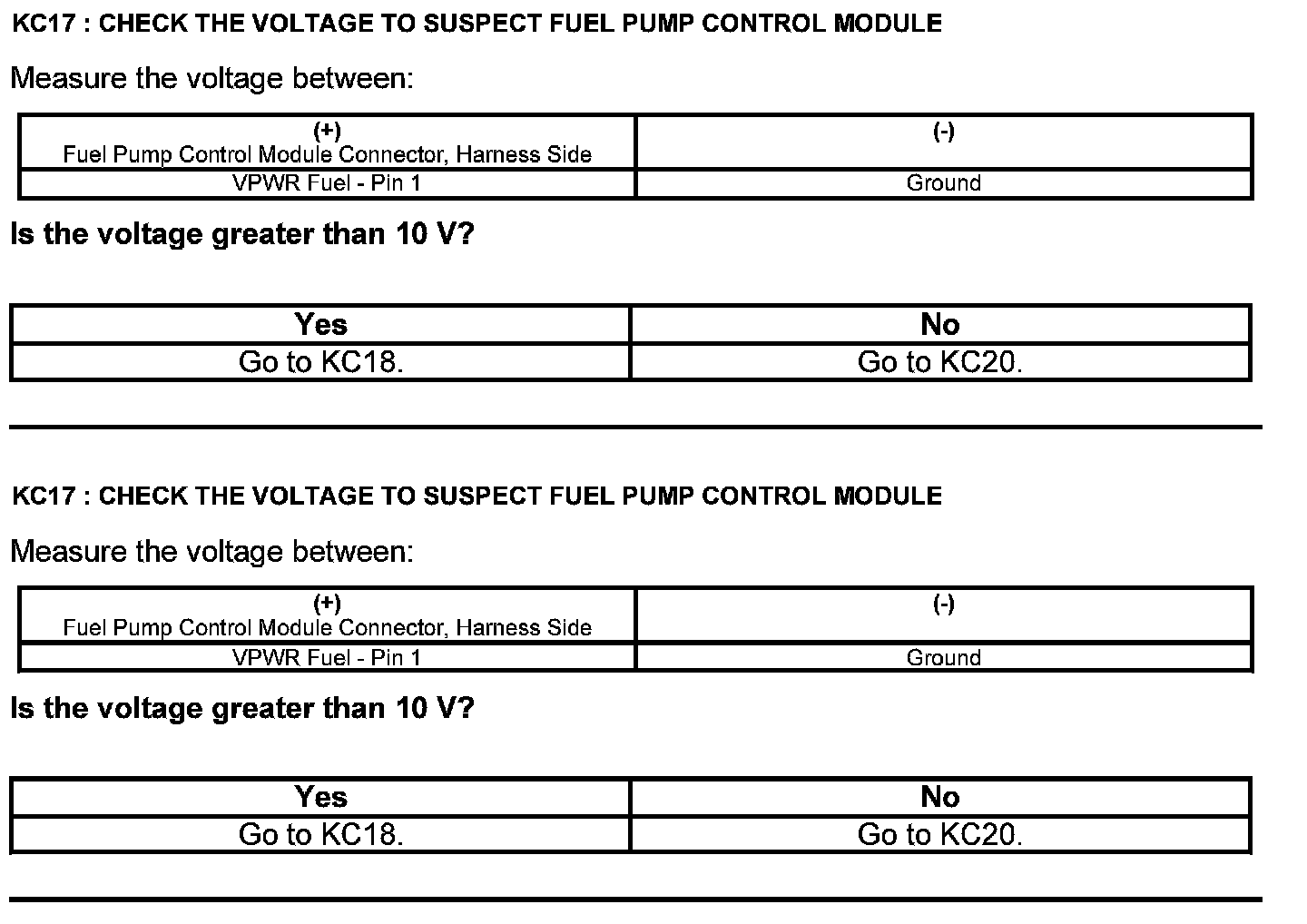

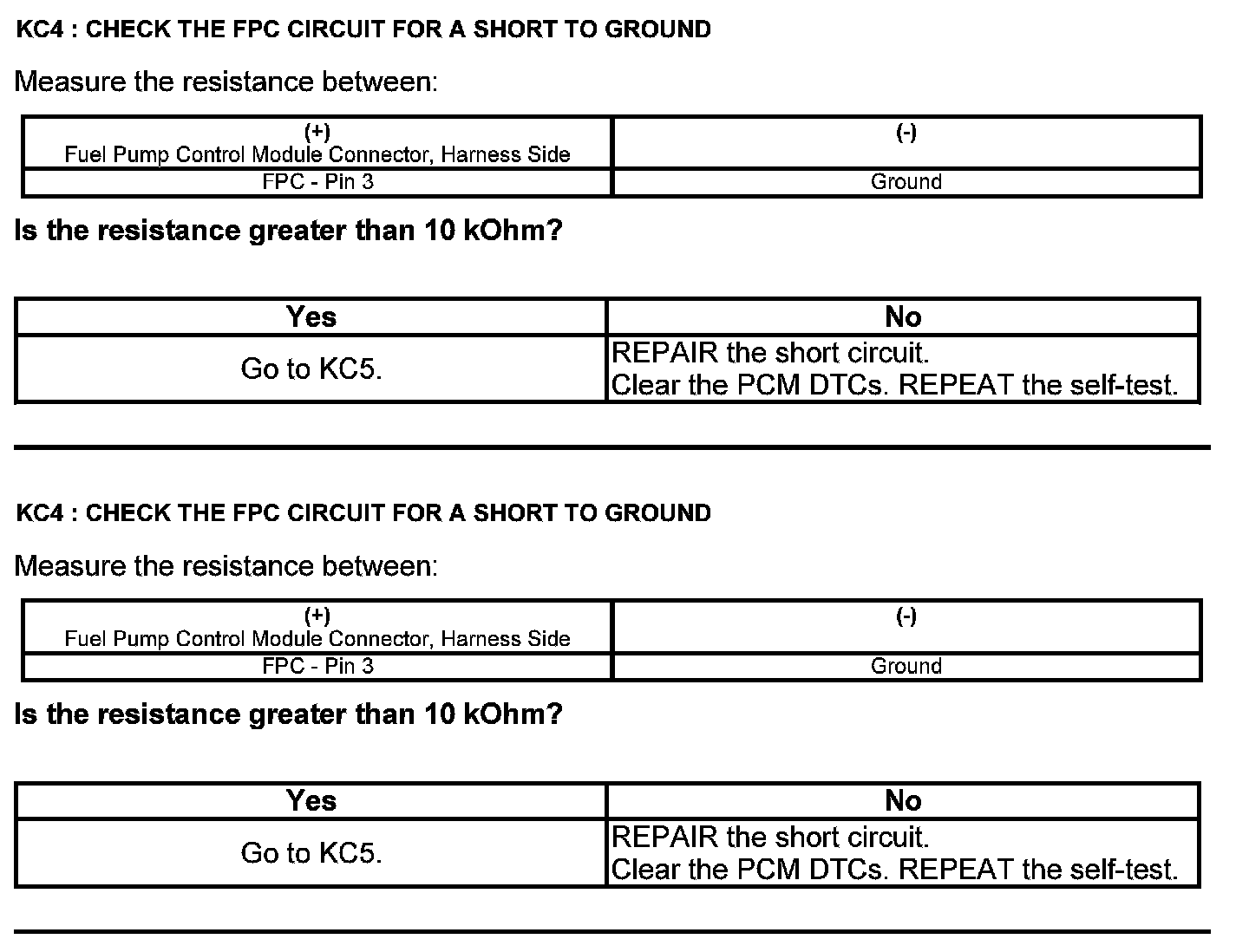

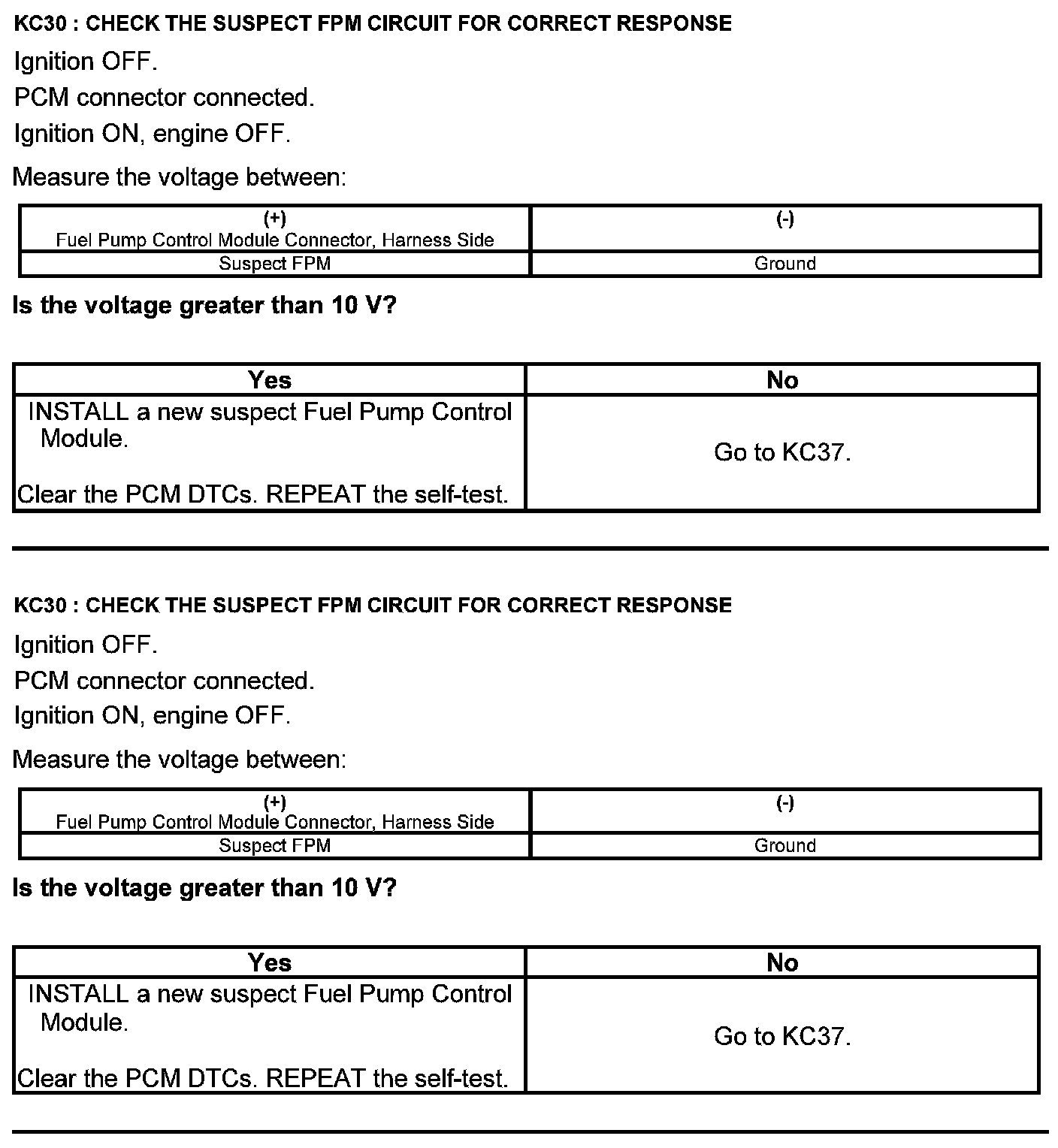

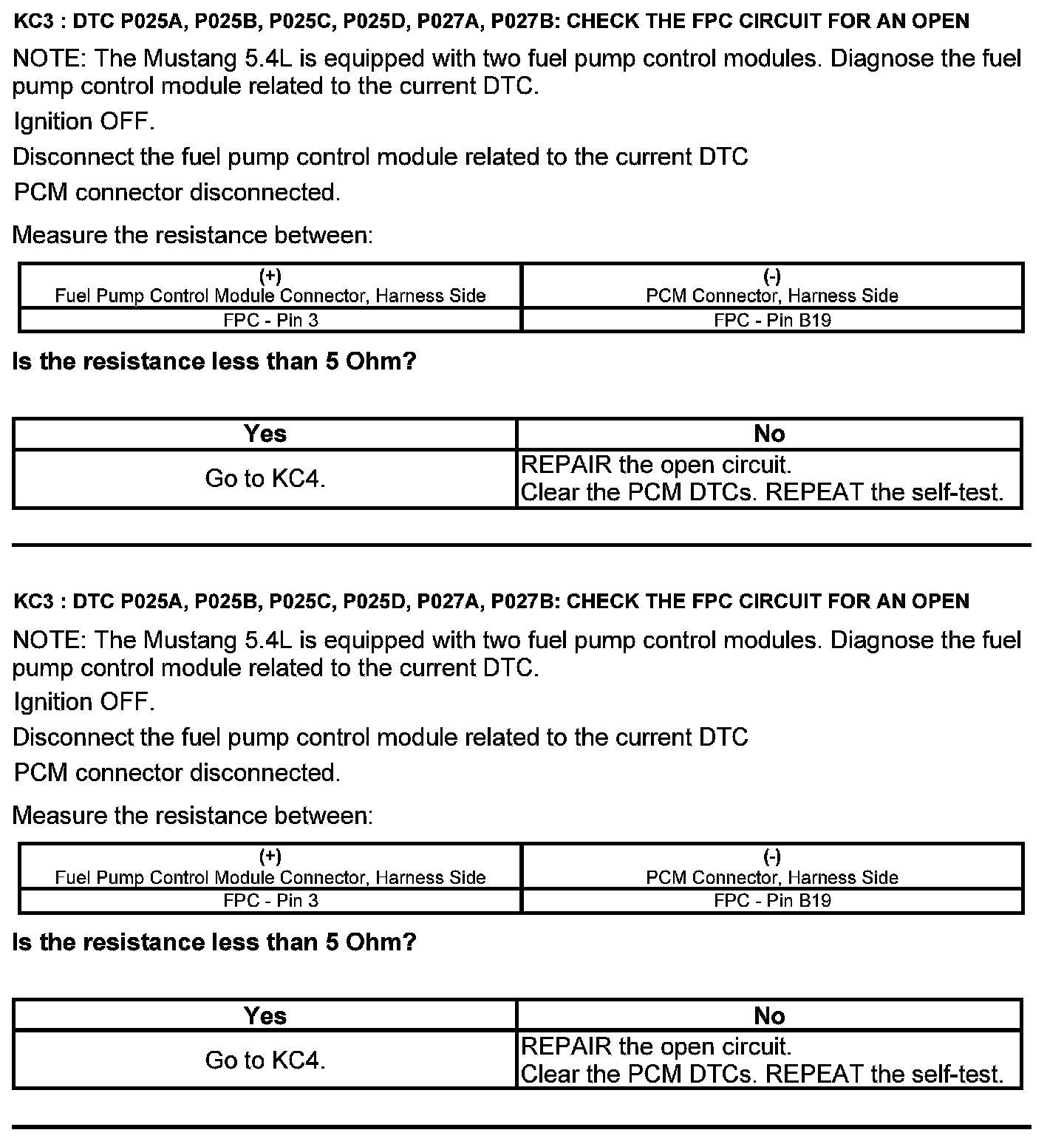

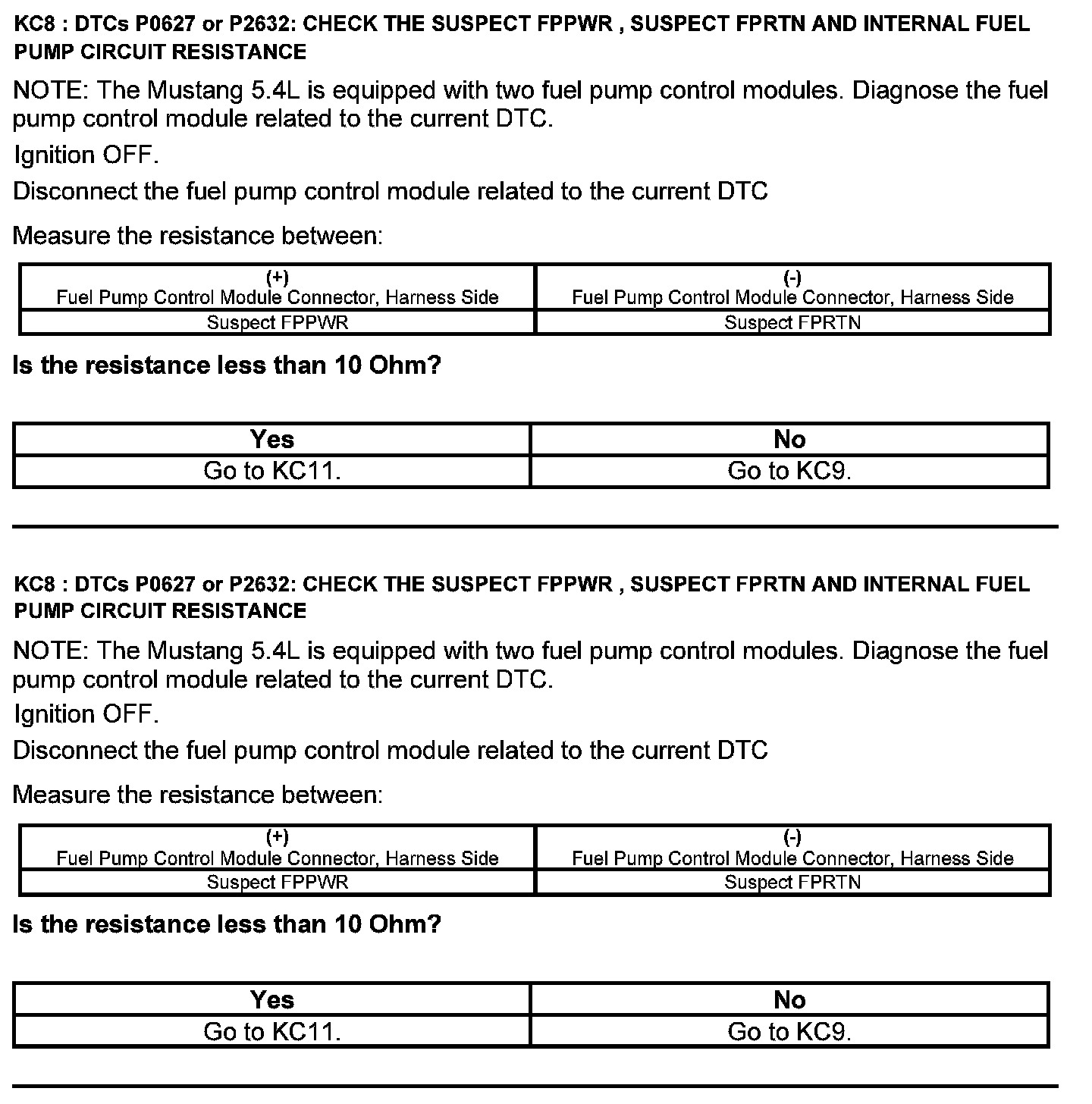

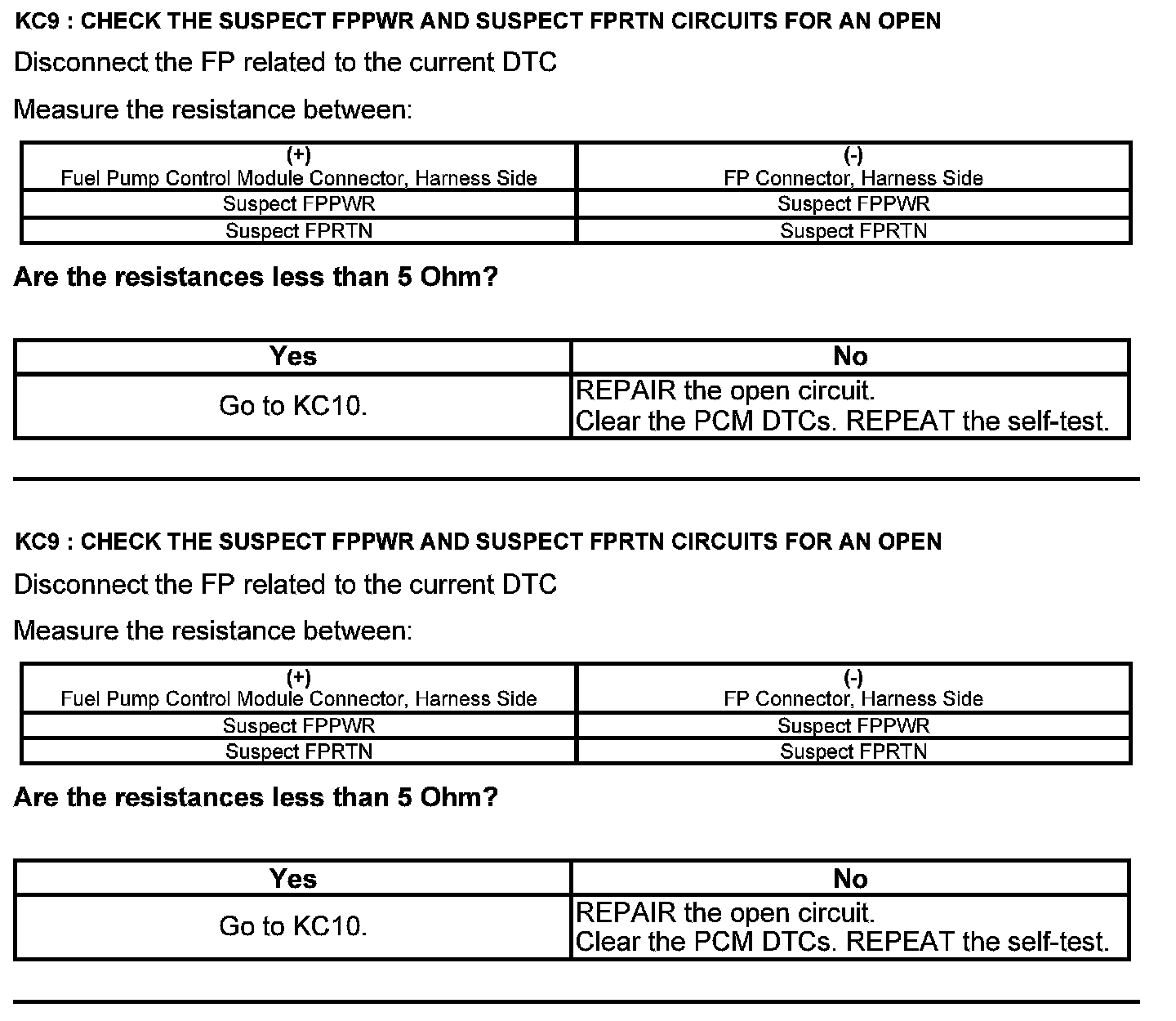

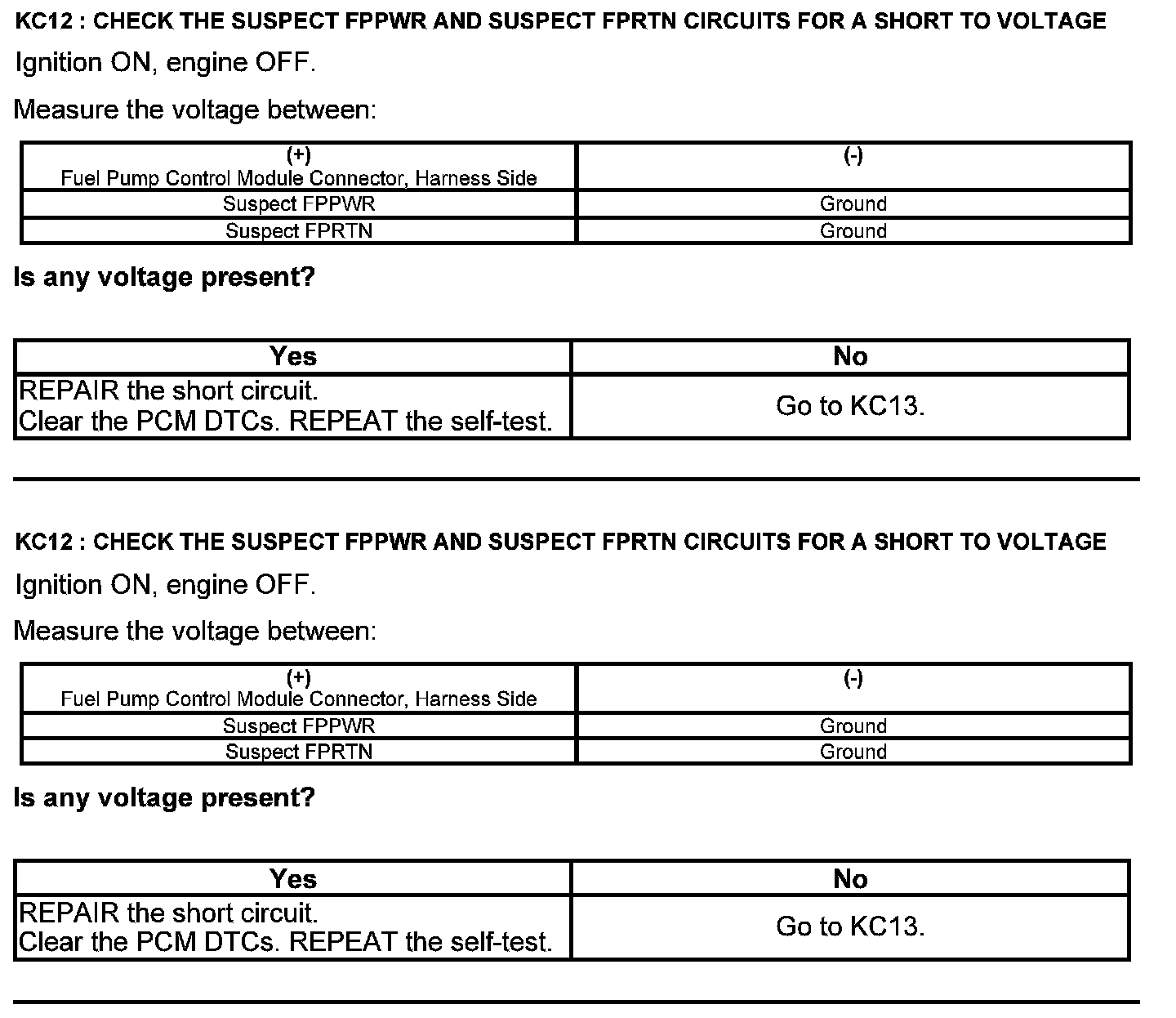

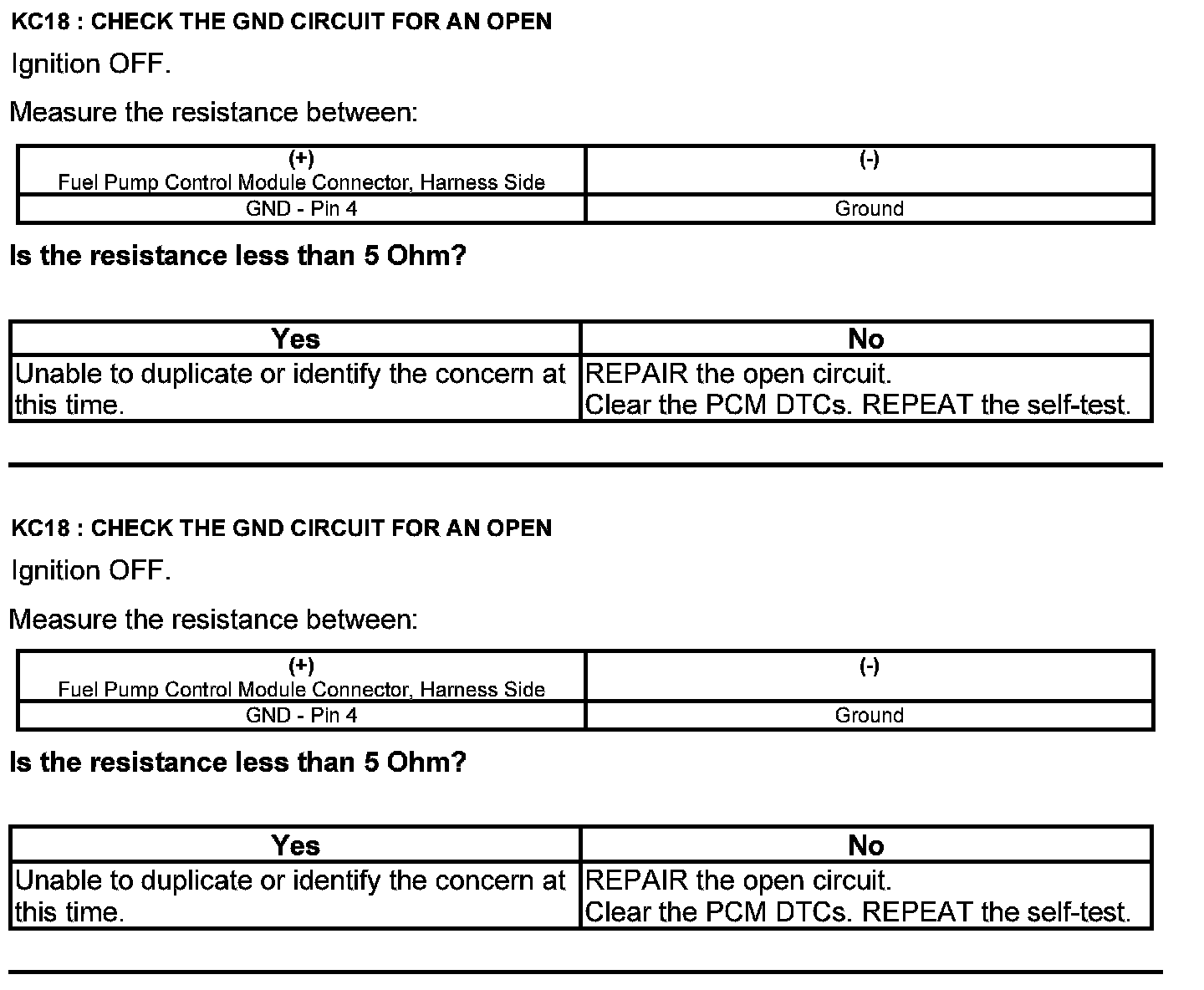

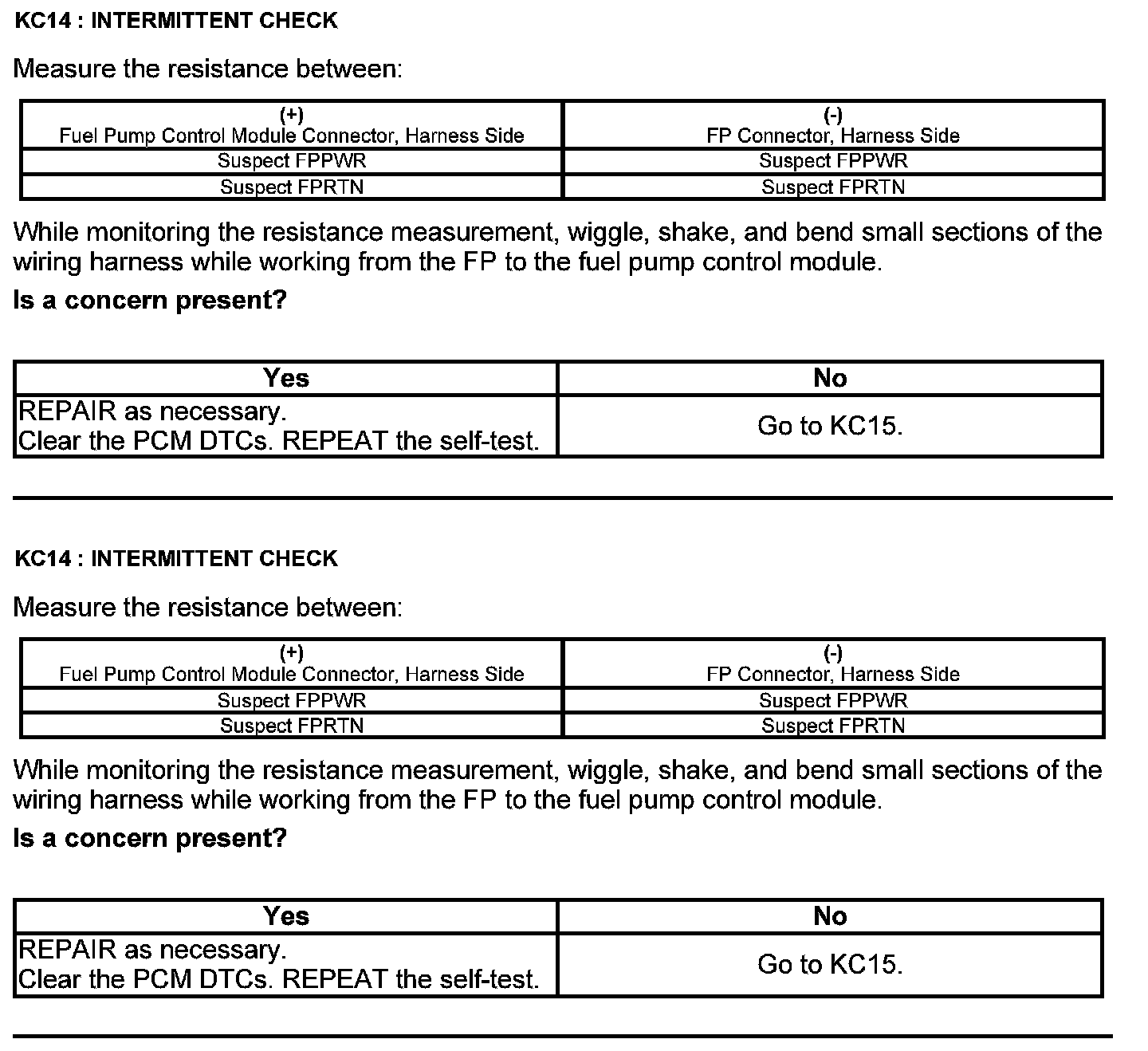

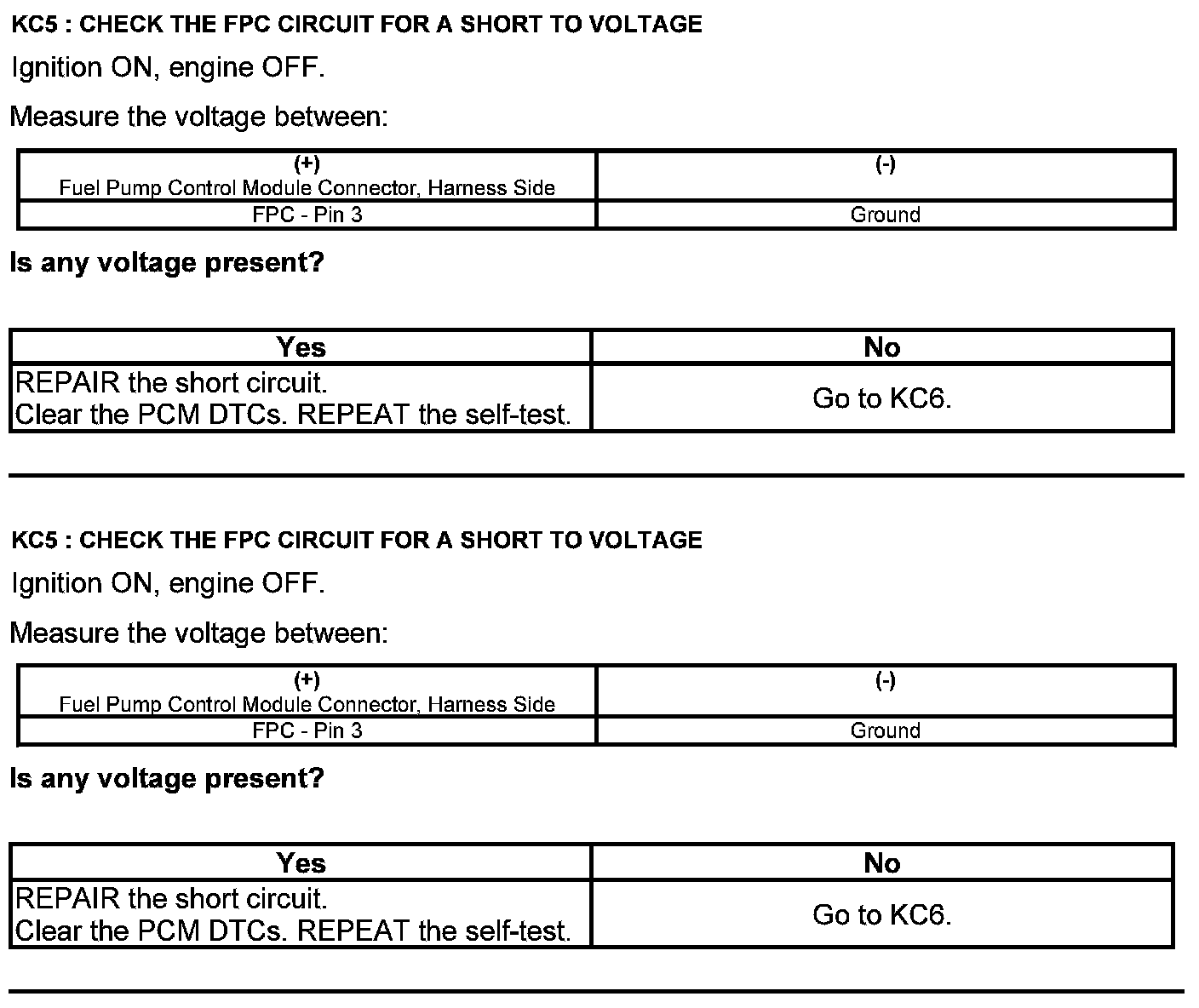

Fuel Pump Control Module Connector
Harness Side

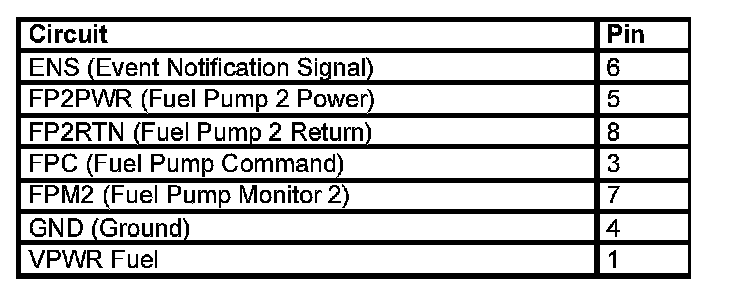

Fuel Pump Control Module 2 Module Connector
Harness Side

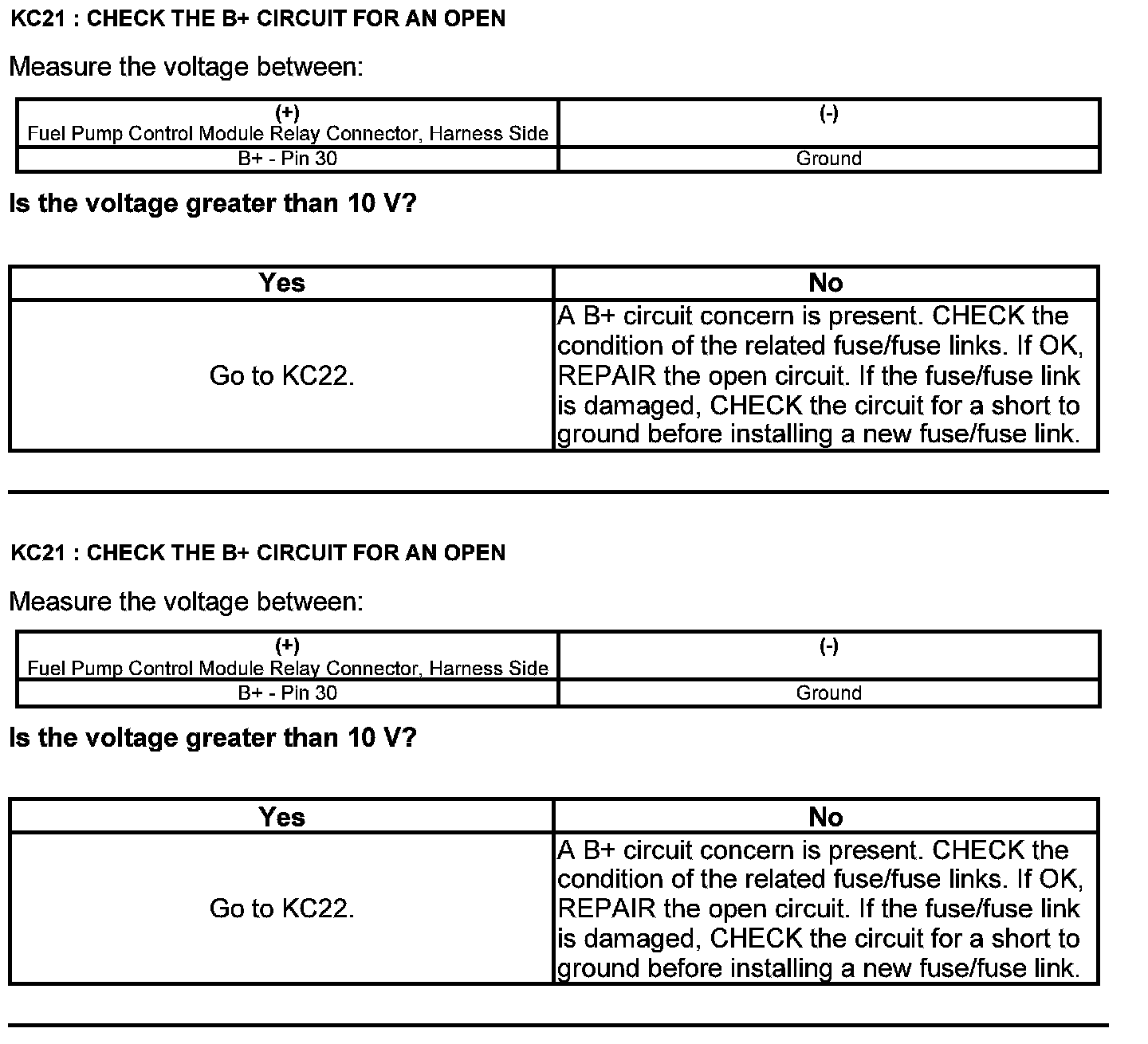

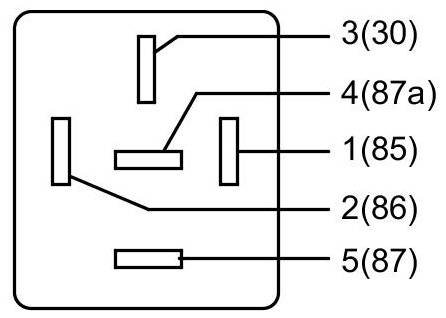

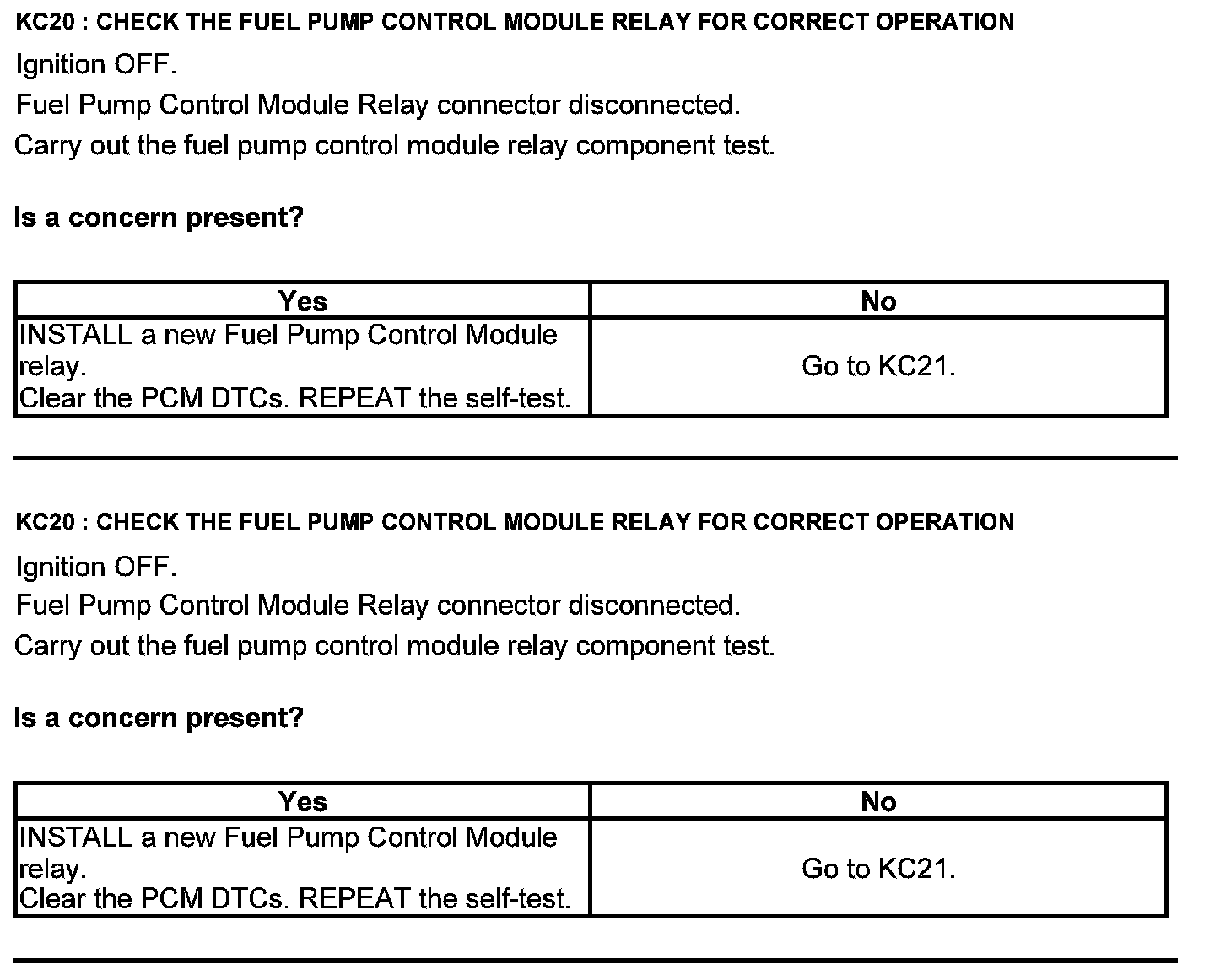

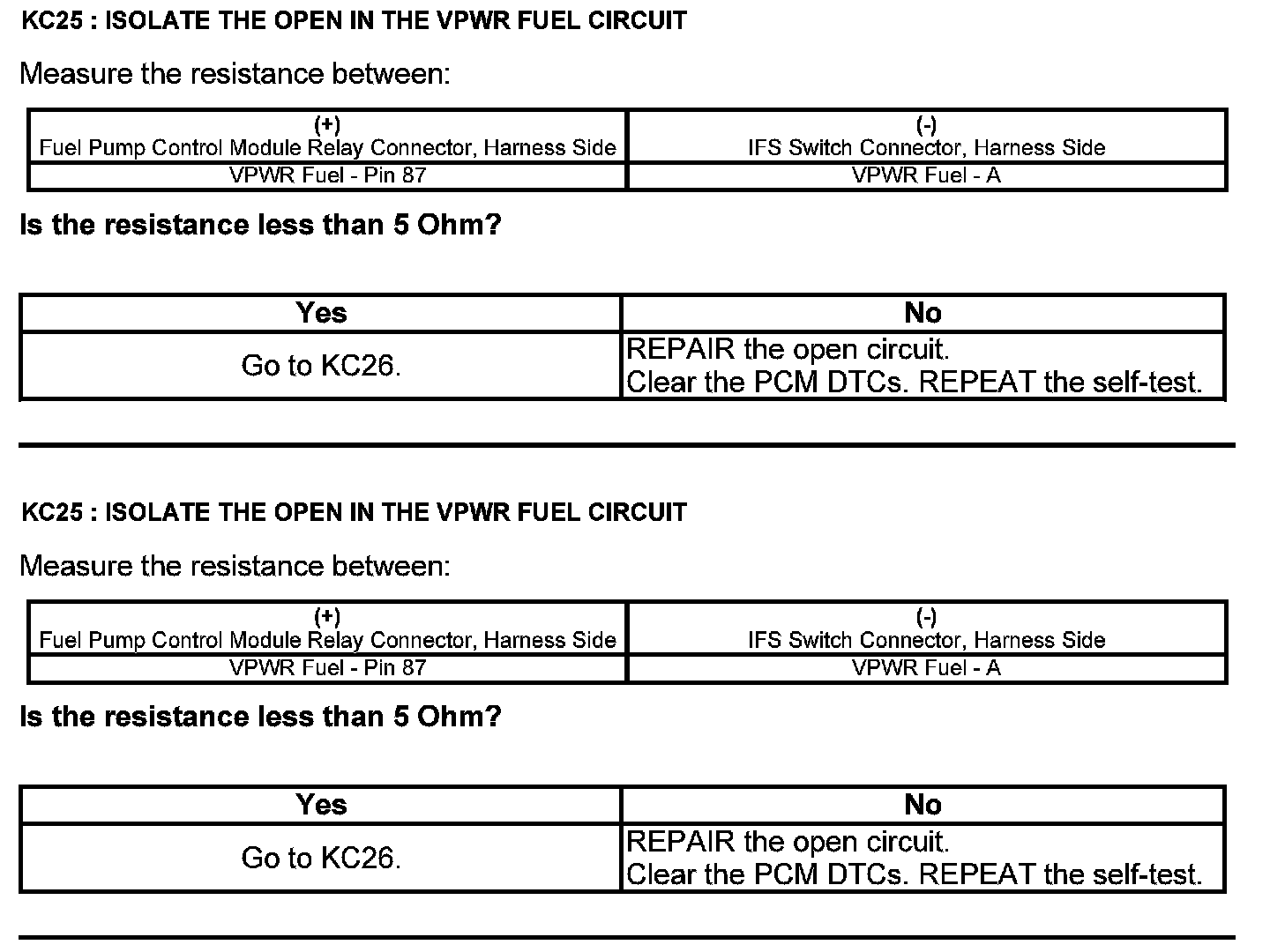

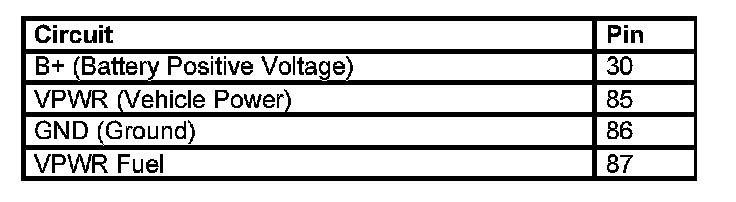

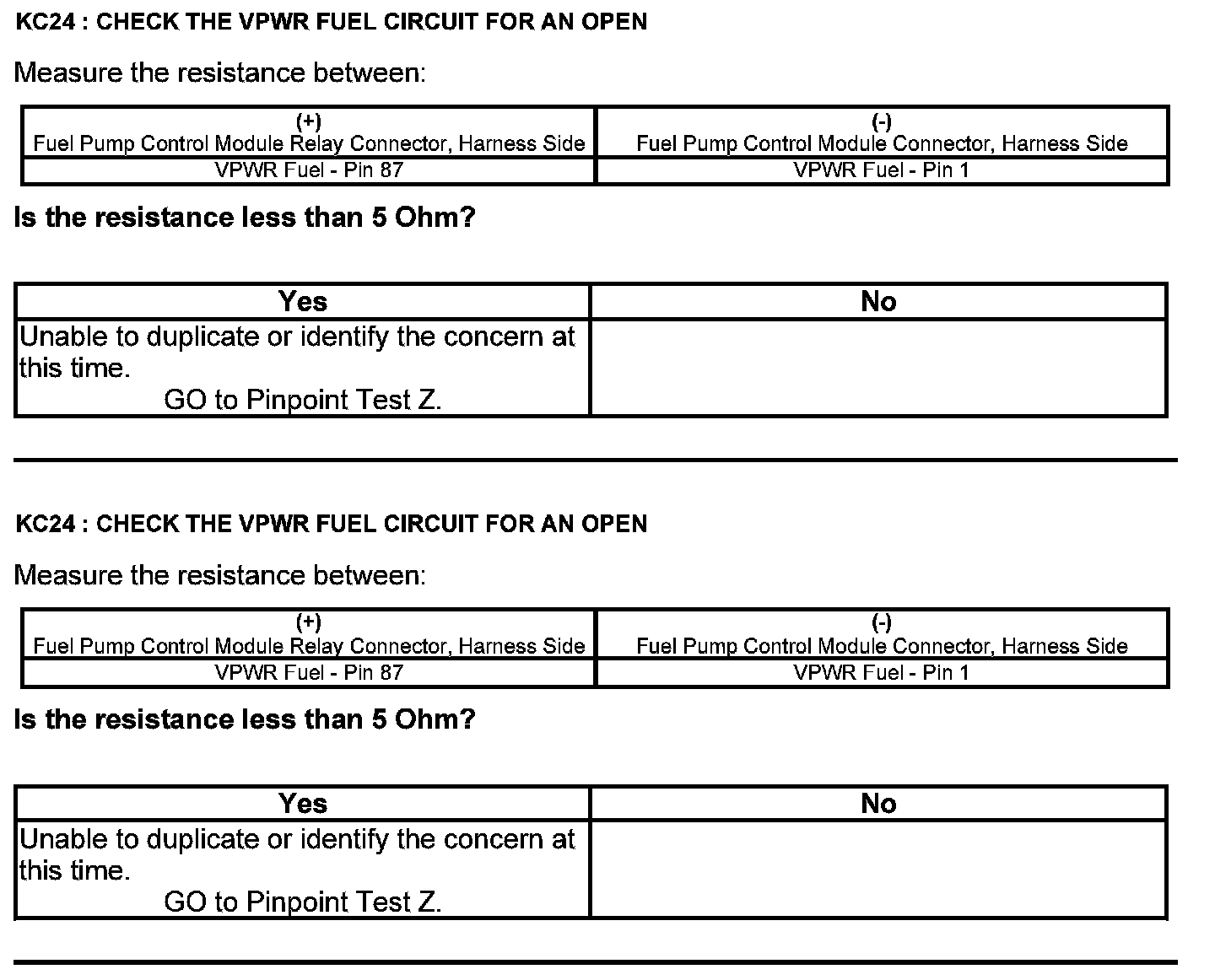

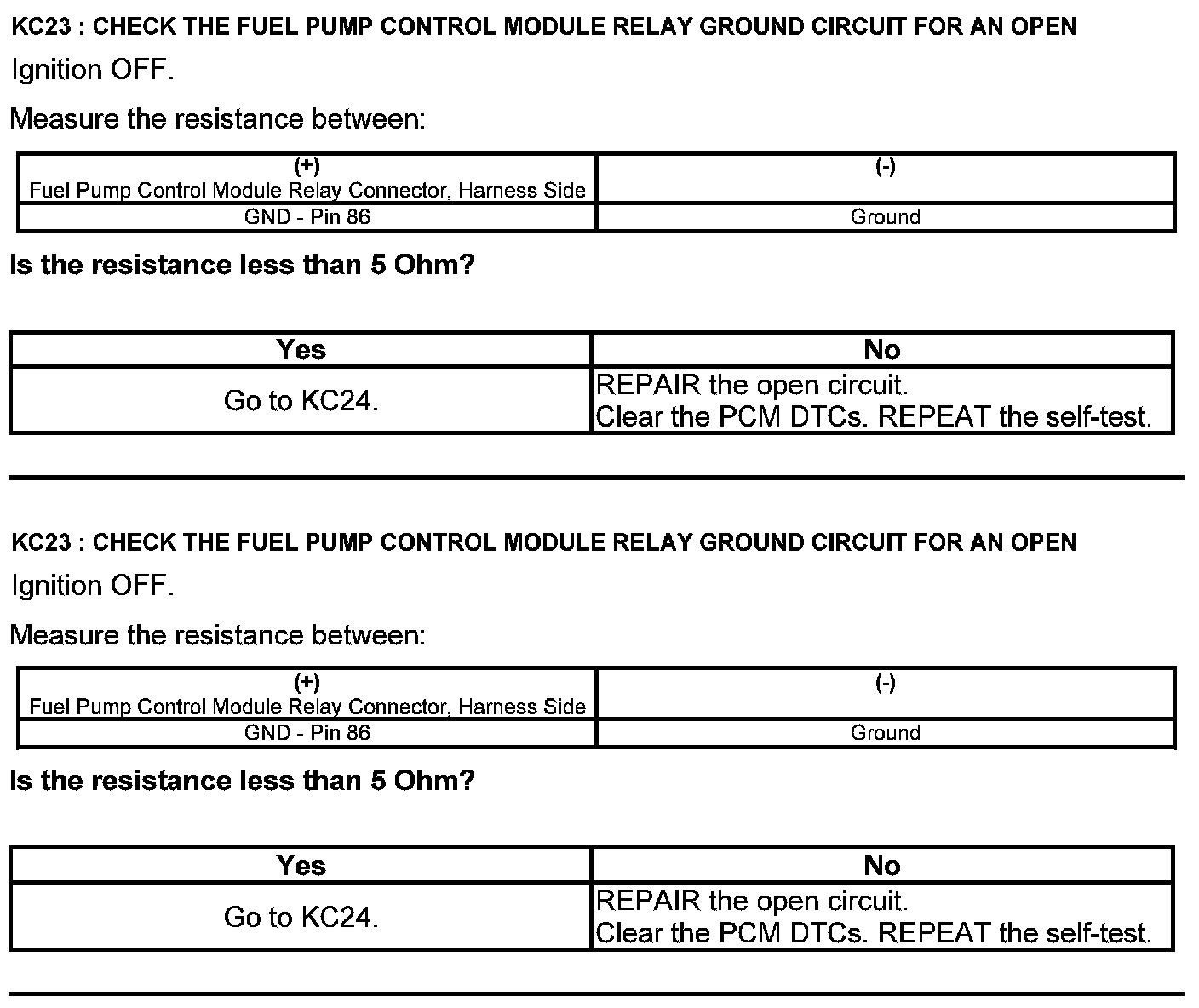

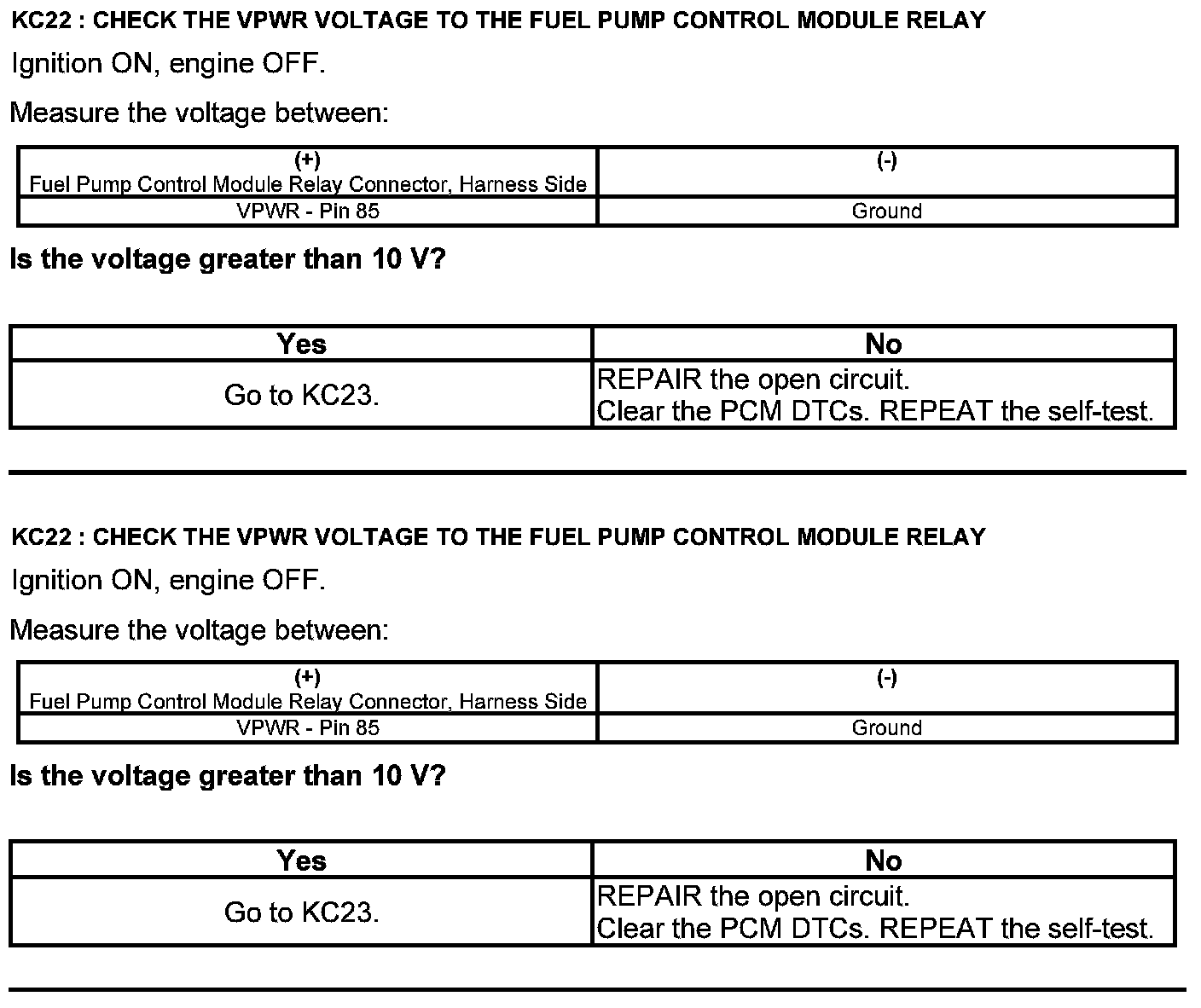

Fuel Pump Control Module Relay Connector - Refer to the Wiring Diagrams for schematic and connector information.
Harness Side

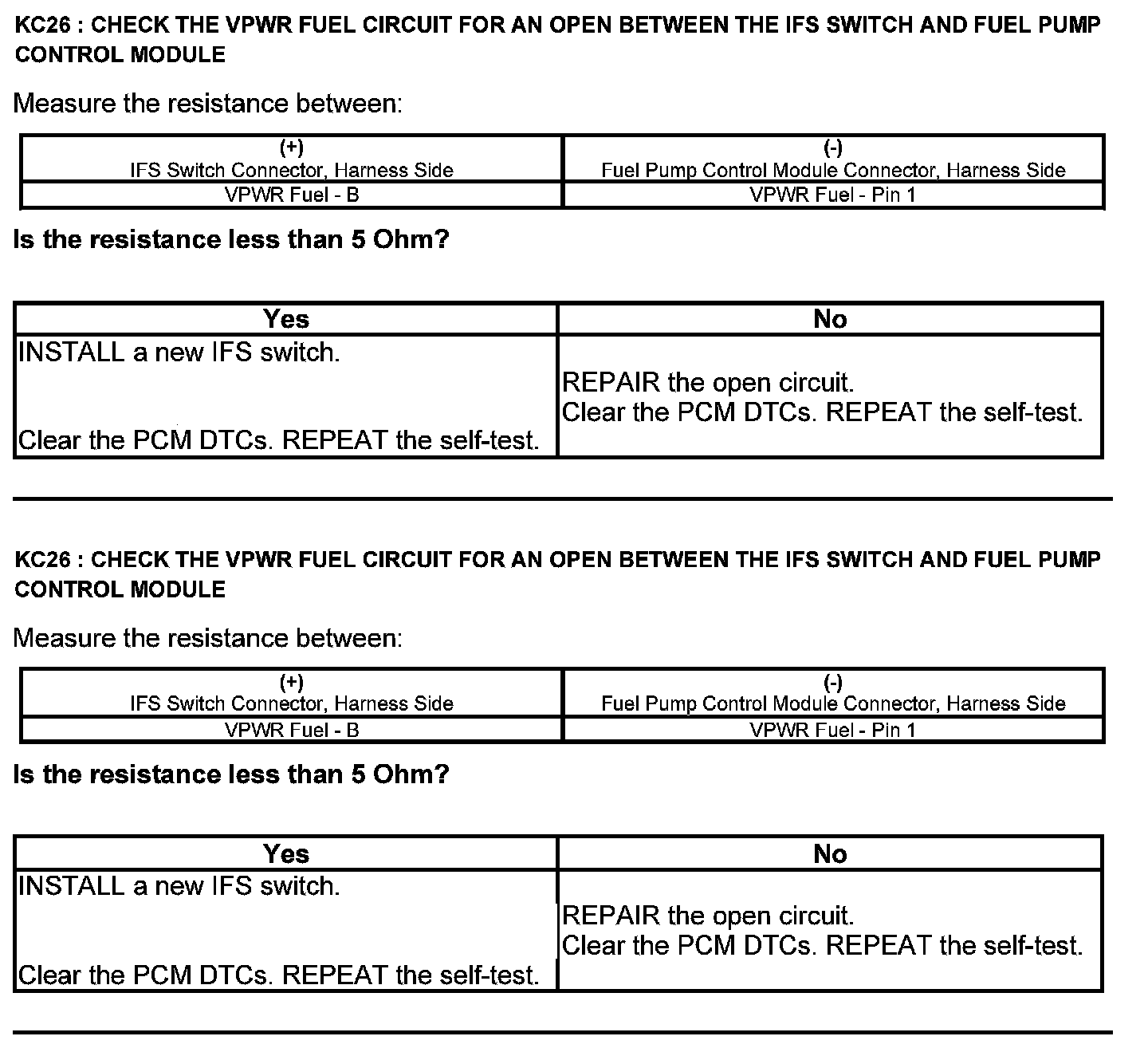

Inertia Fuel Shutoff (IFS) Switch Connector
Harness Side

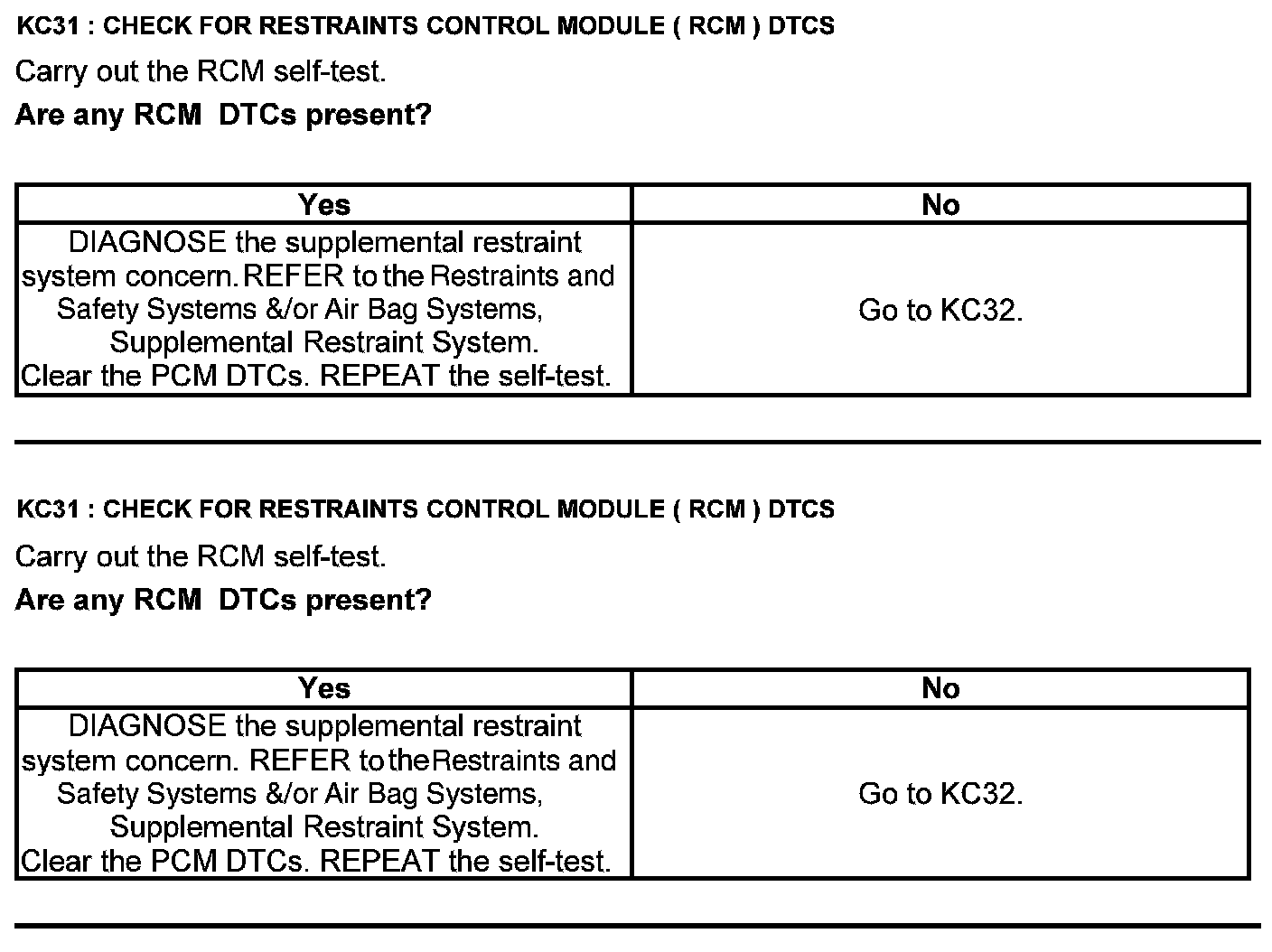

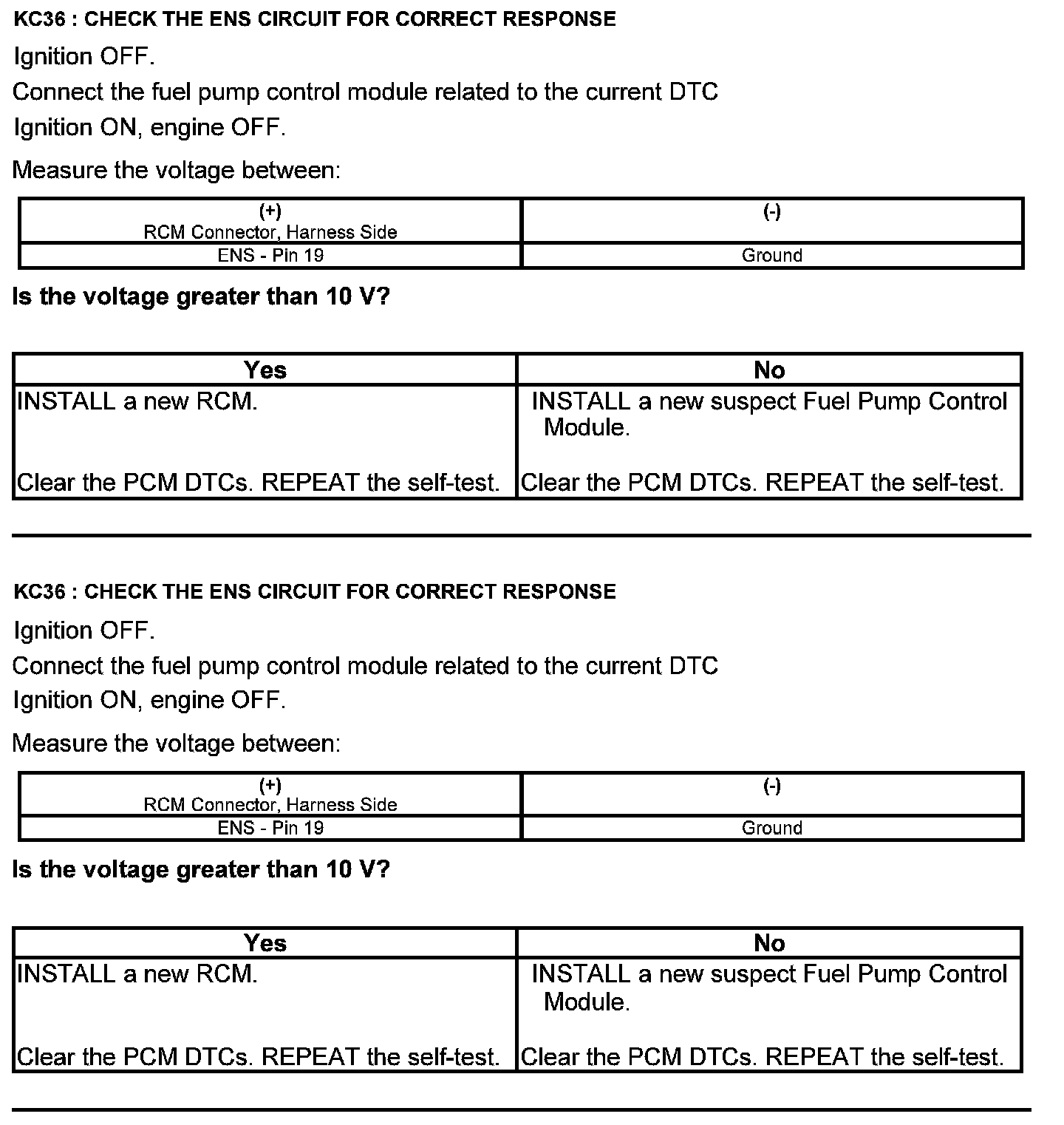

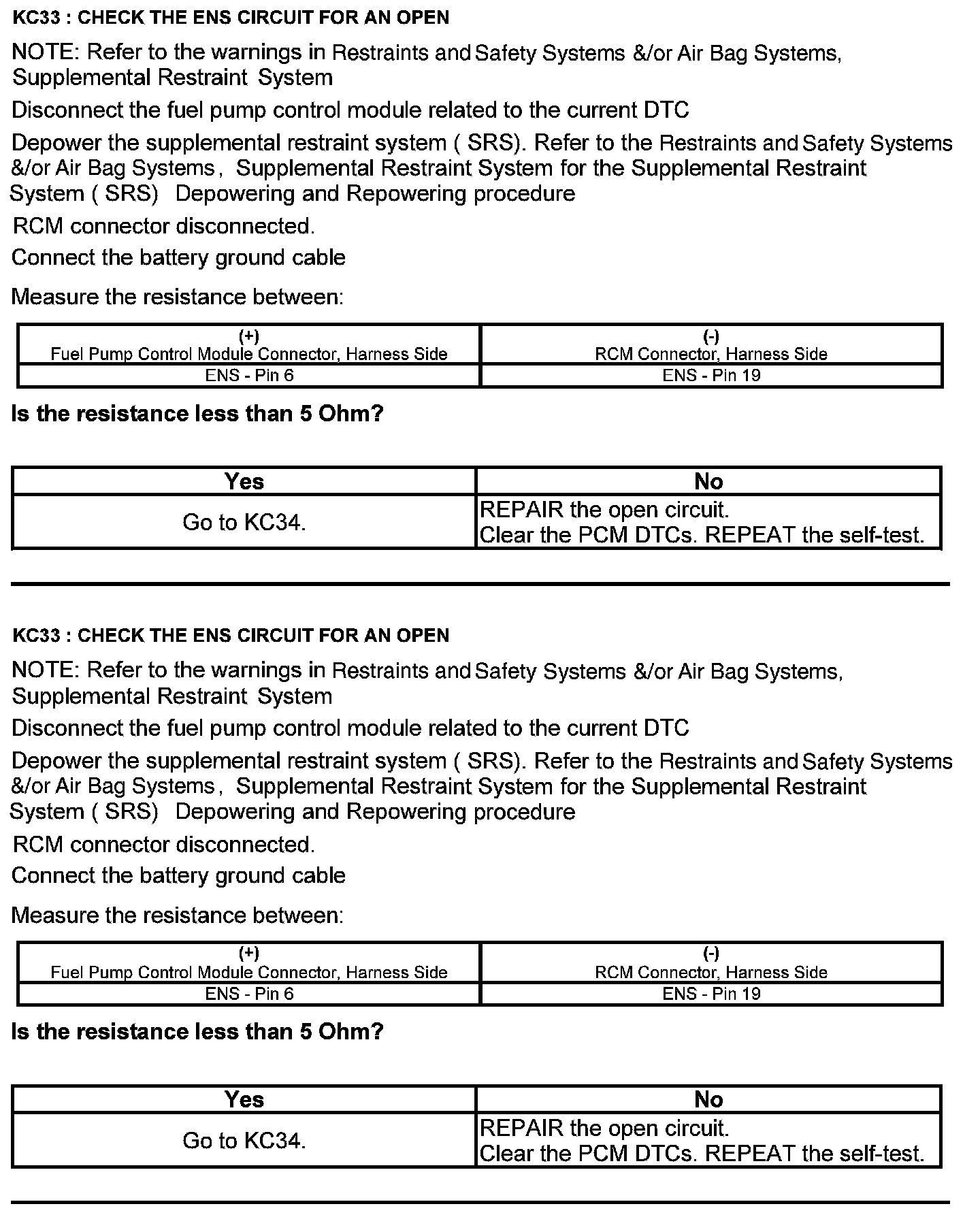

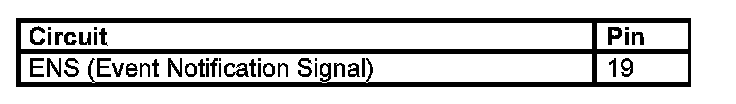

Restraints Control Module (RCM) Connector
Harness Side

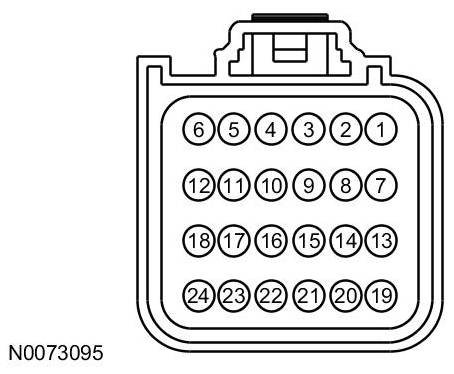

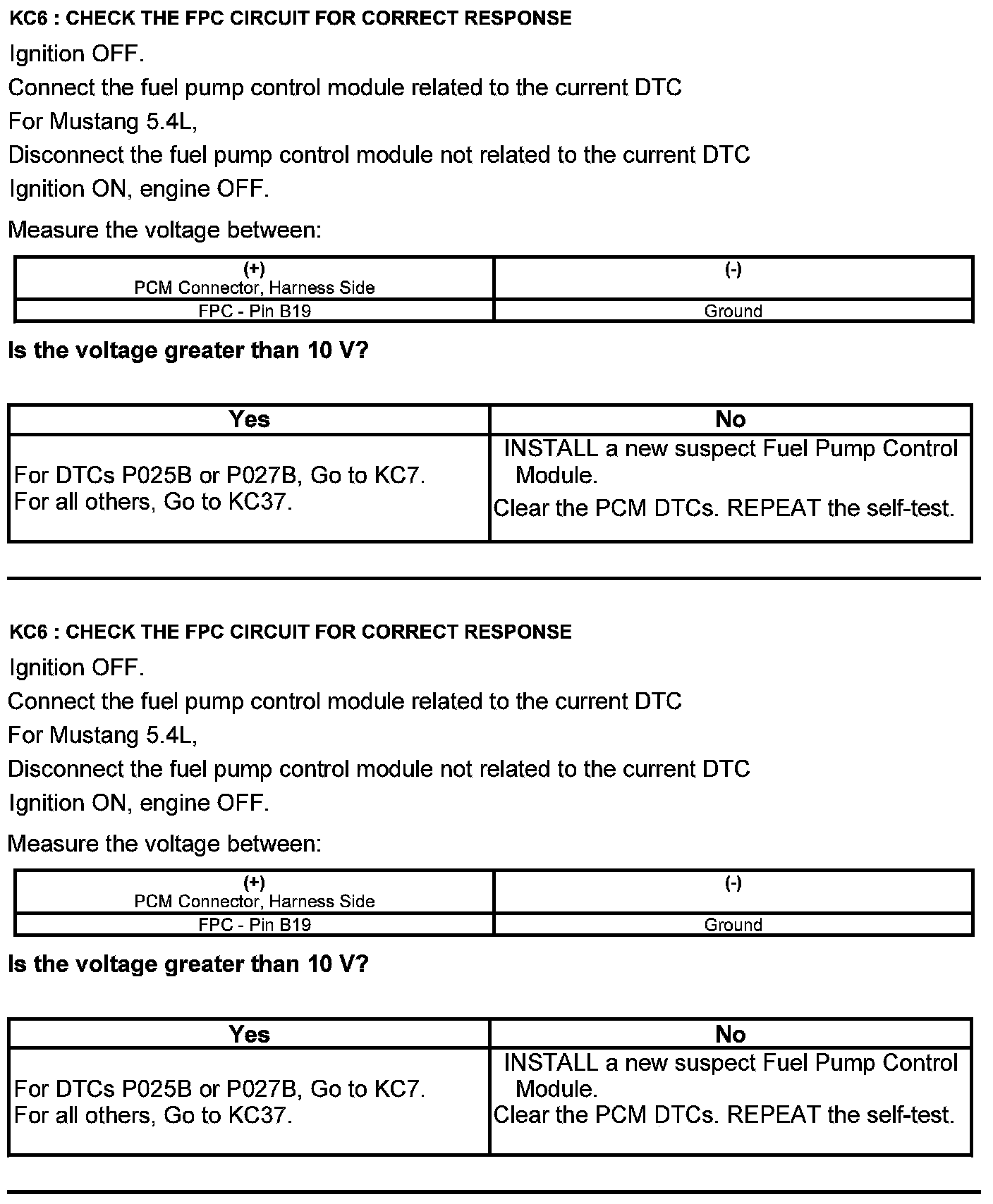

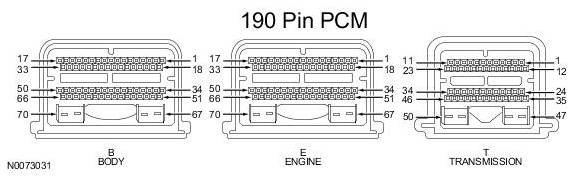

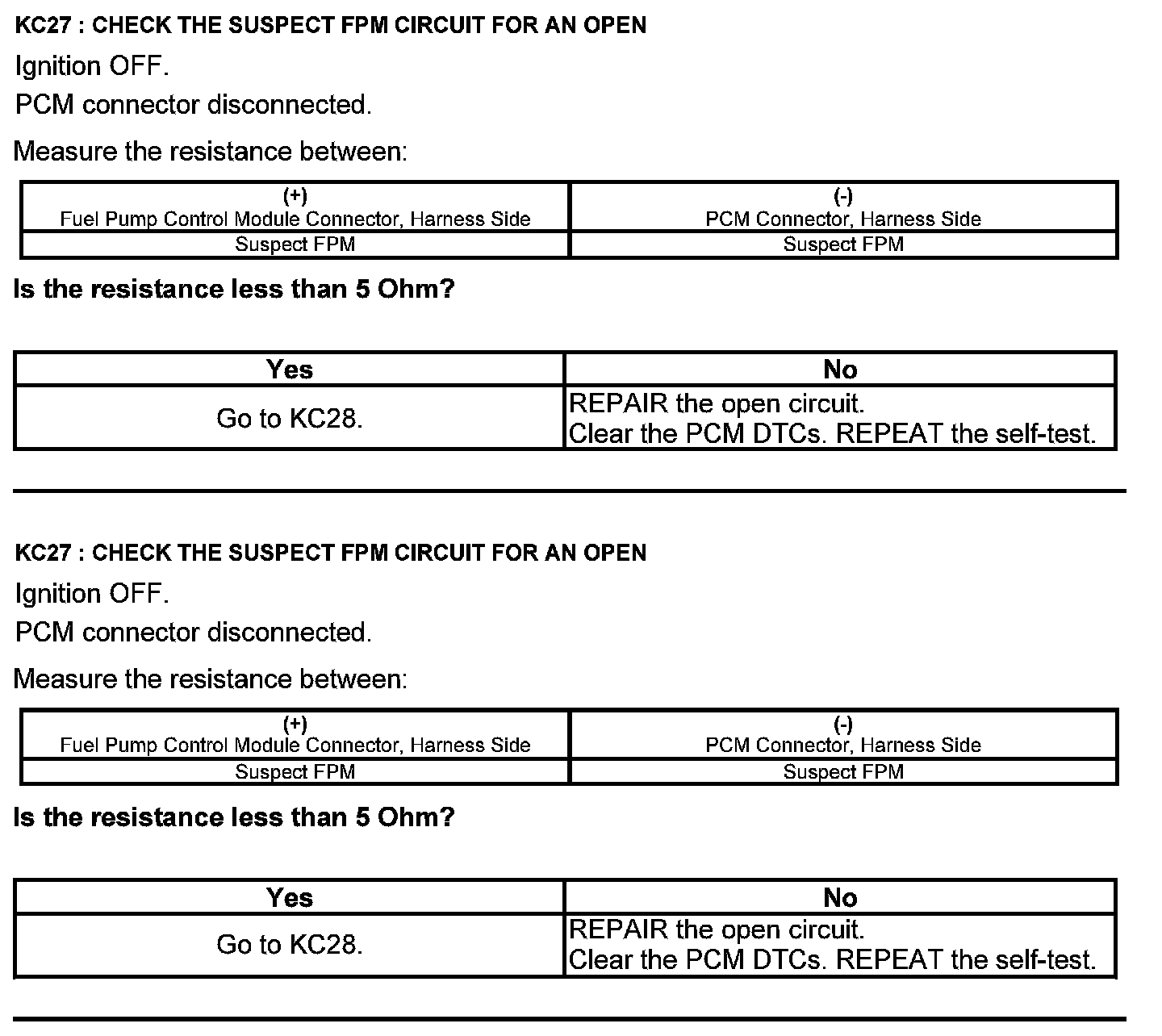

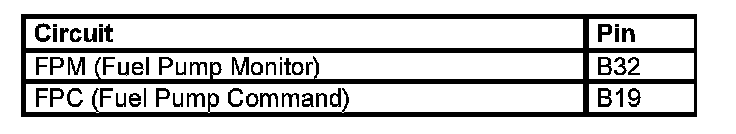

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
