Automatic Transmission

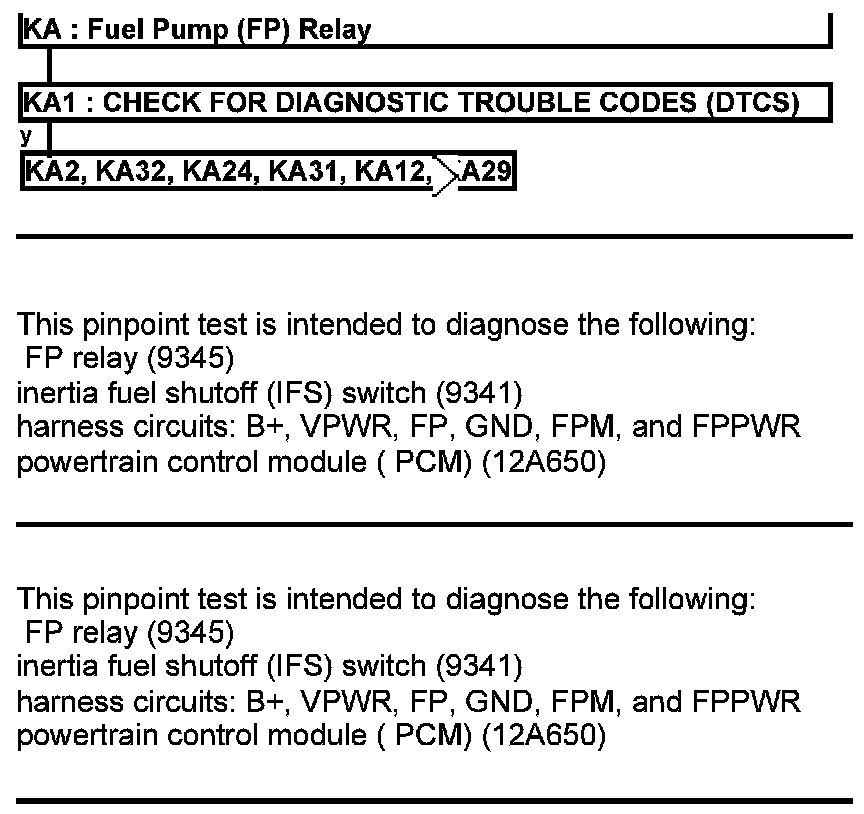

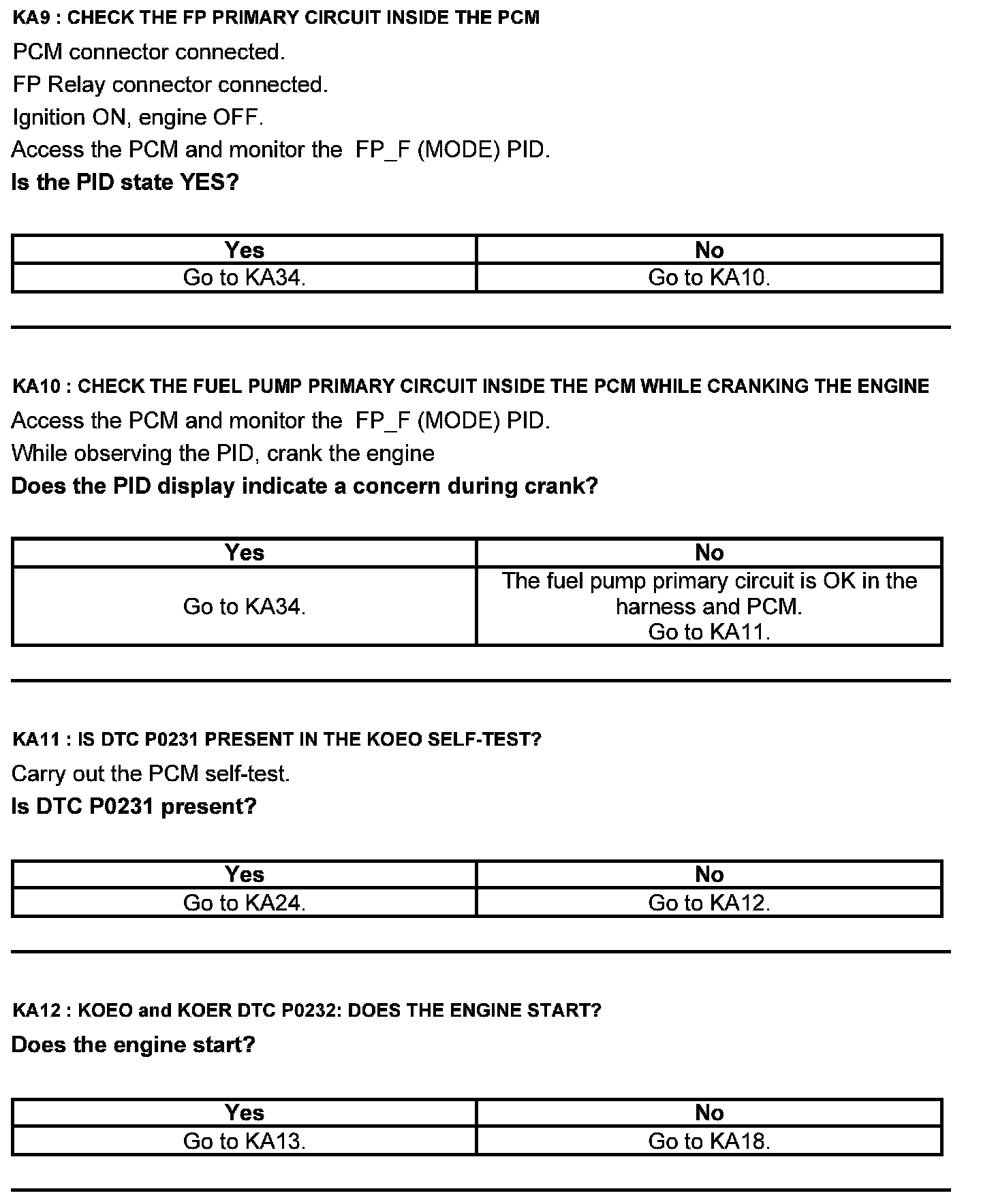

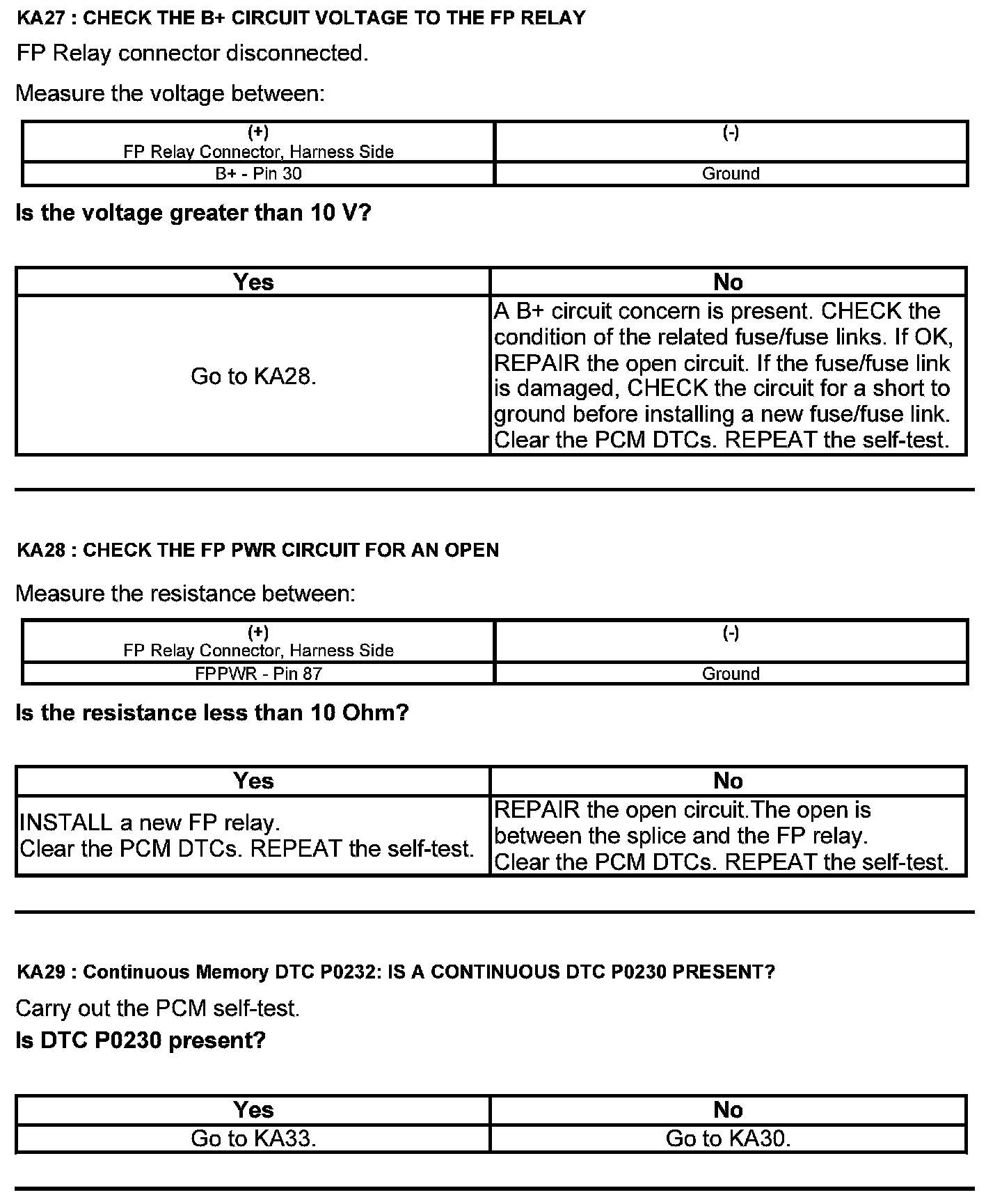

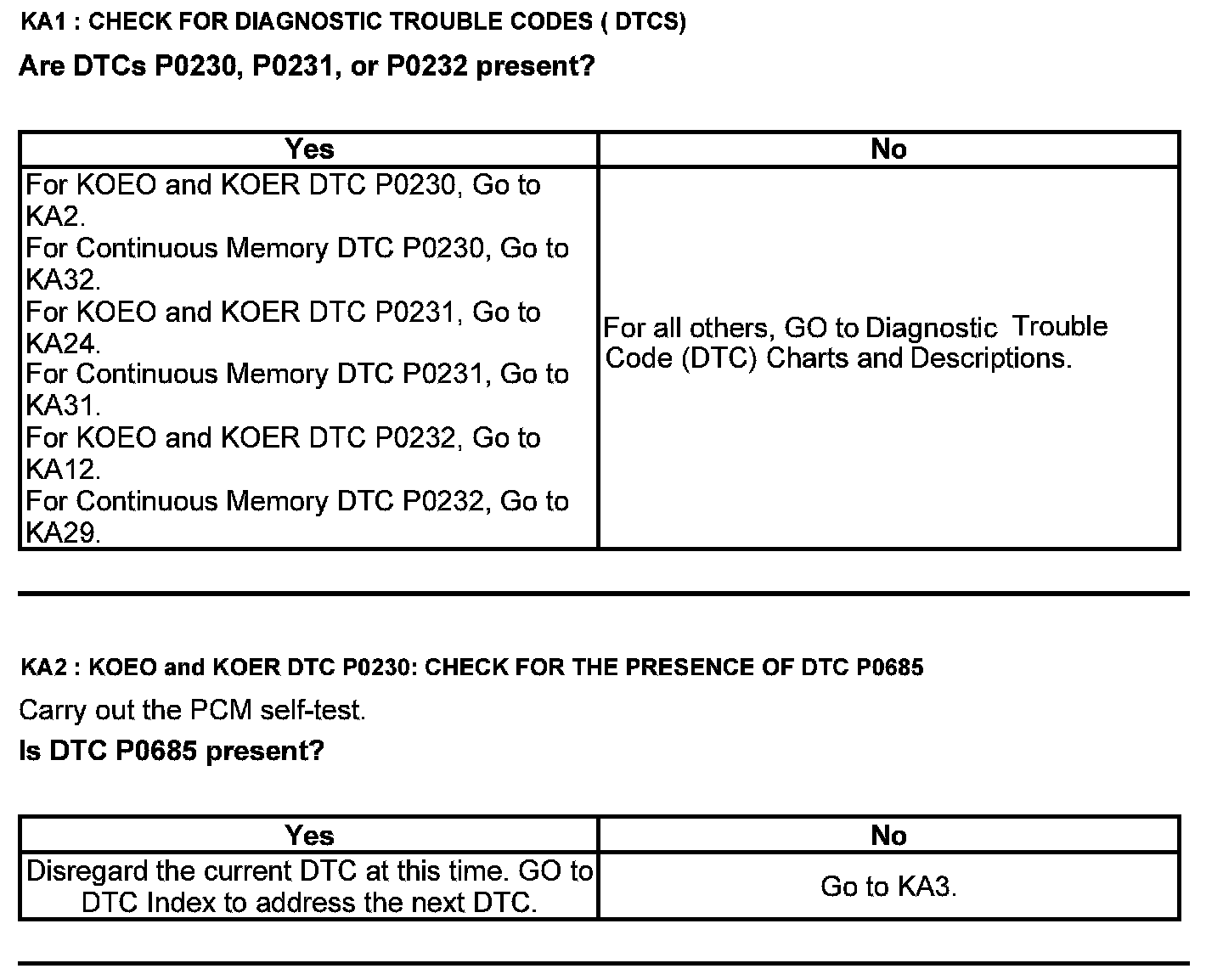

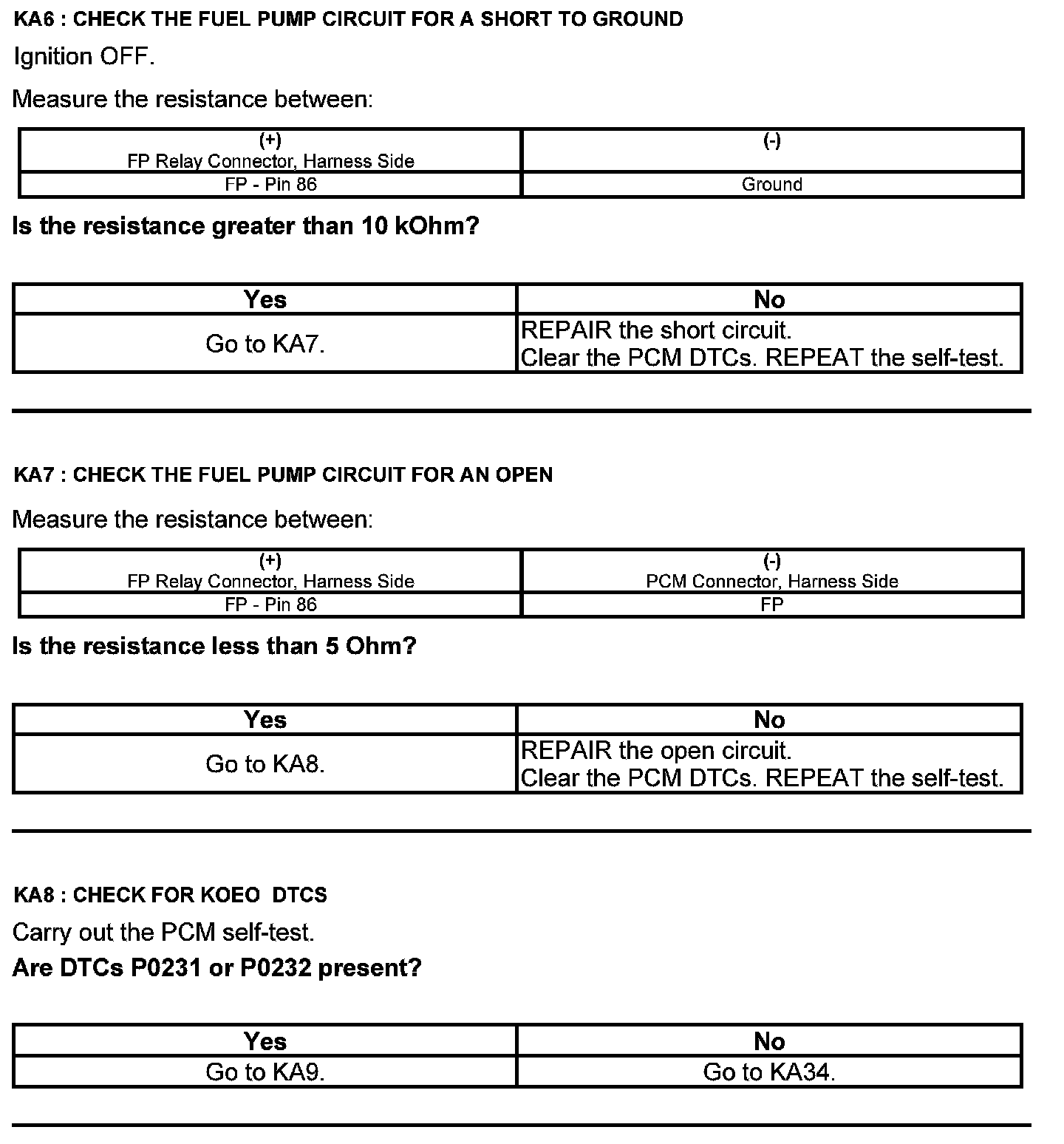

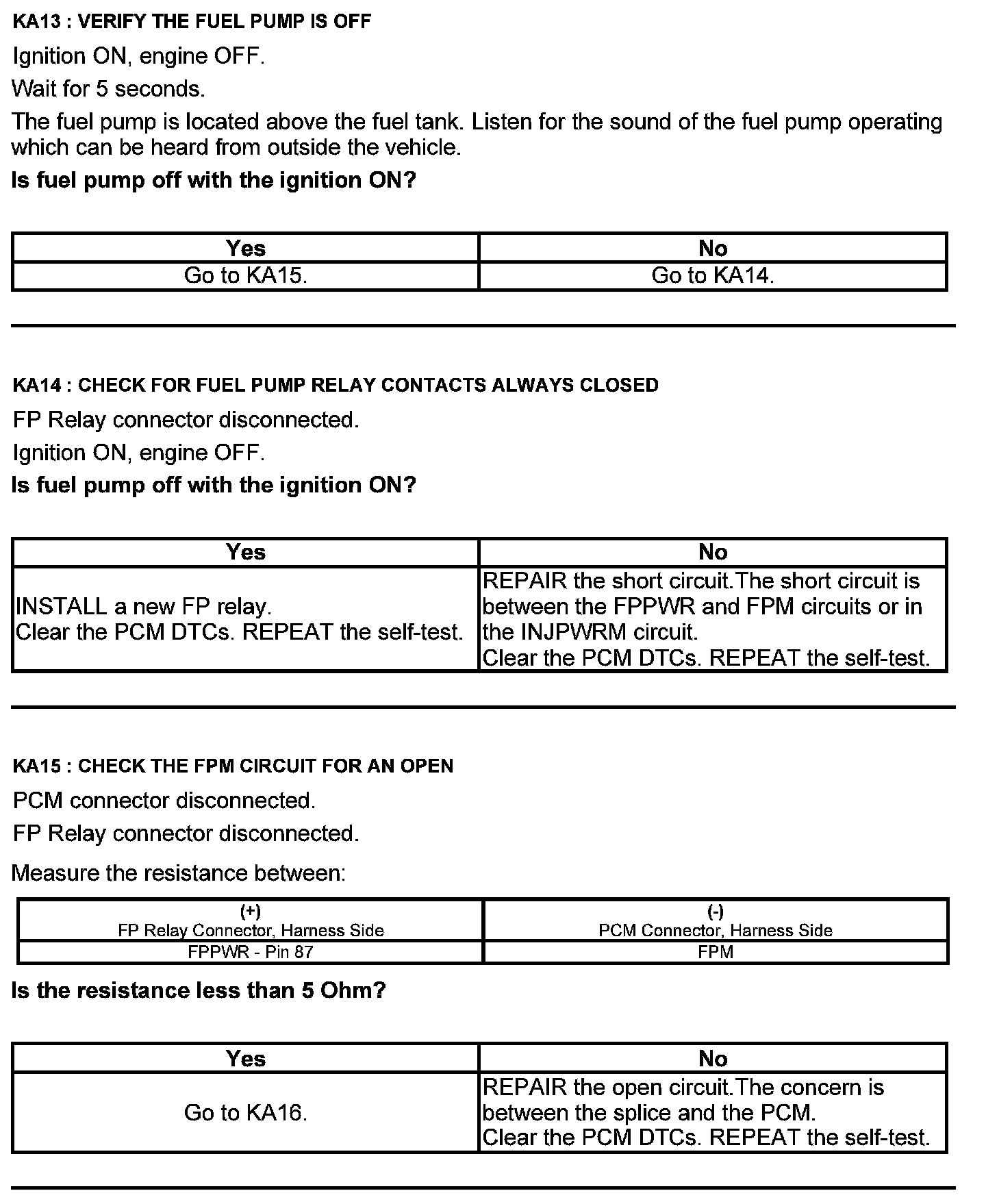

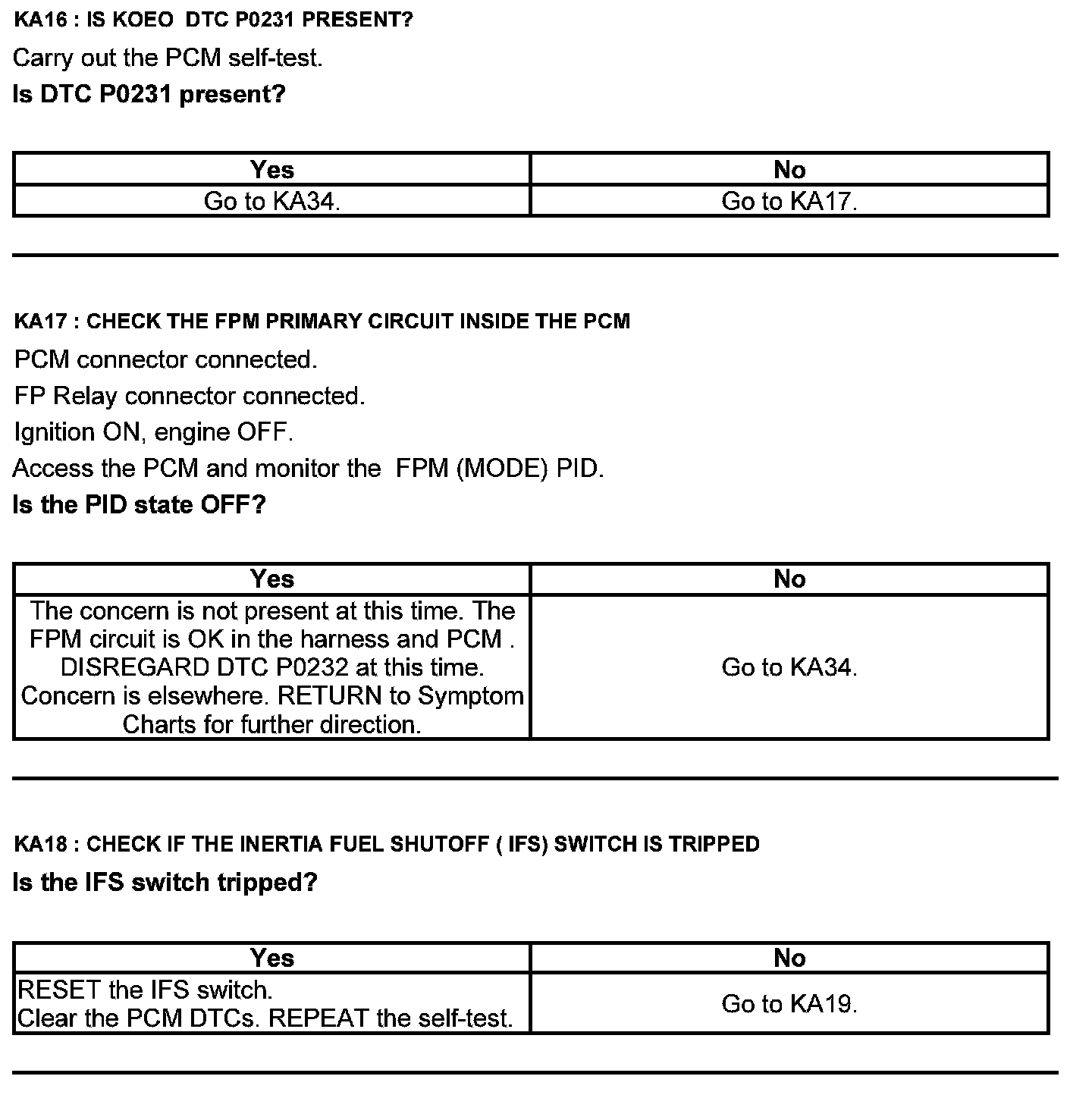

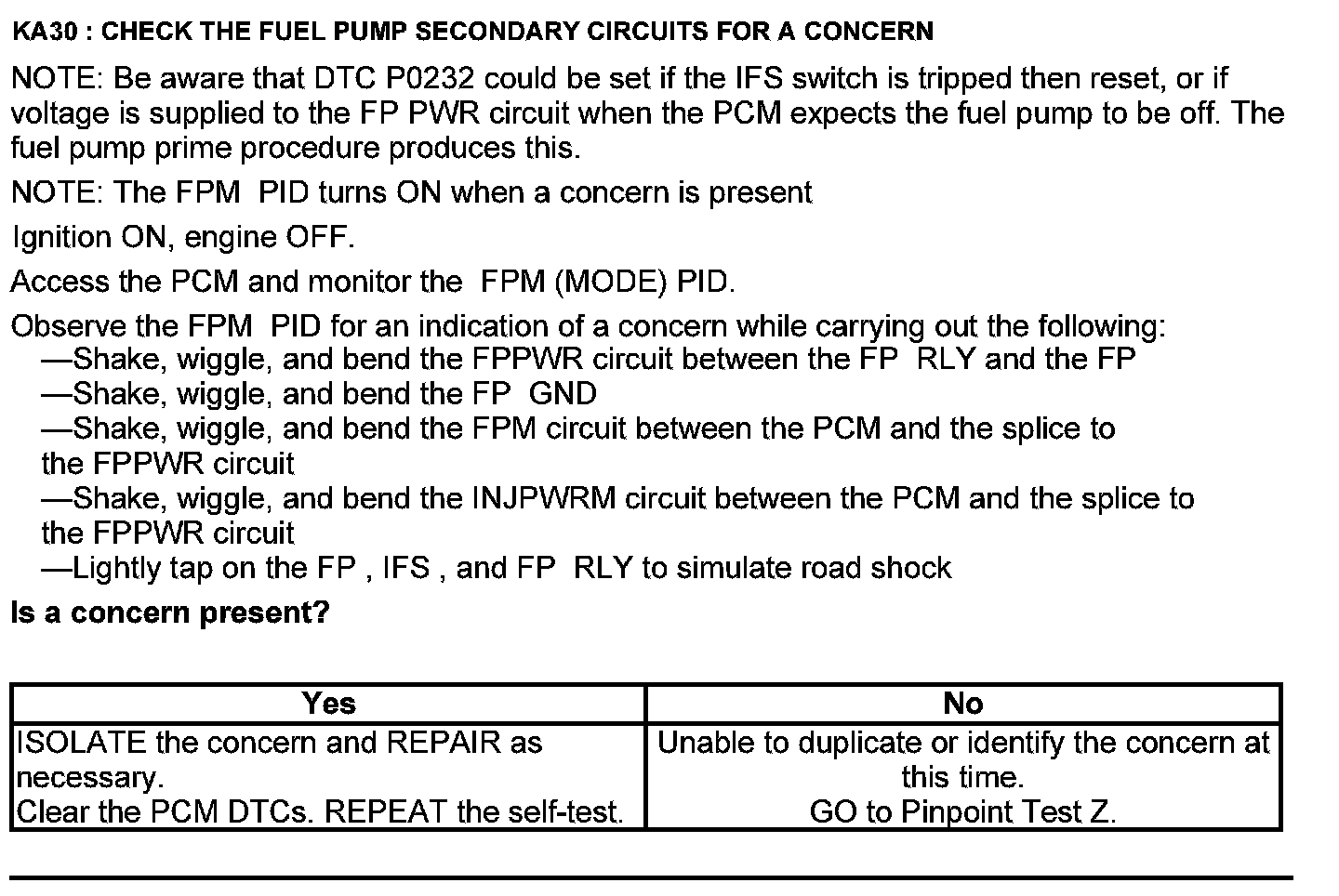

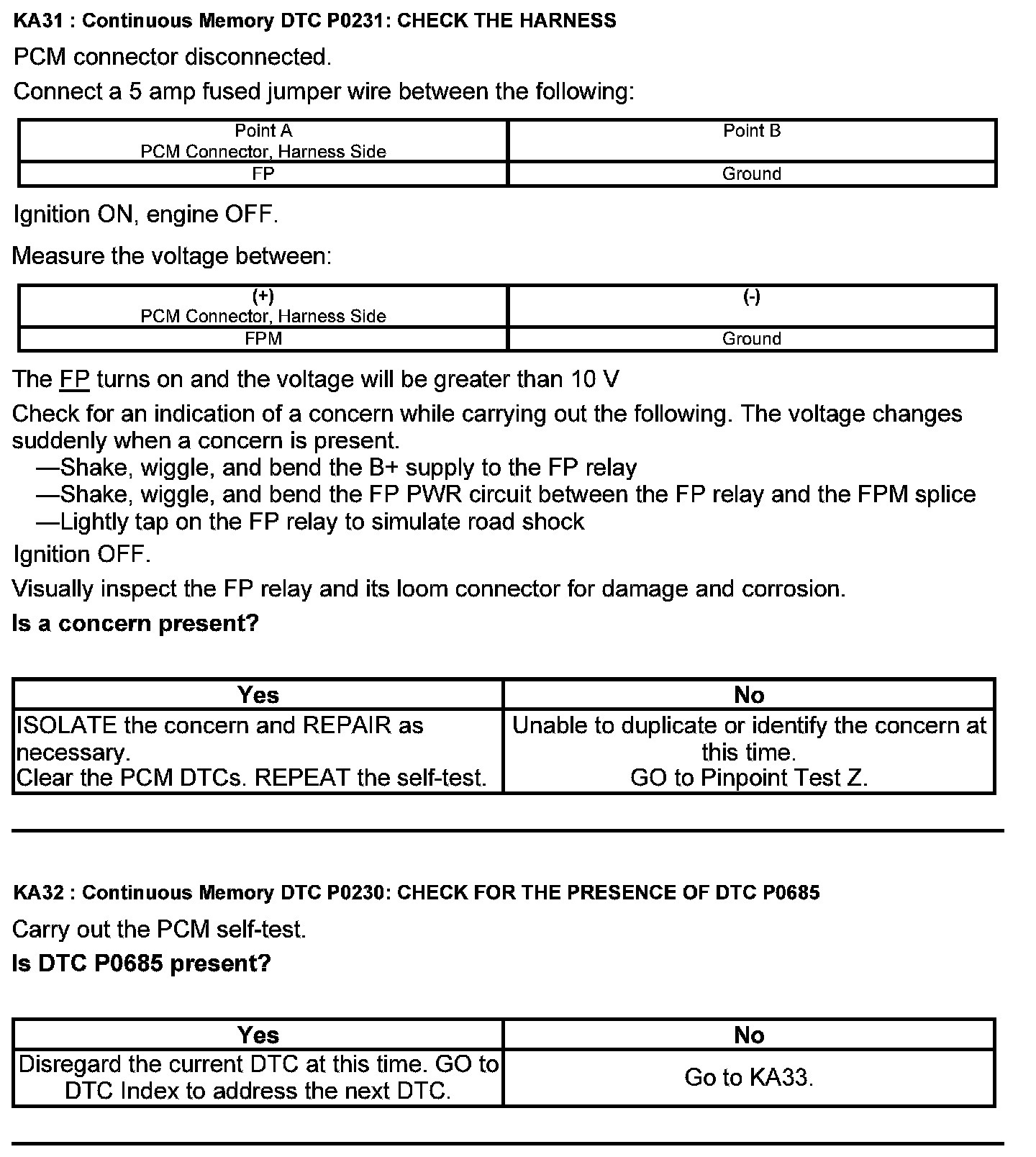

Fuel Pump (FP) Relay - Automatic Transmission

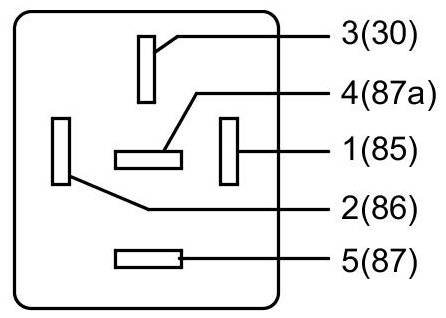

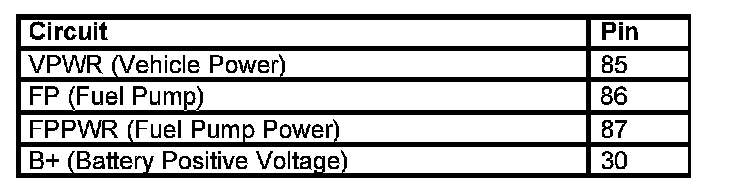

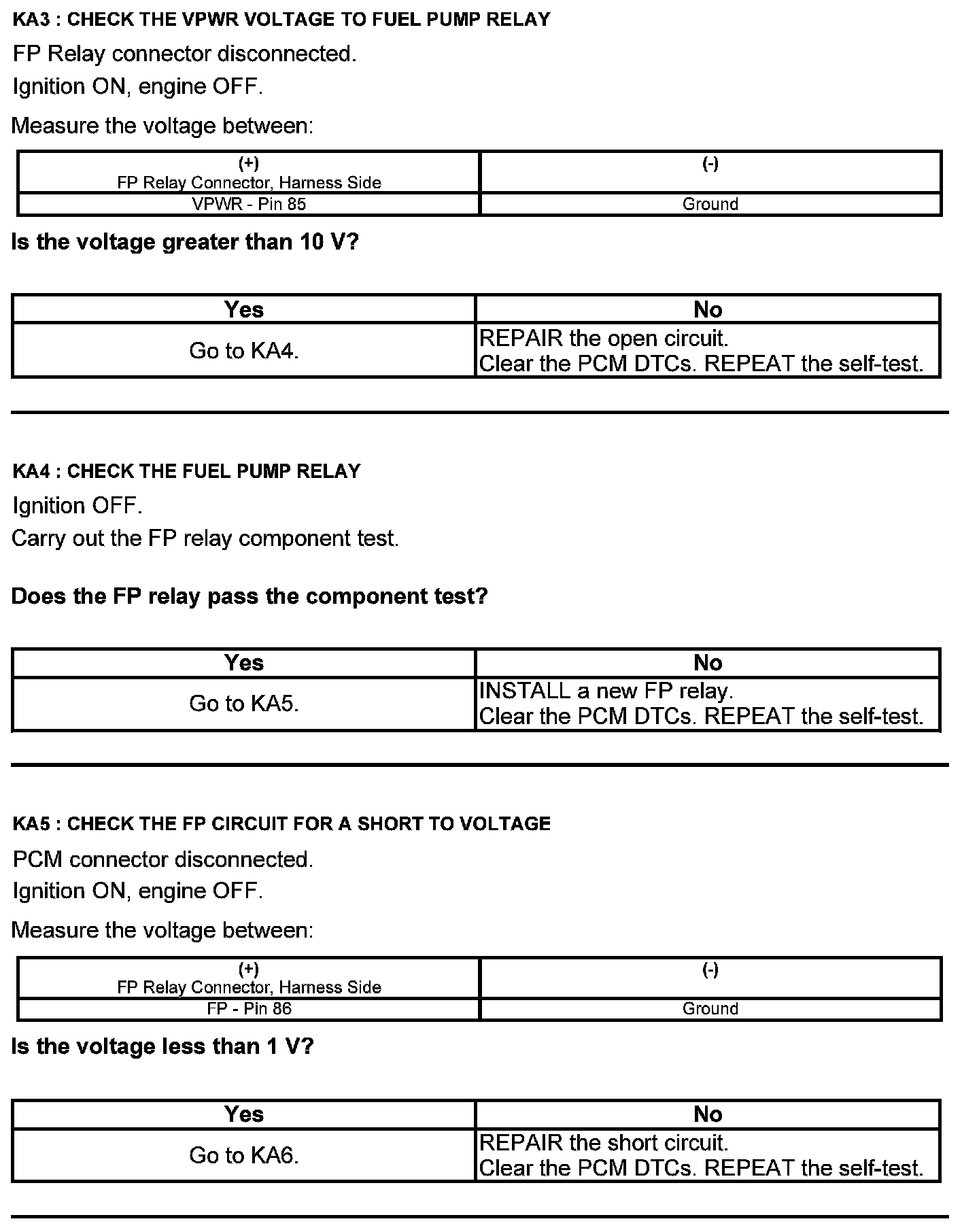

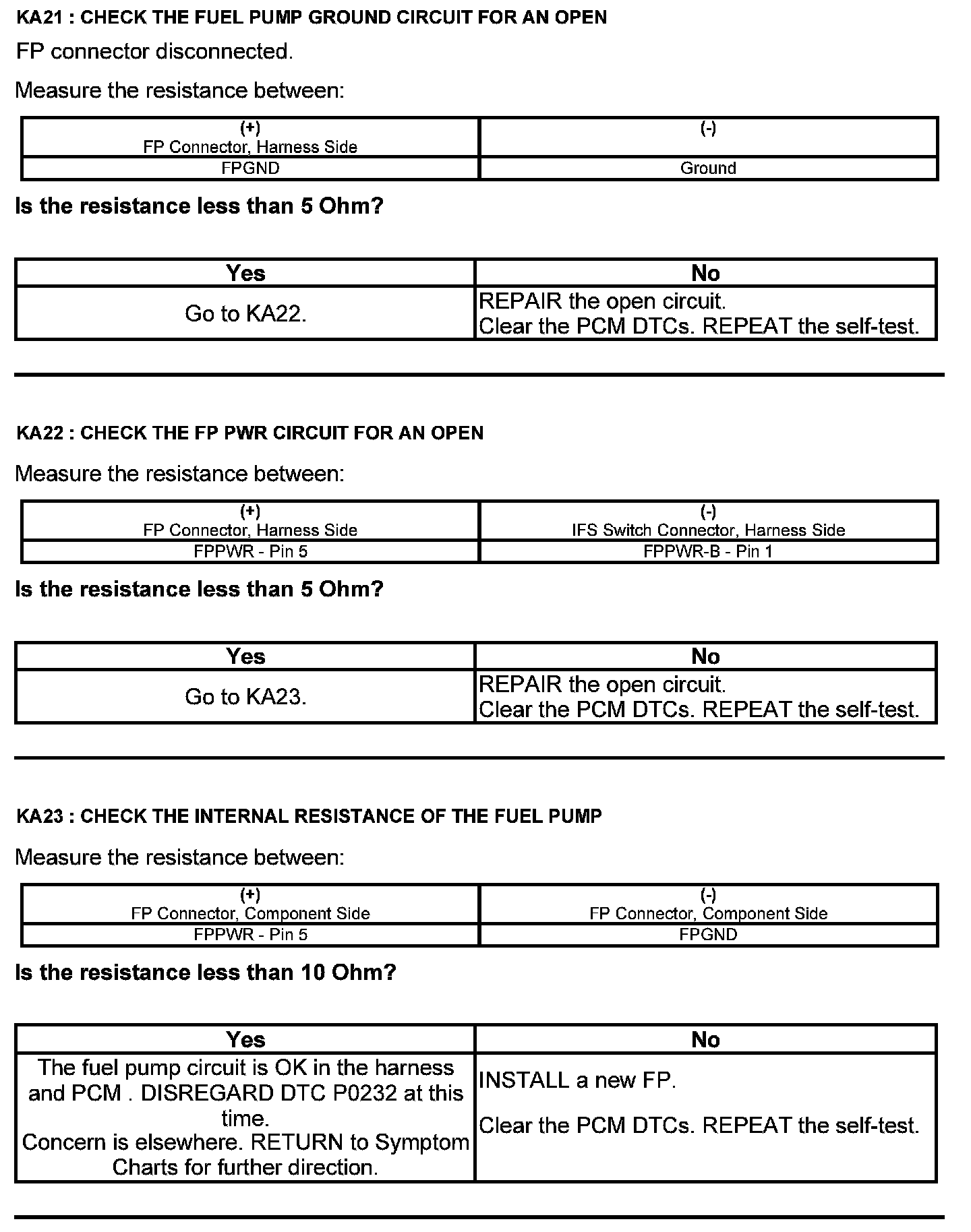

Fuel Pump (FP) Relay Connector - The VPWR and FP circuits may be reversed in the harness connector. Refer to the Wiring Diagrams for schematic and connector information.





Harness Side

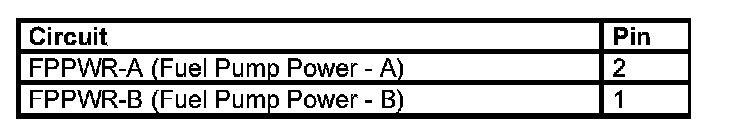

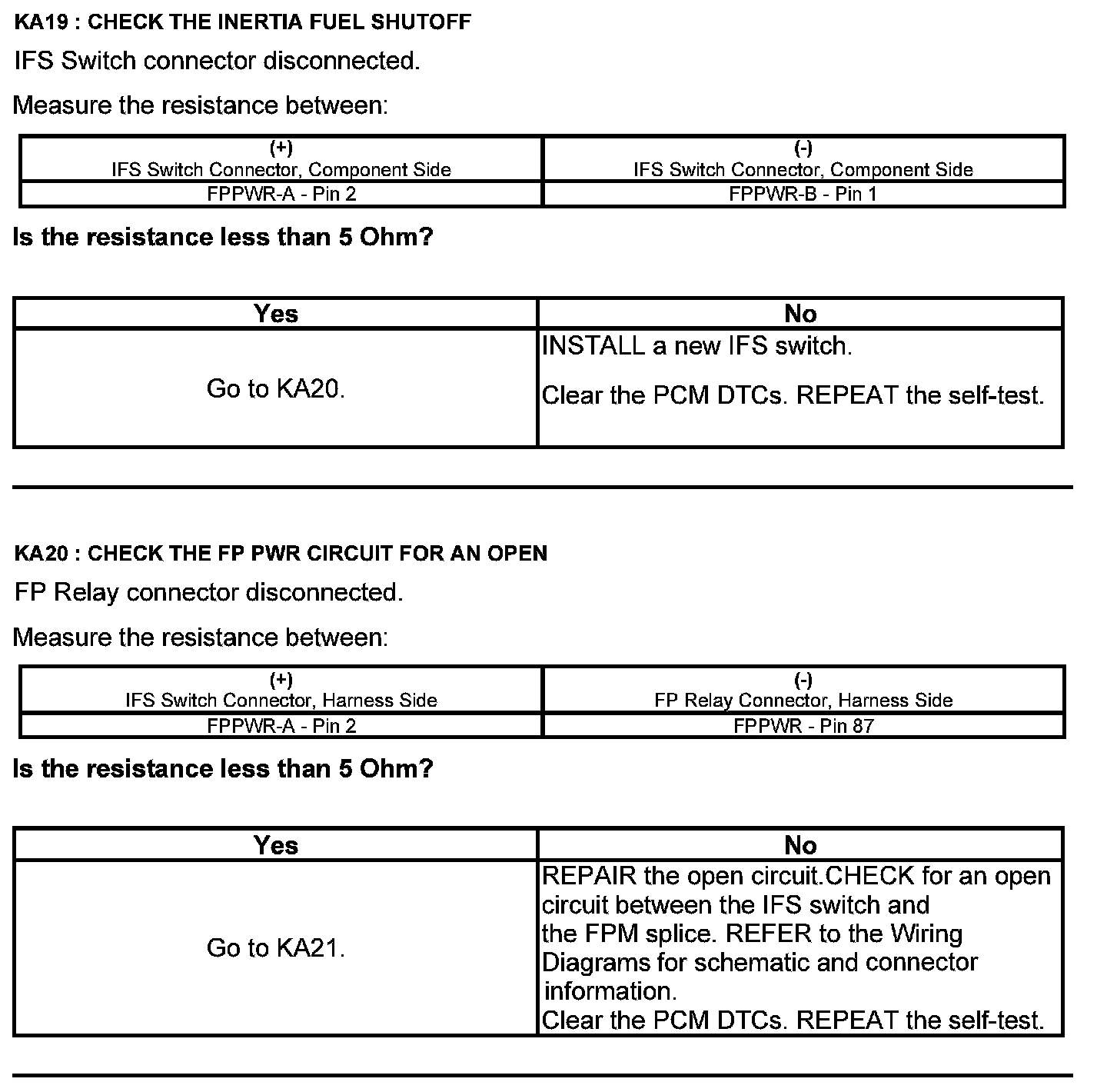

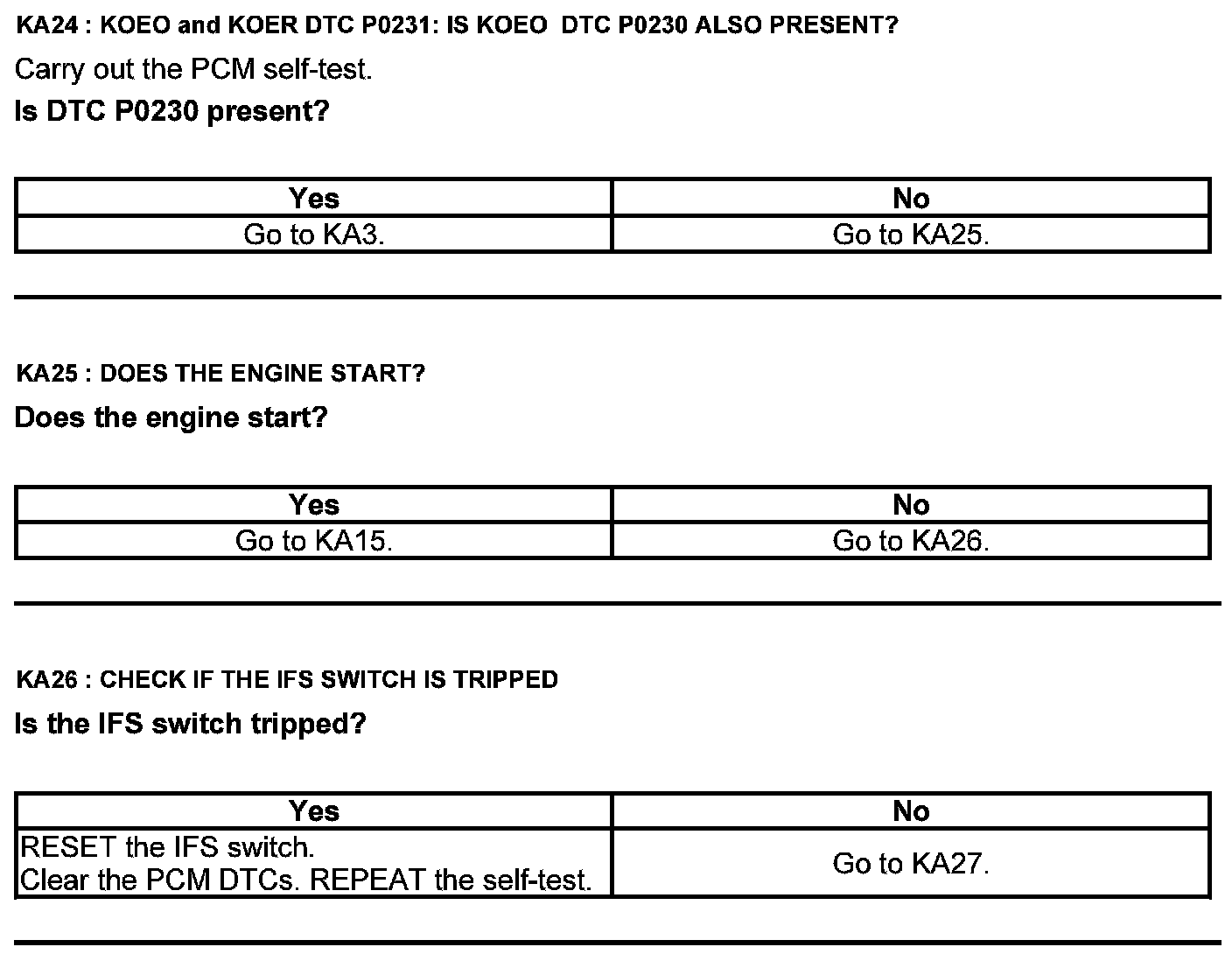

Inertia Fuel Shutoff (IFS) Switch Connector





Harness Side






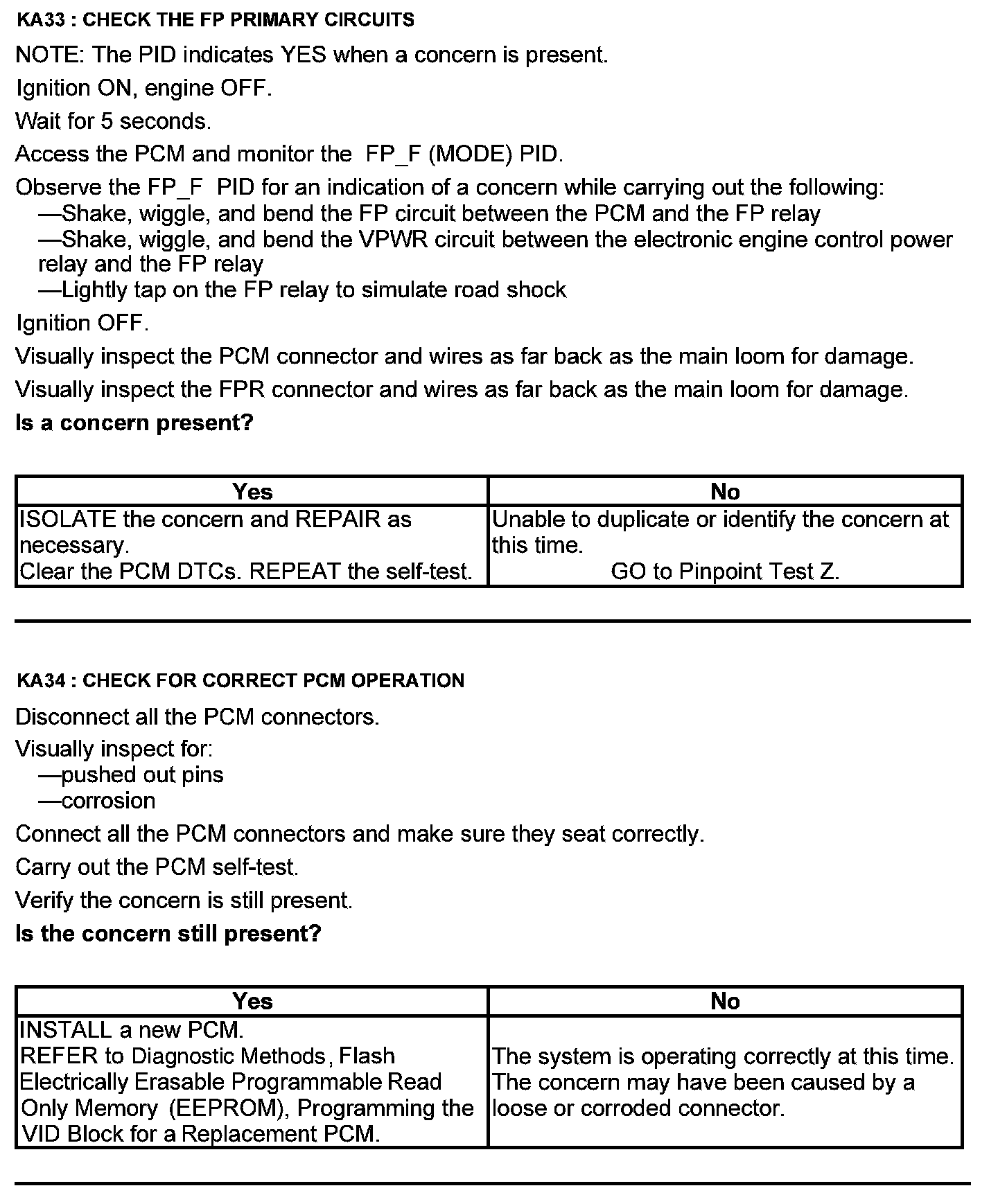

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
