All Others

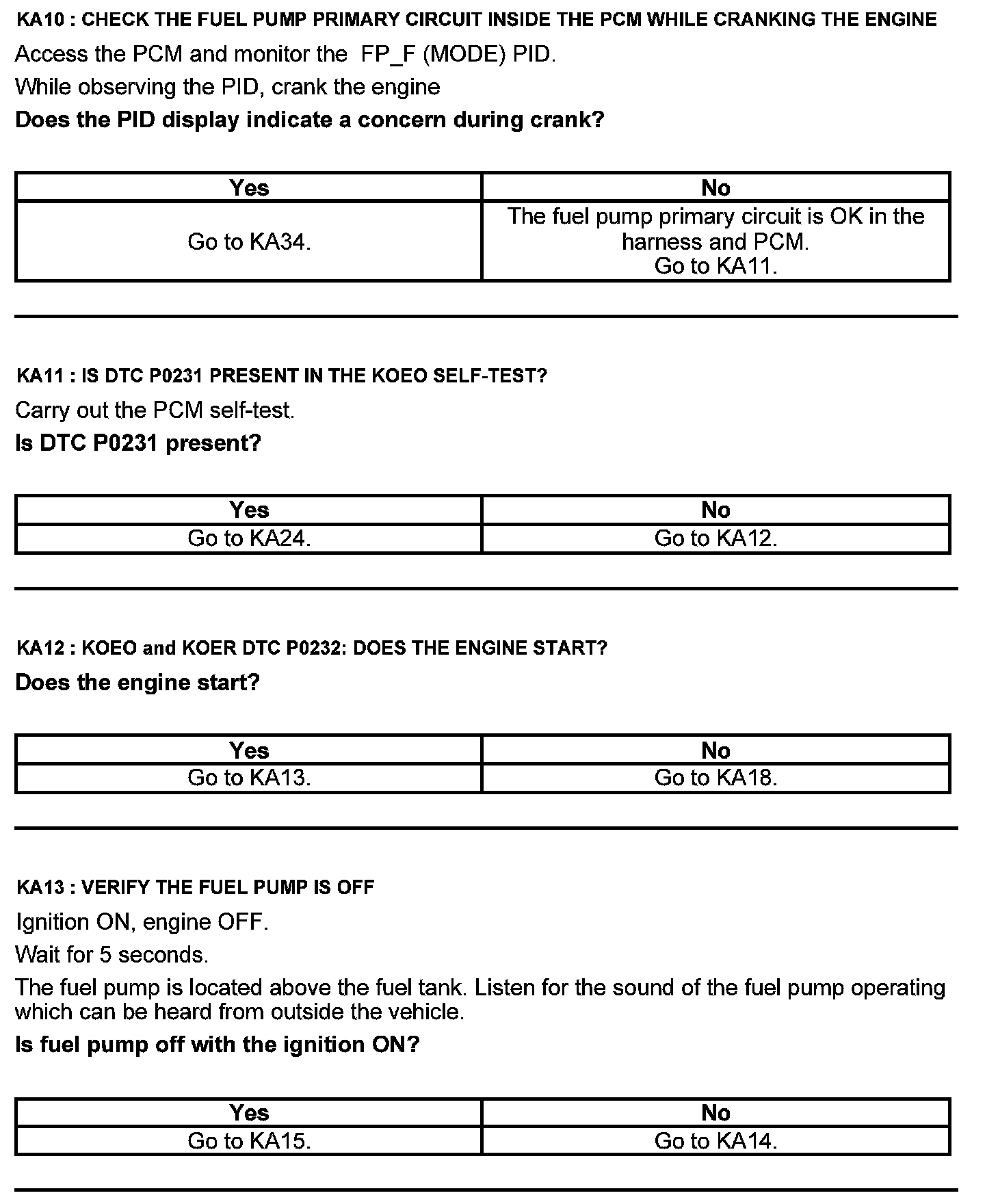

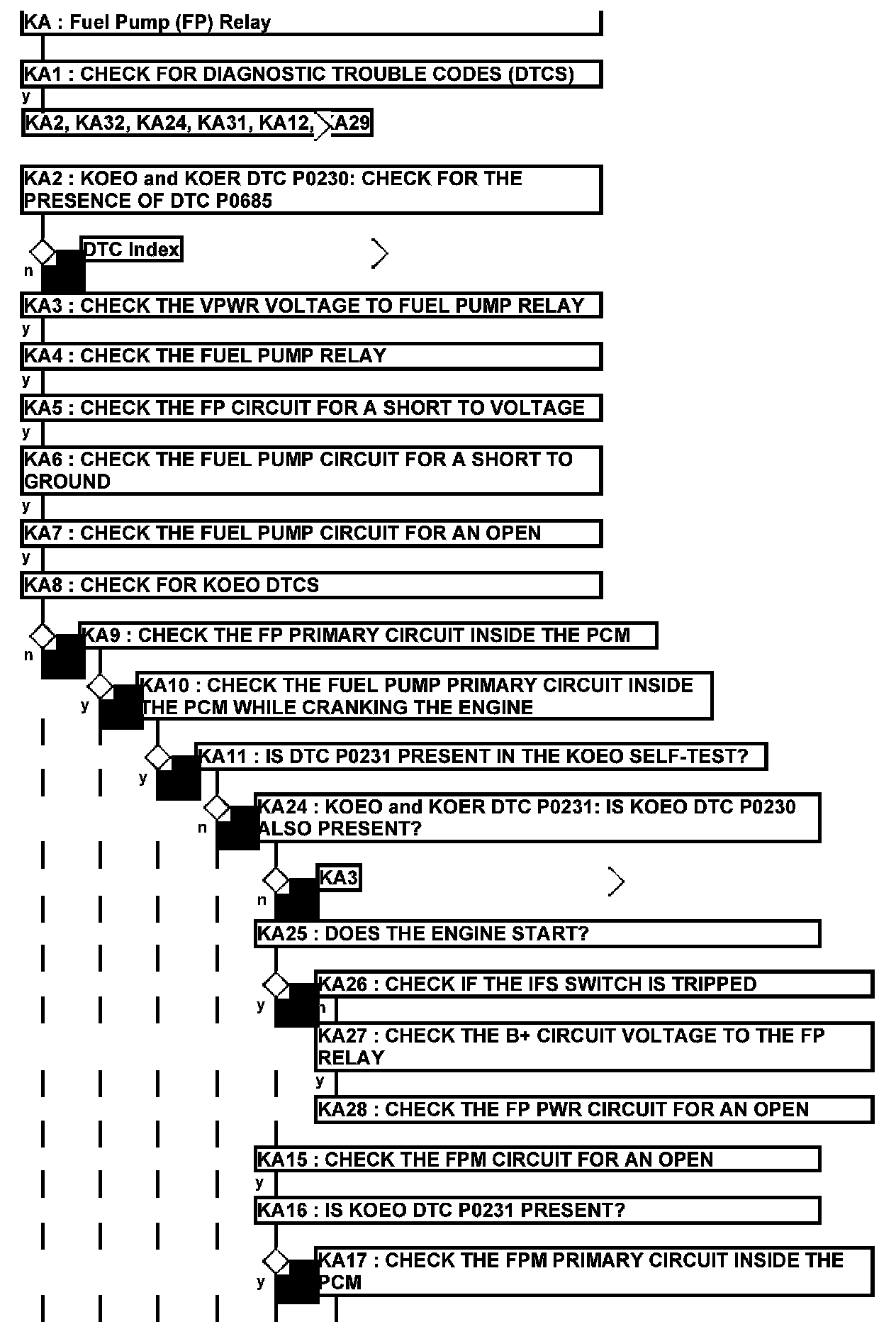

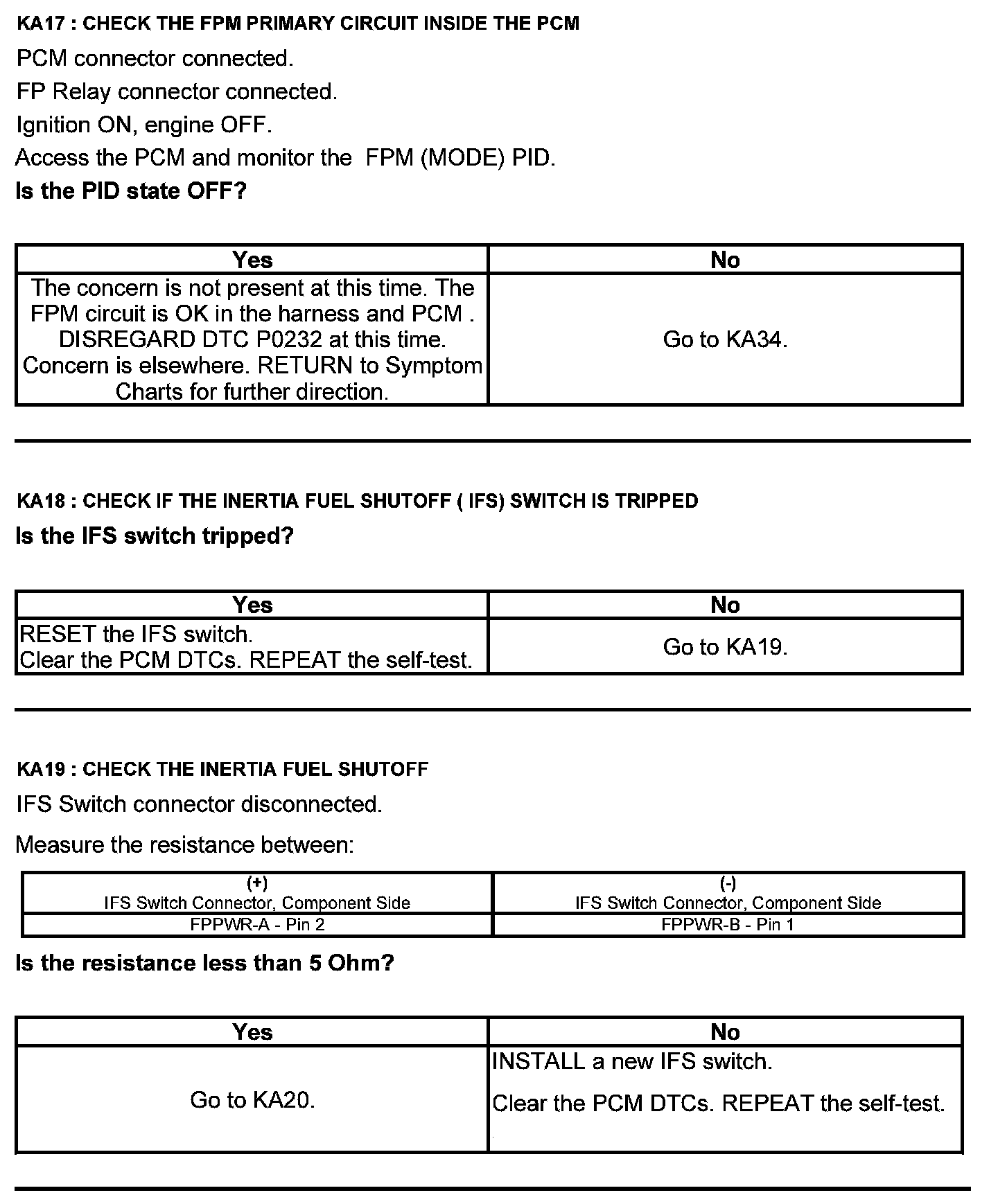

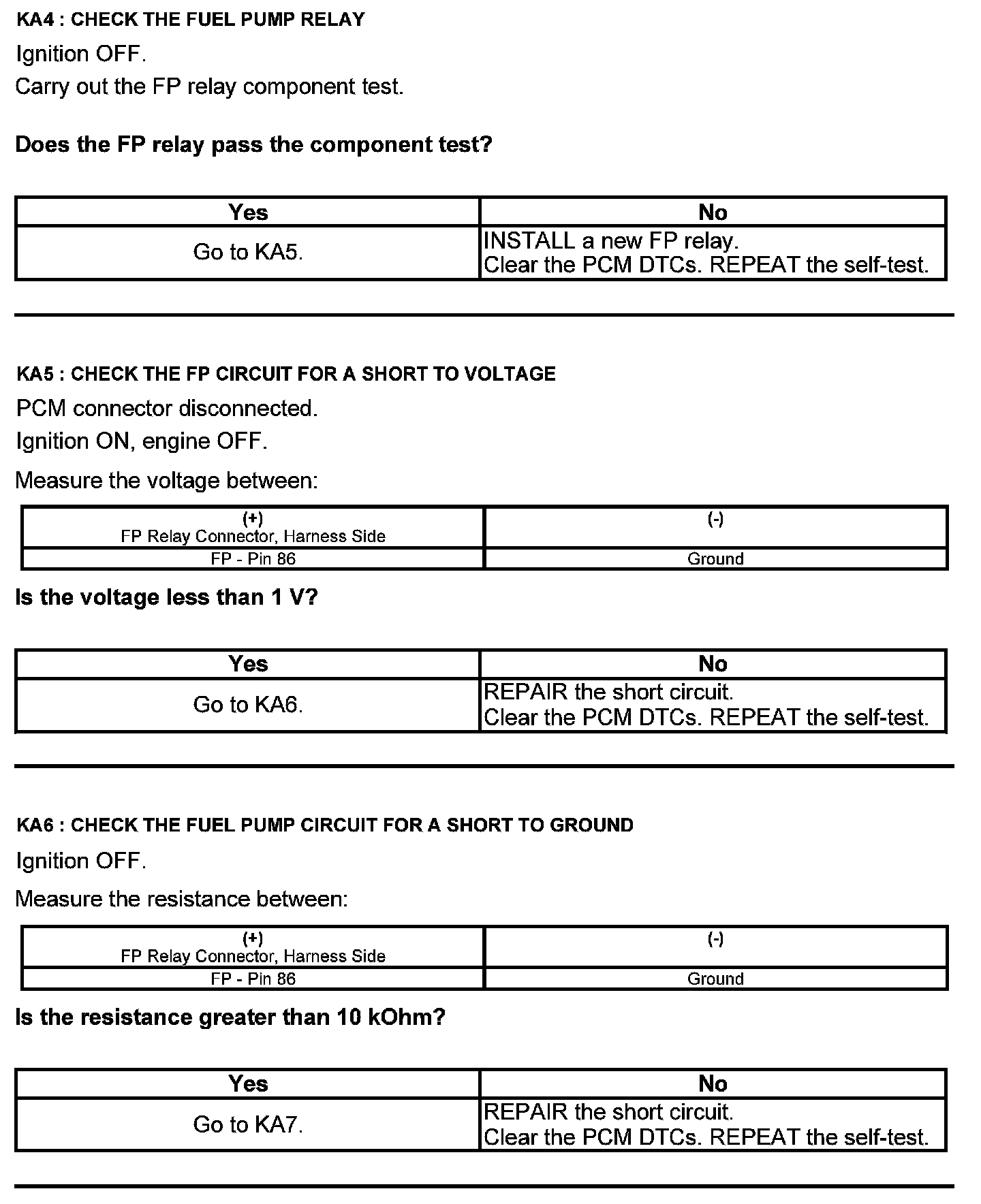

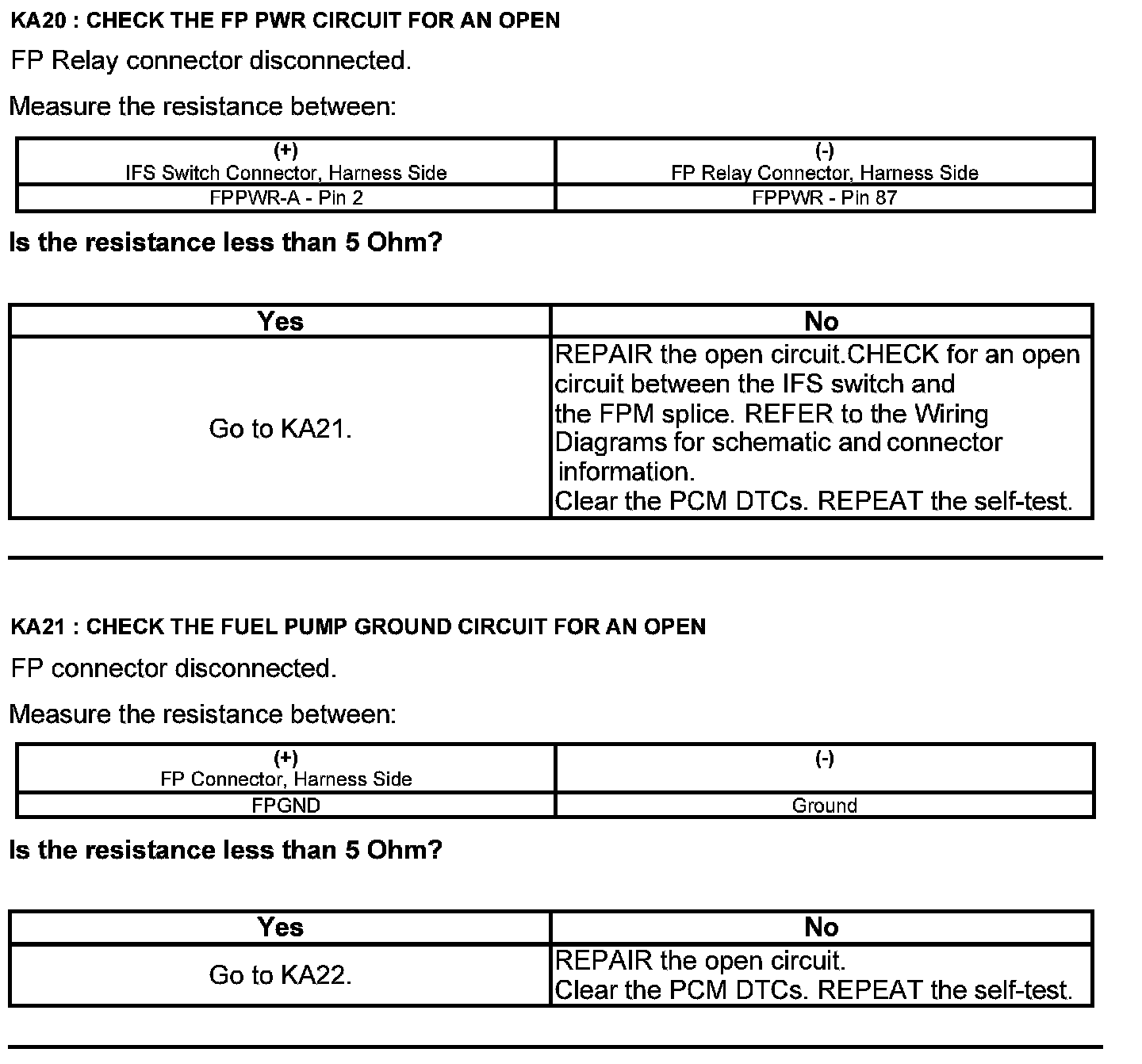

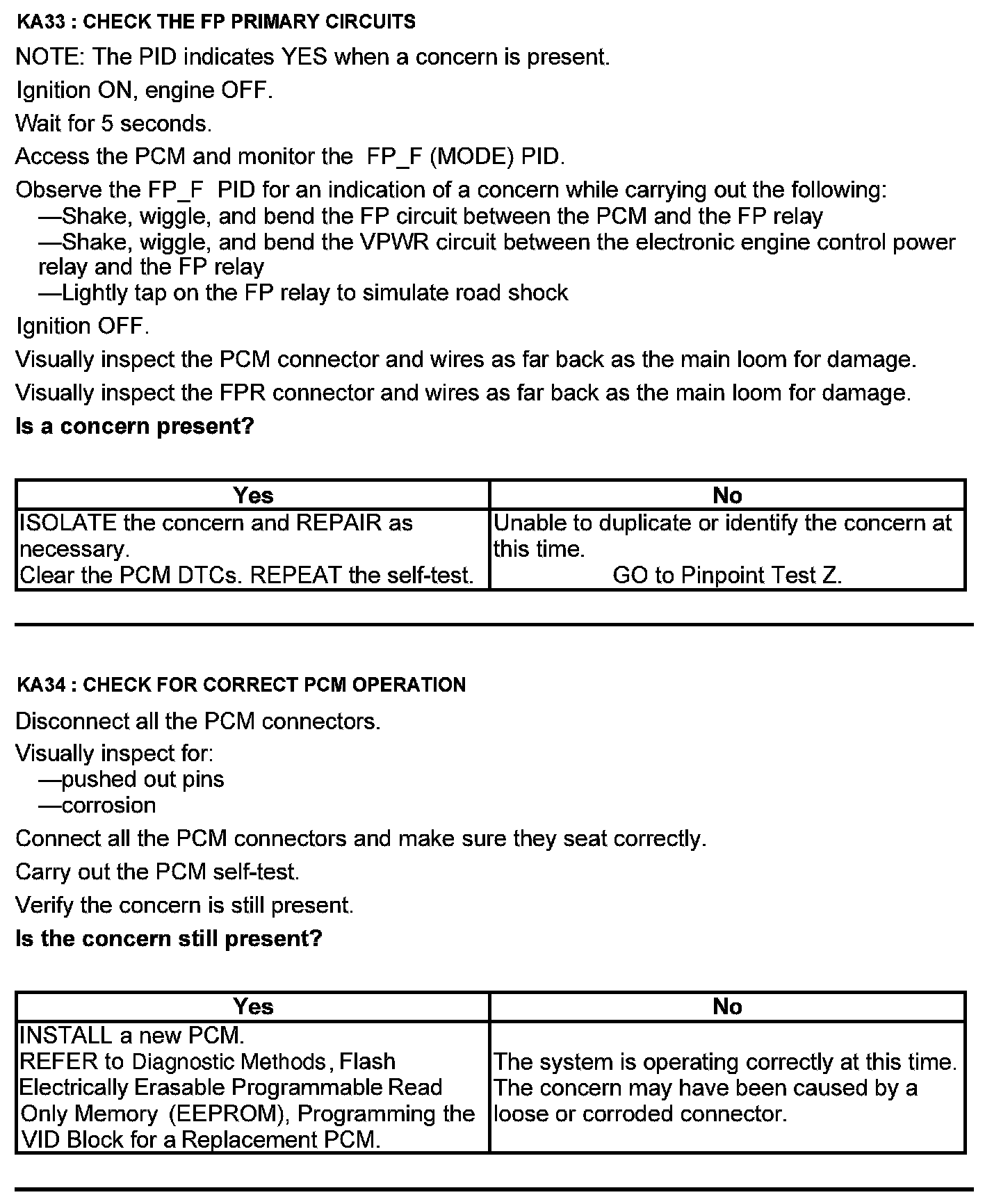

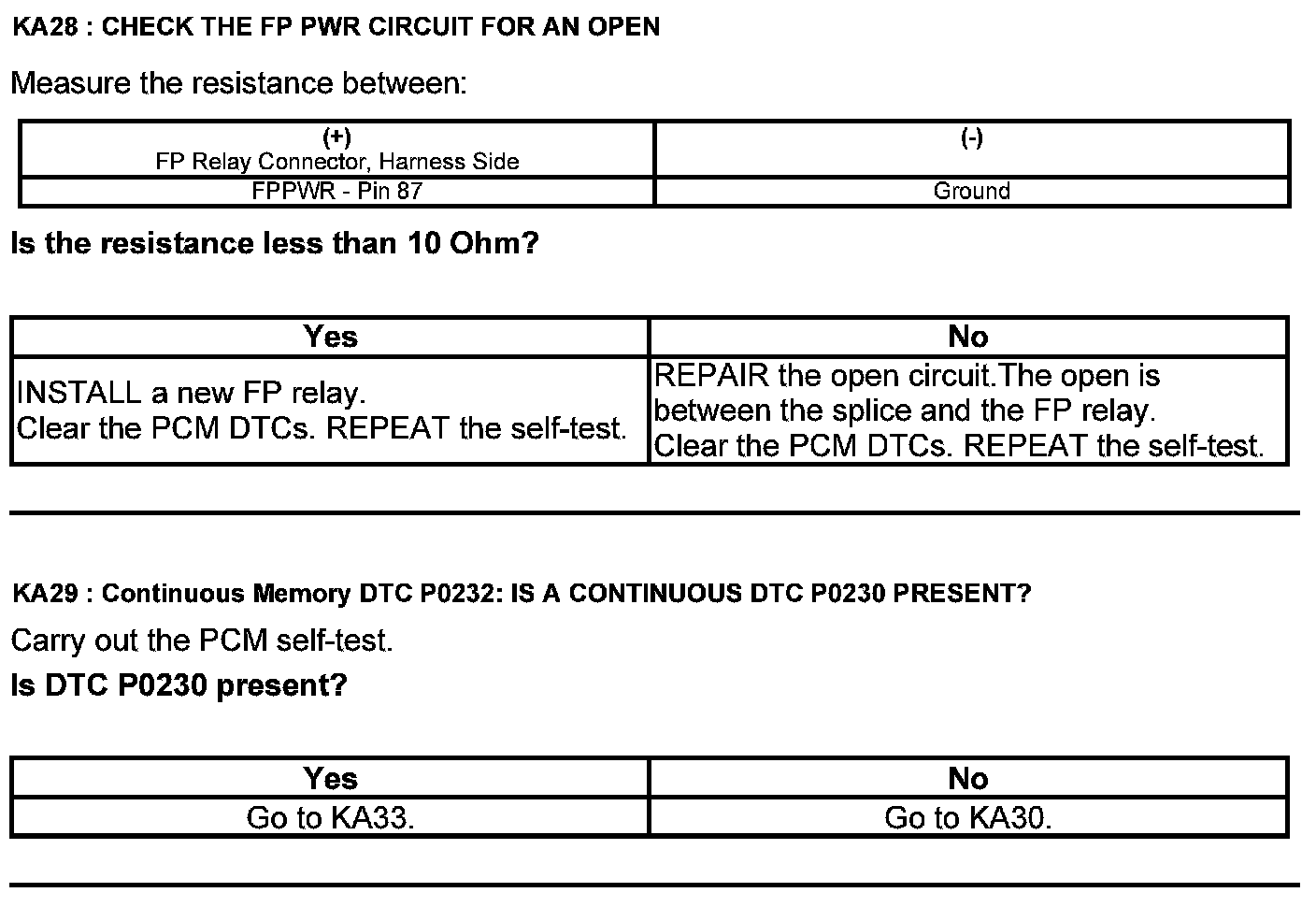

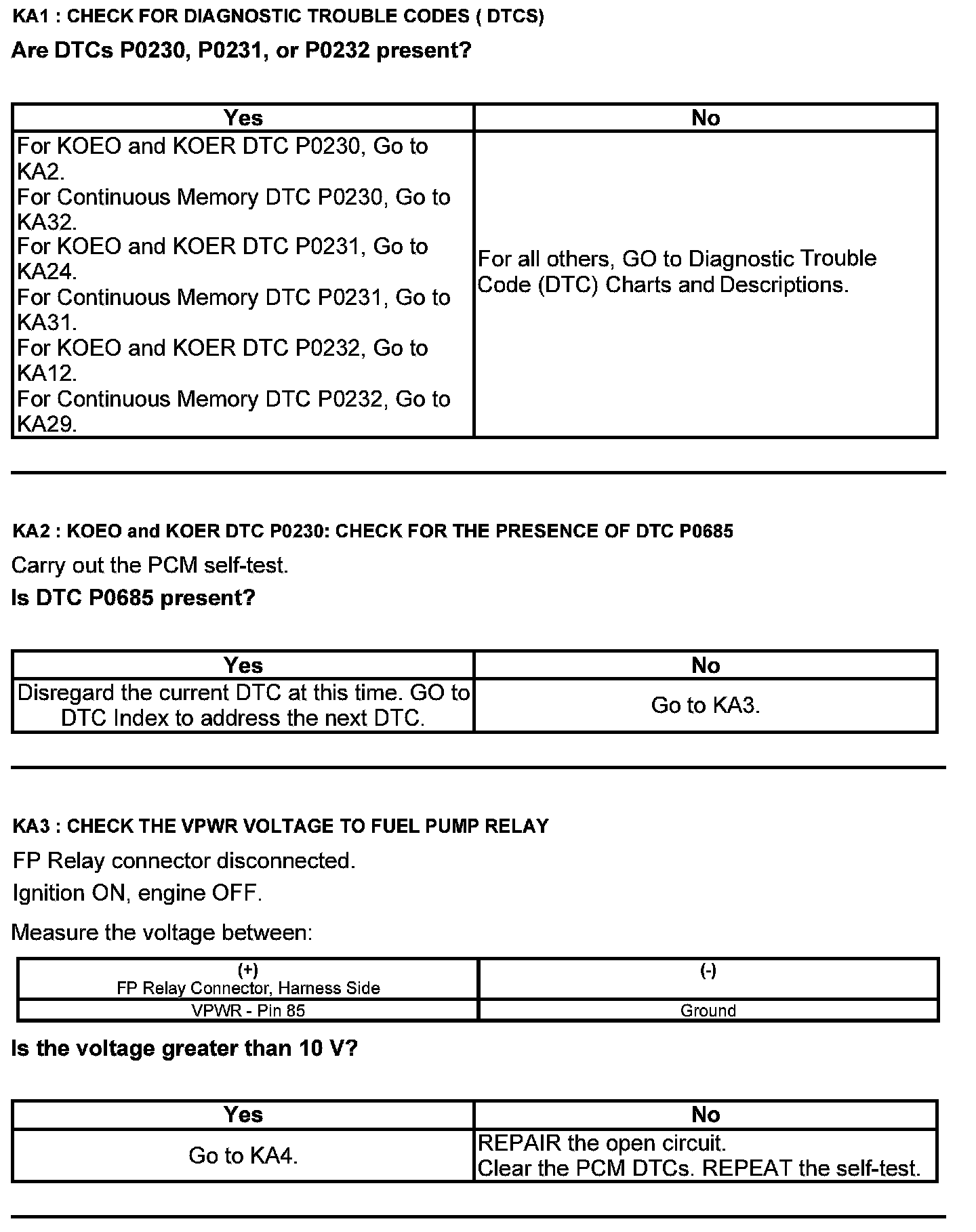

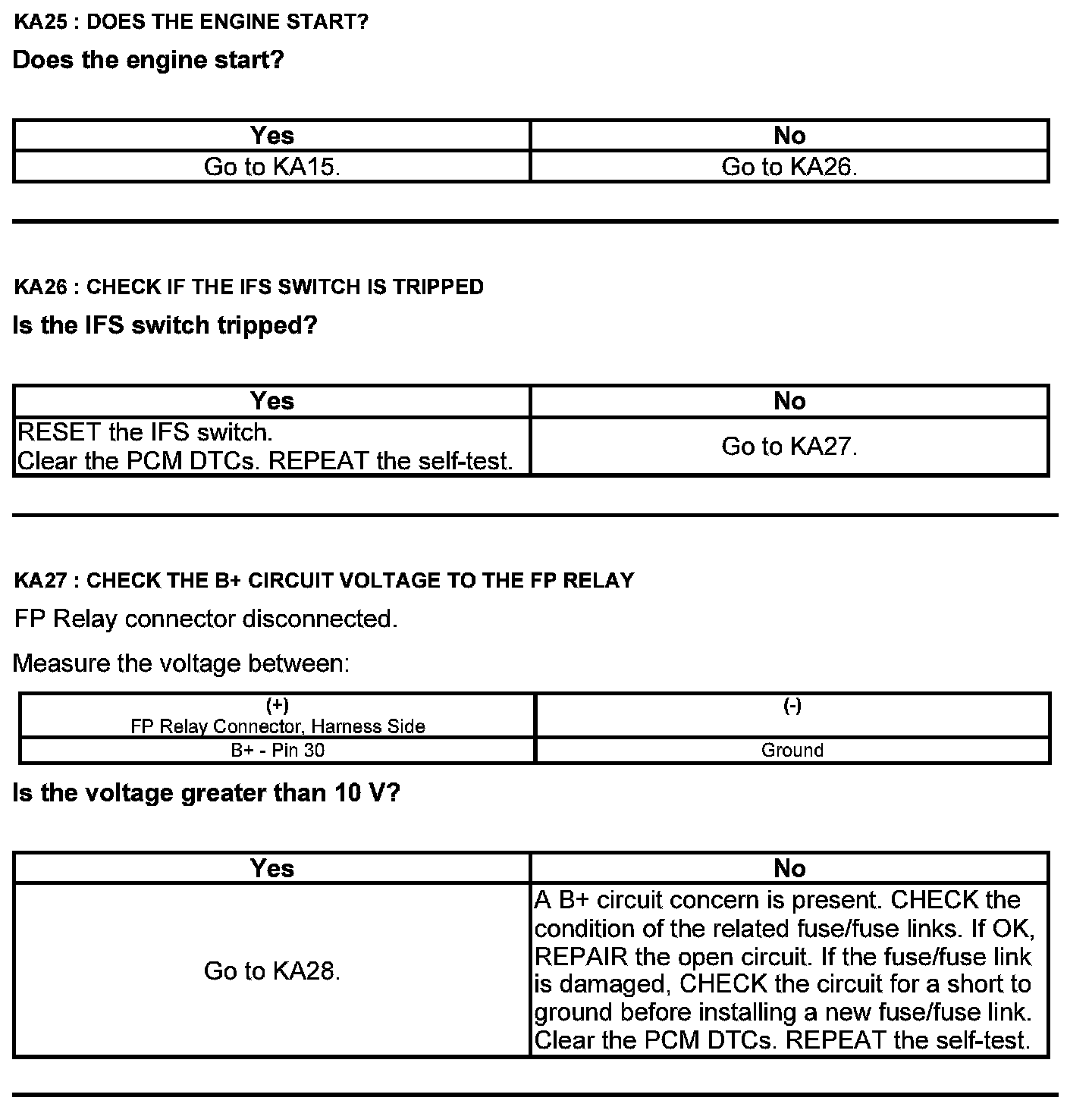

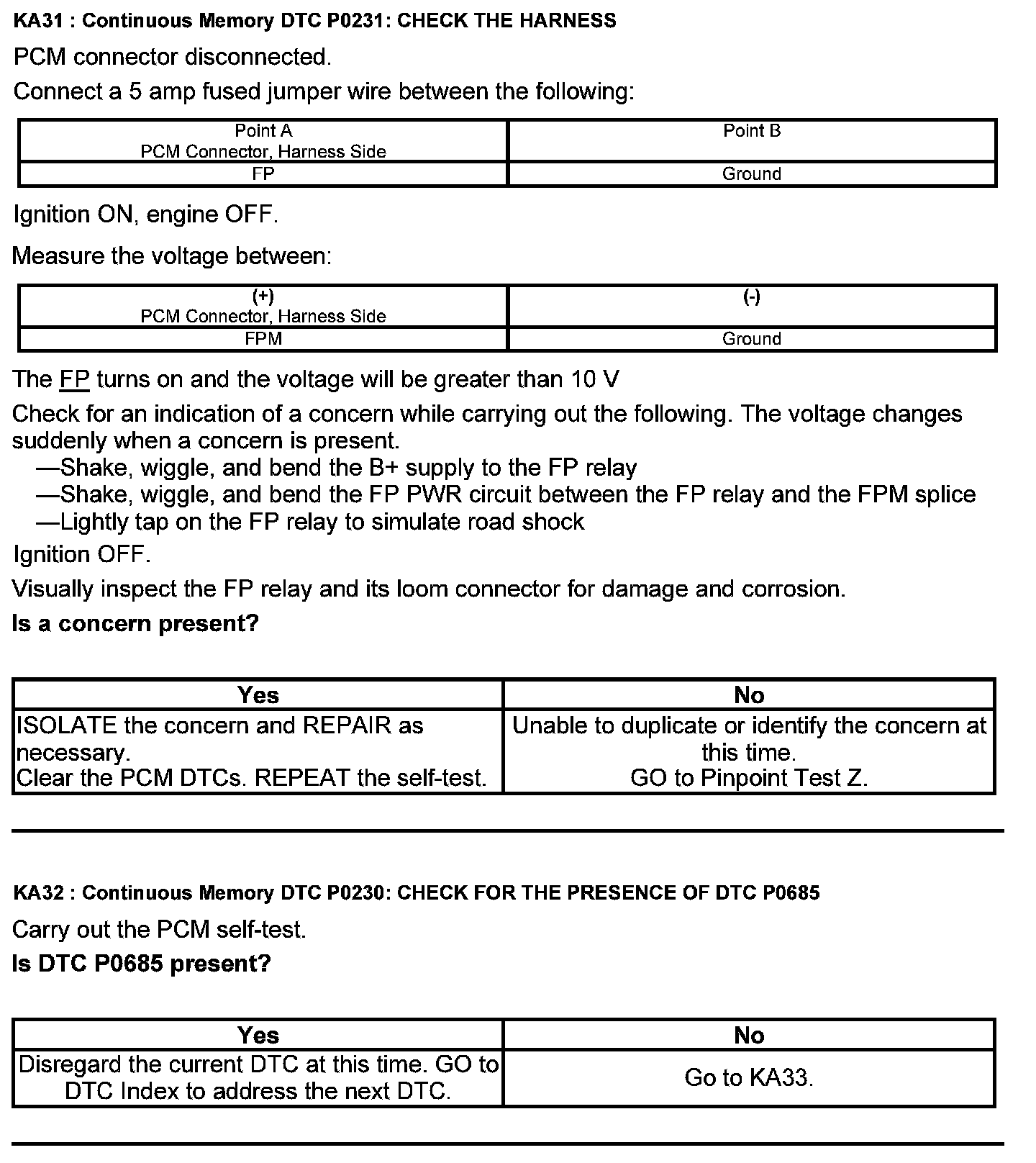

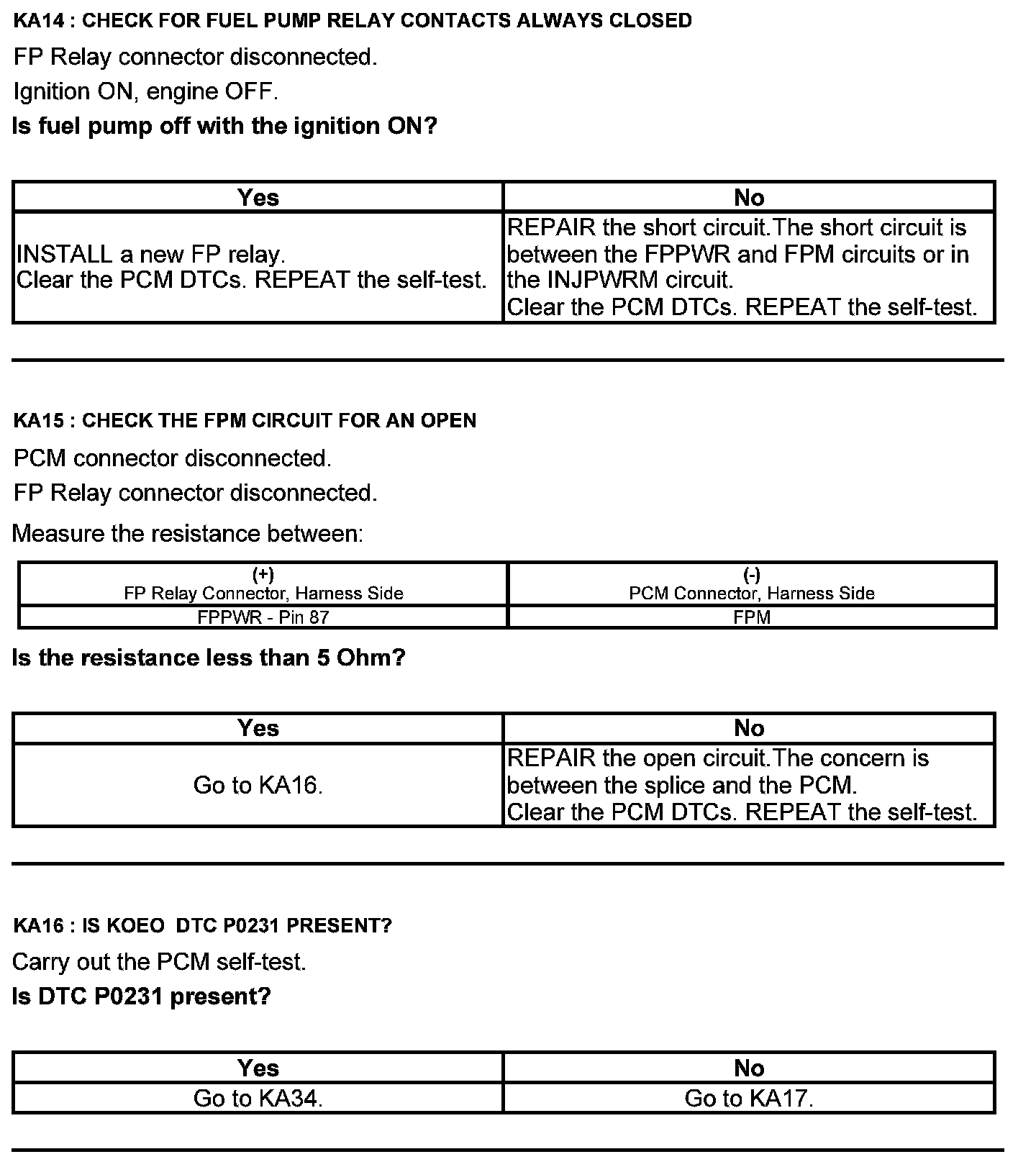

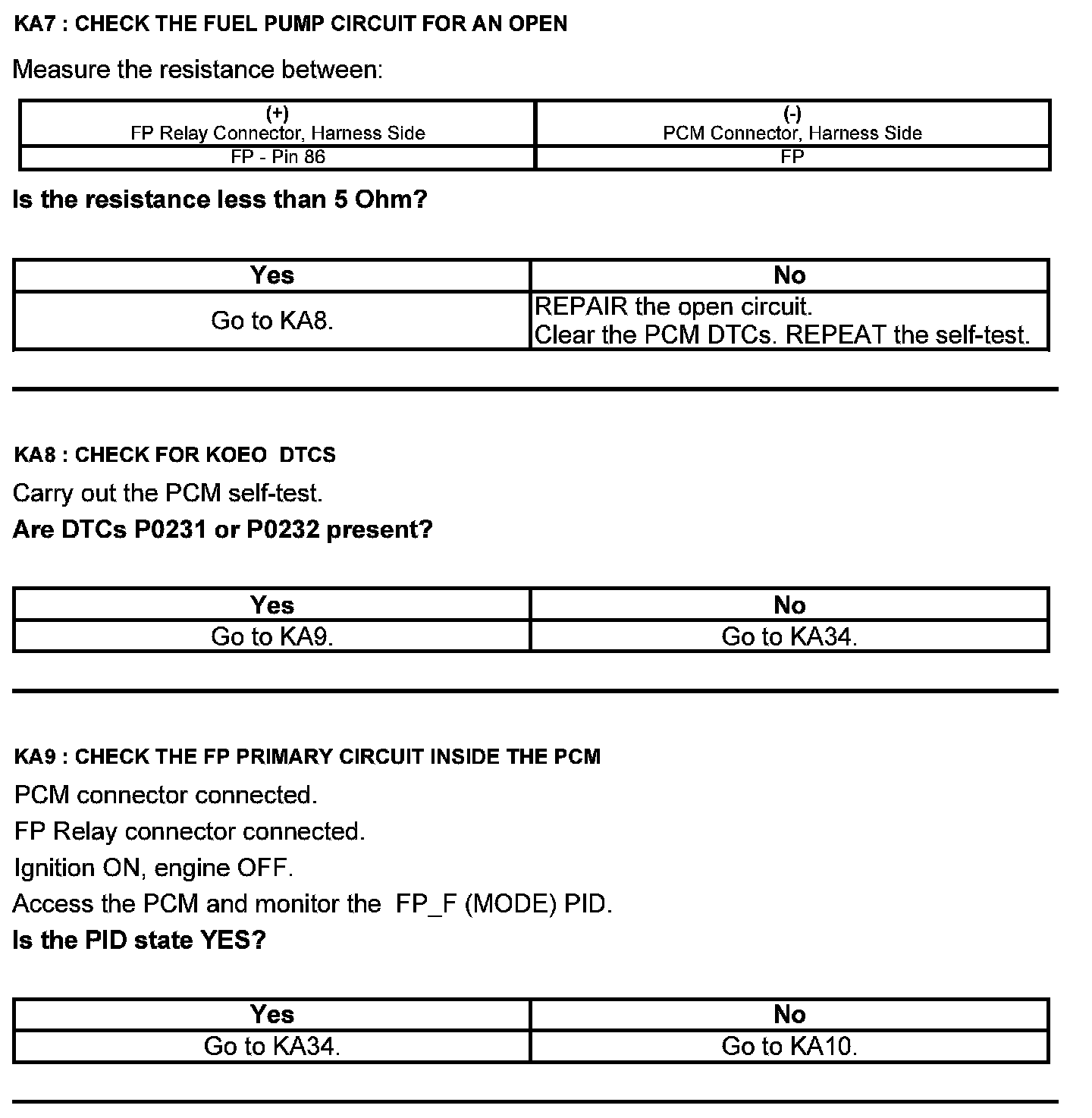

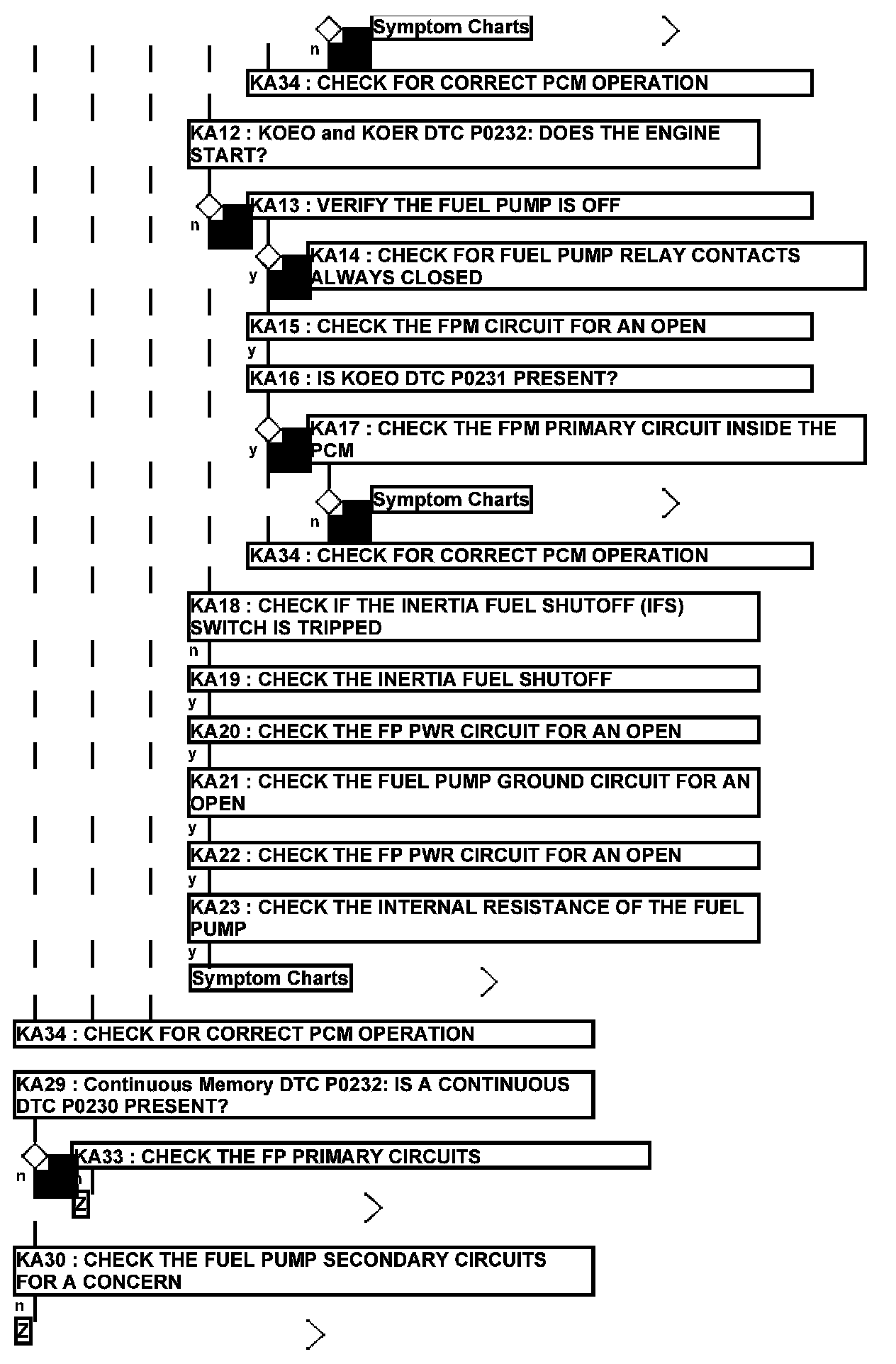

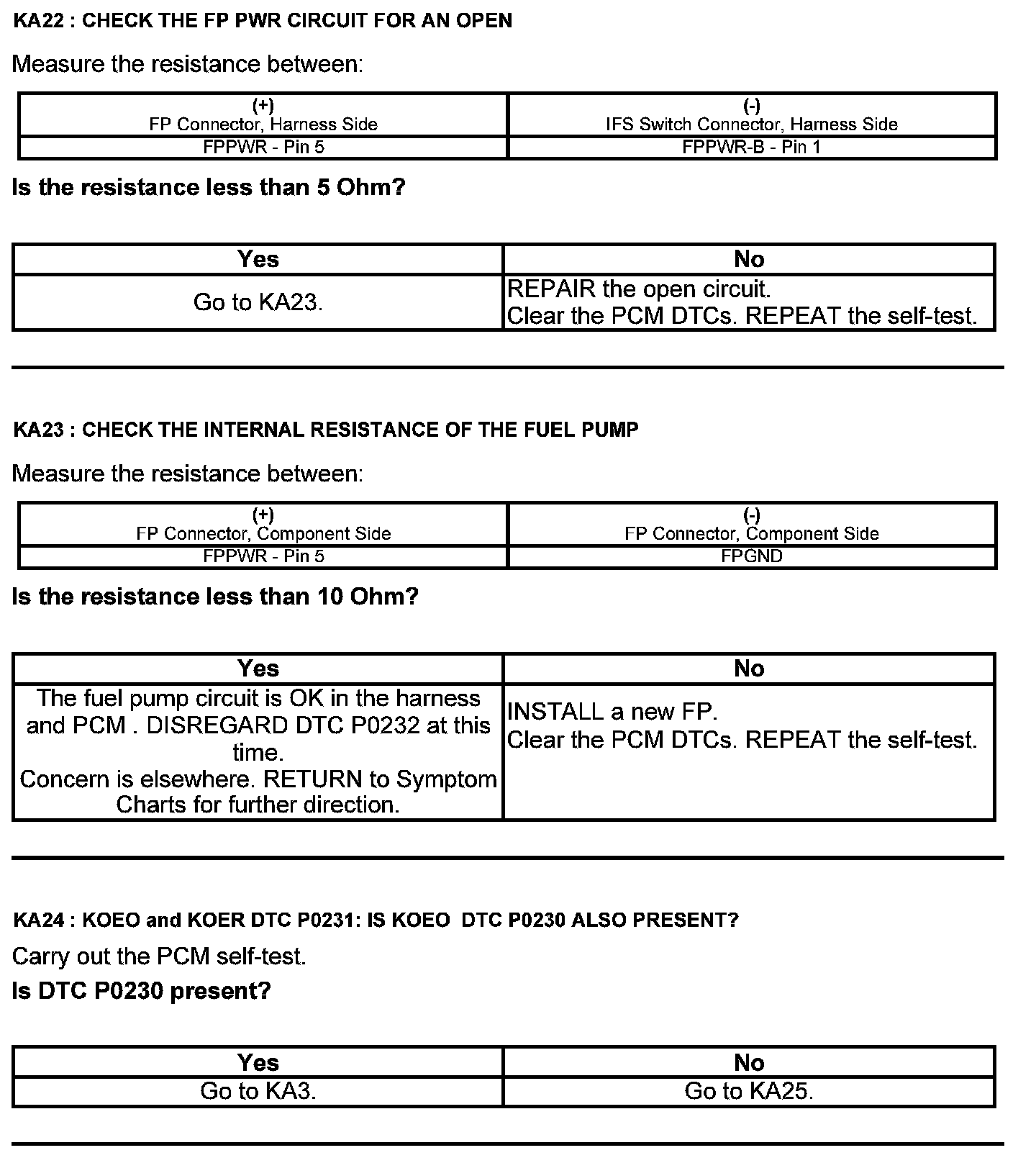

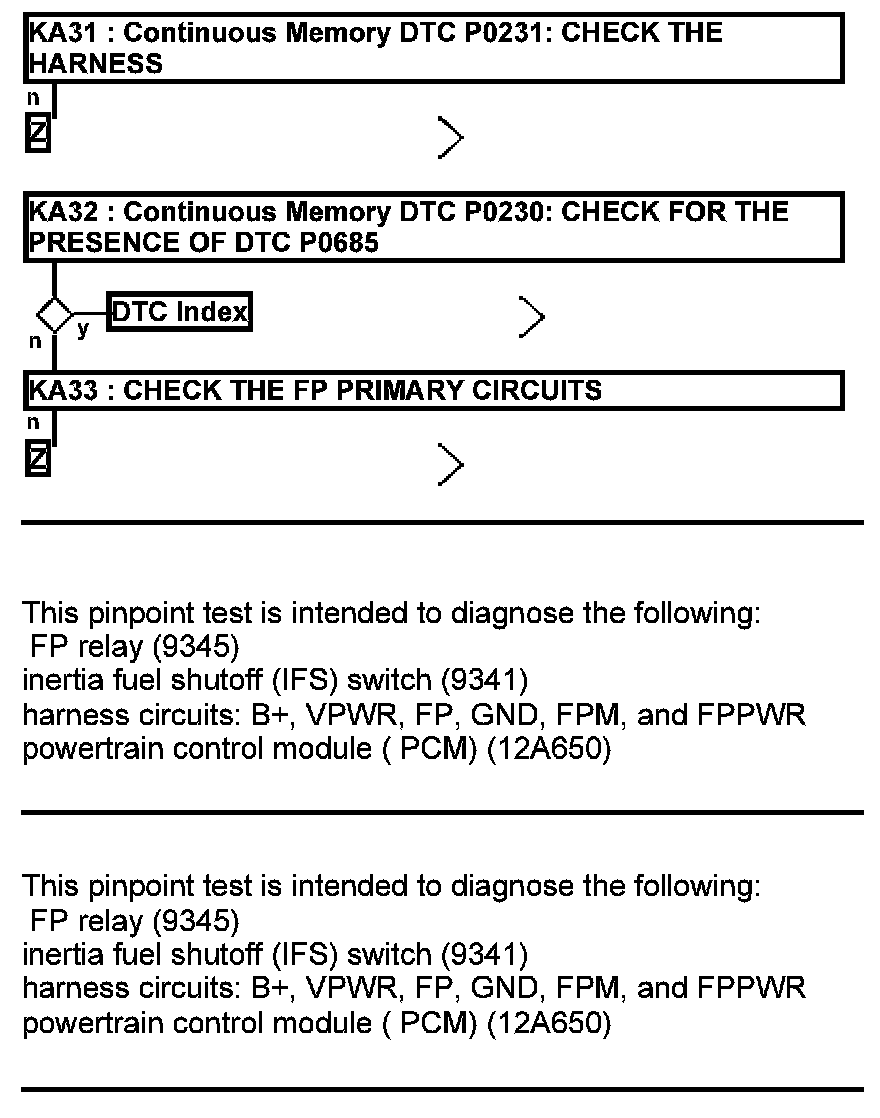

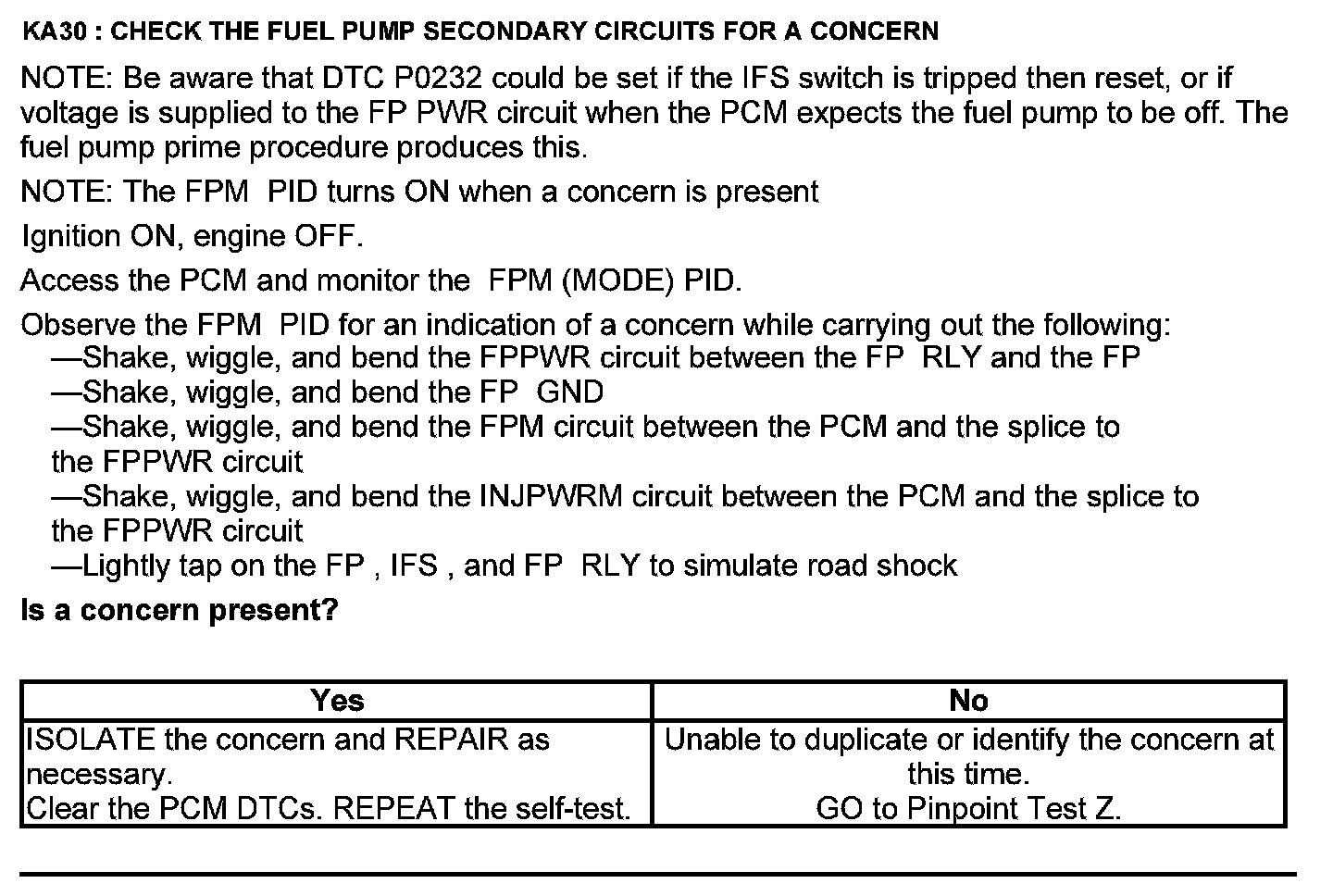

Fuel Pump (FP) Relay - All Others

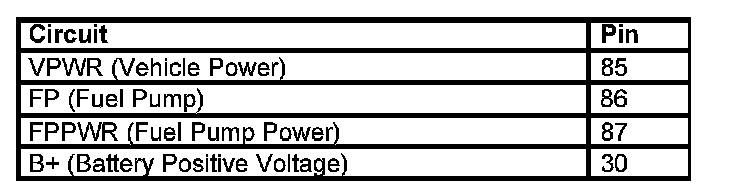

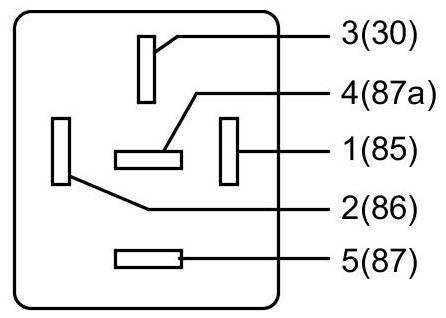

Fuel Pump (FP) Relay Connector - The VPWR and FP circuits may be reversed in the harness connector. Refer to the Wiring Diagrams for schematic and connector information.





Harness Side

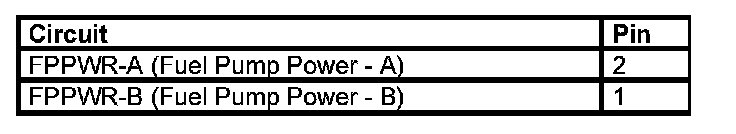

Inertia Fuel Shutoff (IFS) Switch Connector





Harness Side
