Manual Transmission

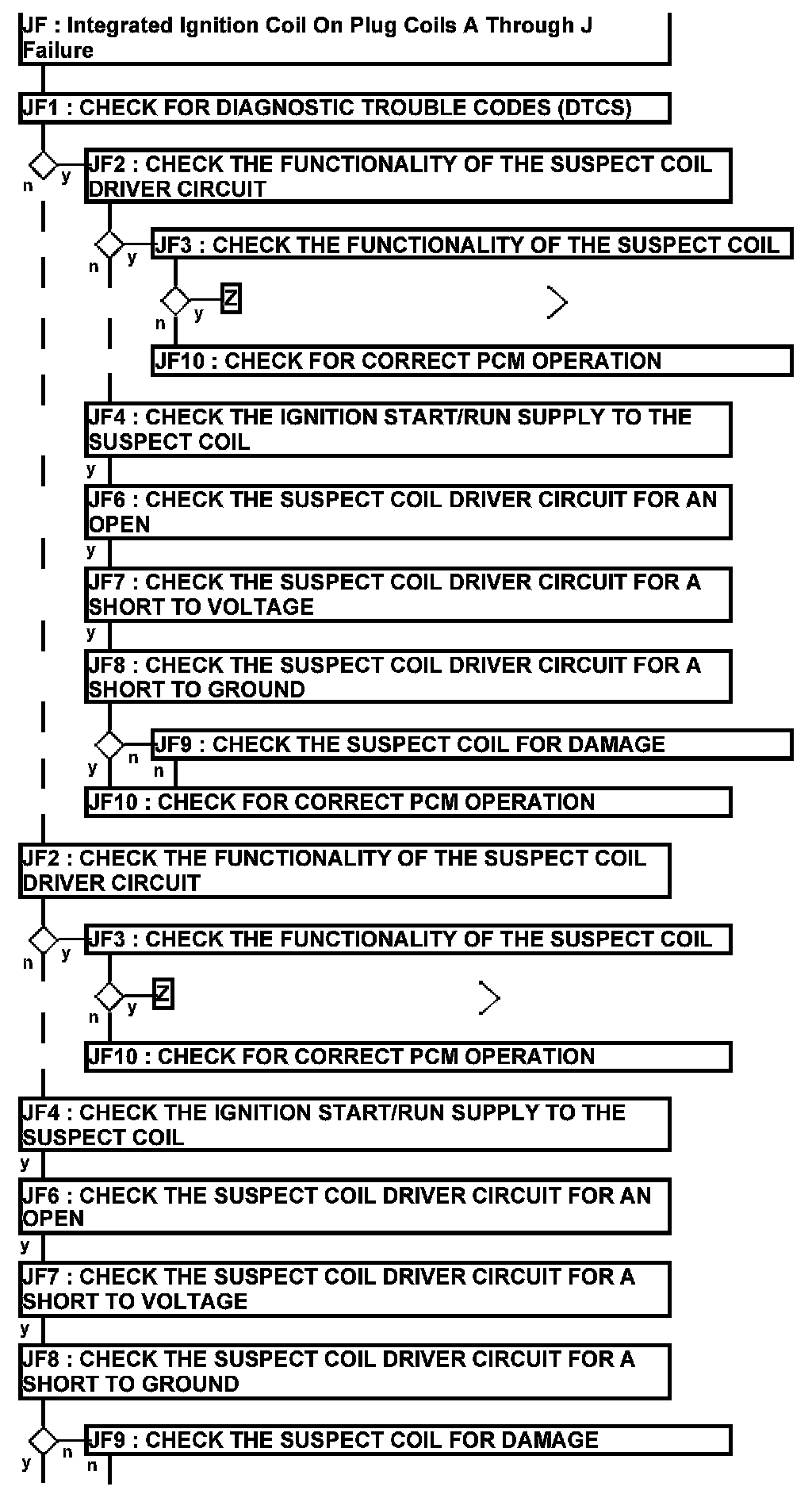

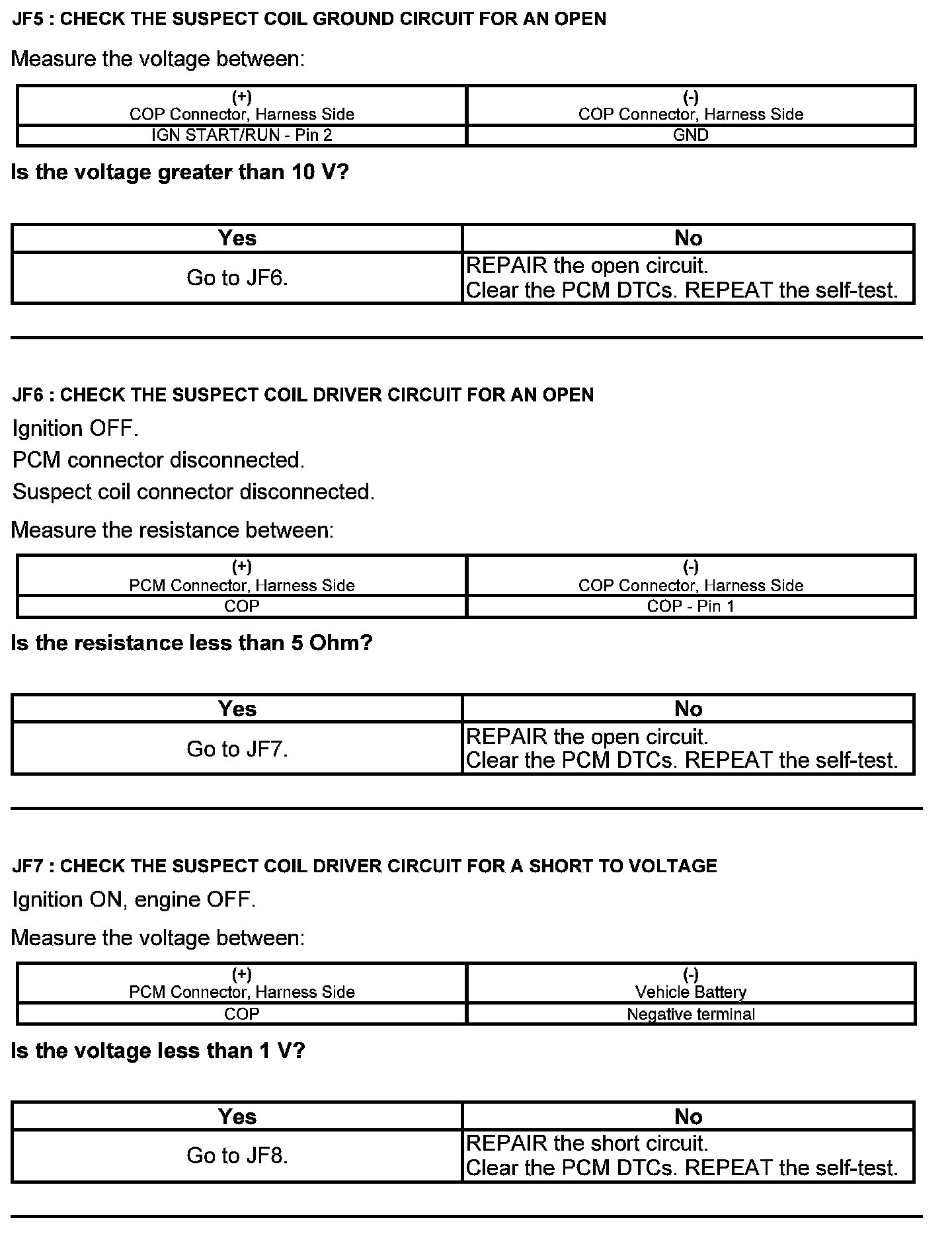

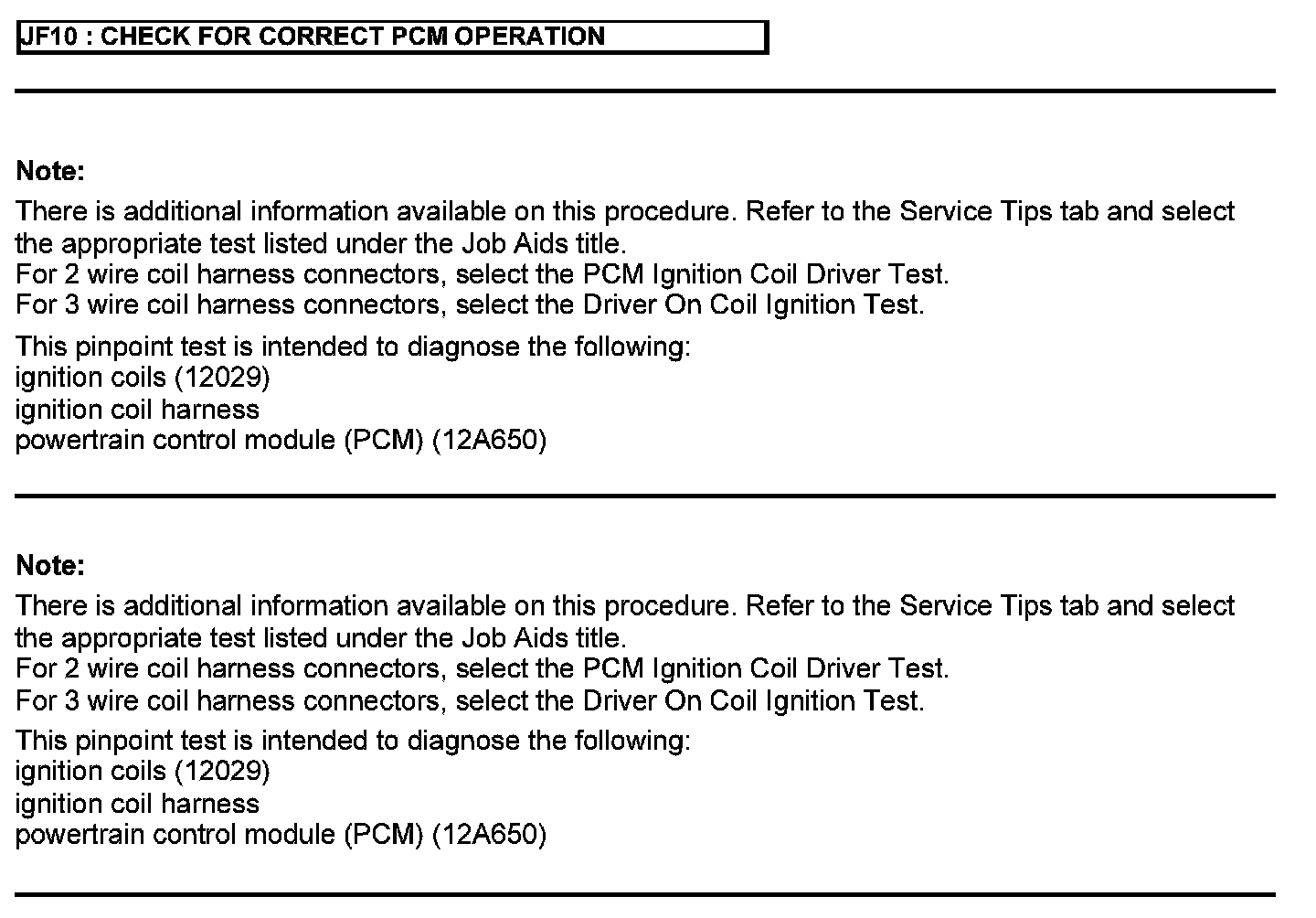

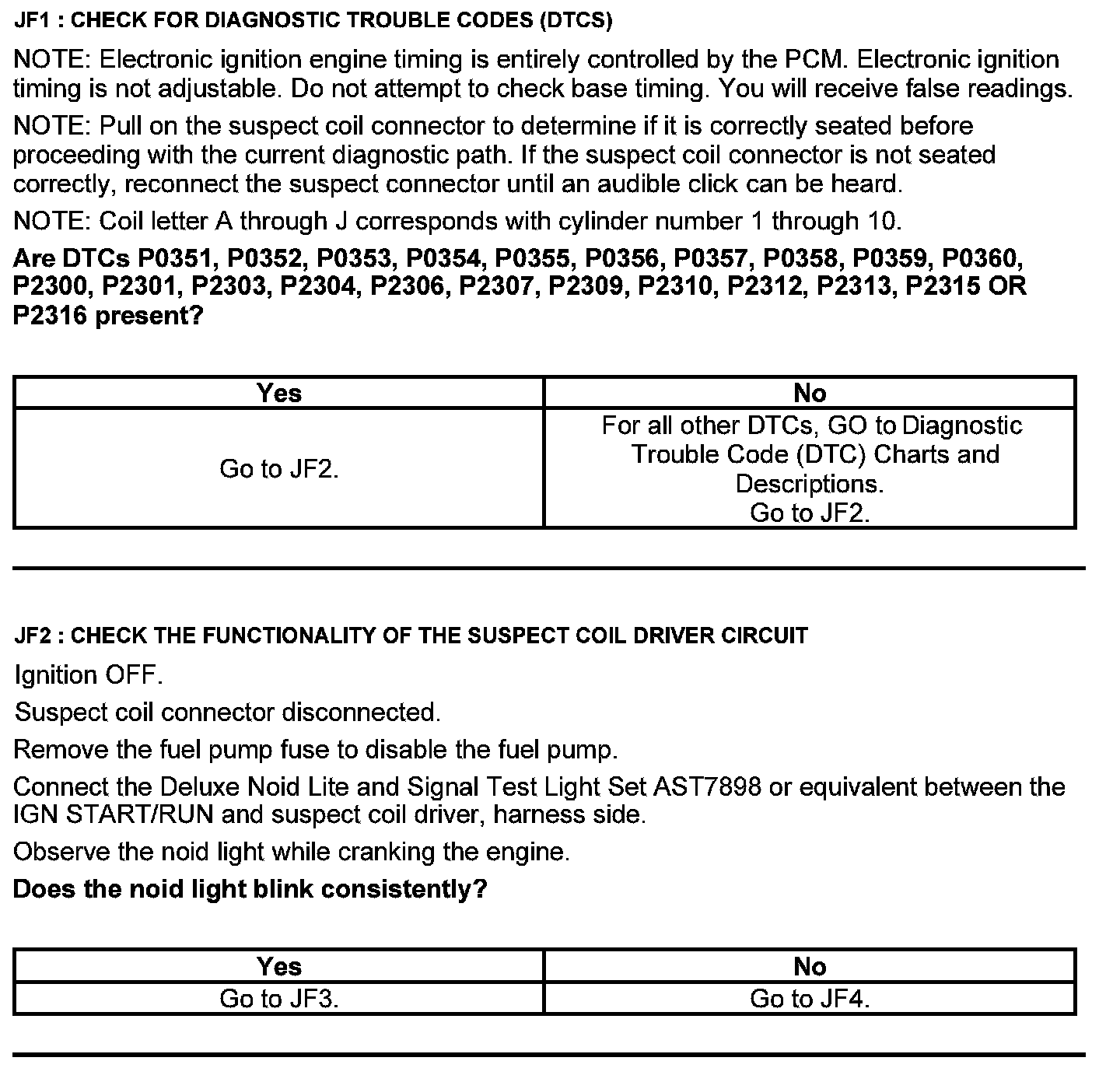

Integrated Ignition Coil On Plug Coils A Through J Failure - Manual Transmission

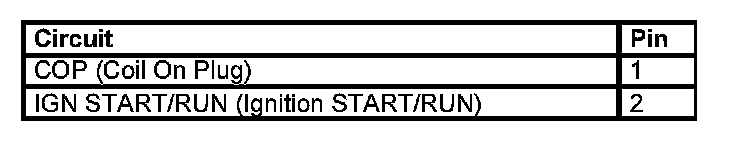

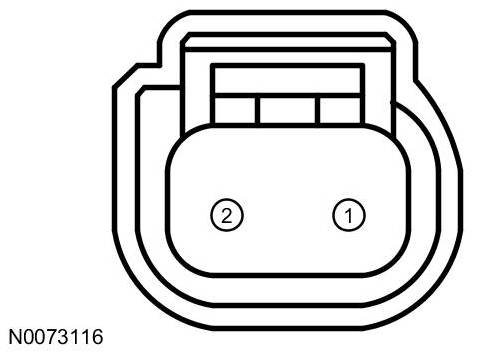

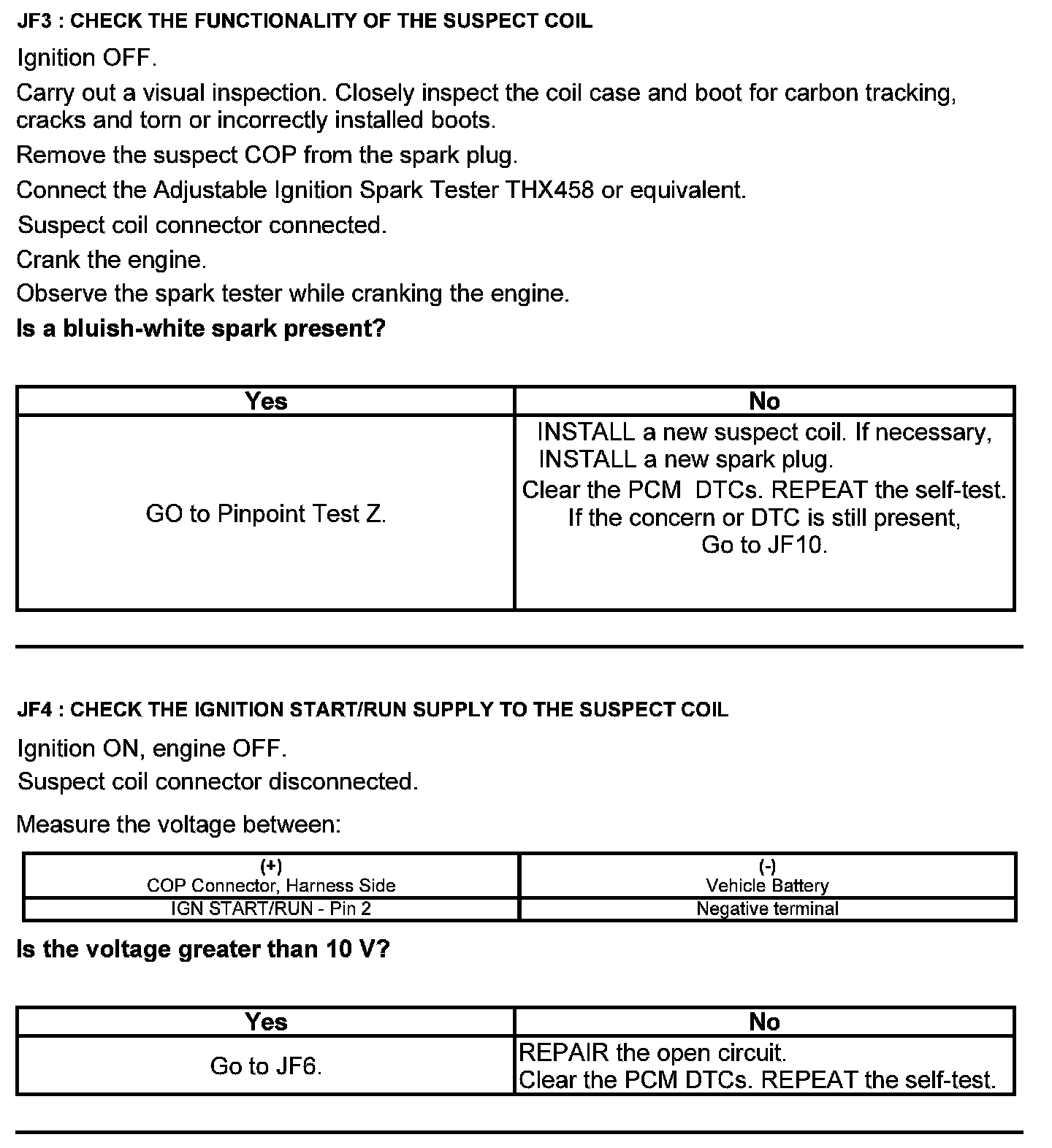

Coil On Plug (COP) Connector





Harness Side

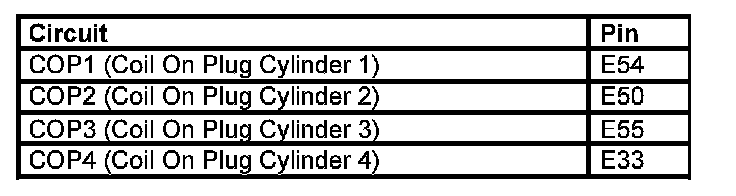

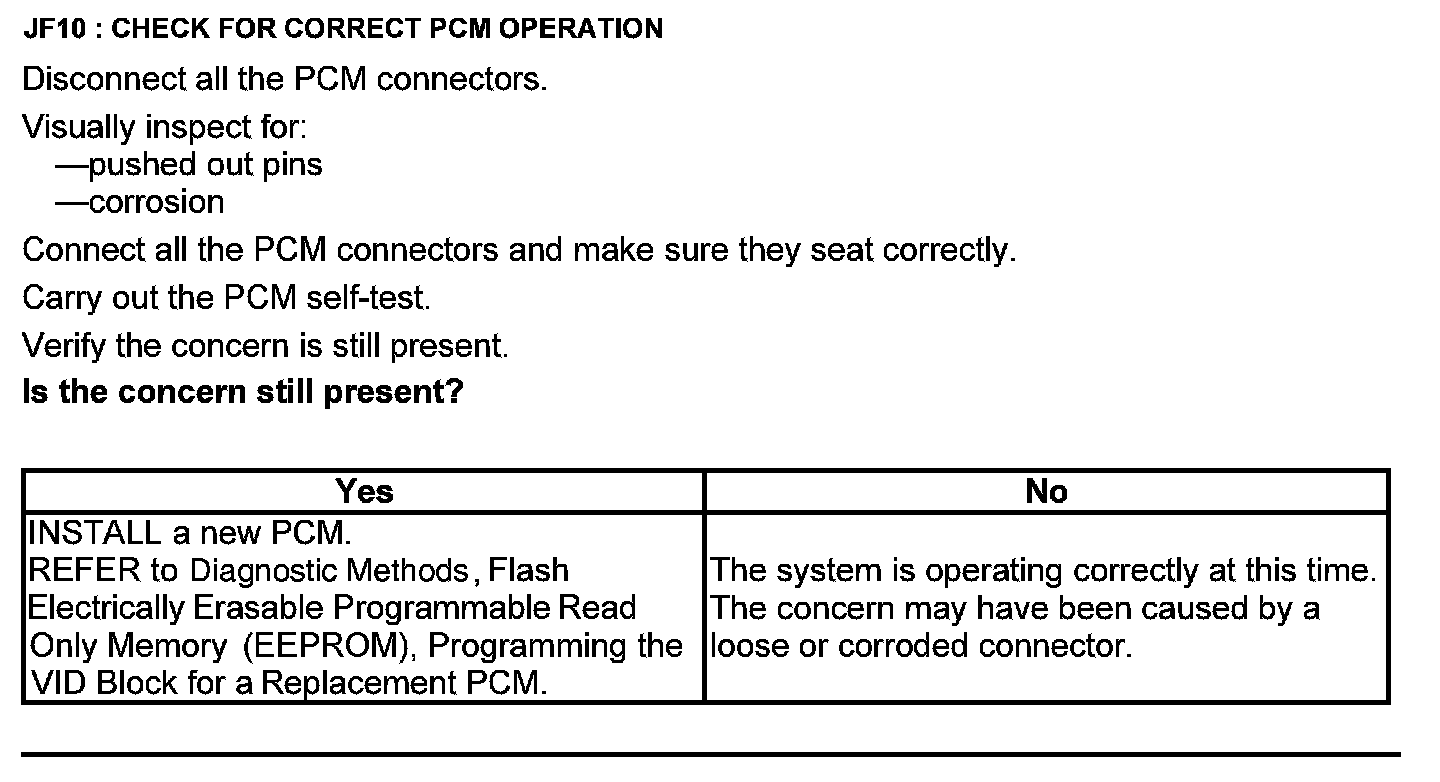

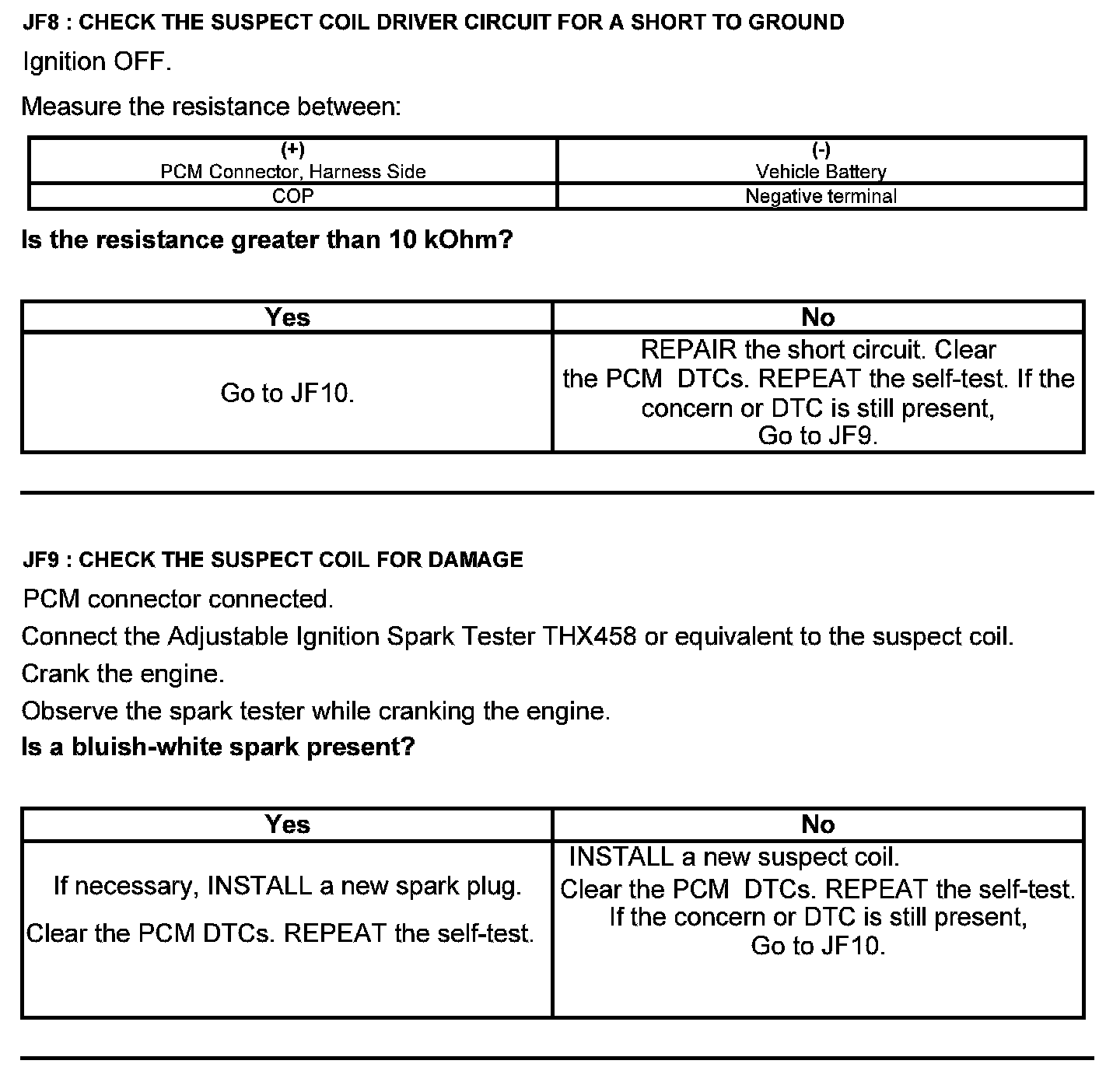

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.
