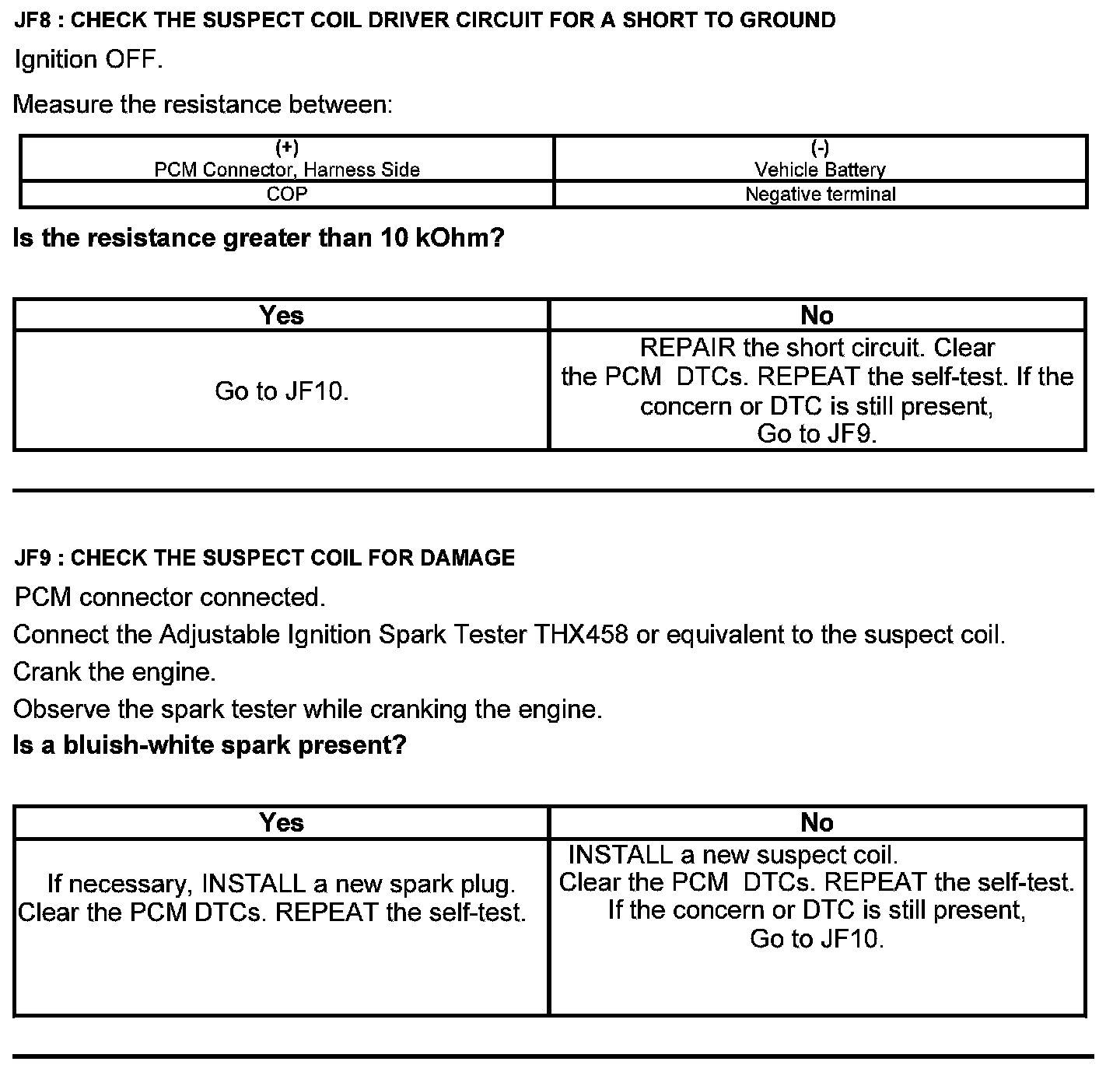

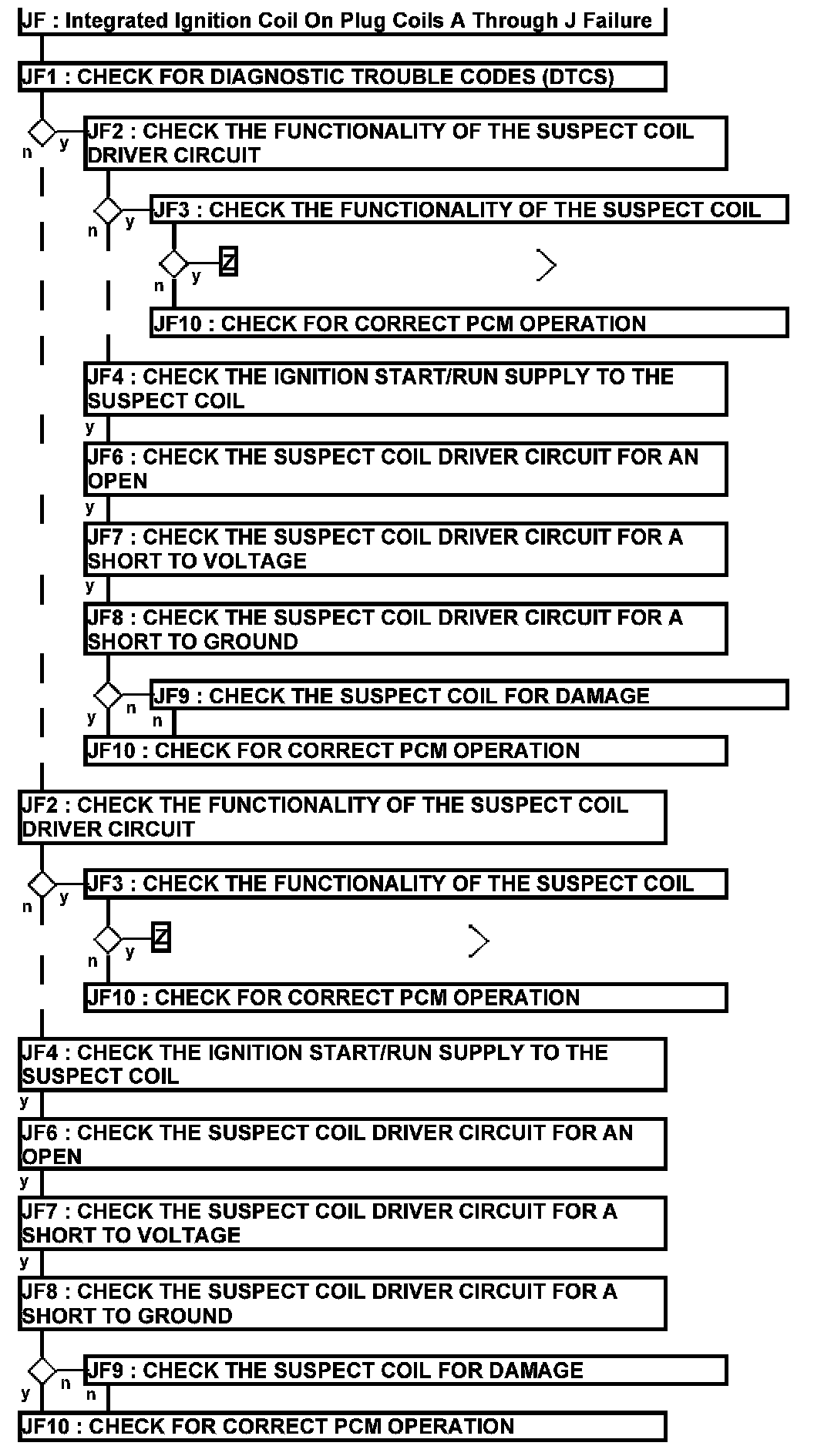

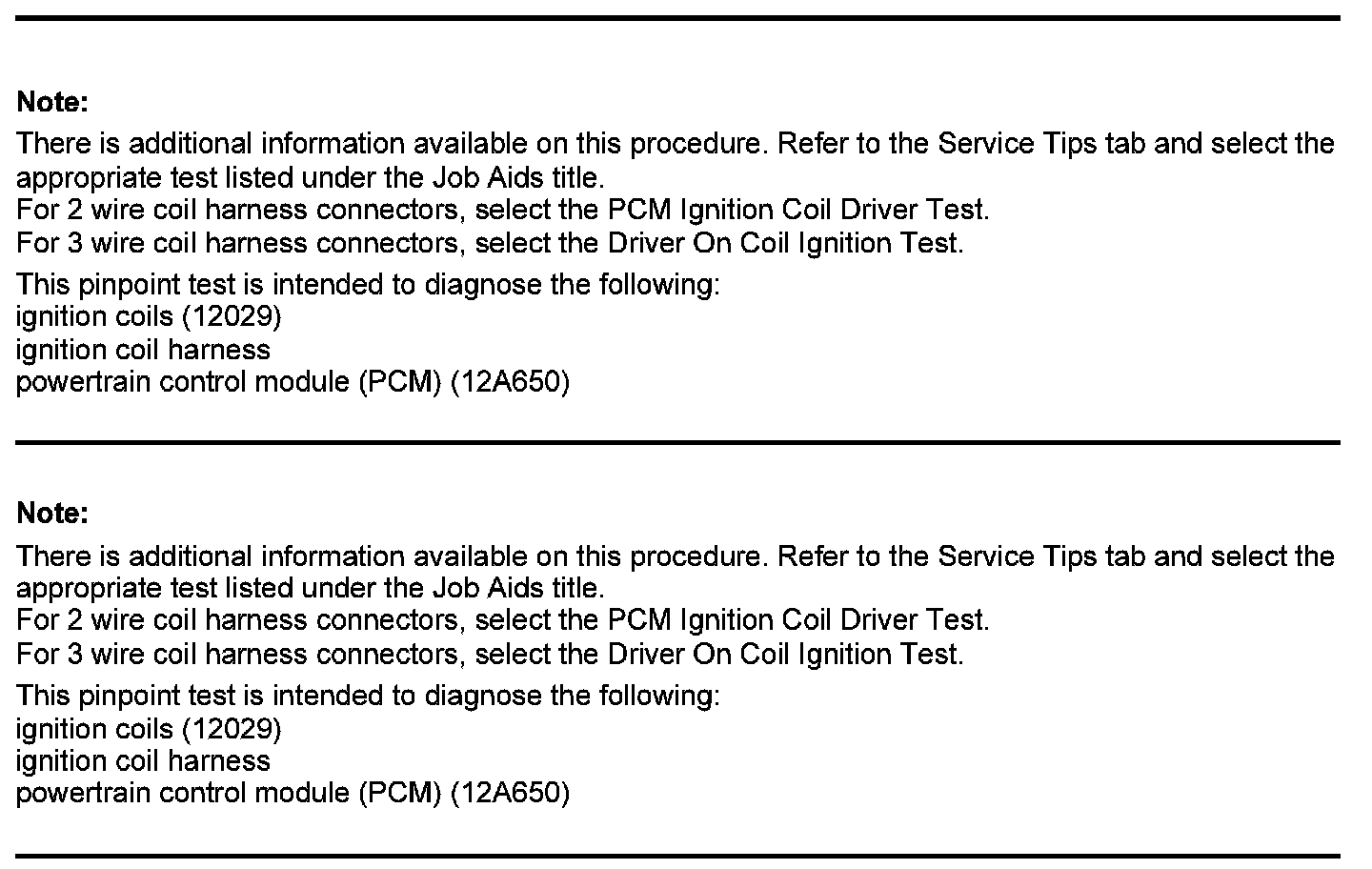

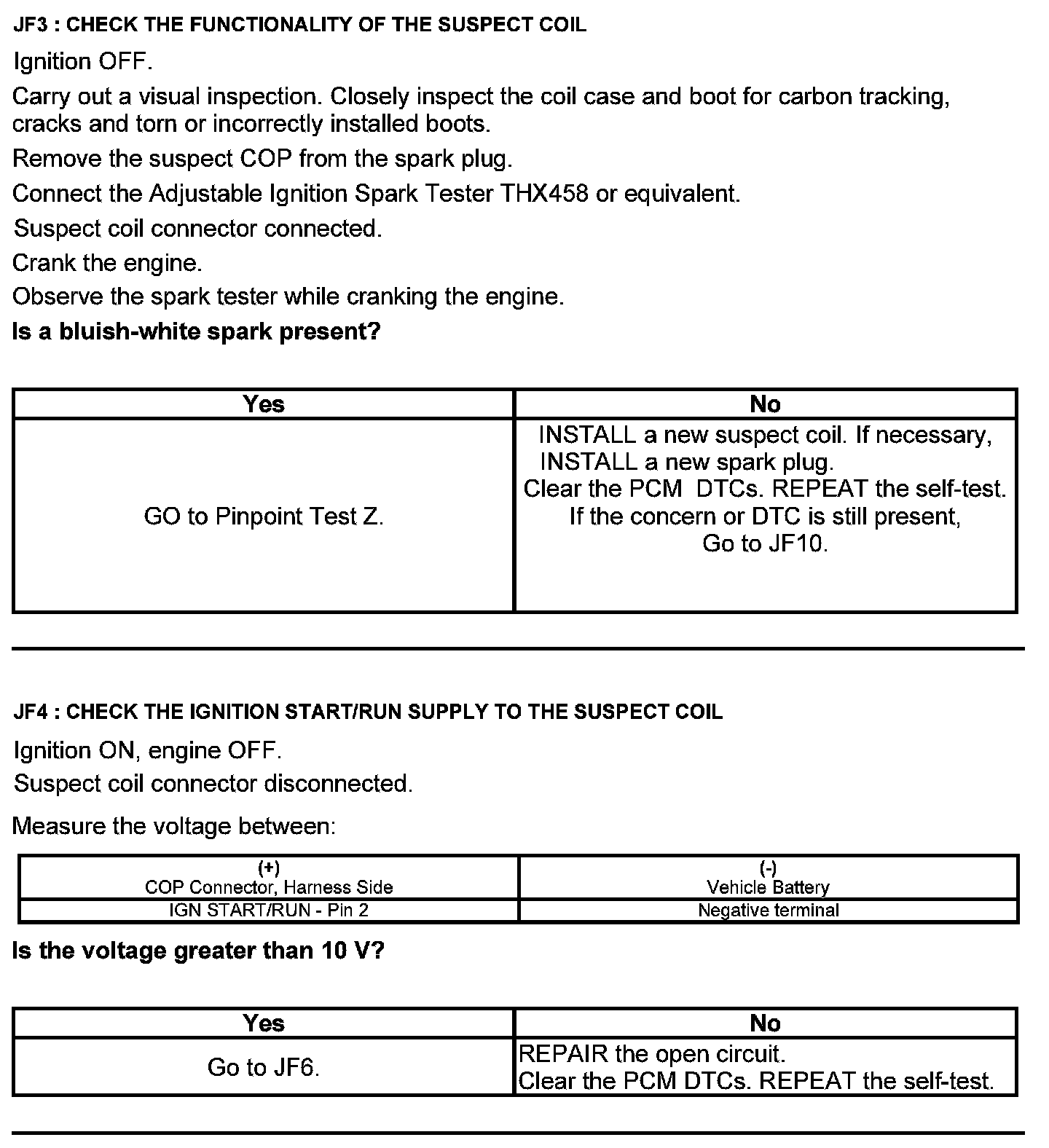

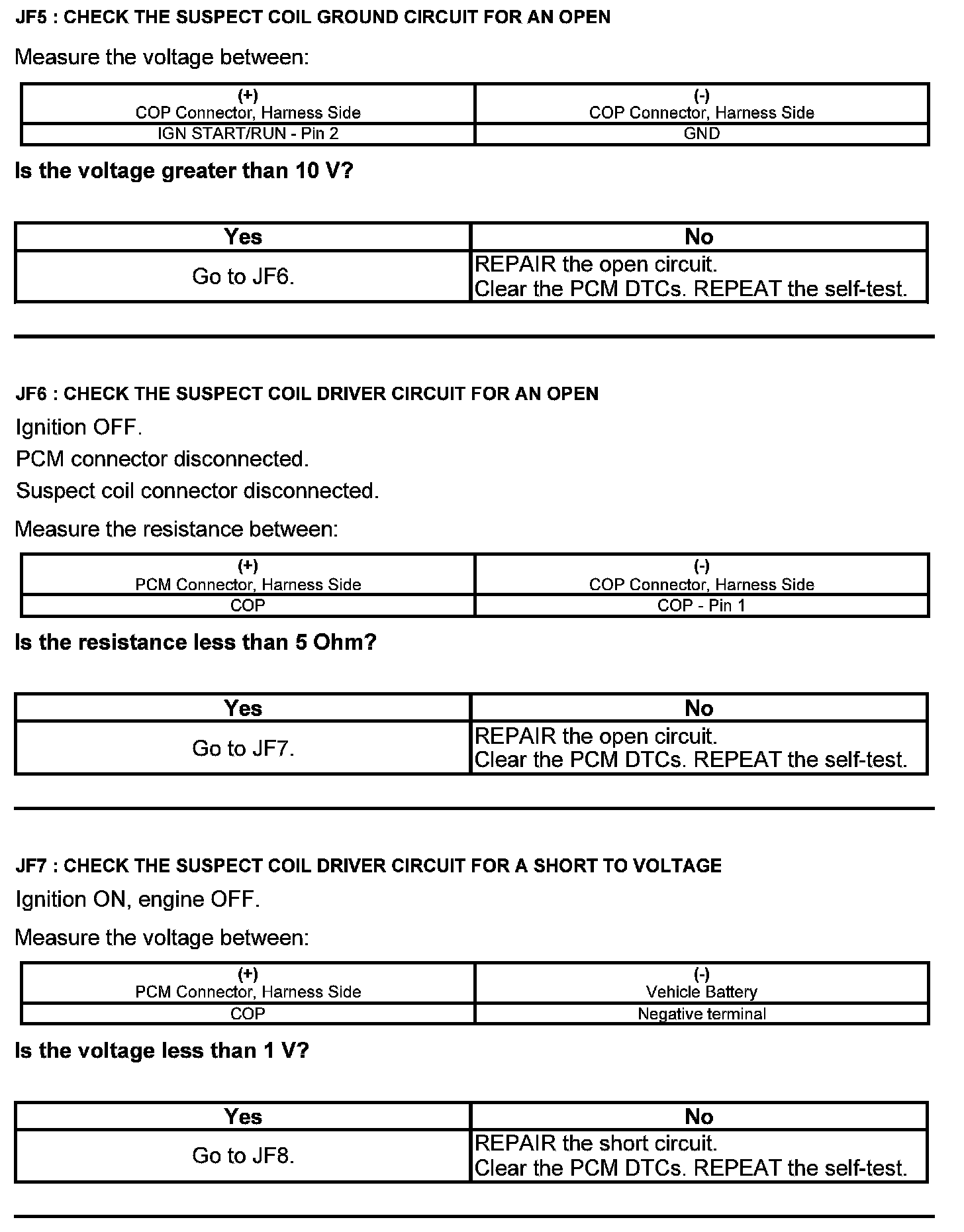

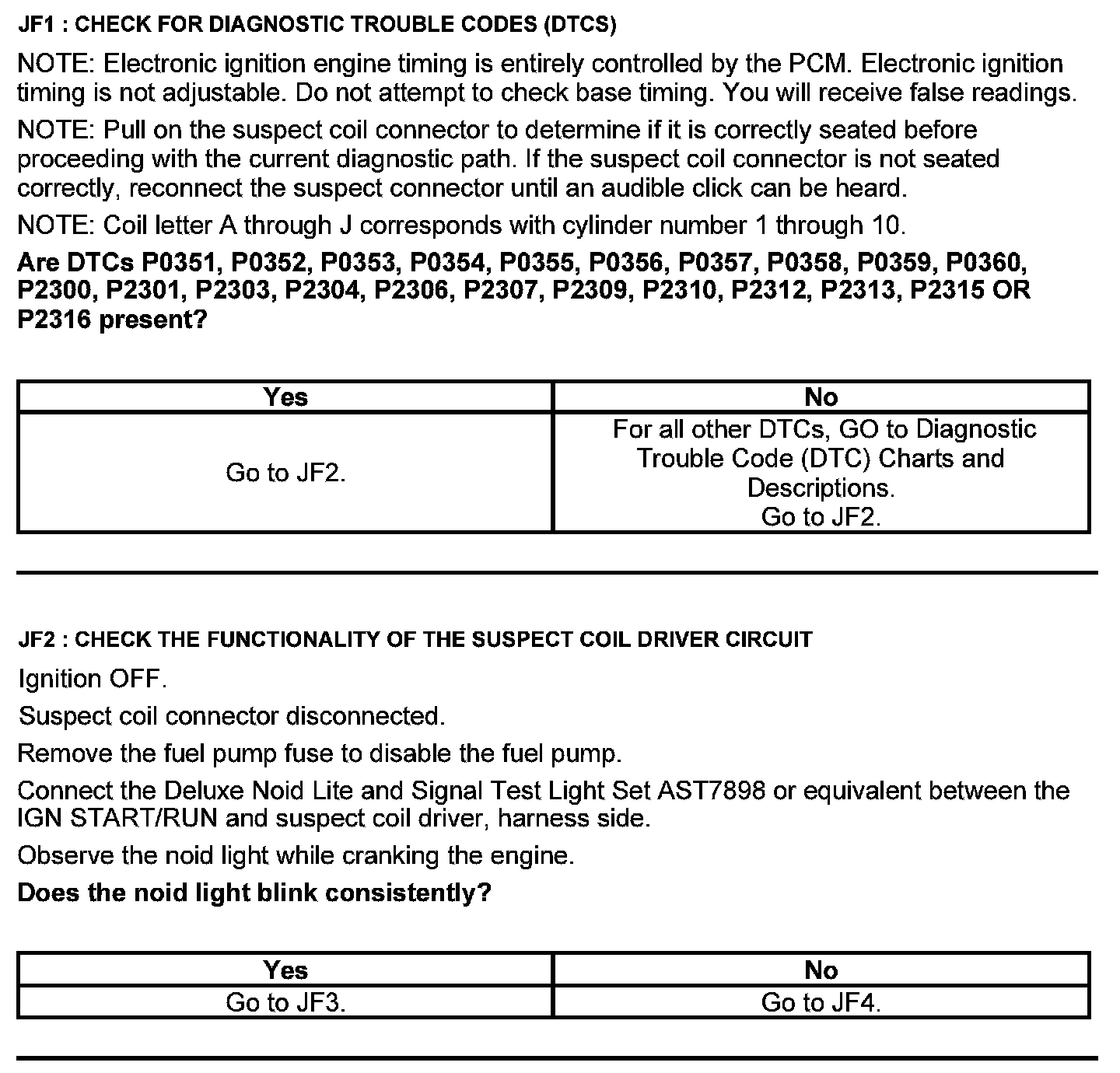

Test JF: Integrated Ignition Coil on Plug Coils A Through J Failure
>>
All Others
All Others
Integrated Ignition Coil On Plug Coils A Through J Failure - All Others

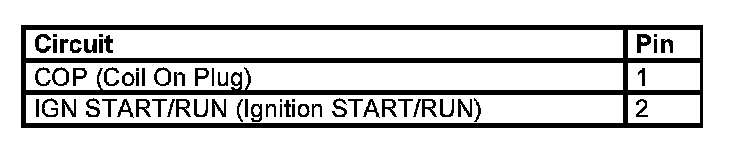

Coil On Plug (COP) Connector
Harness Side
