Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test JE: Integrated Ignition Coil Pack A, B, or C Failure >> All Others

All Others

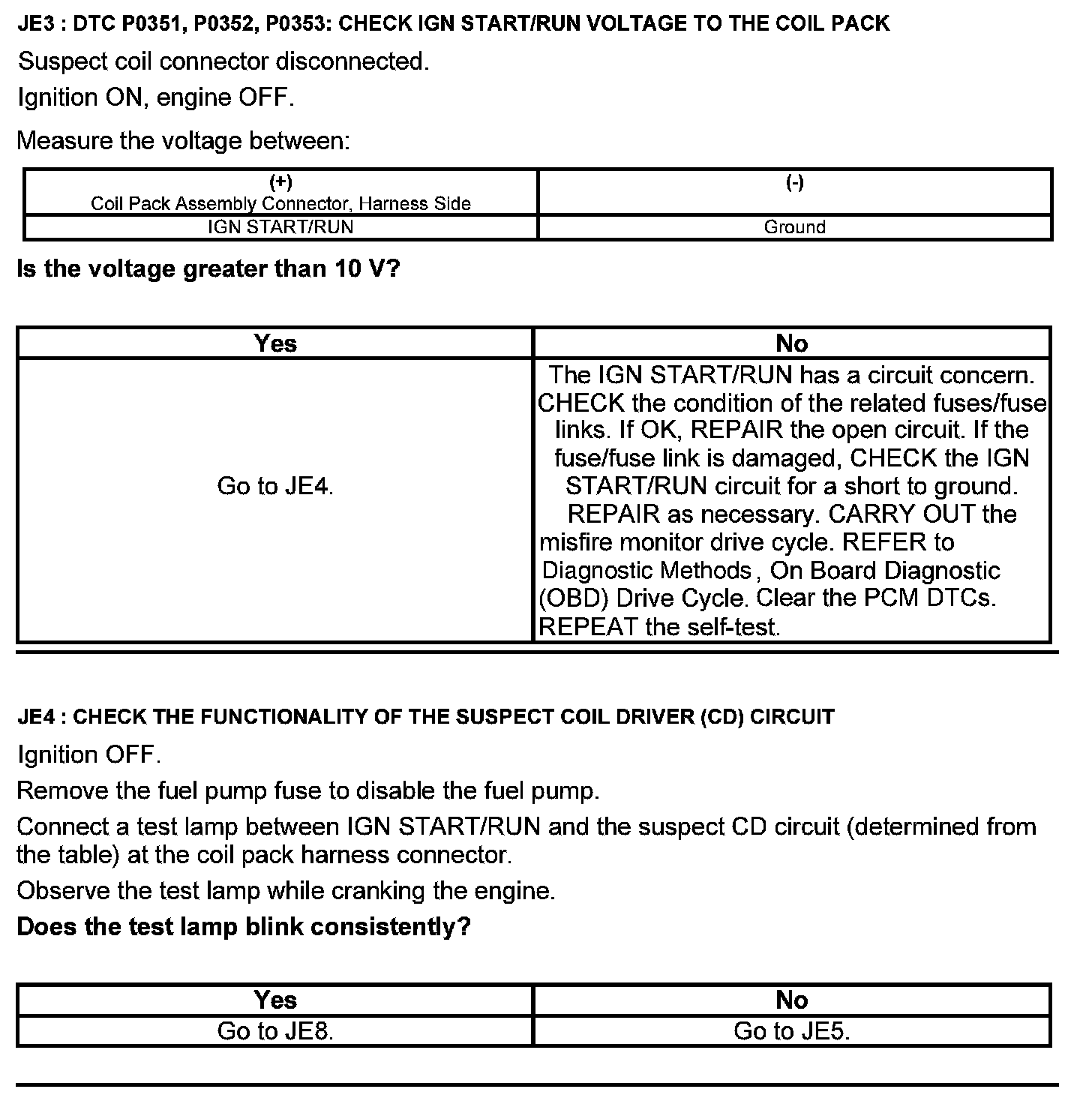

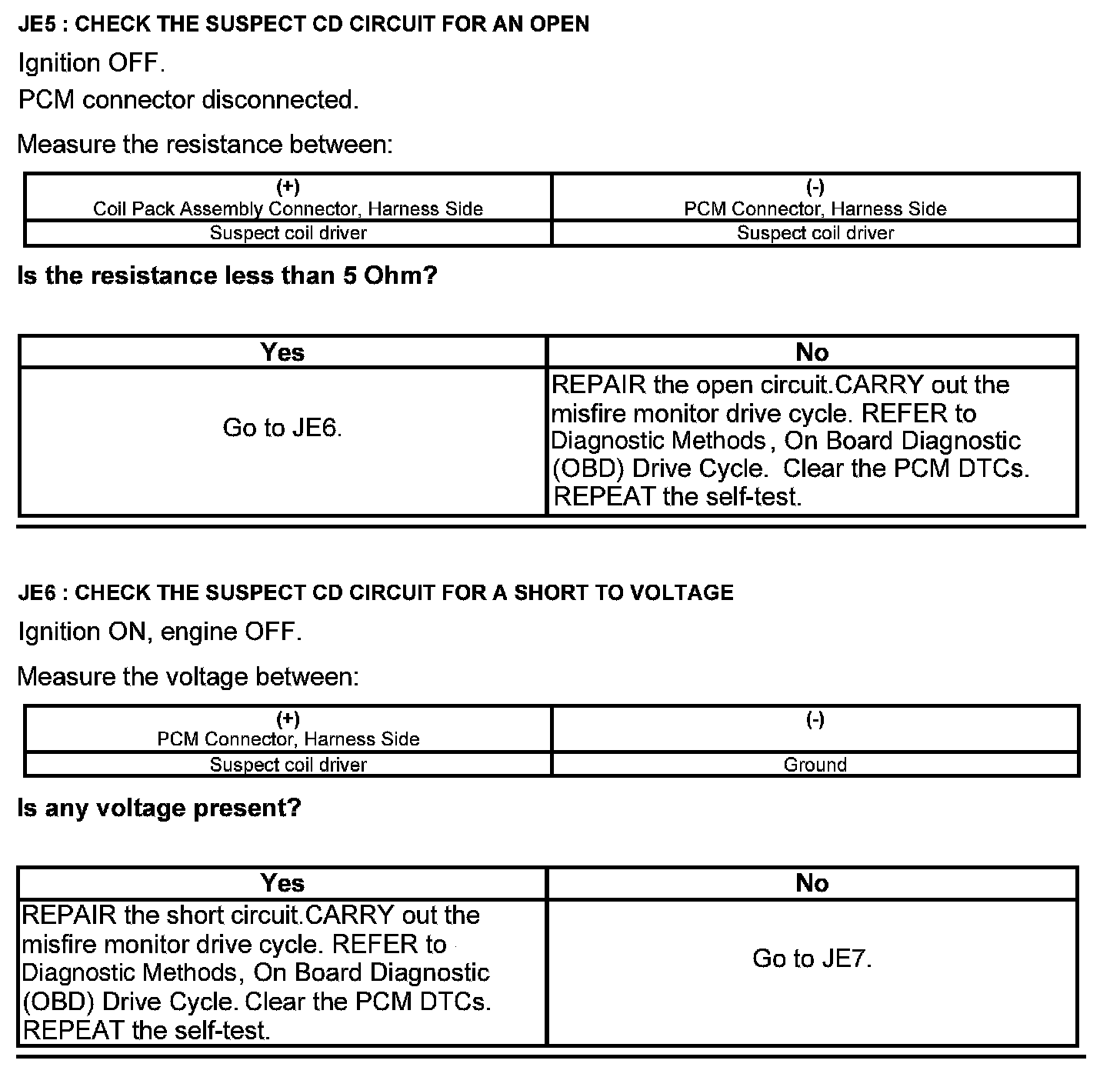

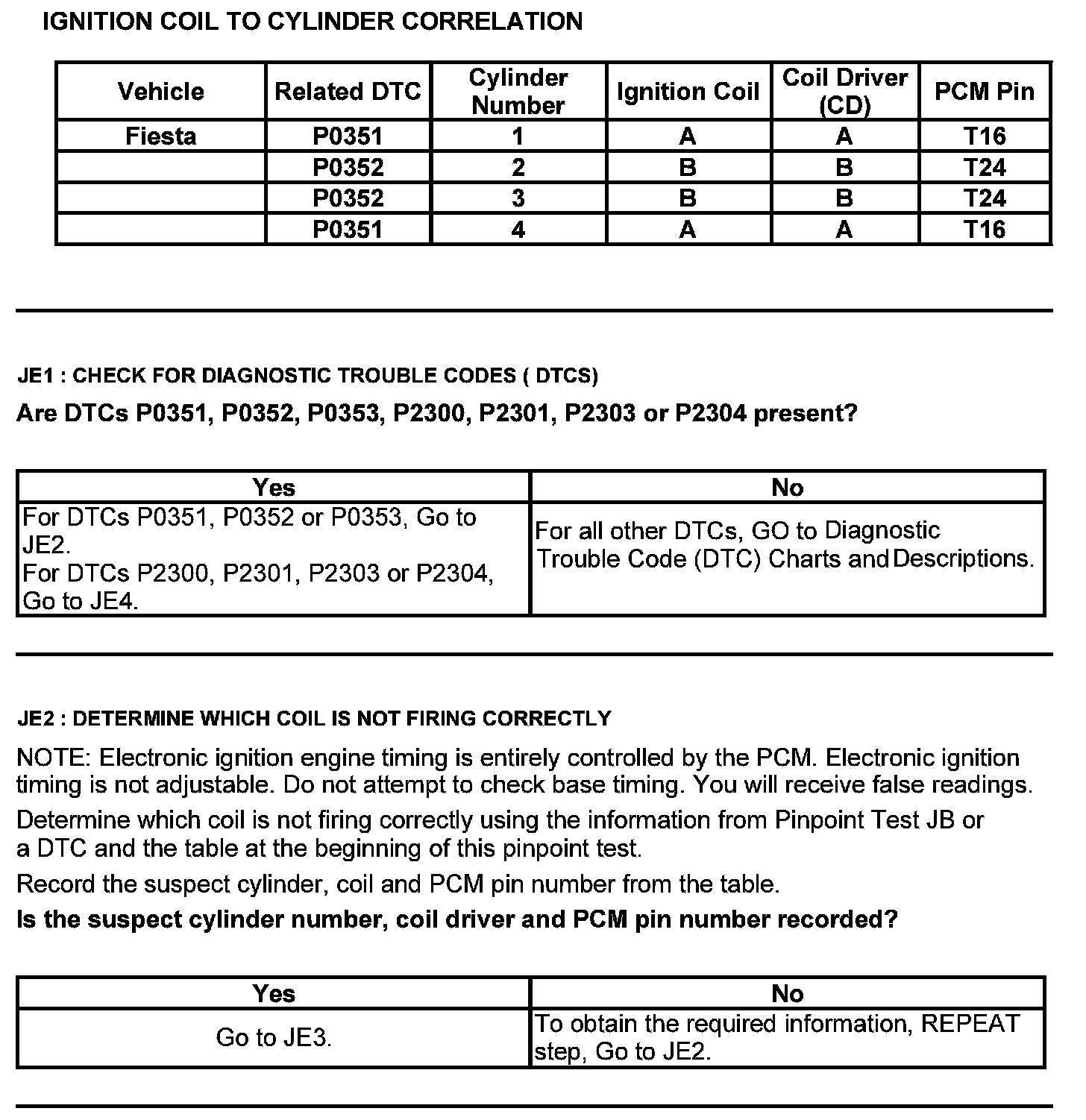

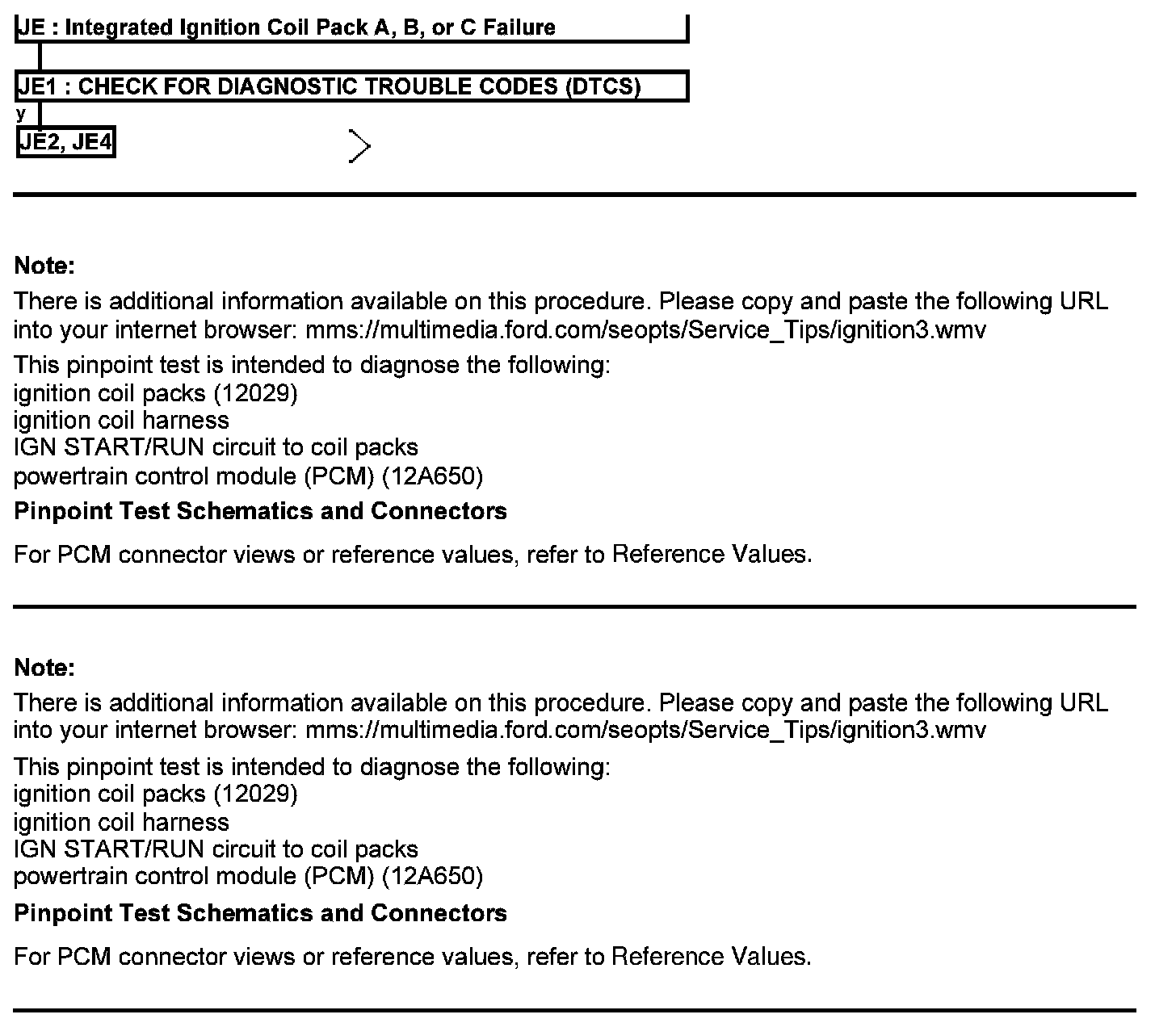

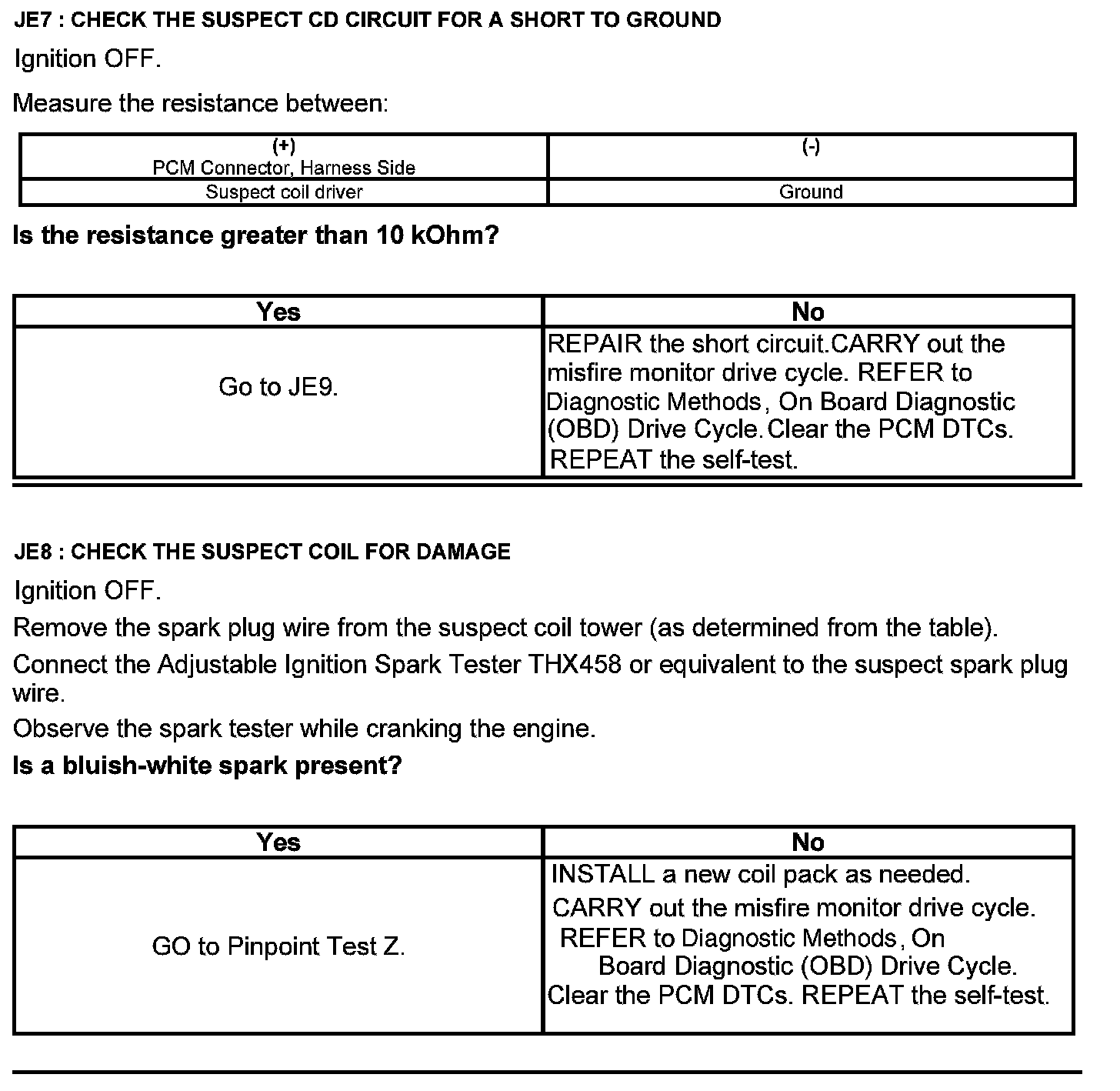

Integrated Ignition Coil Pack A, B, or C Failure - All Others
