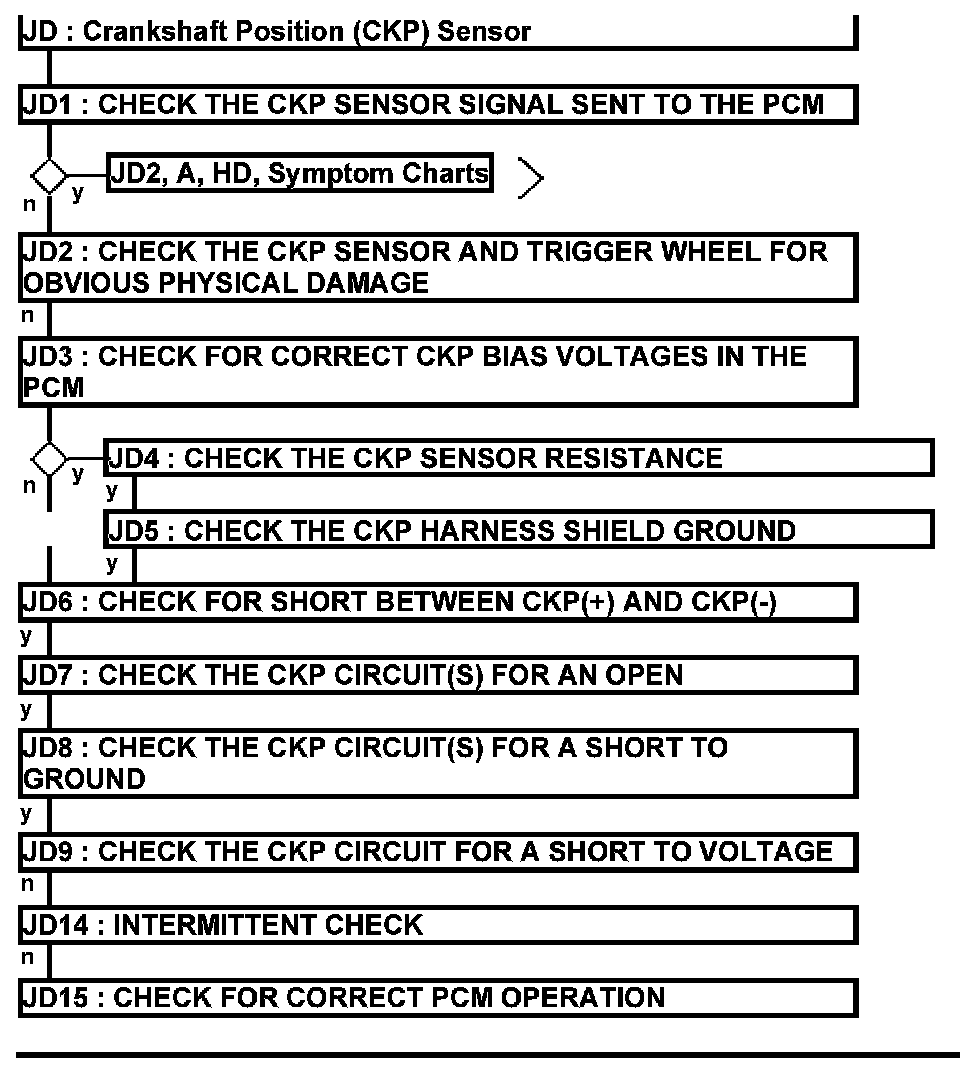

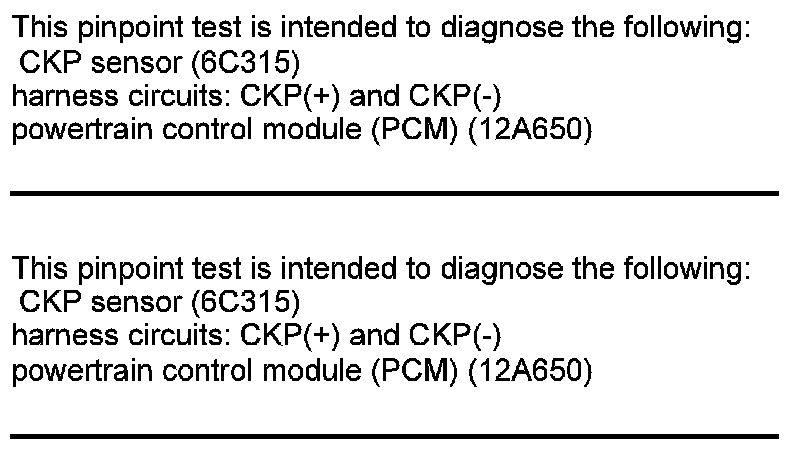

Test JD: Crankshaft Position (CKP) Sensor
>>
All Others
All Others
Crankshaft Position (CKP) Sensor - All Others

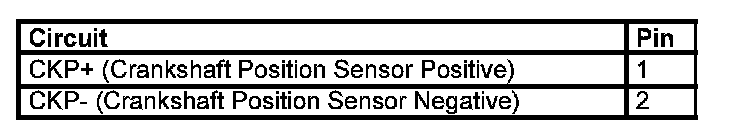

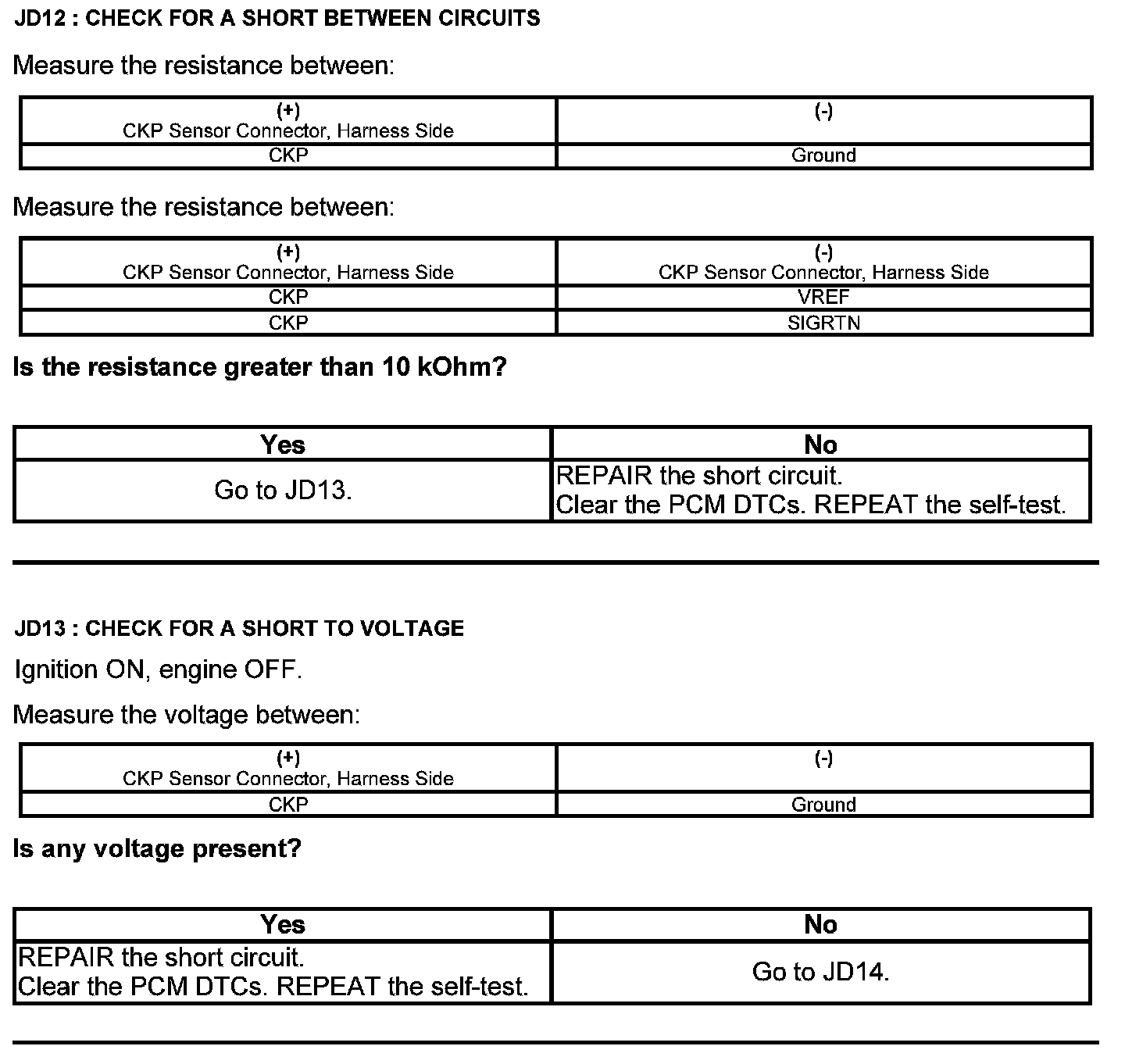

Crankshaft Position (CKP) Sensor Connector
Harness Side
