Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test HX: Evaporative Emission (EVAP) System and Monitor >> Automatic Transmission >> Part 2

Part 2

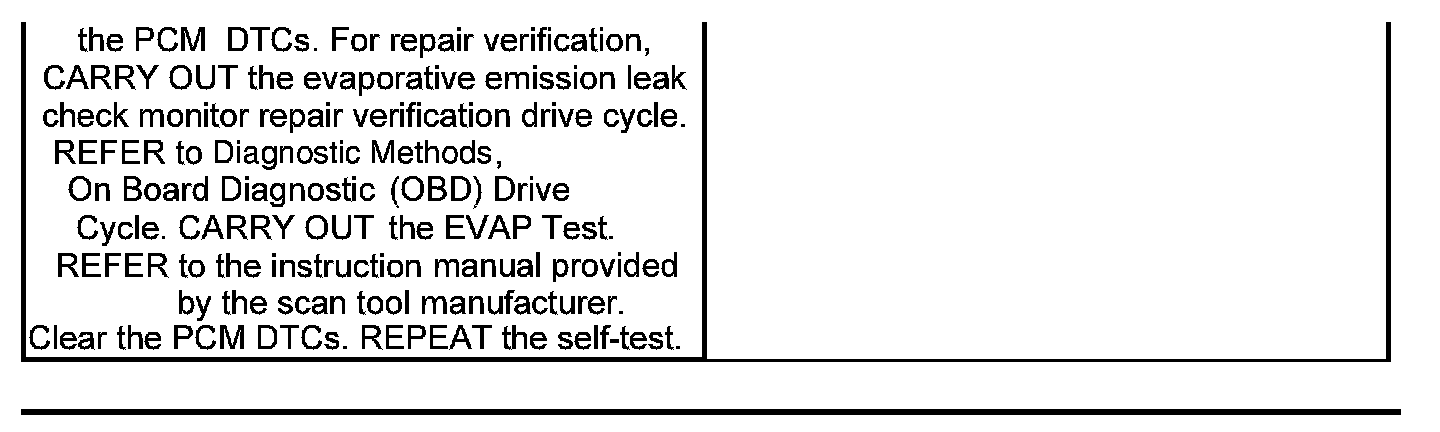

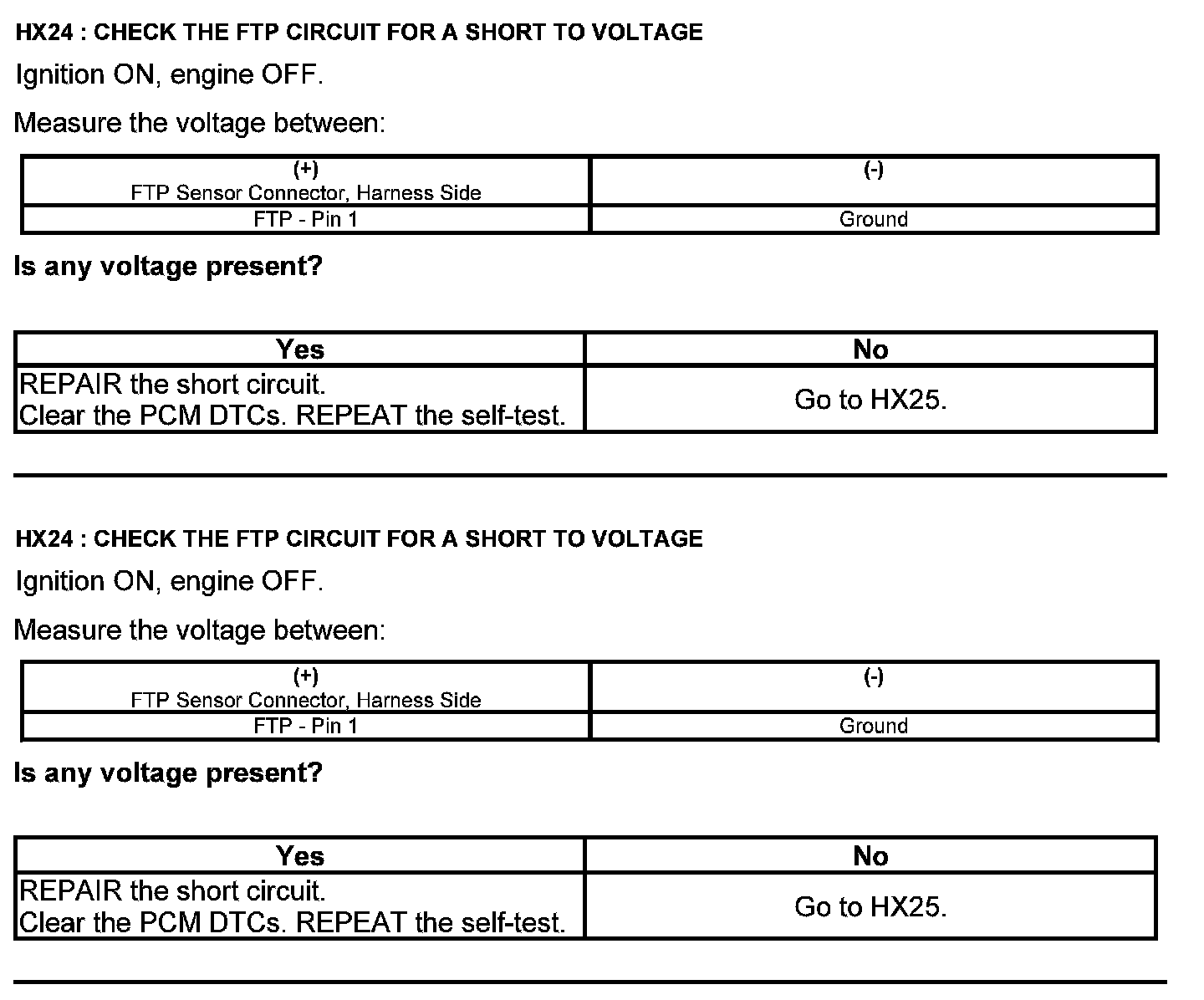

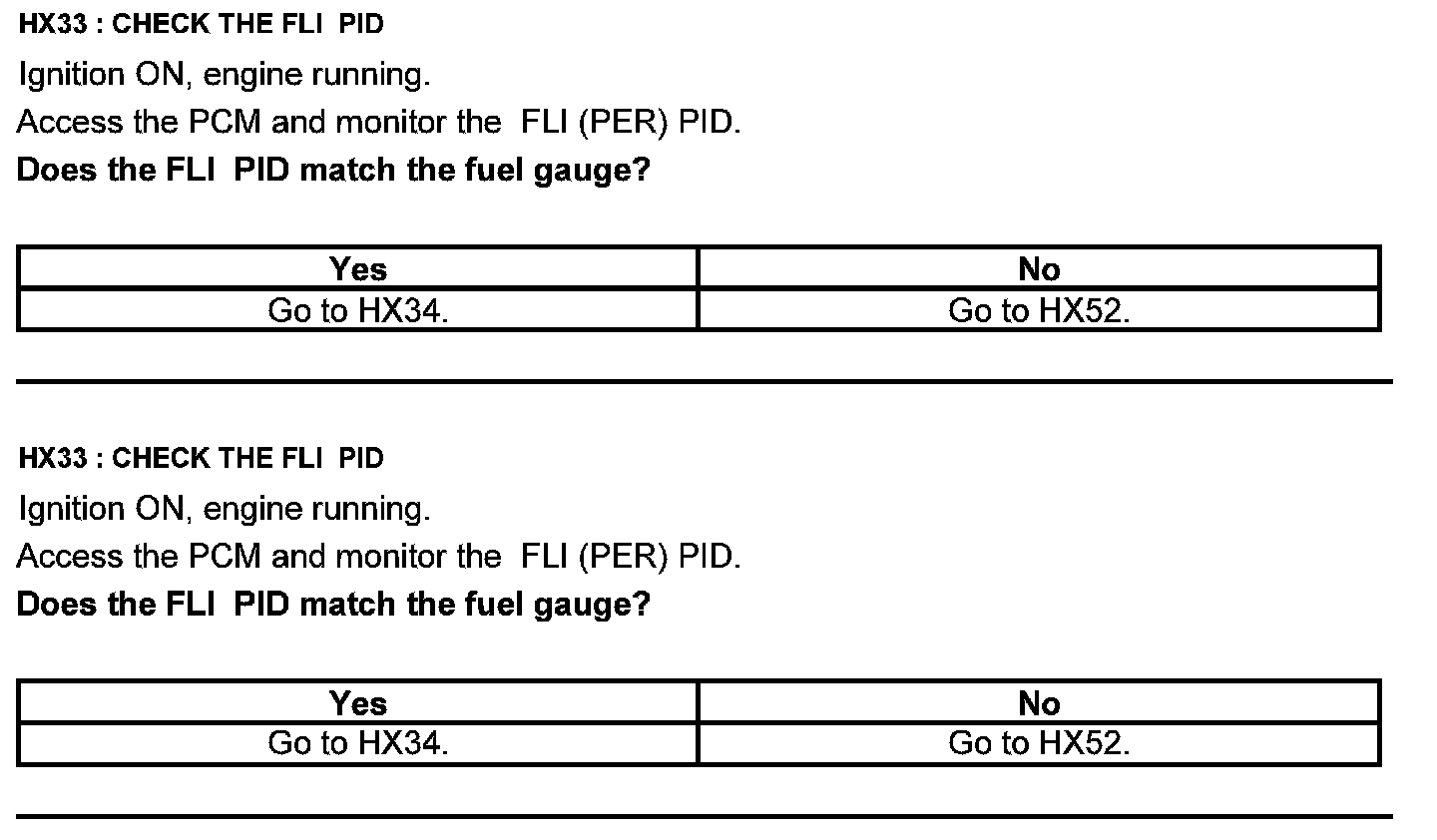

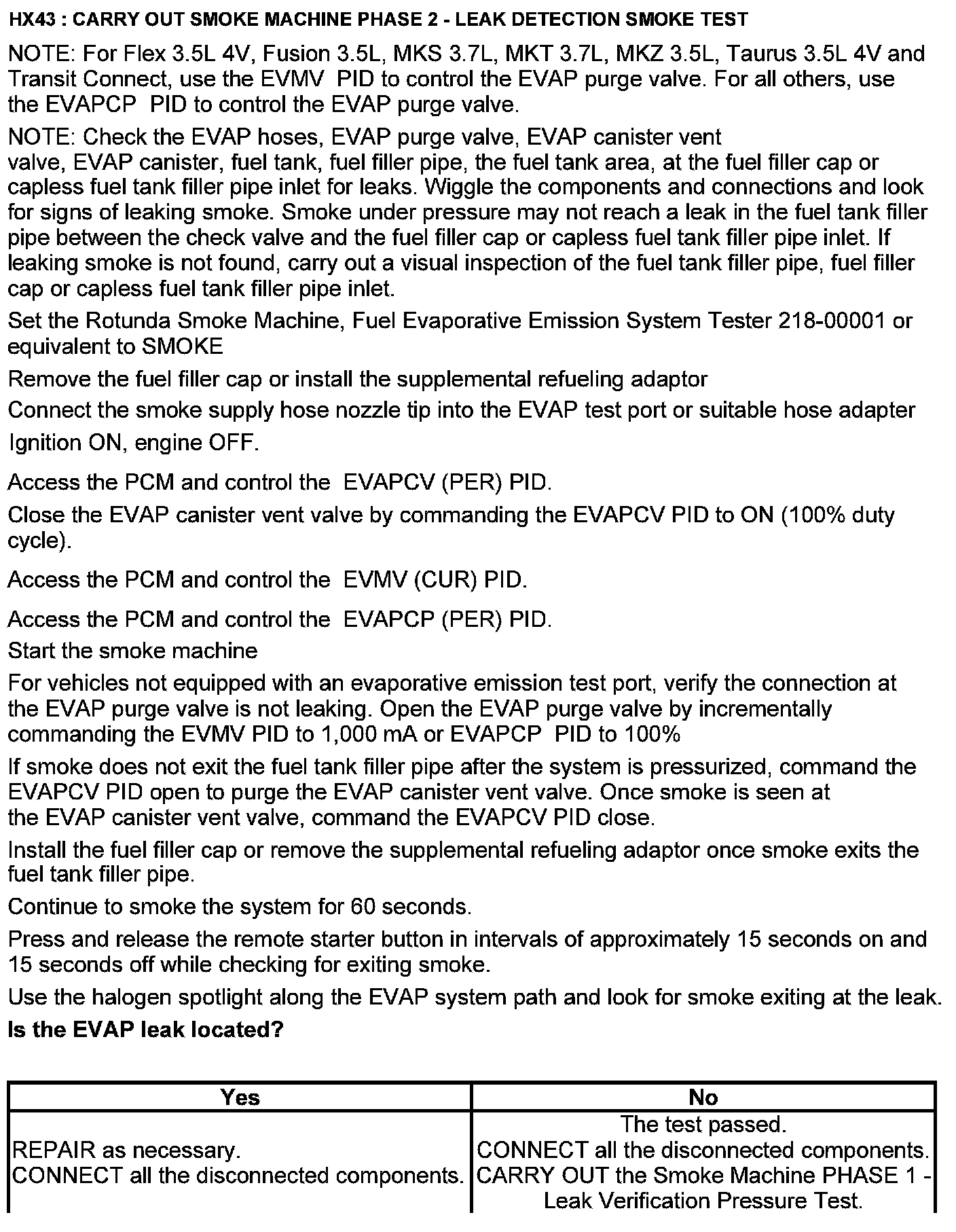

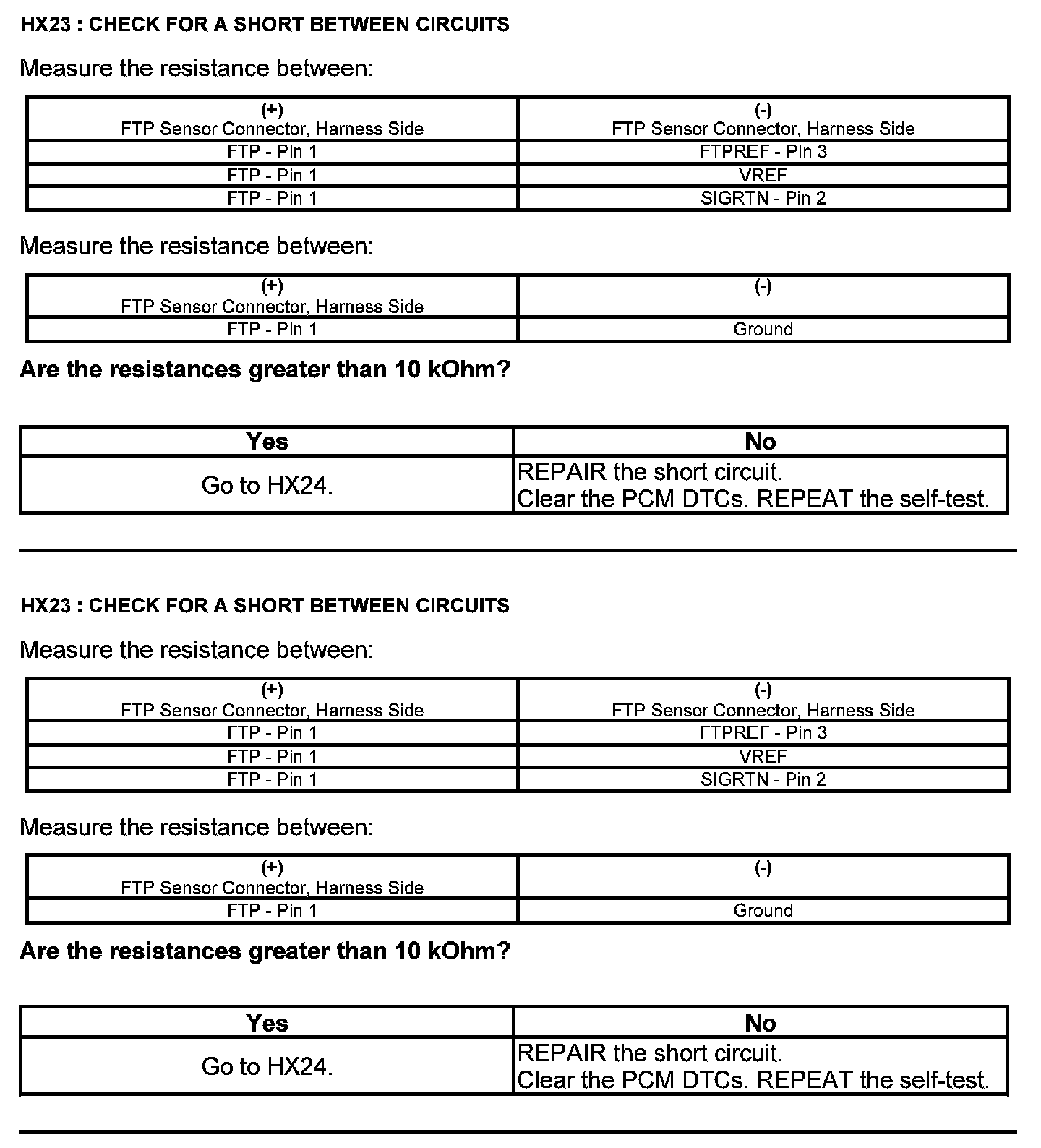

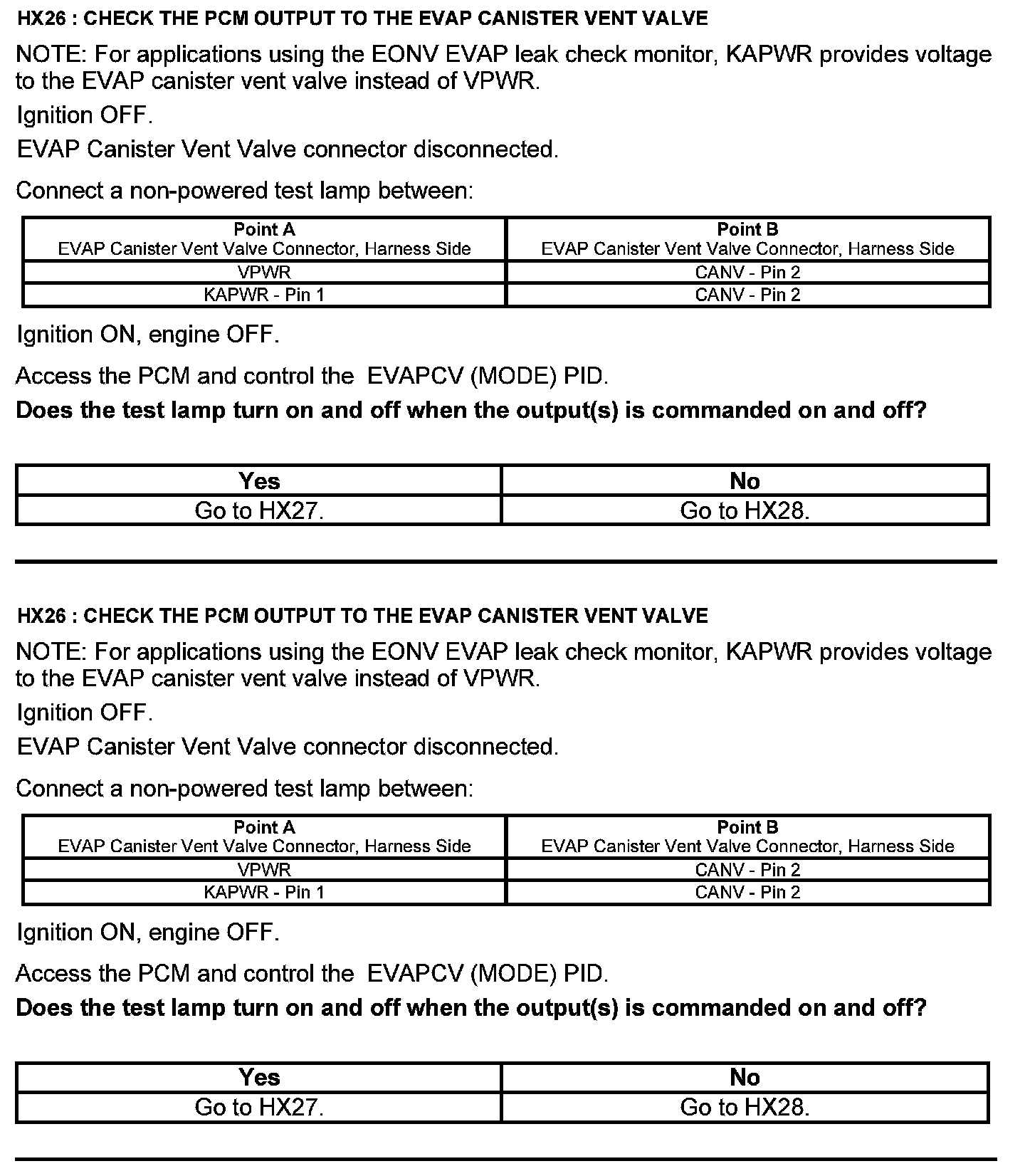

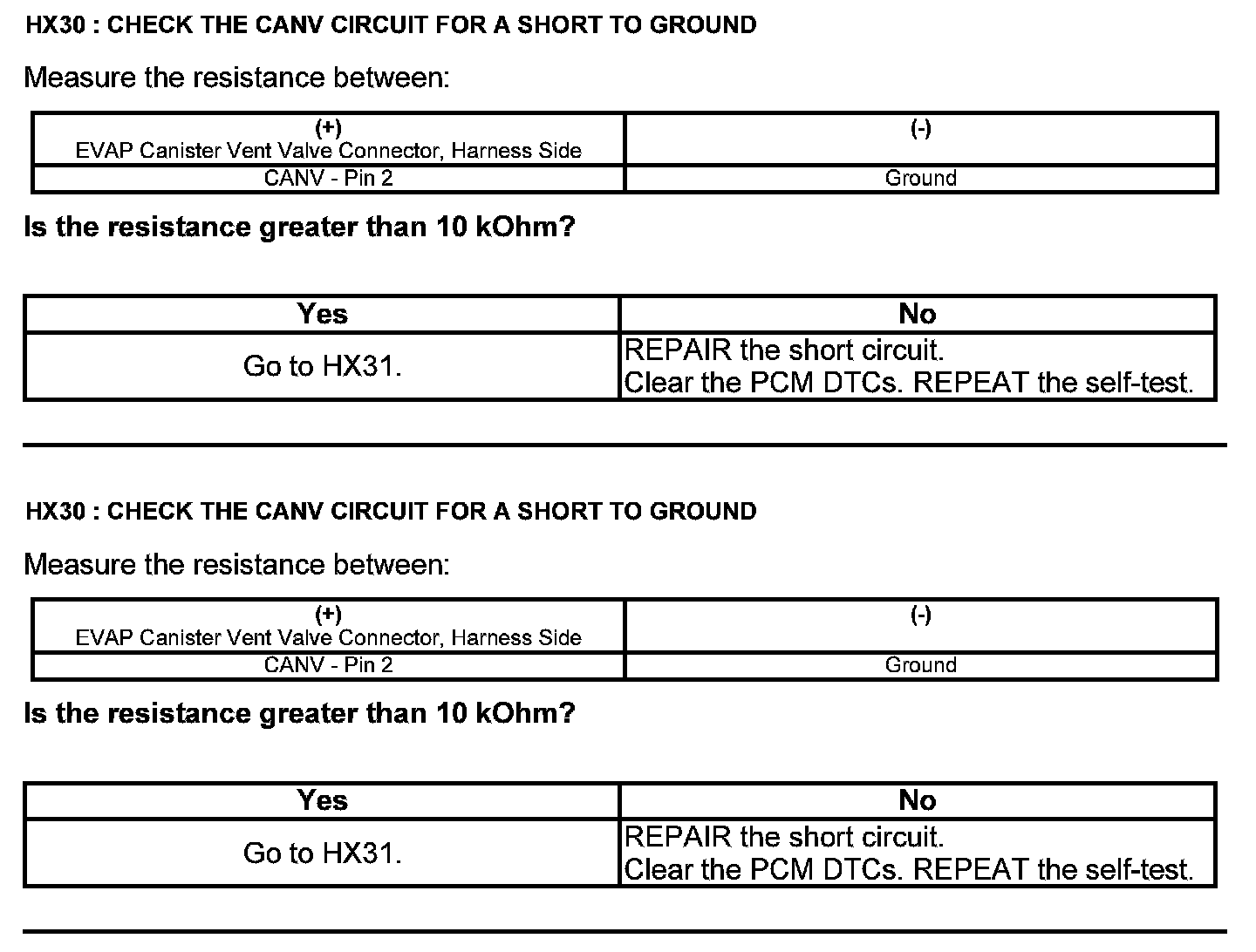

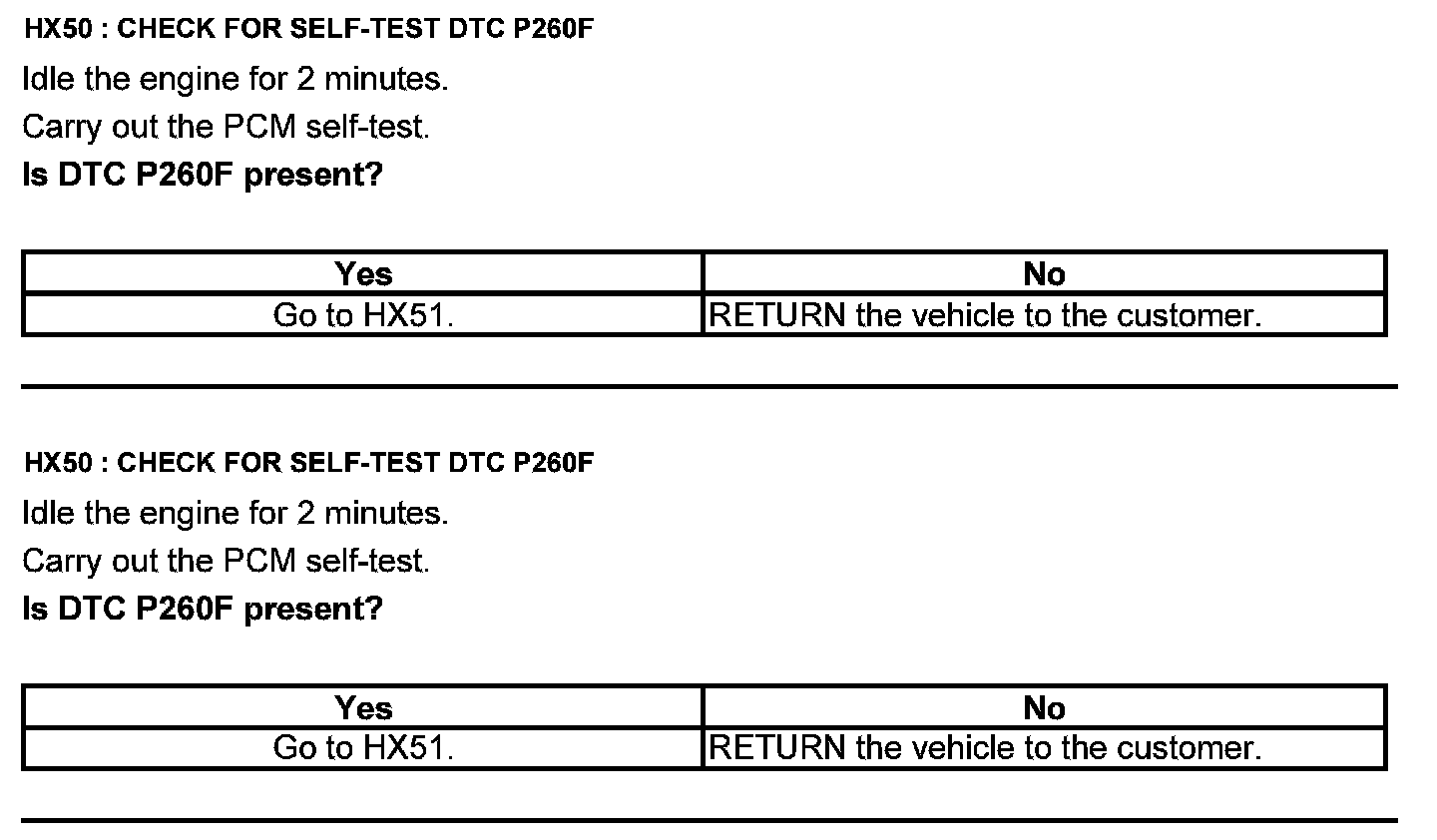

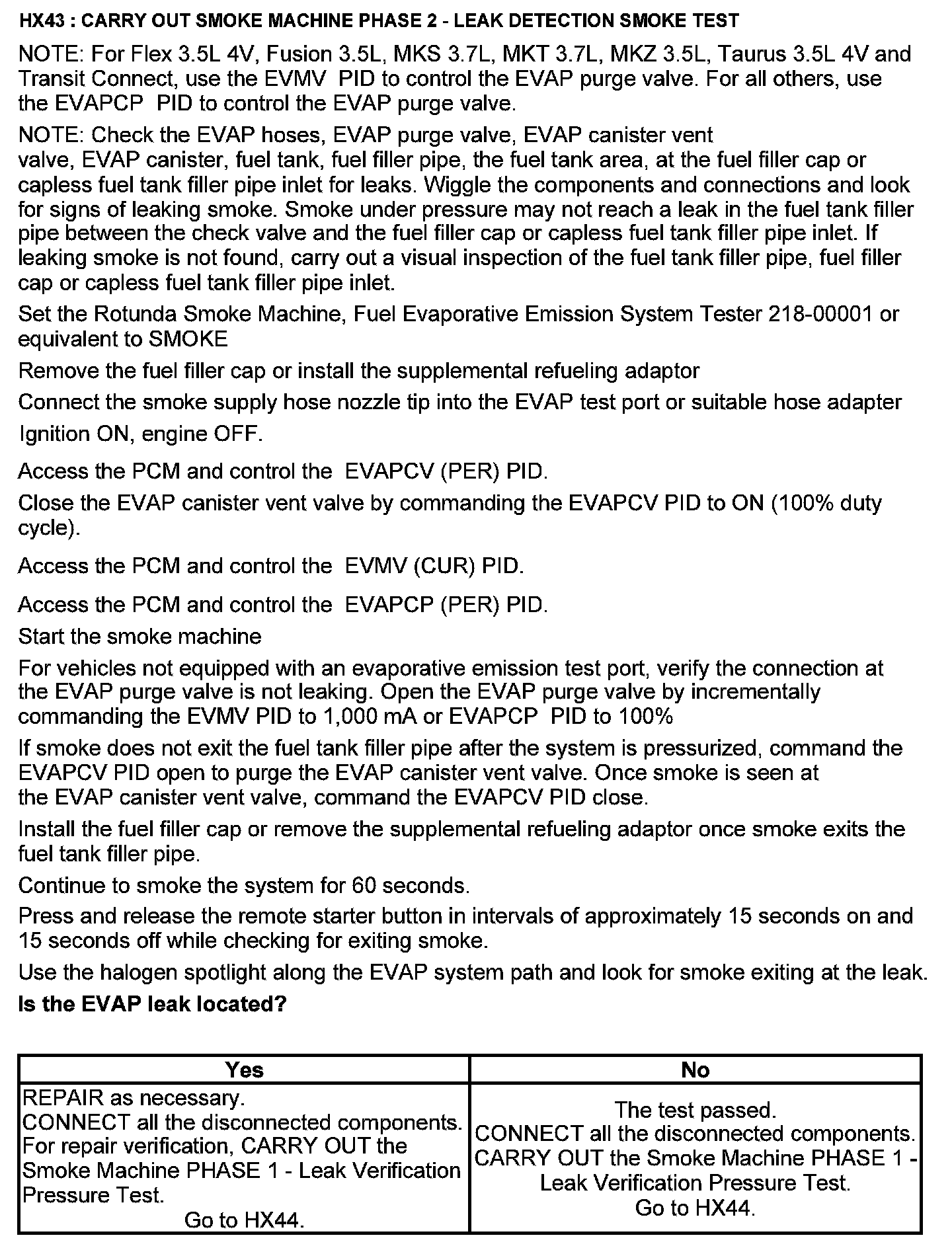

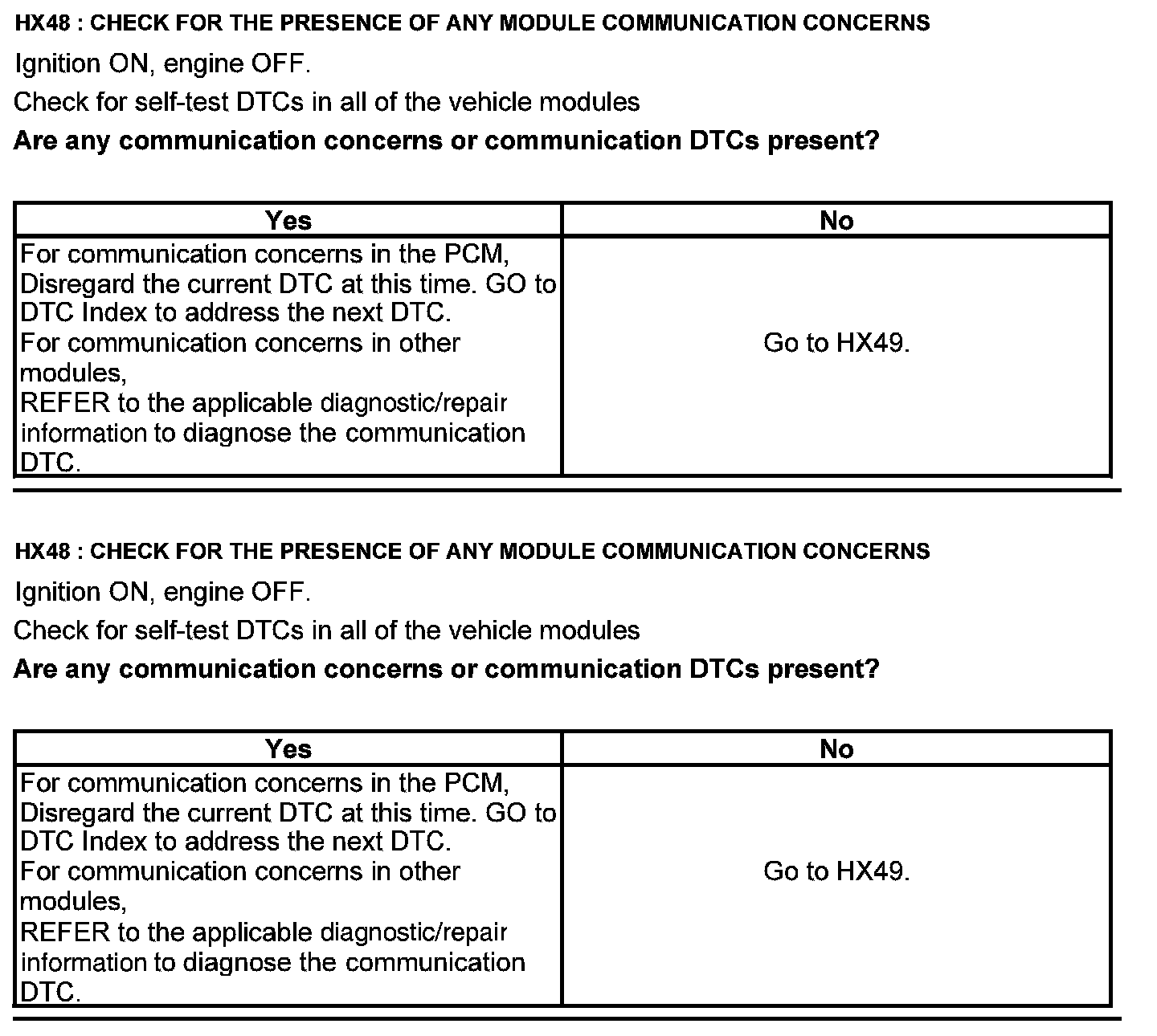

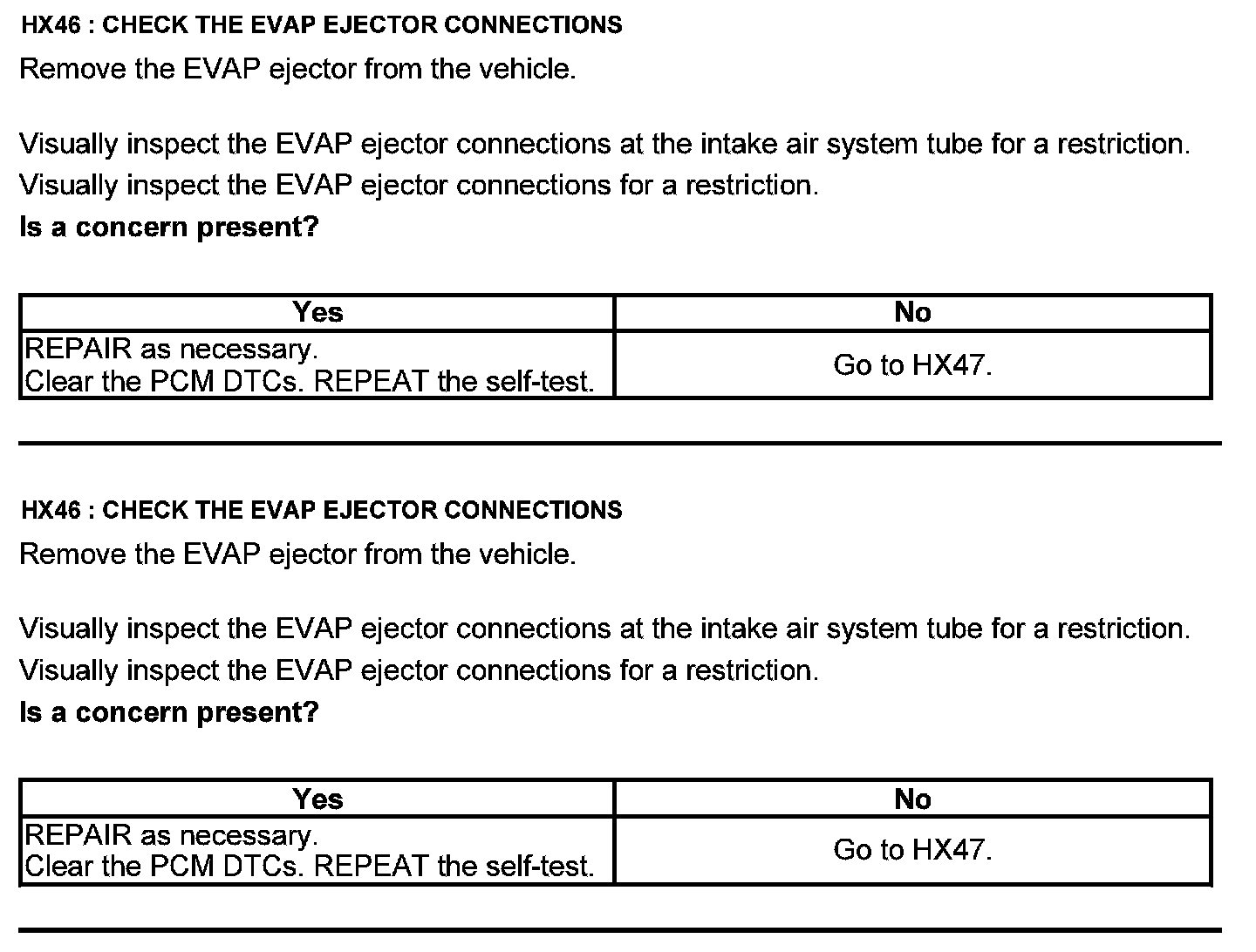

Evaporative Emission (EVAP) System and Monitor - Automatic Transmission
