Manual Transmission

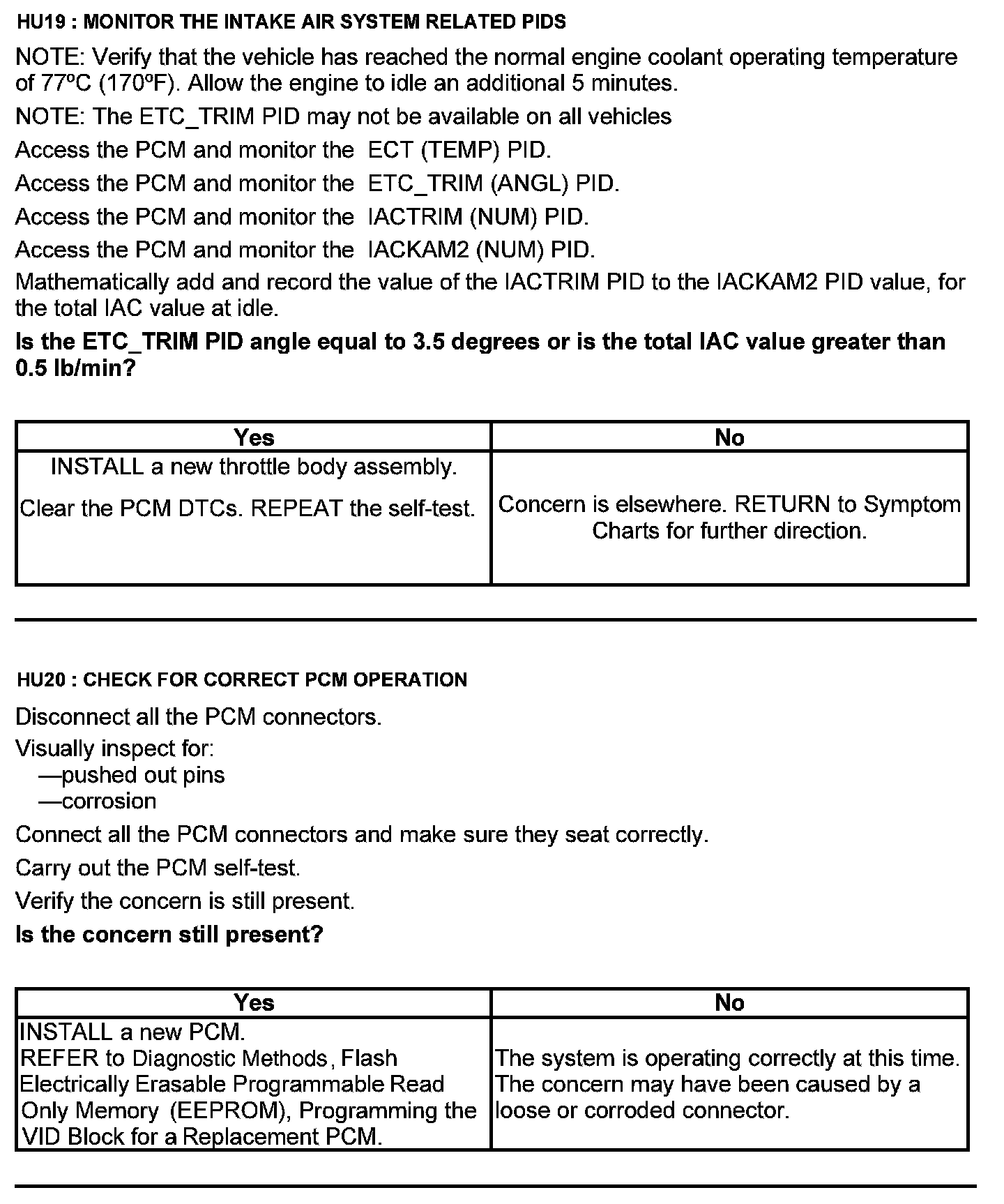

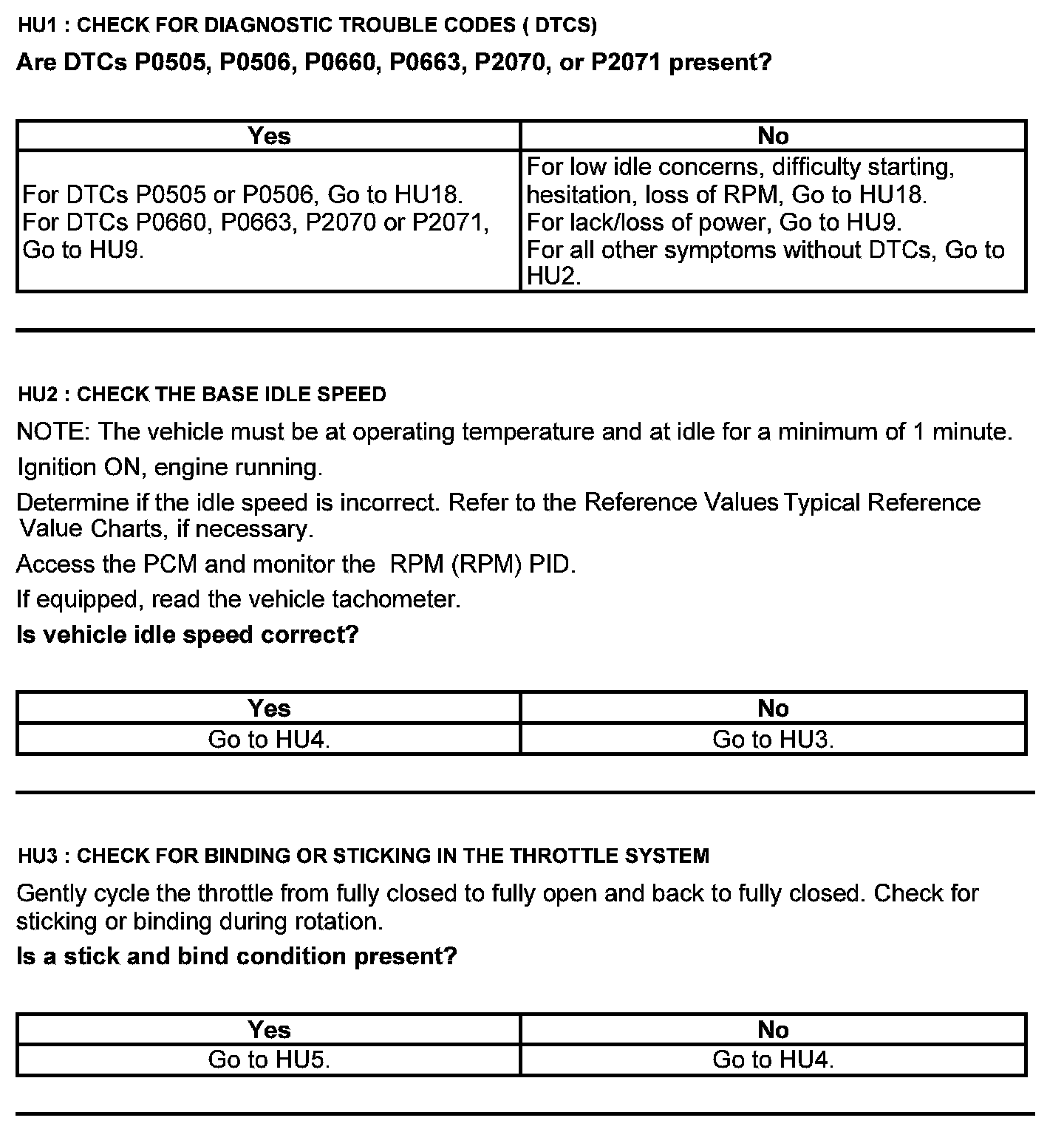

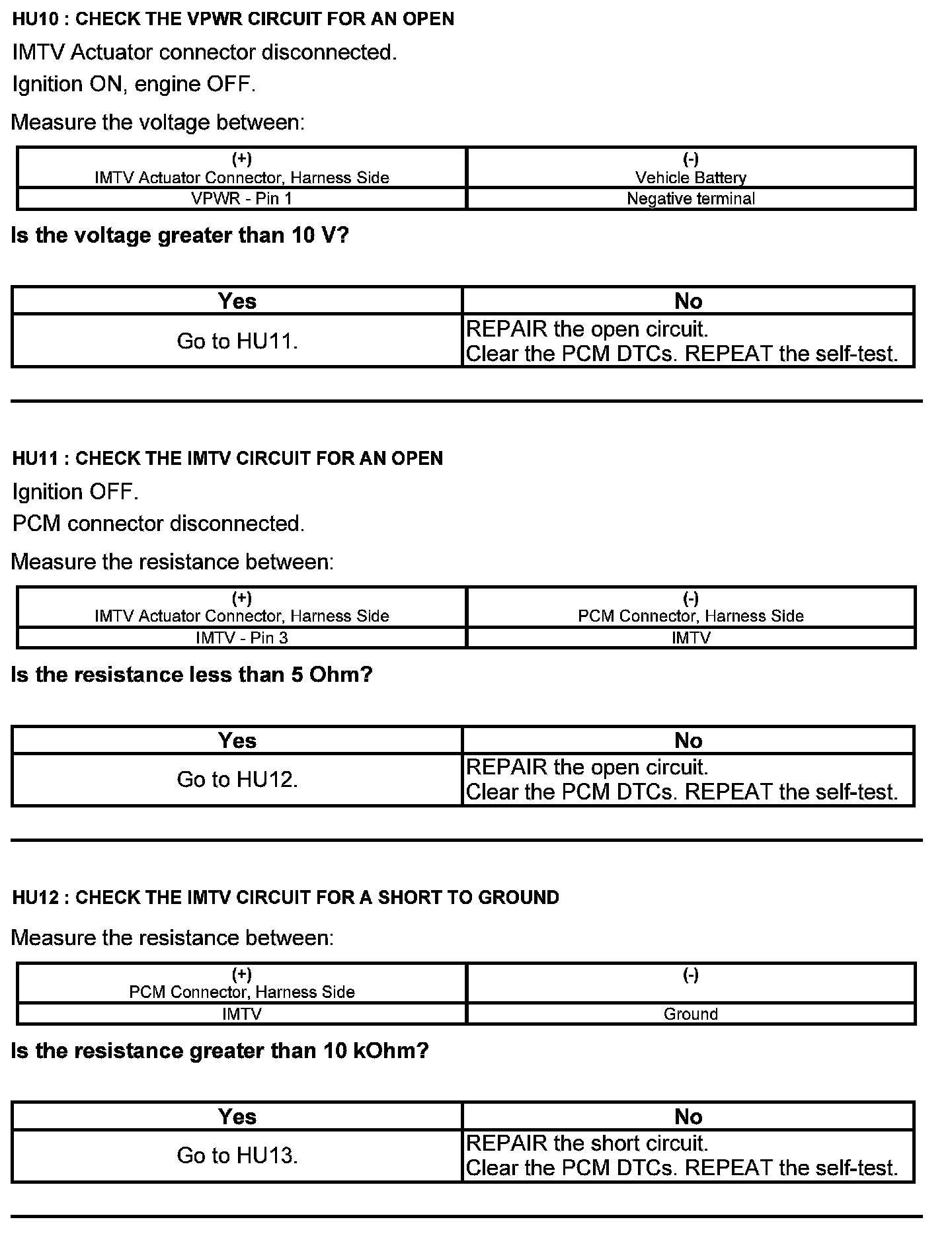

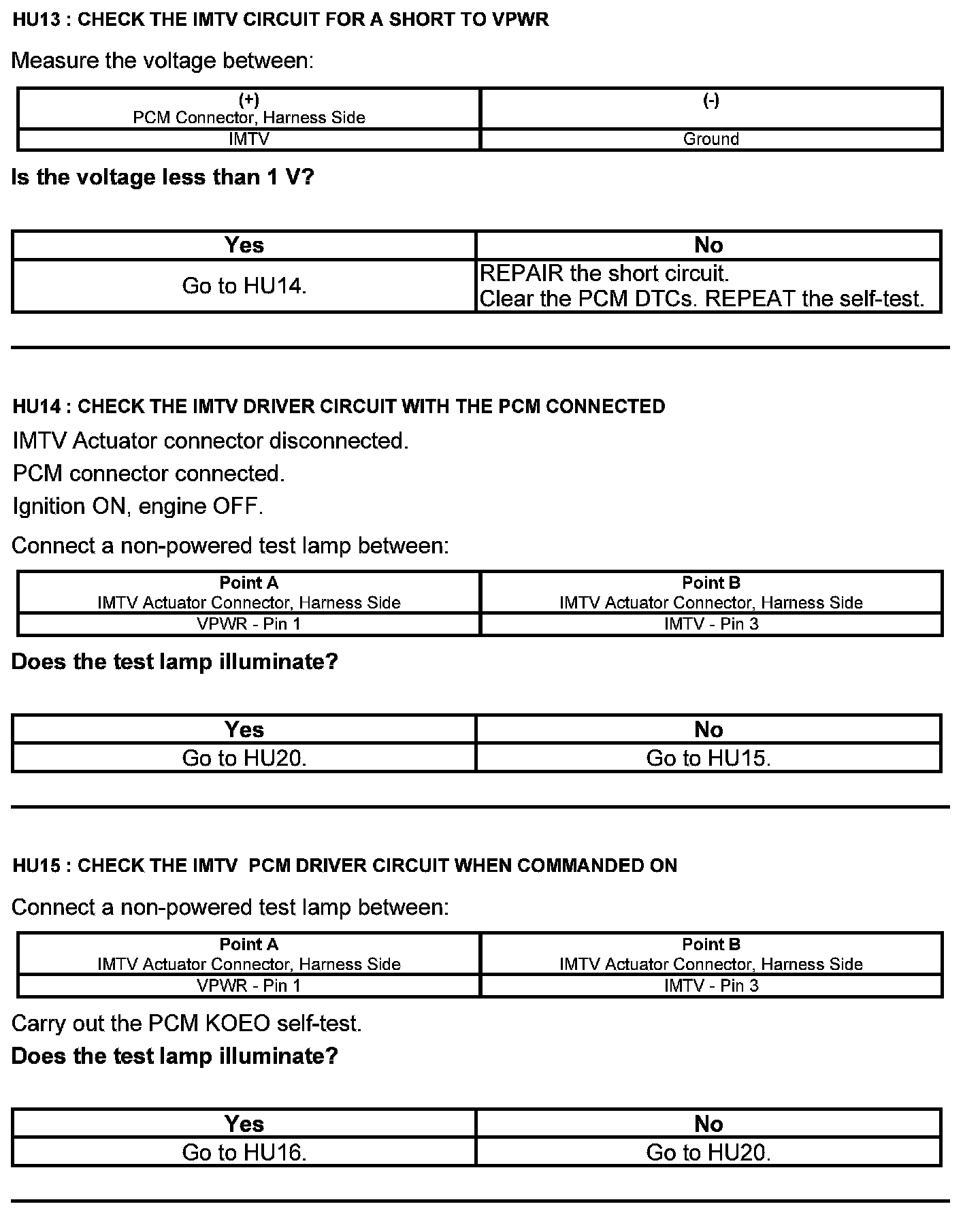

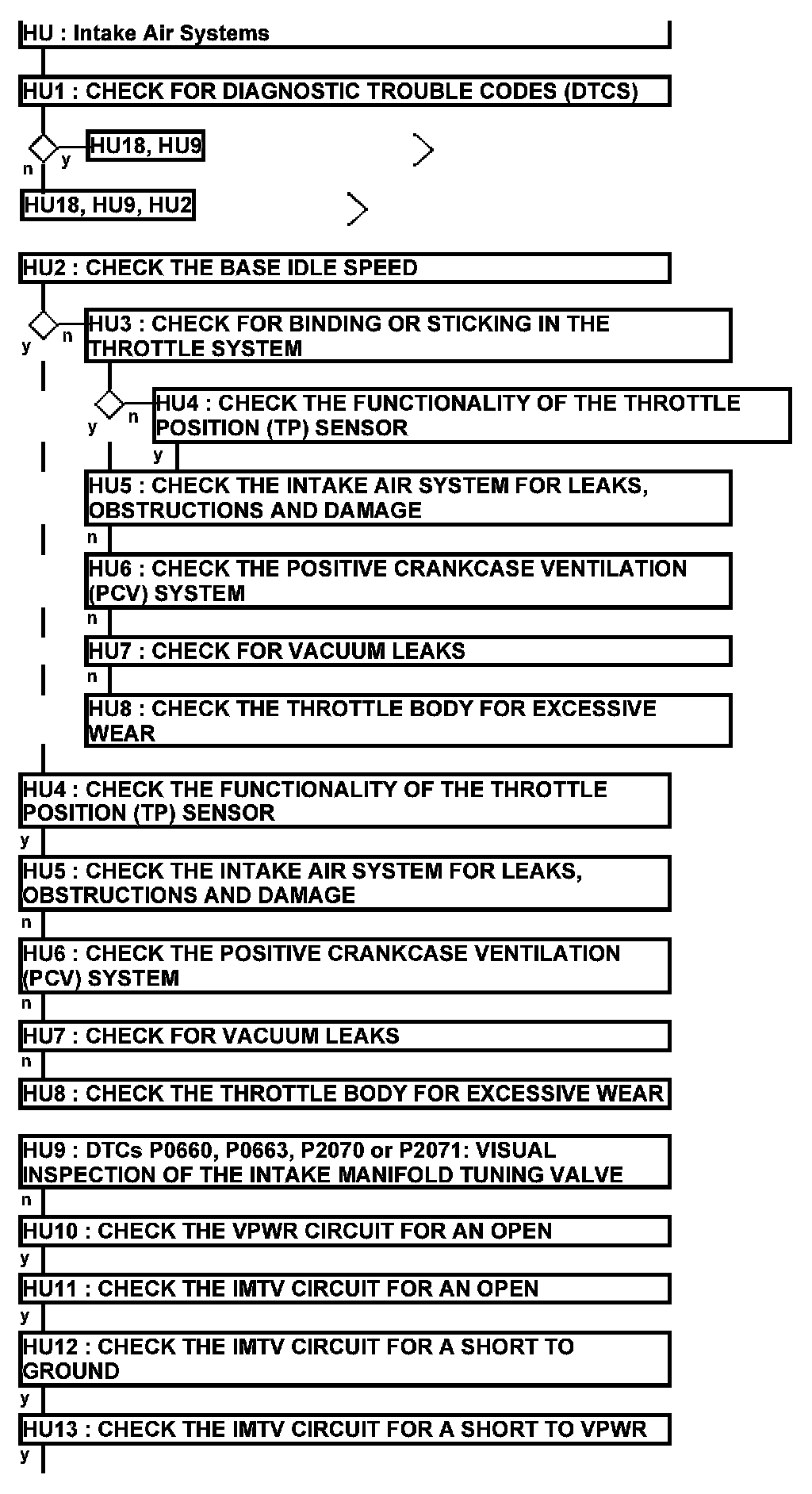

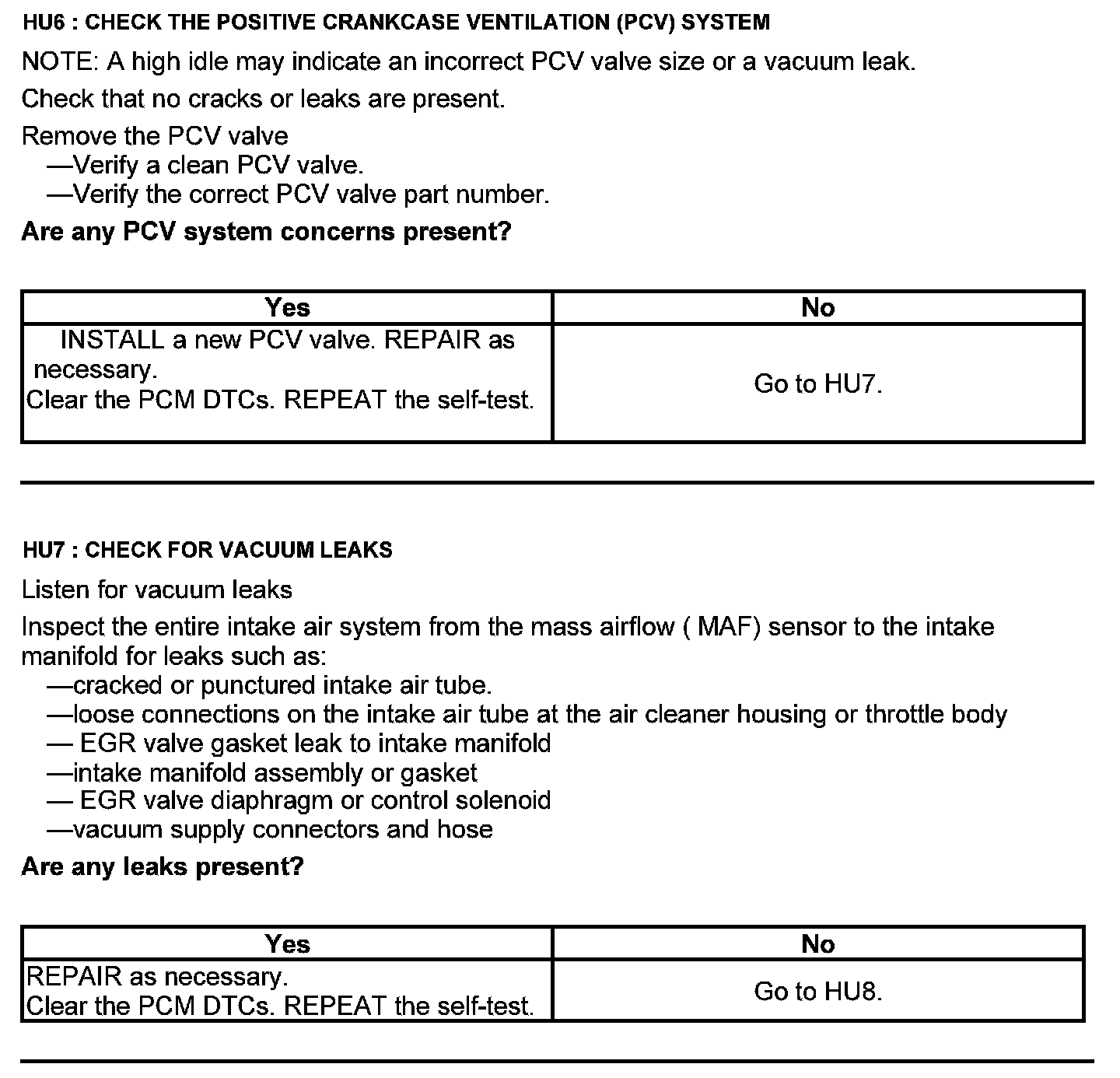

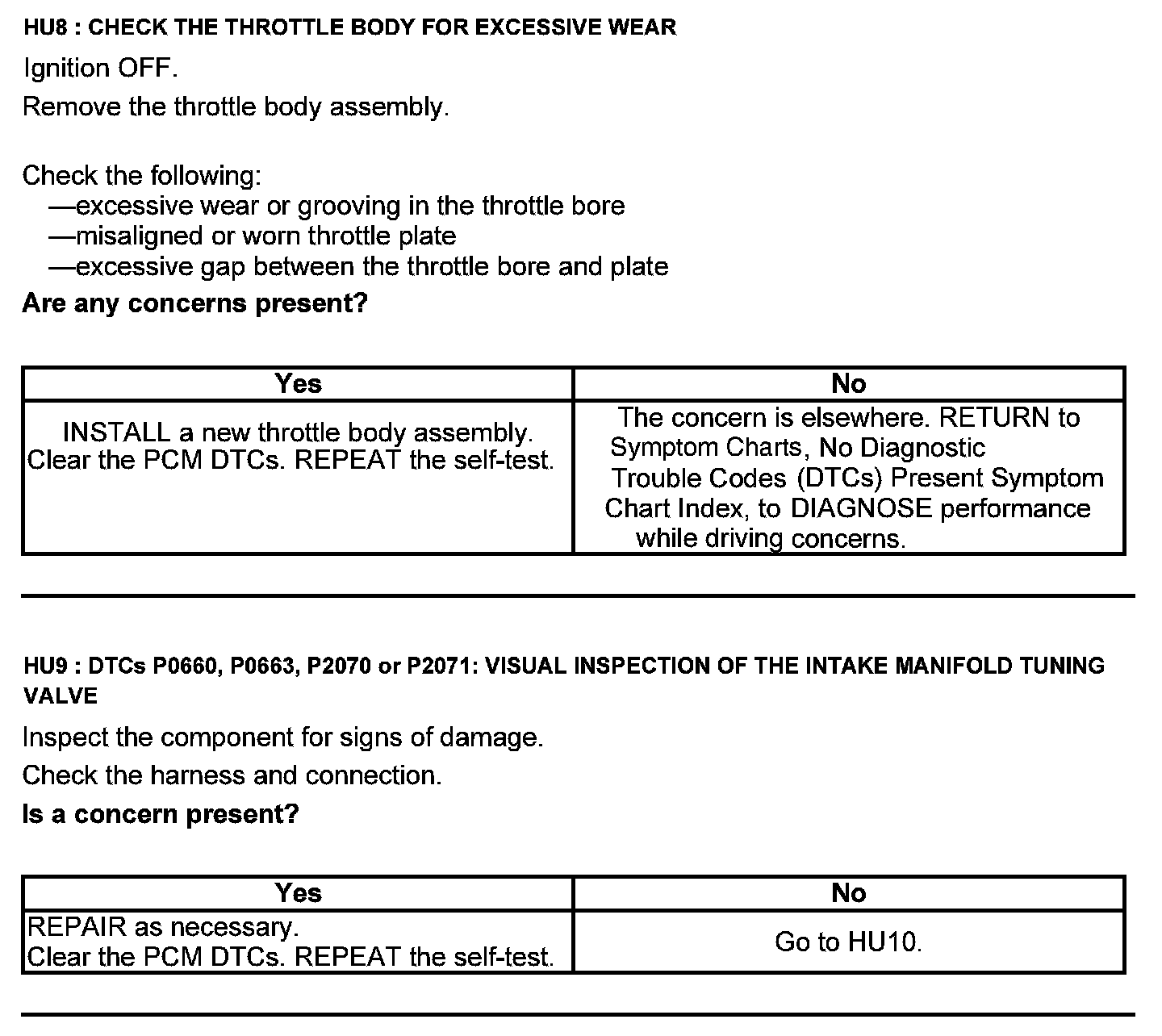

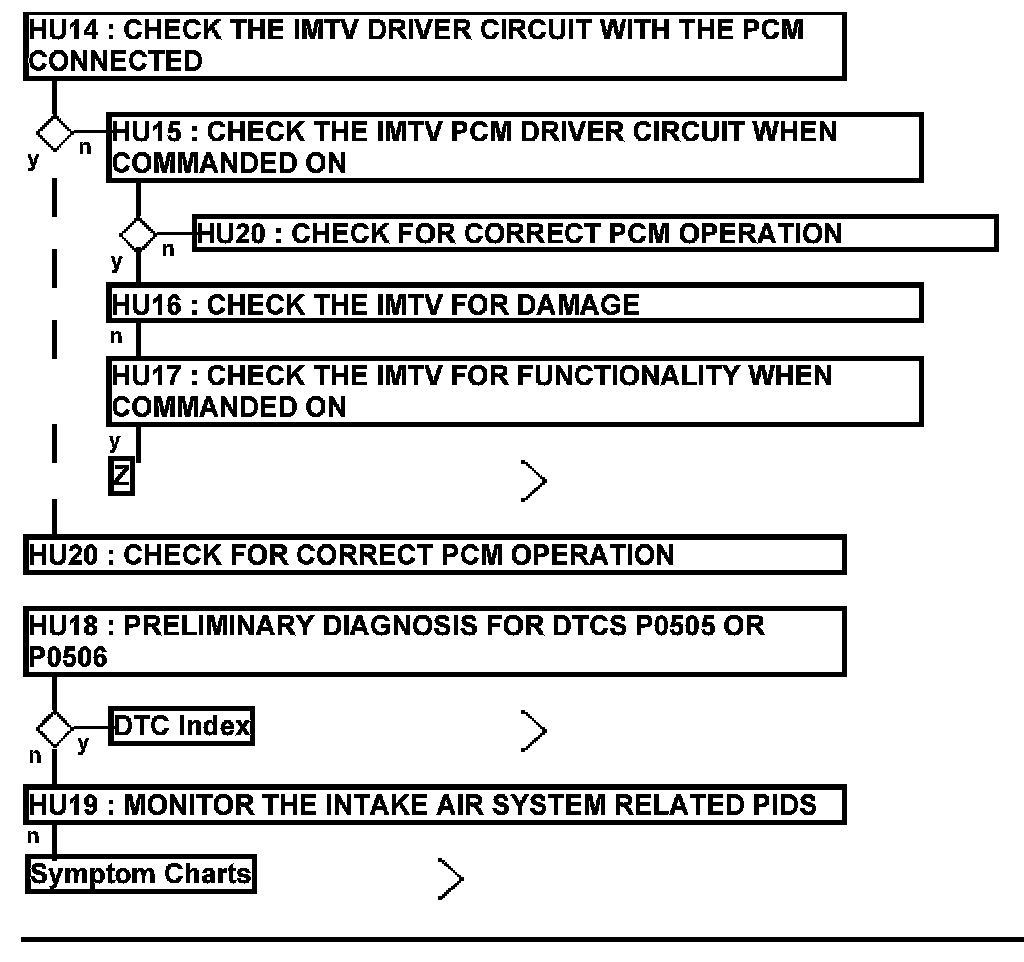

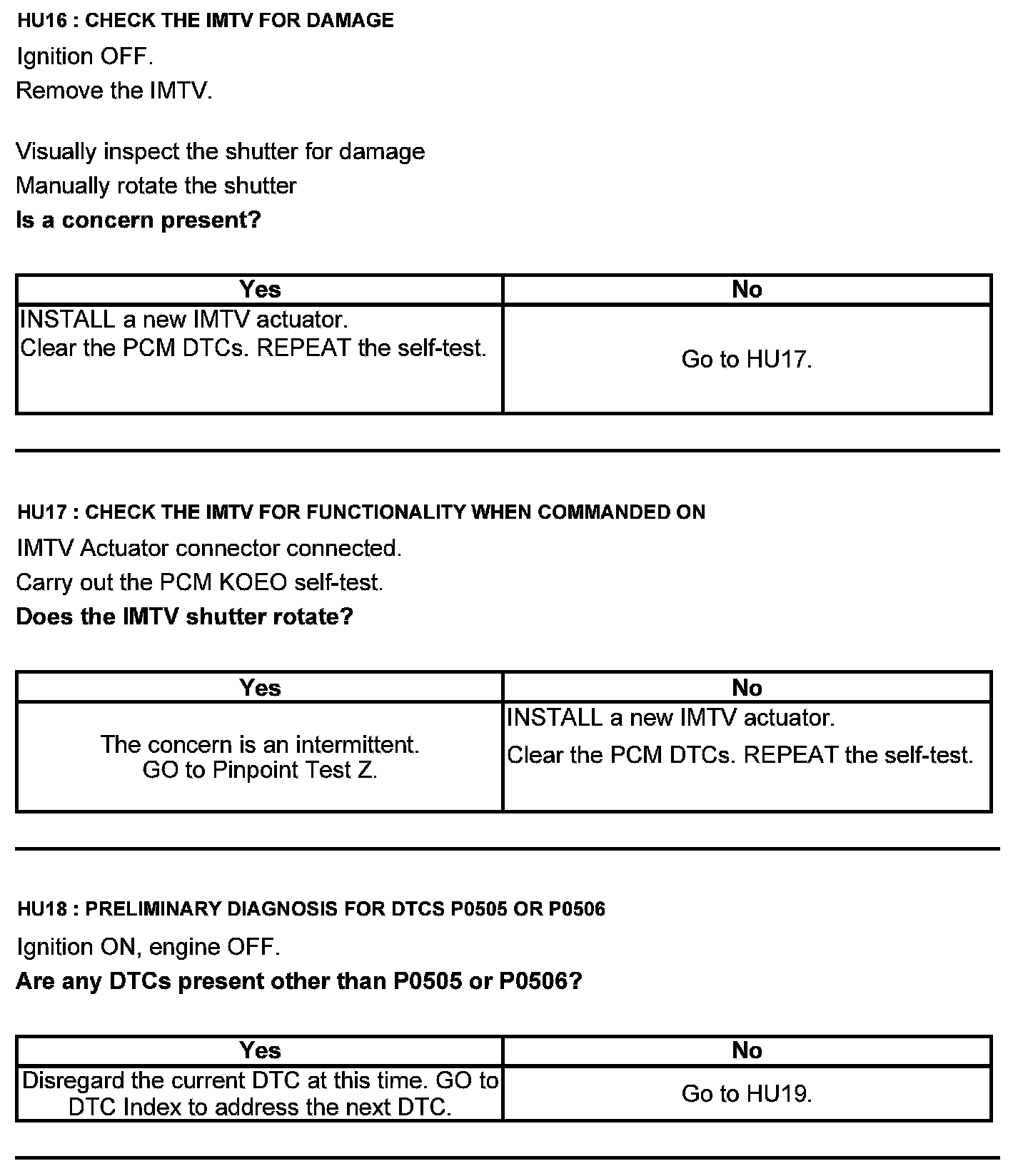

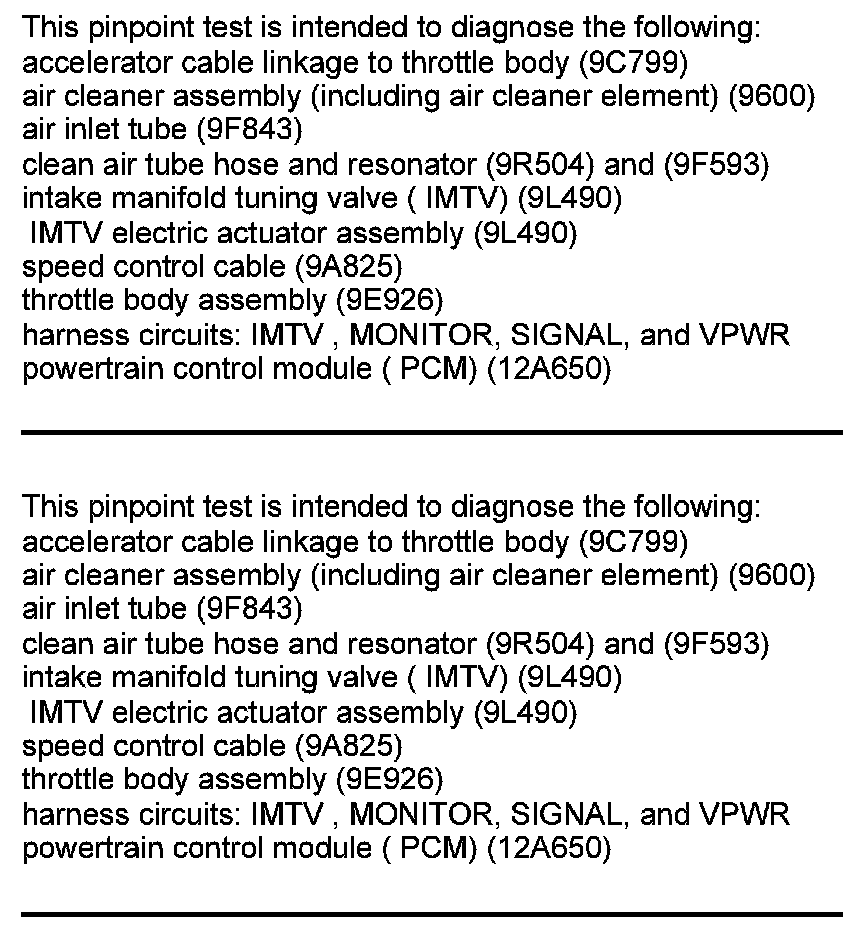

Intake Air Systems - Manual Transmission

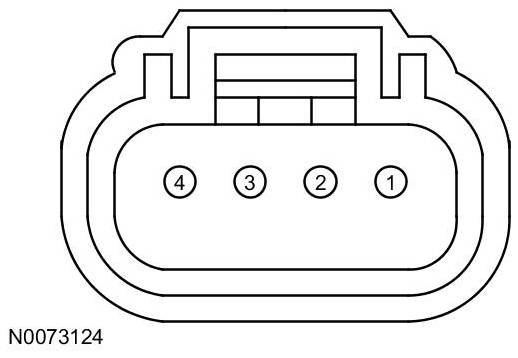

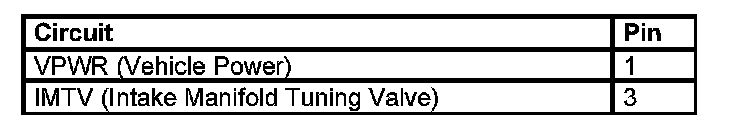

Intake Manifold Tuning Valve (IMTV) Actuator Connector





Harness Side

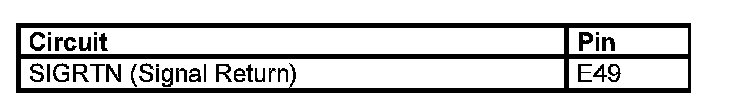

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
