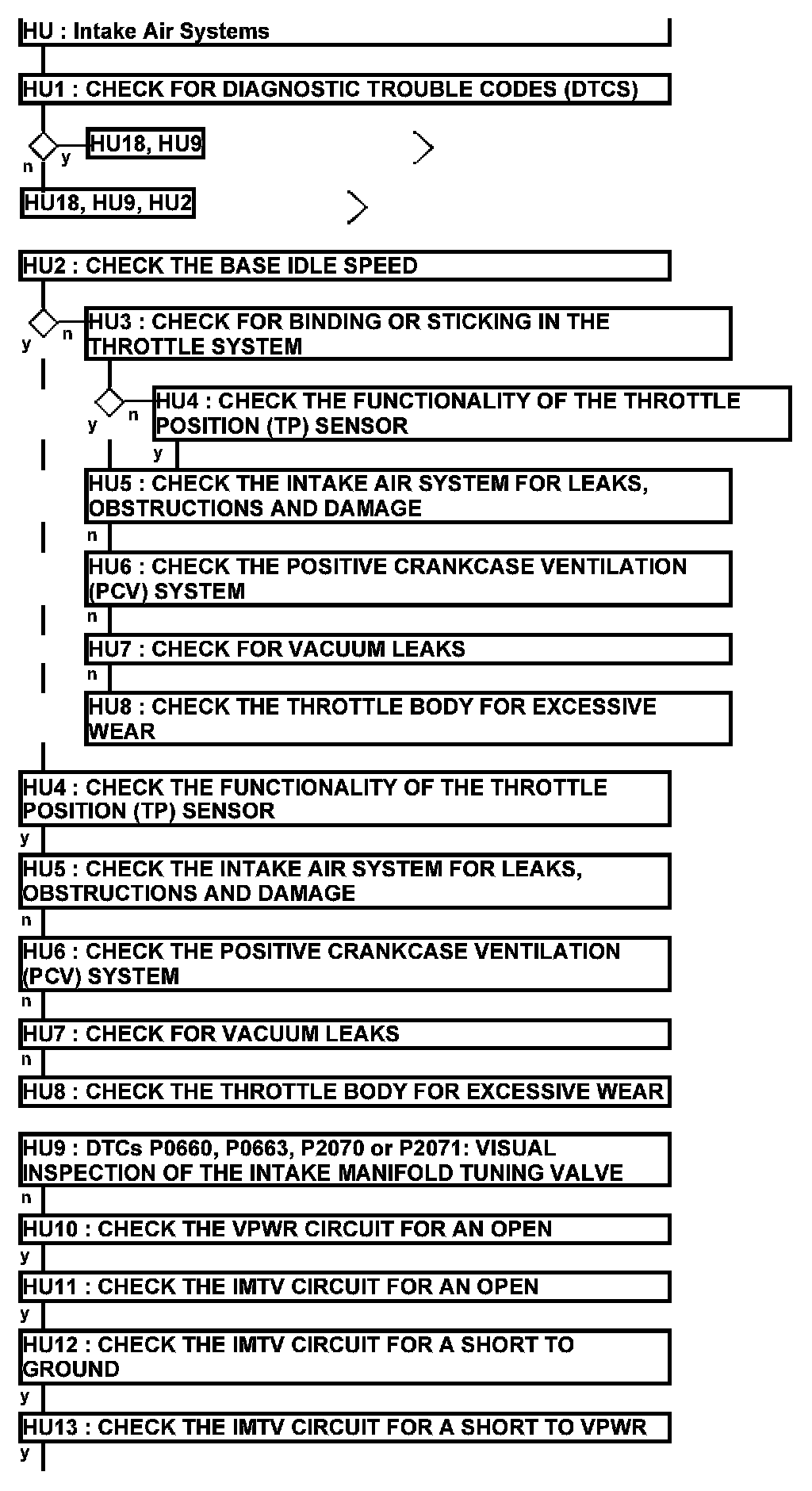

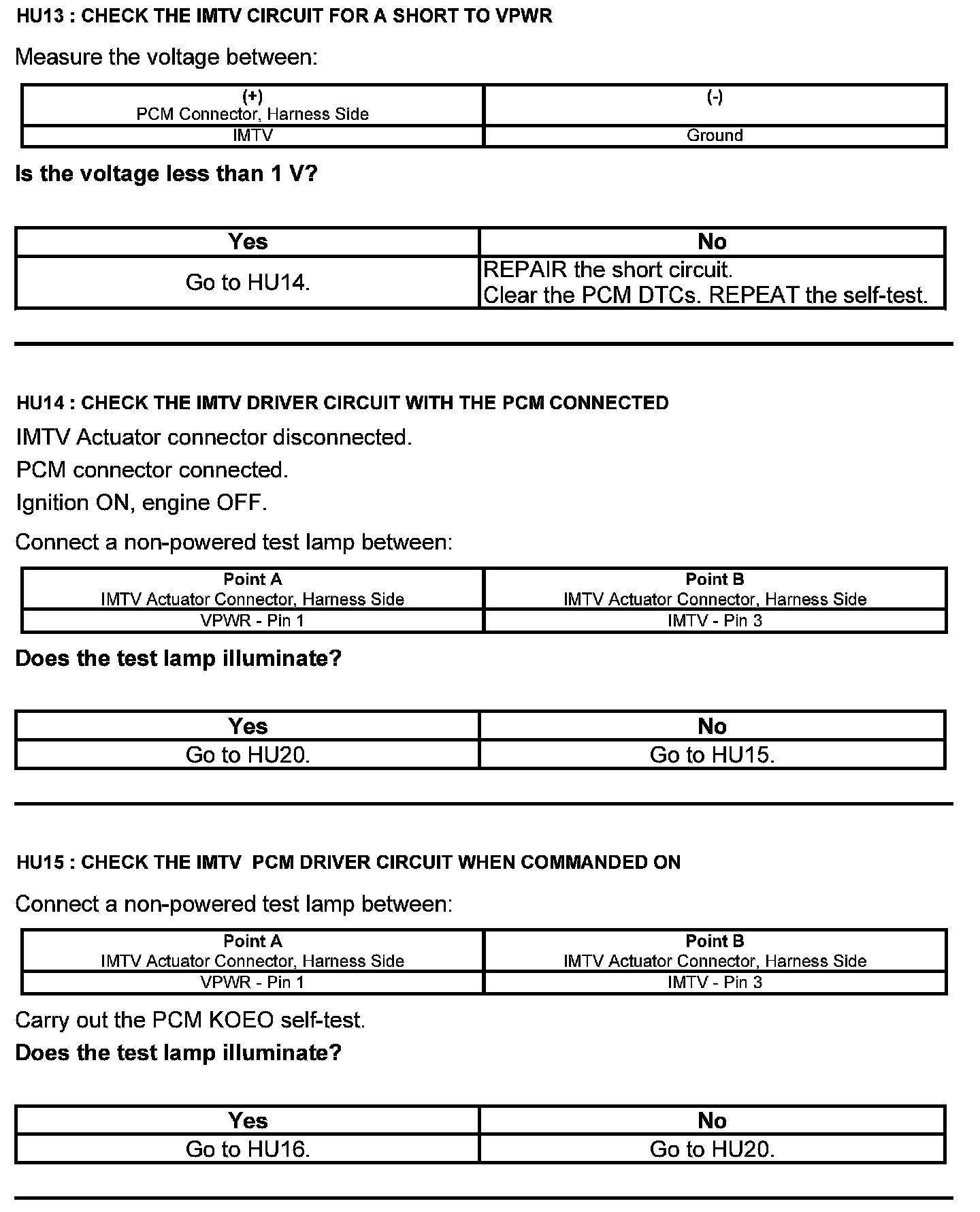

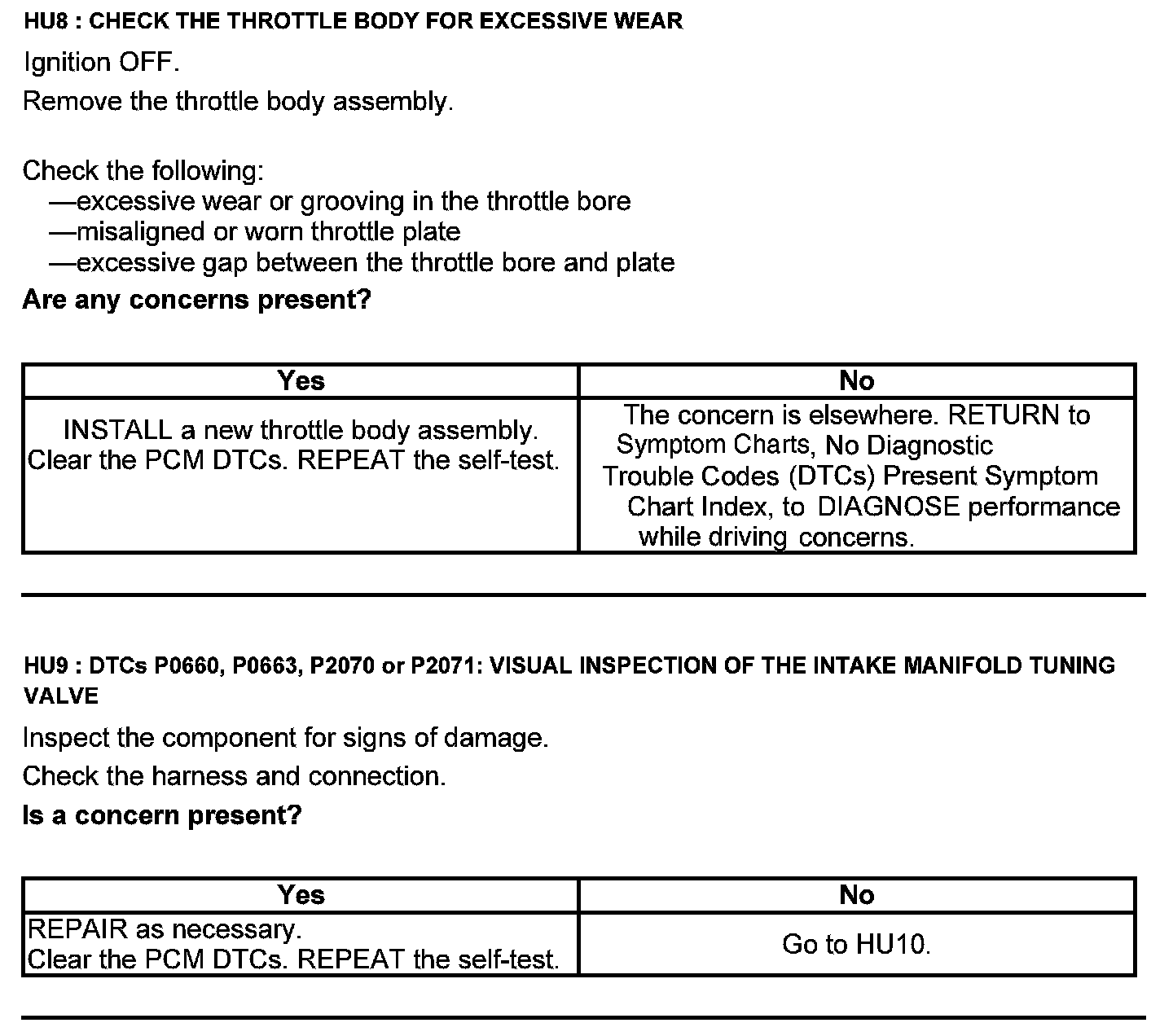

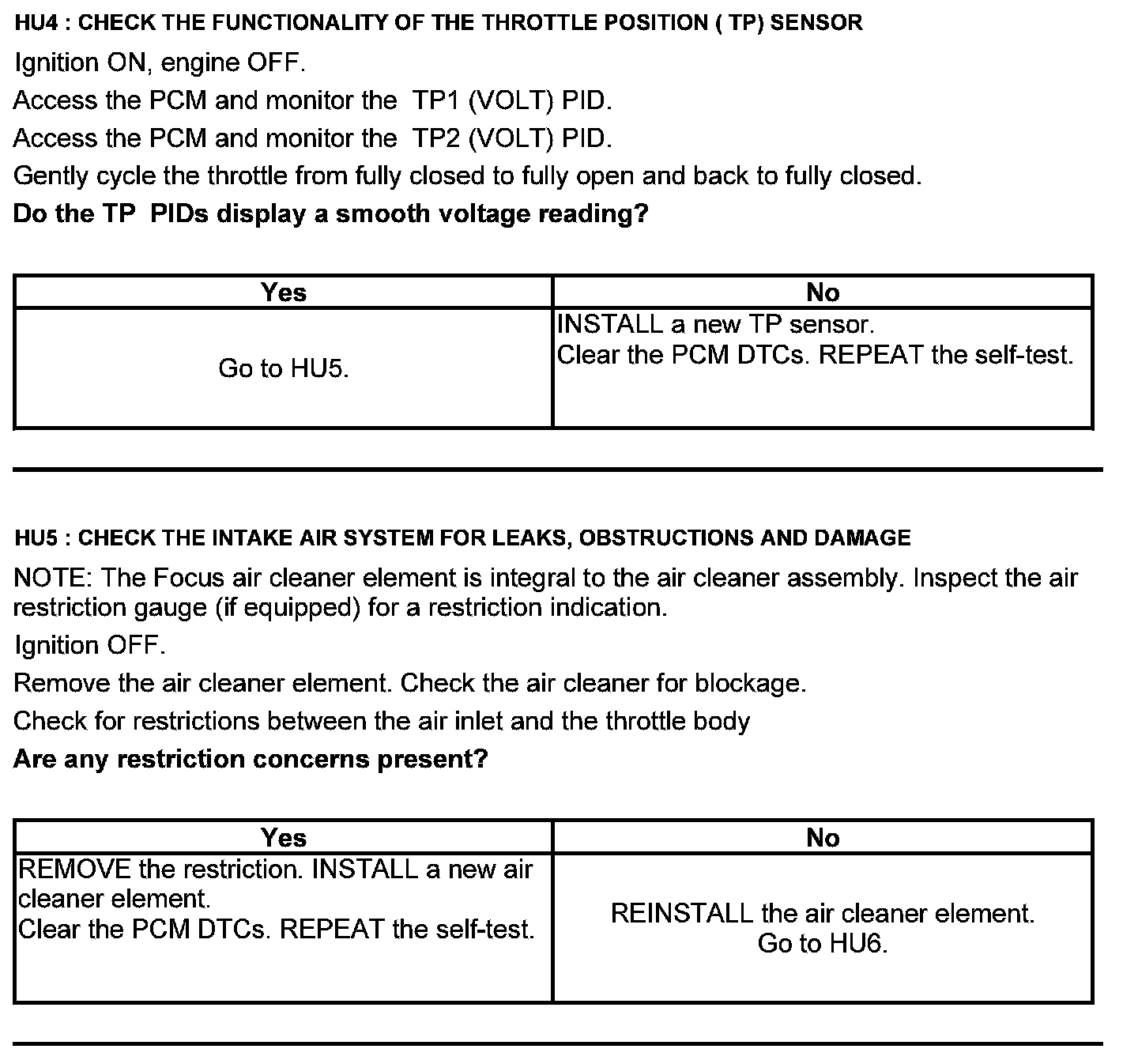

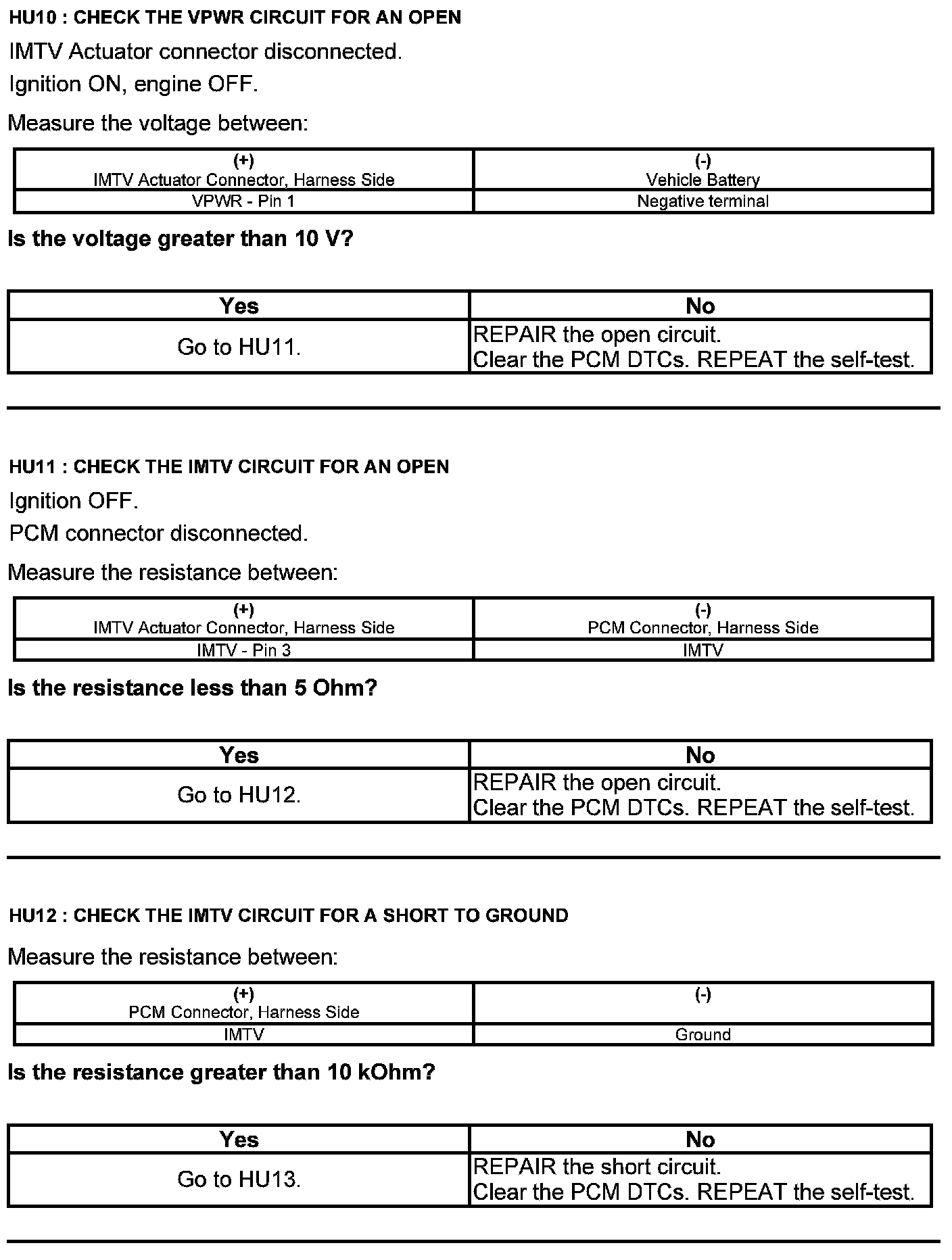

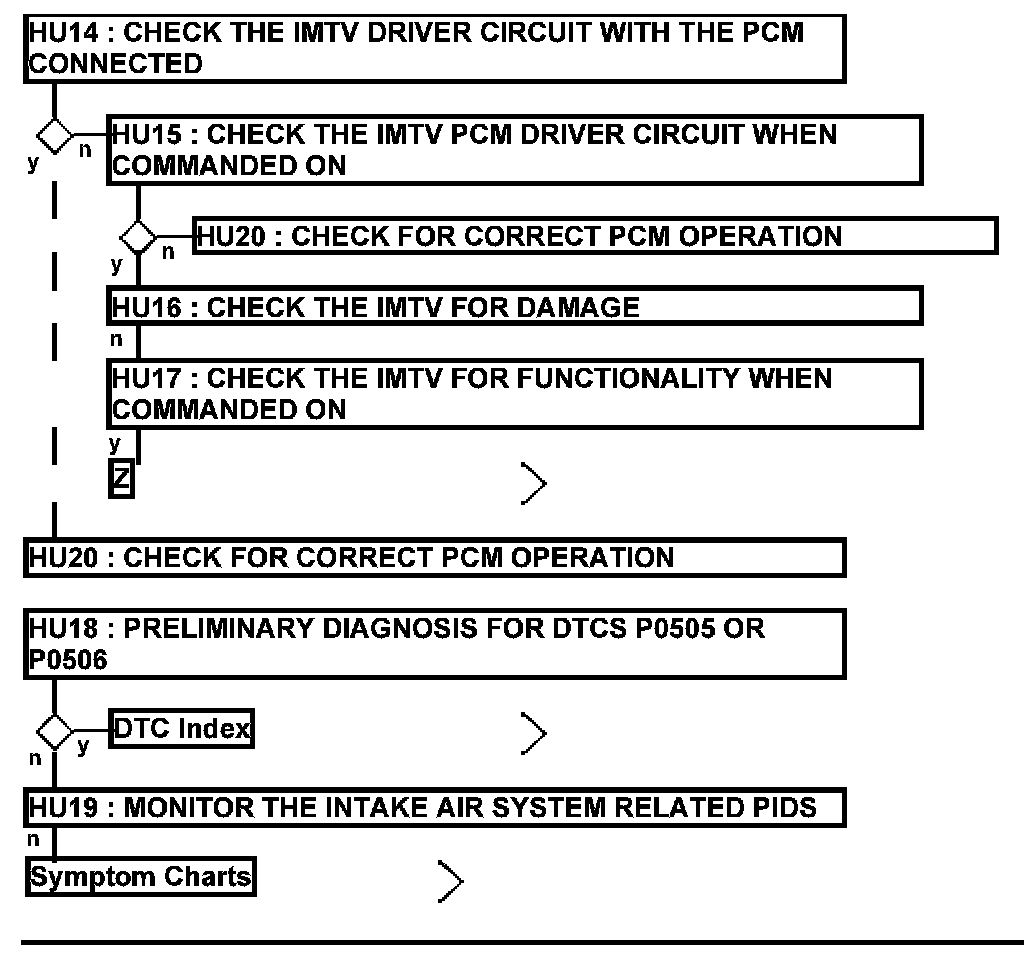

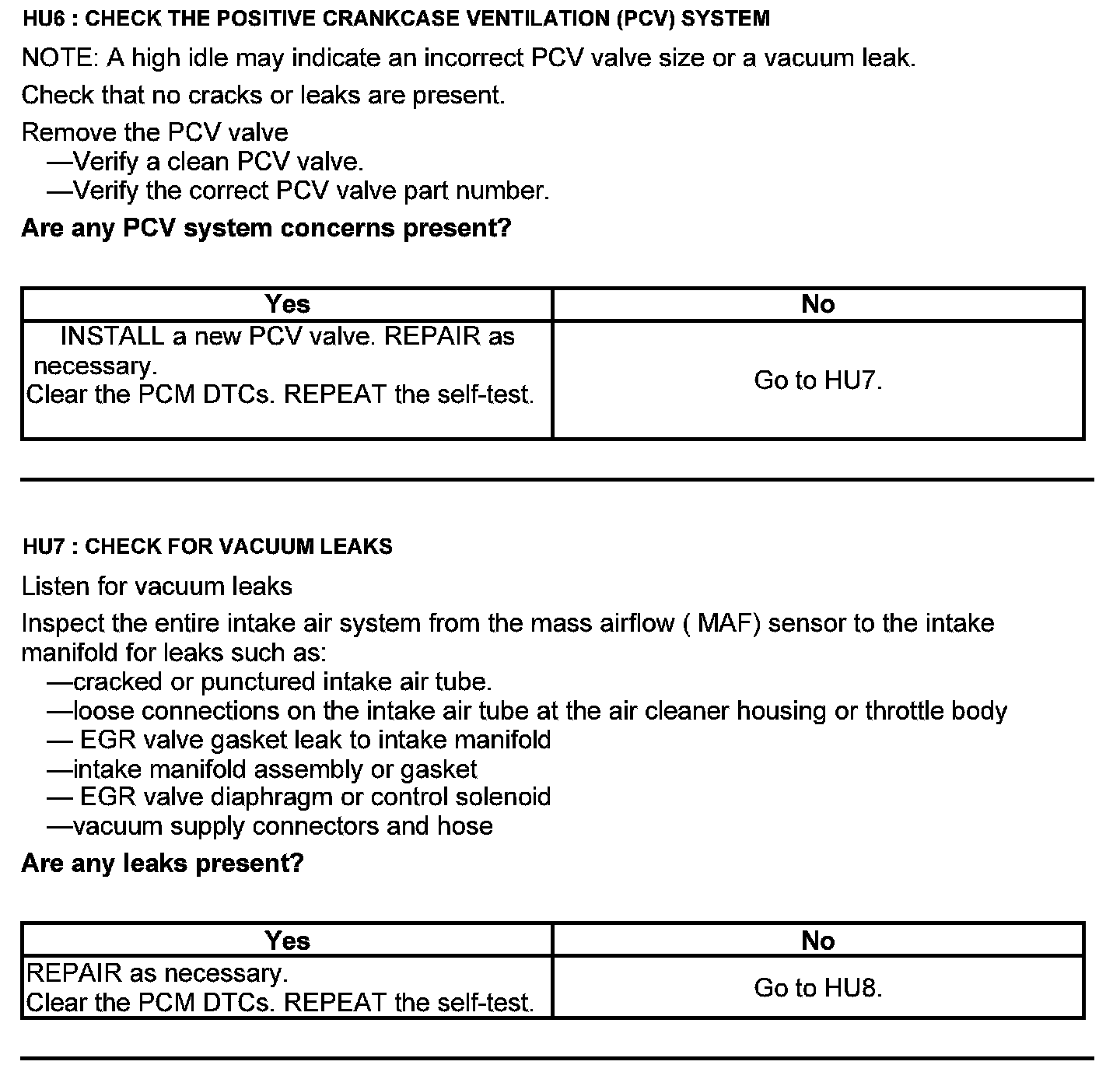

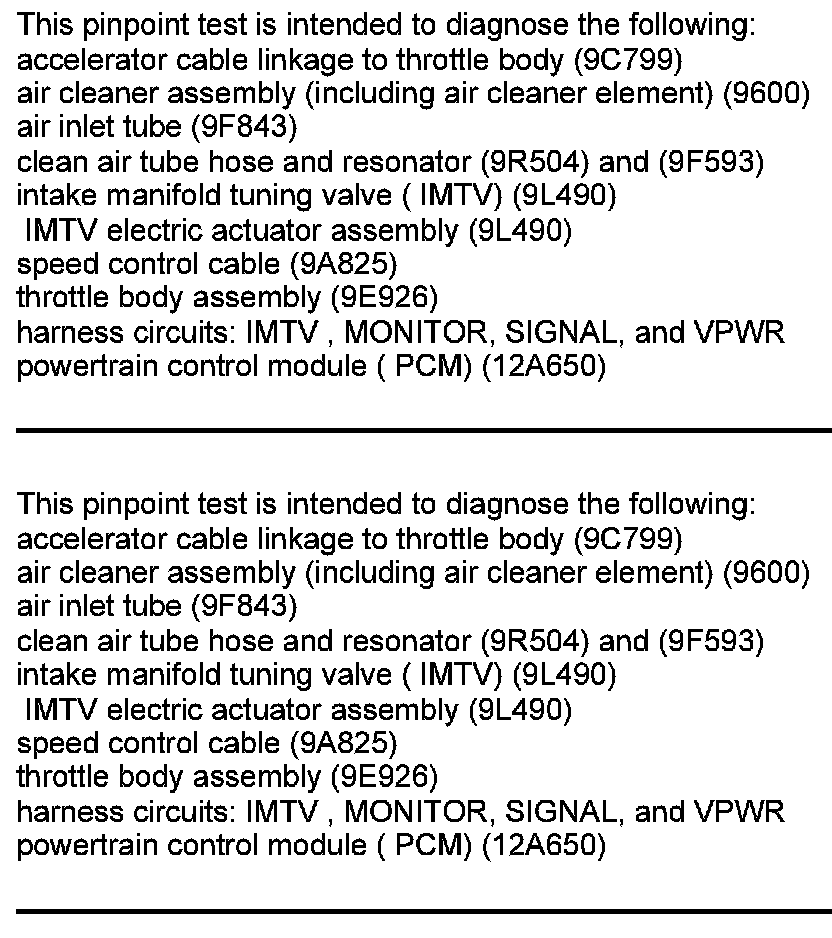

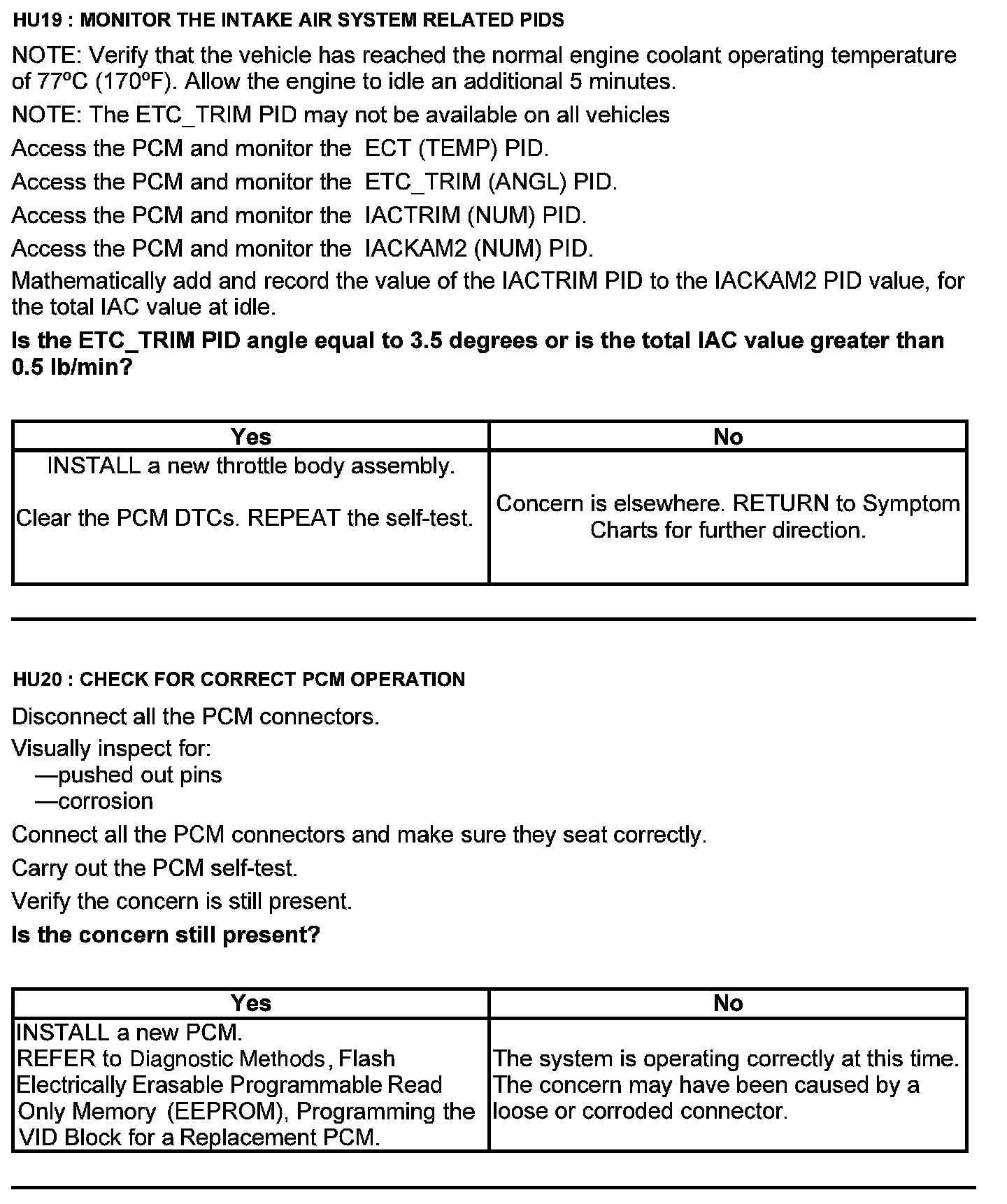

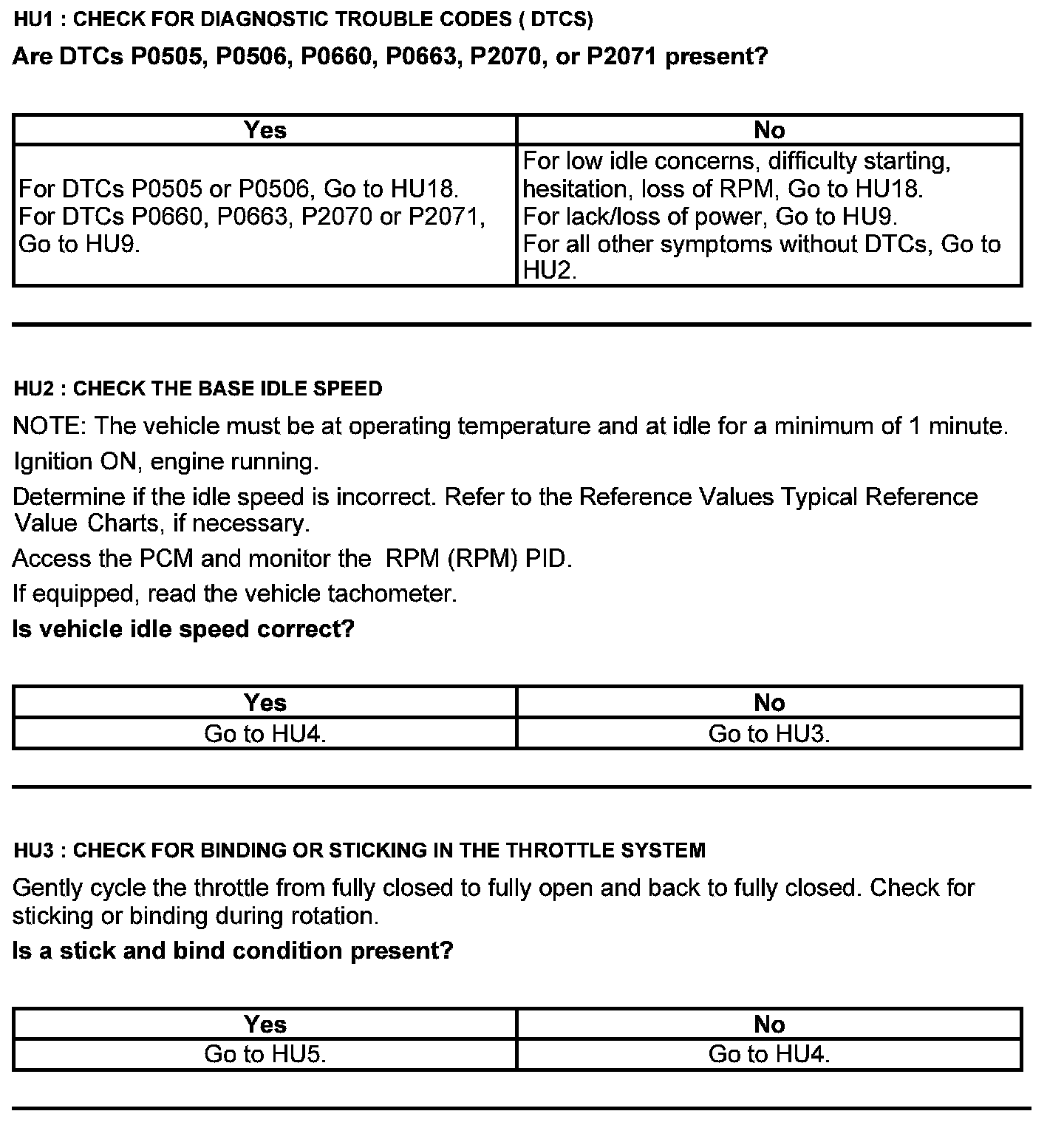

Intake Air Systems - All Others

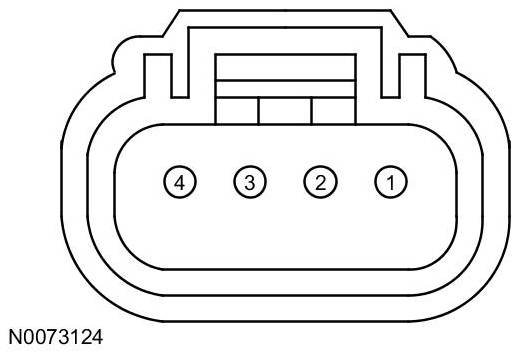

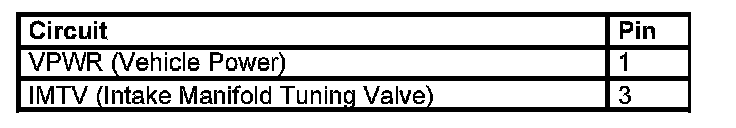

Intake Manifold Tuning Valve (IMTV) Actuator Connector





Harness Side
