Automatic Transmission



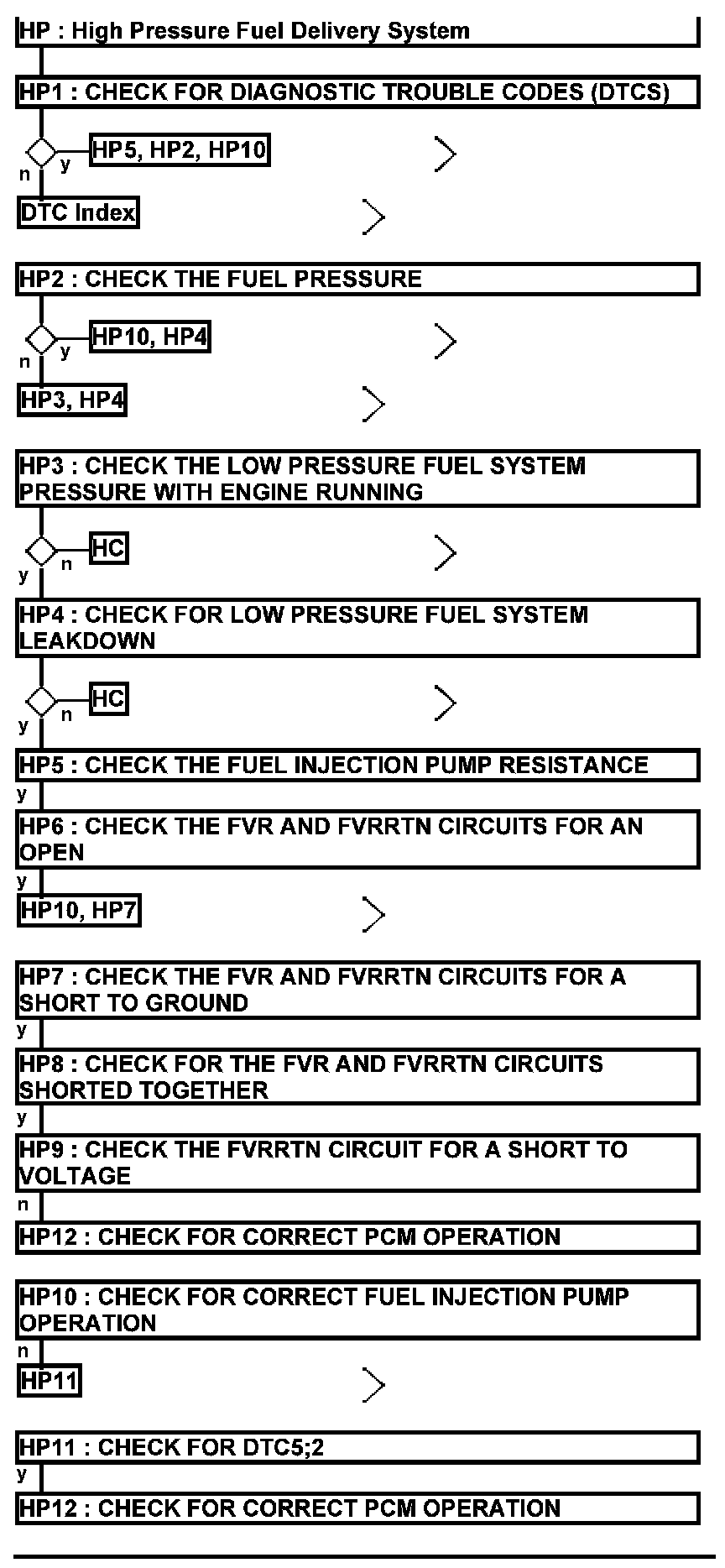

High Pressure Fuel Delivery System - Automatic Transmission

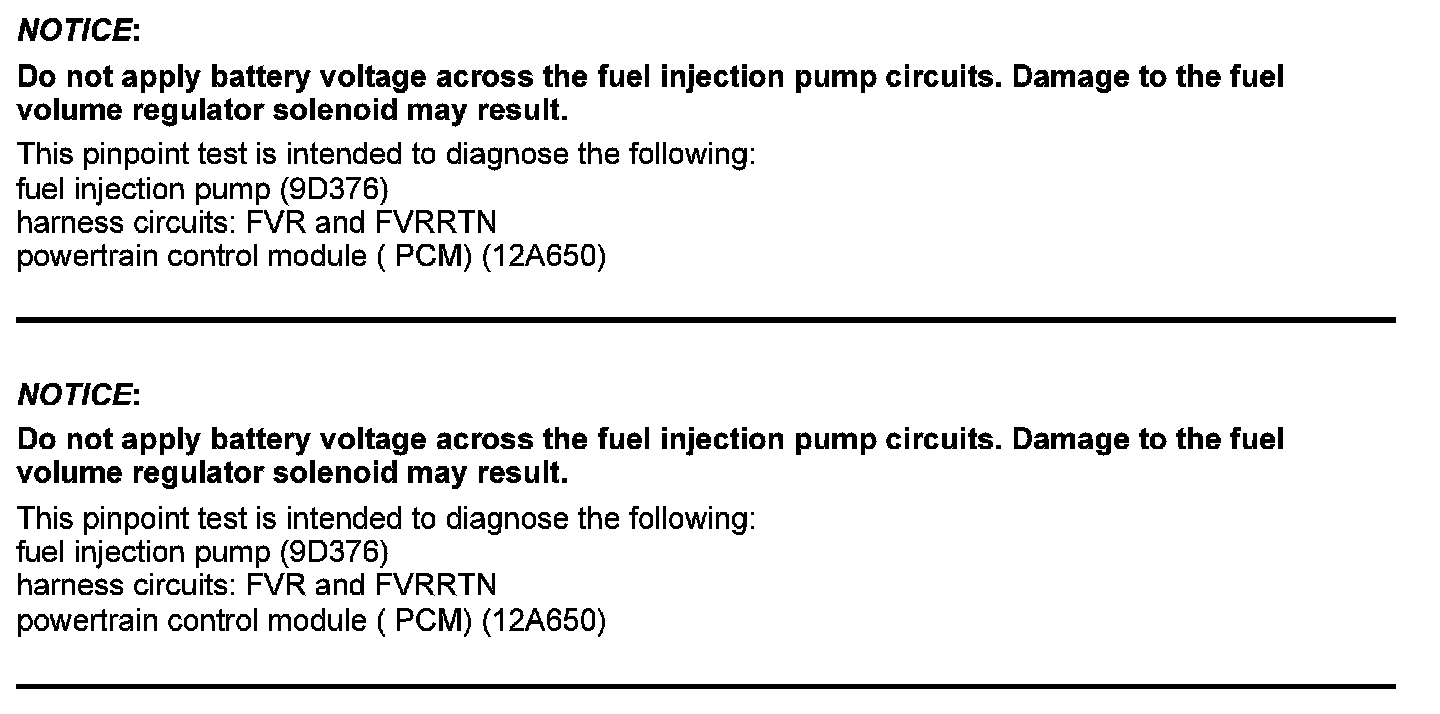

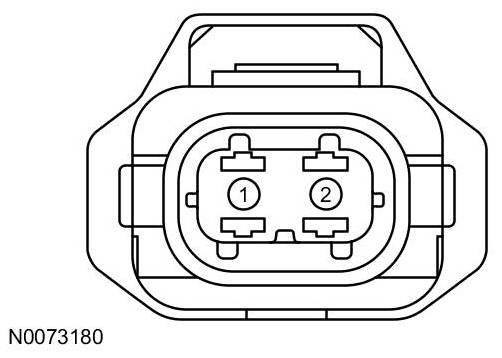

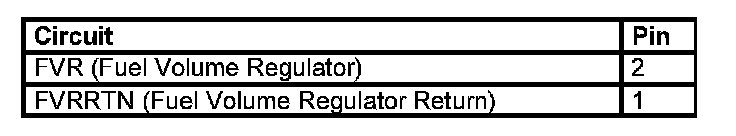

Fuel Injection Pump Connector





Harness Side






Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
