Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test HP: High Pressure Fuel Delivery System >> All Others

All Others

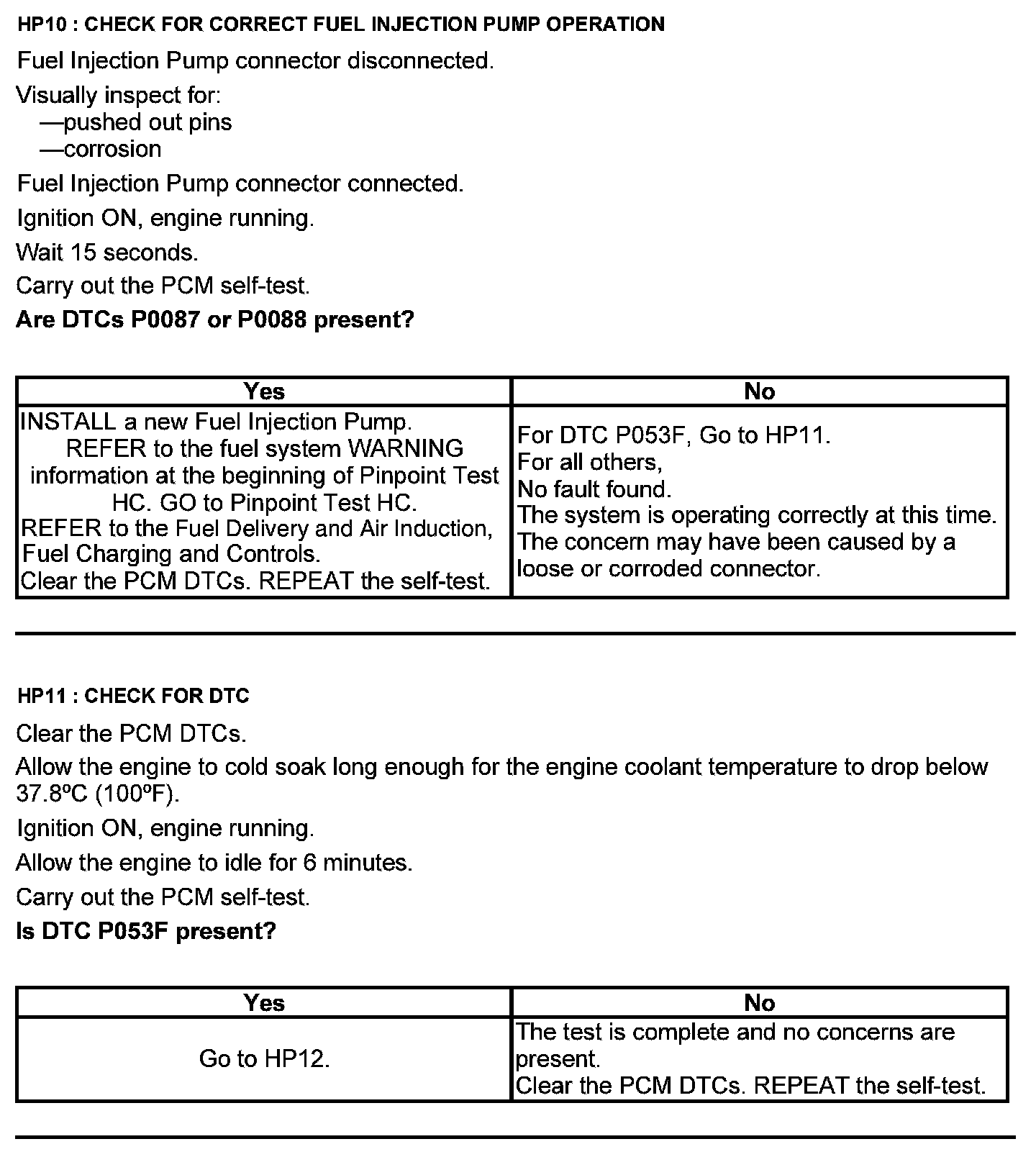

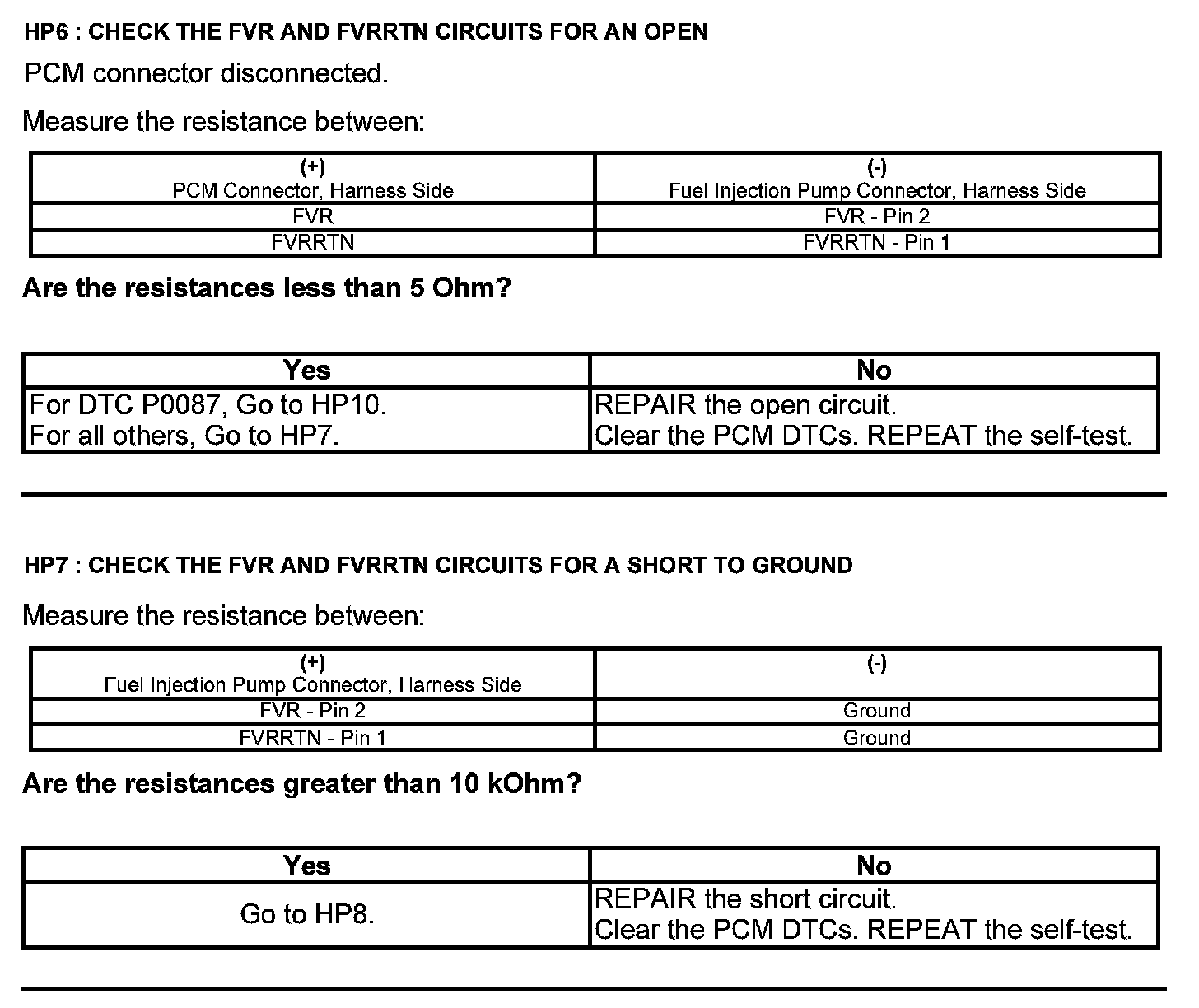

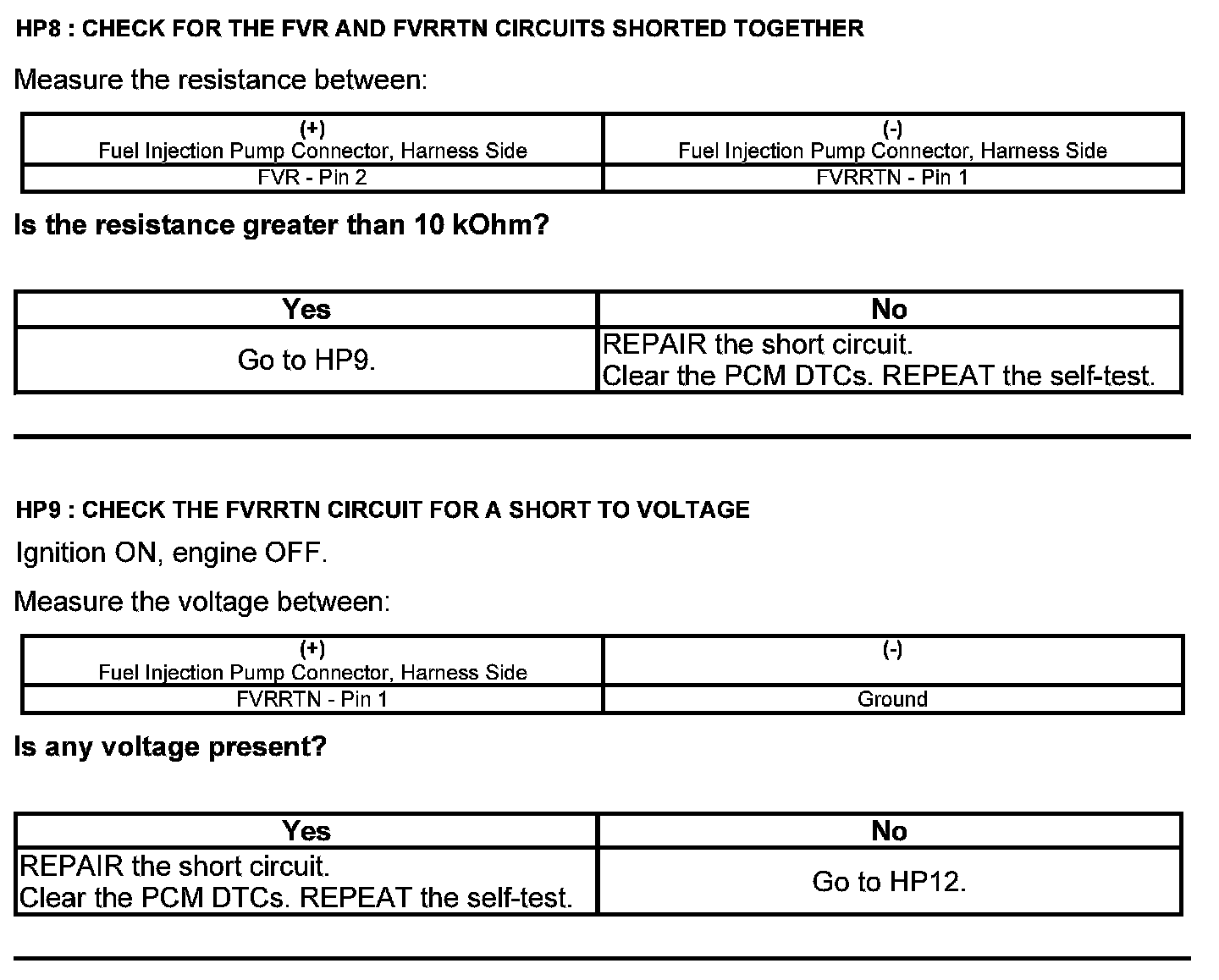

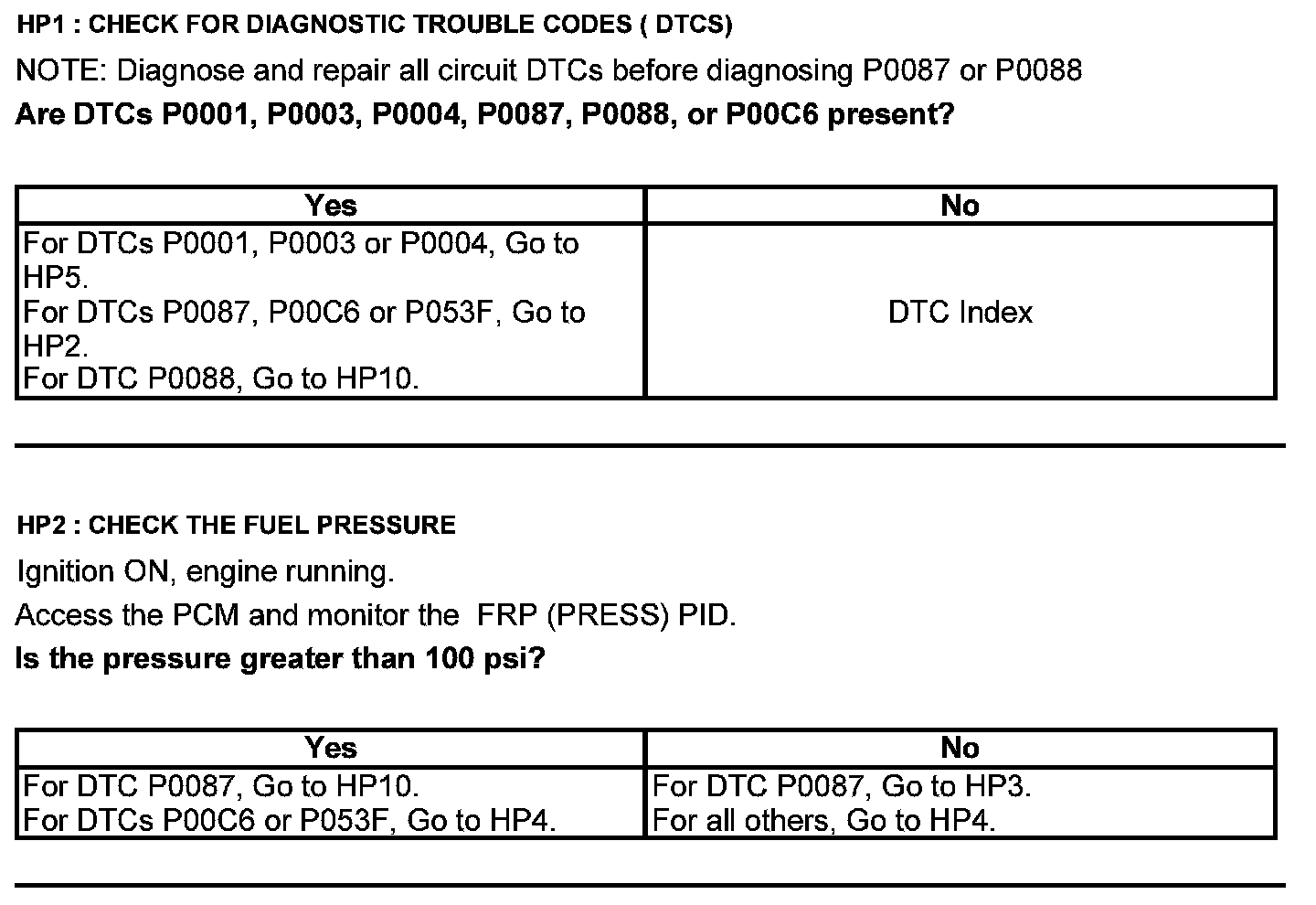

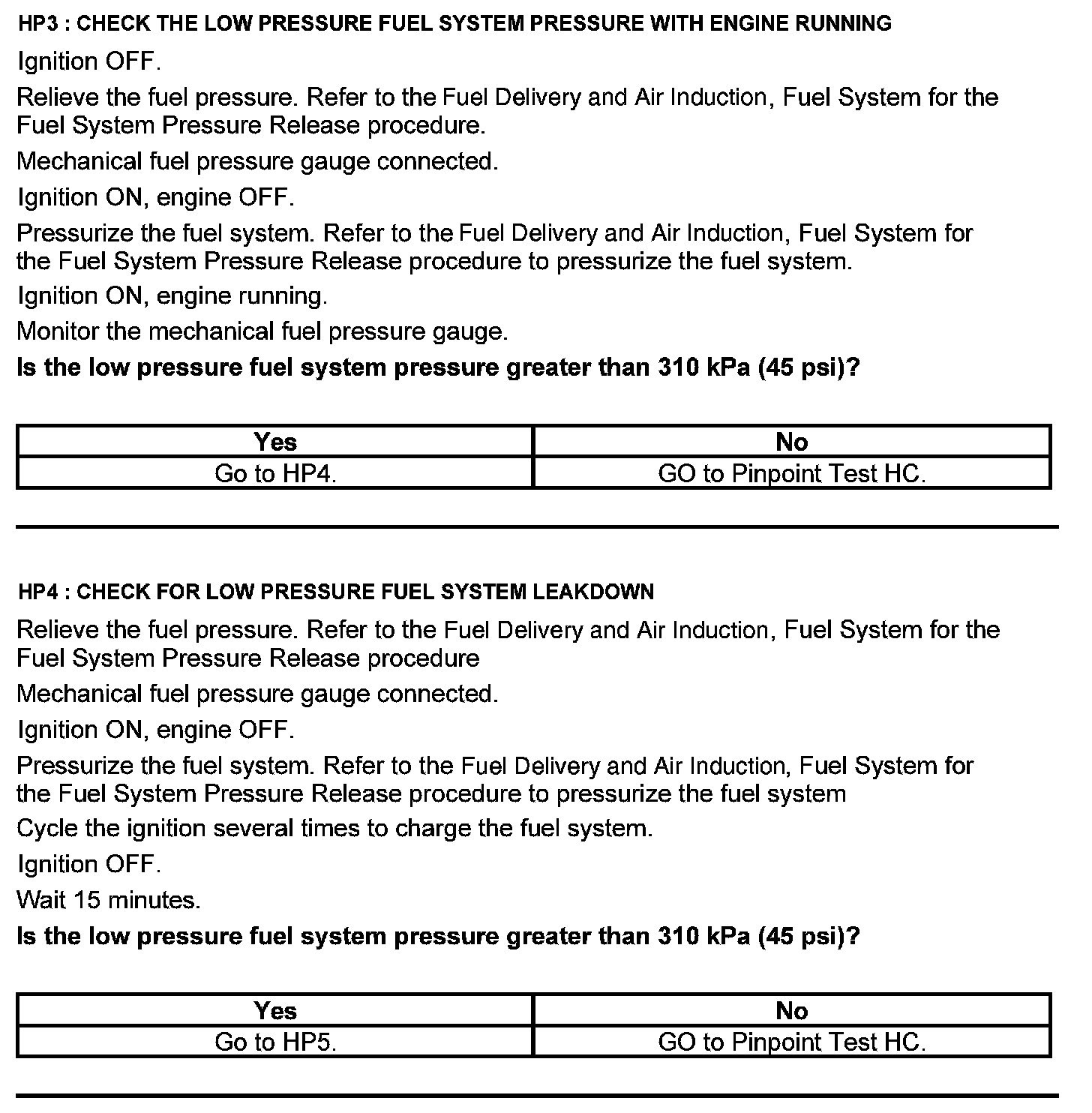

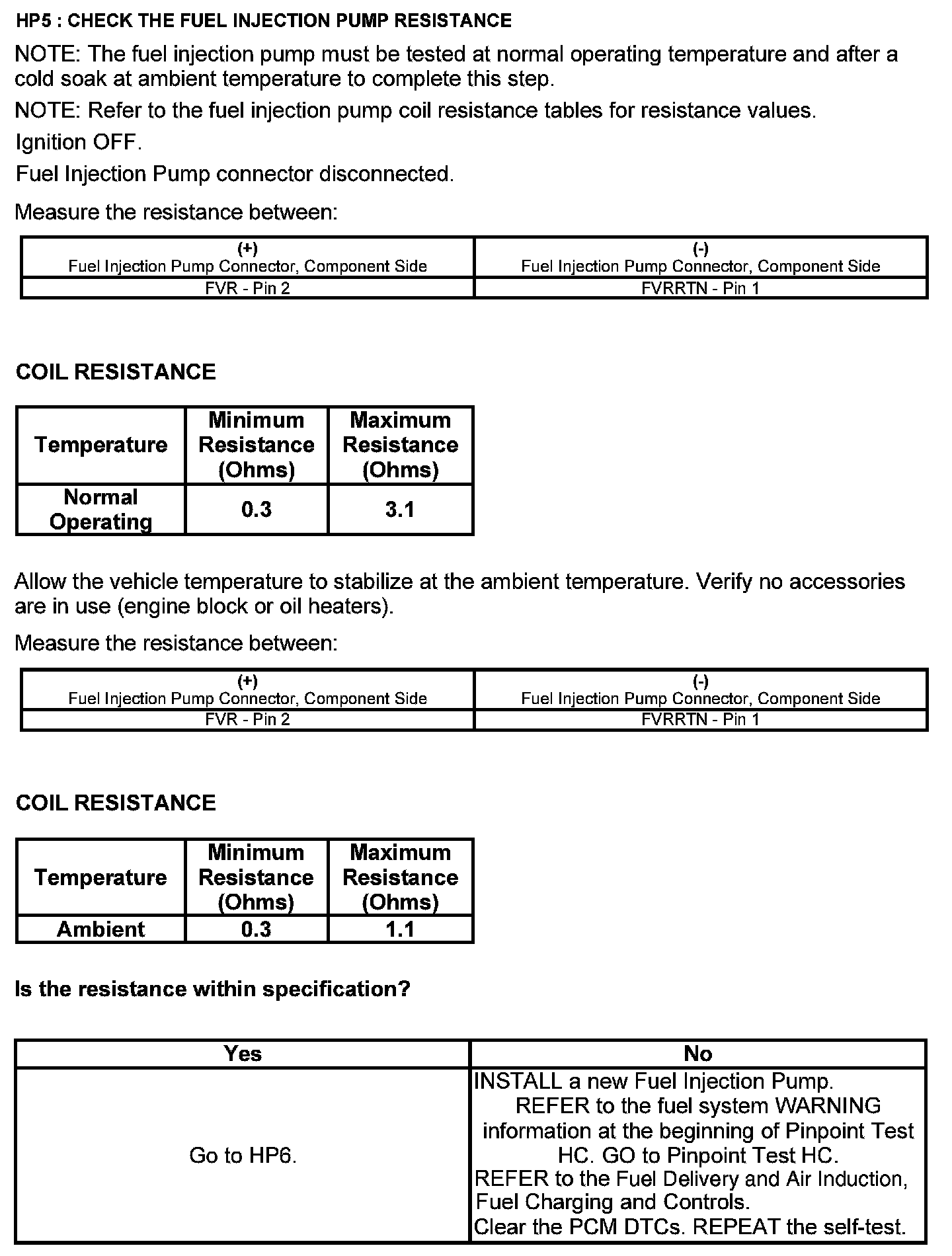

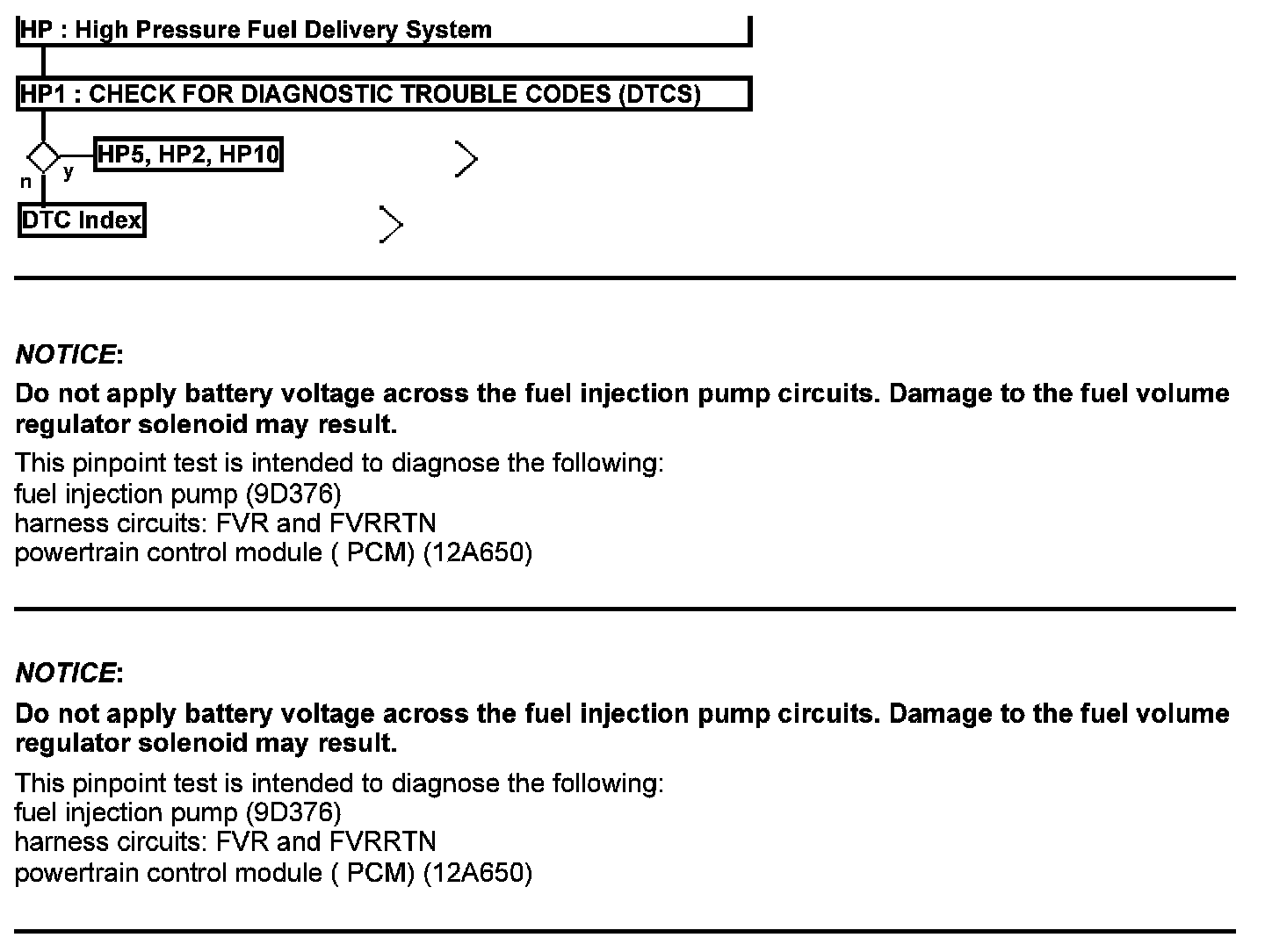

High Pressure Fuel Delivery System - All Others

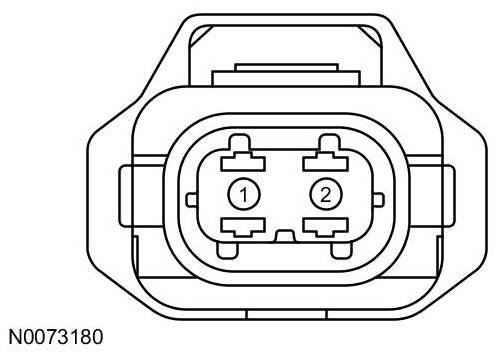

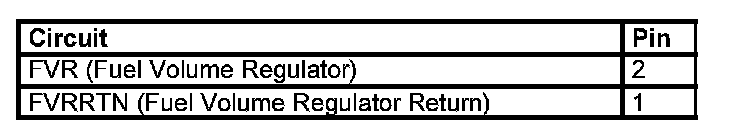

Fuel Injection Pump Connector





Harness Side
