Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test HK: Variable Camshaft Timing (VCT) >> All Others

All Others

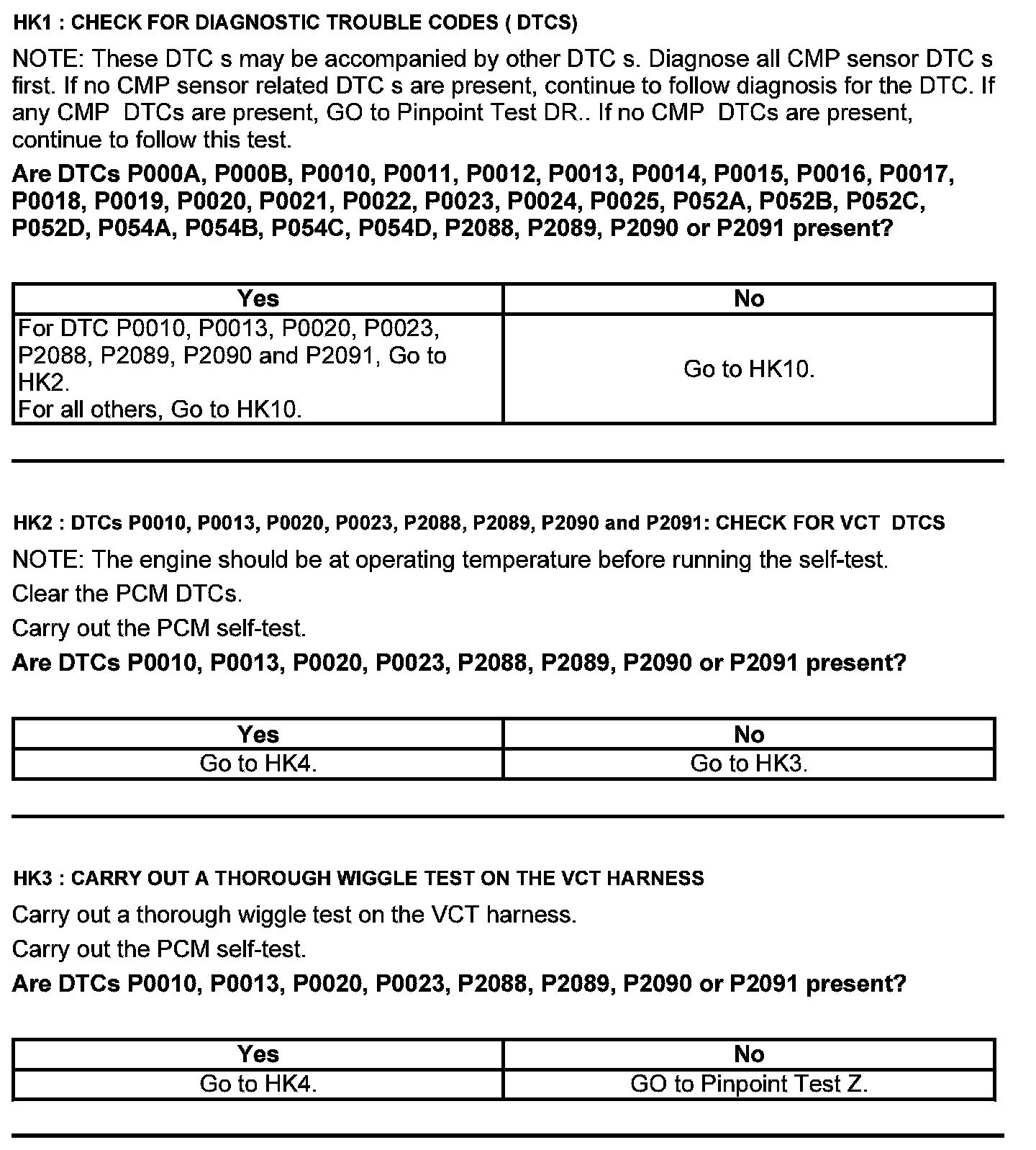

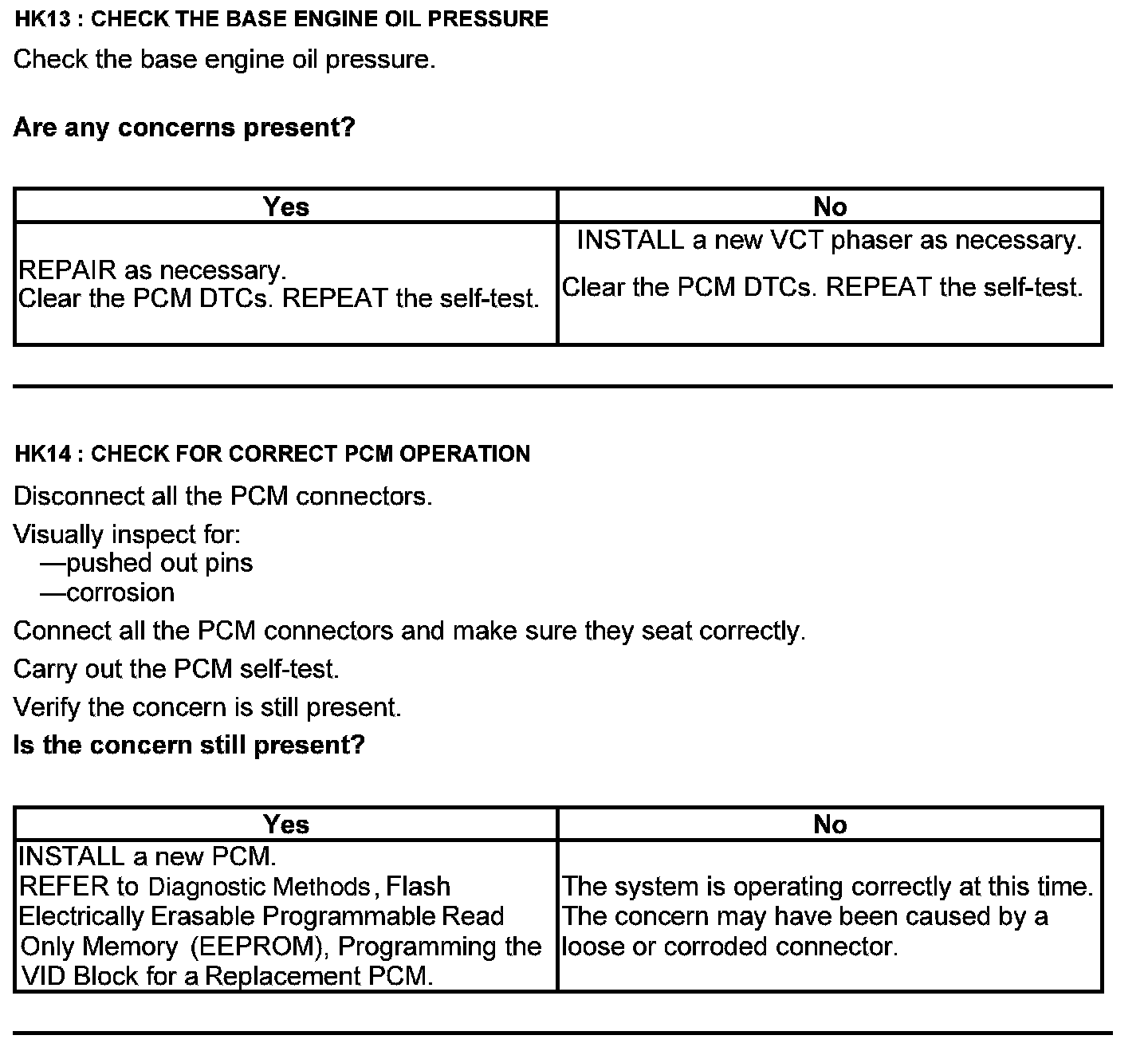

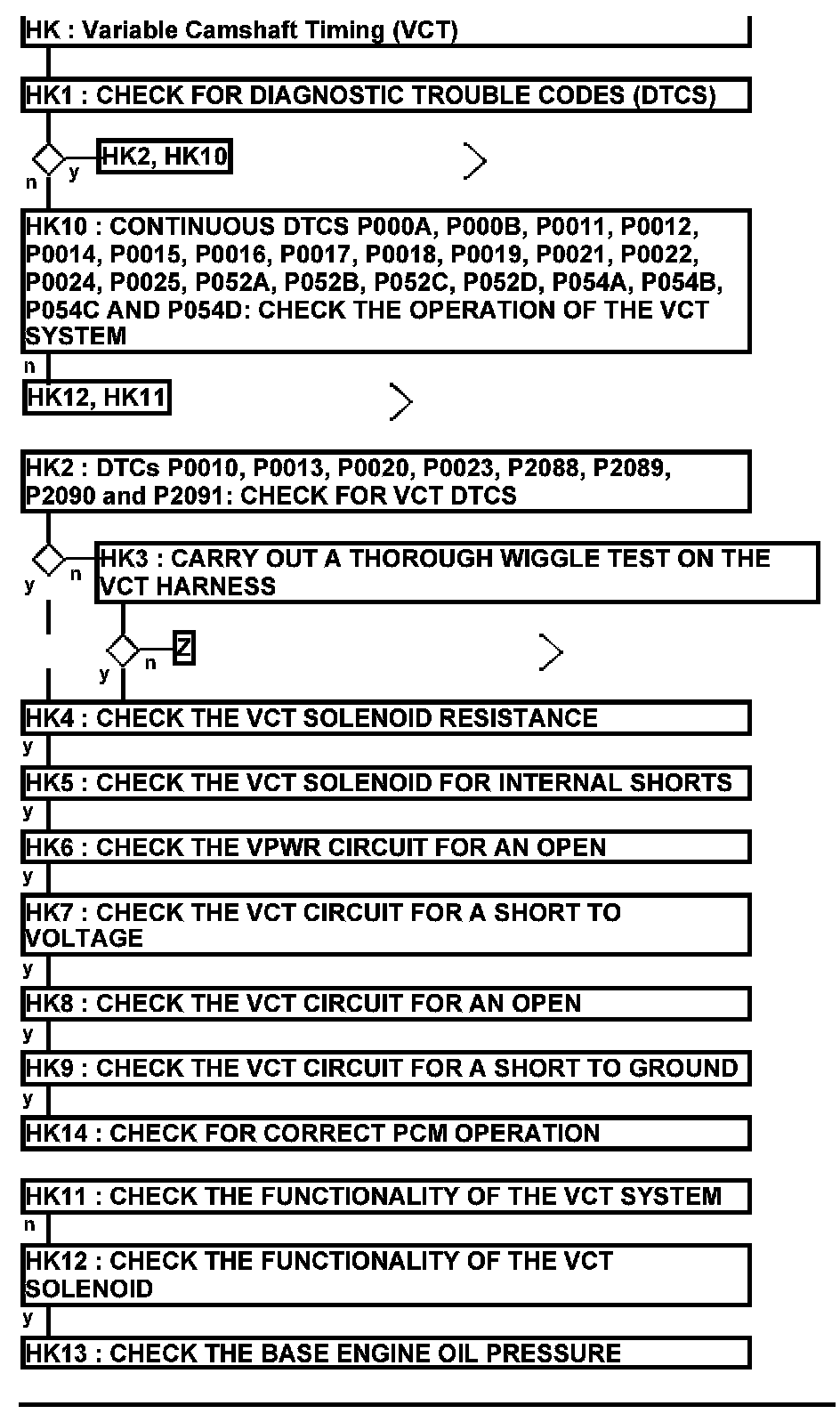

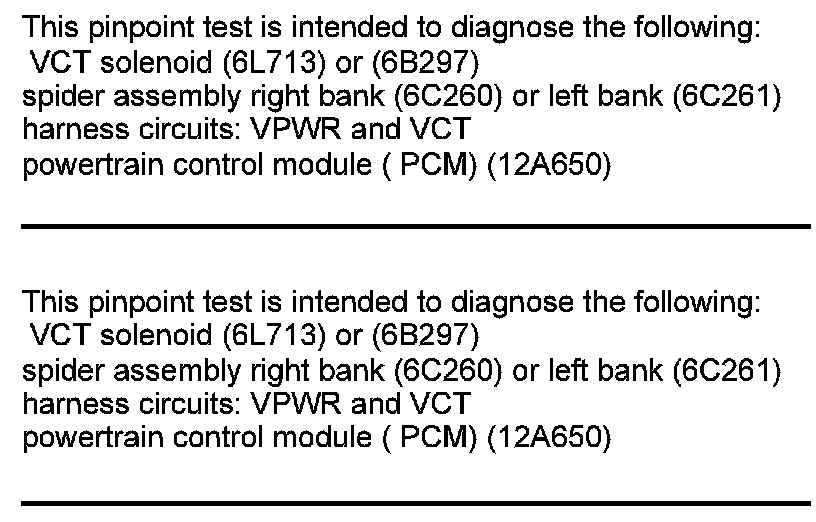

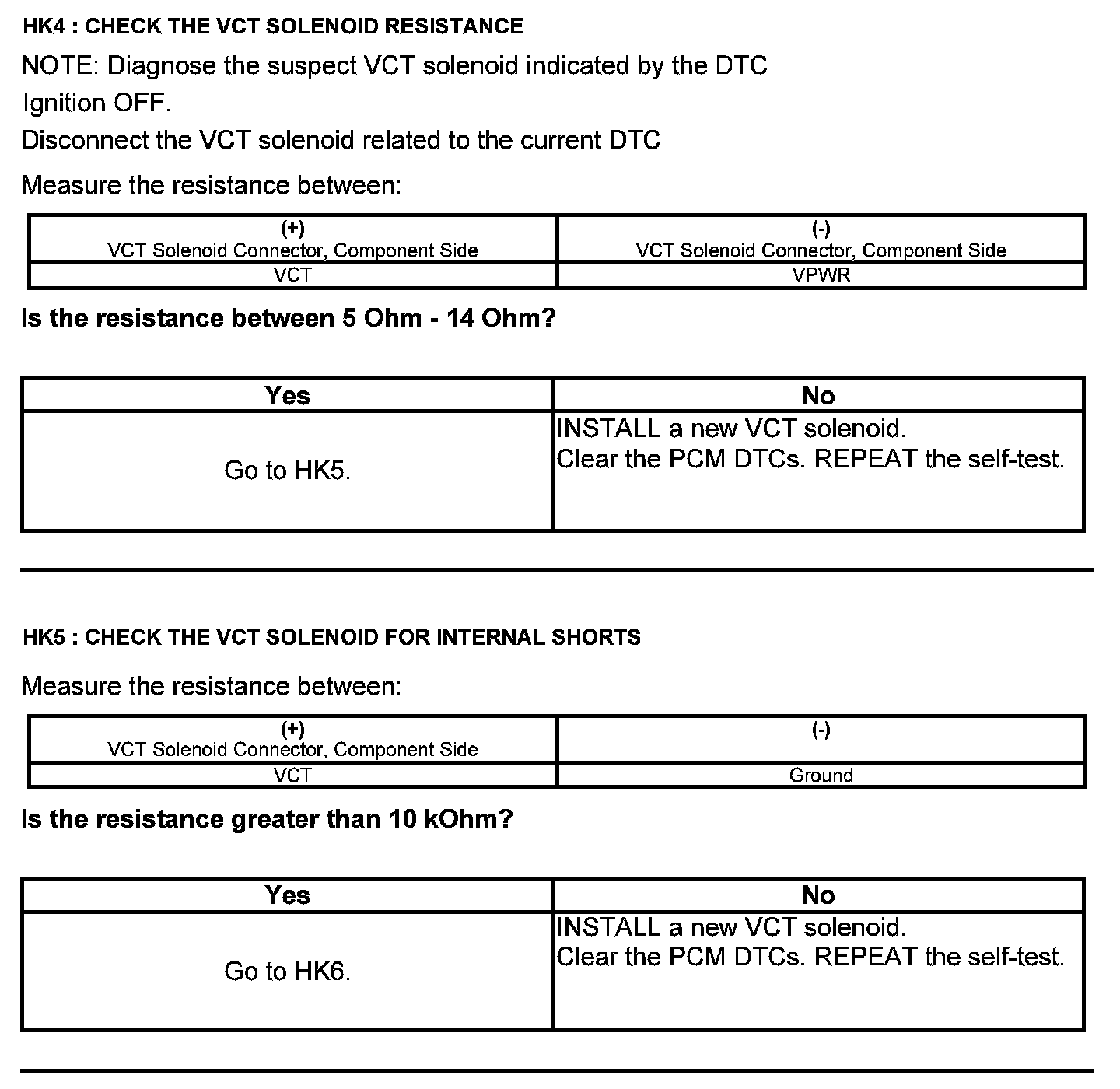

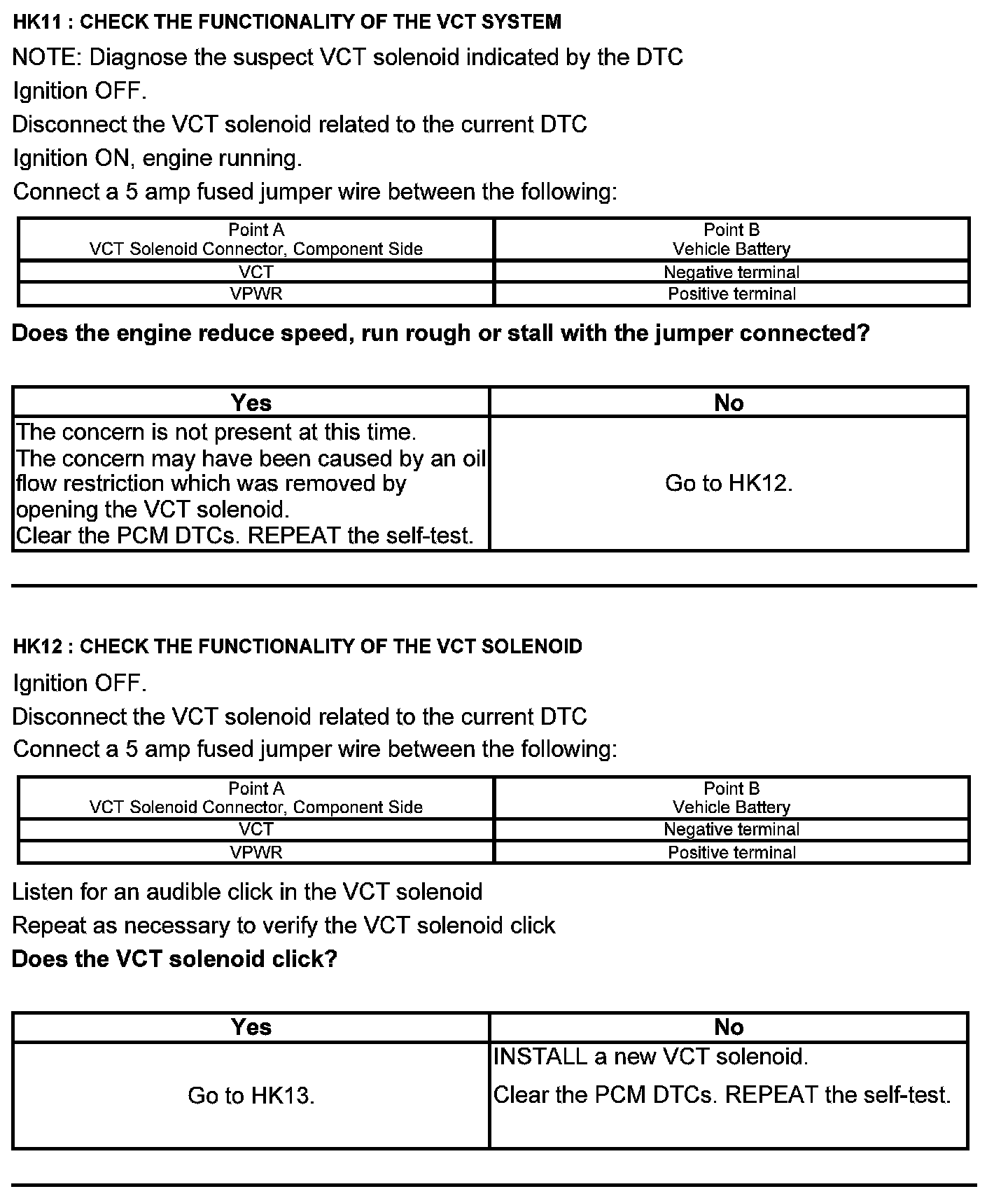

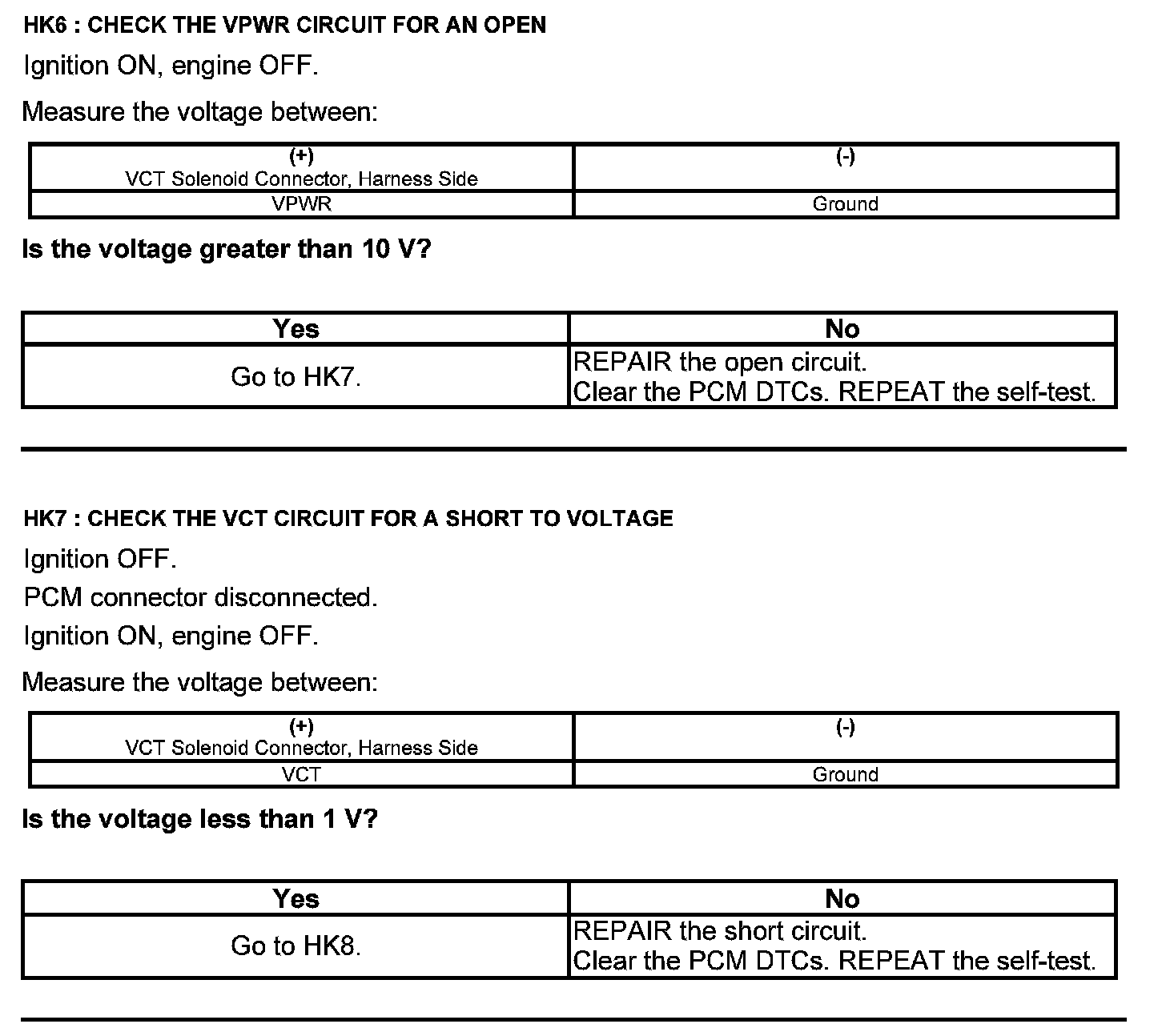

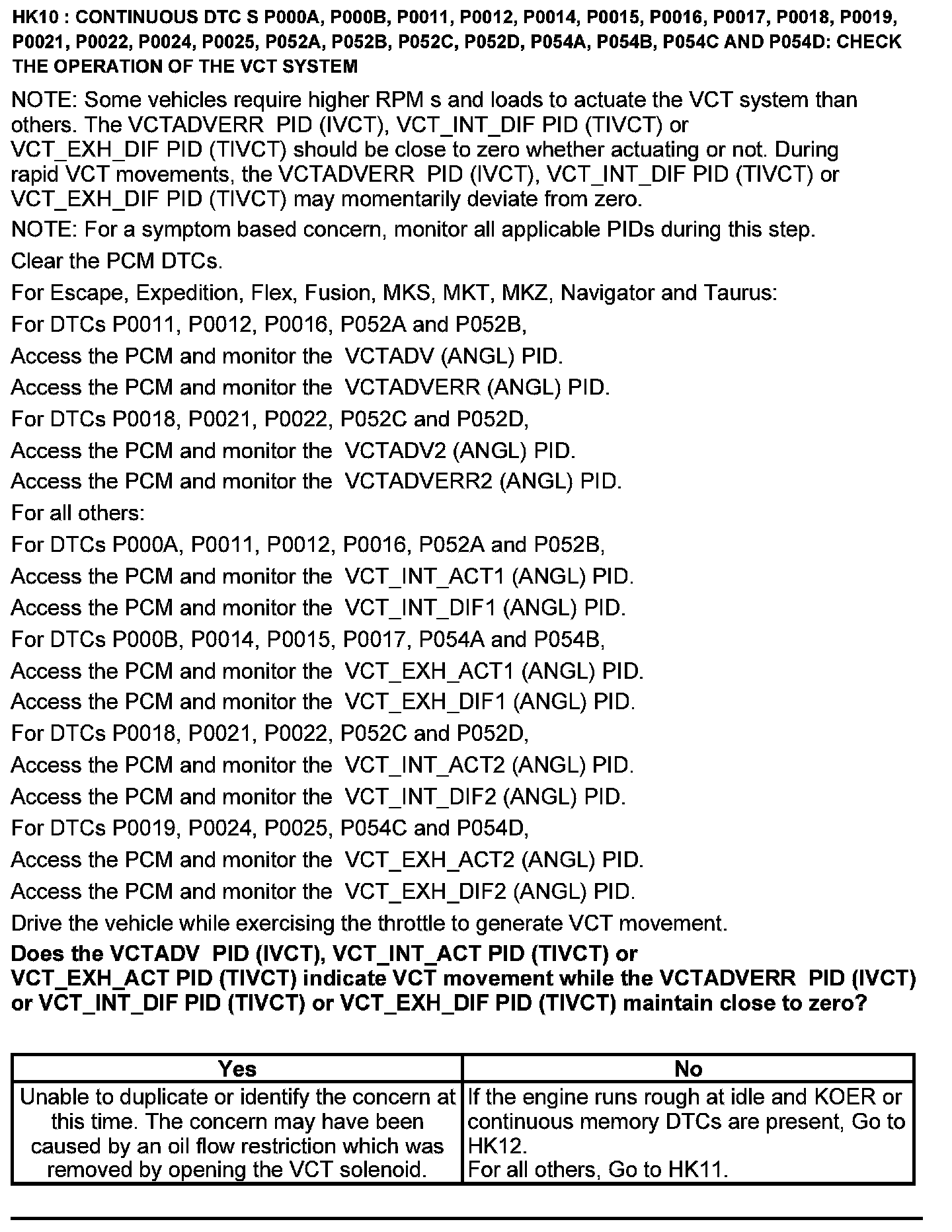

Variable Camshaft Timing (VCT) - All Others

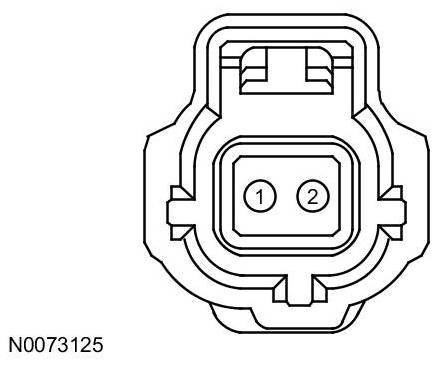

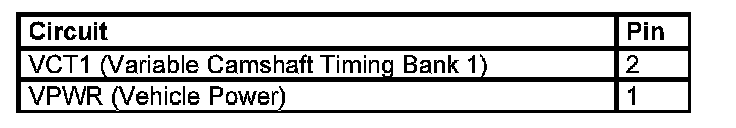

Variable Camshaft Timing Bank 1 (VCT1) Solenoid Connector





Harness Side

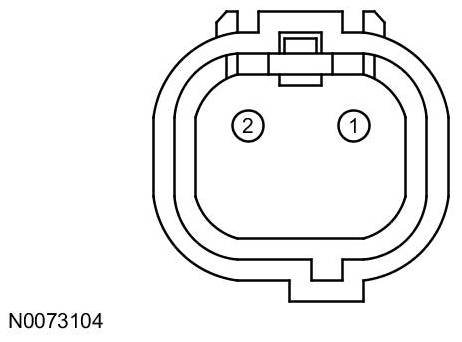

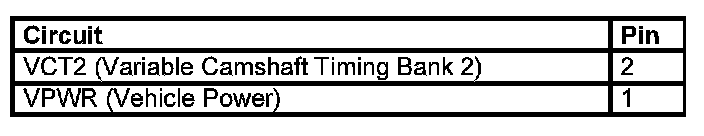

Variable Camshaft Timing Bank 2 (VCT2) Solenoid Connector





Harness Side
