Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test HH: Exhaust Gas Recirculation System Module (ESM) >> All Others

All Others

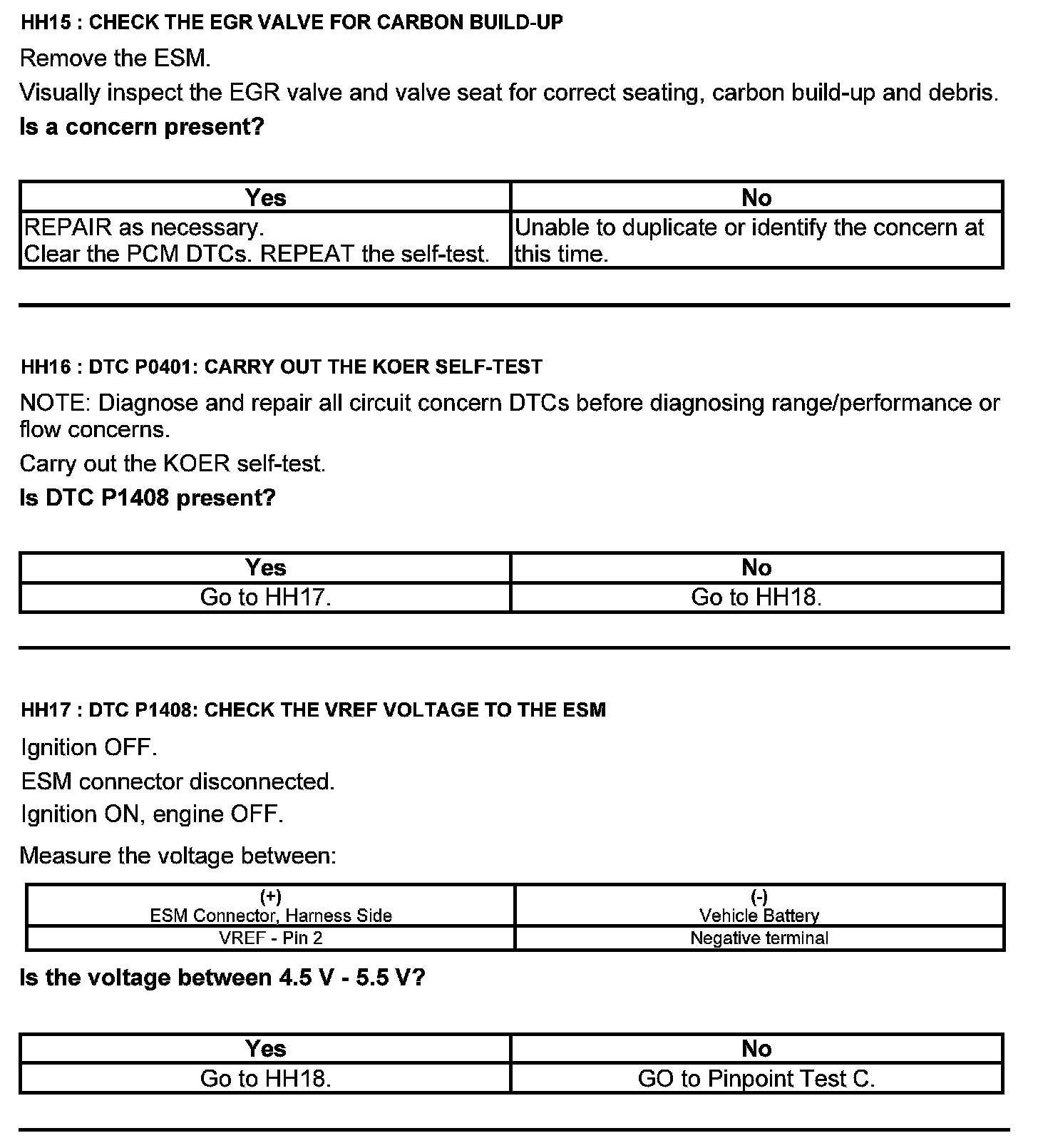

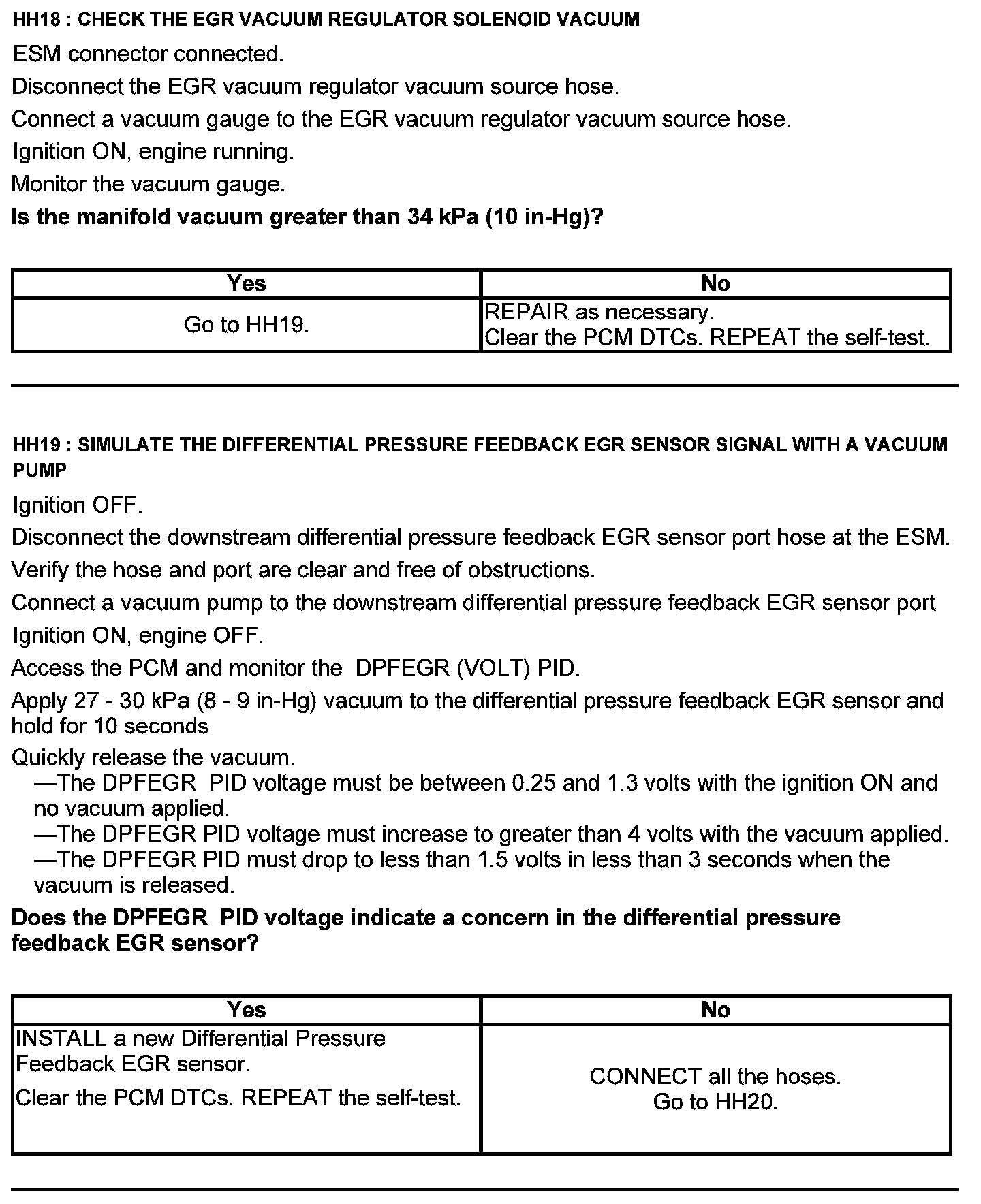

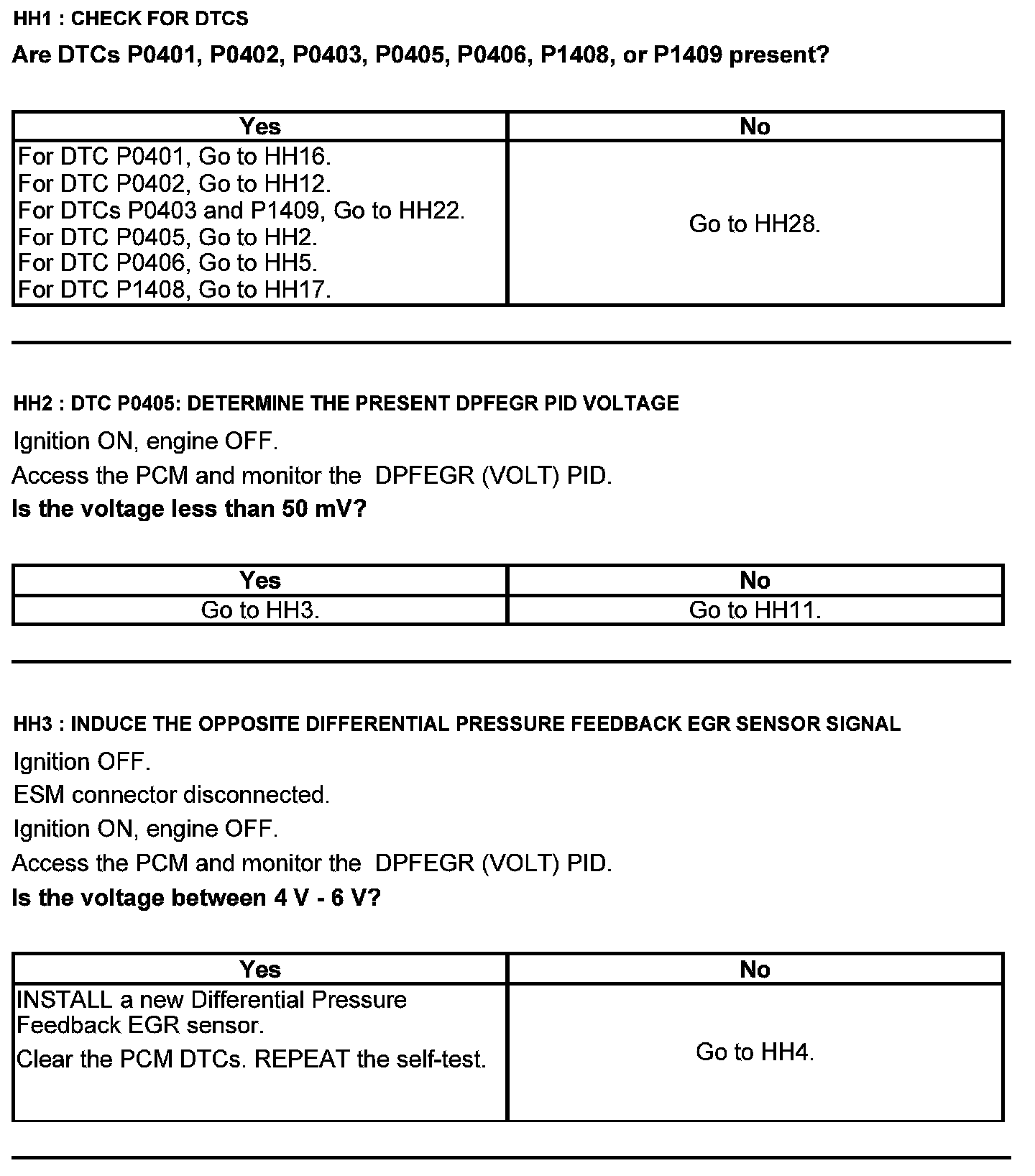

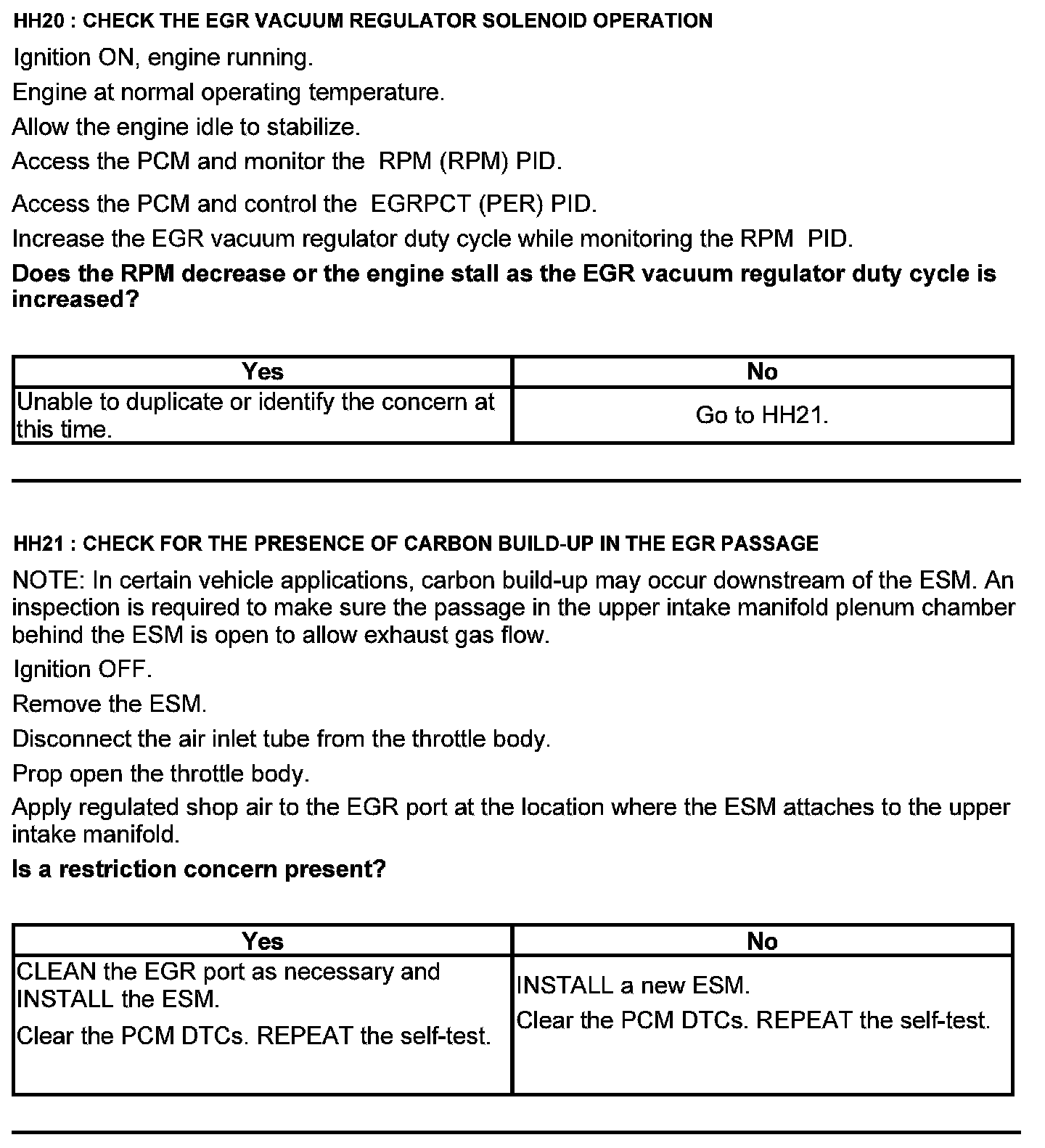

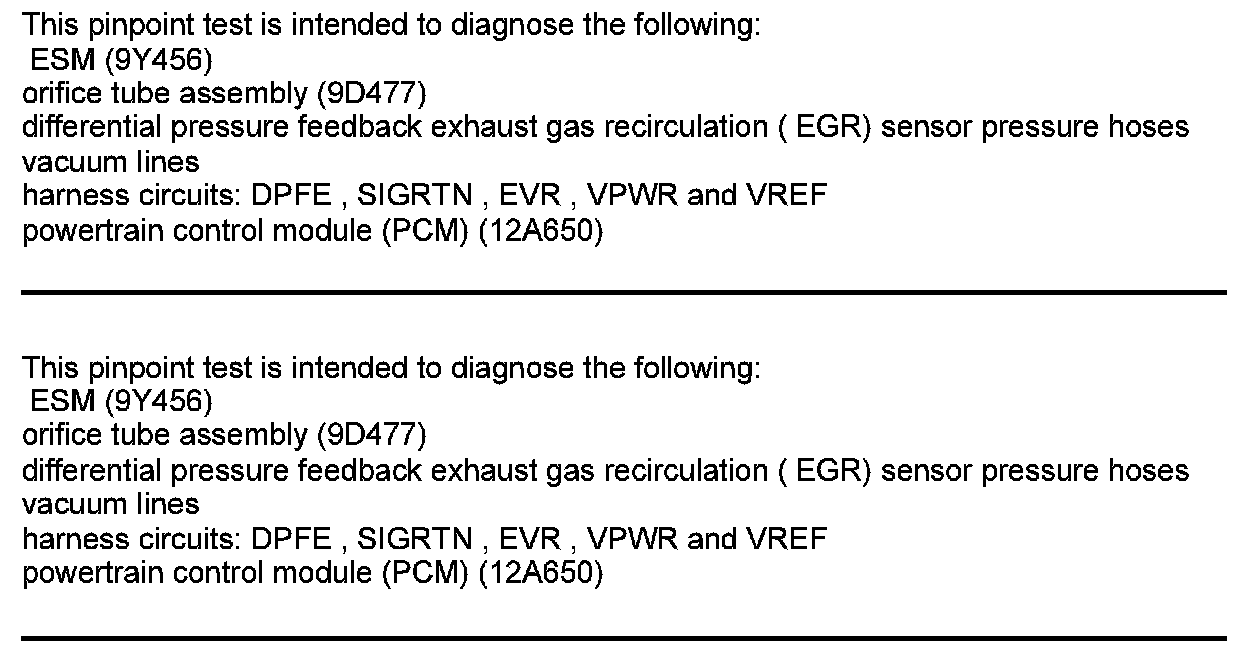

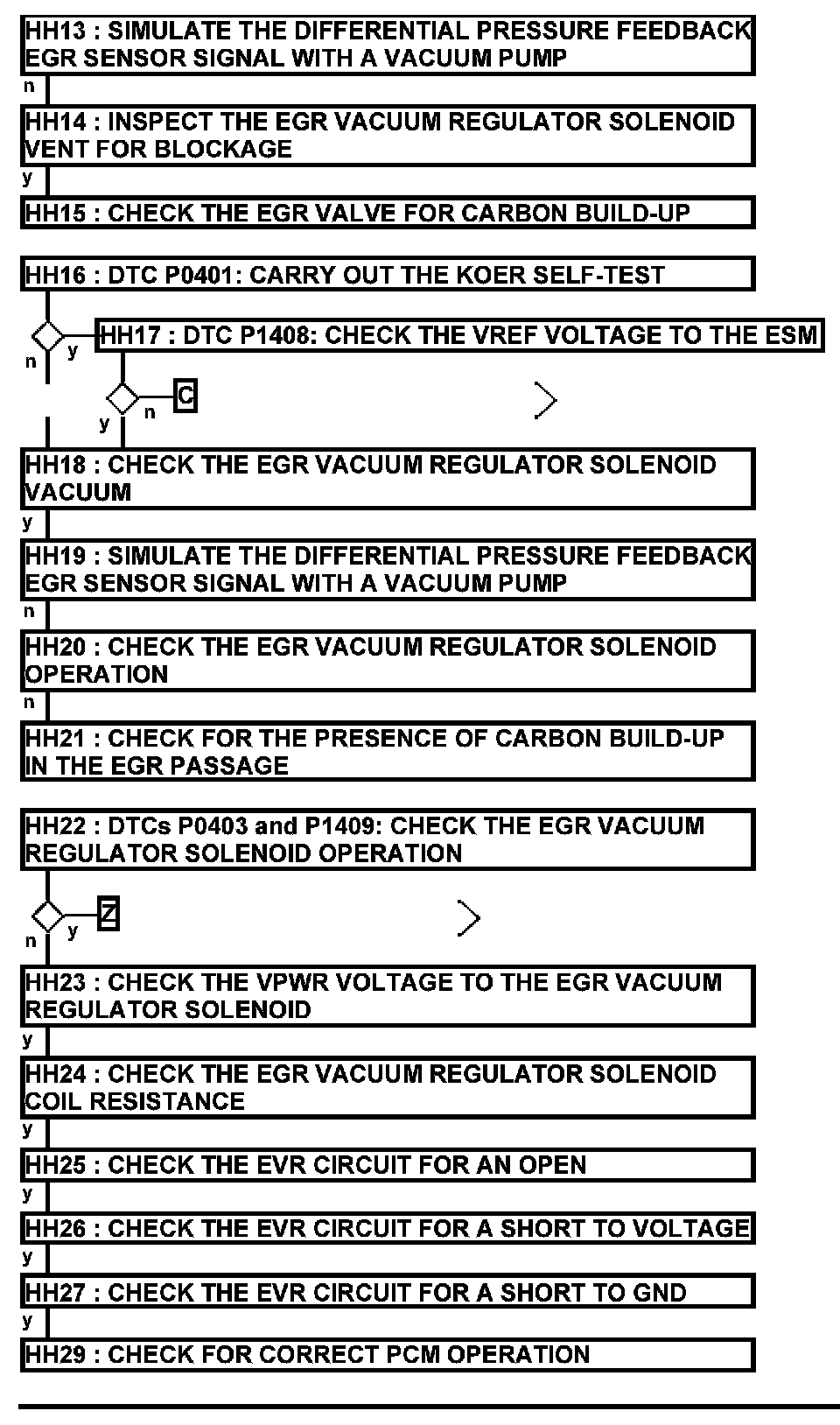

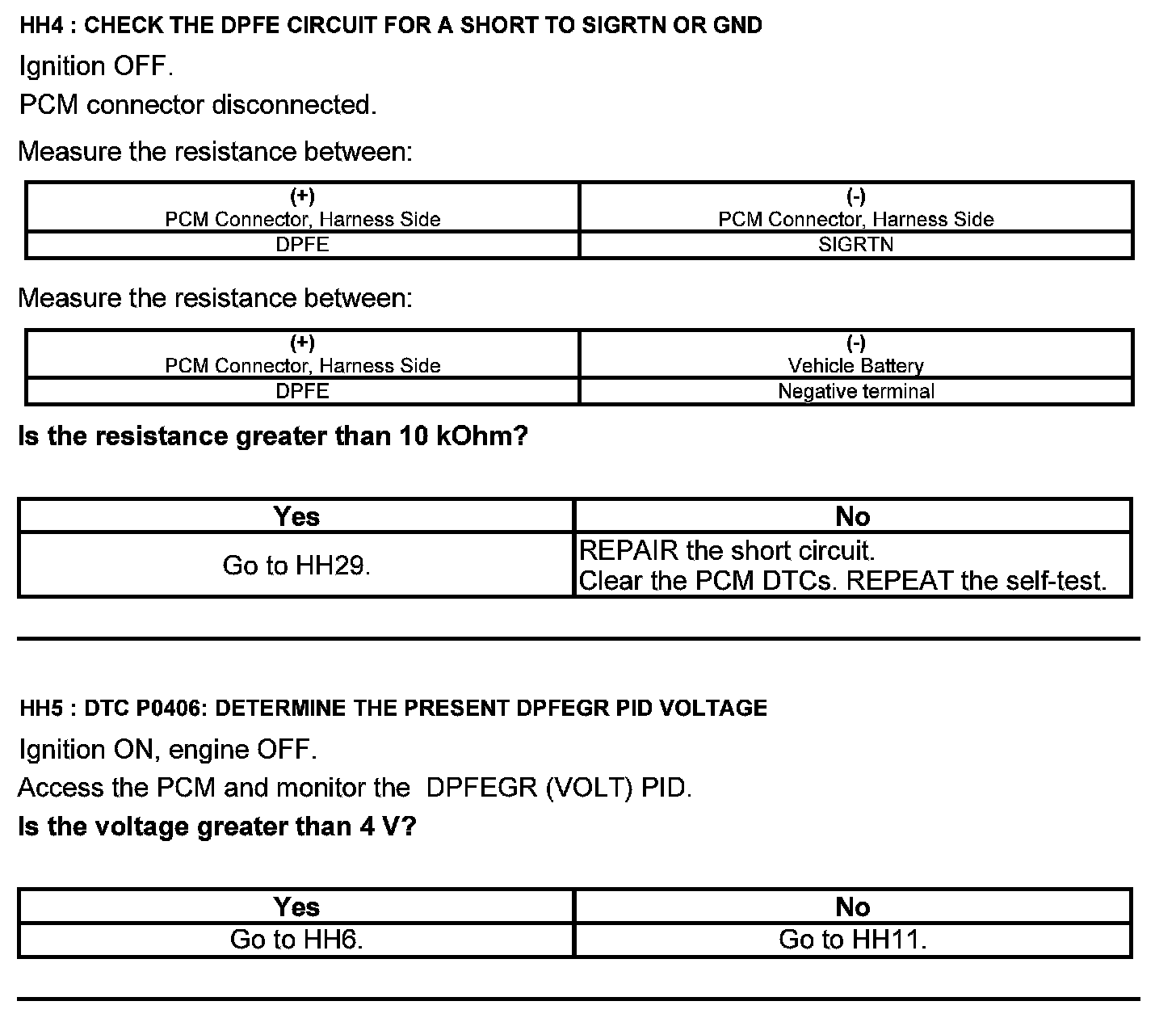

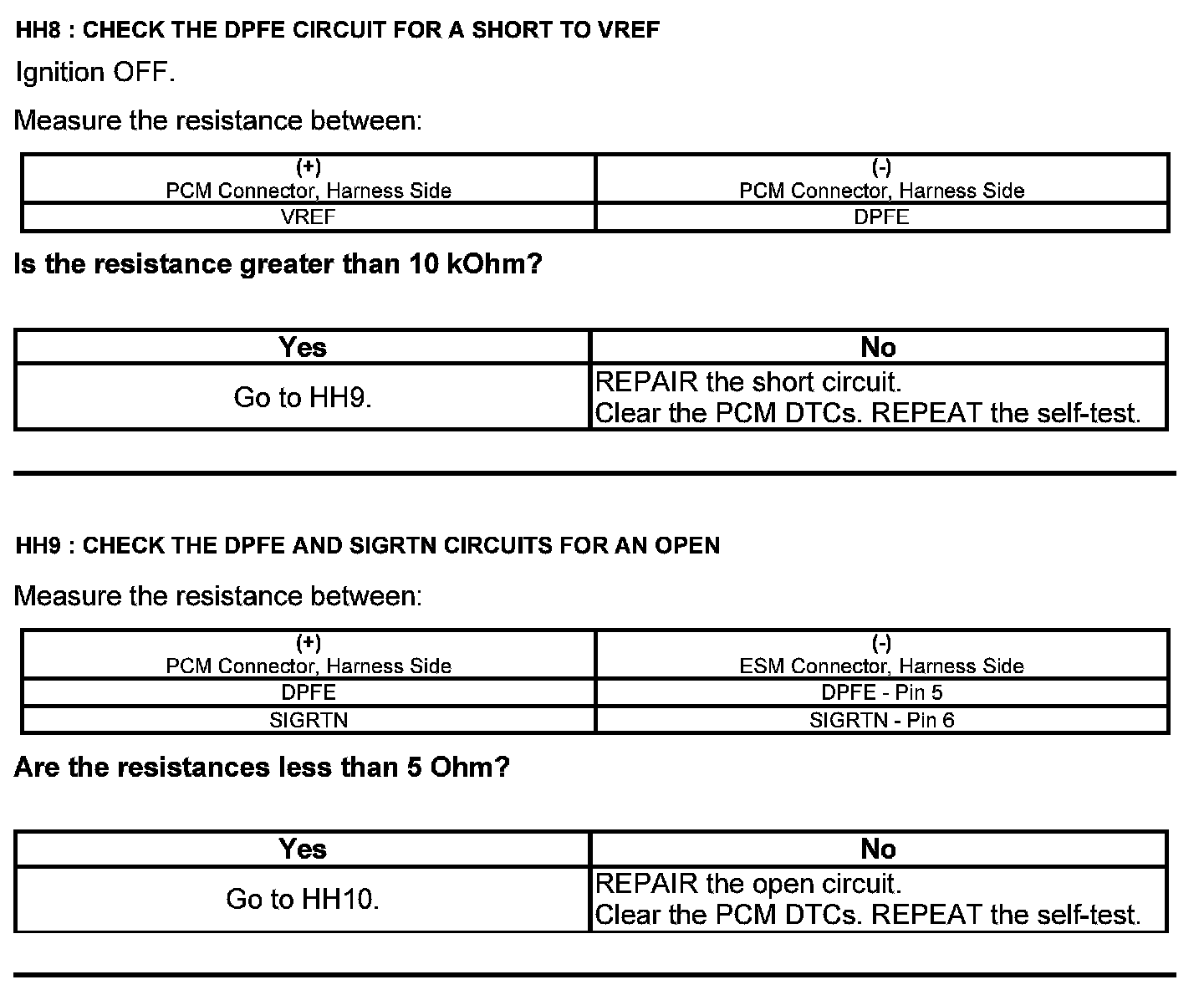

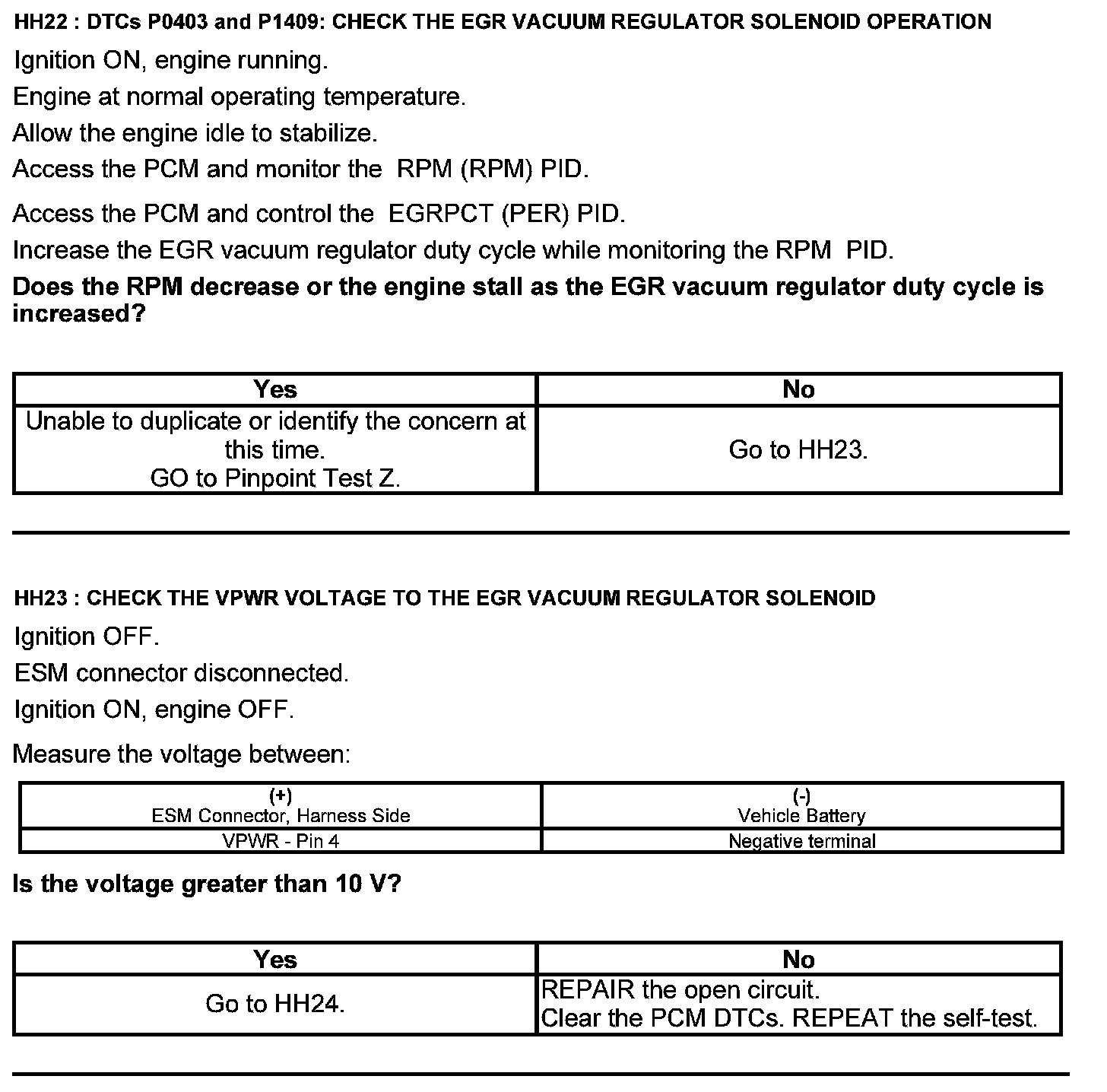

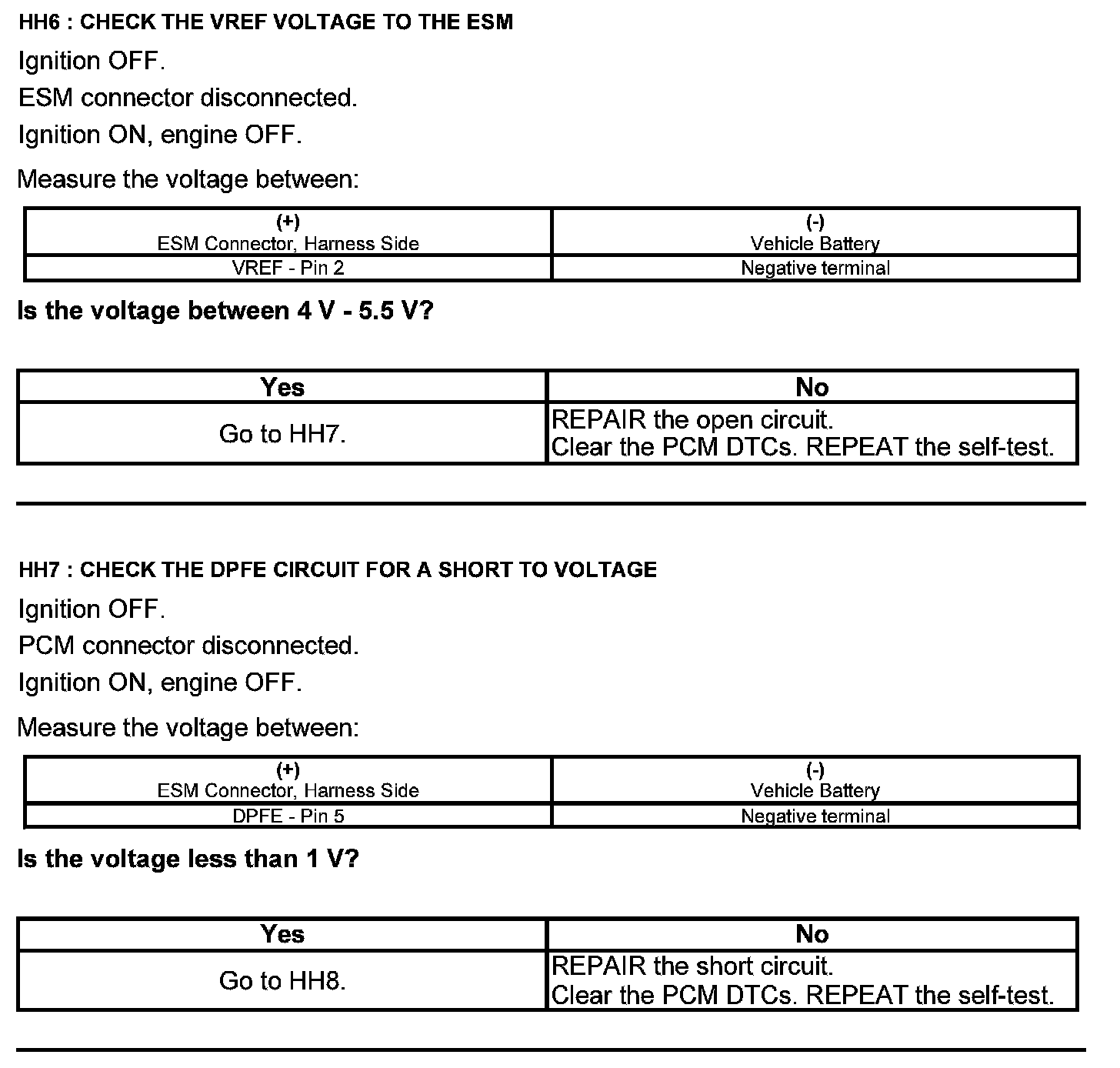

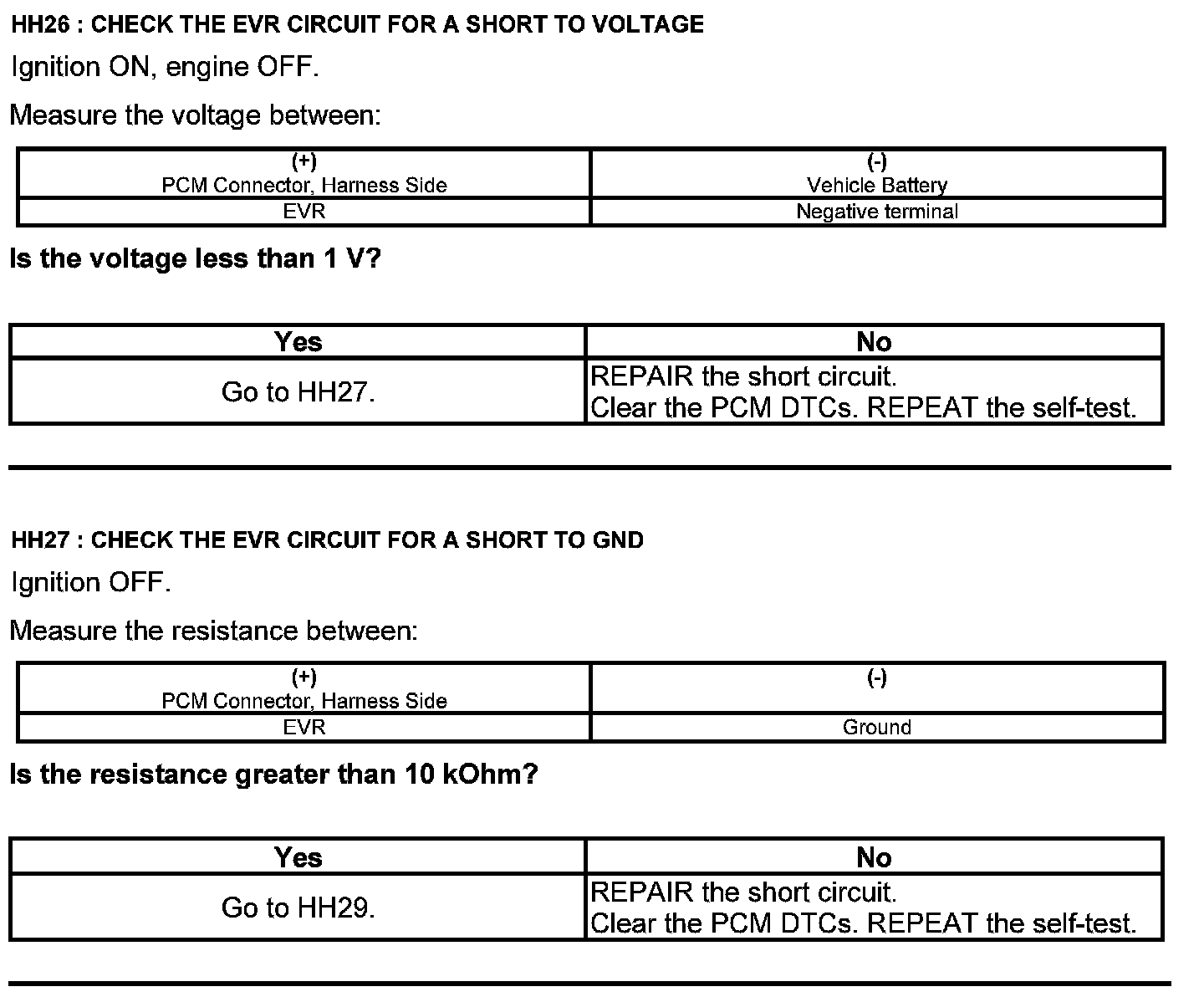

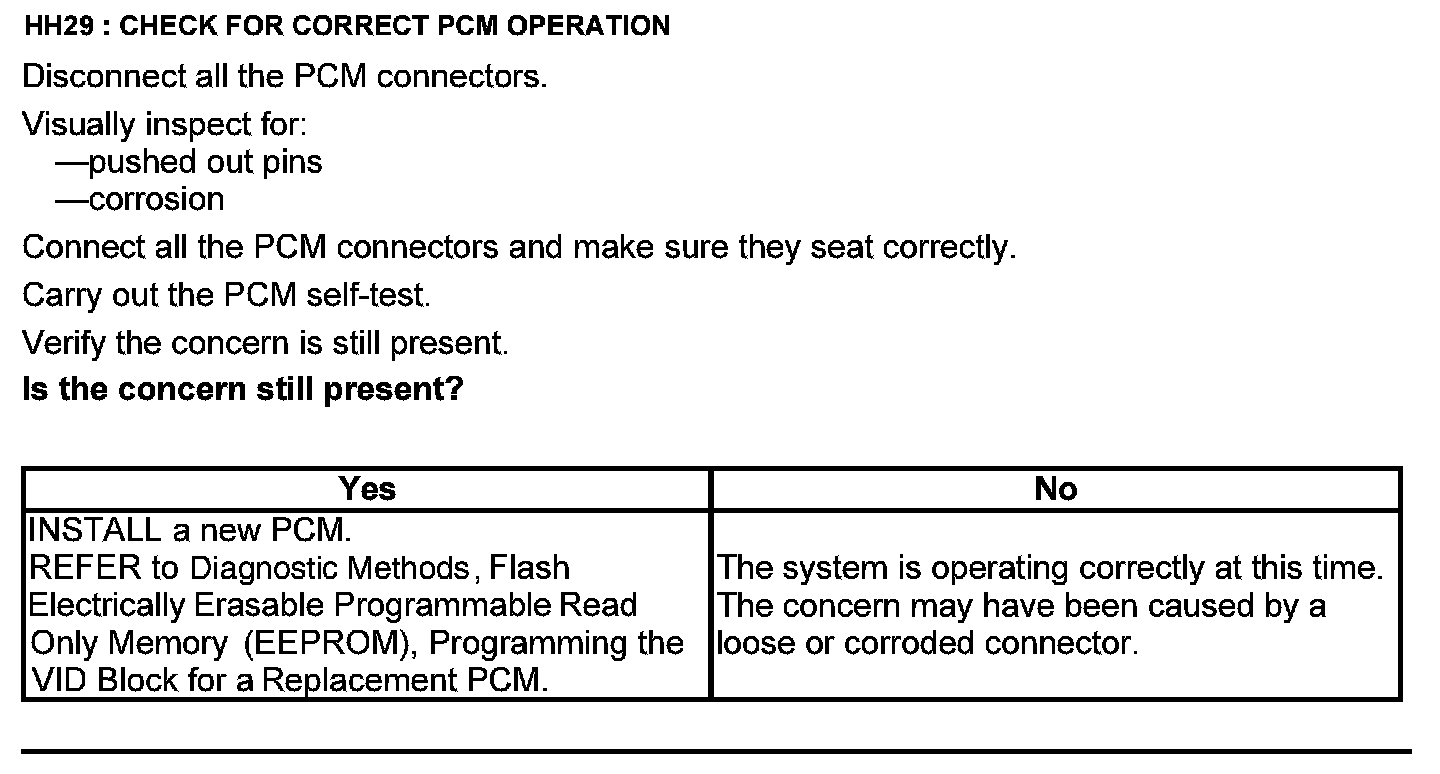

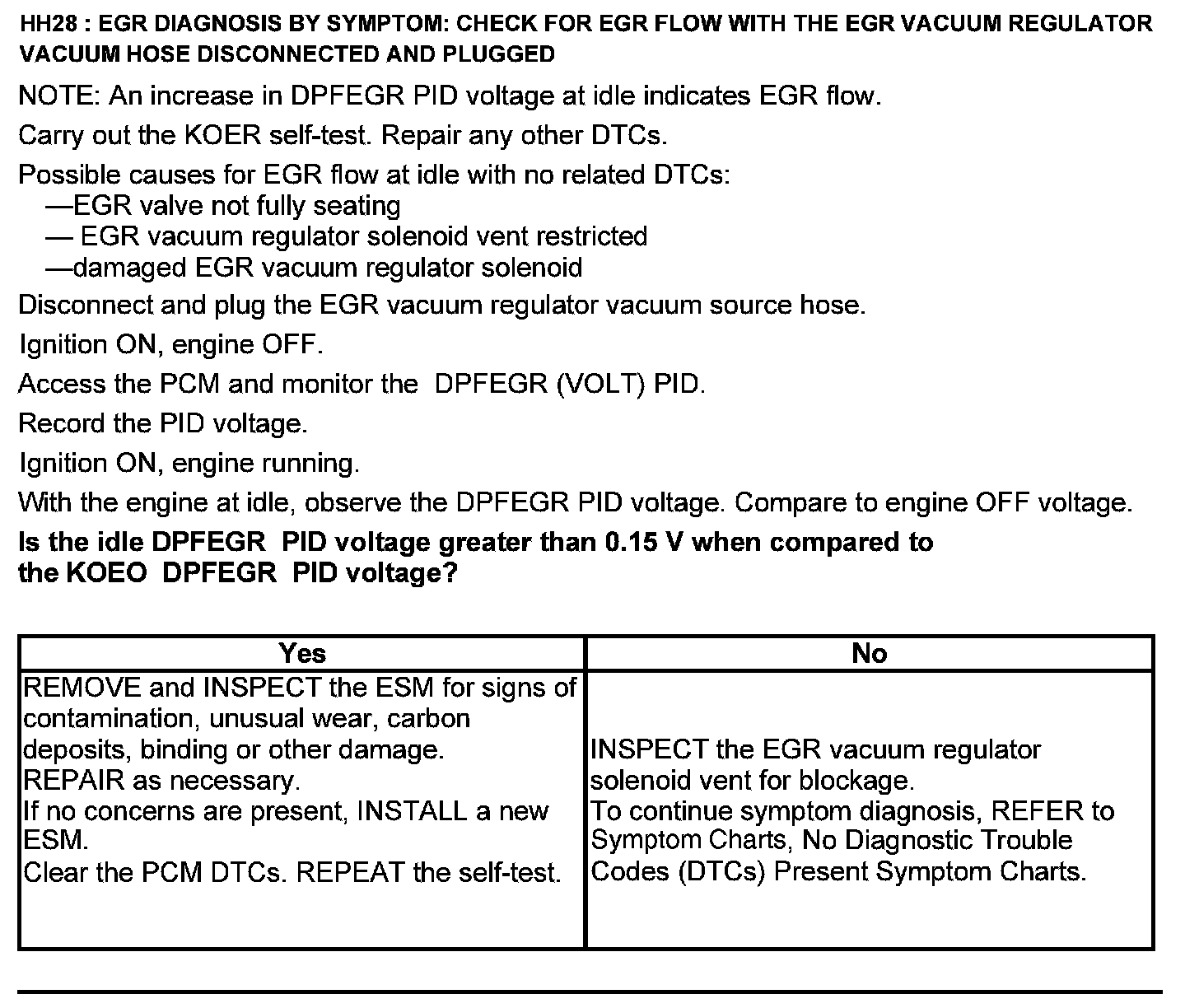

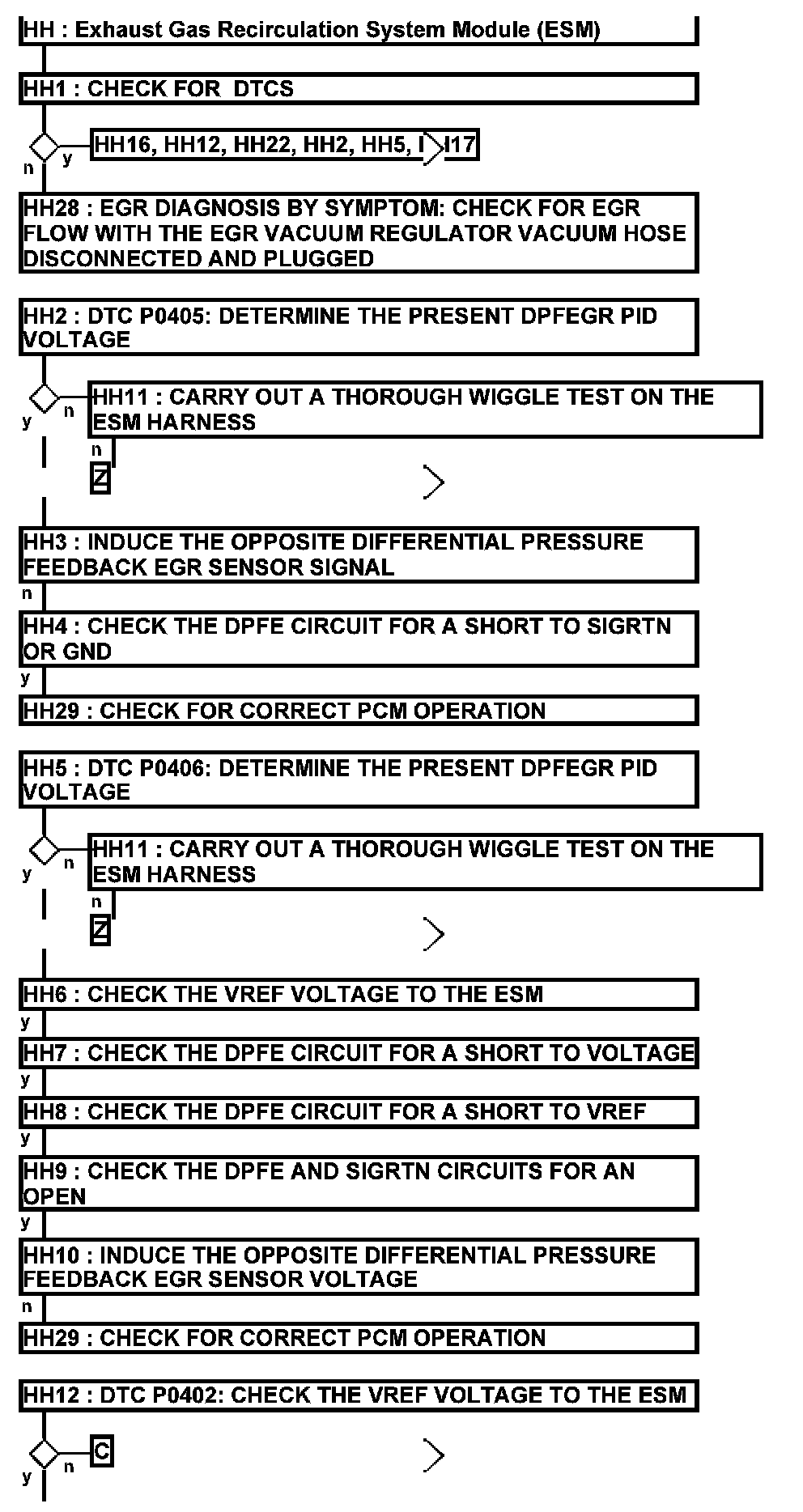

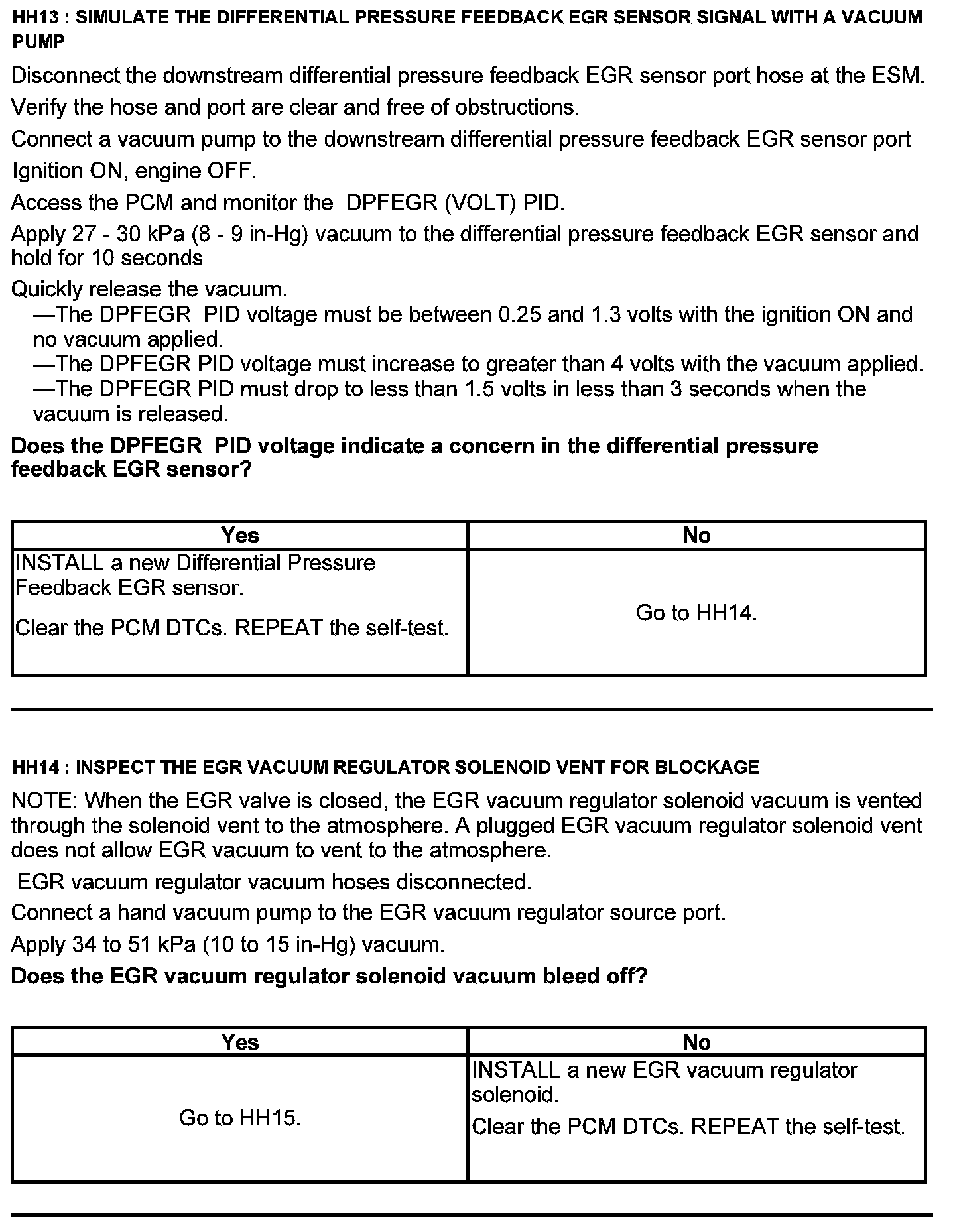

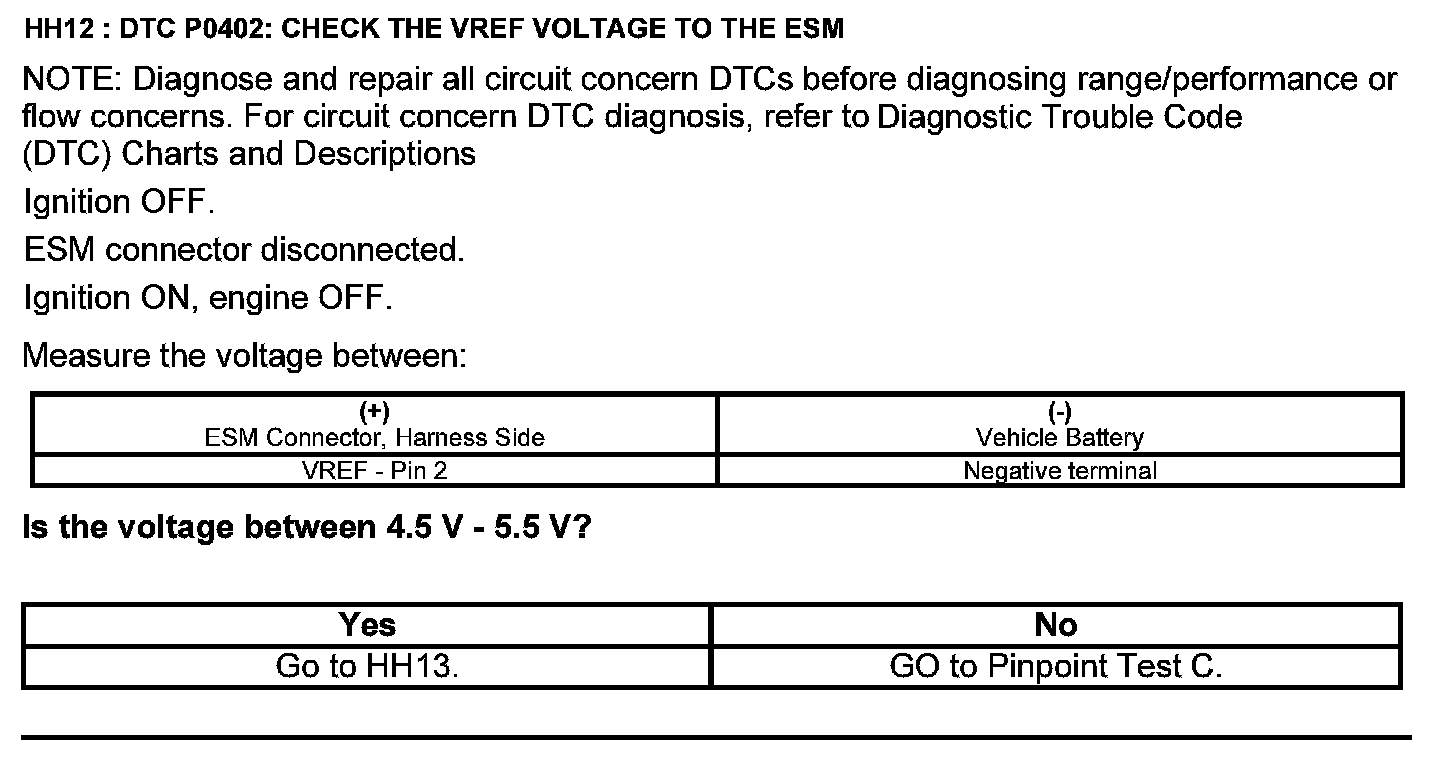

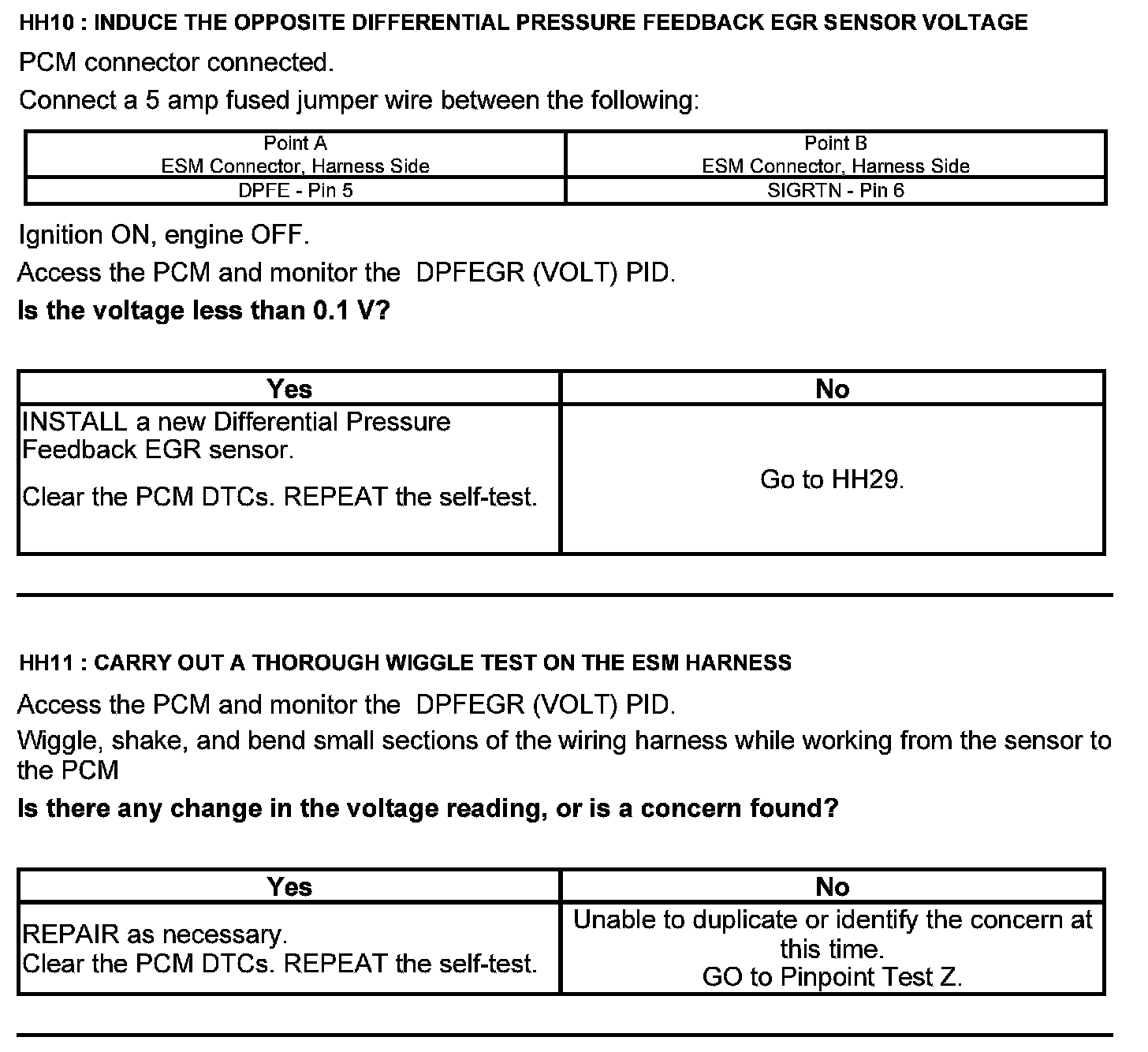

Exhaust Gas Recirculation System Module (ESM) - All Others

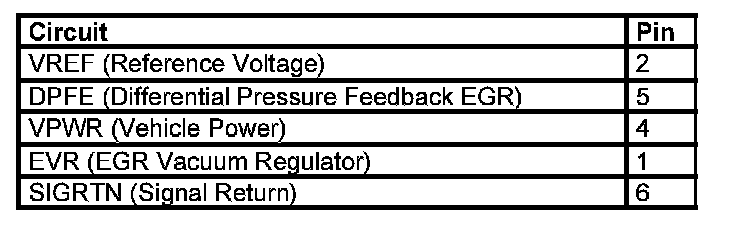

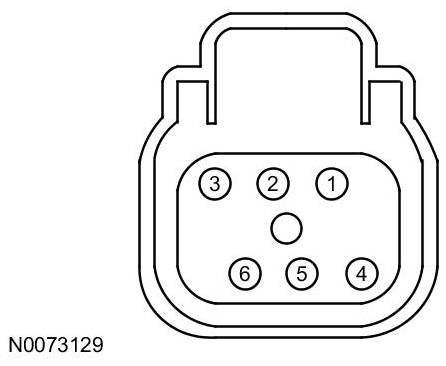

EGR System Module (ESM) Connector





Harness Side
