All Others

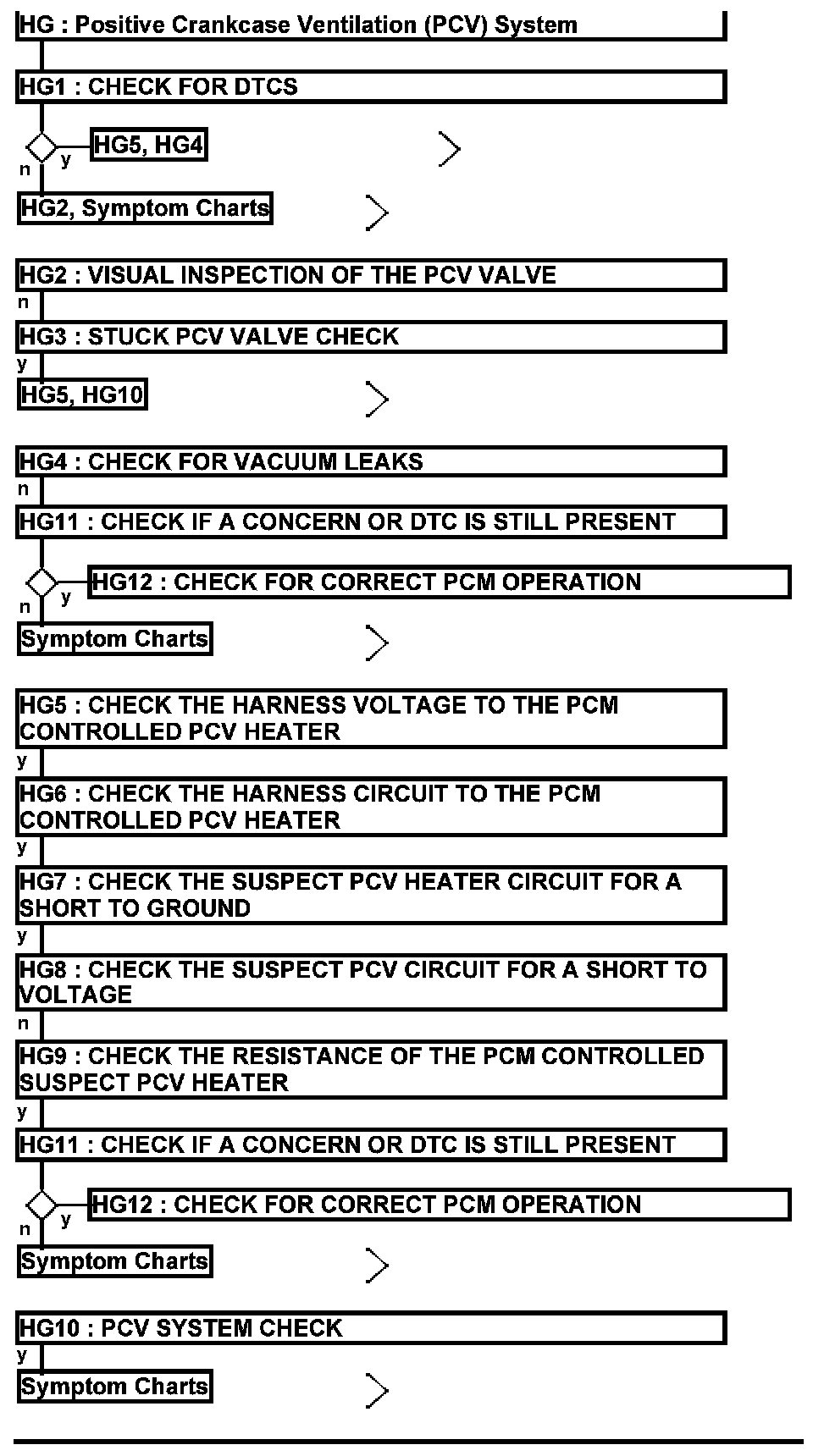

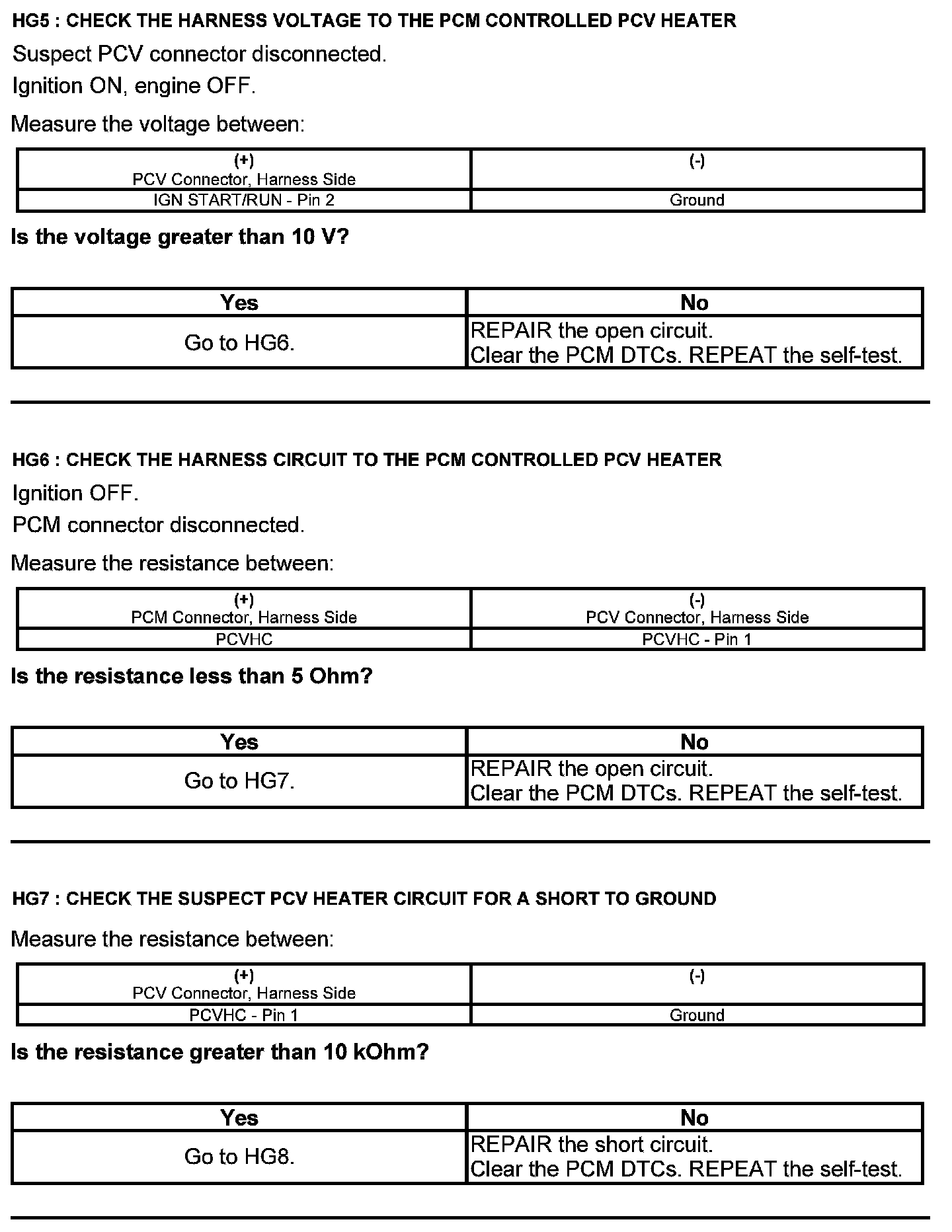

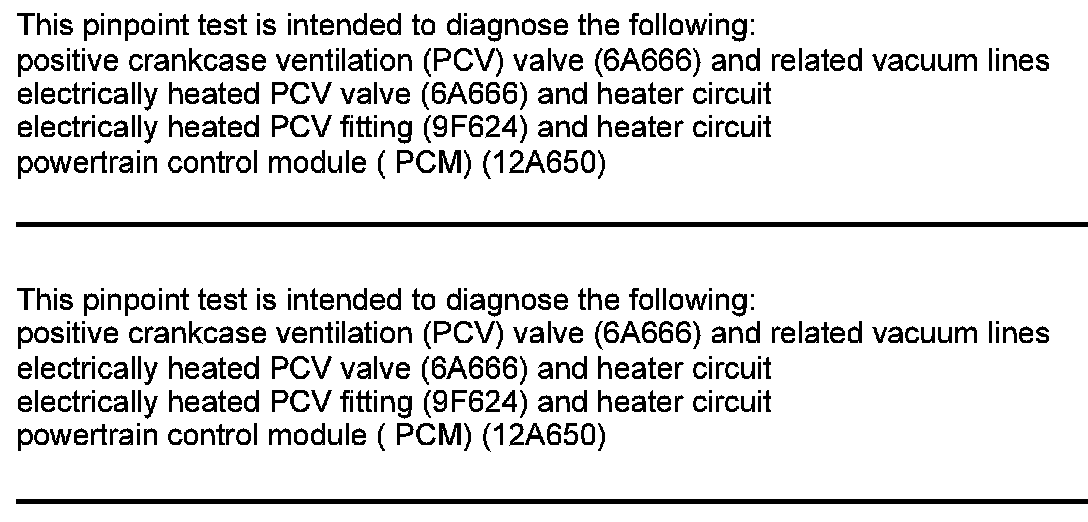

Positive Crankcase Ventilation (PCV) System - All Others

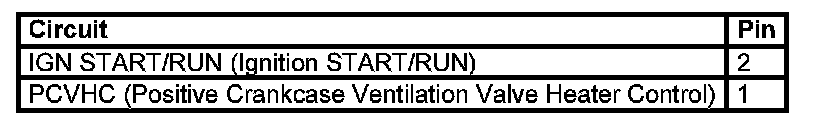

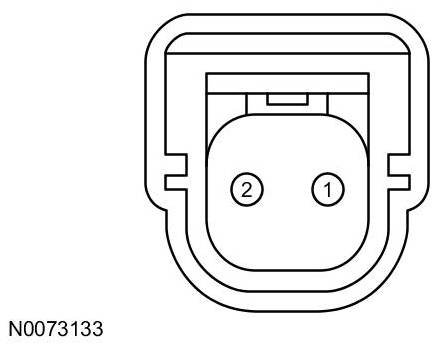

Positive Crankcase Ventilation (PCV) Connector





Harness Side
