Manual Transmission

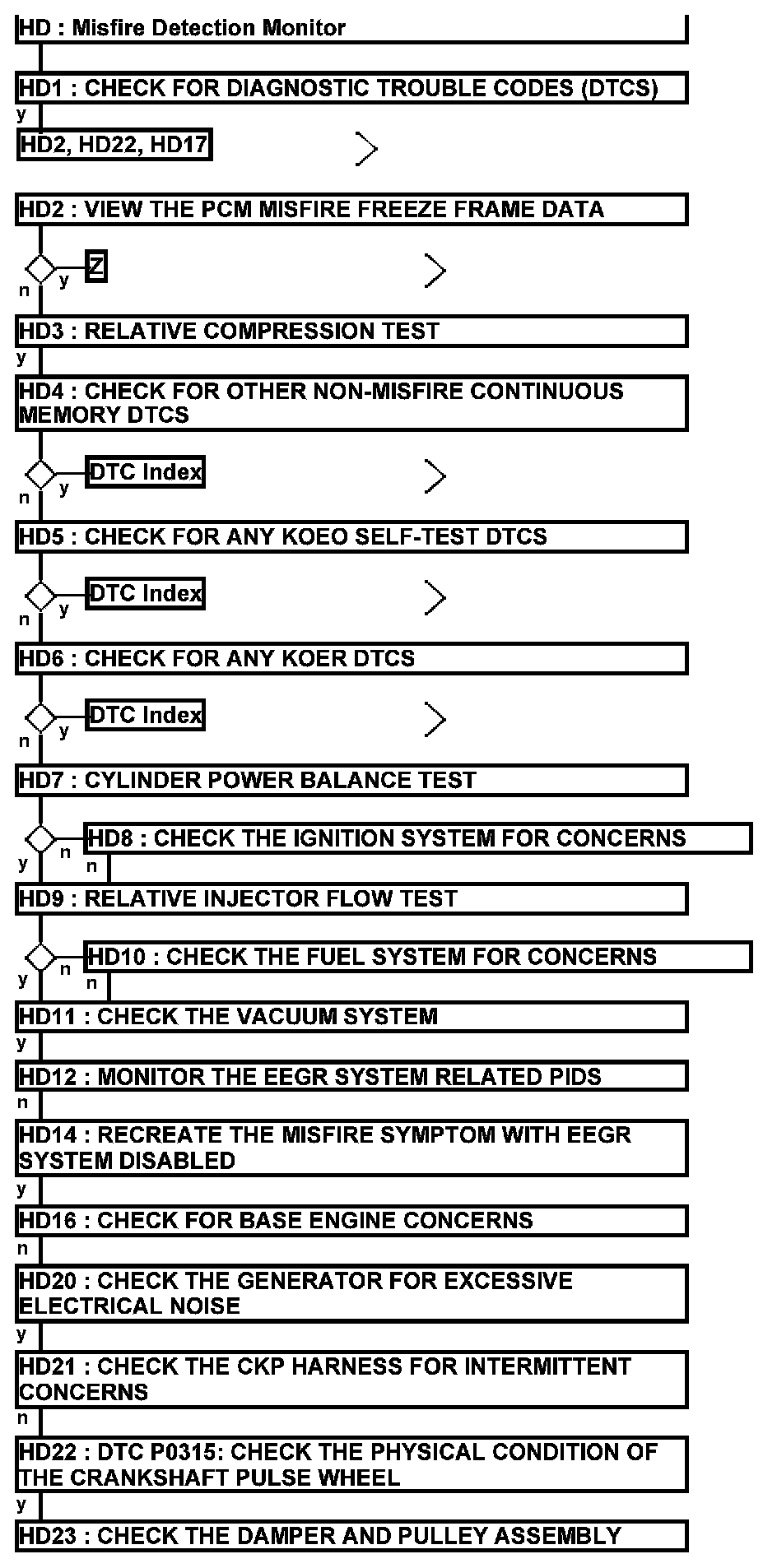

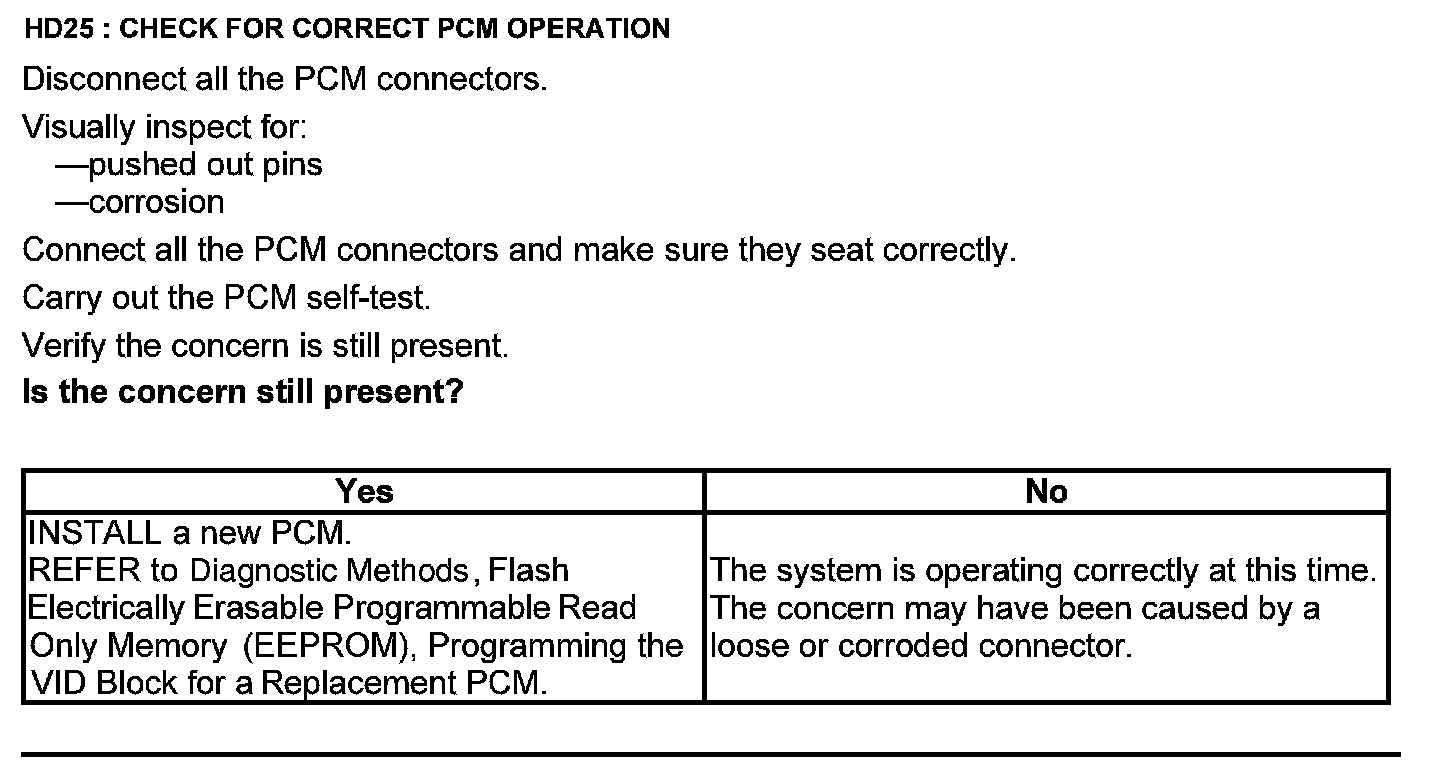

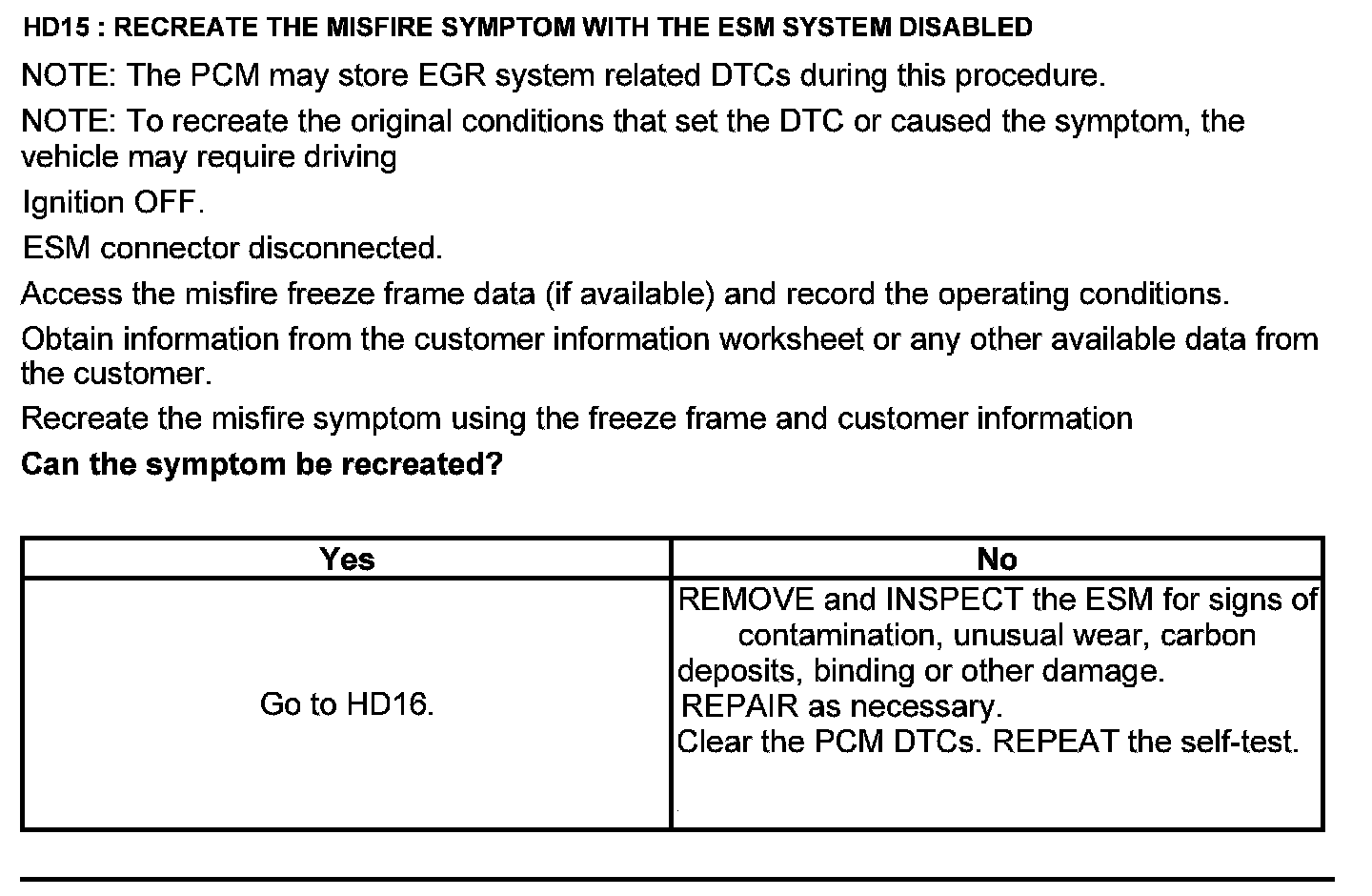

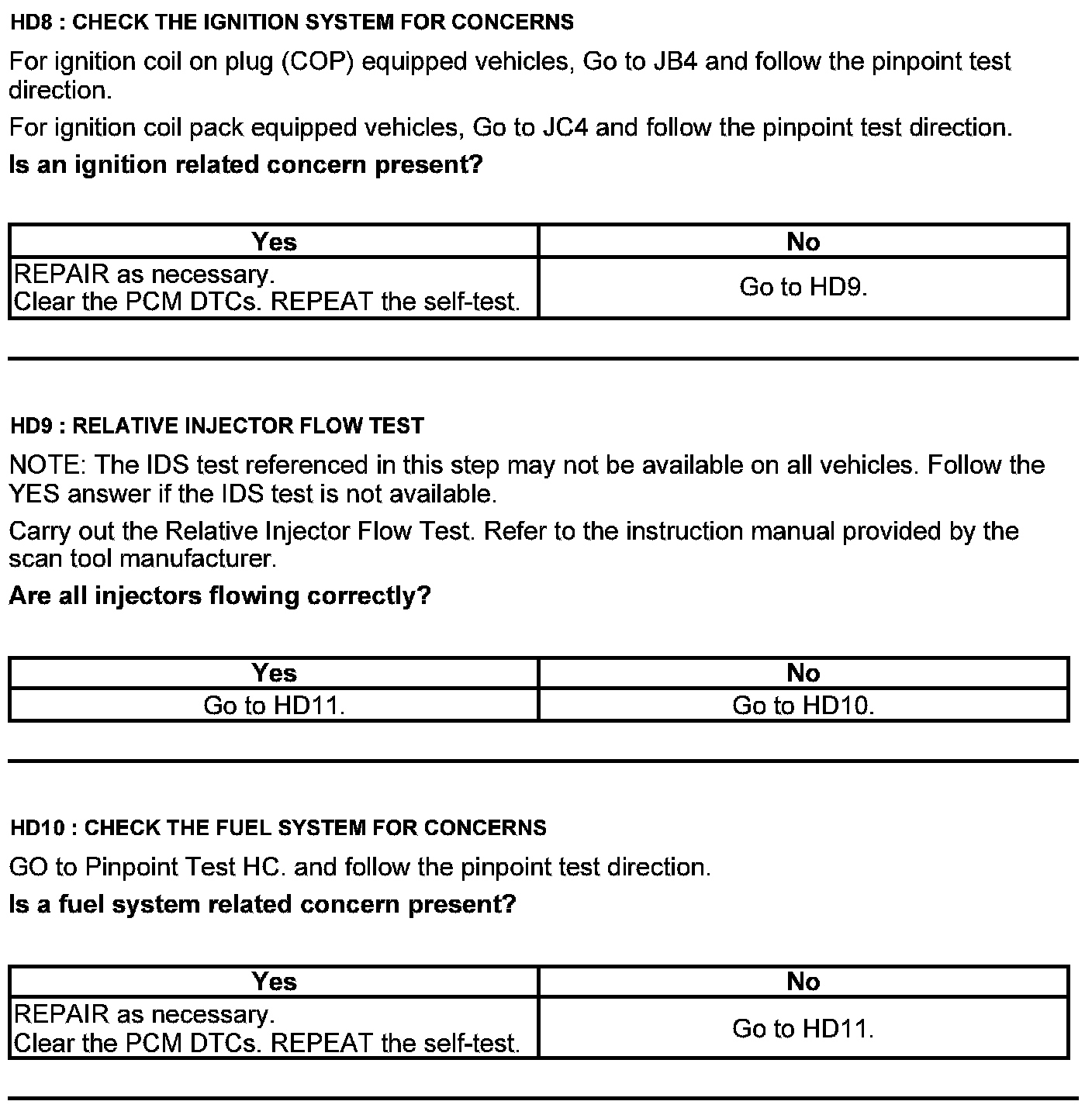

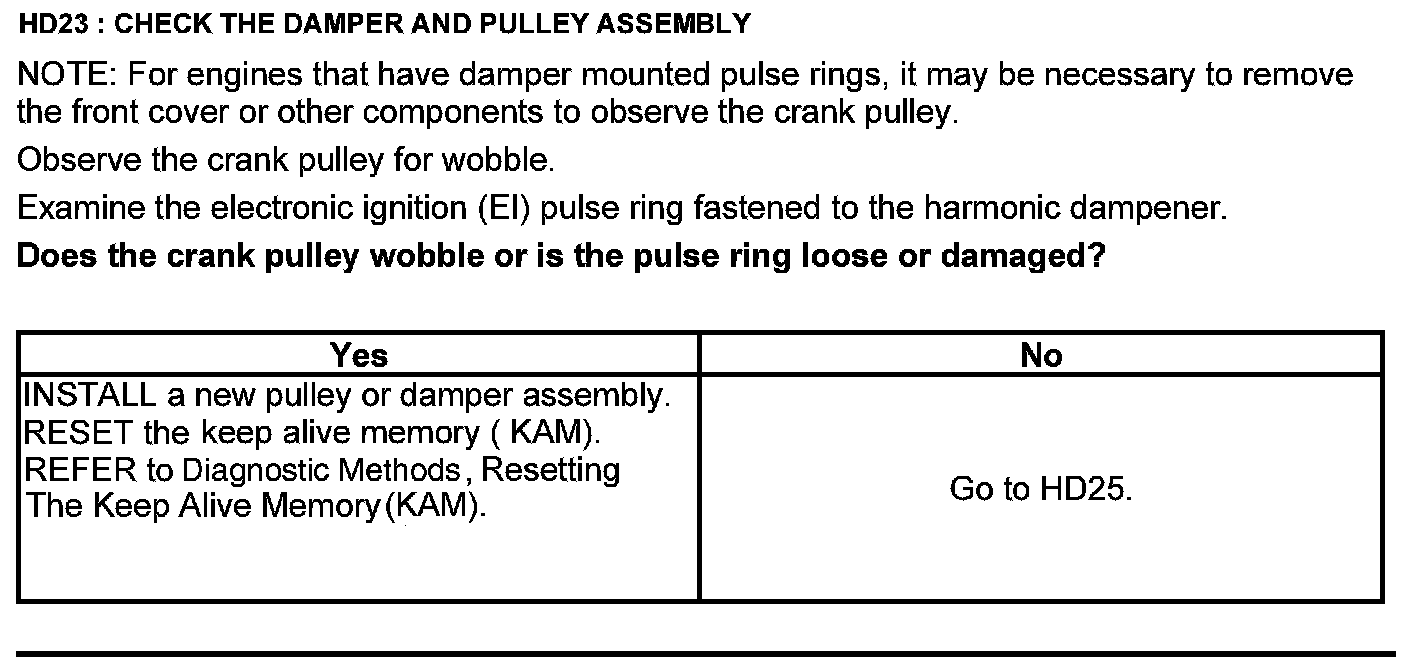

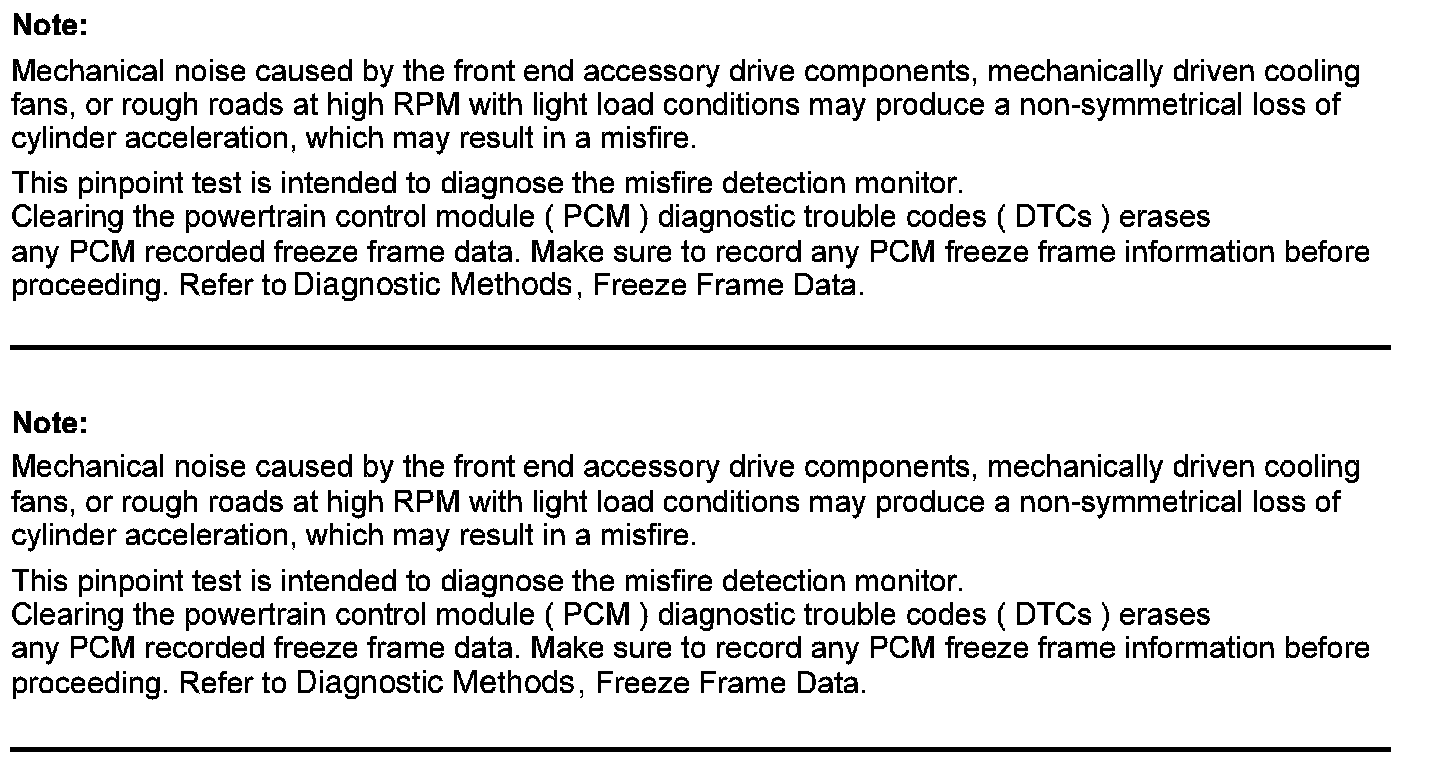

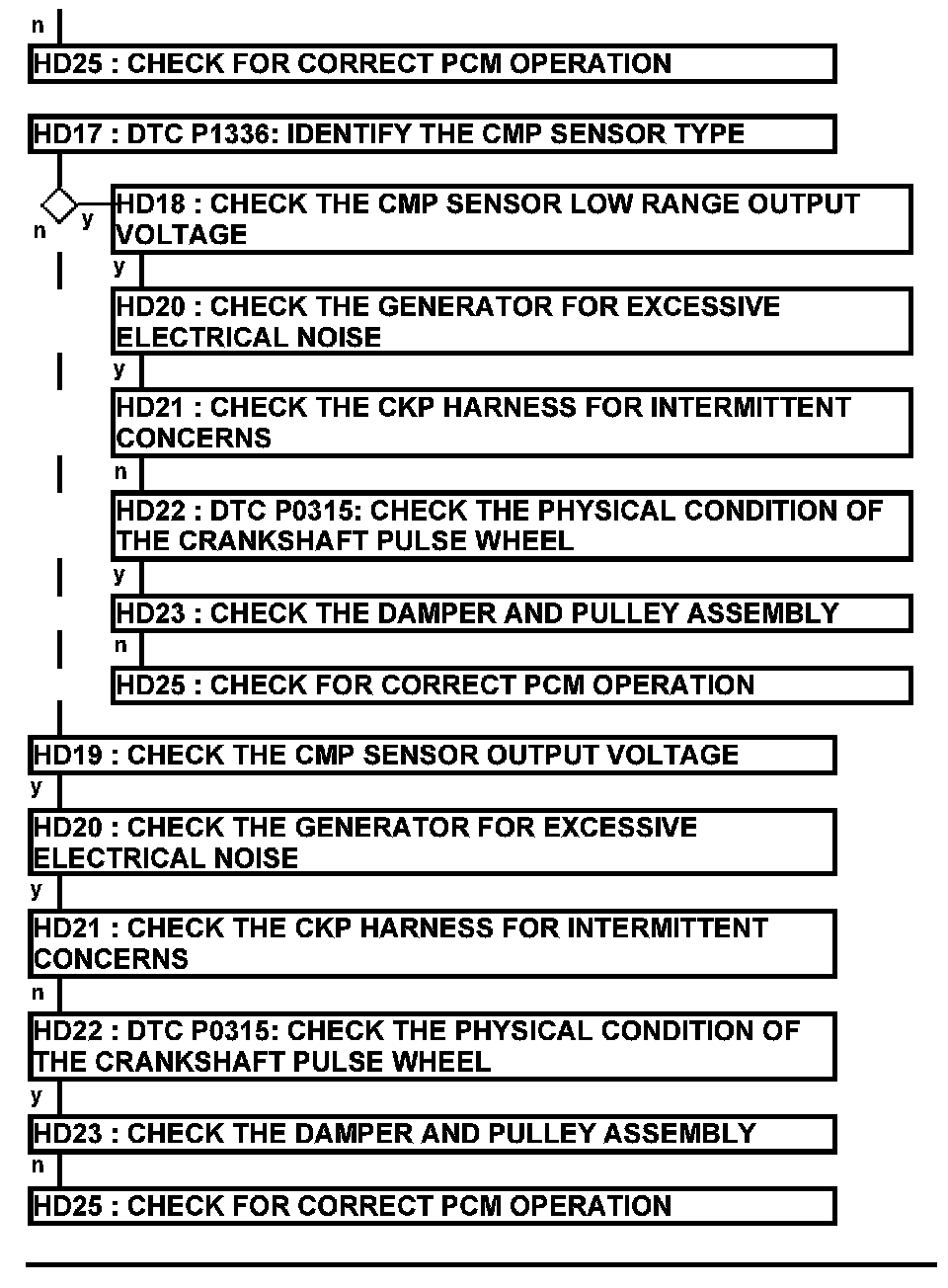

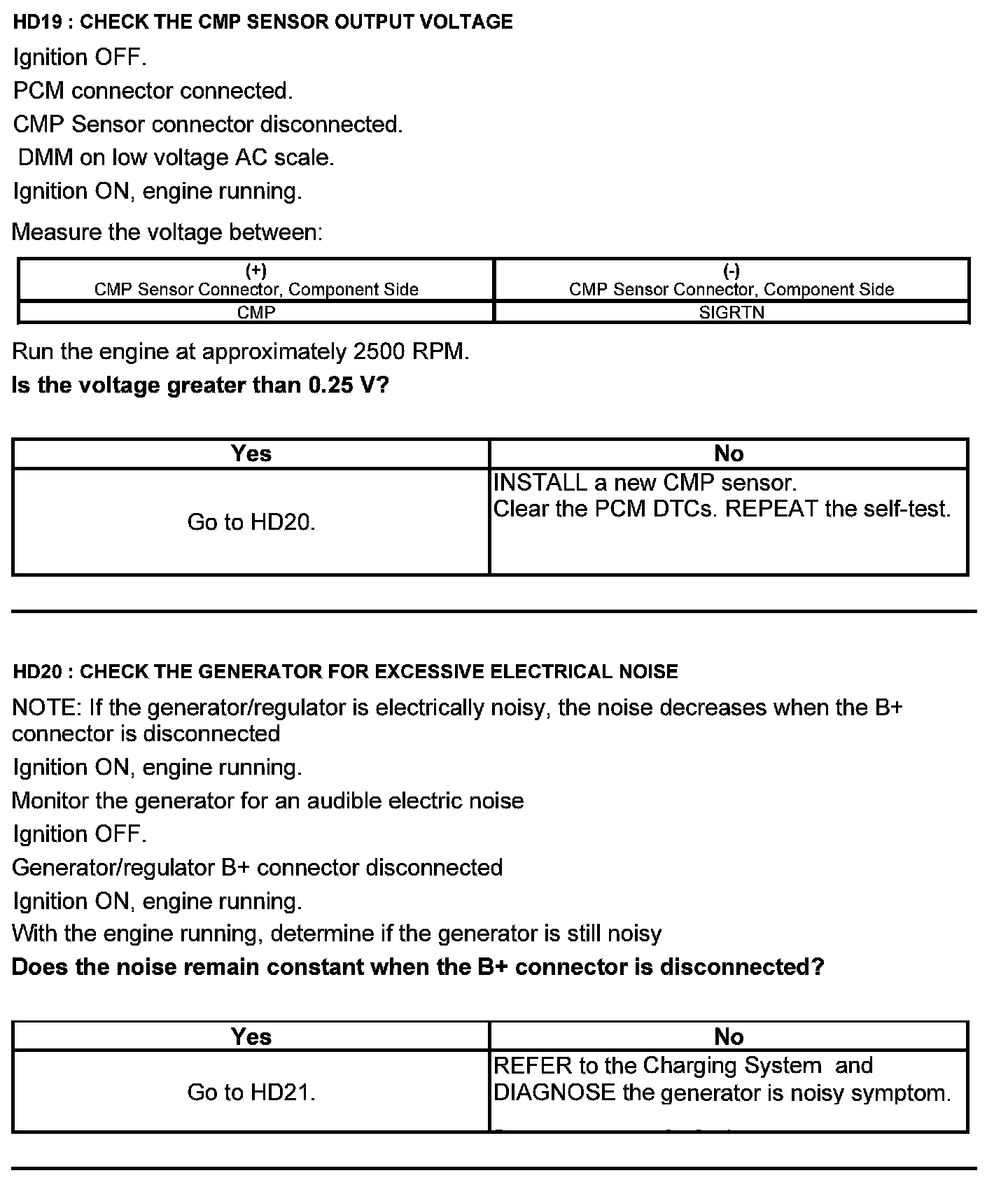

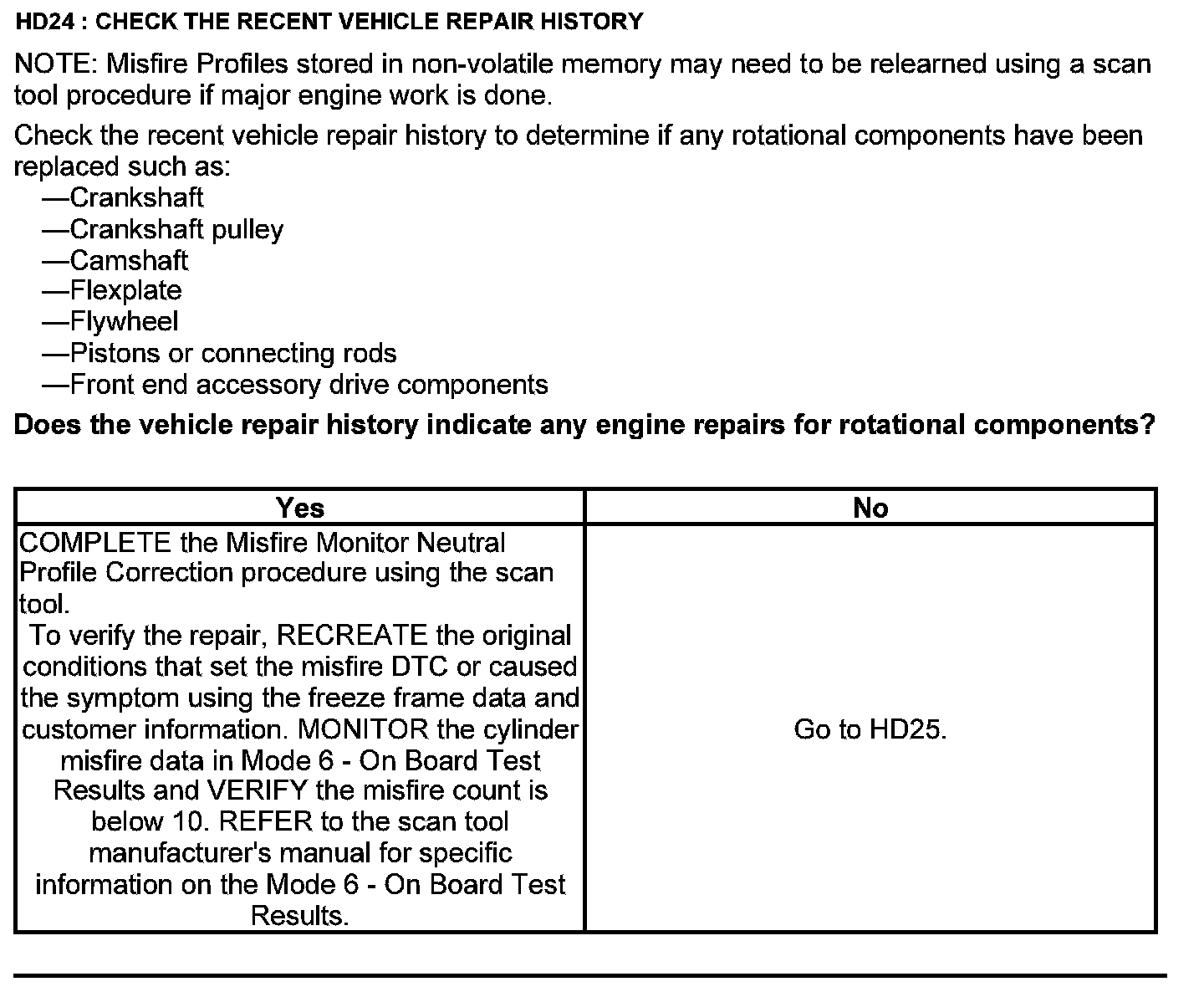

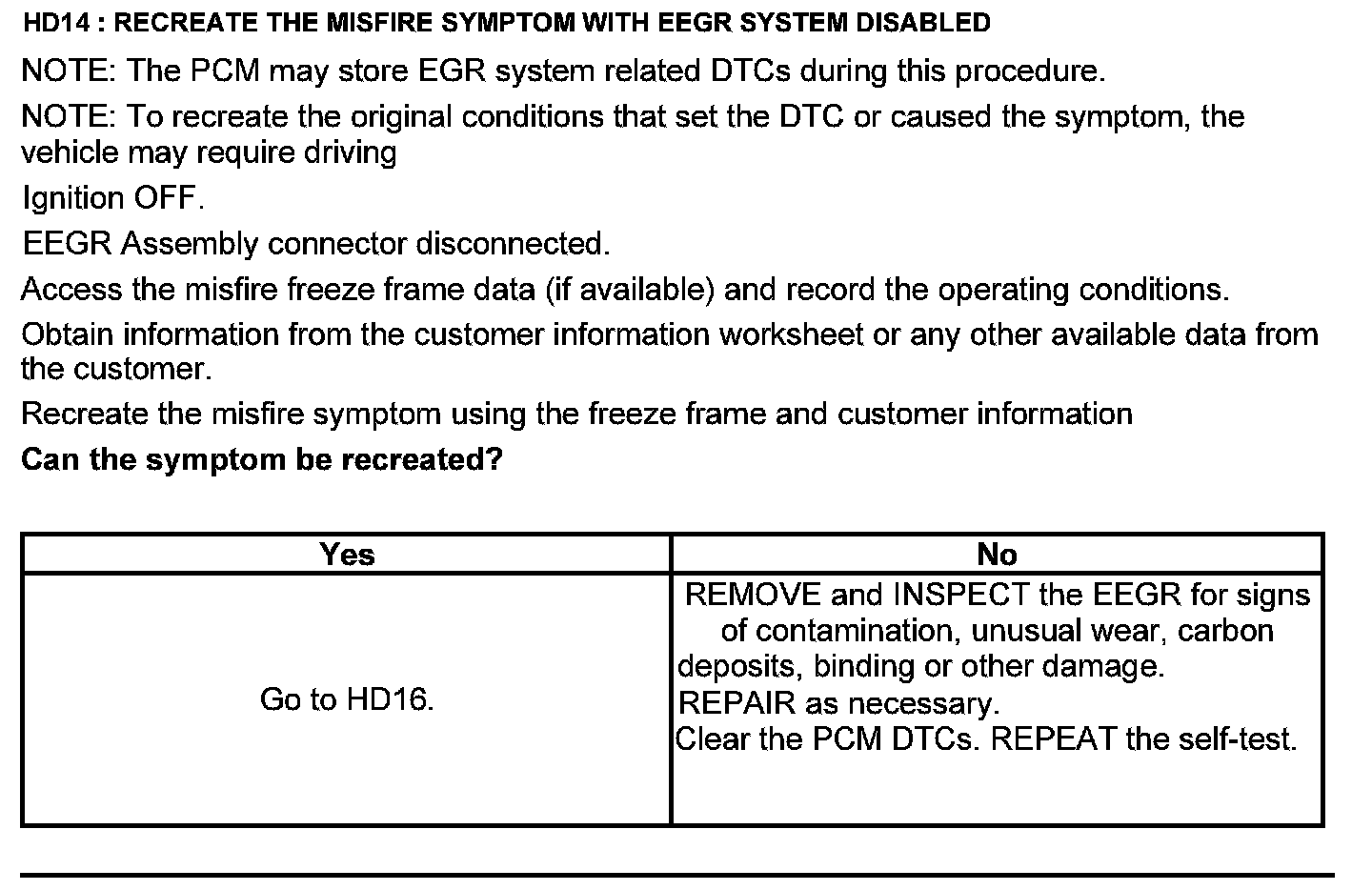

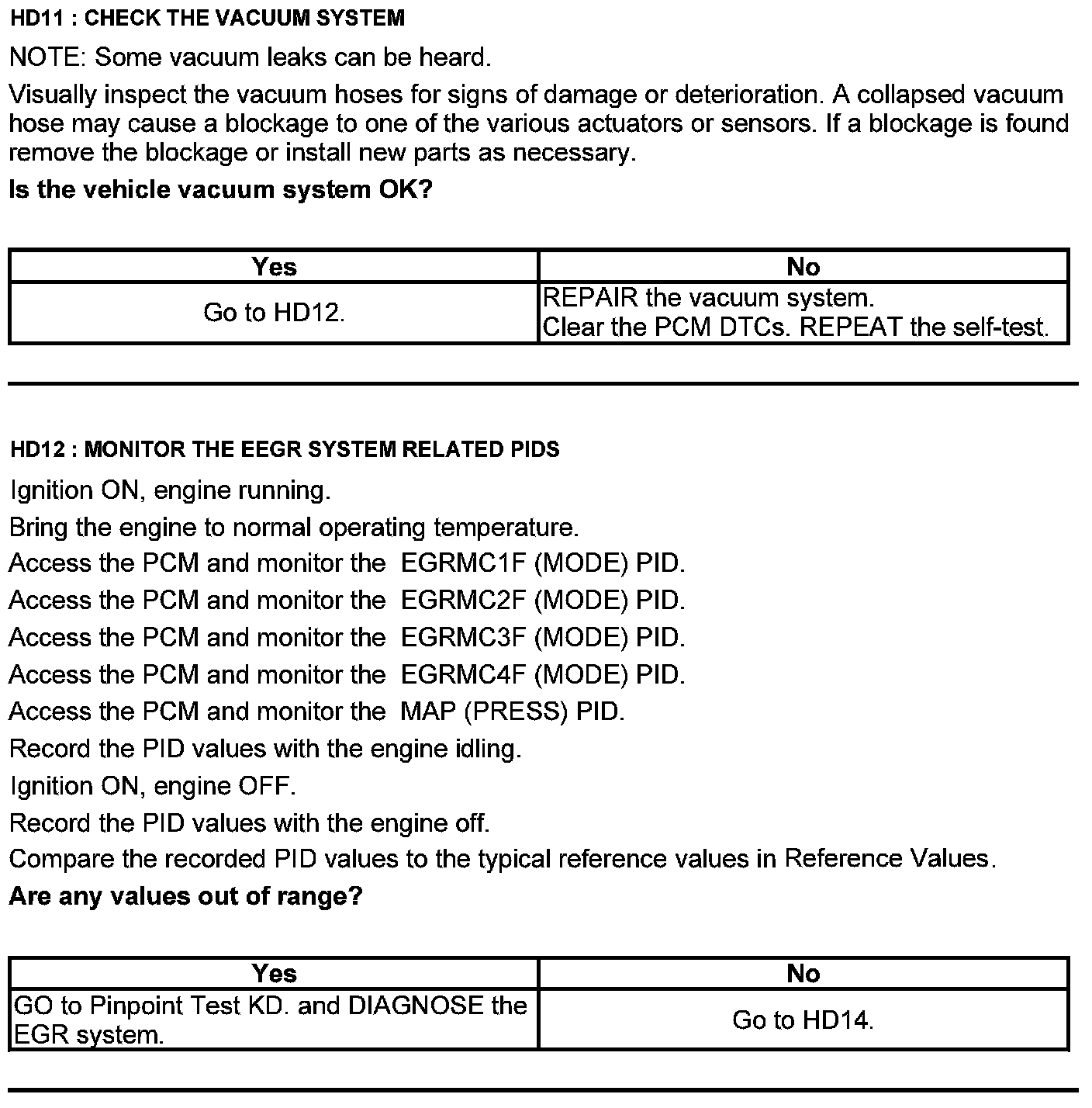

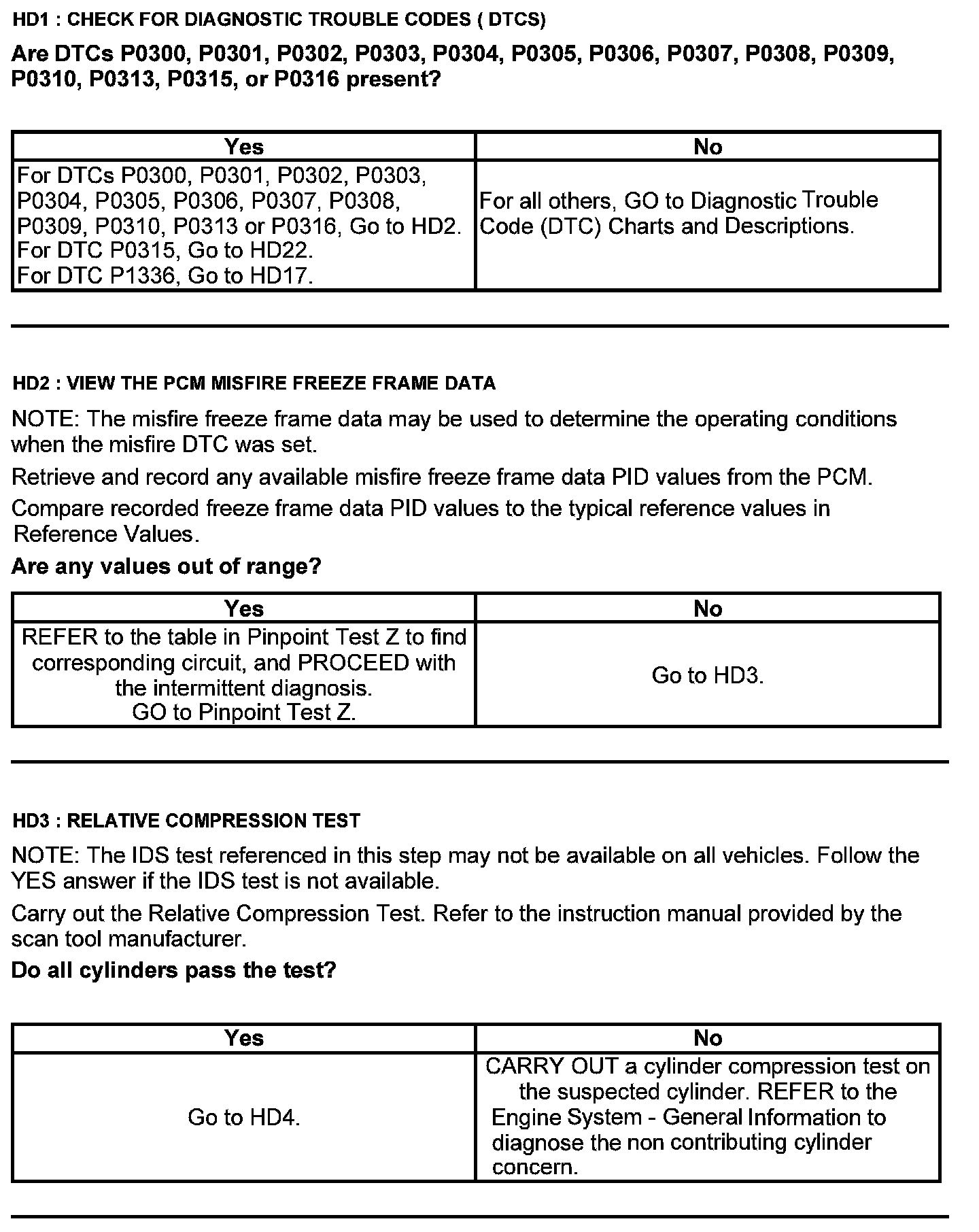

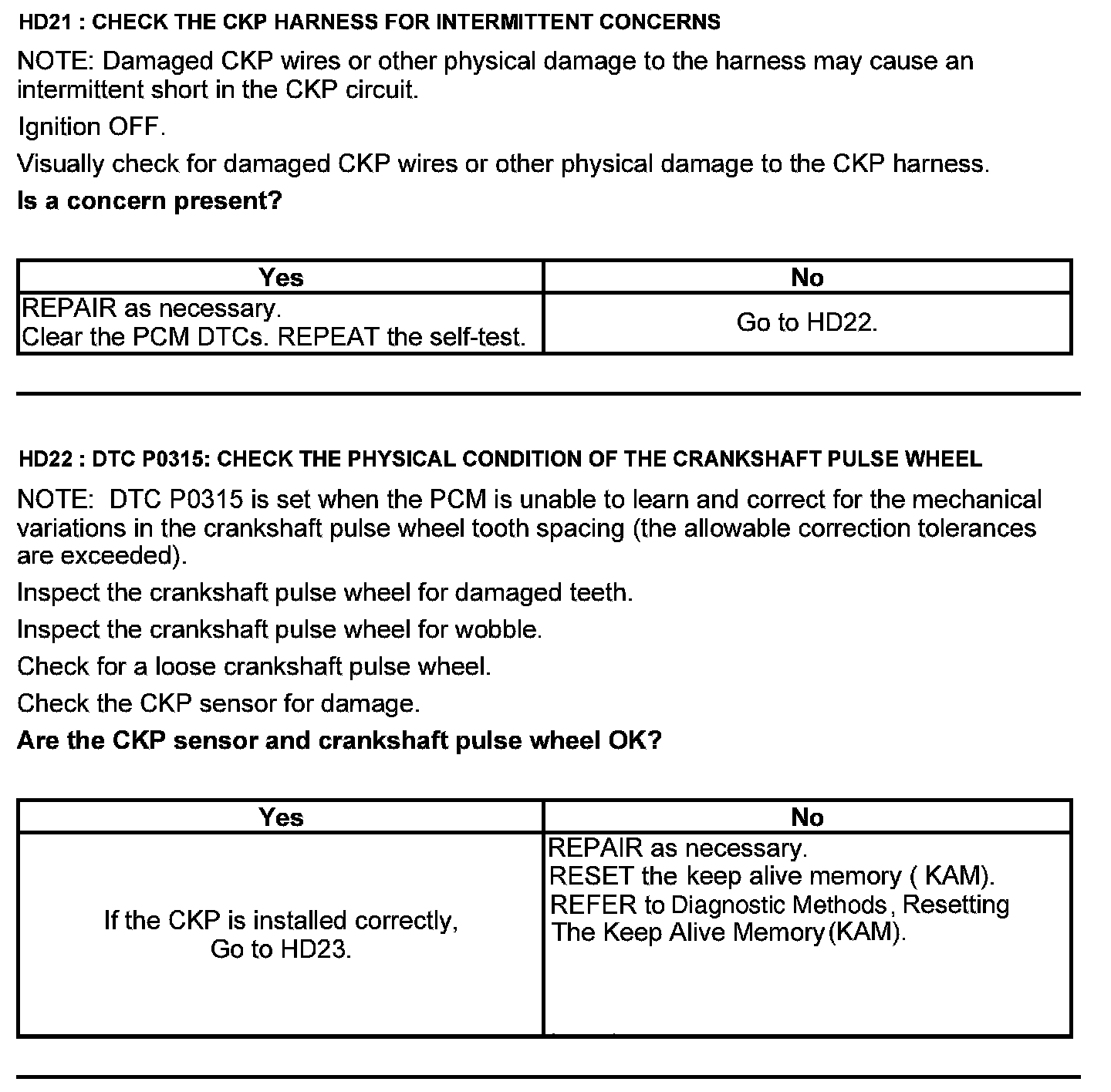

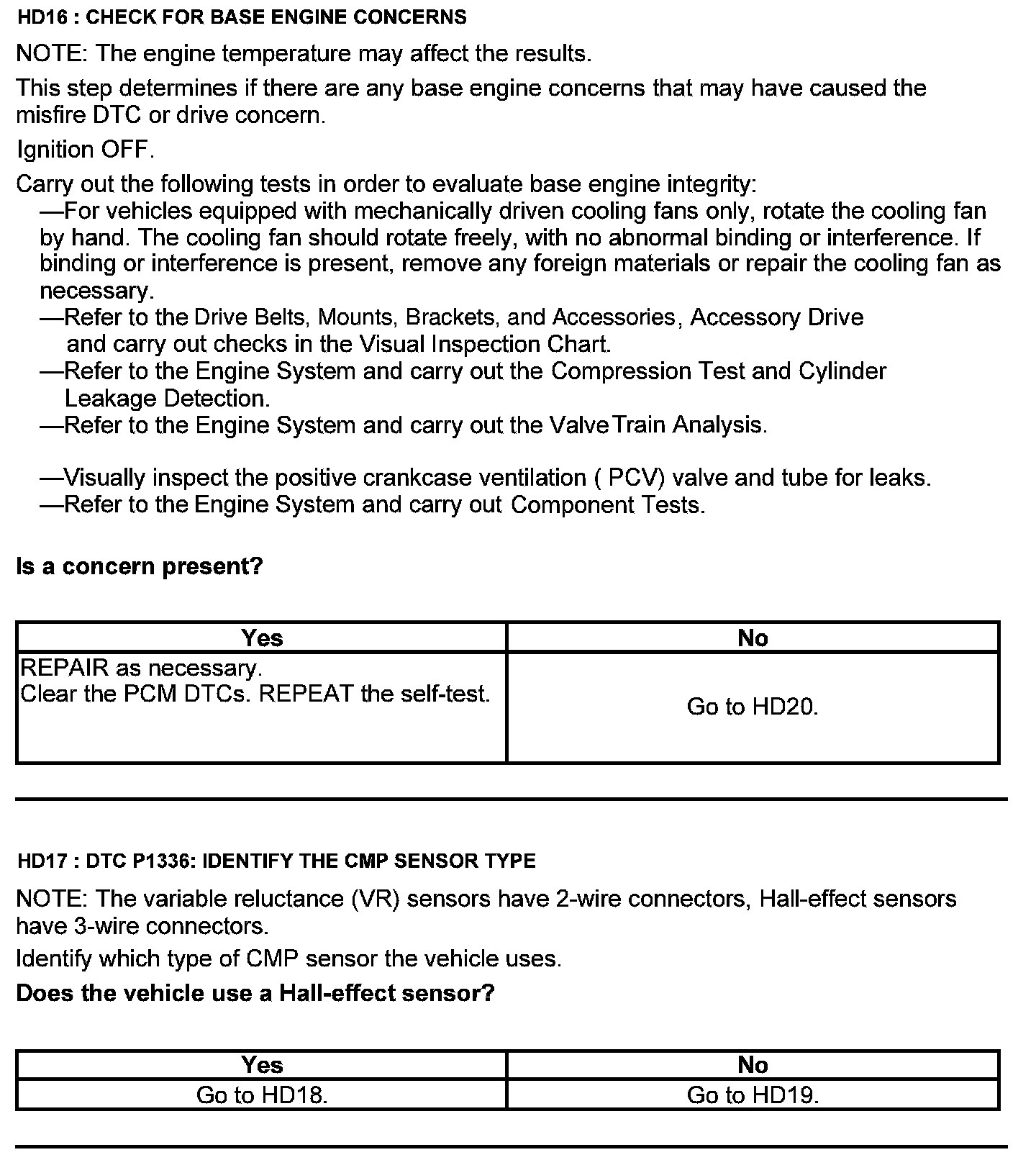

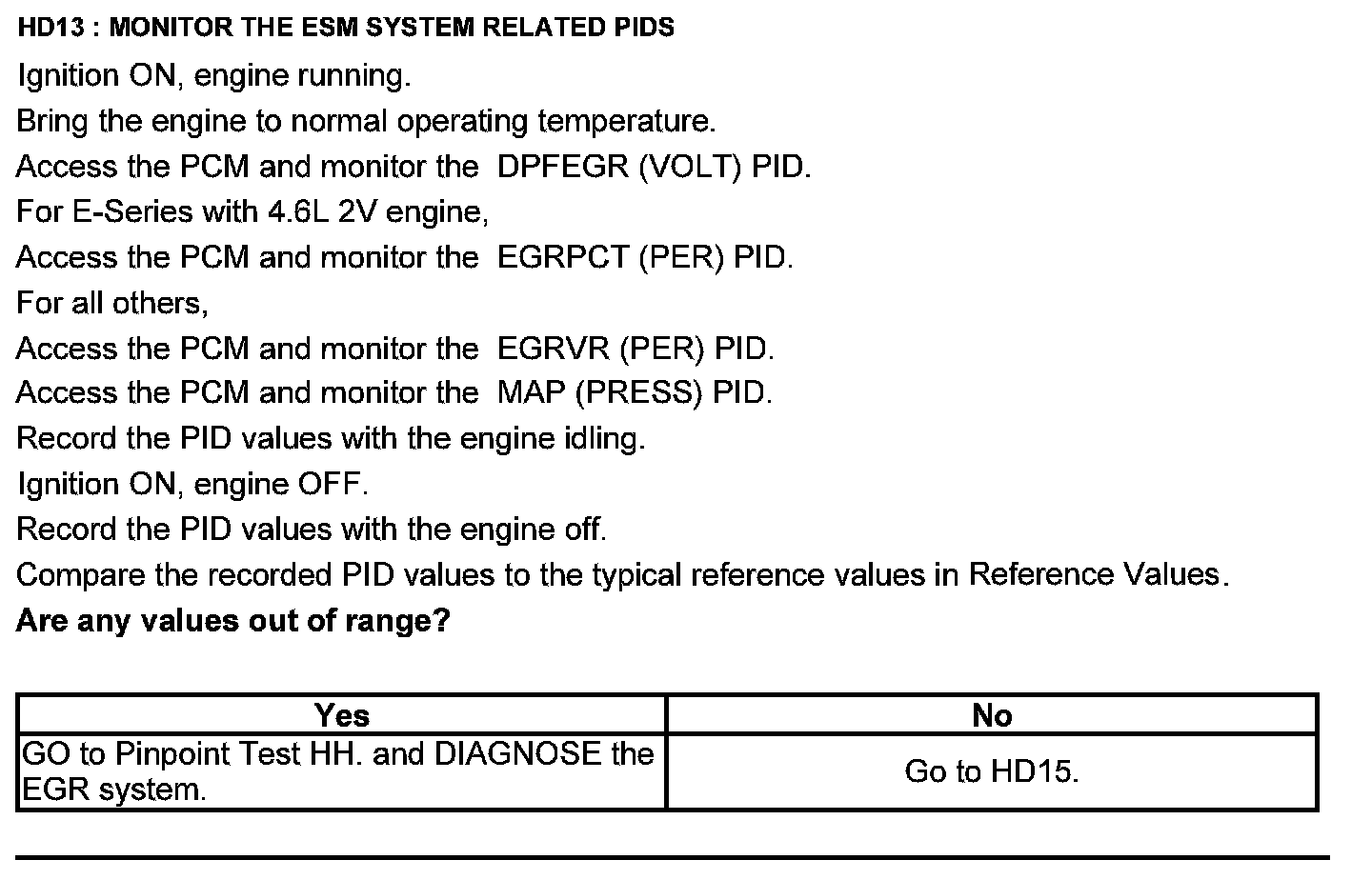

Misfire Detection Monitor - Manual Transmission

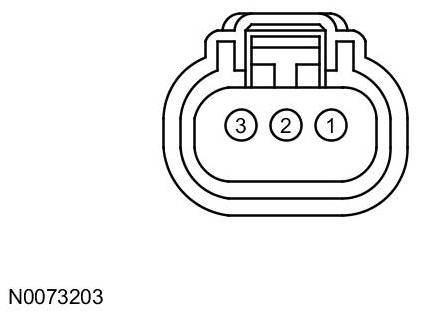

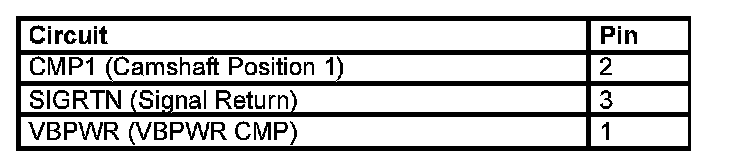

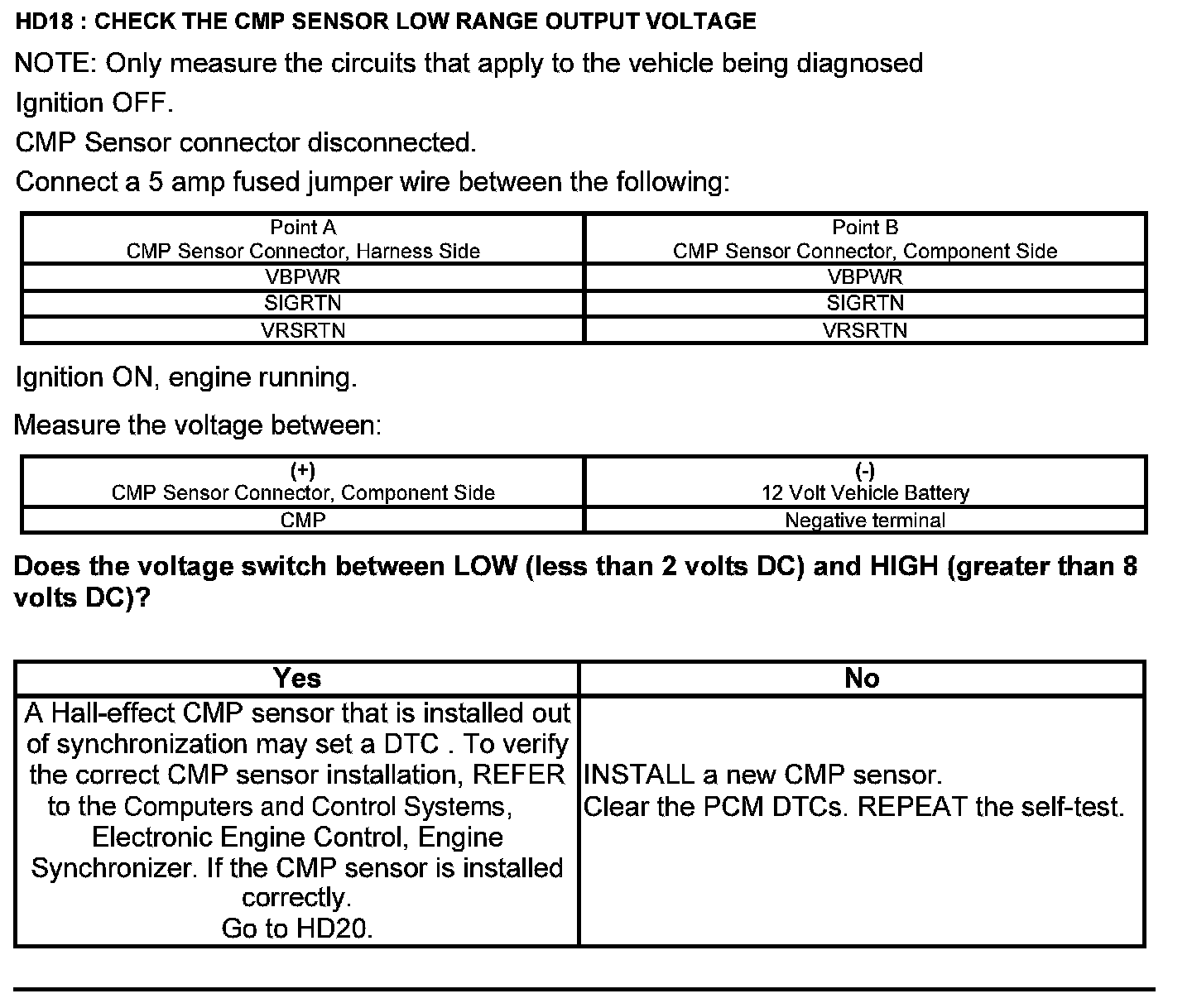

Camshaft Position 1 (CMP1) Sensor Connector





Harness Side






Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
