Automatic Transmission



Misfire Detection Monitor - Automatic Transmission

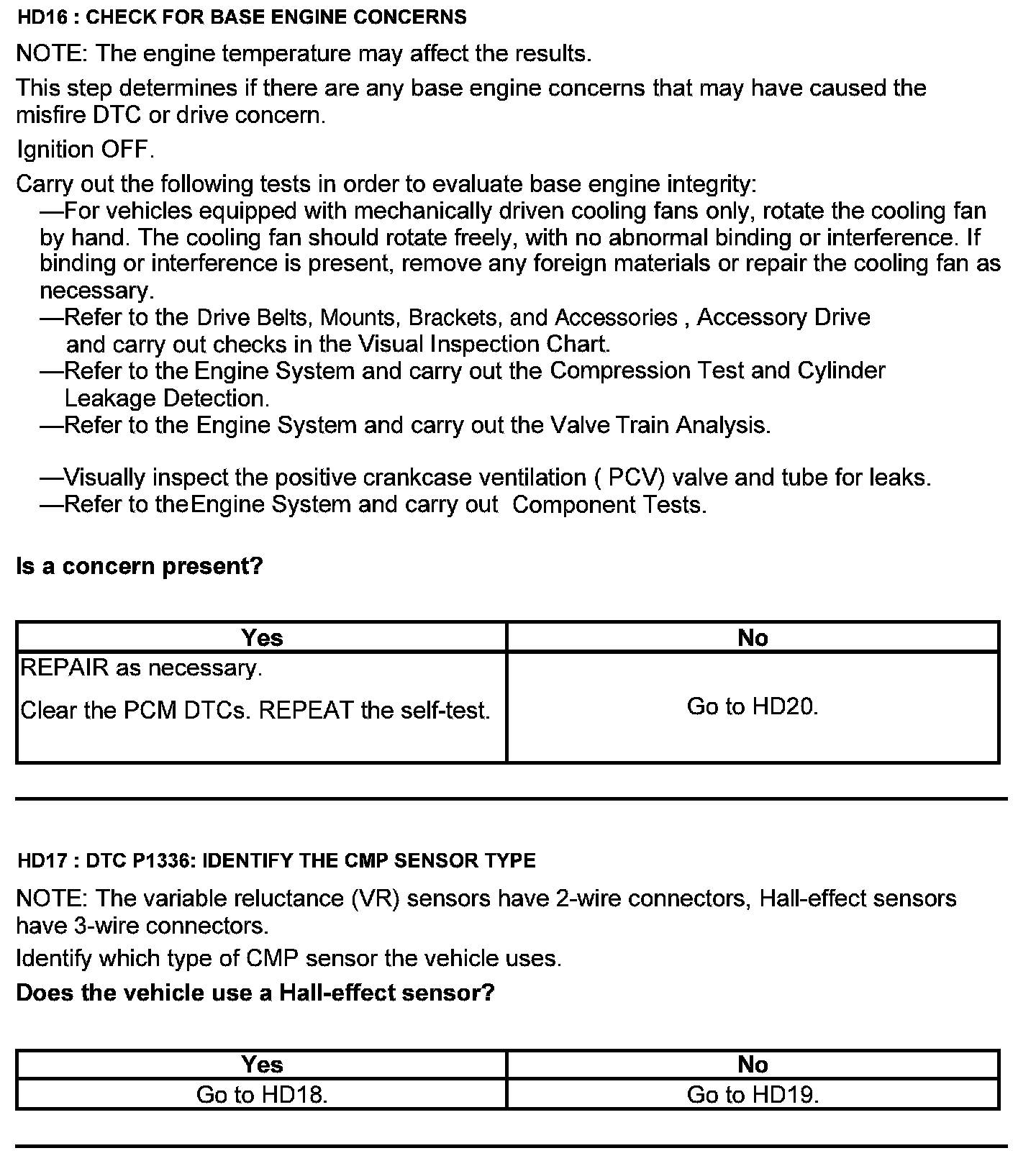

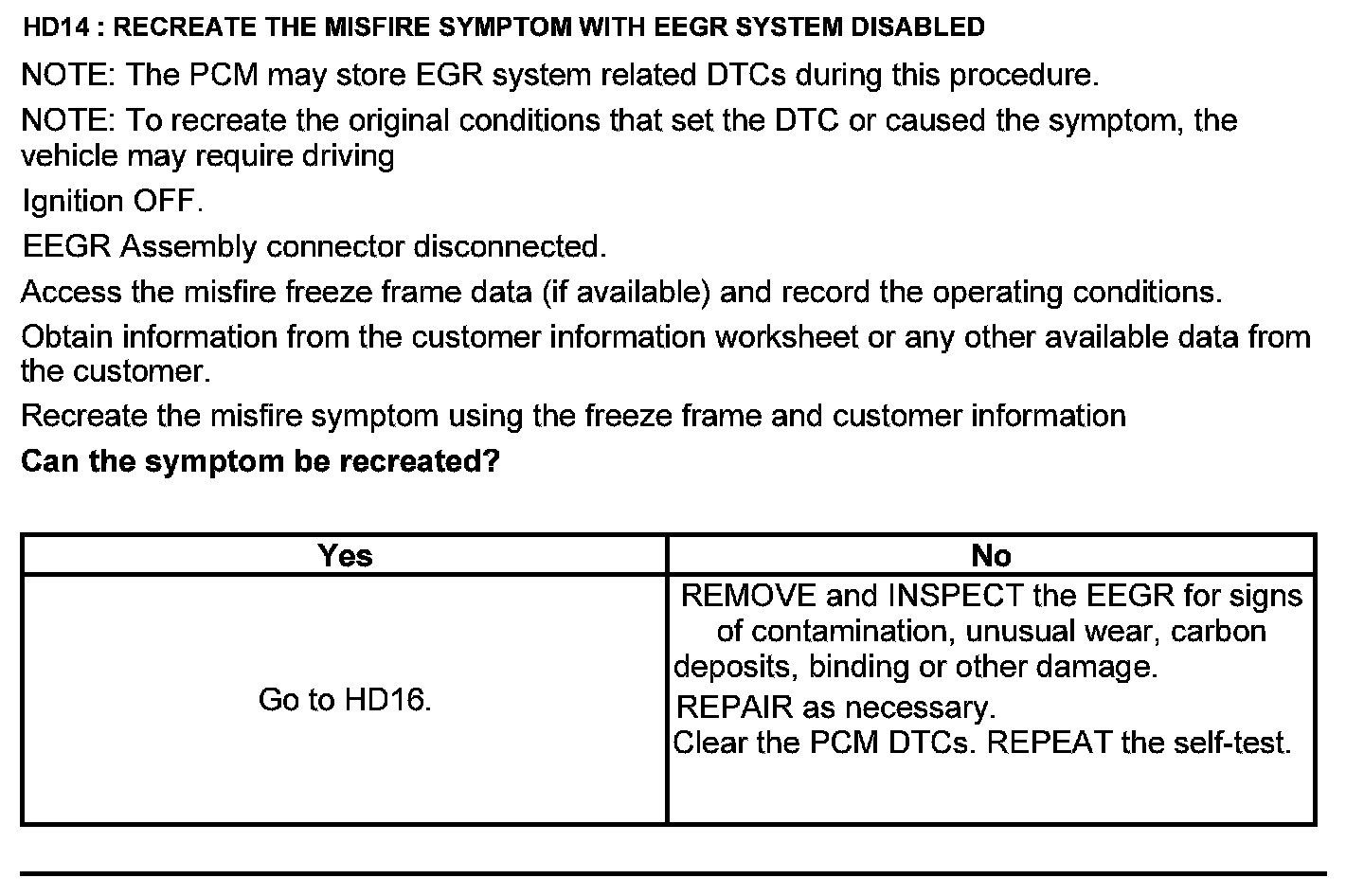

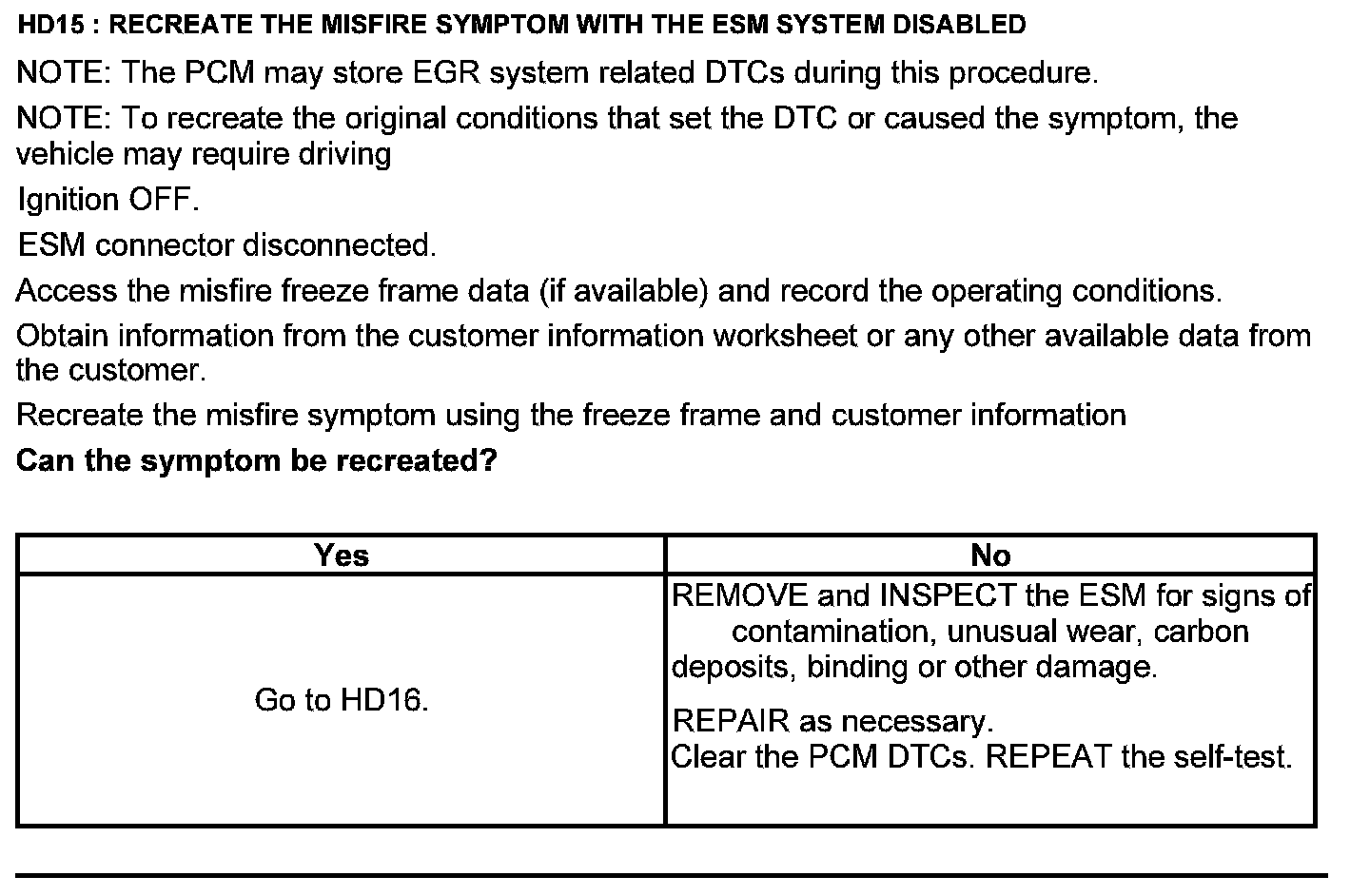

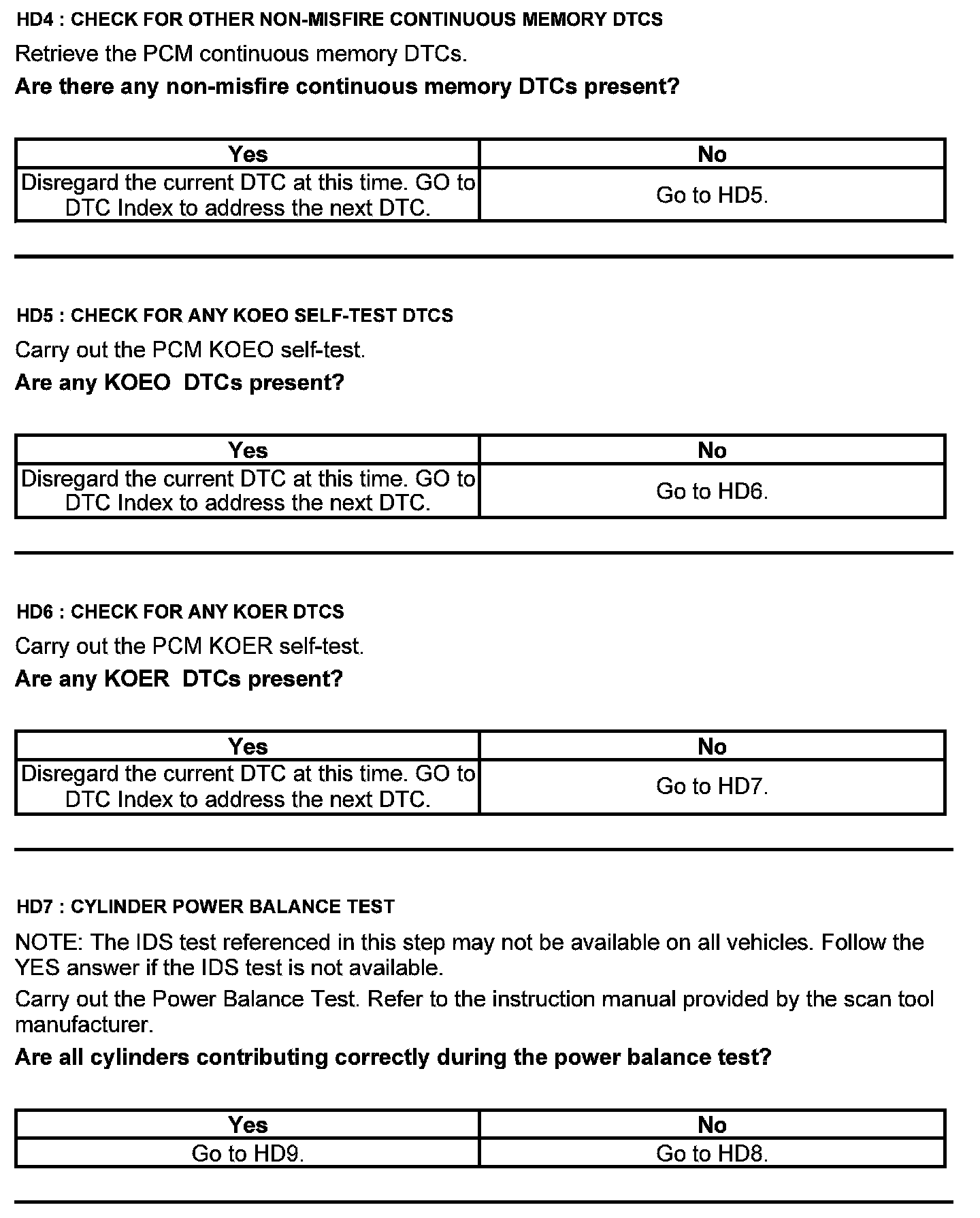

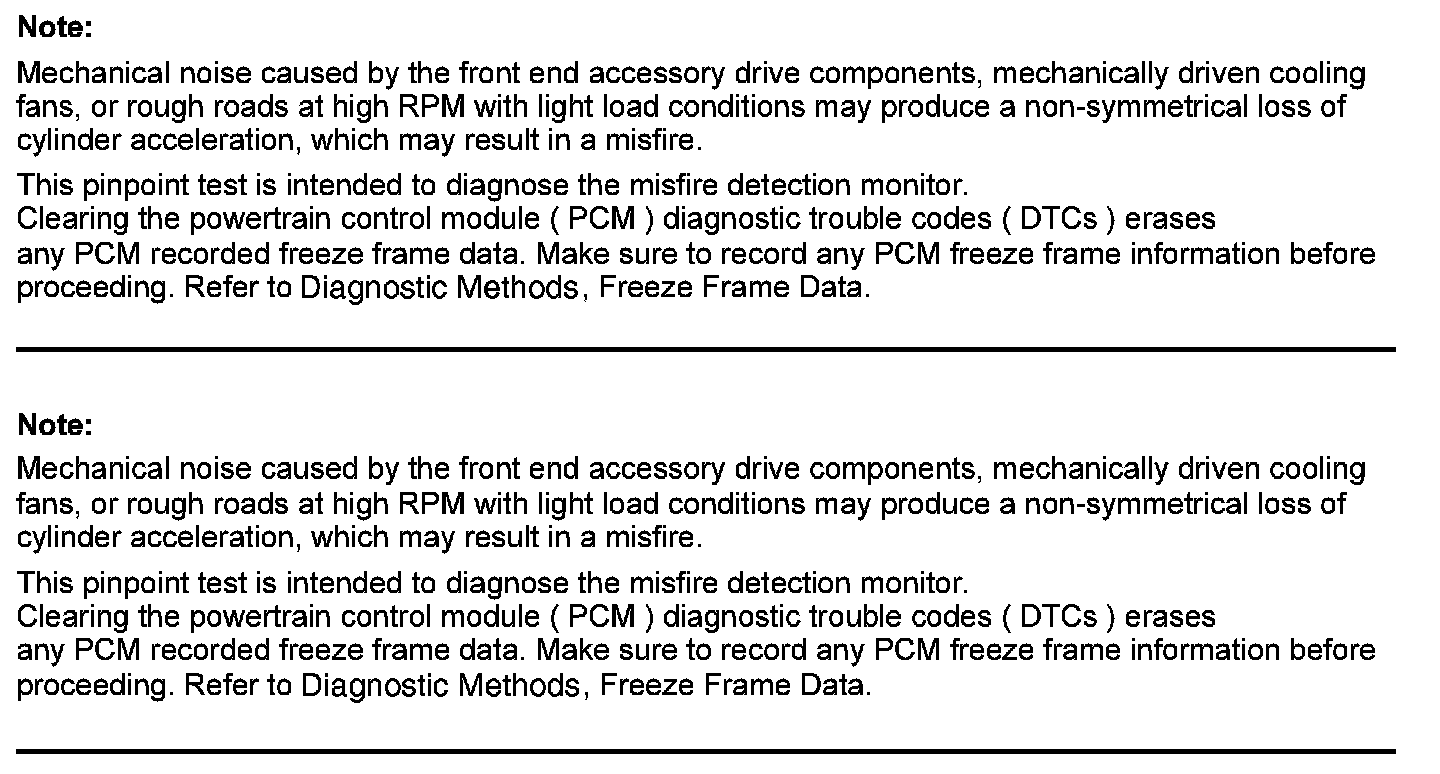

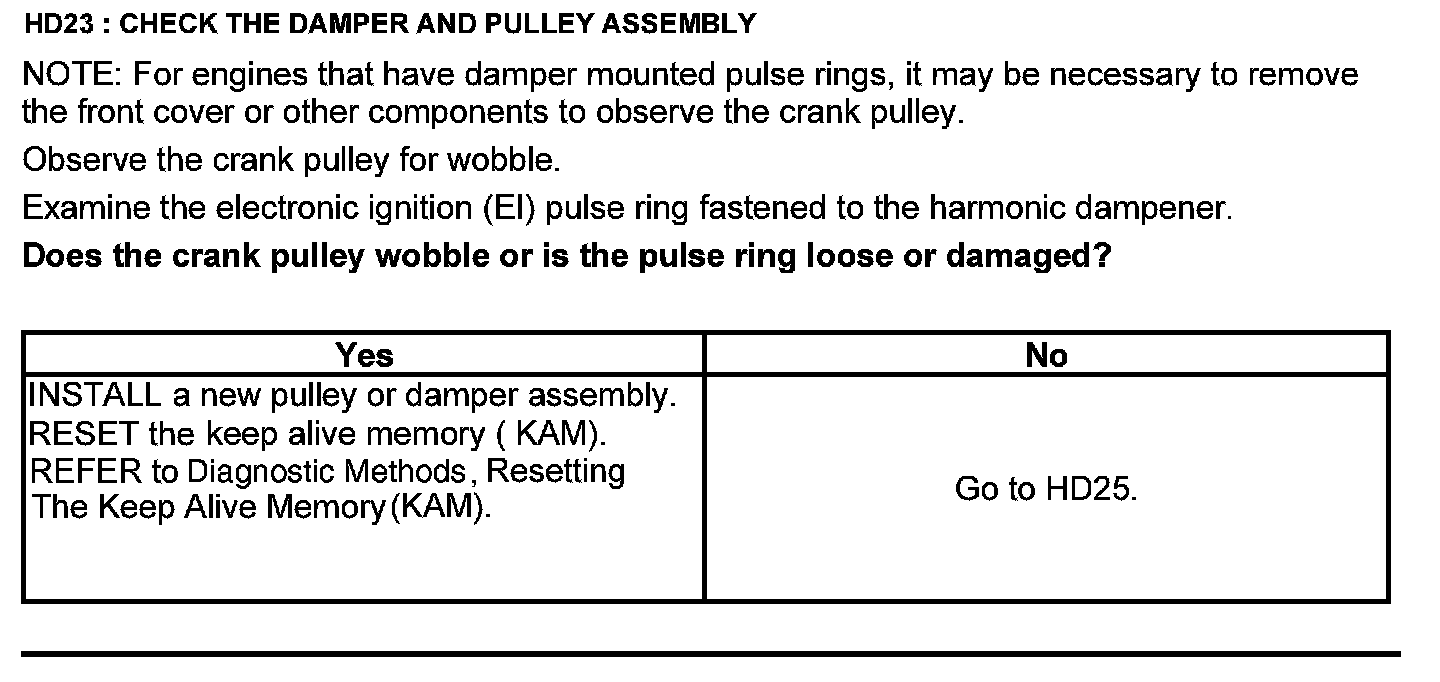

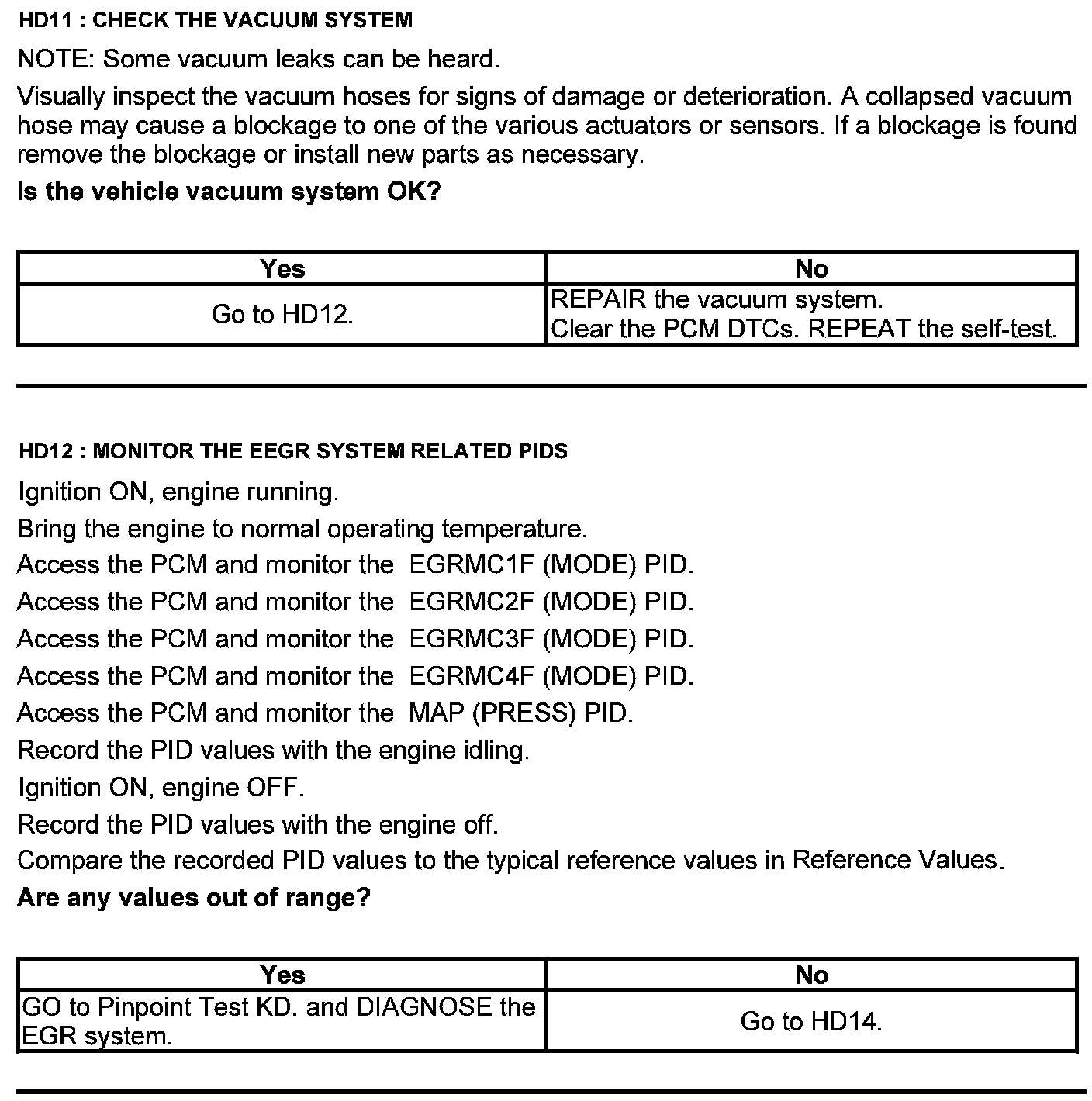

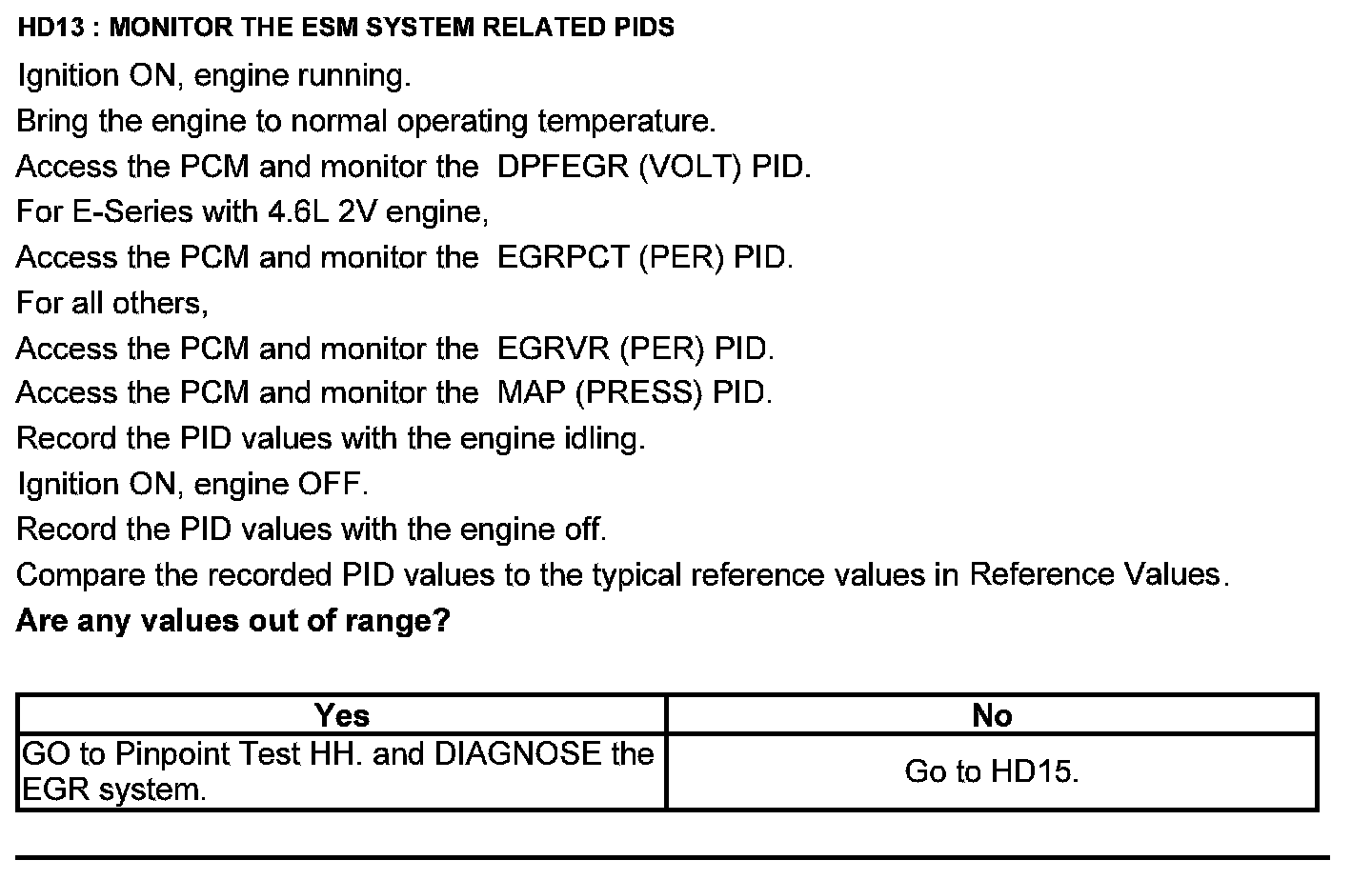

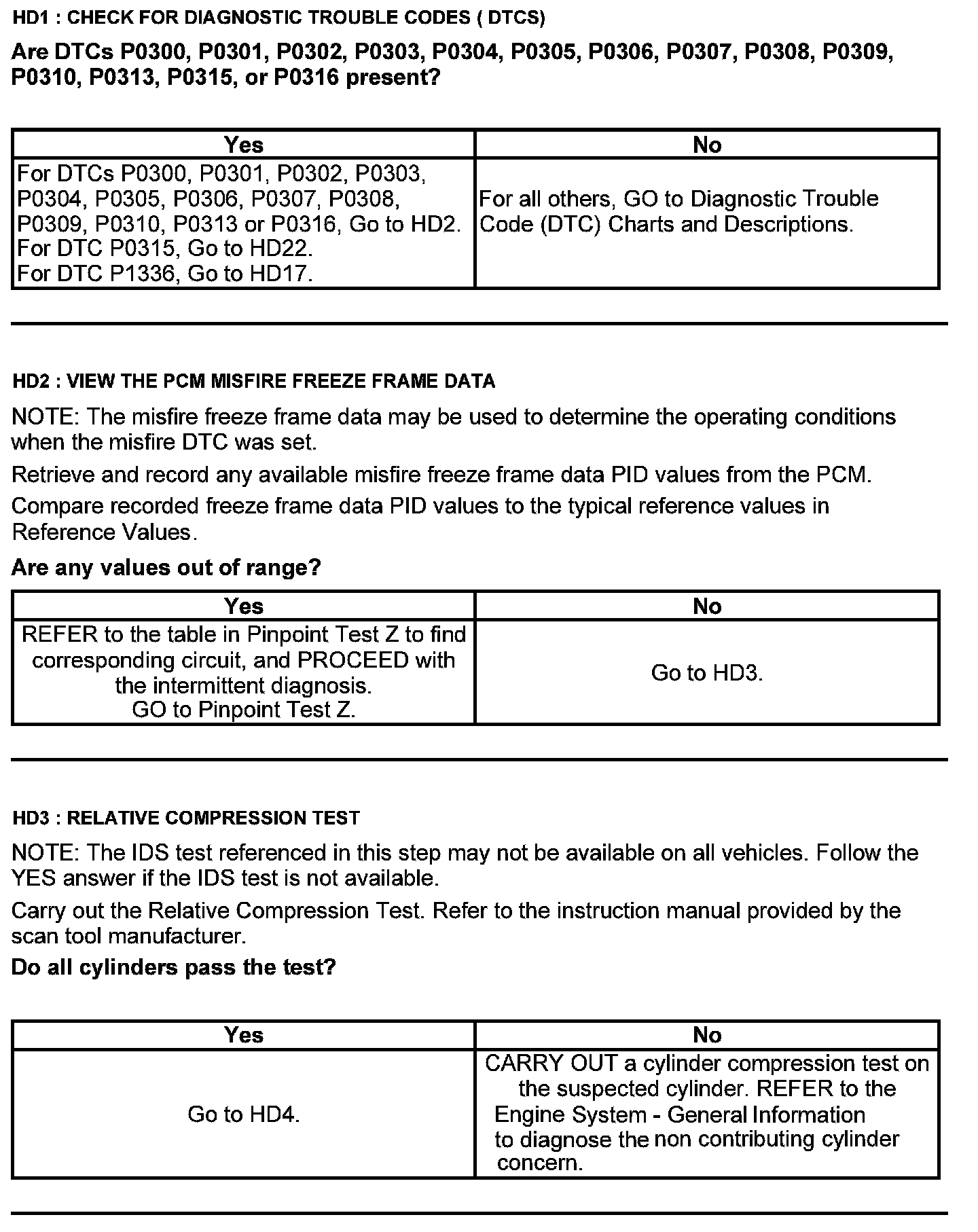

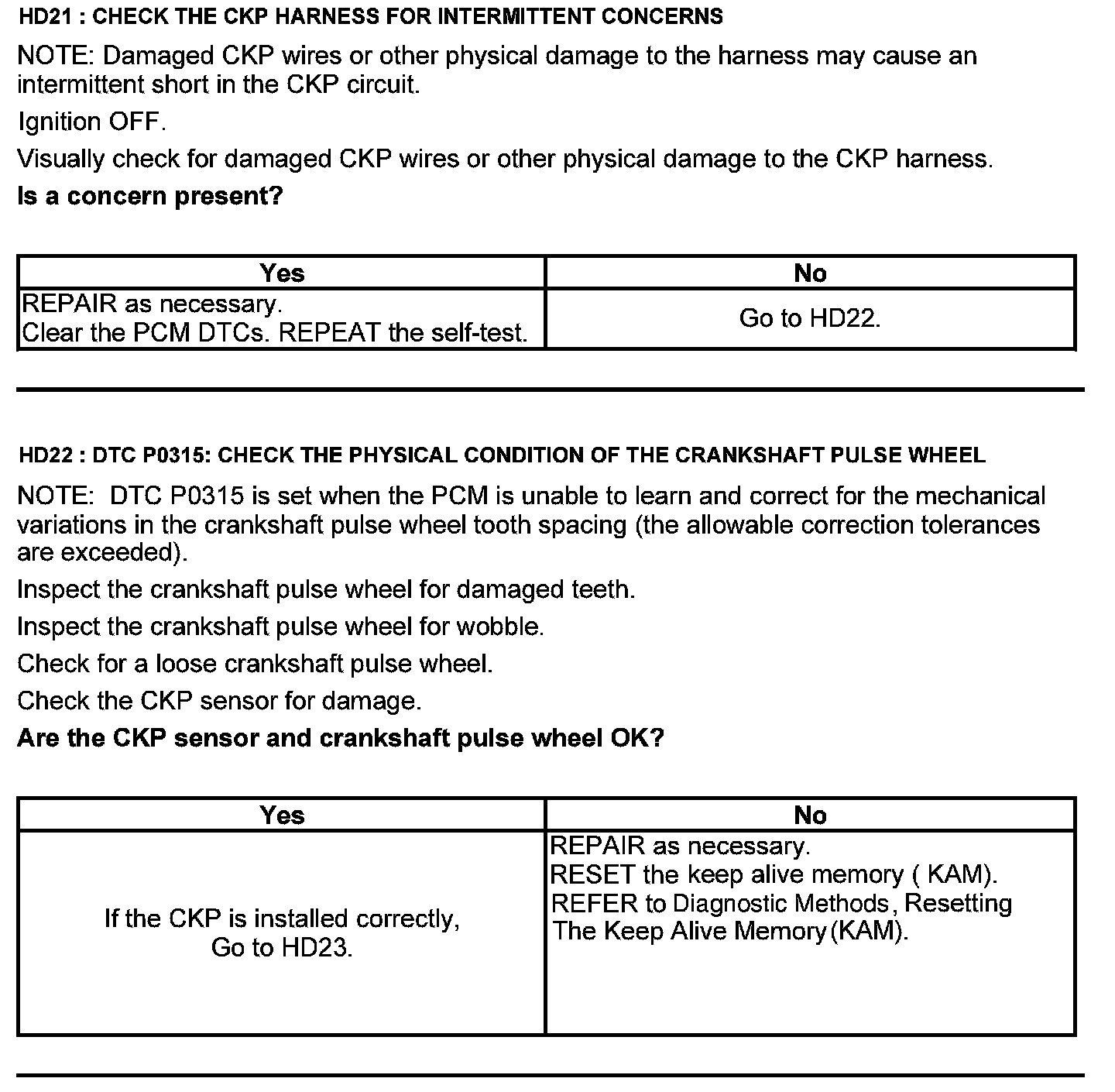

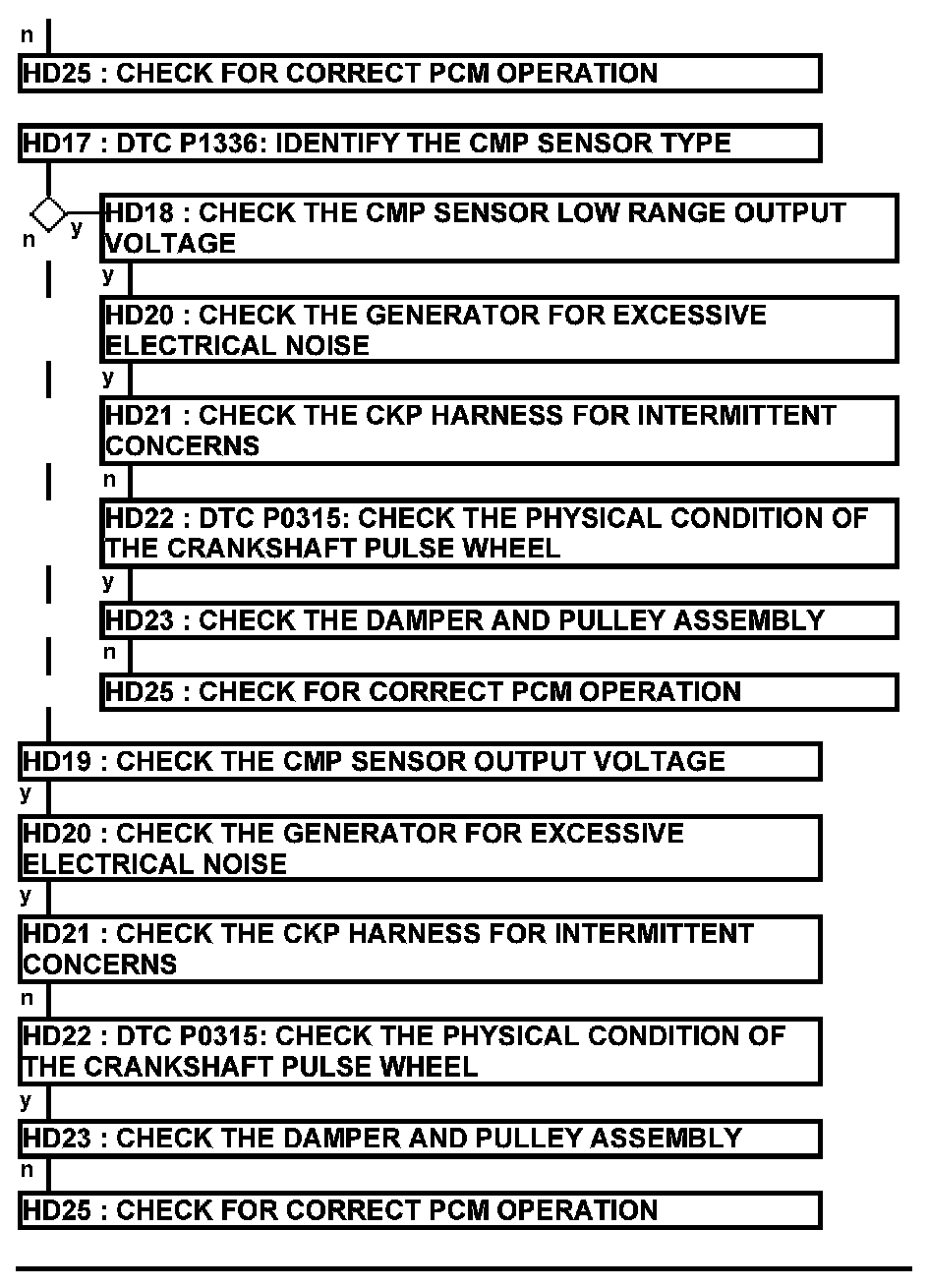

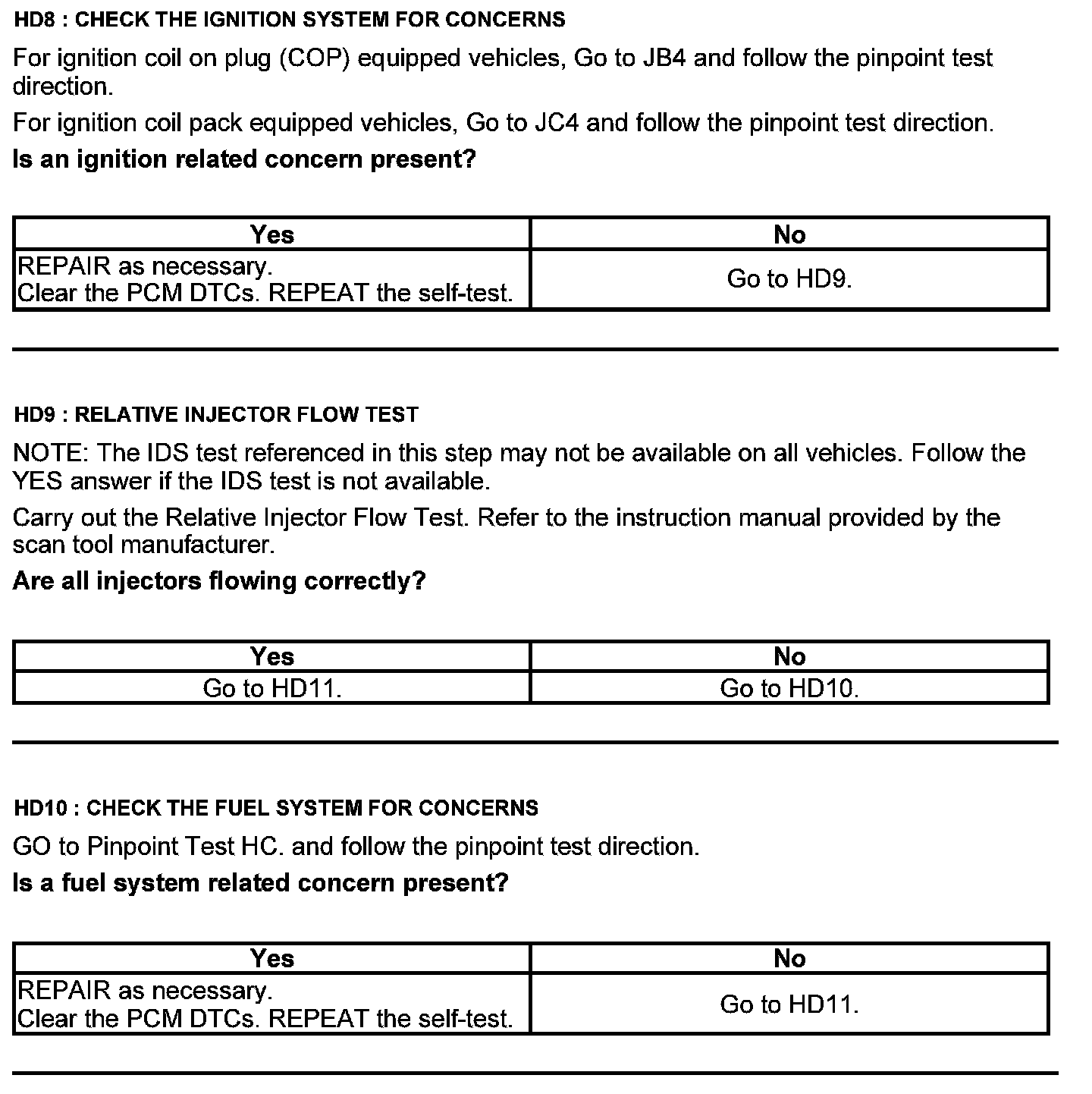

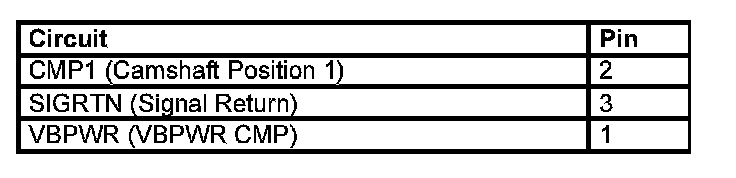

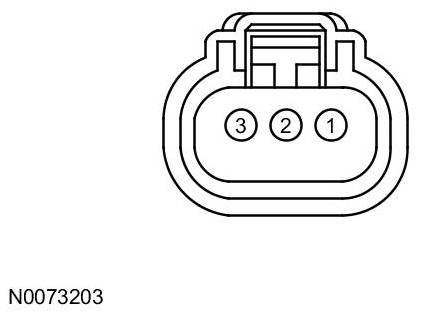

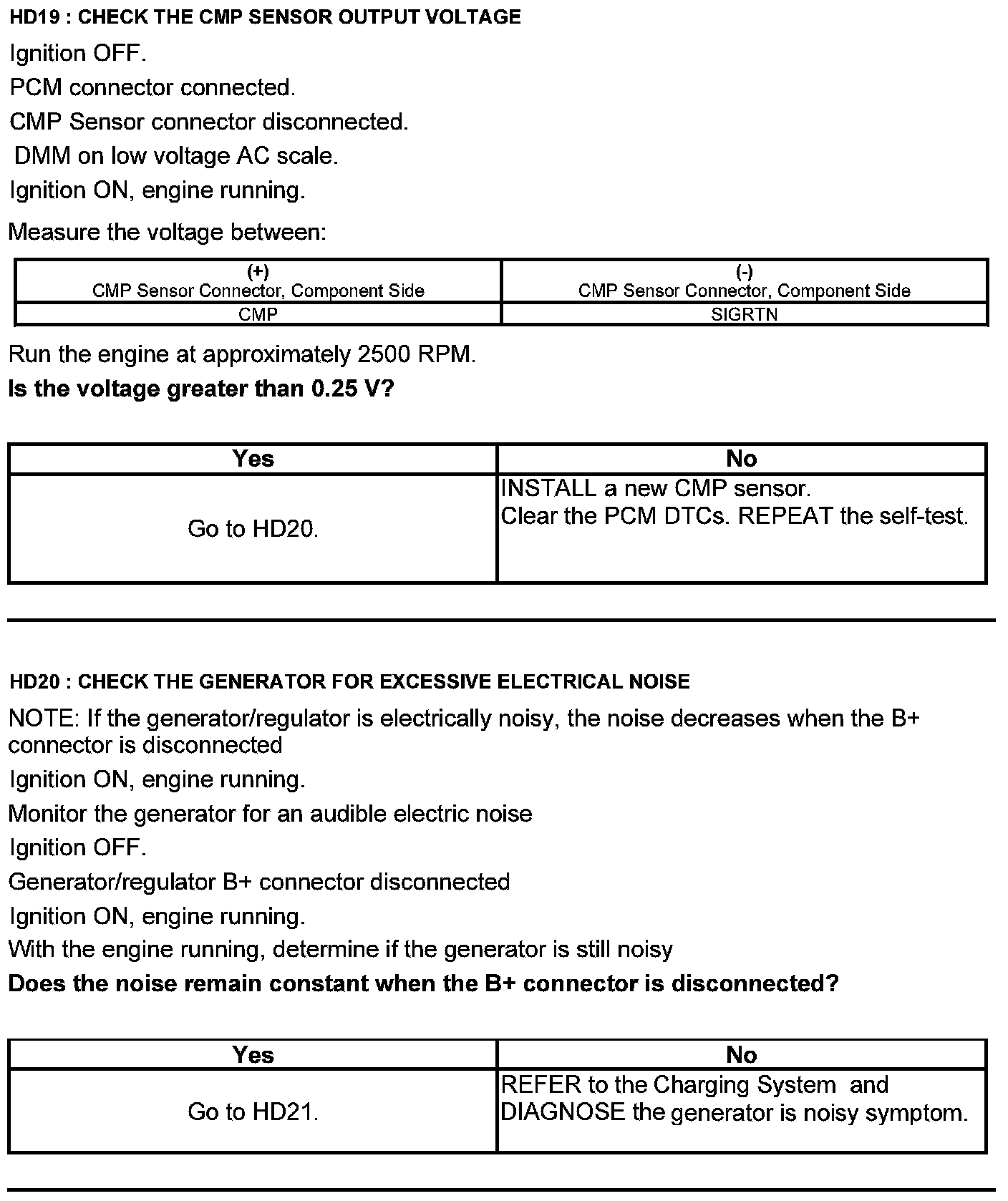

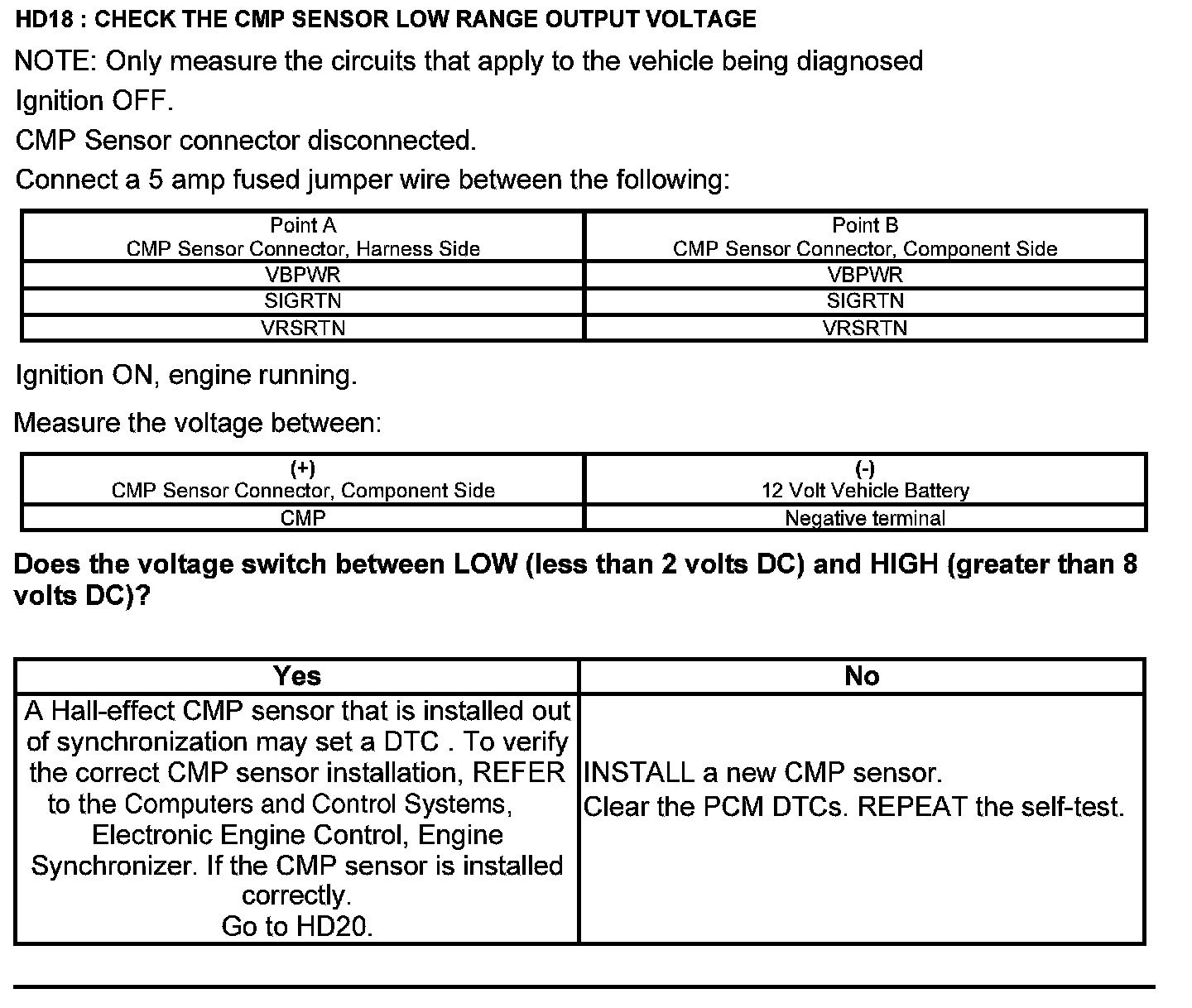

Camshaft Position 1 (CMP1) Sensor Connector





Harness Side






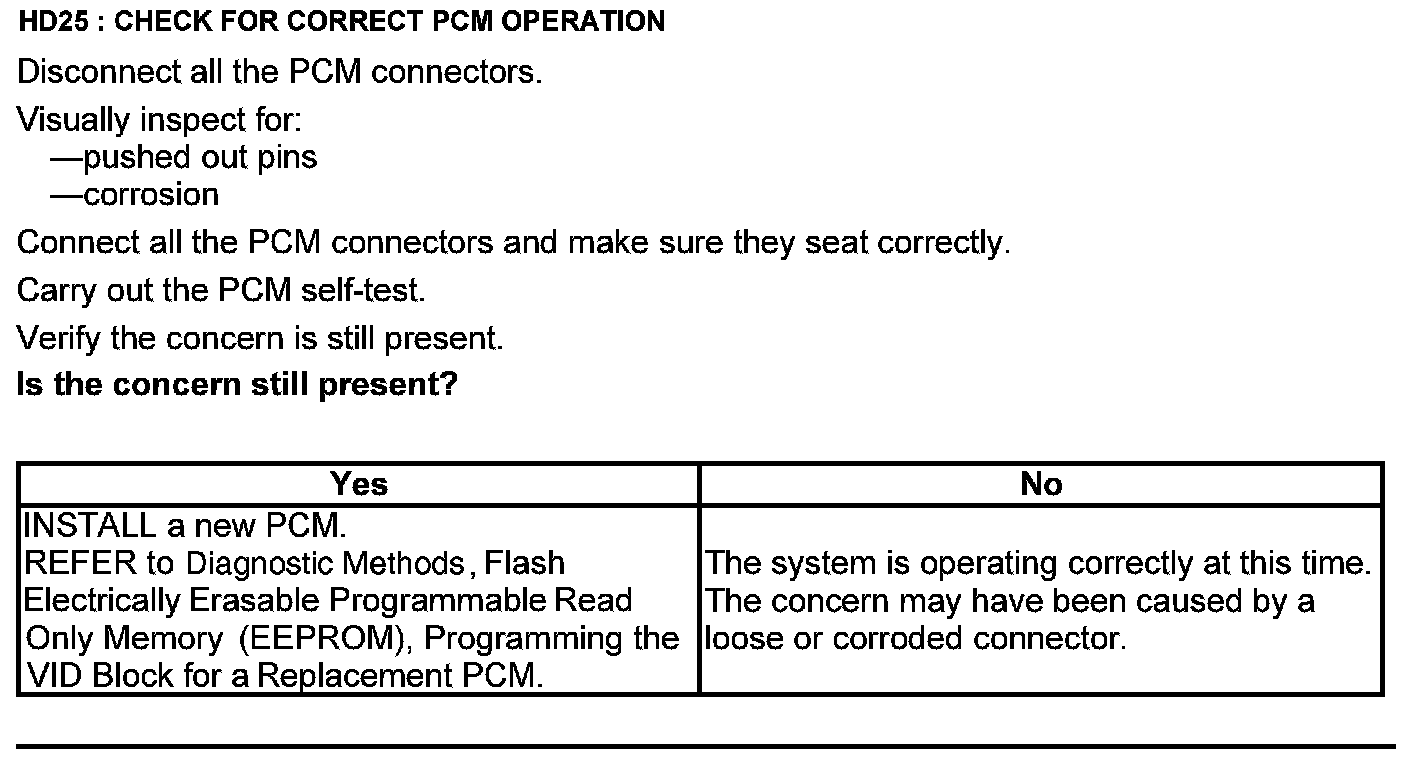

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
