Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test HD: Misfire Detection Monitor >> All Others

All Others

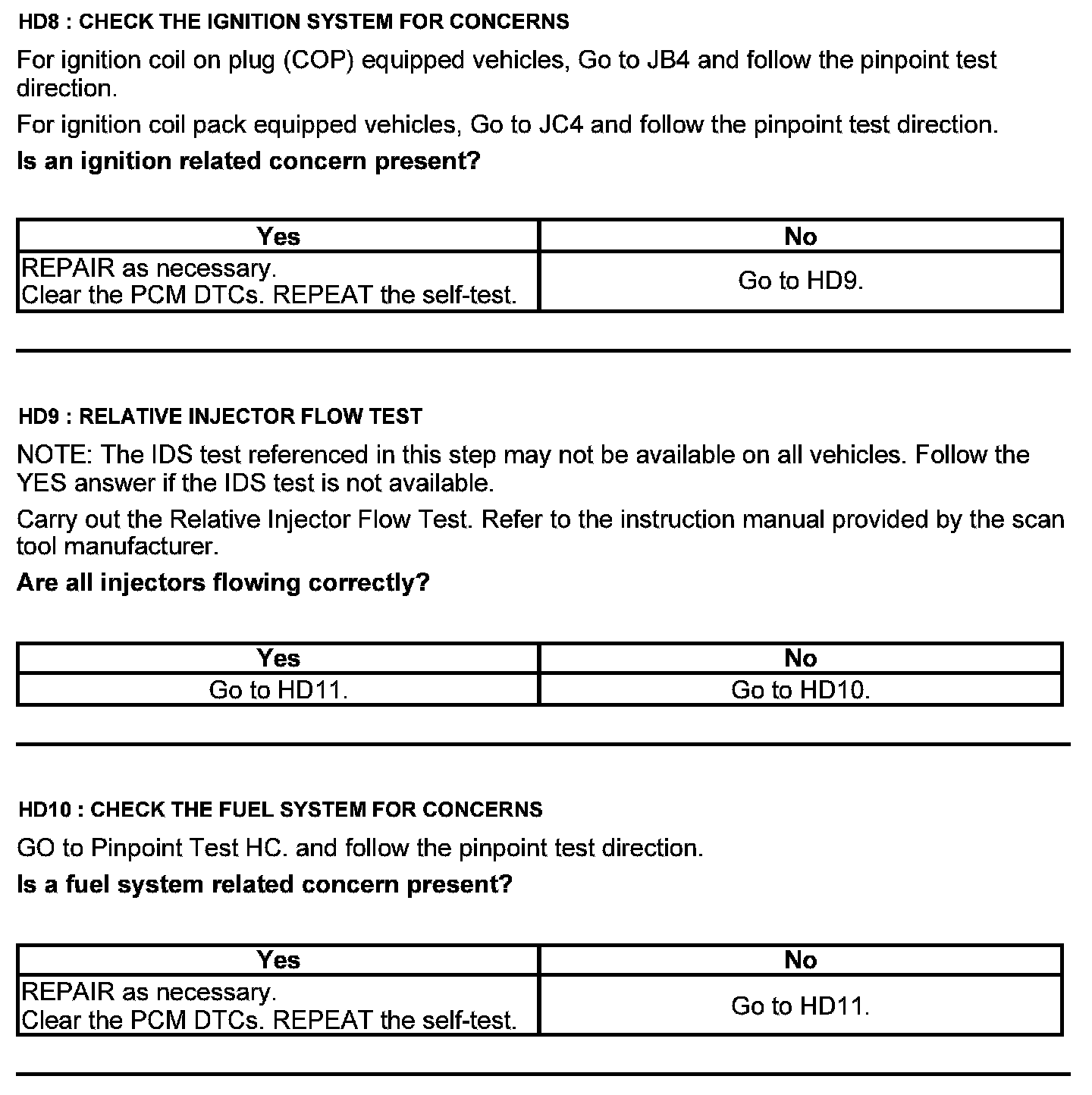

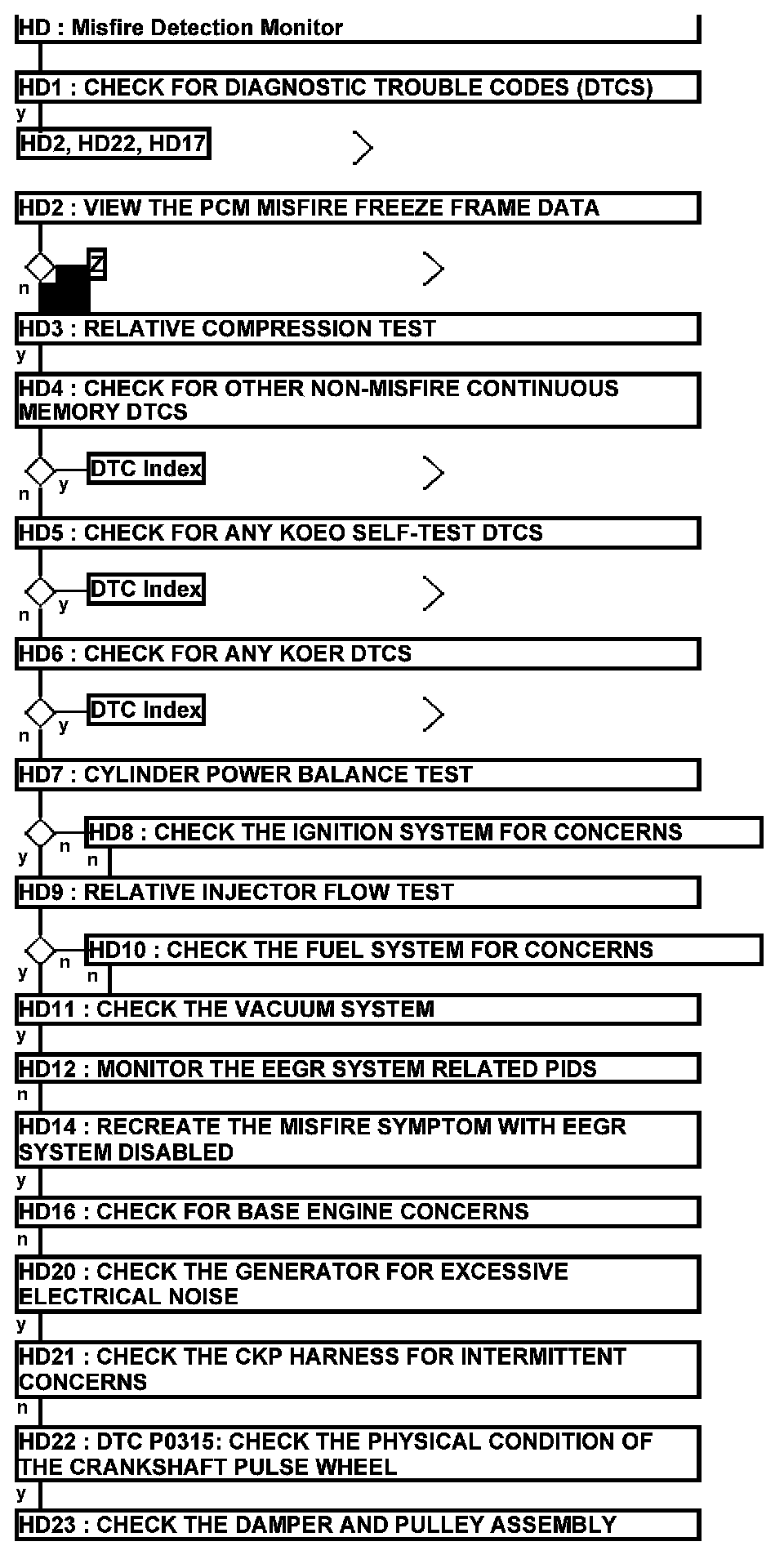

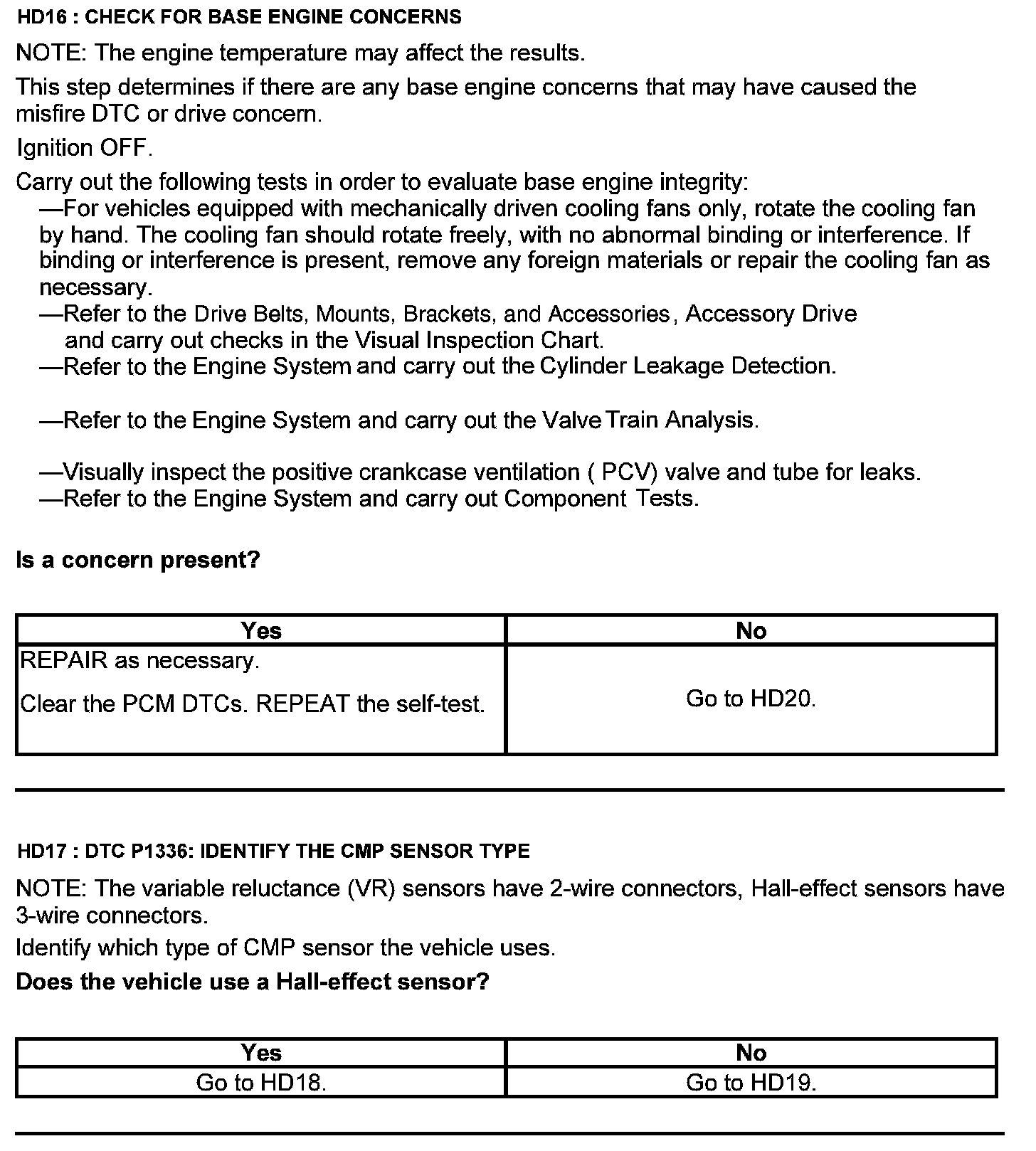

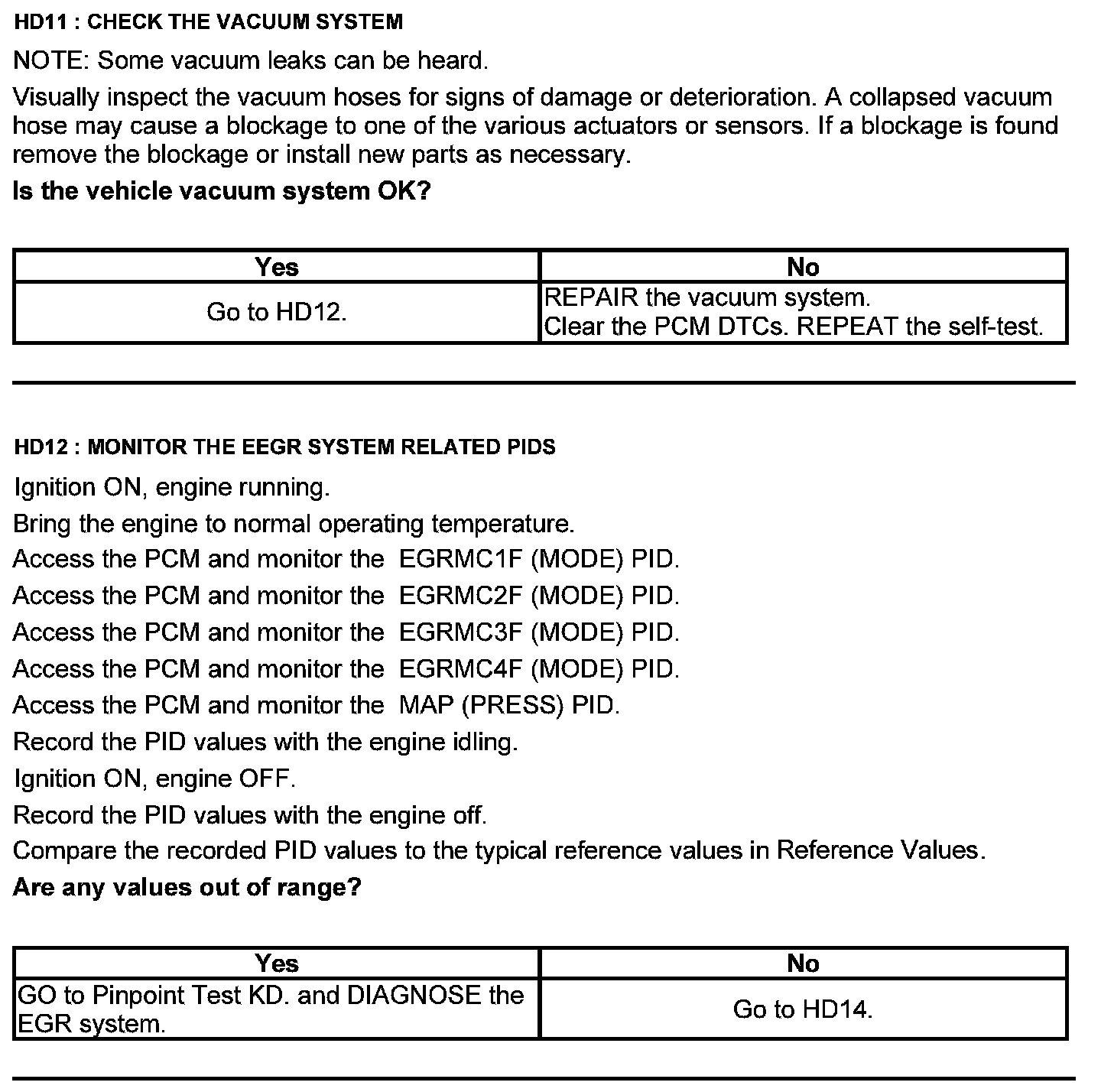

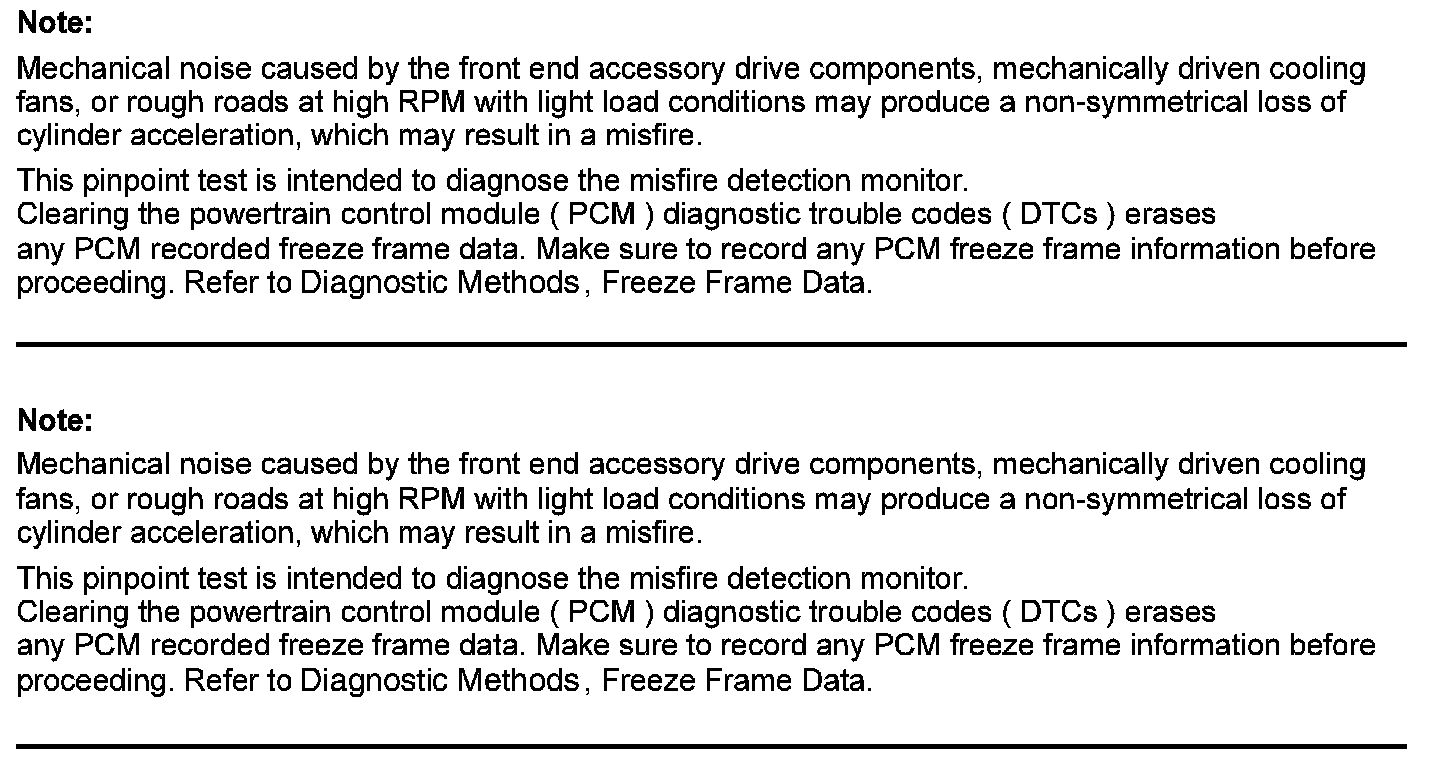

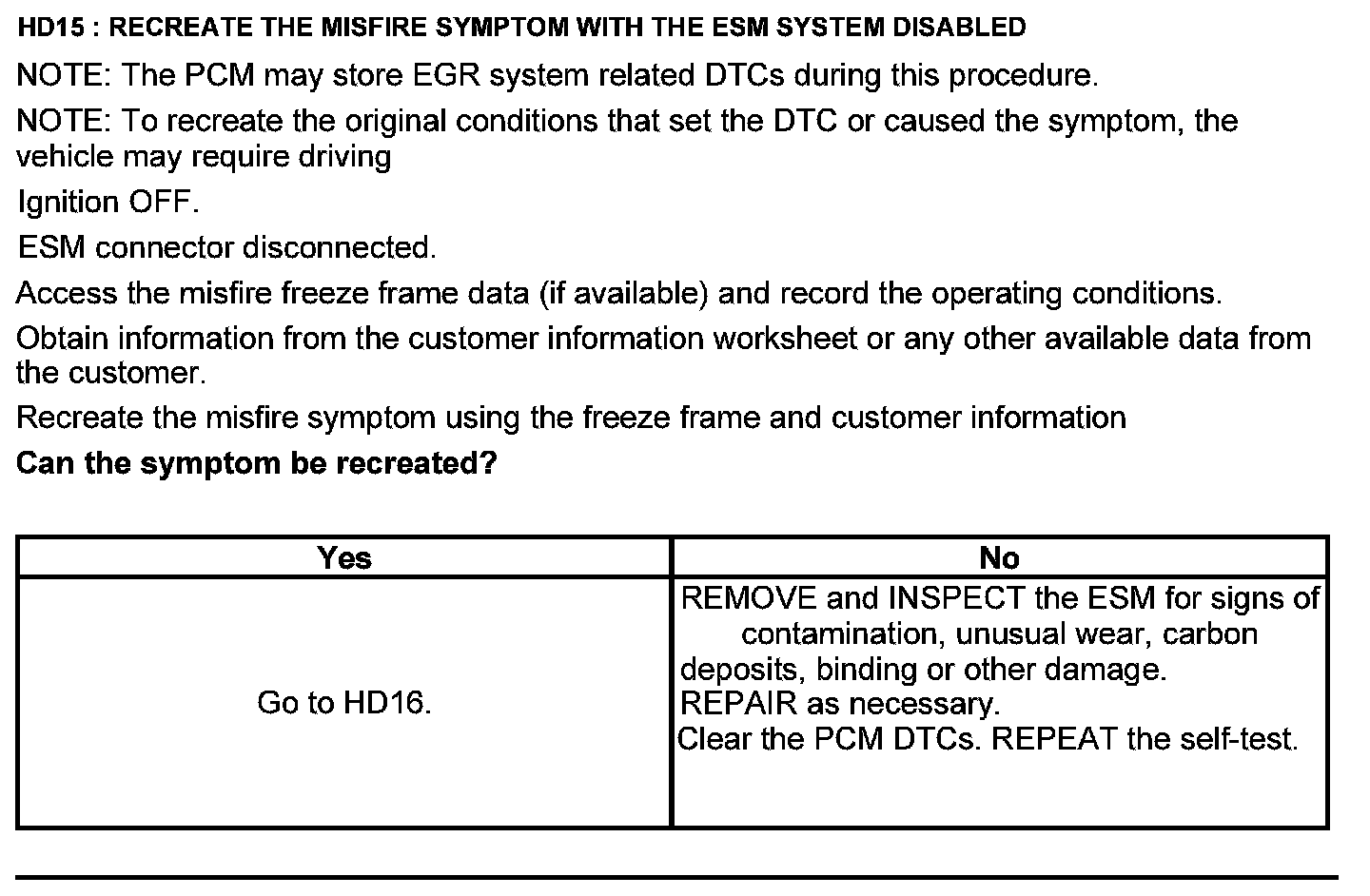

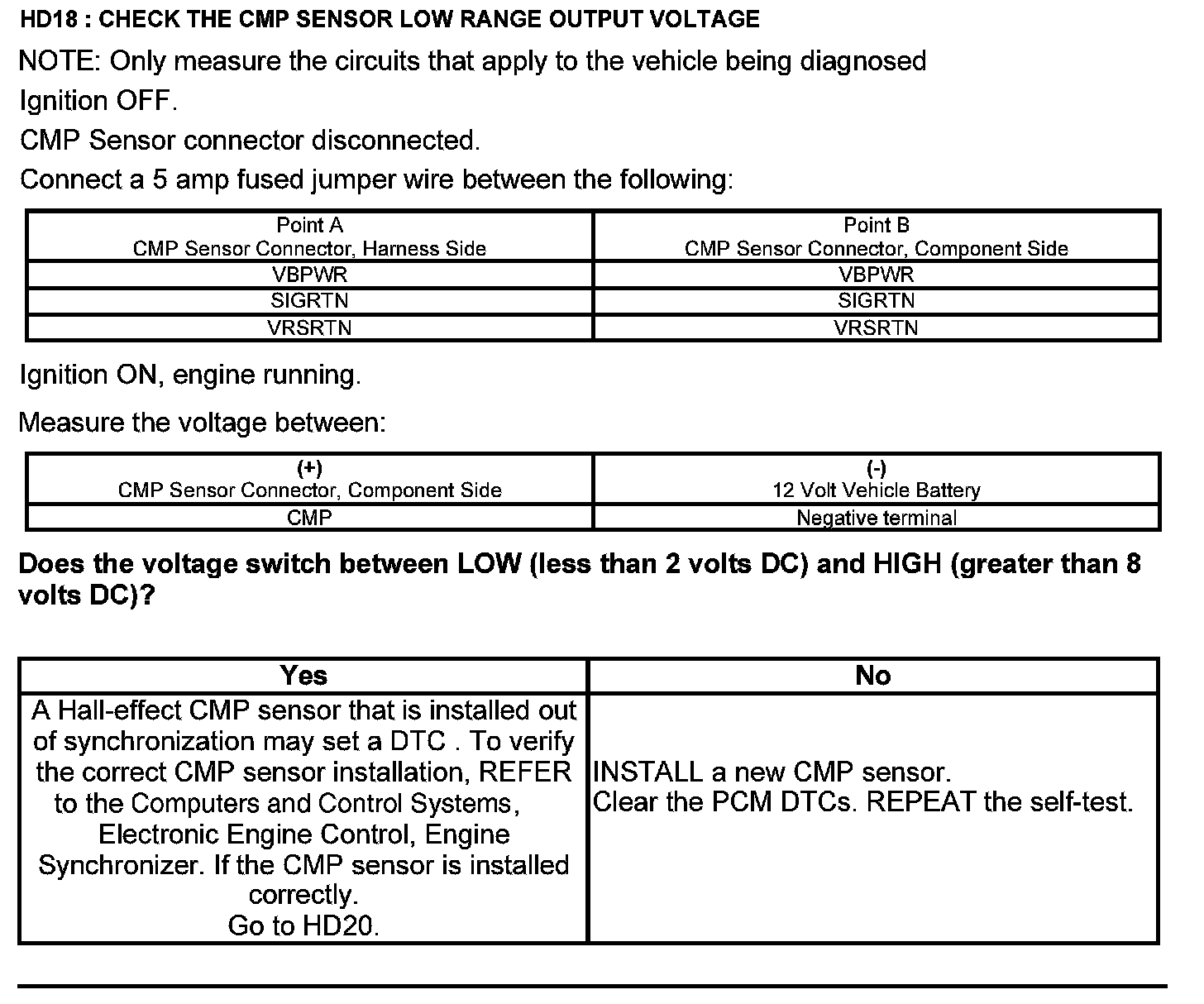

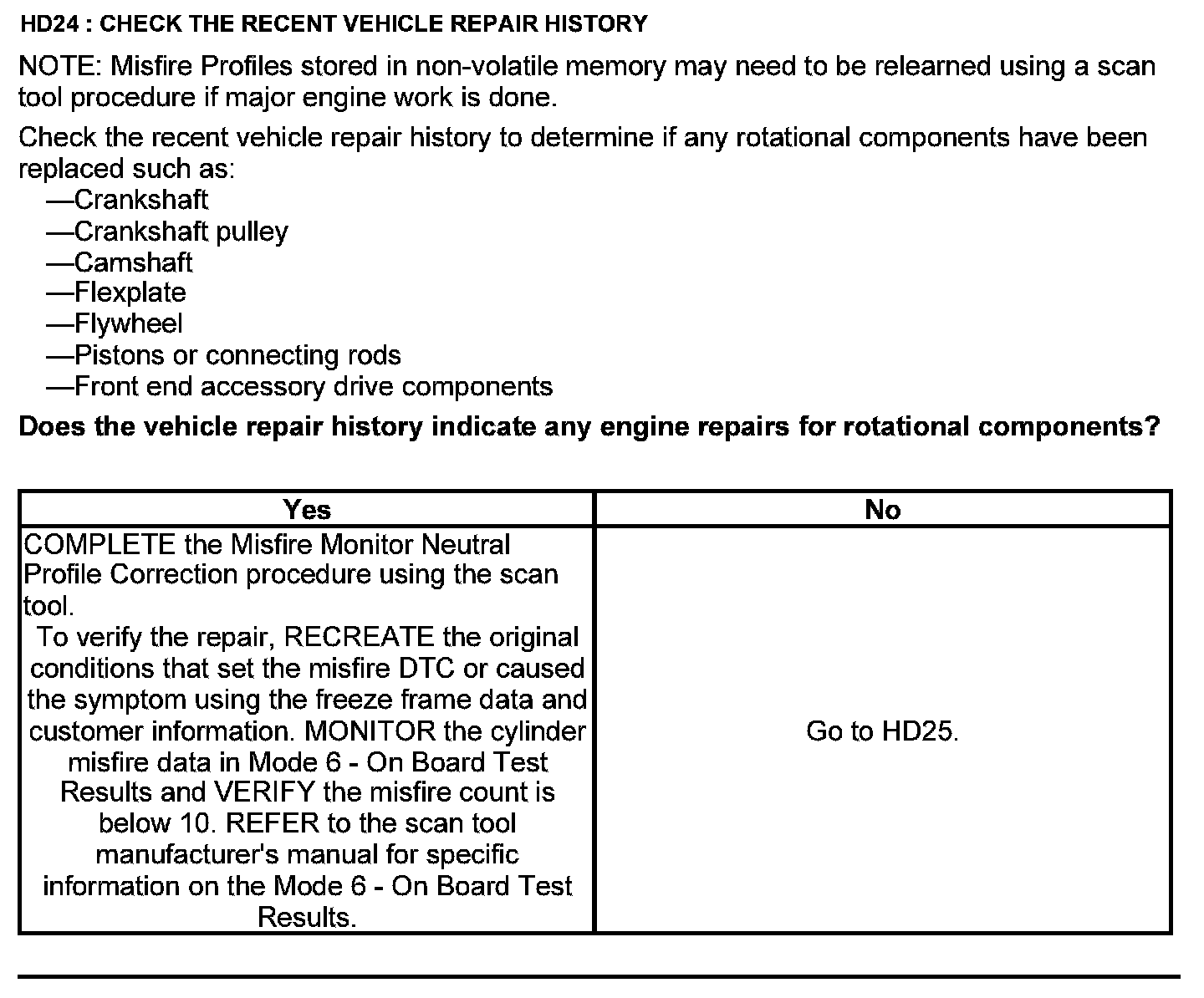

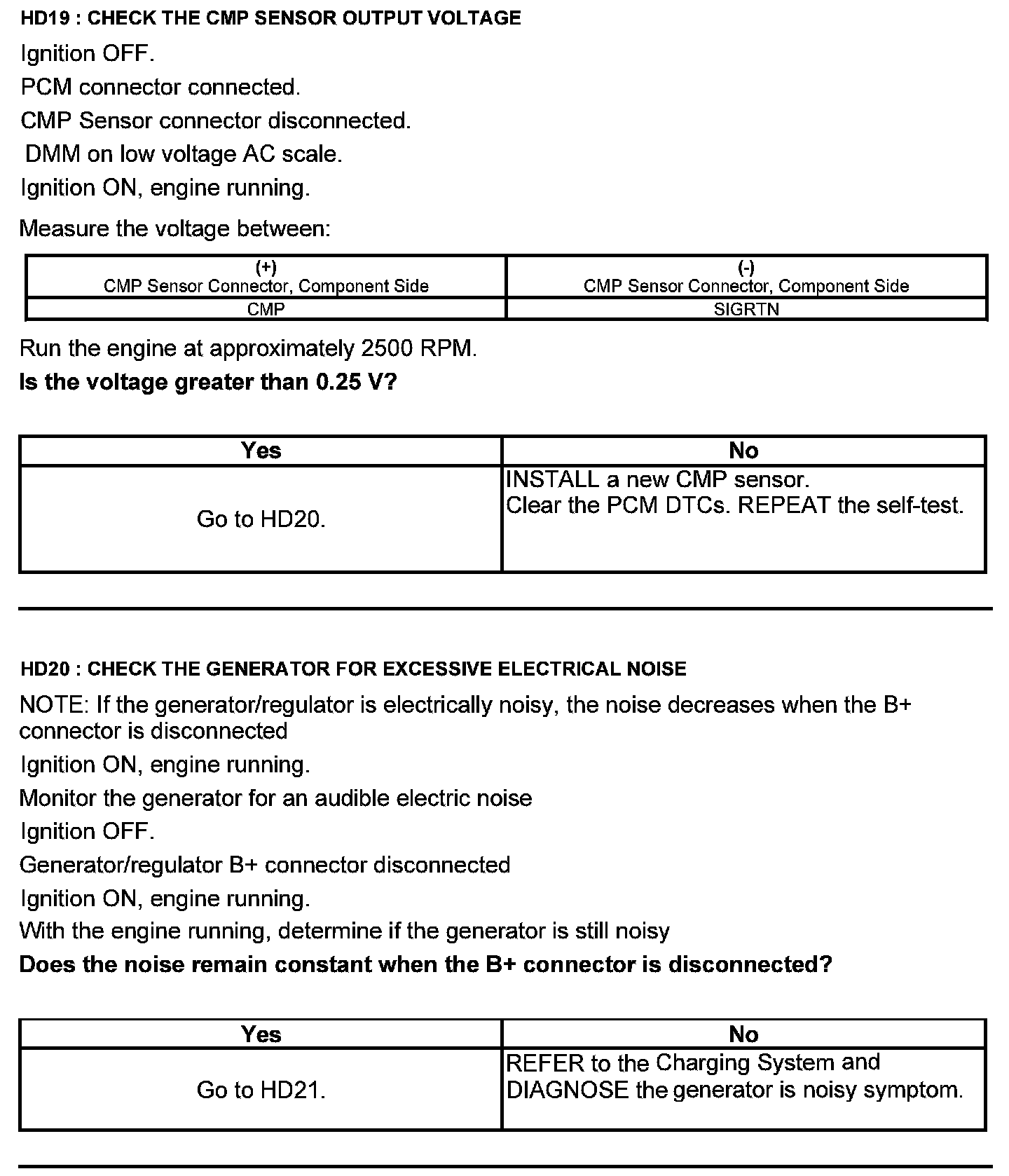

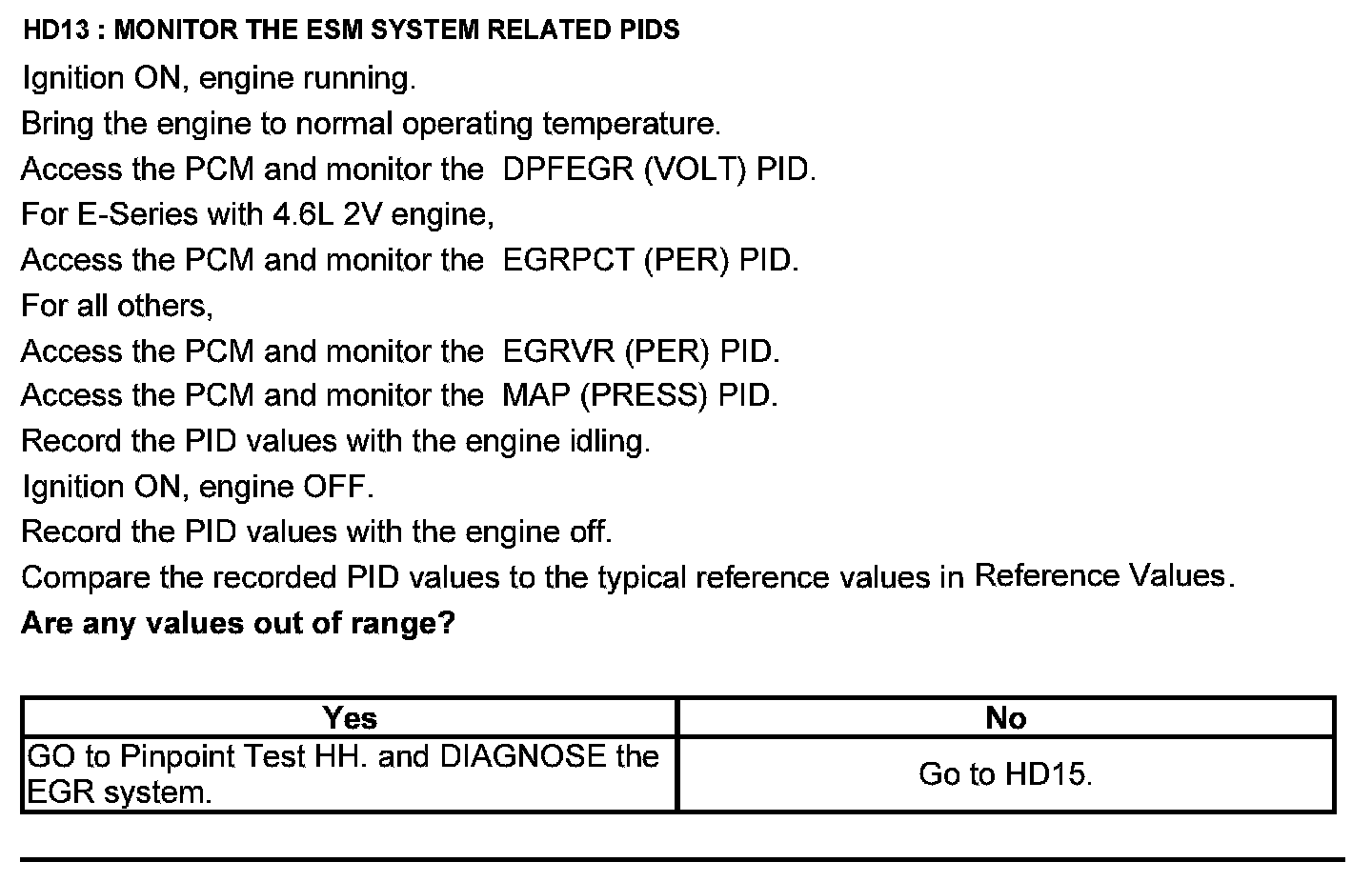

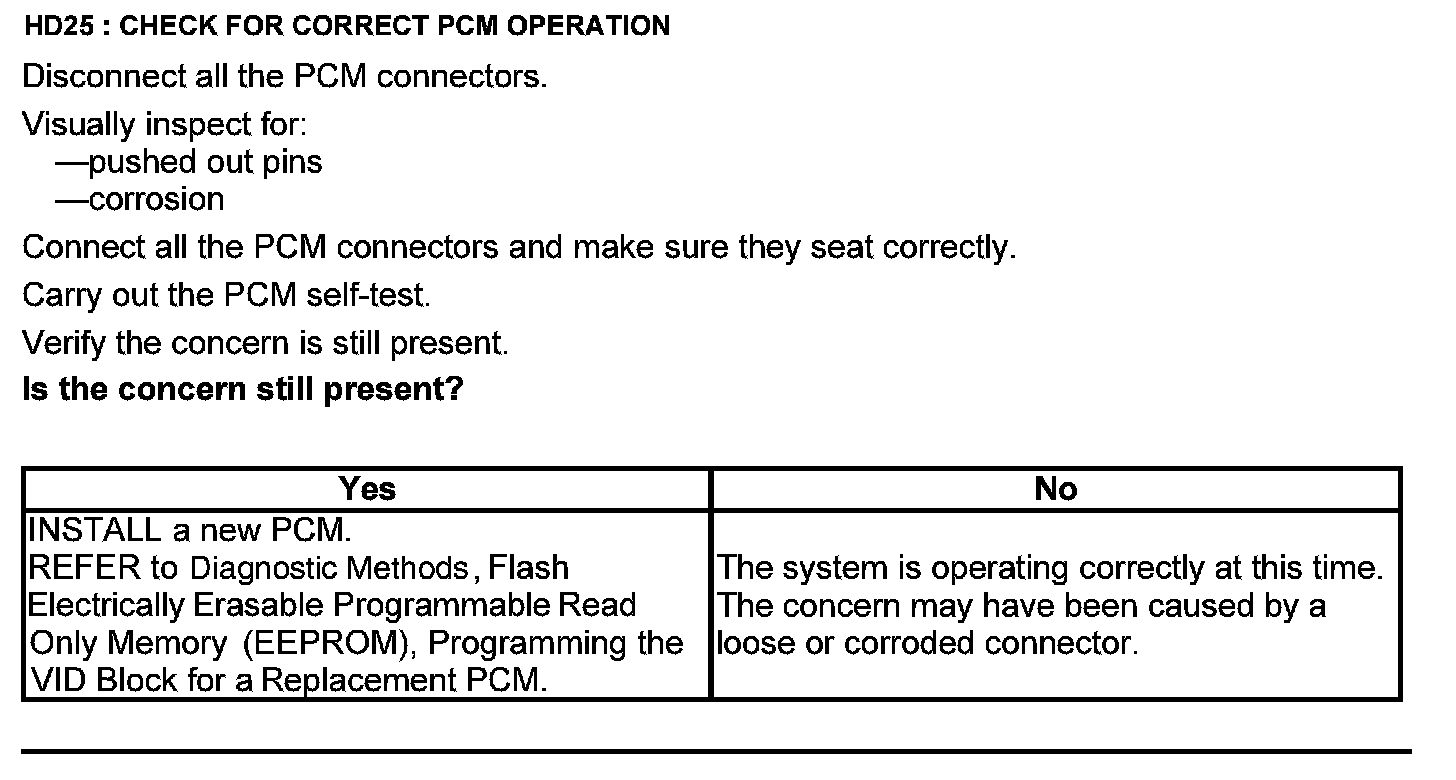

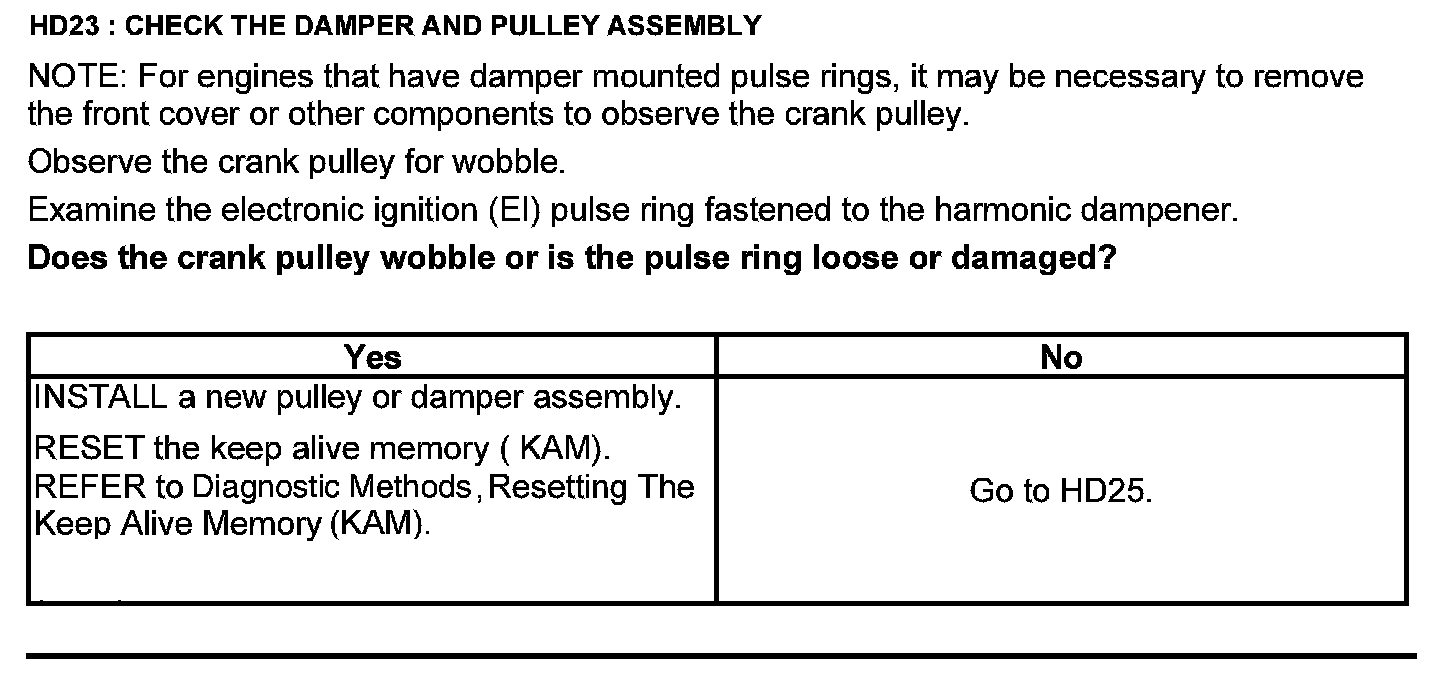

Misfire Detection Monitor - All Others

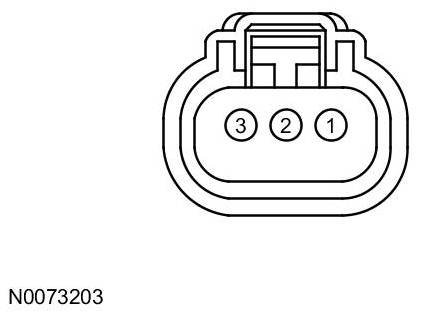

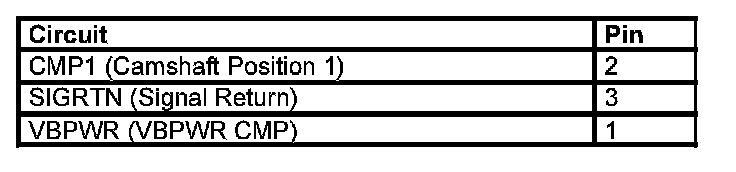

Camshaft Position 1 (CMP1) Sensor Connector





Harness Side
